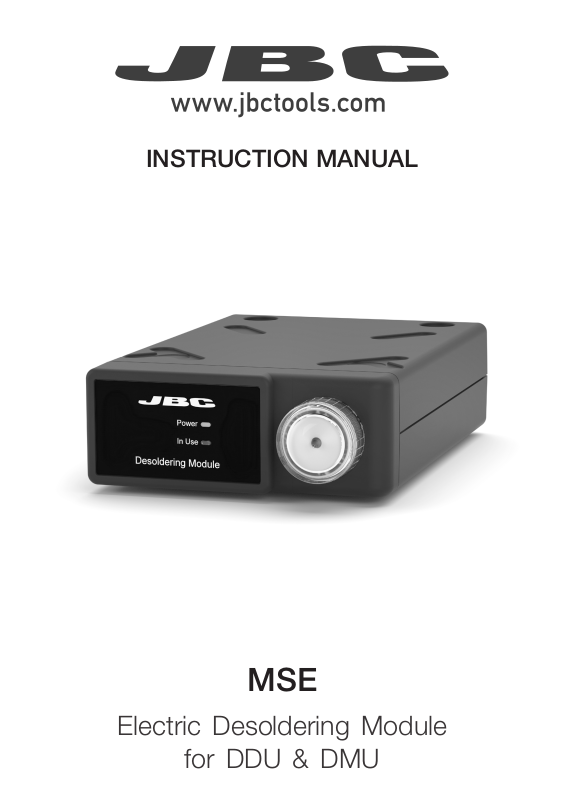

INSTRUCTION MANUAL

MSE

Electric Desoldering Module

for DDU & DMU

This manual corresponds to the following reference:

MSE-A

Packing List

The following items are included:

Electric Desoldering

Module ............................. 1 un it

Paper Filter Box ........... 1 unit

Ref. 0005966

Ref. contains 50 filters

2

Module Cable

connector ........................ 1 un it

Ref. 0024228

Cotton Filter Set ........... 1 uni t

Ref. 0781046

Ref. contains 10 filters

Suction Filter ..................1 u nit

Re f. 0 8218 30

Manual ............................ 1 unit

Ref. 0027988

Features and Connections

para manuales - color gris

“switch on” Indicator

Module

In Use Indicator

To
Control Unit

Compatibility

To Another Peripheral

Air Filter inside:
Paper Fi lter Ref. 0005966

To
Tool

To Pedal

Suction Filter
inside:
Cotton Filter Ref. 0781046

Select the equipment that best suits your soldering or desoldering needs.

Control Units Peripherals

DDU DMU P405

Module Stand Too l

MSE

DSS DS360 C360

DRS DR560 C560

Tips

Range

3

MSE MVE

Peripherals

Port 2-DR

19:29

Pedal None

Module None

Module

MVE_a

None

Peripherals

19:29

Port 1 2 3 4

MS a

?

PERIPHERAL

Peripheral 1 plugged:

Pneumatic Suction Module

Setup

Postpone

Peripherals

19:29

Port 1 2 3 4

MS a

PD a

?

Initial Set up

After connecting the module, enter the Peripherals Menu and select the port which
you want to join with the module.

Peripherals

For DDU Control Unit

1. Select the module from the list of peripheral

connections. Remember your first connection
is denoted as “a”, the second being “b”, etc.
(e.g. MSE_a, MSE_b,...)

2. Press Menu or Back to save changes.
Once set up, you can change the module
settings by entering the Peripherals Menu.

For DMU Control Unit

When a new module is detected, a pop-up
screen appears.

1. To configure your Electric Suction Module
press Setup in the popup window.

2. Select the module from the list of peripheral
connections.Remember your first connection
is denoted as “a”, the second being “b”, etc.
(e.g. MS_a, MS_b,...). Do the same with the
pedal (e.g. PD_a,...)

3. Select the port of the tool you want to link to
the peripheral.

4. Press Menu or Back to save changes.
Once set up, you can change the module
settings by entering the Peripherals Menu.

19:29

Peripherals

Pedal None

Module None

19:29

Port 2-DR

Module

MSE_a

None

?

Peripherals

Port 1 2 3 4

MS a

PERIPHERAL

Peripheral 1 plugged:

Electric Suction Module

Setup

Postpone

19:29

?

Peripherals

Port 1 2 3 4

MS a

PD a

4

Maintenance

para manuales - color gris

Before carrying out maintenance or storage, always unplug the equipment.

- Keep the casing clean by using a damp cloth. Specially use a soft cloth for the front side.

- Periodically check all cable and tube connections.

- Keep filters clean to ensure proper solder suction and replace them when necessary.

Important: Do not use sharp pointed objects to open the suction filter.

Suction Filter

Ref. 0821830

Cotton Filter s

Ref. 0781046

O Ring

Ref. 0007717

Filter Cover

Ref. 0004710

- Use original JBC spare parts only.

- Do not work with defective or damaged pieces.

- Repairs should only be performed by a JBC authorized technical service.

- Maintenance must not be carried out by children unless super vised.

Paper Filters

Ref. 0005966

5

Safety

It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded before
use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- The tool should be placed in the stand when not in use in order to activate the sleep mode. The
soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Avoid flux coming into contact with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced physical,
sensor y or mental capabilities or lack of experience provided that they have been given adequate
supervision or instruction concerning use of the appliance and understand the hazards involved.
Children must not play with the appliance.

- Maintenance must not be carried out by children unless super vised.

6

Notes

para manuales - color gris

7

para manuales - color gris

Specifications

MSE
Electric Desoldering Module for DDU & DMU

Ref.: MSE-A

- Net Weight: 1.22 kg / 2.69 lb

- Module Dimension (L x W x H): 225 x 145 x 55 mm / 8.86 x 5.71 x 2.17 x in

- Vacuum: 75% / 570 mmHg / 22.4 inHg

- Flow rate: 9 SLPM

- Ambient Operating Temperature: 10 - 40 ºC / 50 - 104 ºF

- Pedal Connection

- Total Package Dimensions / Weight: 280 x 195 x 115 mm / 1.53kg
(L x W x H) 11.02 x 7.68 x 4.53 in / 3.36 lb

Complies with CE standards.
ESD safe.

Warranty

JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.

0027988-030622
