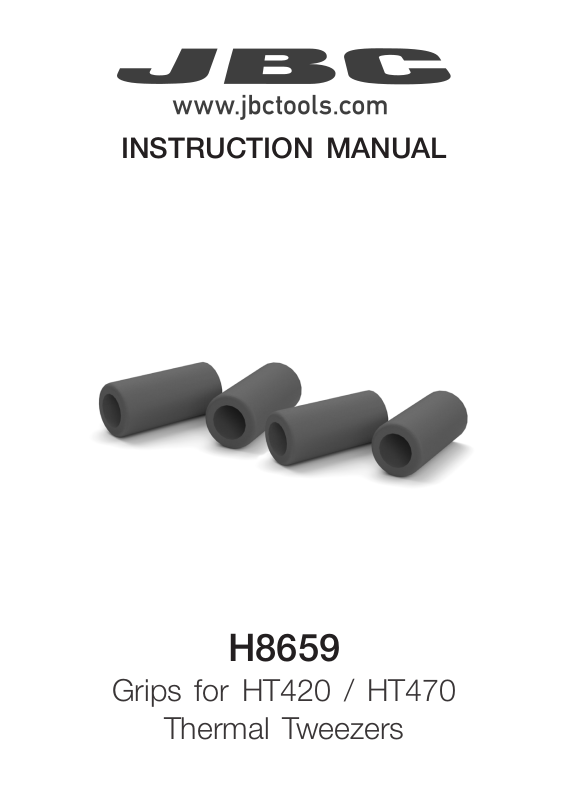

INSTRUCTION MANUAL
H8659
Grips for HT420 / HT470
Thermal Tweezers
This manual corresponds to the following reference:
00 18659 green
Packing List
The following items are included:
Grips for HT420 / HT470 Thermal Tweezer........................ 4 un its
Fitters ............................... 4 units
2
Manual ........................... 1 unit
Re f. 0 028131
HT420
www.jbctools.com
Changing Grips
Replace the grips easily using the included fitters like shown in the
following pictures.
1. Inserting Fitters
Fitter
New Grip
2. Assemble Grip
3. Removing Fitters
Hold this way
so the fitters
can slide
Insert the fitters into the new
grip.
Push the grip with the fitters
onto the tweezers.
To remove the fitters, hold the
grip and pull the fitters out.
Use pliers if necessary.
3
para manuales - color gris
Specifications
H8659
Grips for HT420 Thermal Tweezers
Ref.: 00 18659 green
- Grip Dimensions: 26 x ø12 mm / 1.02 x ø0.47 in
- Total Net Weight: 4.27 g / 0.009 lb
- Package Dimensions/Weight: 90 x 55 x 40 mm / 15.83 g
(L x W x H) 3.54 x 2.17 x 1.57 in / 0.035 lb
Complies with CE standards.
ESD safe.
Warranty
JBC’s 2 year war ranty covers this equipment against all manufacturing defects,
including the replacement of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must be returned, postage pai d, to
the dealer where it wa s purchased.
This pro duct should not be thrown in th e garbage.
In accordance with the European directive 2012/19/EU, electronic
equipment at the end of i ts life must be collected and returned to an
authorized recycling facility.
0028131-1221
