www.jbctools.com
INSTRUCTION MANUAL
FAE2 H13 Filter
Ref. FAE2-100
Packing List
The following items should be included:
FAE2 H13 Filter .......................................... 1 un it
Ref. FAE 2-100
(Includes pre filter and cer tificate)
Manual ........................................................... 1 unit
Ref. 0020107
www.jbctools.com
INSTRUCTION MANUAL
FAE2 H13 Filter
Ref. FAE2-100
2
Features
H13 f il ter
+ Pre filter
Ref. FAE 2-100
www.jbctools.com
M5 Pre filter
Ref . FA E 2-110
Important:
Before using, unseal
the filter and remove
the bottom protection
of the compact filter.
Fume Extractor
Ref. FAE 2-5A
3
Replacement
- The unit notifies through both the display
and the LED when filters need maintenance.

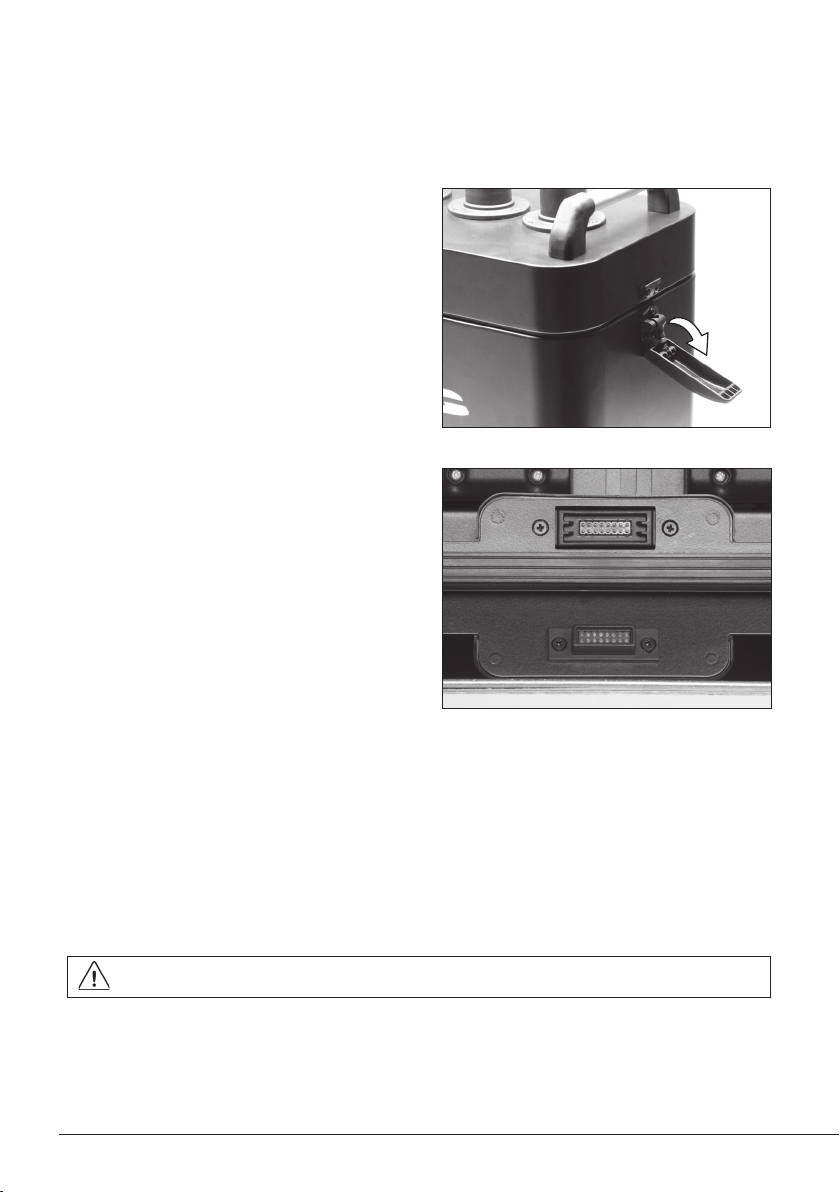

- To replace the filters, first turn the fume
extractor off. Then remove the cover by
opening the side closures of the casing.
- If once the pre-filter has been changed the
saturation indicator is on, it means that the
main filter is already saturated and must
be replaced too.
- The duration of the main filter is 1 year
maximum once its packaging is opened.
- Once the compact filter has been replaced,
the filter counter must be reset.
(Main Menu > Filter set > Reset)
- If the display shows an error message when
the equipment is switched on, it is probable
that the cover and casing connectors are
dirty and making false contact between
them. Remove the cover again and clean
both connectors.
Read safety guidelines to do the equipment maintenance securely.
4
Control Process
Filter Menu
Main menu
1 Reset
2
3
4 Filter set
5 Counters
6 Program version
Warning & Errors
Exit
Unit
Port
Filter set
1 Carbon life 80%
2 Saturation 20%
3 Reset carbon
Back
Filter set
1 Carbon life 80%
2 Saturation 20%
3 Reset carbon
Back
Filter set
1 Carbon life 80%
2 Saturation 20%
3 Reset carbon
Back
www.jbctools.com
Shows % of remaining life of the
carbon filter contained inside the
main filter. It is also displayed on
the main screen.
Shows % of saturation level of
HEPA + carbon filter set. It is also
displayed on the main screen.
Perform this action when changing
the HEPA + carbon set filter. The
carbon life counter doesn’t start
until the filter is detected for the
first time.
WARNING # 1
Useful filter life is about to
wear out. In X days the filter
life is going to finish.
The unit notifies when filters need maintenance.
STOP # 1
Useful filter life is worn out.
Replace it and execute reset
function in the filter menu.
The unit stops working when filters have to be replaced.
WARNING # 2
Filter is about to obstruct.
STOP # 2
Filter obstructed. Replace
the pre-filter, if the error
remains, replace the
HEPA+carbon filter set.
STOP # 3
Filter not detected. Place
a filter in order to use the
fume extractor.
5
Safety
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
- The equipment is only designed to filtrate the fumes generated by soldering.
- Do not use the units for the filtration of combustible, explosive or corrosive gases.
Incorrect use may cause fire.
- Maintenance must not be carried out by children unless supervised.
- Keep your workplace clean and tidy. Wear appropriate protective mask, glasses and gloves when
handling dirt filter or pre-filter.
- Saturated filters can not be cleaned and reused.
- Avoid blowing the filter or the dirty parts of the equipment, if necessary it is advisable to vacuum.
- Avoid losing particles in the unit during handling of the filter.
- Treat the saturated filters as waste depending on the filtered contaminant and the applicable
standars in each country.
European Waste Catalog classification:
15 02: Absorbents, filter materials, wiping cloths and protective clothing.
15 02 02: Absorbents, filter materials (including oil filters not otherwise specified, wiping cloths,
protective clothing contaminated by dangerous substances.
15 02 03: Absorbents, filter materials, wiping cloths and protective clothing other than those
mentioned in 15 02 02.
- In case of not complying with the filter change recommendations, the maximum particle and gas
concentrations established in each country could be exceeded.
6
Notes
www.jbctools.com
7
Specifications
- Net Weight: 4,5 kg (9.9 lb)
- Dimensions: 450 x 205 x 185 mm (17.72 x 8.07 x 7.28 in)
- Pre-filter: Medium dust filter M5 (EN 779)
- Main Filter: H13 particle filter (EN 1822)
Activated carbon filter
Complies with CE standards.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cove r product wear or misuse.
In order for the warrant y to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
This product should not be thrown in the garbage.
Saturated filters must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
www.jbctools.com
0020107-0918
