INSTRUCTION MANUAL
DSS / DRS
Stand for Desoldering Iron
This manual corresponds to the following references:
DS-SF (for DS360)
DR-SF (for DR560)

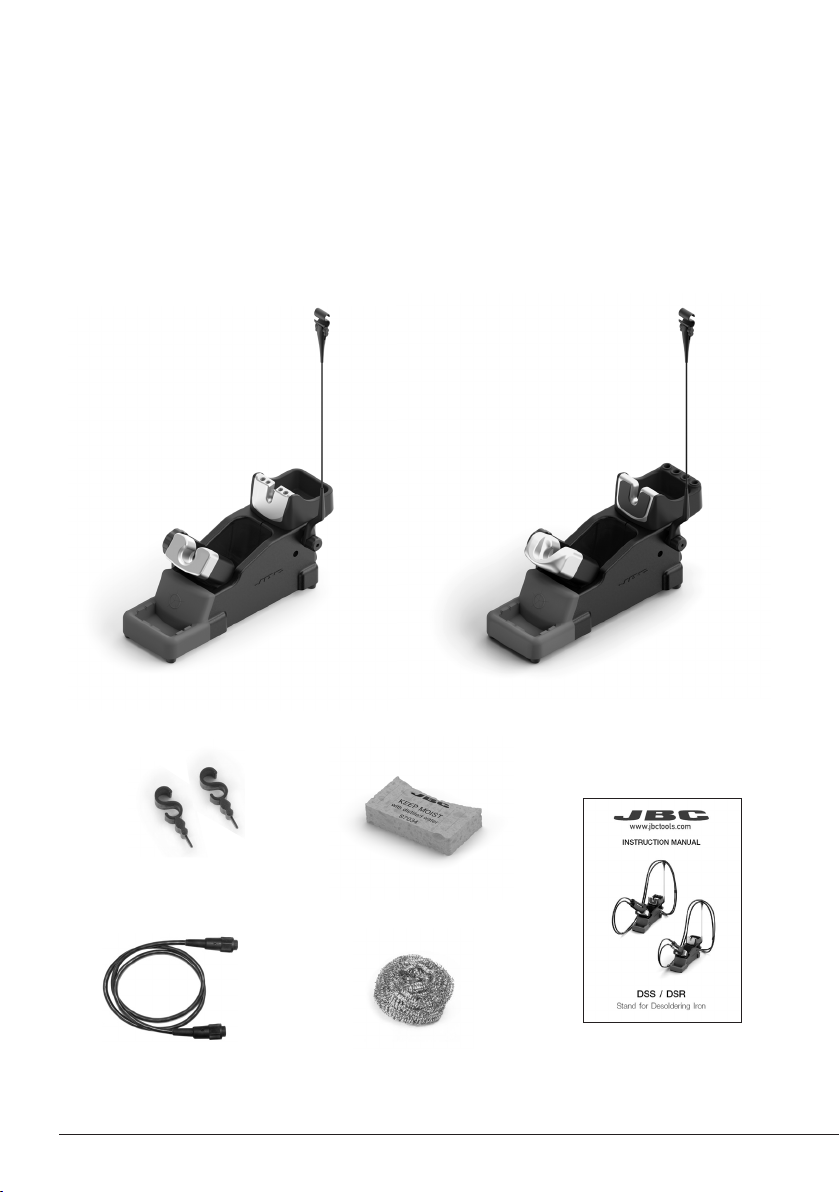

Packing List
Box includes one stand according to purchased reference.
Stand for
DS360 Micro Desoldering Iron ............ 1uni t
Cable Holder Set .......... 1 unit
Ref. 0024028 (includes 2 pieces)
Stand Cable 1m ............ 1 unit
Ref. 0 024227
Sponge for Modular
Tool Stands ................... 1 unit
Ref. S7034
Brass Wool .................... 1 u ni t
Ref. C L6210
2
Stand for
DR560 Desoldering Iron ..................... 1 unit
Manual ............................. 1 unit
Re f. 002718 3
Features and Connections
Quick Tip Changer
Ajustable Tool Holder
Brass Wool
(inside)
Sponge
www.jbctools.com
Adjustable
Cable Collector
Re f. C C10 01
Tip Storage
To Control Unit
Wiper for
Modular Tool Stand
Ref. C L7899
To To ol
3
Assembly
Cable Collector and Adjustable Tool Holder
Insert the cable into the clip
and then insert into the cable
collector. Do not leave the
cable longer than necessary
to reach the work area freely.
The cable collector is flexible.
It accompanies and adapts
to the movements during the
soldering process.
Adjust the tool holder angle to
suit the work position.
The wiper offers different ways to
clean the cartridge tips. If desired
use the included sponge.
4
www.jbctools.com
Tip Cleaner
Select the option to suit your needs and improve the thermal transfer of the tip.
Brass Wool
Ref. C L6210
Very effective cleaning method. Leaves a small layer of solder on
the tip preventing oxidation between cleaning and rewetting.
If the tip is ver y dirty, JBC recommends first the cleaning with the
wiper to remove excess solder.
Wiper
The integrated wiper offers different ways to clean the cartridge tips.
Tappi n g Wiping Sponge
Tap gently to remove excess
solder.
Use the slots to remove the
remaining particles.
The softest cleaning method.
Keep the sponge damp with
distilled water when working to
avoid tip wear.
5

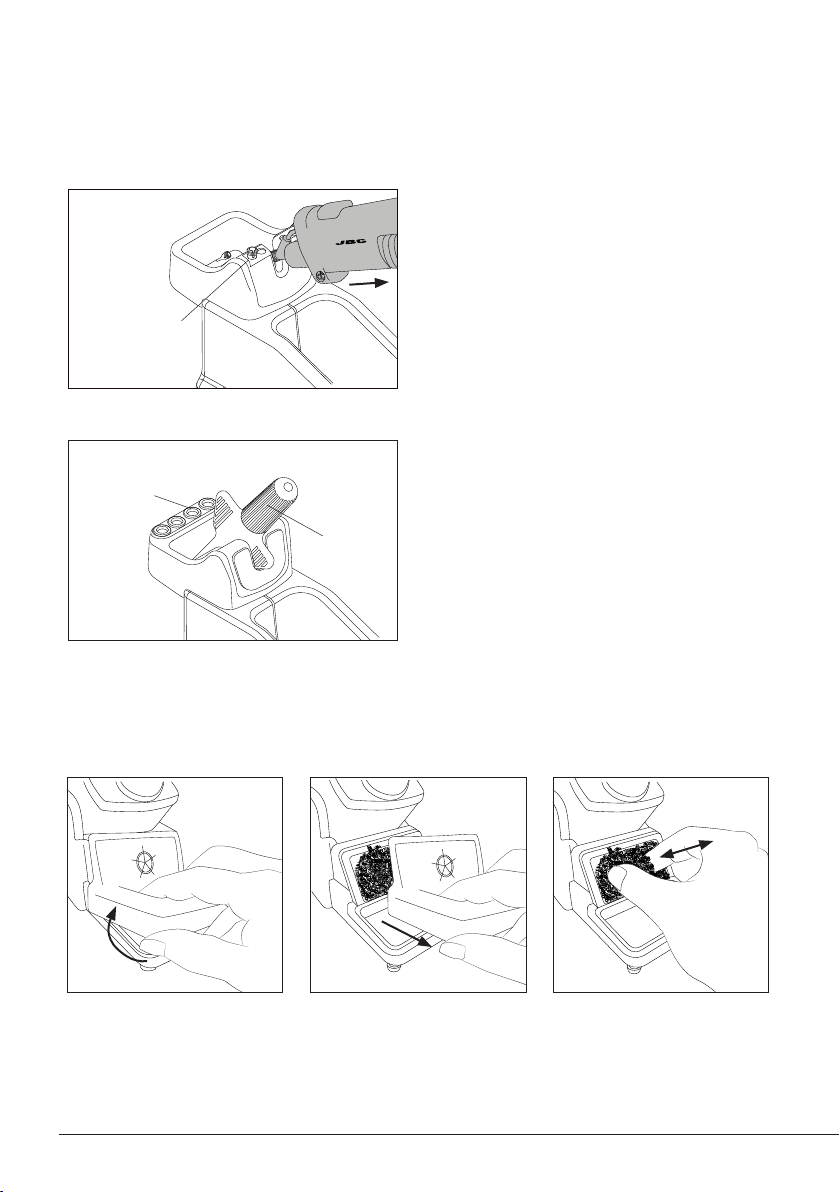

Tip Extractor
Ref. DS-SF
Tip Storage
Ref. DR-SF
Place the Soldering Iron with the assembled tip
in the extractor groove, pull the tool towards and
DS360
remove the tip.
Put on the new tip and press slightly to ensure
its correct postion.
Unused tips can be stored in the extractor
openings.
Tip Storage
Spanner
The Spanner is used to unscrew and replace
the tips. When not in use it can be stored inside
the extractor.
Unused tips can be stored in the extractor
openings.
Wiper and Brass Wool Replacement
The wiper and brass wool can easily be removed for cleaning or replacement when they are worn.
Lift the wiper at its front edge.
Remove the wiper by pulling
it out.
Replace the brass wool with a
new one when it is worn out.
Place the wiper back o replace
them if desired.
6

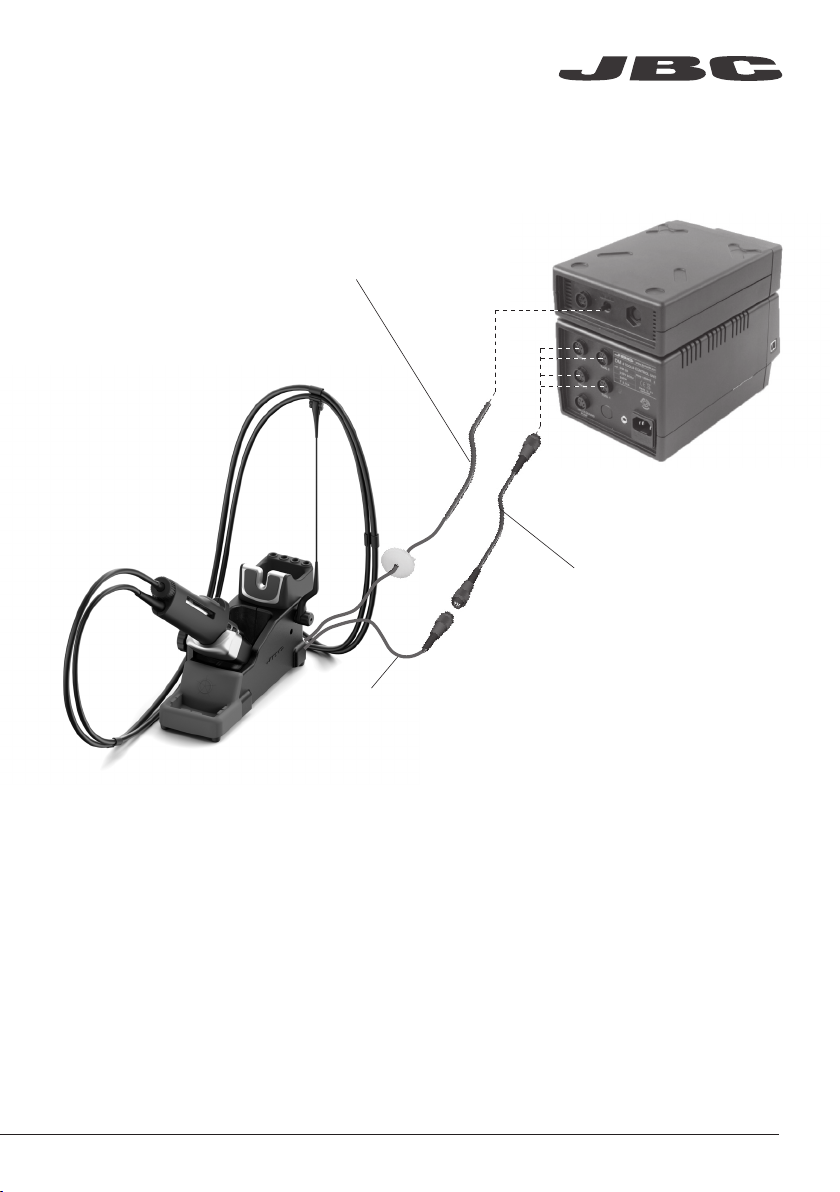

Accessories
www.jbctools.com
Suction Extension Tube Kit
Ref. A1287
Length: 1.5m
Stand extension cable
Ref. A1286
Length: 1.5m
Stand cable
7
Maintenance
Before carrying out maintenance or storage,
always unplug the stand from the station and
the tool.
- Use a damp cloth to clean the stand.
Alcohol can be used only when cleaning
the metal par ts.
- Check periodically that the metal parts of
the tool/stand are clean so that the station
can check the tool’s status.
- Periodically check all cables and tube
connections.
- Replace any defective or damaged parts.
Use original JBC spare parts only.
- Repairs should only be per formed by a
JBC authorized technical service.
Clean periodically
8
www.jbctools.com
Safety
It is imperative to follow safet y guidelines to prevent electric
shock, injury, fire or explosion.
- Do not use the stand for any other purpose than soldering or rework.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.
- Avoid the contact of flux with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
9
Notes
10
Notes
www.jbctools.com
11
para manuales - color gris
Specifications
DSS
Stand for DS360 Micro Desoldering Iron
Ref.: DS-SF
- Includes Sleep Mode
- Total Net Weight 1500 g / 3.31 lb
- Package Dimensions/Weight 1062 g / 2.34 lb
(L x W x H) 342 x 155 x 120 mm / 13.46 x 6.10 x 4.72 in
DRS
Stand for DR560 Desoldering Iron
Ref.: DR-SF
- Includes Sleep Mode
- Net Weight 2172 g / 4.79 lb
- Package Dimensions/Weight 1608 g / 3.55 lb
(L x W x H) 342 x 155 x 120 mm / 13.46 x 6.10 x 4.72 in
Complies with CE standards
ESD protected
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 3 0 days of purchase.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an author ized recycling facility.
00 27 18 3- 012 2
