JBC Tools DR560 User Manual

INSTRUCTION MANUAL

DR560

Desoldering Iron

This manual corresponds to the following references:

DR560-A
5650020 - Desolering Iron only

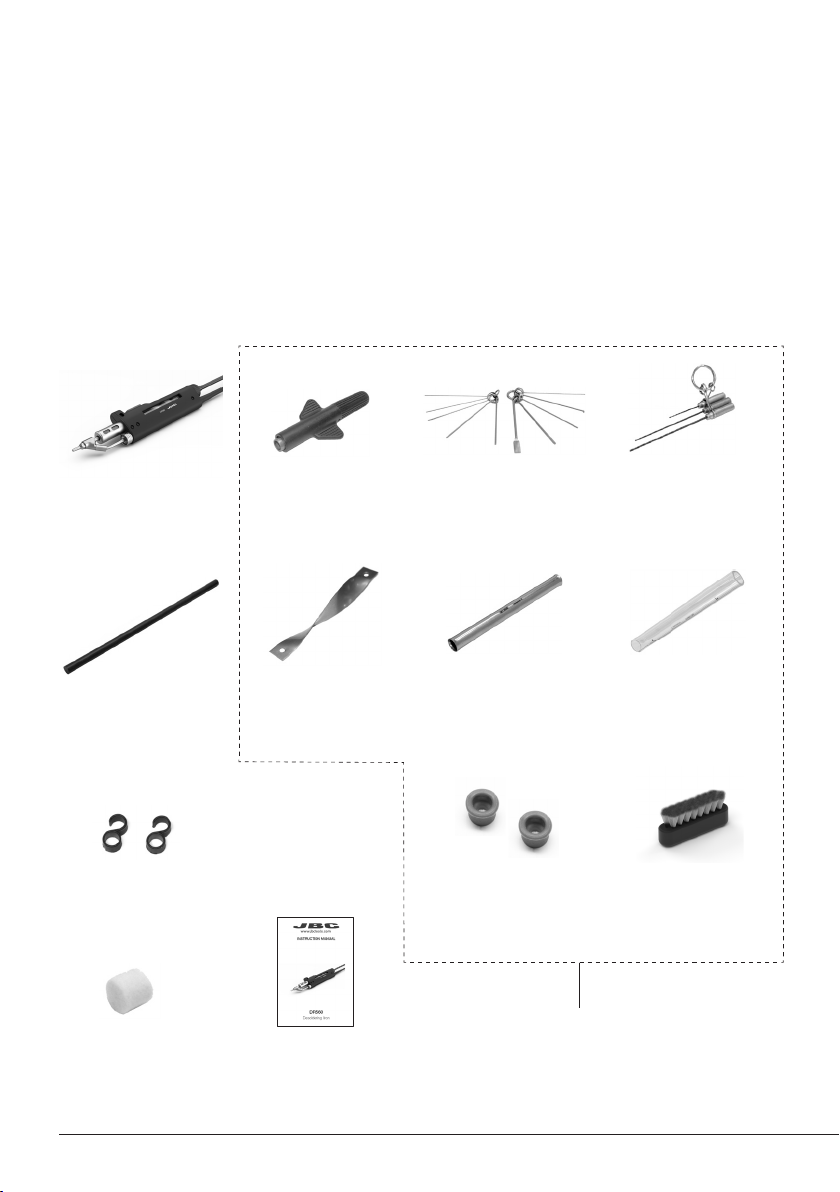

Packing List

The following items are included according purchased order reference:

Desoldering

Iron .................... 1 unit

Tip Ref. C560 003
Through-Hole Desold. Ø 1
already inserted

Cleaning

stick ................... 1 unit

Ref. 0786640*

Union

Flanges ........... 2 units

Ref. 00113 5 6 *

Filter box .......... 1 un it

Ref. 0780840*

Ref. contains 10 filters

Spanner ............ 1 unit

Ref. 0780550

Spiral Filter ...... 1 unit

Re f. 081233 0

Manual .............. 1 unit

Ref. 0028057

Tip Cleaning

Rods .................. 1 unit

Ref. 0965970

Metal Solder

Collector ......... 1 unit

Ref. 0812630

Internal

Gasket ............ 2 units

Re f. 0019208

Accessorie Set
for DR560

Ref. 0022820*

Drilled Tip Cleaning

Rods ................. 1 unit

Ref. 0965760

Glass Solder

Collector .......... 1 unit

Re f. 081262 0

Metal Brush ... 1 un it
Ref . CL6 217

* not supplied in Ref. 5650020

2

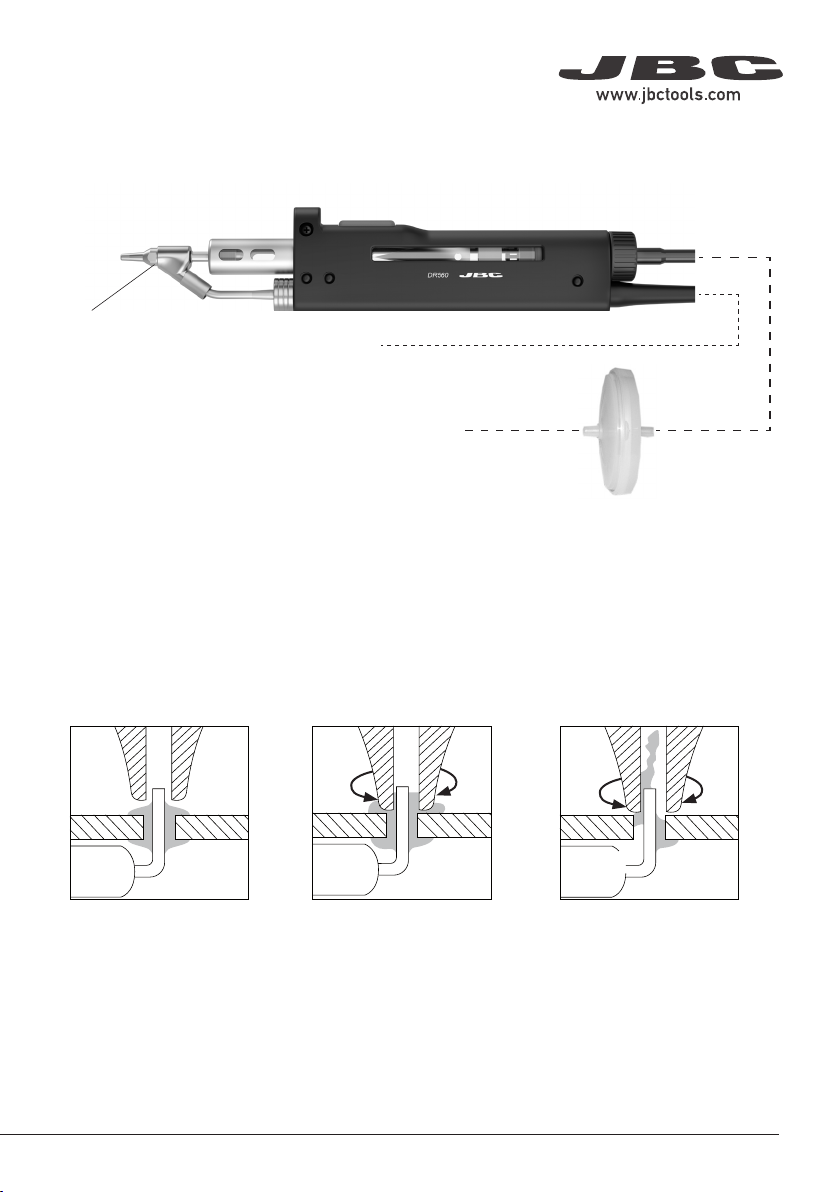

Features and Connections

para manuales - color gris

Desoldering Iron

Ref. DR560-A

Tip

Ref. C560003

to Stand

to Desoldering Module

Suction Filter

Re f. 08 21830

Supplied with desoldering module

Desoldering Process

Use a tip with a larger diameter than the pad to achieve ma ximum aspiration and thermal efficiency.

3. Aspirating1. Placing 2. Circular movement

Place the tip with the
component terminal in
the hole.

After pressing the desoldering key there is a slight delay until the self-contained vacuum pump
stops. This makes sure that the vacuum circuit is completely empty. If any solder remains are left
on a terminal after desoldering it, resolder it with fresh solder and repeat the desoldering operation.

When the solder joint
liquifies gently describe
circles around the pin.
Using the pin as the center
of your movement.

Press the vacuum pump
button long enough to remove
the solder.

3

DR560

DR560

DR560

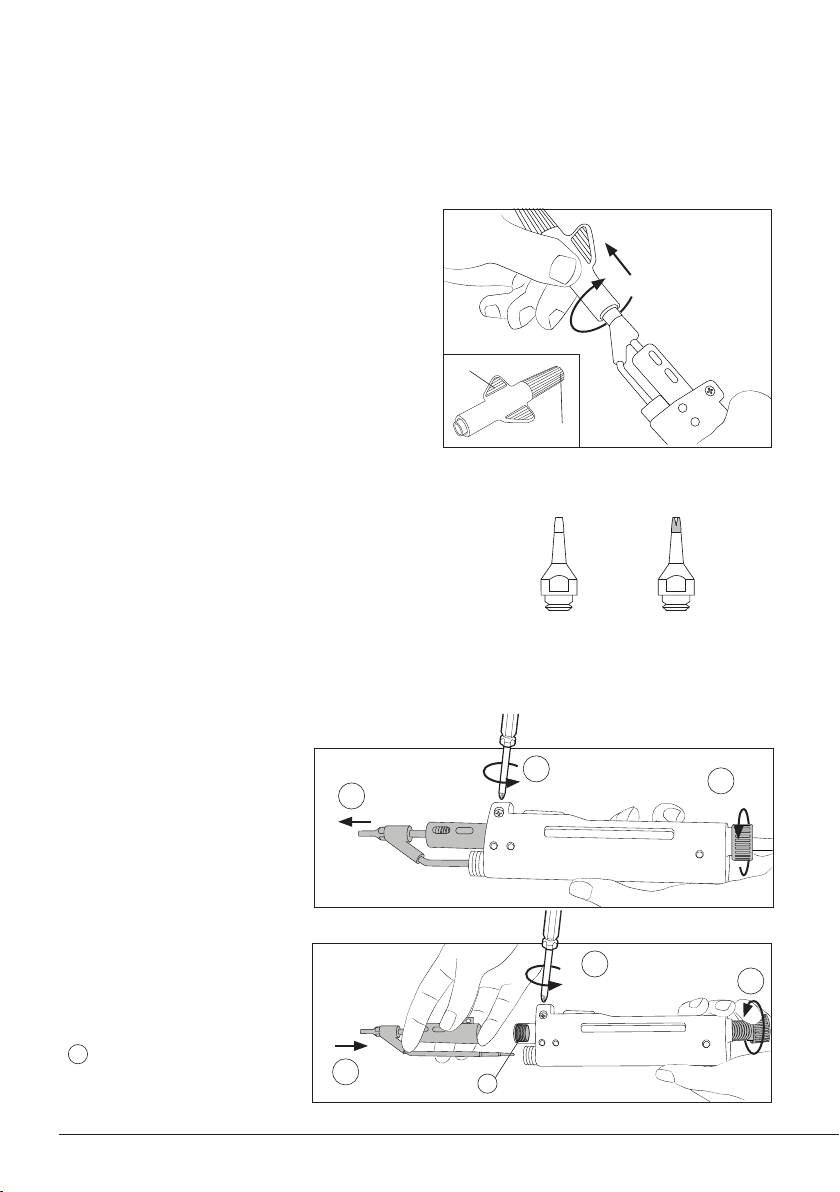

Changing Tips

This operation should be done while the tip is hot and at a minimum temperature of 250°C, so that
any tin left inside is still molten.

1. Removing

Use the special spanner to unscrew the tip.

Tip Temp.

min 250ºC

2. Inserting

Fit the new tip and tighten with the spanner
to make sure it is air tight.

Compatible Tips

DR560 uses C560 tips. Different sizes are
available for through-hole desoldering and for
pad cleaning. Find the model that best suits
your soldering needs at: www.jbctools.com

Remove

Insert

Through-Hole

Desoldering

Pad Cleaning

Changing the Heating Element (Ref. DSV-DR)

For this operation, turn off the station or disconnect the tool and wait until the tool temperature
drops to room temperature.

1. Removing

Loosen the deposit lid (a),
remove the screw (b)
and withdraw the heating
element (c).

c

b

DR560

a

2. Placing

Insert the new heating
element (a), tighten the screw
(b) and then the deposit lid (c).

!

Before inserting, make sure

the internal gasket is inserted
into the glass solder collector.

4

b

DR560

a

!

c

DR560

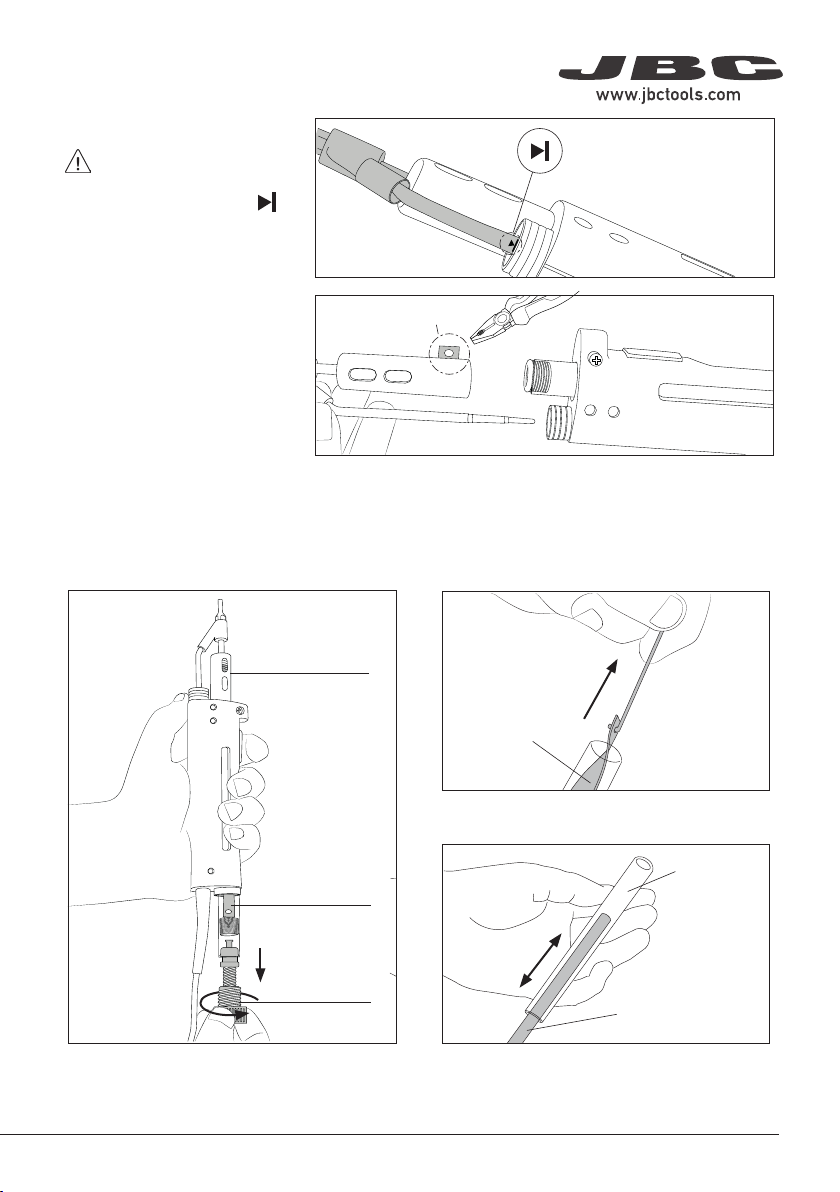

3. Connection

para manuales - color gris

For a proper connection it is
essential to insert the cartridge
by lining it up to the mark .

Compatibility

washer

The DSV-DR also works with
the previous version DR5600
Desoldering Iron (Ref. 5600010).
In this case, you must take out
the washer with a pliers.

Glass Solder Collector Cleaning

1. Removing the Lid 2. Cleaning

Check
Internal Joint

Coil Filter

DR560

Remove the coil filter, check the filter and replace
it if it is dirty or damaged.

Check Coil Filter

DR560

Glass Solder
Collector

Lid

The lid must be unscrewed with the DR560 in a
vertical position.

Cleaning Stick

Clean the inside of the glass solder collector with
the cleaning stick.

5

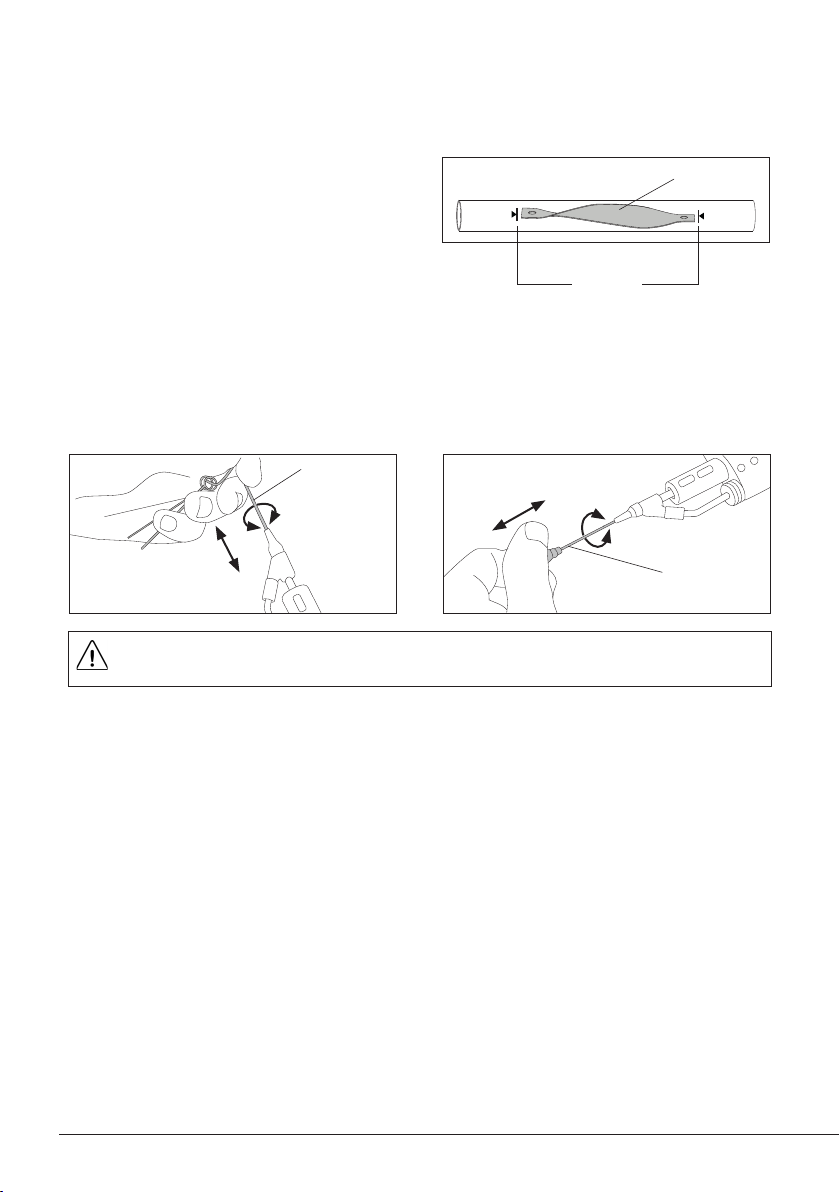

3. Inserting the Glass Solder Collector

The glass solder collector must be inserted with
the coil filter in place, positioned between the 2
lines marked.

Then the whole unit must be closed by
onscrewing the lid.

Marks

Tip Care

The intake tube should be periodically cleaned by the largest possible rod.

Tip Cleaning
Rod

Do not press the vacuum pump button while tinning the desoldering tip, as the fumes
given off by the flux would quickly block the ducts and the air filter.

Coil Filter

Drilled Tip
Cleaning Rod

Maintenance

Before carrying out maintenance or storage, always unplug the tool.

- Check periodically that the metal parts are clean to ensure it is detected when on the stand.
Always use a damp cloth or alcohol.

- Periodically check all cables and tubes connections.

- Replace any defective or damaged pieces. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

6

Safety

para manuales - color gris

It is imperative to follow safety guidelines to protect health and prevent electric
shock, injury, fire or explosions.

- Do not use the tool for any purpose other than soldering or rework. Incorrect use may cause fire.

- The mains cable must be plugged into approved bases. Make sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.

- The temperature of accessible surfaces may remain high after the unit is turned off.
Handle with care.

- Do not leave the appliance unattended when it is on.

- It is necessary to turn the station off before changing tips.

- Heat can cause inflamable products to ignite even when out of sight.

- Be careful with the remains of liquid tin. In contact with skin, it can cause burns.

- Avoid flux coming into contact with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.

- This appliance can be used by children over the age of eight as well as persons with reduced
physical, sensory or mental capabilities or lacking of experience provided that they have been
given adequate supervision or instruction concerning use of the appliance and understand the
hazards involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

7

para manuales - color gris

Specifications

DR560
Desoldering Iron (with accessories)

Ref.: DR560-A

- Total Net Weight: 413 g / 0.91 lb

- Package Dimensions / Weight: 306 x 131 x 71 mm / 559 g

- (L x W x H) 12.05 x 5.16 x 2.80 in / 1.23 lb

5650020
Desoldering Iron (without accessories)

Ref.: 5650020

- Total Net Weight: 268 g / 0.59 lb

- Package Dimensions / Weight: 306 x 131 x 71 mm / 393g

- (L x W x H) 12.05 x 5.16 x 2.80 in / 0.87 lb

Complies with CE standards
ESD safe

Warranty

JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.

Get 1 extra year JBC warra nty by registering here:
https://www.jbctools.com/productregistration/
within 3 0 days of purchase.

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.

0028057-021222
