Page 1
INSTRUCTION MANUAL
CLMS
Junior Tip Cleaner
Page 2
This manual corresponds to the following reference:
CLMS-B

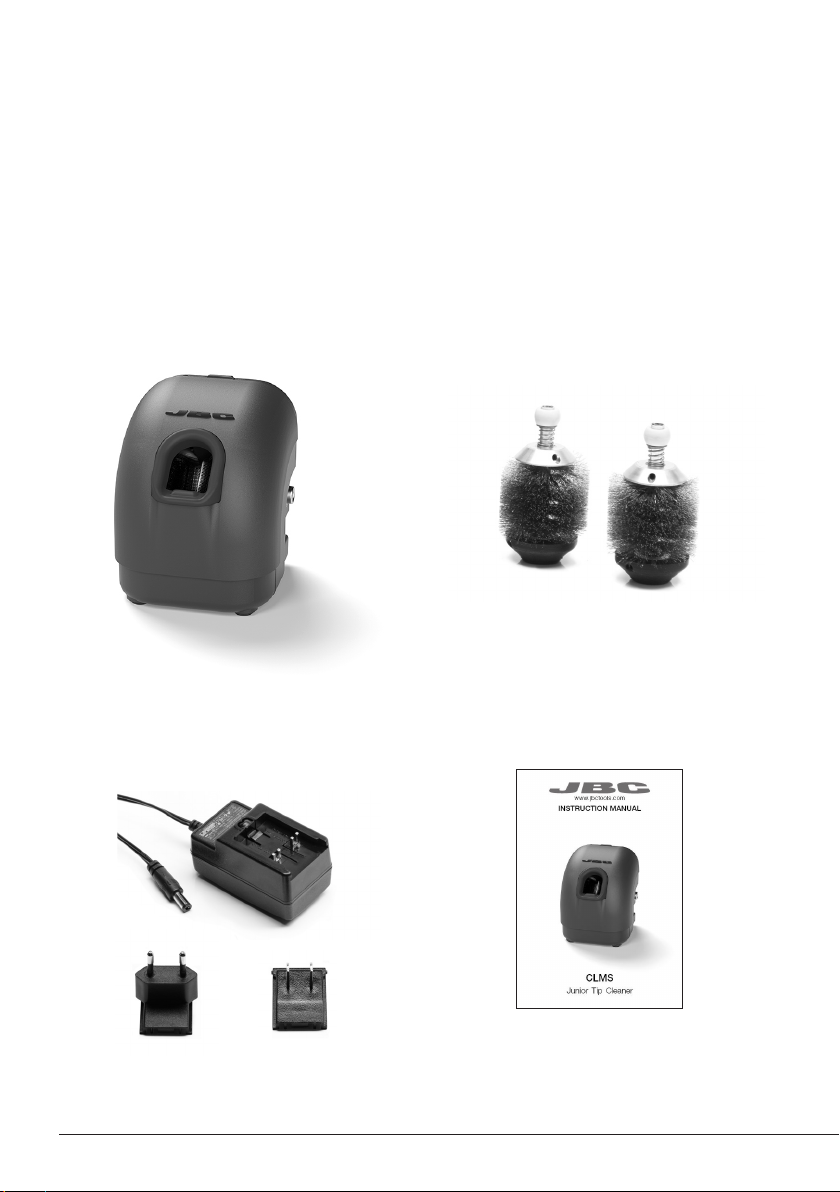

Packing List
The following items are included:
Junior Tip Cleaner .................................... 1 unit CLMS Metal Brushes ................................ 1 unit
Ref. CLMS-A8
USEU
AC Adapter ................................................. 1 unit
Re f. 0 015 971
2
Manual .......................................................... 1 unit
Ref. 0 0175 0 9
Page 3
www.jbctools.com

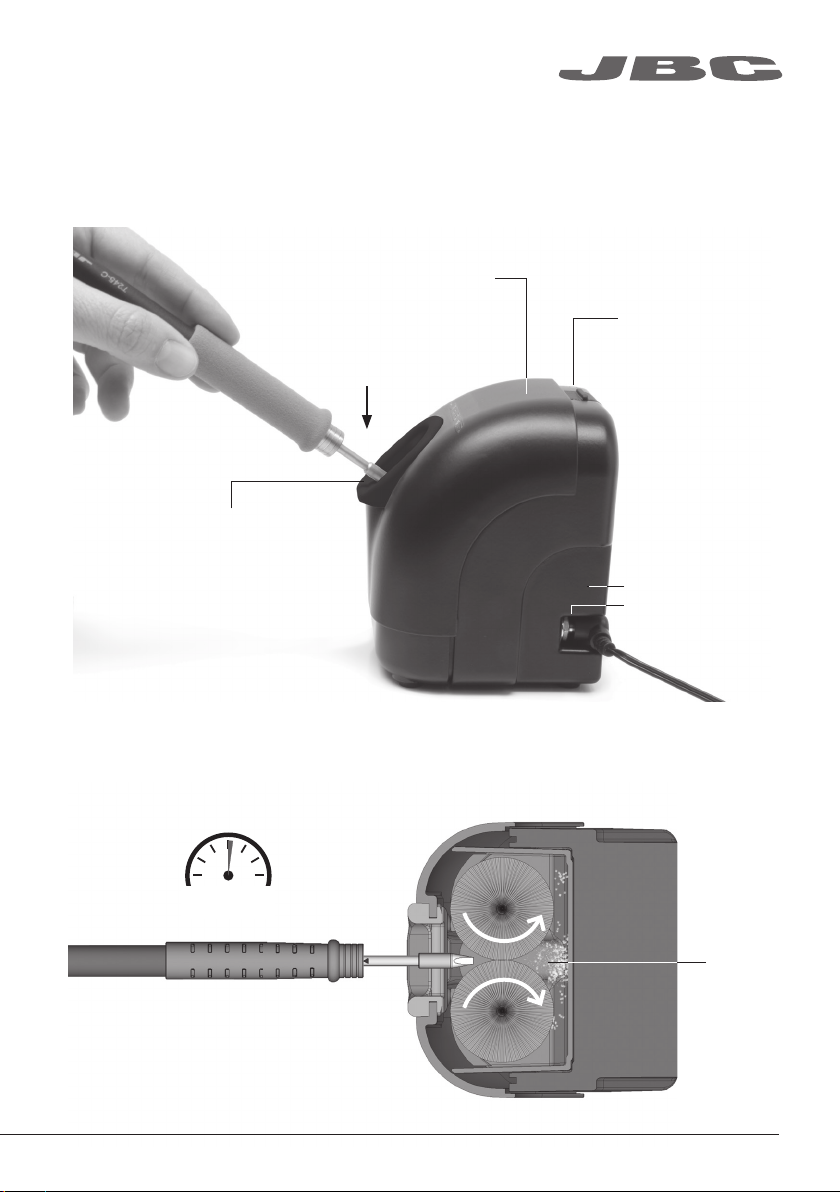

Features and Operation
The CLMS-B consists of 2 motorized brushes that are activated by pressing the button at the opening.
Splashguard
Keeps the work
area clean
Green light
Indicates when it
is activated
Button at the opening
Press here and the br ushes r un
for a few seconds
ESD safe connector
Power socket
For the best uniform cleaning, place the tip between the 2 brushes and turn it for at least 1 second.
Top view
1 sec.
Solder
waste
3
Page 4

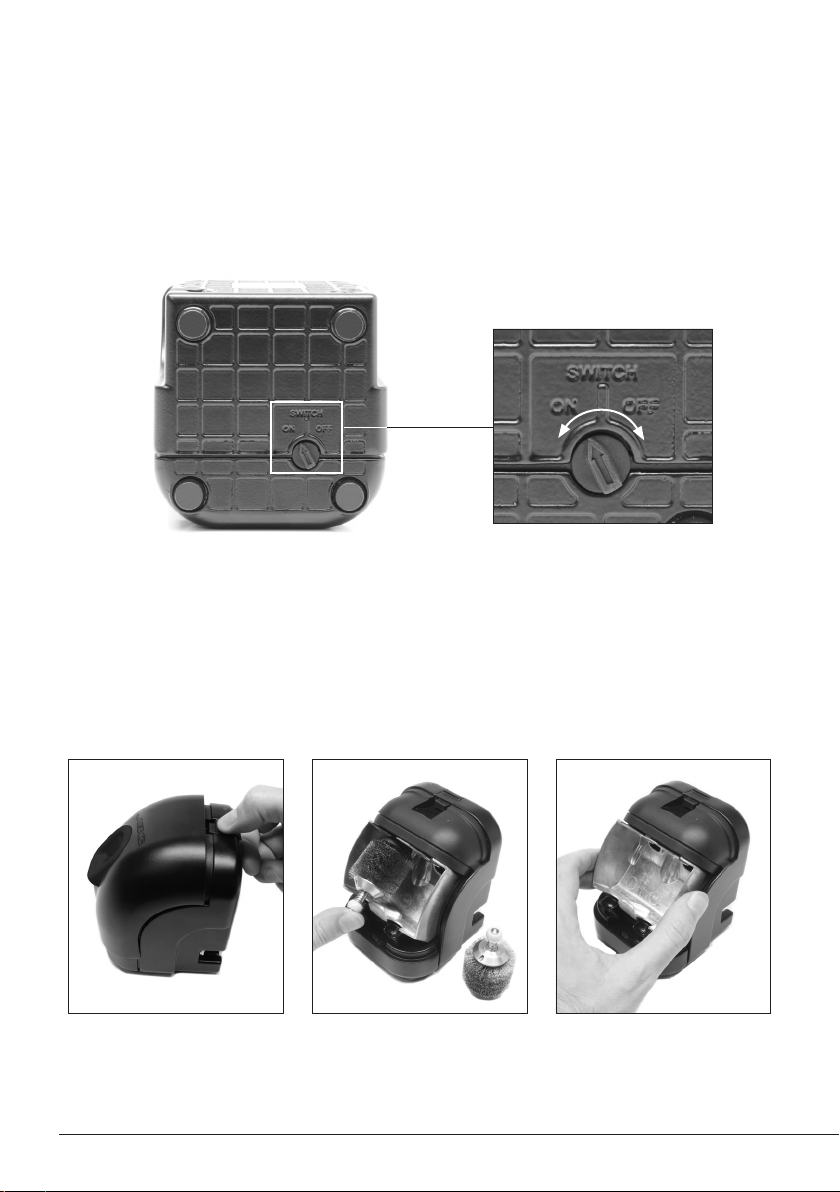

Continuous mode
The tip cleaner has a second operating mode whereby the brushes run continuously.
Bottom view
Switch ON/OFF
Turn the switch to OFF and
the brushes are activated in
continuous mode.
Changing brushes and cleaning
Replace the brushes easily and clean the solder collector tray as follows:
1. Opening the splashguard 2. Removing the brushes 3. Removing the solder
collector tray
Unplug from the mains and
press the tab at the top to
open the splashguard.
4
Remove by pulling out the
brush at the bottom end.
Once cleaned, return the tray
followed by the brushes.
Page 5

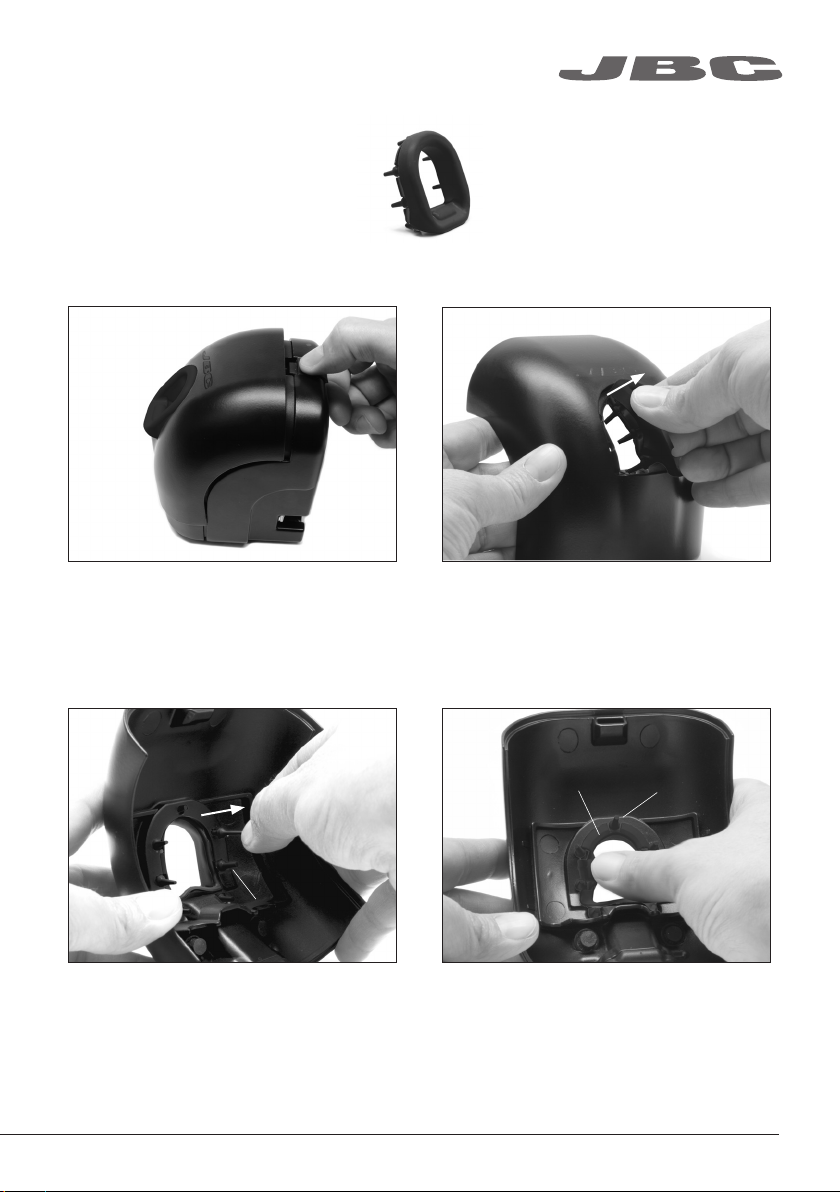

Changing Gate Protector
Easily replace the Gate Protector
(Ref. 0019138 ) as follows:
www.jbctools.com
2. Removing1. Opening
Unplug from the mains and slide the tab on the
top to open the splashguard.
Pull out the damaged gate protector.
3. Inserting 4. Pressing into place
rib cut the tabs
tabs
Insert the new one and when the tabs are
positioned pull them to secure the gate
protector in place.
Once in place, cut off the tabs to avoid contact
with the brushes.
5
Page 6

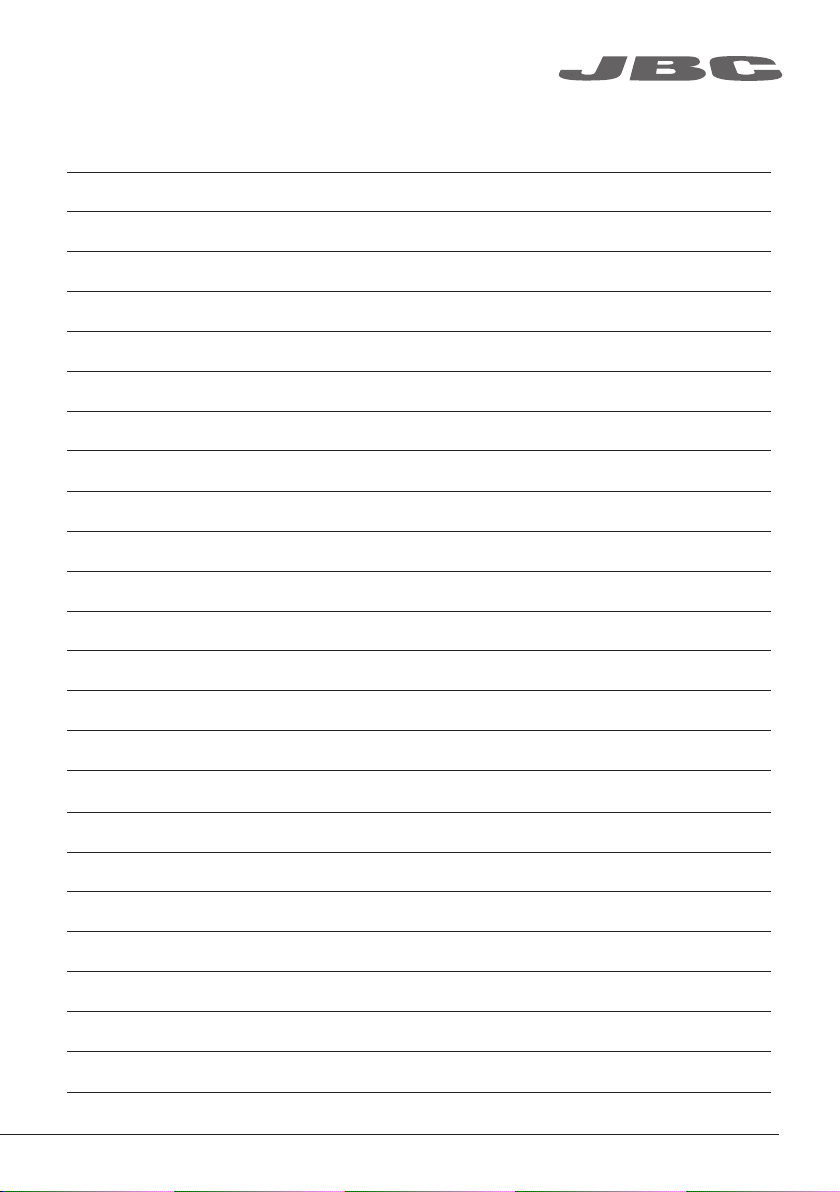

Notes
Maintenance
Before carrying out maintenance or storage, always unplug the equipment from the mains.
- Use a damp cloth to clean the splashguard and the inside.
- Keep the brushes and the tray clean and replace when necessary.
- Replace any defective or damaged par ts. Use original JBC spare parts only.
- Repairs should be performed only by a JBC authorized technical service.
Safety
It is imperative to follow safety guidelines to prevent electric shock,
injury, fire or explosion.
- Do not use the appliance for any purpose other than tip cleaning. It is not a tool stand.
- The AC Adapter power supply must be plugged into approved bases. Be sure that it is properly
grounded before use. Remove it by pulling the plug, not the wire.
- Do not leave the appliance unattended when on.
- Avoid contact when brushes are turning.
- Keep your workplace clean and tidy. Wear protective glasses and gloves to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensor y or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
6
Page 7
Notes
www.jbctools.com
7
Page 8
Specifications
Junior Tip Cleaner CLMS-B
- Brush diameter: 34 mm / 1.34 in
- Brush speed: 550 rpm
650 rpm (continuous mode)
- AC Adapter: Input: 96 - 264 V, 50Hz
Output: DC 12V, 1A
- ESD safe connector
- Dimension /Weight: 95 x 91 x 112 mm / 1.45 kg
(L x W x H) 3.74 x 3.58 x 4.41 in / 3.2 lb
- Total Package Dimension / Weight: 220 135 x 125 mm / 1.63 kg
(L x W x H) 8.66 x 5.31 x 4.92 in / 3.6 lb
Complies with CE standards.
ESD protected housing “skin effect”.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipme nt at the end of its life must
be collected and returned to an authorized recycling facility.
Manual in other languages ava ilable on our website
www.jbctools.com
0017509-0221
