Ref.
Cartridge & Tip
description
Suggested
compon ents
Tip
dimens ions
Connec table s
C560-0 01
Desold ering Tip
Ø0,6 HT
Through hole
Desold ering
Ø0,6
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-0 02
Desold ering Tip
Ø0,8 HT
Through hole
Desold ering
Ø0,8
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-014
Desold ering Tip
Ø0,8
Through hole
Desold ering
Ø0,8
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-0 03
Desold ering Tip
Ø1
Through hole
Desold ering
Ø1
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-017
Desold ering Tip
Ø1,1
Through hole
Desold ering
Ø1,1
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-0 04
Desold ering Tip
Ø1,3
Through hole
Desold ering
Ø1,3
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
for DR560 Desoldering Iron

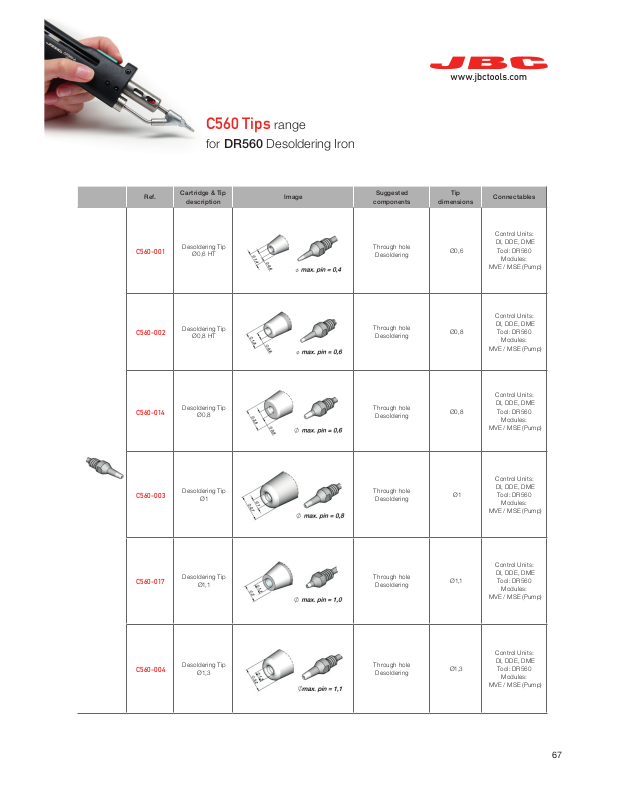

C560 Tips range
67
Ref.
Cartridge & Tip
description
Suggested
compon ents
Tip
dimens ions
Connec table s
C560-0 09
Desold ering Tip
Ø1,3
Through hole
Desold ering
Ø1,3
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-0 05
Desold ering Tip
Ø1,5
Through hole
Desold ering
Ø1,5
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-0 06
Desold ering Tip
Ø1,9
Through hole
Desold ering
Ø1,9
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-0 07
Desold ering Tip
Ø2,4
Through hole
Desold ering
Ø2,4
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-015
Desold ering Tip
Ø3
Through hole
Desold ering
Ø3
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-011
Desold ering Tip
Ø0,6 HT PADS
Pad desol dering Ø0,6
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560-012
Desold ering Tip
Ø0,8 HT PADS
Pad desol dering Ø0,8
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
68
C560 Tips for DR560 Desoldering Iron
Ref.
Cartridge & Tip
description
Suggested
compon ents
Tip
dimens ions
Connec table s
C560-013
Desold ering Tip
Ø1 PADS
Pad desol dering Ø1
Control Units:
DI, DDE, DME
Tool: DR560
Module s:
MVE / MSE (Pu mp)
C560 Tips for DR560 Desoldering Iron
69
