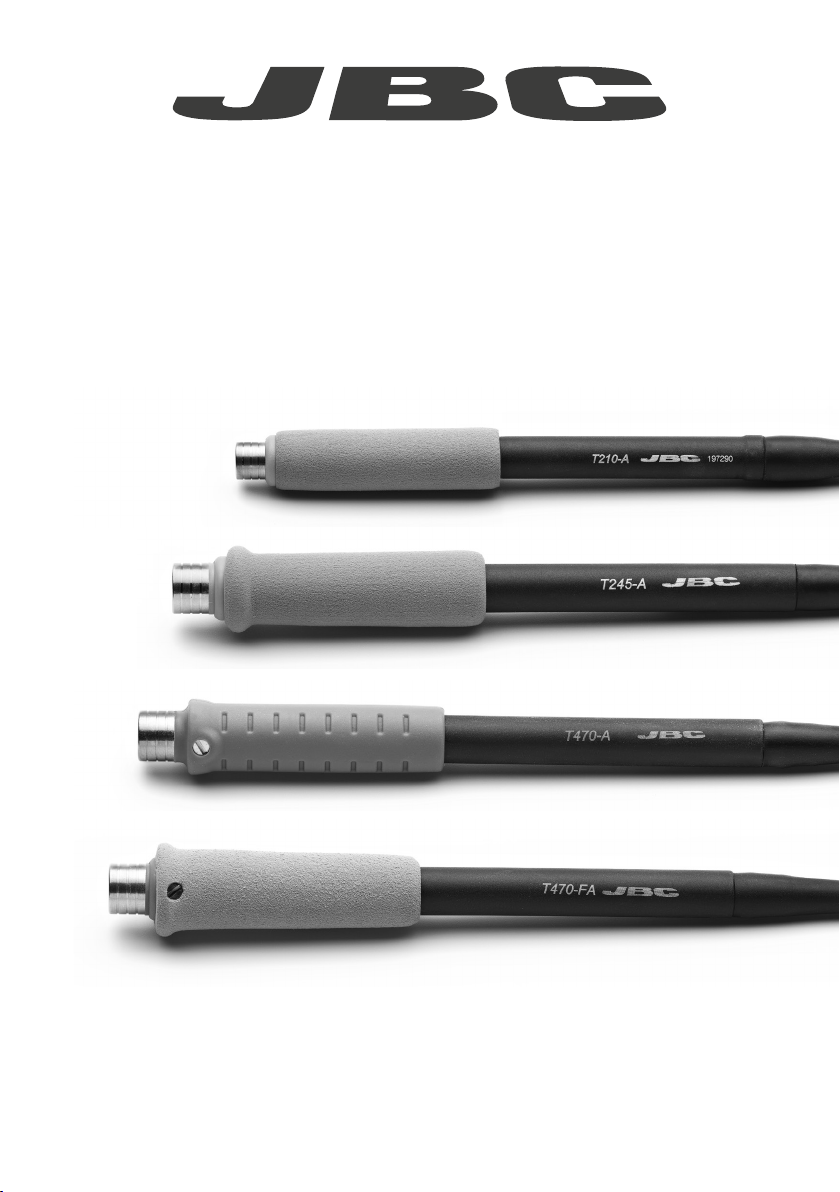

INSTRUCTION MANUAL

Soldering Iron Handles

Ref. T210 / T245 / T470

Features

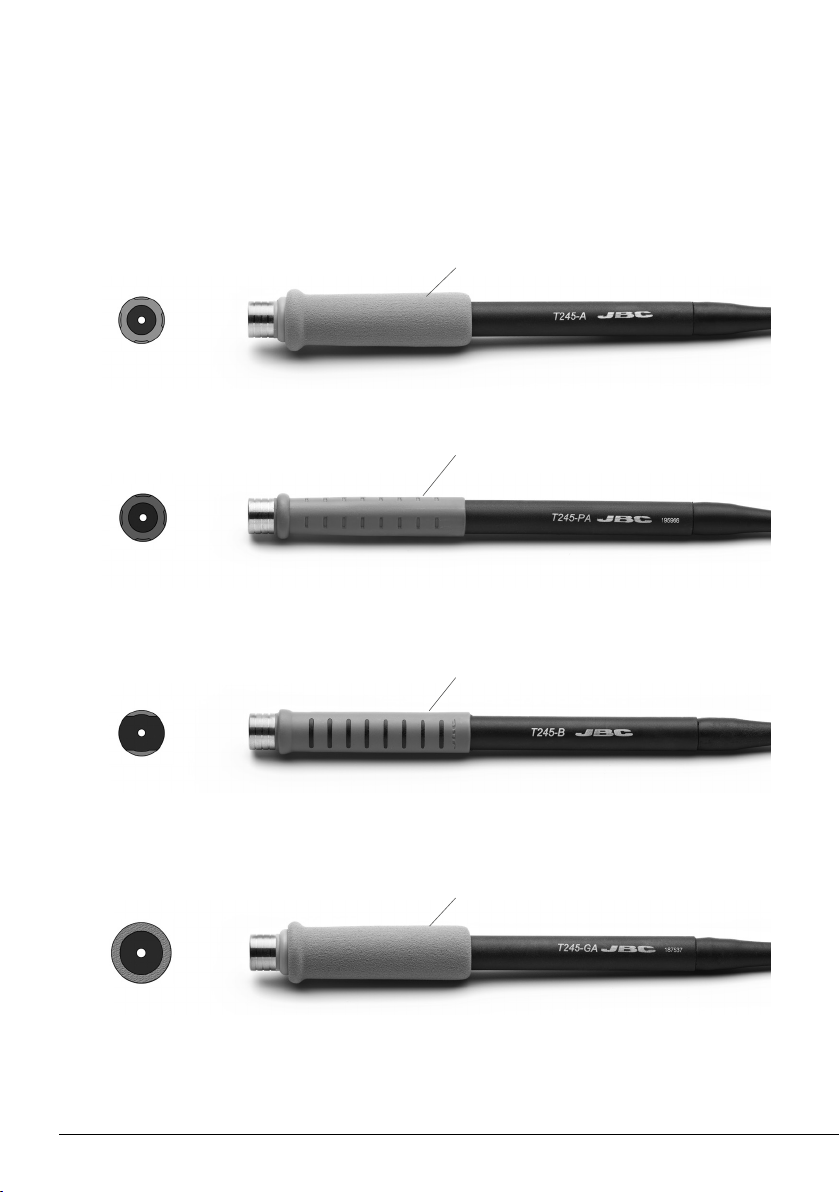

For C245 Cartridge range

The soldering iron handles for general purposes are suitable for both SMD components and jobs
with high power requirements (e.g. ground plane soldering).

General Purpose Handle

Ref. T245-A

Blue Handle

Ref. T245-PA

Soft foam (Ref. 0016057)

Blue grip to easily distinguish it from other handles

Non-slip Handle

Ref. T245-B

General Purpose Handle with reinforced cable

Ref. T245-G A

Note: All models are supplied with a 1.5 m cable.

2

Non-slip soft touch

Soft foam (Ref. 0016057)

www.jbctools.com

For C210 Cartridge range

The T210 handles are suitable for precision soldering jobs with medium power requirements.
Due to their size, they work with conventional and small SMDs as well as under a microscope.

Precision Purpose Handle

Ref. T210-A

Soft foam (Ref. 0018658)

Blue Precision Handle

Ref. T210-PA

Blue grip to easily distinguish it from other handles

For C470 & C245 Cartridge ranges

For intensive soldering jobs requiring continued high thermal power. They feature good thermal
insulation with a screw to fasten the car tridge which prevents rotation.

HD Purpose Handle Heavy Duty HD Handle HD Purpose Handle + 3m cable

Ref. T470-A Ref. T470-B Ref. T470-SA

Tri-lobed HD Handle

Ref. T470-ZA

Tri-lobed for better handling

Thermal Insulator HD Handle Soft Thermal Insulator HD Handle + 3m cable

Ref. T470-FA Ref. T470-MC

Note: All models are supplied with a 1.5 m cable except those specified with 3 m.

Foam

3

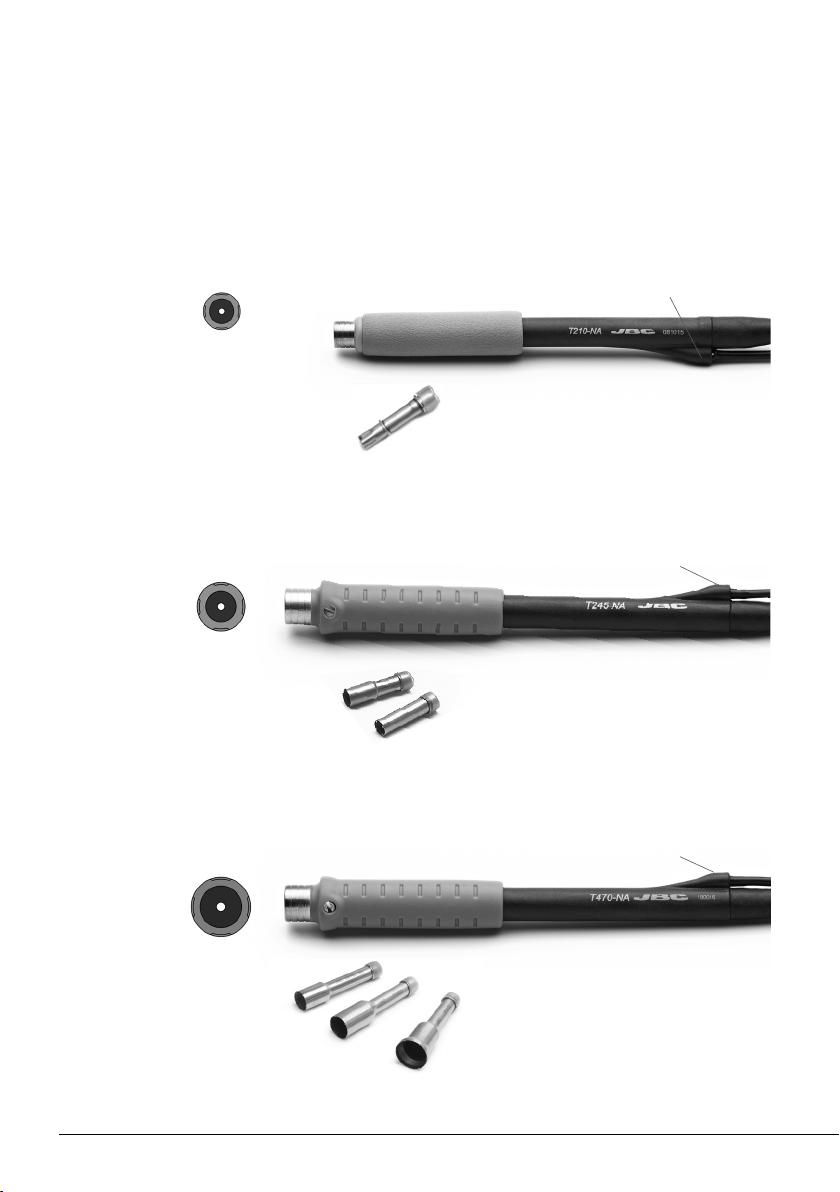

Nitrogen Handles features

These are for working in an oxygen-free atmosphere providing better quality soldering. They
offer extra heat to the solder joint and help prevent oxidation. The JBC GN-A Nitrogen Generator
Module or an external nitrogen feed is needed at the operator’s bench.

For C210 Cartridge range

Nitrogen Precision Handle

Ref. T210-NA

Nozzles

Ref. B6647

Nitrogen feed

For C245 Cartridge range

Nitrogen Handle

Ref. T245-NA

For C470 Cartridge range

Nitrogen HD Handle

Ref. T470-NA

Nitrogen feed

Nozzles

Ref. B7968

B7244

Nitrogen feed

Nozzles

Ref. B6193

B6194
B6195

4

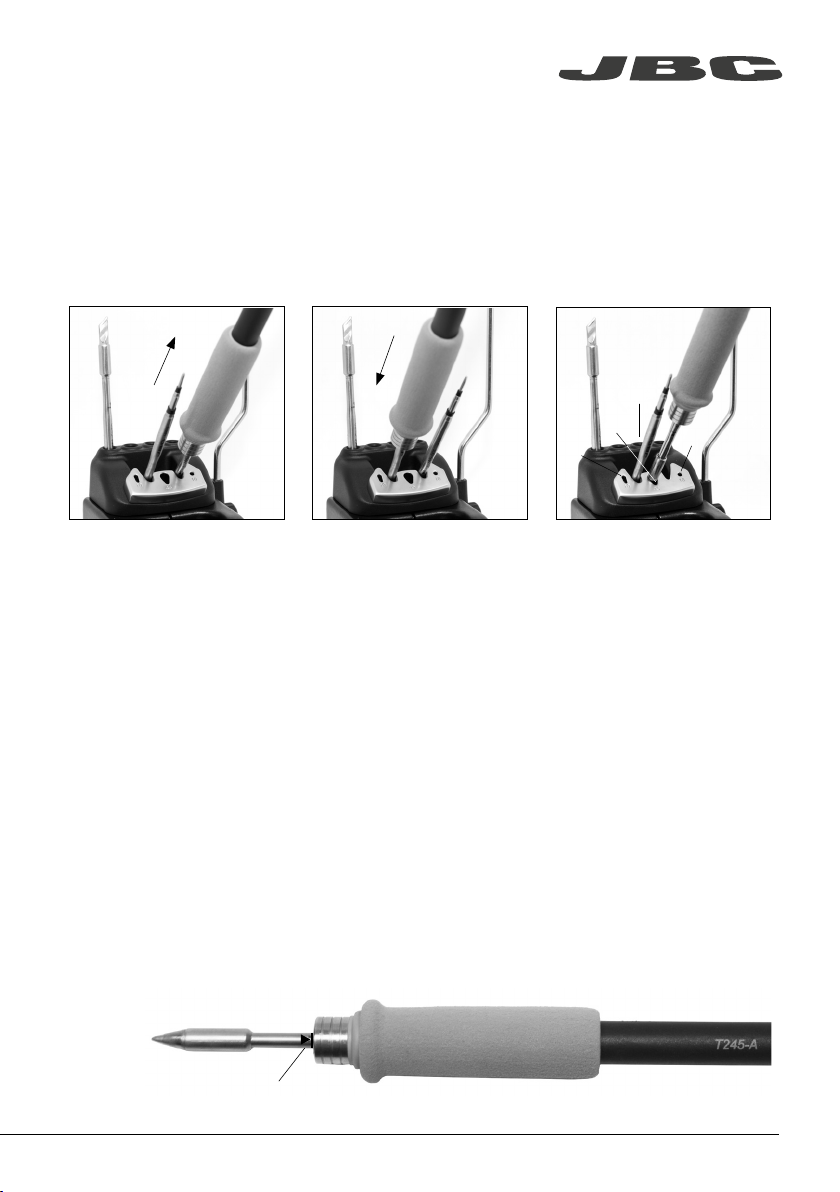

Changing T210 & T245 Cartridges

Save time and change cartridges safely without switching the station off.

1. Removing 2. Inserting 3. Fixing

A

www.jbctools.com

D

B

C

Place the Cartridge in the
extractor and pull the handle
to remove it.

*Important

It is essential to insert the cartridges as far as the mark for a proper connection.

Place the handle on top
of the new Cartridge and
press down.

Mark

Use the holes to fix the
Cartridge* as follows:

A. For straight C210.
B. For curved C245.
C. For curved C210.
D. For cold cartridge holder

5

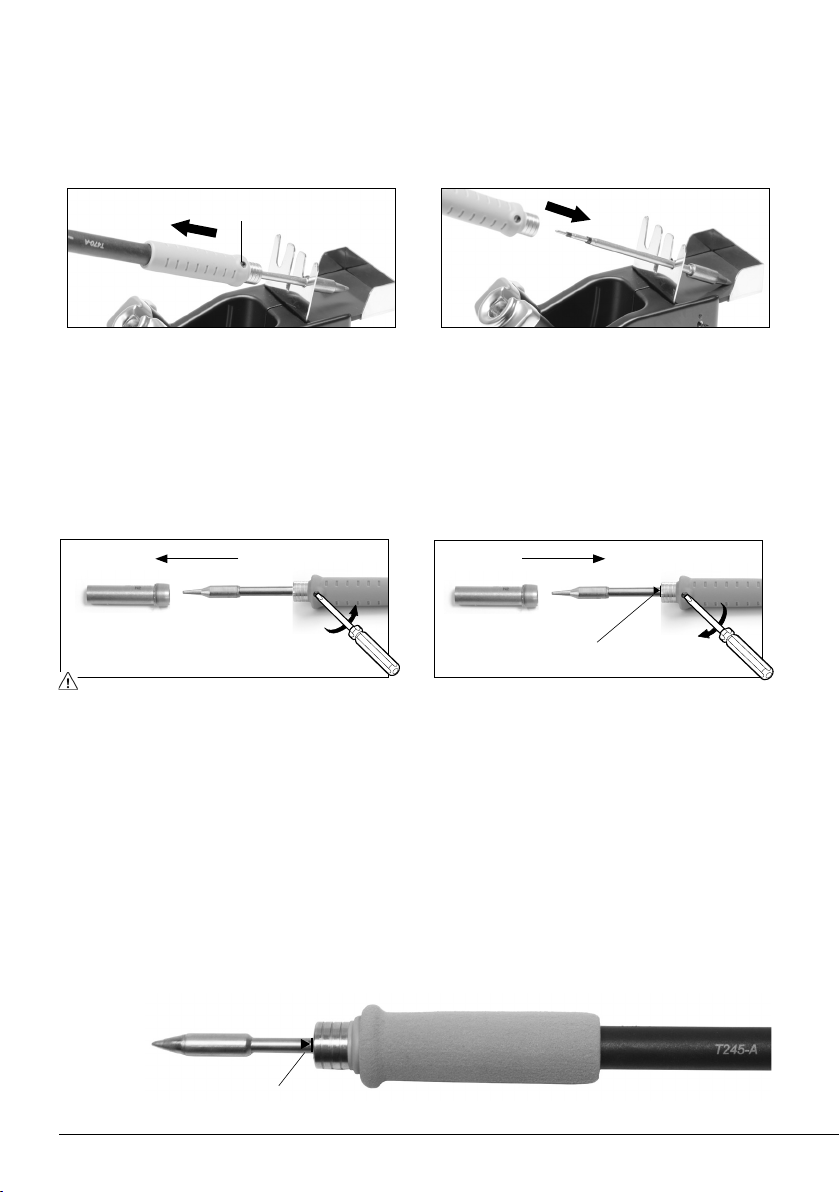

Changing T470 Cartridges

1. Removing 2. Inserting

Loosen

Insert the new car tridge* and press slightly
Loosen the screw. Place the Soldering Iron in
the extractor and remove the cartridge.

as far as the mark and tighten the screw.

Changing Nitrogen Cartridges

After changing the cartridgeBefore changing the cartridge

Nozzle

Mark

First remove the nozzle. Then loosen the screw
to remove the cartridge (T245-NA / T470-NA).
Use a pliers to change or remove
nozzles when hot.

*Important

It is essential to insert the cartridges as far as the mark for a proper connection.

Mark

Insert the cartridge, tighten the screw and then
place the nozzle.

6

www.jbctools.com

Maintenance

- Before carrying out maintenance, always unplug the stand and the tool.

- Check periodically that the metal par ts of the tool and the stand are clean to ensure detection of
the tool when it is in the stand. Use a damp cloth or alcohol.

- Periodically check all cables and tubes connections.

- Replace any defective or damaged pieces. Use original JBC spare parts only. Repairs should only
be performed by a JBC authorized technical service.

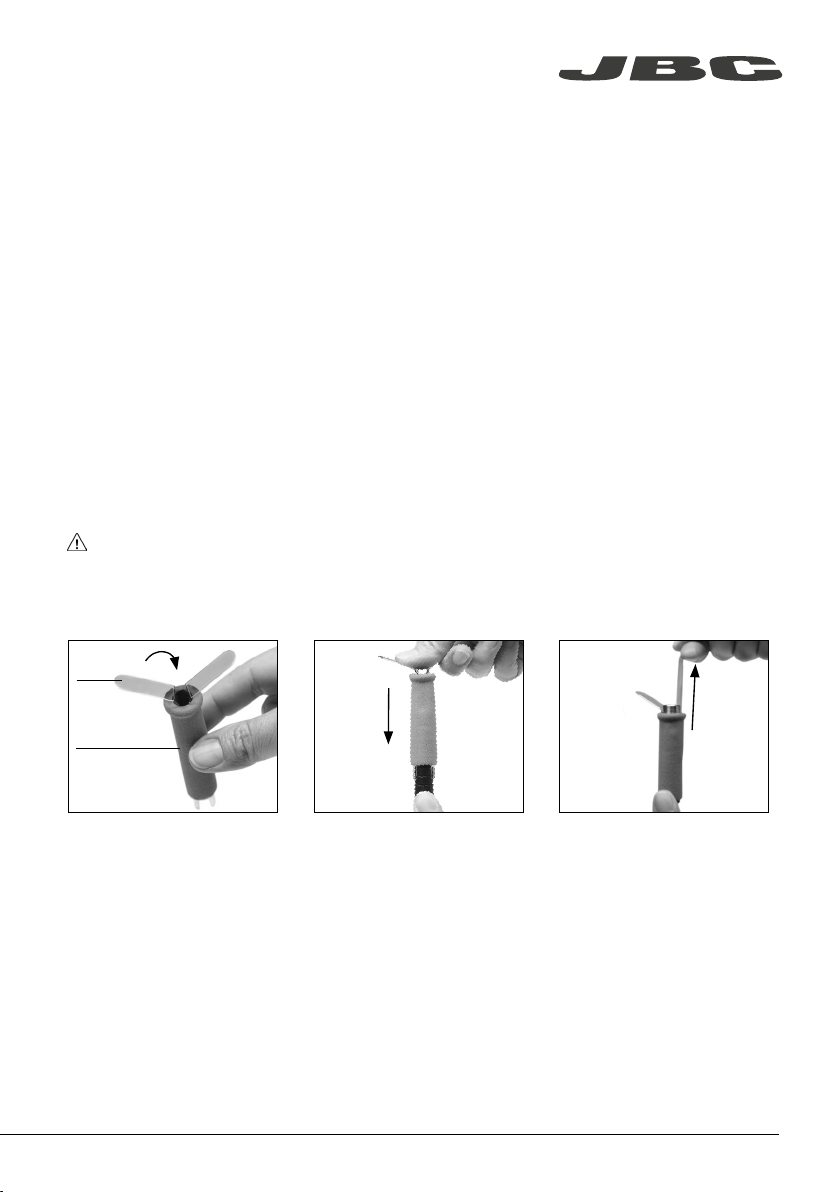

Replacing grips

Easily replace the Grips (Ref. 0016057 and Ref. 0018658) using the slide-on tabs.

Before replacing the grip, unplug the power supply and make sure the device is not hot.

1. Inserting tabs 2. Inserting handle 3. Removing tabs

tabs

new grip

Insert the slide-on tabs into
the new grip.

Push the grip with the tabs
onto the handle.

Hold the grip and pull them
out. Use a pliers if necessary.

7

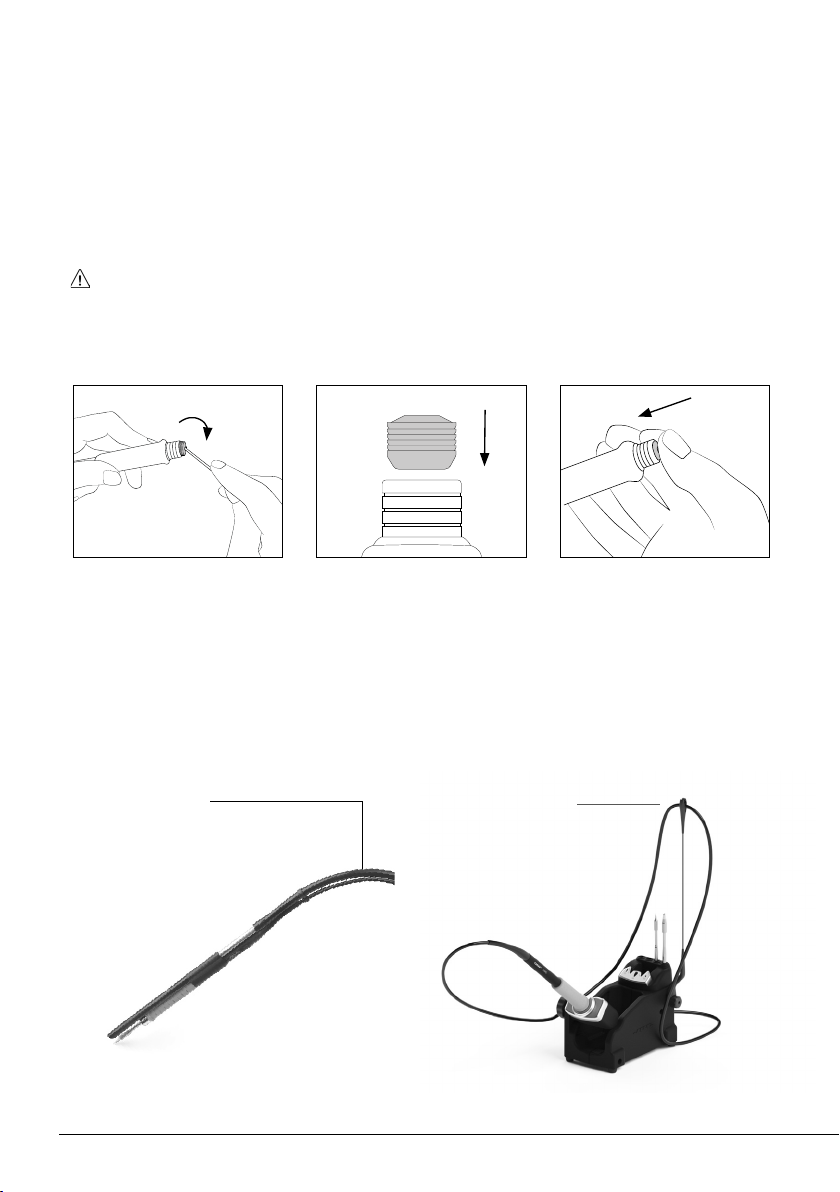

Replacing Seals

The Seal is meant to prevent undesirable flux vapors or particles from entering inside the tool. Its
usage is highly recommended for intensive applications when soldering in exposed to FOD environ­ments or for applications where the soldering iron works close to vertical position.

Before replacing the seal, unplug the power supply and make sure the device is not hot.

2. Mounting position 3. Inserting the Seal1. Removing the Seal

Seal

Handle

Enter a small shaft or screw­driver in order to gently lift
and pull the Seal.
Do not insert the tool more
than 8 mm deep.
Never use a cartridge to do
this operation.

Accessories

Fume extractor

Ref. F3435 (for T245 / T470)
Ref. F3450 (for T210)

Clips can be easily
removed for quick
maintenance.

8

Note the Seal mounting posi­tion. The chamfered side has
to be positioned towards the
Handle.

Cable collector

Ref. C C10 01
Keeps the work
area free of cable.

Gently push the Seal inside
the handle until it is complete­ly into the Handle.
Handle and Seal edges have
to be aligned.

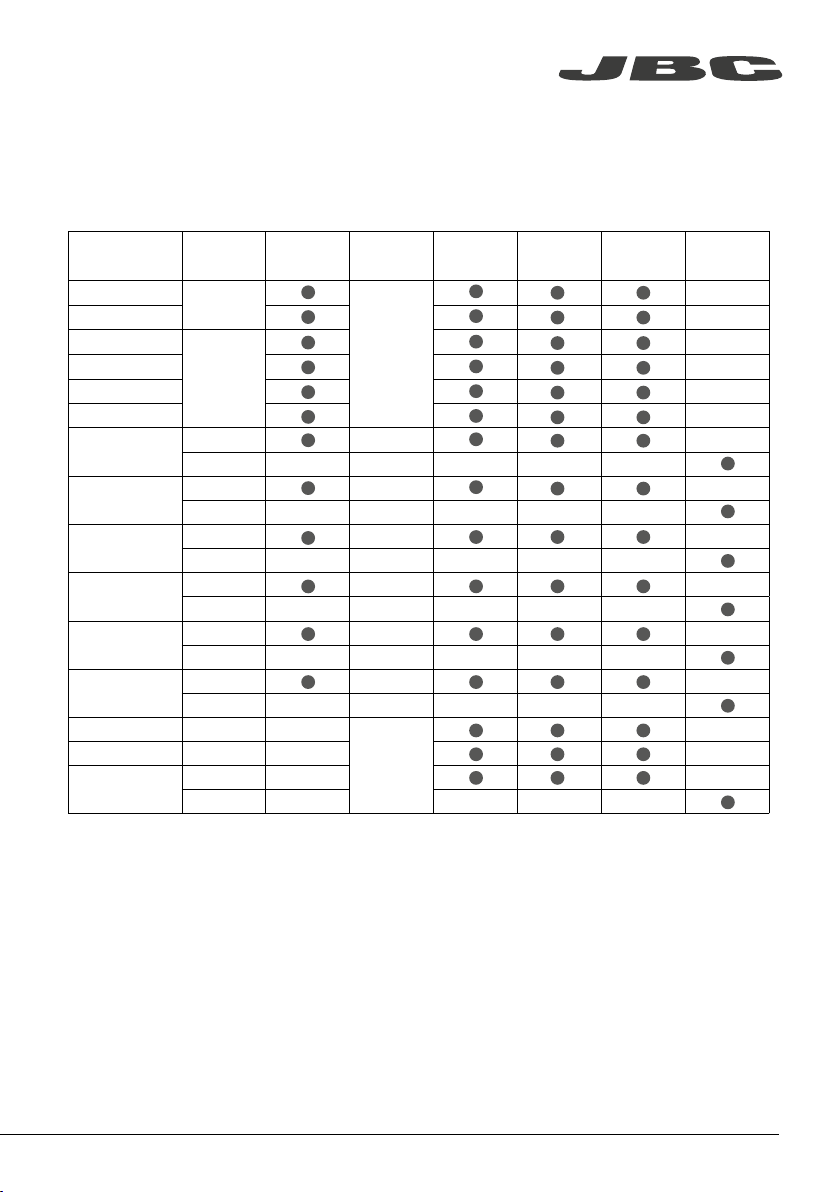

Compatibility

www.jbctools.com

Handle

T210-A

T210-PA

T245-A

T245-PA

T245-B

T245-GA

T470-A

T470-B

T470-SA

T470-ZA

T470-FA

T470-MC

T210-NA* C210

T245-NA* C245

T470-NA*

Cartridge

Range

C210

C245

C245 AD-SE

C470 HD-SE

C245 AD-SE

C470 HD-SE

C245 AD-SE

C470 HD-SE

C245 AD-SE

C470 HD-SE

C245 AD-SE

C470 HD-SE

C245 AD-SE

C470 HD-SE

C245

C470

CD Stand DI DDE DME HDE

AD-SE

DN-SE

* The MNE Nitrogen Flow Regulator is required. Use the proper nozzle according to the cartridge.

9

Notes

Safety

It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cable must be plugged into approved bases. Make sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot after the station
is turned off. Handle with care, including when adjusting the stand position.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Avoid flux coming into contact with skin or eyes to prevent irritation

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight as well as persons with reduced
physical, sensory or mental capabilities or lacking experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

10

Notes

www.jbctools.com

11

Warranty

JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
