Ref.
Cartridge & Tip
description
Suggested
compon ents
Tip
dimens ions
Connectables
C105-126
Cartridge Conical
Ø0,1
Package 01005
Very fin e pitch 0,4mm
QFP, IC,
Ø 0,1 mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-101
Cartridge Conical
Ø0,1
Package 01005
Very fin e pitch 0,4mm
QFP, IC,
Ø 0,1 mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-103
Cartridge Conical
Ø0,3 S1
Package 0201, 0402
Fine pitch 0,65mm
QFP, IC, ..
Ø 0,3 mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-106
Cartridge Conical
Ø0,5
Package 0 603
QFP, IC, ..
Ø 0,5 mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-107
Cartridge Conical
Ø0,8
General use Ø 0,8 mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-124
Cartridge Bent
Ø0,1 S1
Package 01005
Very fin e pitch 0,4mm
QFP, IC, ..
Ø0,1mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105 Cartridge range
for NP105 & NT105 Nano tools
11
Ref.
Cartridge & Tip
description
Suggested
compon ents
Tip
dimens ions
Connectables
C105-118
Cartridge Bent
Ø0,1
Package 01005
Very fin e pitch 0,4mm
QFP, IC, .
Ø0,1mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-105
Cartridge Bent
Ø0,3
Package 0201, 0402
Fine pitch 0,65mm
QFP, IC, ..
Ø 0,3 mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-110
Cartridge Bent
Ø0,5
Package 0 603
QFP, IC, ..
Ø0,5mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-116
Cartridge Chisel
0,2x0,1
Package 01005, 0201
Very fin e pitch 0,4mm
QFP, IC, ..
0,2x0,1mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-117
Cartridge Chisel
0,4x0,2
Package 0402
Very fin e pitch 0,65mm
QFP, IC, ..
0,4x0,2mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-108
Cartridge Chisel
0,6x0,3
Package 0 603
PLCC, SO, SOT,..
0,6 x 0,3 mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-125
Cartridge Chisel
1x0,2
Package 0 805
Diff icult to reach
1x0,2mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
12

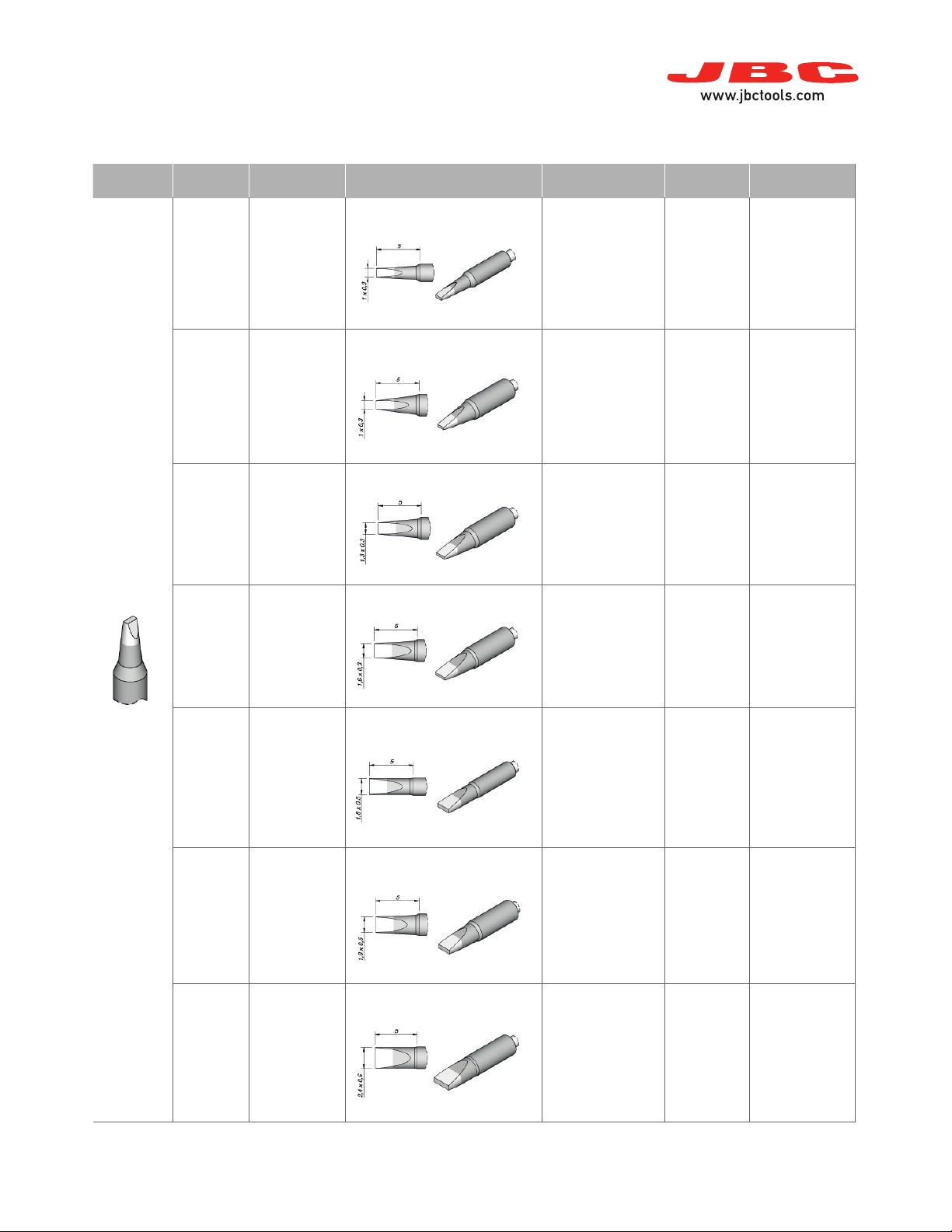

C105 Cartridges for NP105 & NT105 Nano tools
Ref.
Cartridge & Tip
description
Suggested
compon ents
Tip
dimens ions
Connectables
C105-113
Cartridge Chisel
1x0,3
Package 0 805
Through hole
1x0,3mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-213
Cartridge Chisel
1x0,3 S1
Package 0 805
Through hole
1x0,3mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-221
Cartridge Chisel
1,3x0,3
Package 0 805
Through hole
1,3x0,3mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-22 2
Cartridge Chisel
1,6x0,3
Package 0 805
Through hole
1,6x0,3mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-114
Cartridge Chisel
1,8x0,5
Package 1206, 1210
Through hole
1,8x0,5mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-214
Cartridge Chisel
1,8x0,5 S1
Package 1206, 1210
Through hole 1,8x0,5mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-22 3
Cartridge Chisel
2,4x0,6
Package 0 805
Through hole
2,4x0,6mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105 Cartridges for NP105 & NT105 Nano tools
13
Ref.
Cartridge & Tip
description
Suggested
compon ents
Tip
dimens ions
Connectables
C105-115
Cartridge Cut ter
Stainl.Steel1
Stainless Steel
Remove underfill
encapsulants
1mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-109
Cartridge Bevel
Ø0,6
Drag soldering SMD
Through hole
0,6mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-120
Cartridge Knife
1X0,2
Drag soldering SMD
Package 0 805
Through hole
1x0,2mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-112
Cartridge Knife
2,5X0,3
Drag soldering SMD
SO, SOT,..
Package 1210, 1812,
2010, 2512
2,5x0,3mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-212
Cartridge Knife
2,5X0,3 S1
Drag soldering SMD
SO, SOT,..
Package 1210, 1812,
2010, 2512
2,5x0,3mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-111
Cartridge Knife
3,5X0,7
Package 1210, 1812
SO, SOT,..
3,5x0,7mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
C105-211
Cartridge Knife
3,5X0,7
Package 1210, 1812
SO, SOT,..
3,5x0,7mm
Station: NASE
Tools:
NP105-A
NP105-B
NT105-A
