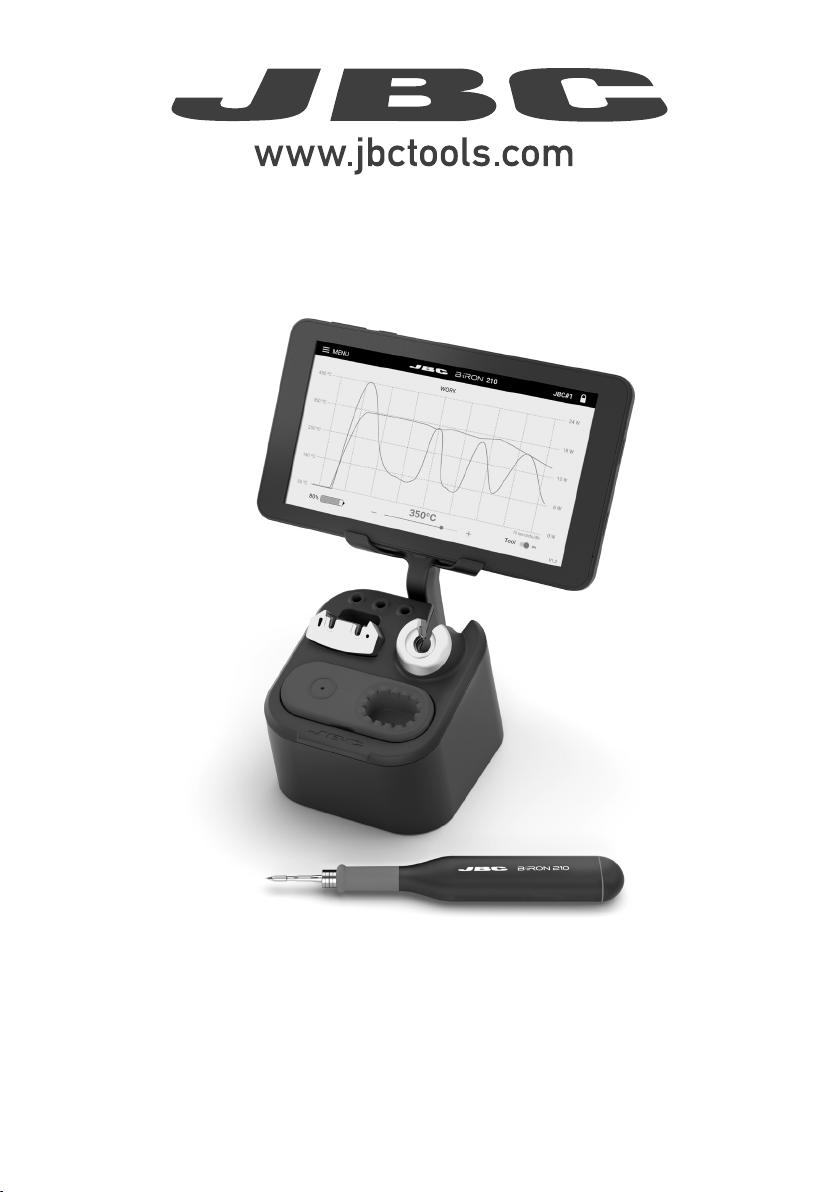

INSTRUCTION MANUAL
B·iRON 210
Precision Battery
Soldering Station
Page 2
This manual corresponds to the following references:
Console included*:
BI210 UA 120 V - N. America, Taiwan BI210 IA 230 V - India BI210A 230 V - Europe BI210KA 230 V - United Kingdom BI210 HA 230 V - China BI210 JA 100 V - Japan

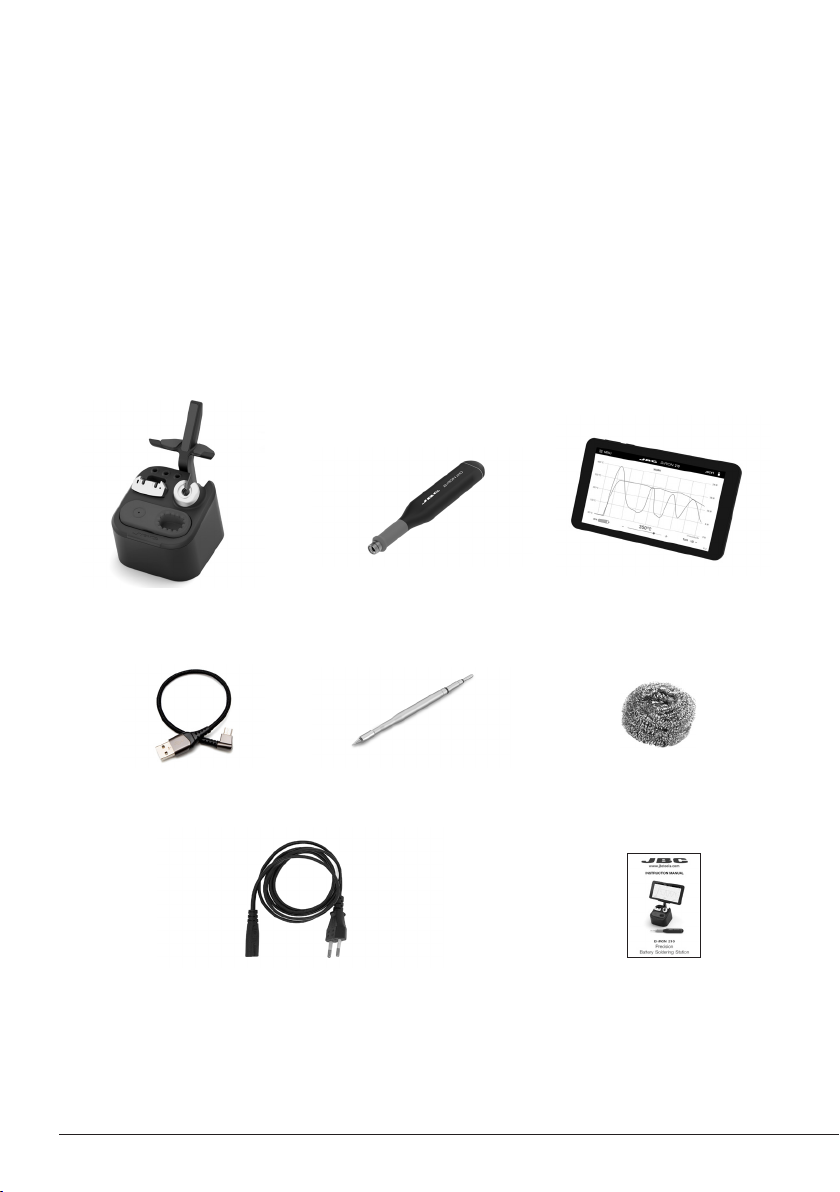

Packing List
The following items are included:
Stand for B210 Precision
B·iRON Tool ..................... 1 unit
Ref. B 210-S A
Console not included*:
BI210 UQ A 120 V - N. America, Taiwan BI210 IQ A 230 V - India BI210 QA 230 V - Europe BI210KQA 230 V - United Kingdom BI210HQA 230 V - China BI210 JQ A 100 V - Japan
Precision
B·iRON Tool ...................1 u ni t
Ref. B 210-A
B·iRON Console ........ 1 unit*
Ref. 0030035
Cable USB ....................... 1 unit
Ref. 0028092
Power Cord ...................................................................................... 1 unit*
Ref. 0027380 120V - N. America, Taiwan 0027381 230V - India 0027382 230V - Europe 0027378 230V - United Kingdom 0027379 230V - China 00 2810 3 100V - Japan
Cartridge ........................... 1 unit
Ref. C210001 (ø 0.3 mm)
* included according to purchased station reference.
2
Brass Wool ..................... 1 unit
Ref. CL0300
already assembled in the stand
Manual .............................. 1 unit
Ref. 0027779
Page 3

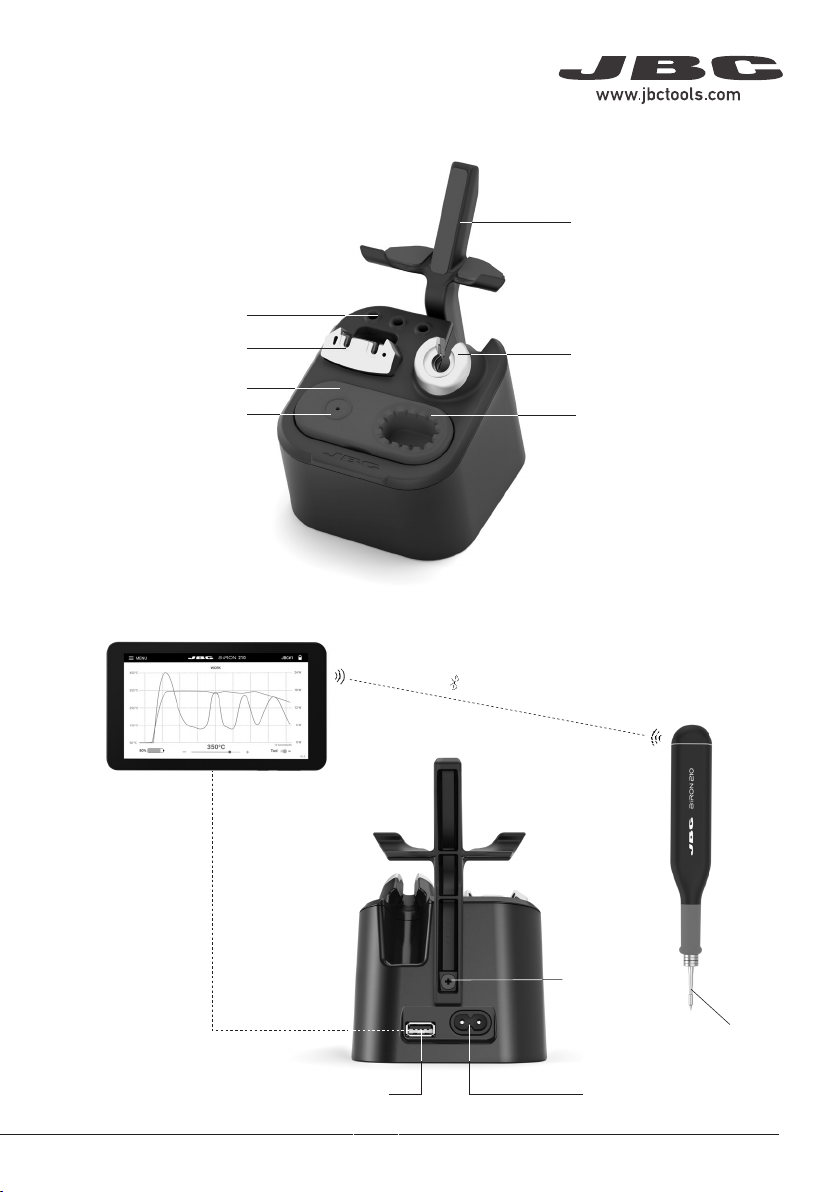

Features and Connections
para manuales - color gris
Stand for
B210 Precision B·iRON Tool
Cartridge Storage
Cartridge Excwhanger
Brass Wool (inside)
Antisplash Membrane
B·iRON Console
Note: for references without console Bluetooth
device like tablet or mobile can be connected.
Console Support
Tool Holder and Charger
Wiper
Bluetooth
Connection
USB Cable
(only for charging)
USB Connector
Precision B·iRON Tool
Screw to detach the Support
Power Socket
B210
Cartridge C210 -R ang e
3
Page 4
Quick Start

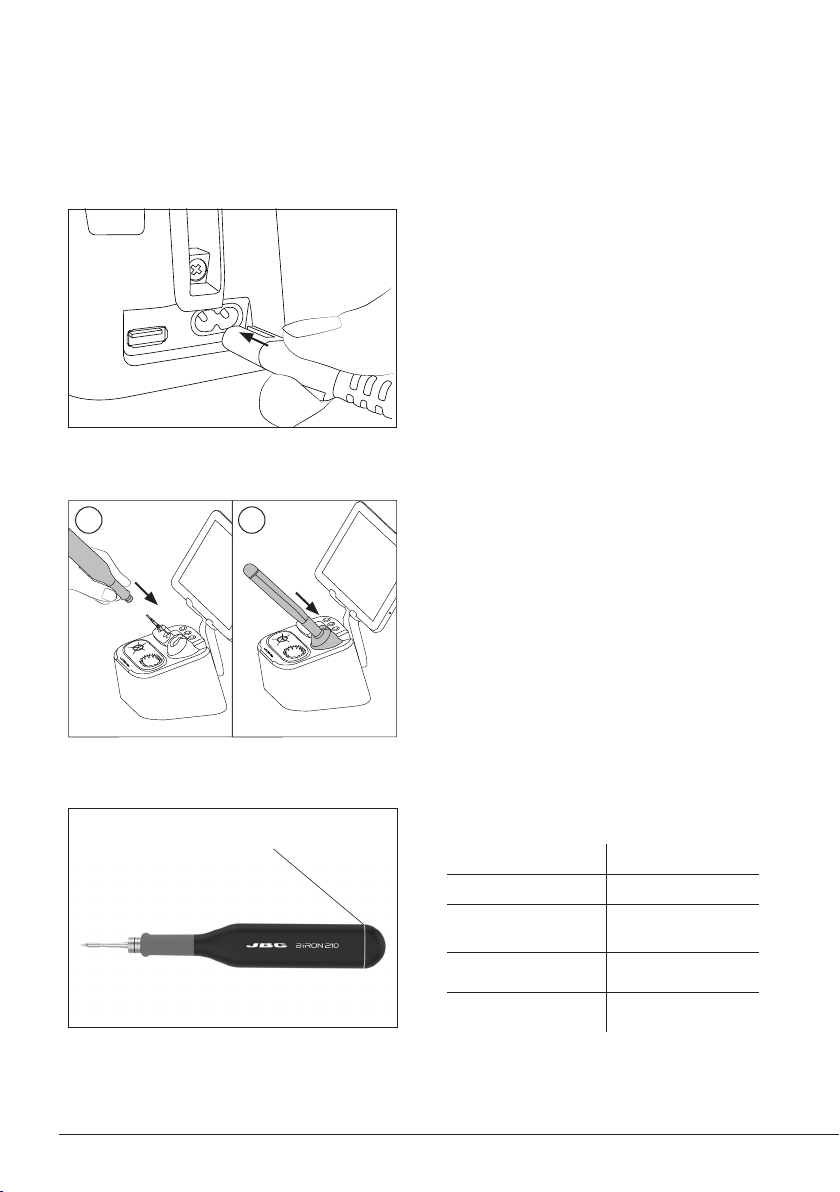

1. Connection
2. Cartridge Inser tion and Charging
21
Connect the stand to the mains (100 - 240 V).
Insert a cartridge into the tool (1) and place it into the charger on the stand (2).
Note: Charge the tool completely (30 min) before using it for the first time.
The status indicator light indicates as follows the tool status:
Status Indicator Light
green working/soldering
green blinking charging
alternating red/green blinking
red blinking no cartridge
no color power OFF
low battery, less than 20%
4
Page 5
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
210
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
JBC#1
Tool
ON
MENU
JBC#1
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Bi115
Bi210
Users Manual
Users Manual
Documents
MENU
JBC#1
210
Return to Work
Tool1
Tool3
10
3. Switching on Console/Device
para manuales - color gris
4. Selecting Tool
Tool1 Tool2
Application:
Select the tool from the detection list. Turn on the console/device and open the B·iRON
Note: Furthermore, the App can be downloaded for Android devices from https://www.jbctools.com/ jbcsoftware.html and for Apple devices from Apple Store:

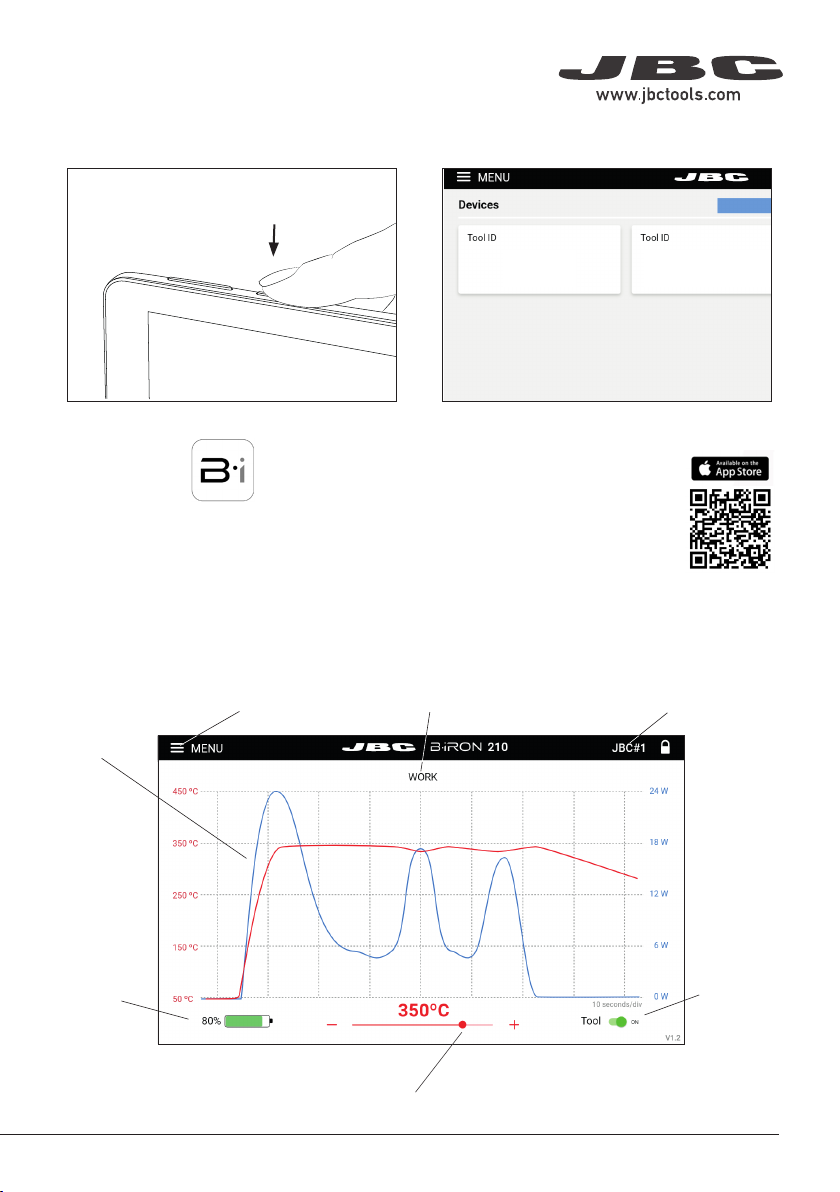

Console Work Screen
The work screen shows the graph of the current tip temperature and the power supplied to the tip by moving the graph permantely to the left.
Temperature and Power Grafi cs
Battery Level
Application Menu Connected Tool
Tool Status
Tool Power Switch
Temperature Selection Slider
5
Page 6
Tool
ON
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
210
Return to Work
JBC#1
Bi115
Bi210
Users Manual
Users Manual
Documents
MENU
JBC#1
210
Return to Work
2822
JBC#1
Update
Tool
ON
JBC#1
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
Tool1
Tool
ON
24 W
18 W
12 W
6 W
0 W
10 seconds/div
V1.2
JBC#1
Operation
The JBC Most Efficient Soldering System
This revolutionar y technology is able to recover tip temperature ex tremely quickly. This allows the user to work at a lower temperature.

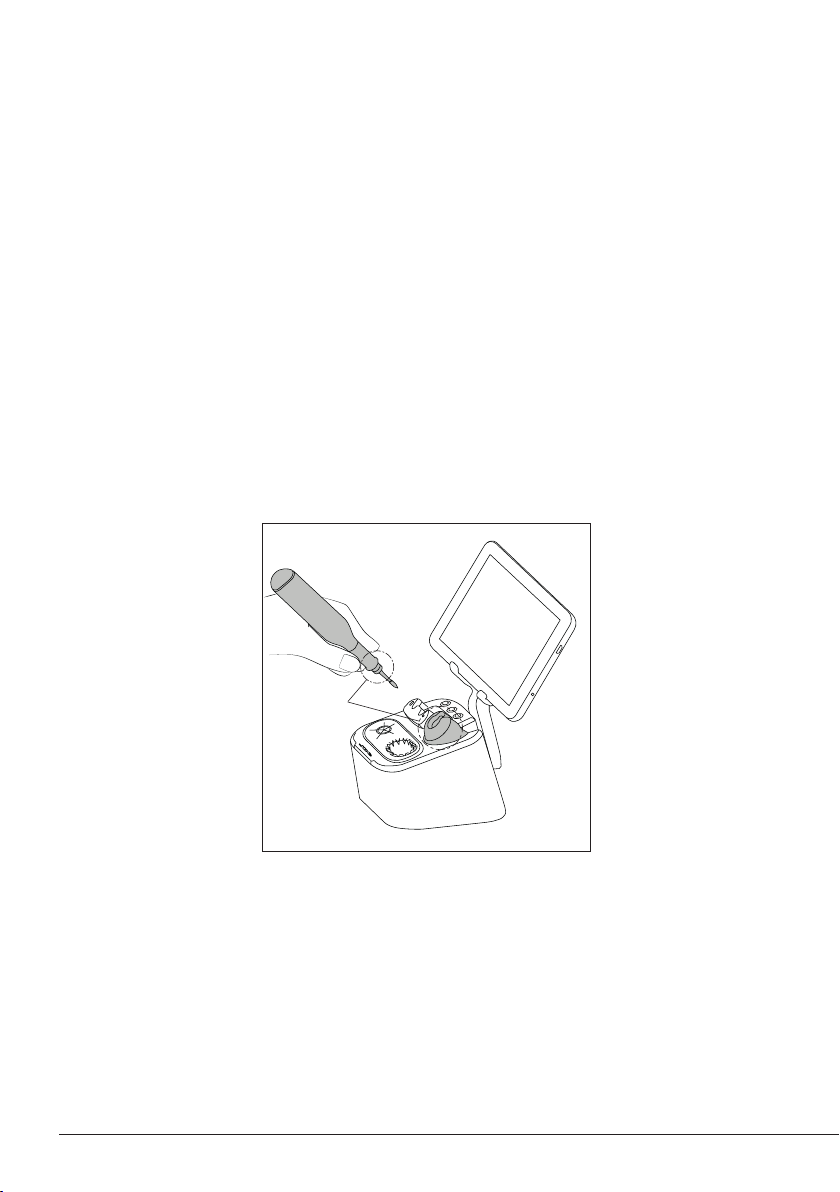

Work
Charging and Hibernation
When the tool is in the stand When the tool is lifted from the stand the tip will heat up to the selected temperature.
enters into Hibernation Mode
and cools down to room
temperature.
While the tool remains in the
stand, it charges.
Note: When the tool is lifted from stand the Soldering System acts as follows:

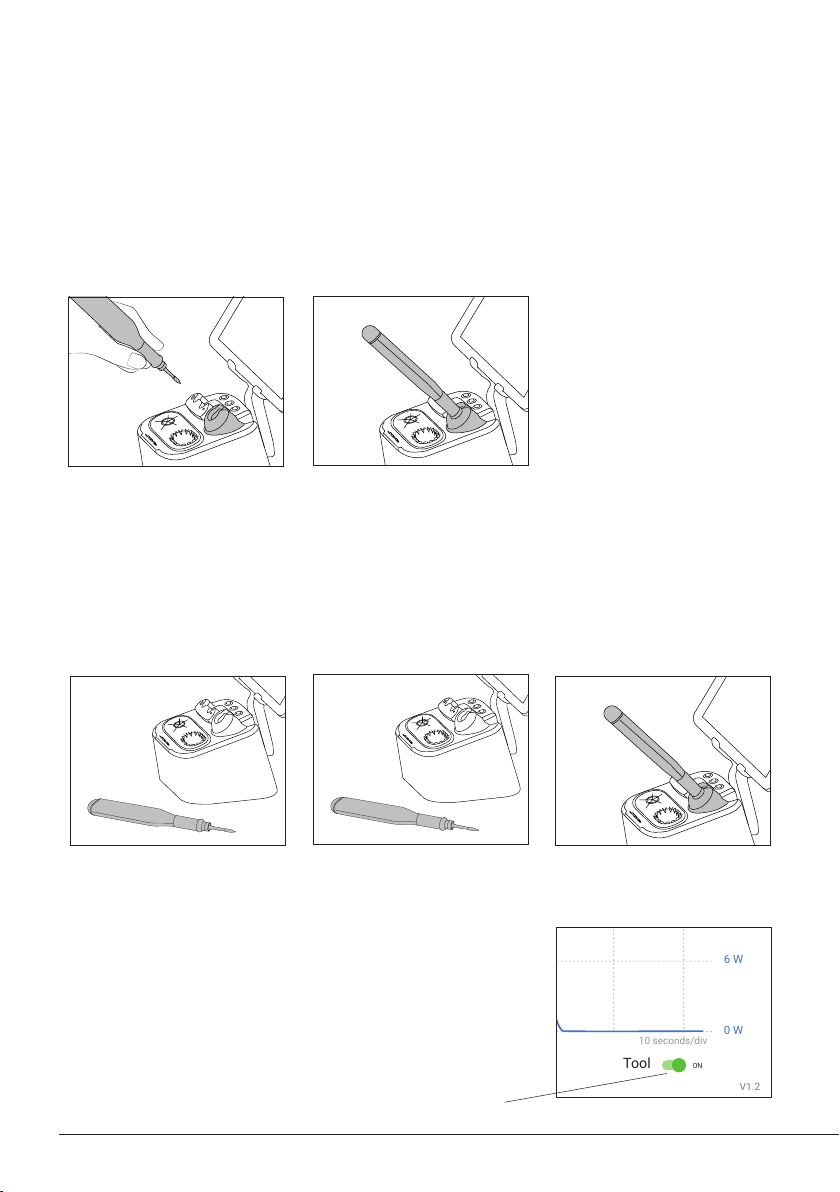

Hibernation
Tur n e d Off Turned On
long time inactive
When the tool is outside of the stand and remains inactive (no movement), the tool enters into Hibernation mode and cools down to room temperature.
Note: If desired, the tool can be switched off/on. Tab the Tool Power Switch on the tablet screen (bottom right) to switch it off/on.
6
If the tool has been inactive
for a longer period of time, it is
turned off.
Tool Power Switch
To turn the tool on, put it back into the stand.
Page 7
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
210
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
Users Manual
Users Manual
Documents
MENU
JBC#1
210
Return to Work
2822
JBC#1
Update
Tool
ON
MENU
JBC#1
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
WORK
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
80%
JBC
210
350ºC
Tool1
Tool
ON
MENU
24 W
18 W
12 W
6 W
0 W
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
210
80%
350ºC
JBC#1
348ºC
6 W

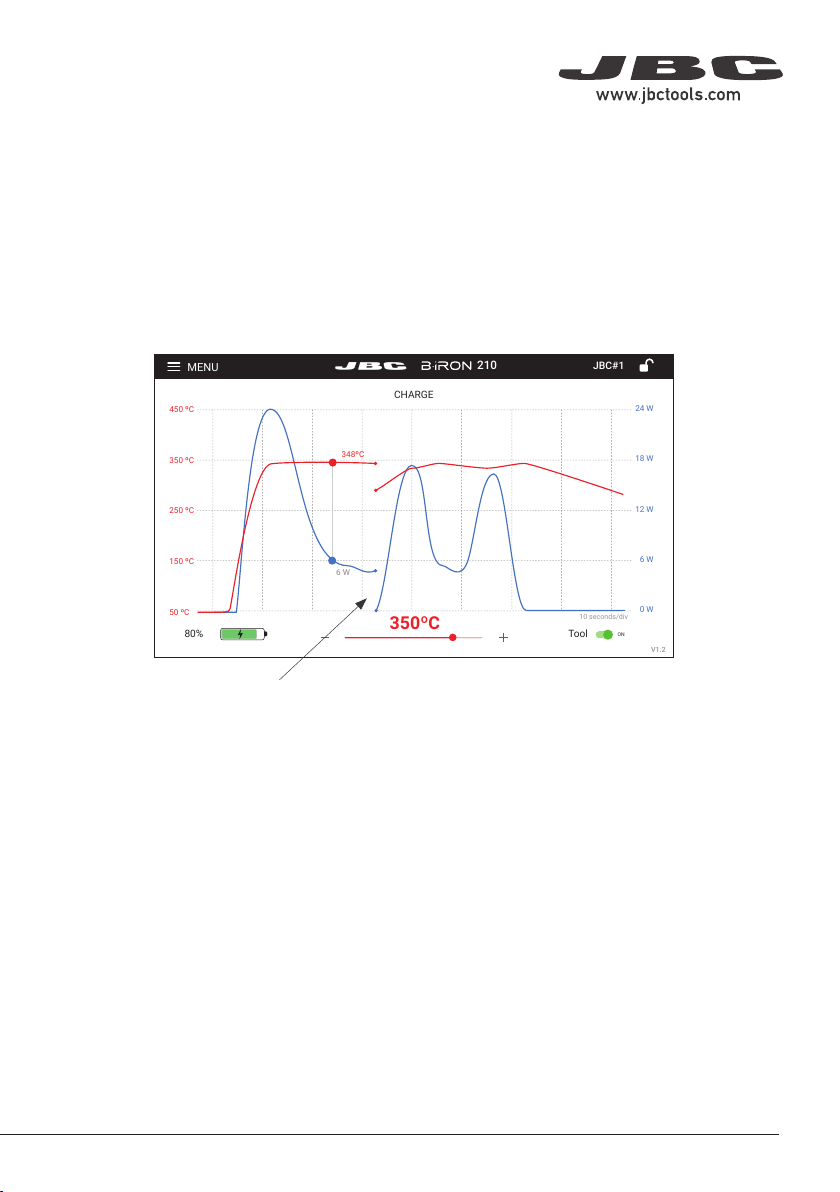

Graphics
para manuales - color gris
The work screen shows the automatic recording of the temperature and power graphics.
The automatic recording can be paused by tapping the screen in the graphic area. The automatic recording stops also when the tool stops working.
While the automatic recording is stopped, you can get the temperature/power value on a certain point by tapping the graph on the tablet screen.
When the tool ist not in use the grafics stops recording
The graphic can be moved to the left and right by swiping the touch screen sideways with one finger.
The recording star ts automatically as soon as the tool is removed from the stand and the graphic automatically jumps to the end of the last recording and continues with the recording.
Note: When the tool is placed in the stand and is not in use, the temperature/power recording stops. A gap can then be seen in the curve graphics.
7
Page 8

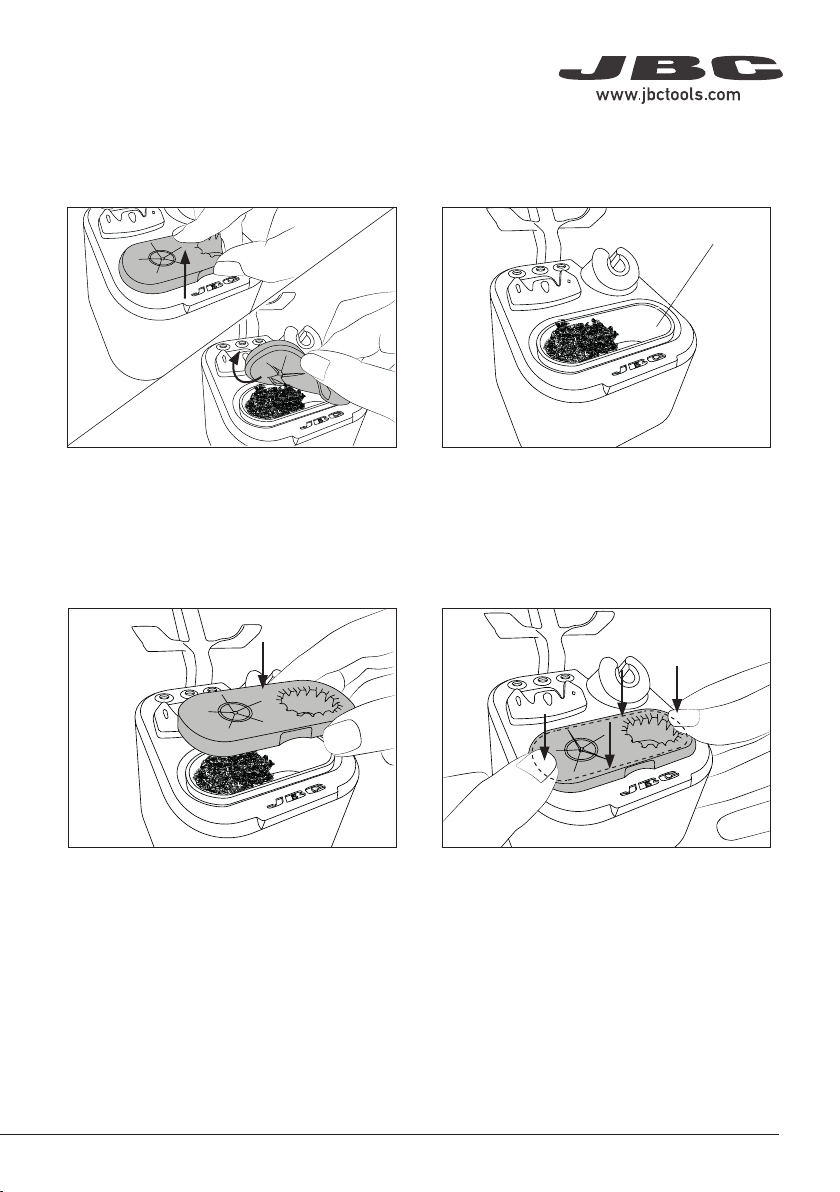

Replacing Brass Wool
1. Lifting 2. Replacing
Space
3. Assembling 4. Pressing on
Lift and remove the antisplash membrane. Replace the brass wool with a new one. Make
sure that the brass wool is on the far left and that there is space for the wiper on the right.
Assemble the antisplash membrane in a vertical direction onto the stand.
Press the antisplash membrane down. Make sure that the membrane is correctly inserted all around.
Note: The brass wool and the wiper position can be reversed by rotating the antisplash membrane 180 degrees

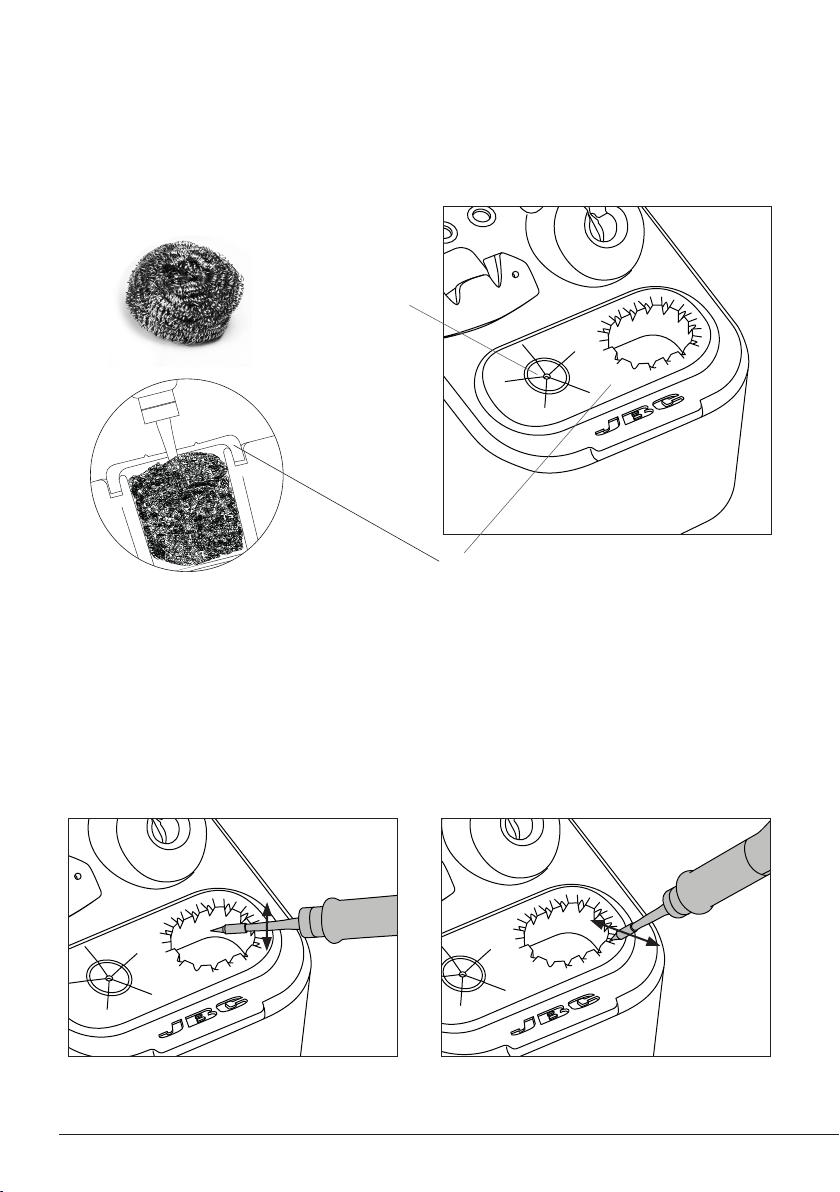

Tip Cleaner
Select the option to suit your needs and improve the tip thermal transfer.
Brass Wool
Ref. CL0300
Ver y ef fe ctive
cleaning method.
Leaves a small layer
of solder on the tip
preventing oxidation
between cleaning
and rewet ting.
Antisplash Membrane with Wiper
Wiper
Ref. CL0301
The antisplash membrane p revents splash ing and keeps the work area clean.
Includes a temperature-resistant wiper for removing excess solder by gently tapping or wiping the cartridge tip.
If the tip is very dir ty, JBC recommends first cle aning it with the wiper to remove excess solder and then with the brass wool.
Tapping Wiping
Tap gently to remove excess solder.
Use the slots to remove the remaining particles.
8
Page 9
Replacing Brass Wool
para manuales - color gris
1. Lifting 2. Replacing
Space
Lift and remove the antisplash membrane. Replace the brass wool with a new one. Make
sure that the brass wool is on the far left and that there is space for the wiper on the right.
3. Assembling 4. Pressing on
Assemble the antisplash membrane in a vertical direction onto the stand.
Press the antisplash membrane down. Make sure that the membrane is correctly inserted all around.
Note: The brass wool and the wiper position can be reversed by rotating the antisplash membrane 180 degrees
9
Page 10
ø 1
ø 3,5

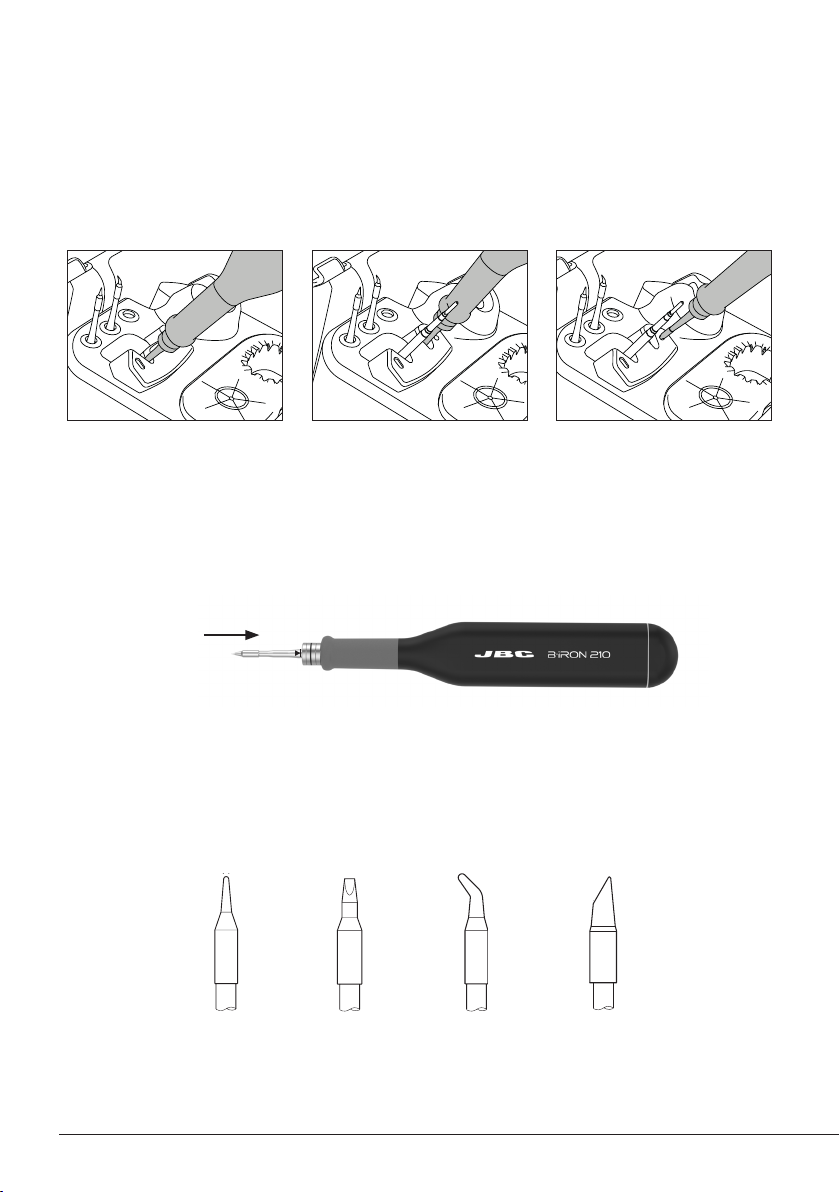

Cartridge Exchanger
Save time and change cartridges safely without switching the station off.
1. Removing 2. Inserting 3. Fixing
Place the handpiece in the extractor and pull to remove the cartridge.
Place the handpiece on top of the new car tridge and press down slightly.
Use the holes for fixing the cartridge.
*Important: Insert the cartridge up to the stop. The charging indicator light changes from red to green when the cartridge is properly inserted.
until “stop”
Compatible Cartridges
B 210 Precision Tool works with C210 Cartridges. Find the model that best suits your soldering needs at w ww.jbctools.com
10
Conical Chisel Conical
Bent
Bevel
Page 11
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work

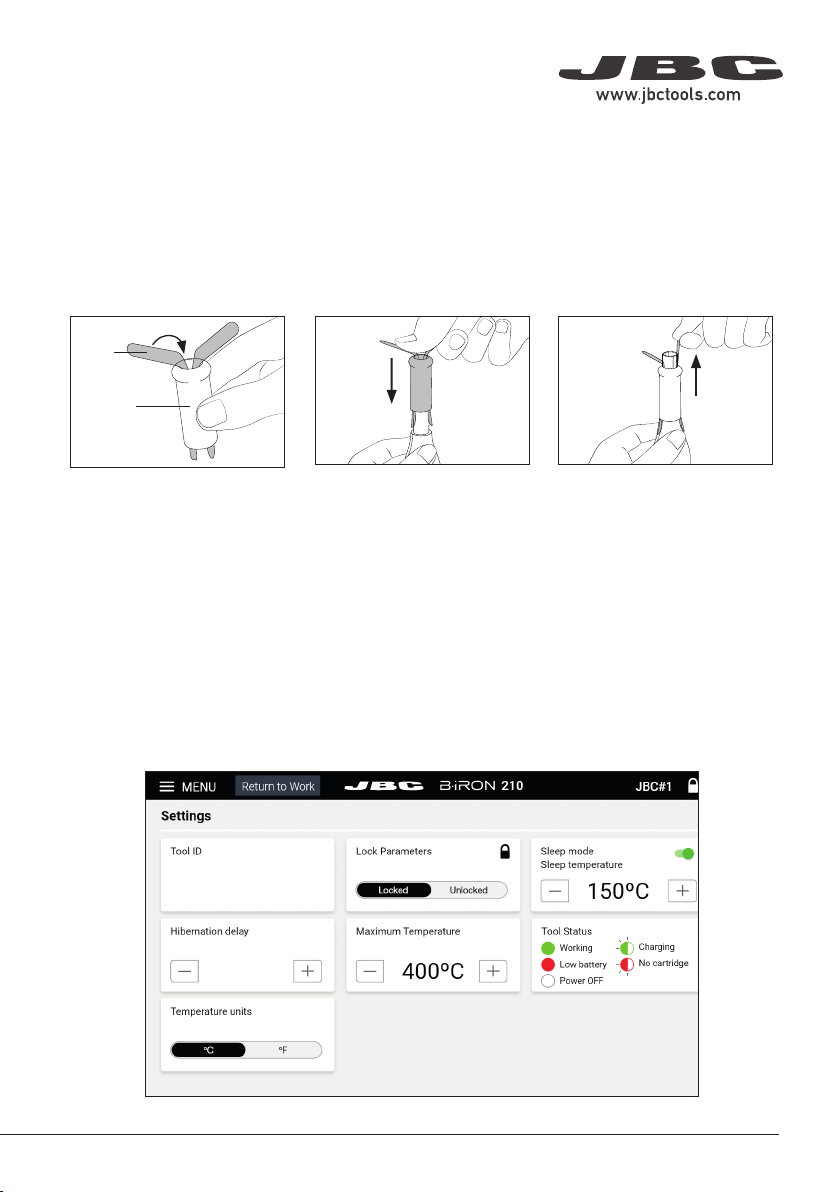

Changing the Grips
para manuales - color gris
Foam grips for B115 and B210 tools can be exchanged.
Remove the worn grip and replace it easily with a new one by using slip-on tabs. To change the grips do as follows:
1. Inserting Tabs 2. Inserting Handle 3. Removing Tabs
tabs
new grip
Put the slide-on tabs into the new grip.
Push the grip with the tabs
onto the handle.
Hold the grip and pull the tab. Use pliers if necessary.
Menu Settings
The B·iRON Console offers an intuitive user interface, which provides quick access to station parameters.
Tool1
10
11
Page 12
Parameters
Parameter
Tool ID
PIN
Hibernation Delay
Sleep Mode / Sleep Temperature
Maximum Temperature
Tool Status
Description
Allows to change the tool identifier.
Allows to change the PIN
Set hibernation delay from 5 to 15 sec. The countdown starts when no movement is detected.
Set sleep mode ON/OFF. The tip temperature will drop to the selected sleep temperature while charching.
Allows selection of the maximum temperature that can be set for the work mode
The tool status light indicates as follows the tool status:
- Green: working / soldering
- Green blinking: charging
- Alternating red/green blinking: low battery, less than 20%
- Red blinking: no cartridge
- No color: power OFF
12
Page 13
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
Users Manual
Users Manual
Documents
MENU
JBC#1
210
Return to Work
Update
Tool1
10
Tool
ON
MENU
28174
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
Tool
ON
MENU
24 W
100%
18 W
100%
12 W
100%
6 W
100%
0 W
100%
10 seconds/div
V1.2
CHARGE
450 ºC
350 ºC
250 ºC
150 ºC
50 ºC
JBC
210
348ºC
5,7 W
80%
350ºC
JBC#1
JBC#1
MENU
Tool1
2822
Tool ID
Hibernation delay
Temperature units
00:30
Maximum Temperature
400ºC
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
Tool Status
ºC
ºF
JBC
210
Lock Parameters
Locked
Unlocked
Return to Work
Tool1
Tool ID
28714
Hardware
Software
0028283
X886787
Update File
File
Hardware
Software
Select your Firmware
-
-
Update
MENU
JBC
210
Return to Work
JBC#1
Bi115
Bi210
Users Manual
Users Manual
Documents
MENU
JBC#1
JBC
210
Return to Work
2822
Update
Tool1
Tool1
Tool1 Tool2 Tool3
10
B·iRON Update
para manuales - color gris
- Download the JBC update file from: https://www.jbctools.com/jbcsoftware.html
- Connect the console/device via USB connection to the PC.
- On the cons ole/device notifi cation bar at the top, open “ USB Connecti on Settings” an d select “MTP ”.
- On the PC copy the downloaded file to “IT706/internal share storage/JBC”.
- Once copying is finished, disconnect the console/device from the PC.

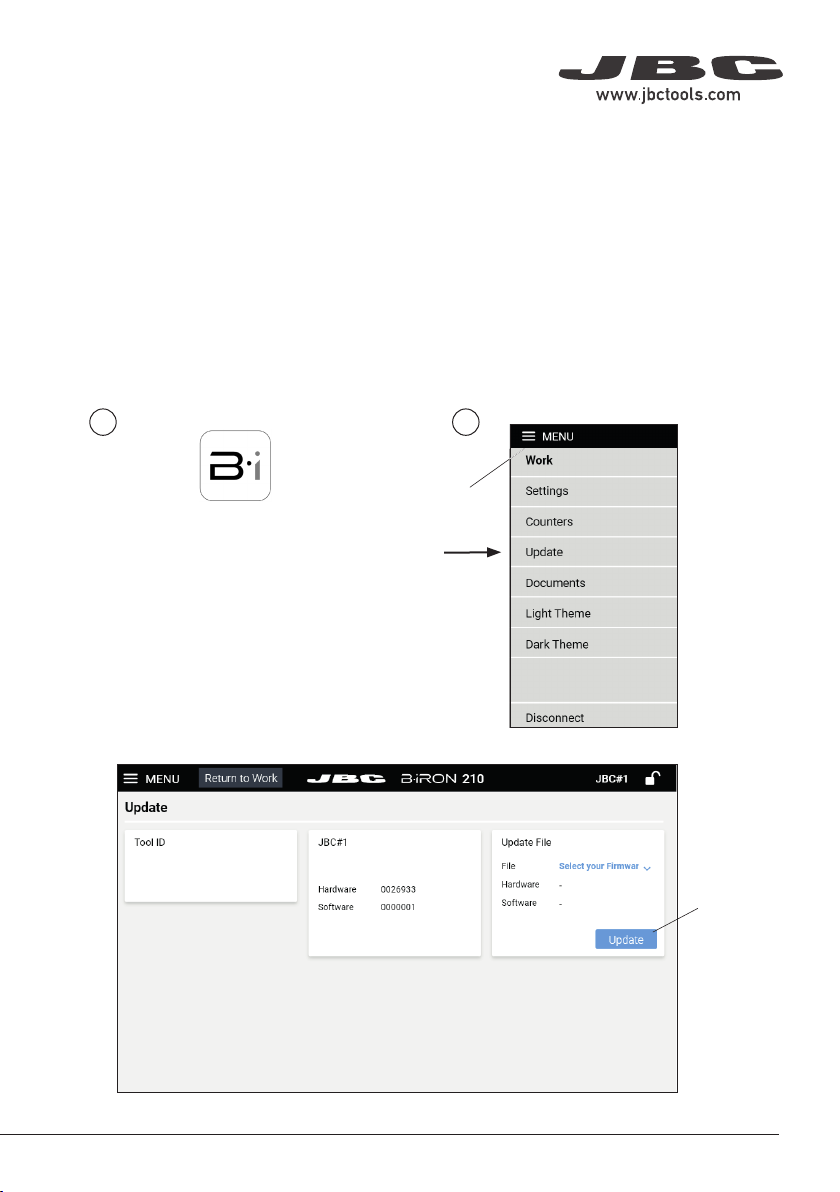

- On the con sole/device open th e Application (1) and then sel ect “update” (2) on the Appl ication Menu.
21
Work
Application
Menu
Settings
Counters
Update
Documents
Light Theme
Dark Theme
Disconnect
- Use the update button of the version to be downloaded.
Tool1
2822
Update Button
13
Page 14
Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire.
- The power cord must be plugged into approved bases. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to charge the batteries.
- The soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the
station is turned off.
- Do not leave B115 Tool unattended when it is on.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced physical,
sensor y or mental capabilities or lack of experience provided that they have been given adequate supervision or instruction concerning the use of the appliance and understand the hazards involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
- Do not expose the console to high temperatures, humidity or dust. Avoid direct sunlight.
- Do not drop the console as it may cause damage or malfunction.
- Do not disconnect your device when it is in fi le transfer mode.
- Do not use the console in places where electronic devices are restricted.
It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion.
Maintenance
Before carrying out maintenance, always extract the cartridge and disconnect it from the mains. Allow the equipment to cool down.
- Use a damp cloth to clean the casing and the tool. Alcohol can only be used to clean the metal parts.
- Periodically check that the metal parts of the tool and stand are clean so that the charging works
- Maintain the tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and
- Do not use liquid such as alcohol, thinner or benzene to clean the console.
- Repairs should only be performed by a JBC authorized technical service.
pr ope rly.
dirty surfaces reduce heat transfer to the solder joint.
Clean periodically
14
Page 15
Safety
para manuales - color gris
It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire.
- The power cord must be plugged into approved bases. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to charge the batteries.
- The soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the
station is turned off.
- Do not leave B115 Tool unattended when it is on.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced physical,
sensor y or mental capabilities or lack of experience provided that they have been given adequate supervision or instruction concerning the use of the appliance and understand the hazards involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
- Do not expose the console to high temperatures, humidity or dust. Avoid direct sunlight.
- Do not drop the console as it may cause damage or malfunction.
- Do not disconnect your device when it is in fi le transfer mode.
- Do not use the console in places where electronic devices are restricted.
15
Page 16
Notes
Notes
16
Page 17
Notes
para manuales - color gris
17
Page 18
18
Page 19
Specifications
para manuales - color gris
B·iRON 210 Precision Battery Soldering Station
With Console Ref.: BI210UA 120 V - N. America Ref.: BI210I A 230 V - India Ref.: BI210A 230 V - Europe Ref.: BI210K A 230 V - United Kingdom Ref.: BI210H A 230 V - China Ref.: BI210JA 100 V - Japan
Stand:
- Input: 100 V - 240 V 50/60 Hz
- Power: 20 W
- Tool output: 12 V / 500 mA
- USB output: 5 V / 1000 mA
Tool:
- Output Peak Power: 24 W
- Battery: Li-Ion 7.4 V / 180 mAh
- Charge Time: 30 minutes
- Temperature Range: 200 - 450 °C / 390 - 840 °F
- Idle Temp. Stability (still air): ±1.5 °C / ±3 °F
- Temp. Accuracy: ±3% (Using reference cartridge)
- Connections: Bluetooth Low Energy (BLE)
- Ambient Operating Temp: 10 - 50 °C / 50 - 122 °F
- Tool Weight: 35 g / 0.08 lb
Console:
Screen dimension: 7” / 7in
With Console
- Total Net Weight: 1442 g / 3.18 lb
- Total Package Dimensions/Weight: 265 x 223 x 160 mm / 2000 g (L x W x H) 10.43 x 8.78 x 6.30 in / 4.41 lb
Without Console
BI210 UQ A 120 V - N. America, Taiwan BI210 IQ A 230 V - India BI210 QA 230 V - Europe BI210KQA 230 V - United Kingdom BI210HQA 230 V - China BI210 JQ A 100 V - Japan
Without Console
- Total Net Weight: 978 g / 2.16 lb
- Total Package Dimensions/Weight: 225 x 223 x 160 mm / 1536g (L x W x H) 8.86 x 8.78 x 6.30 in / 3.39 lb
Complies with CE standards ESD safe Not grounded device. No ESD discharge feature.
19
Page 20
Warranty
para manuales - color gris
JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warrant y does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 3 0 days of purchase.
This product should not be thrown in the garbage. In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.
0027779-021222
Loading...
