INSTRUCTION MANUAL
Nitrogen Kit
Ref. KN-A
www.jbctools.com
2
www.jbctools.com
3
Packing List
The following items should be included:
Nitrogen Flow
Regulator ........................ 1 unit
Ref. MN-A
Nitrogen Handle ............ 1 unit
Ref. T245-NA
Stand ................................ 1 unit
Ref. DN-SE
Stand Cable ................... 1 unit
Re f. 0 0 1128 3
Nozzles .......... 2 units
Ref. B7243 (x1)
B7244 ( x1)
Cartridge ......... 1 unit
Ref. C245903
Manual ............................. 1 unit
Re f. 0 013 741
Module Cable ................ 1 unit
Ref. 0010207
Tip Cleaner ..... 1 unit
Ref. CL8499
Sponge ............ 1 unit
Ref. S0354
Nitrogen Kit
Ref. KN-A
INSTRUCTION MANUAL
www.jbctools.com
4
Features
The KN-A requires the GN-A generator or an available nitrogen supply at the operator´s bench.
Use Ø 6 ± 0.15 mm
polyurethane tubing
Nitrogen Flow Regulator
Ref. MN-A
Nitrogen Generator
Ref. GN-A
Control Unit
Ref. DI, DD, DDR, DM
Stand Cable
Re f. 0 0 1128 3
Module Cable
Ref. 0010207
Stand
Ref. DN-SE
Nitrogen Handle
Ref. T245-NA
Handle
N
2
tube
Compressed
Air Inlet
or
from N
2
net
N2 pressure range
supply 3 to 6 bar
6 bar MA X
Nitrogen supply tube
Electric circuit
Main menu
Exit
1 Reset settings
2
Station settings
3
Tool settings
Station settings
1 Temp unit
Celsius
2
Maximum temp 4000C
3
Minimum temp 2000C
4
Nitrogen mode ON
www.jbctools.com
5

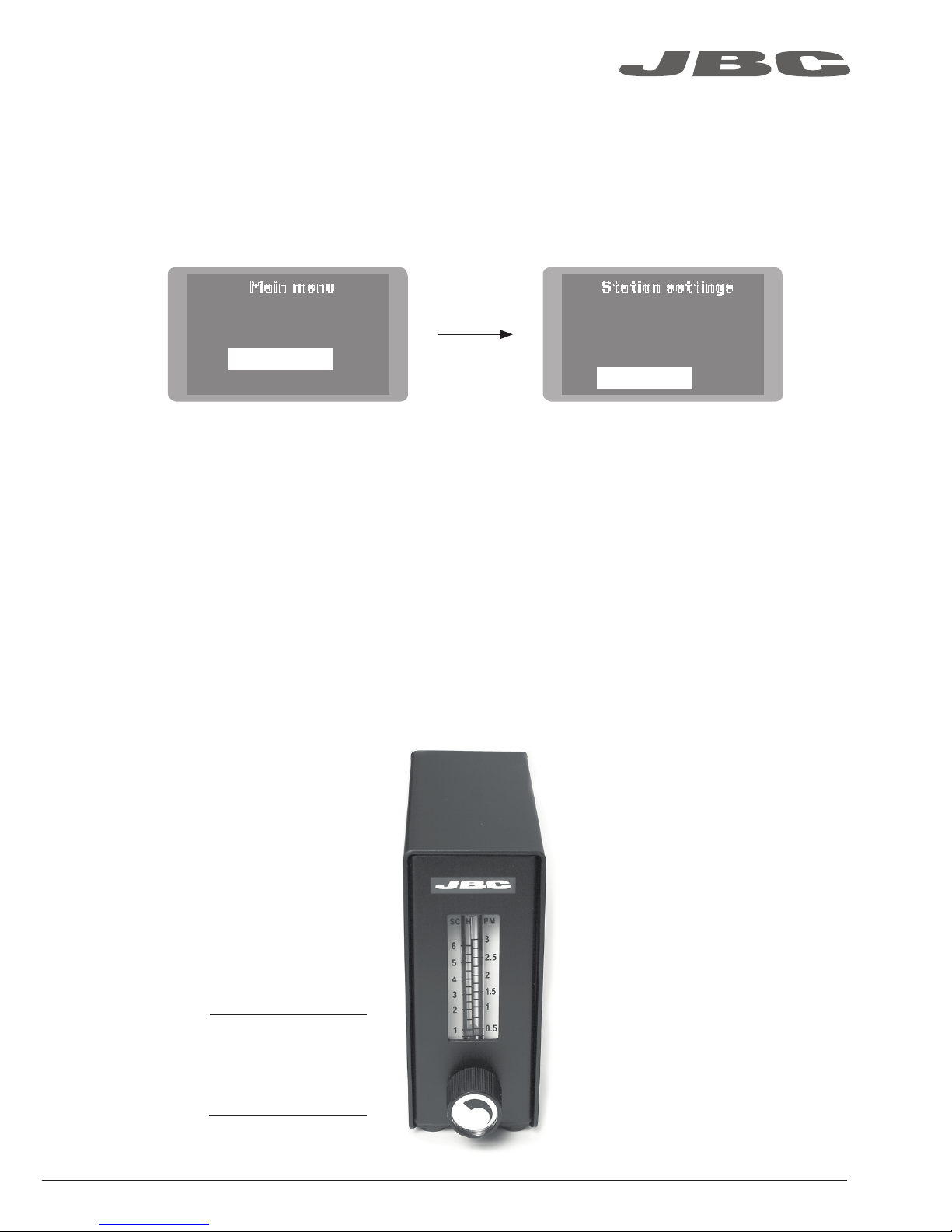

Once the Nitrogen Flow Regulator (MN-A) is connected to the Control Unit, enter the Station Settings
menu and enable the Nitrogen Mode.
The MN is an electrovalve controlled by the soldering station that allows you to solder using nitrogen.
It guarantees minimal gas consumption and prevents tip oxidation.
The nitrogen flow is automatically activated when the soldering iron is lifted from the stand.
It stops when the tool is placed back and the tip temperature drops to the sleep mode.
Recommended N2 flow:
1-2 SLPM
N
2
flow control
Initial Set up
Operation
6

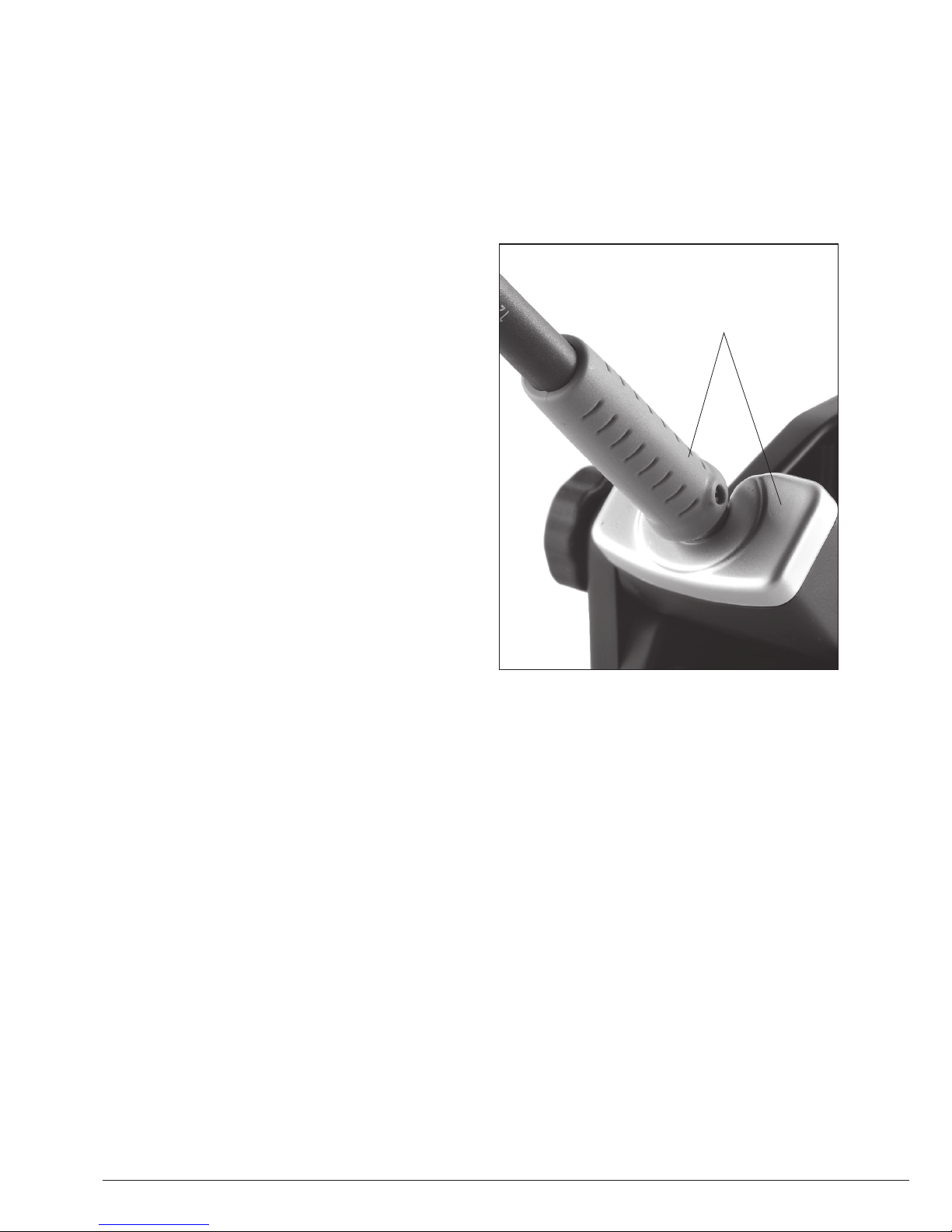

Clean periodically
Maintenance
Before carrying out maintenance or storage, always allow the equipment to cool.
- Use a damp cloth to clean the casing, the
stand and the tool. Alcohol can only be used
to clean the metal parts.
- Check periodically that the metal parts of
the tool/stand are clean so that the station
can check the tool status.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation. Rusty
and dirty surfaces reduce heat transfer to the
solder joint.
- Periodically check all cables and tube
connections.
- Replace any defective or damaged parts.
Use original JBC spare parts only.
- Repairs should only be performed by a
JBC authorized technical service.
www.jbctools.com
7
Safety
- Only nitrogen can be used with this unit.
- Do not use the unit for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded before
use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode. The
soldering tip, the stand and the metal part of the tool may still be hot even when the station is
turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight as well as persons with reduced
physical, sensory or mental capabilities or lacking experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
8

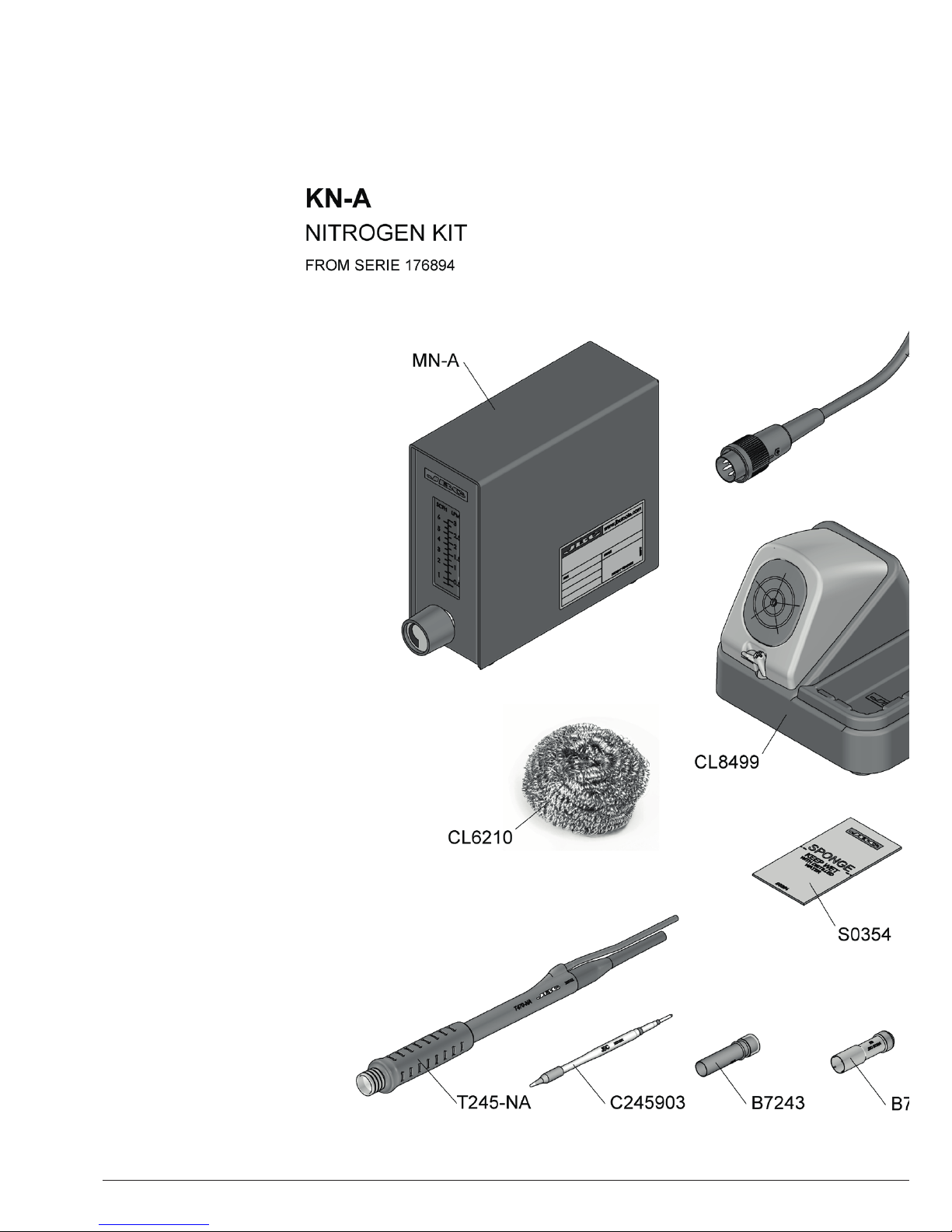

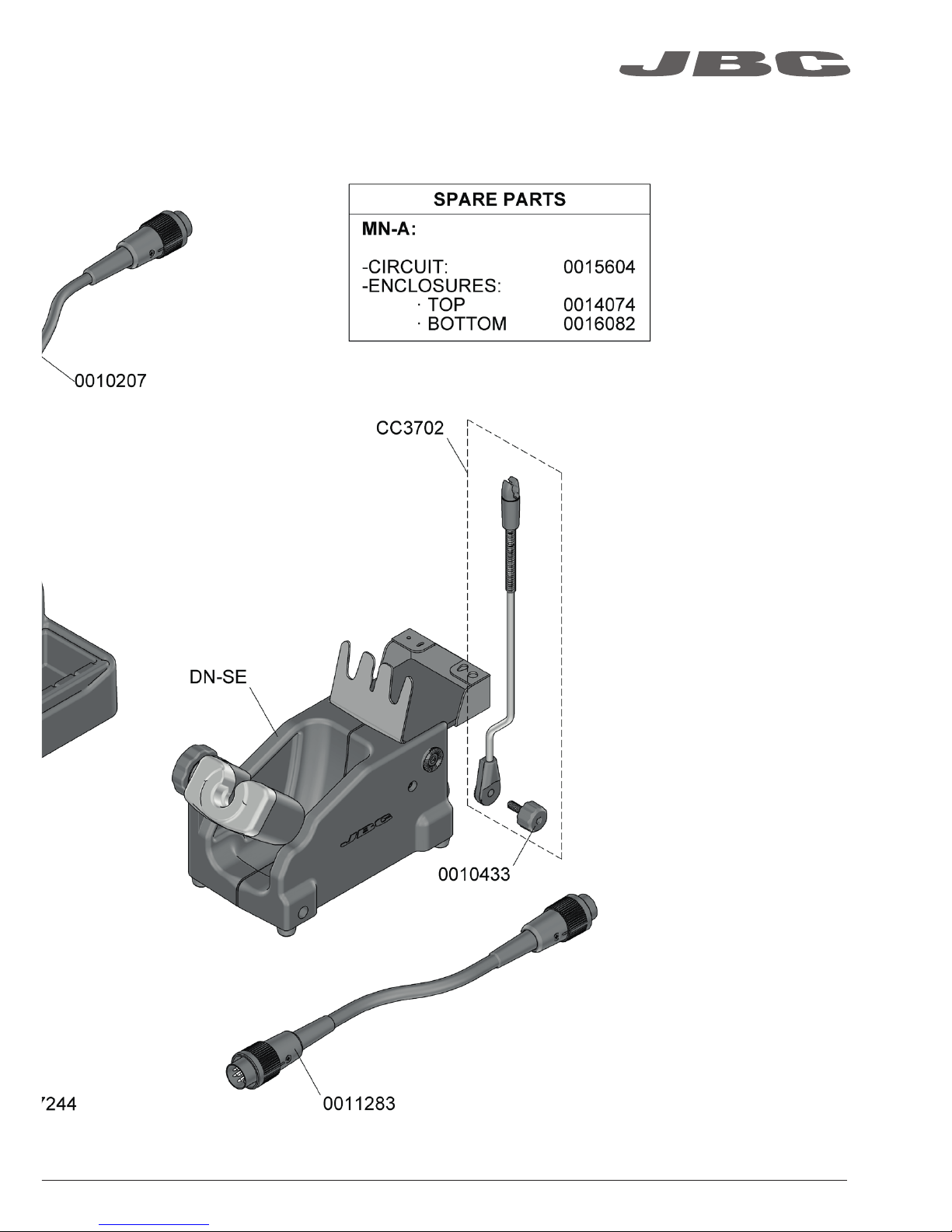

Exploded View
www.jbctools.com
9
10
Notes
11
www.jbctools.com
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
Warranty
JBC’s two-year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour. Warranty
does not cover product wear or misuse. In order for
the warranty to be valid, equipment must be returned,
postage paid, to the dealer where it was purchased.
Register your warranty within 30 days of purchase
in www.jbctools.com/productregistration
0013741-0119
- Weight: 3,5 kg (7.8 lb)
- Dimensions (MN-A): 50 x 120 x 130 mm (1.97 x 4.72 x 5.12 in)
- N2 pressure range supply: 3-5 bar
- Maximum N2 pressure: 6 bar
- N2 flow regulation: 0.5 - 3 SLPM
- Recommended N2 flow: 1-2 SLPM
- Ambient Operating Temperature: 10 - 40 ºC (50 - 104 ºF)
Complies with CE standards.
ESD protected housing.
Specifications
