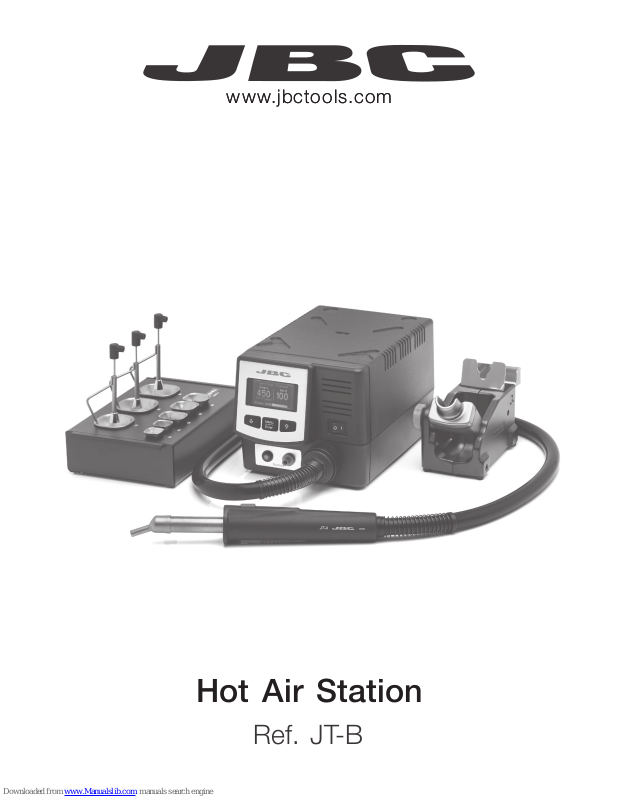

jbc JTE-1B, JTE-2B, JTE-9B, JT-B User Manual

www.jbctools.com

Hot Air Station

Ref. JT-B

www.jbctools.com

2

Manual

* These accessories not supplied with JT-2QB / JT-1QB / JT-9QB stations

www.jbctool s.com

Packing List

Heater hose set

Ref. JT-T1A (100V - 120V)
JT-T2A (230V)

Stand

Ref. JT-SB

Control Unit

Ref. JTE-1B
JTE-2B
JTE-9B

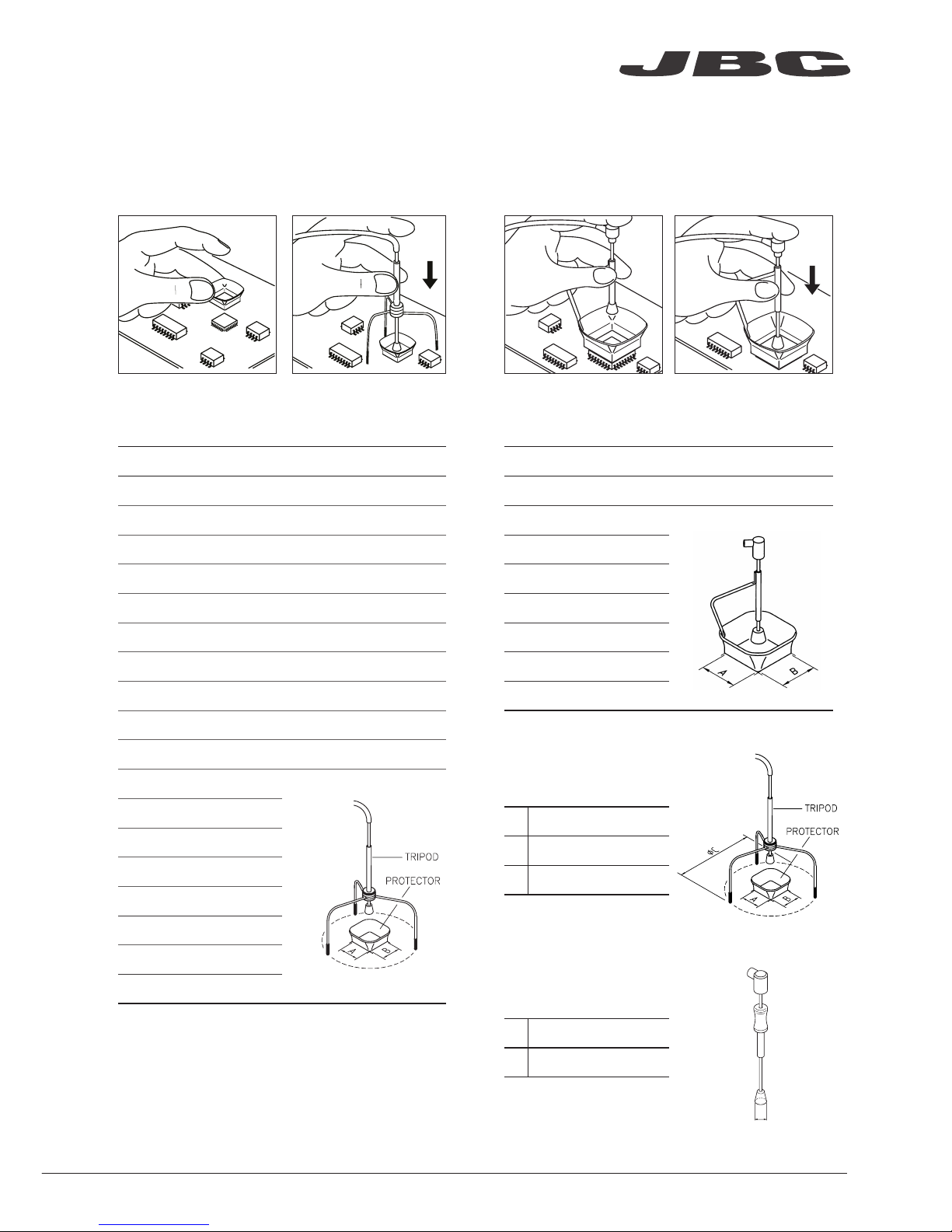

Extractor stand*

Ref. 0008752

Suction Tube*

Ref. 0932330

Suction Cups*

Ref. 0930110
Ø 10 - 0934050 (x3)
Ø 4.7 - 0934070 (x1)

Power Cord

Ref. 0009417 (100V/120V)
0009401 (230V)

Extractors*

Ref. E2184
E2064
E2052

Protectors*

Ref. P2220 (32)
P2230 (48)
P2235 (24)
P4000 (44)
P4010 (60)

Tripod*

Ref. T2050 Ø 39mm
T2250 Ø 85mm

Nozzles

Ref. JN2015 Ø 4mm
JN2012 Ø 6mm
JN2020 Ø 8mm

Hot Air Station

Ref. JT-B

3

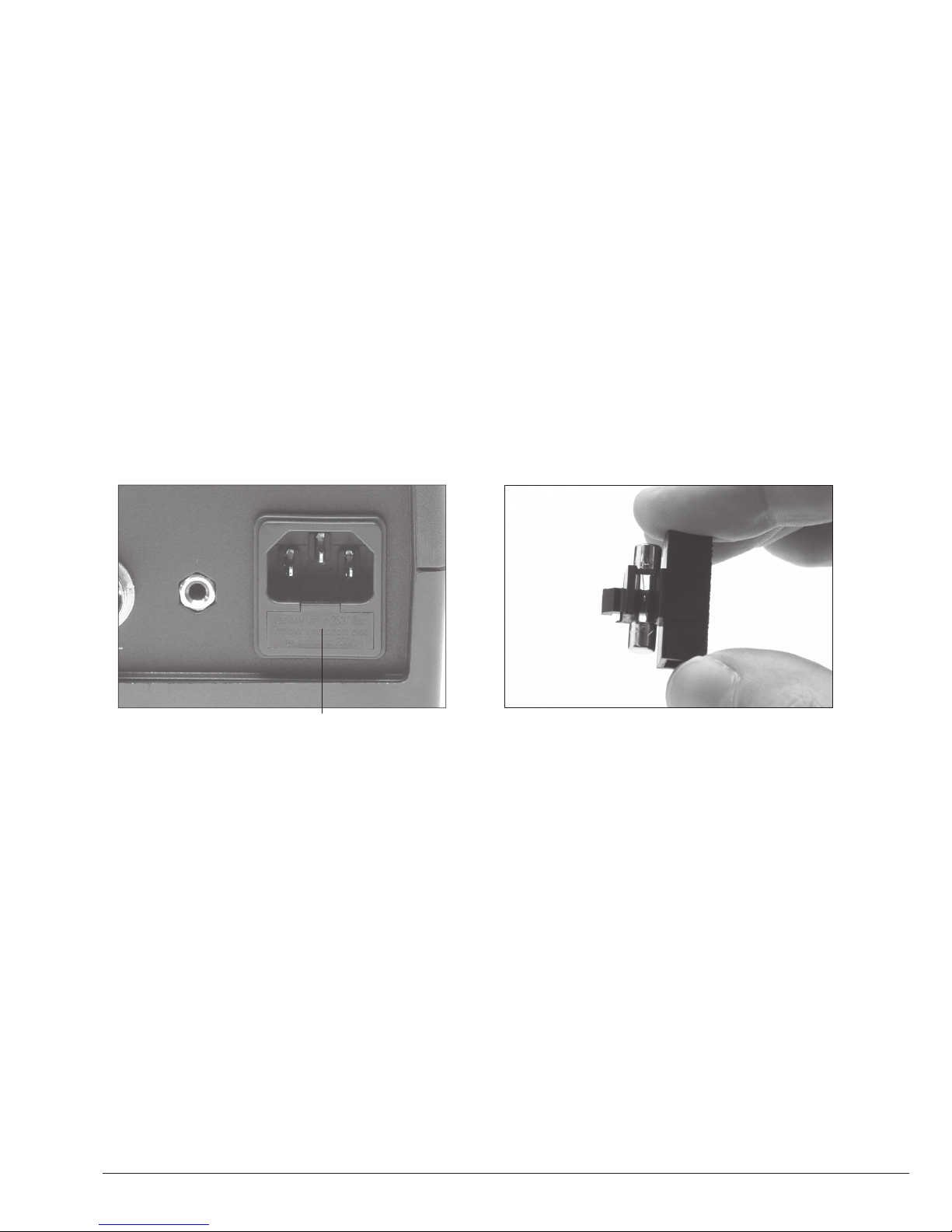

Power
cord
socket

Equipotencial
connection

Pedal 0964551
(NOT INCLUDED)
(ON / OFF hot air)

USB-B connector:

- Update station software

- Create graphs

- Manage parameters via PC

Connectable tools:

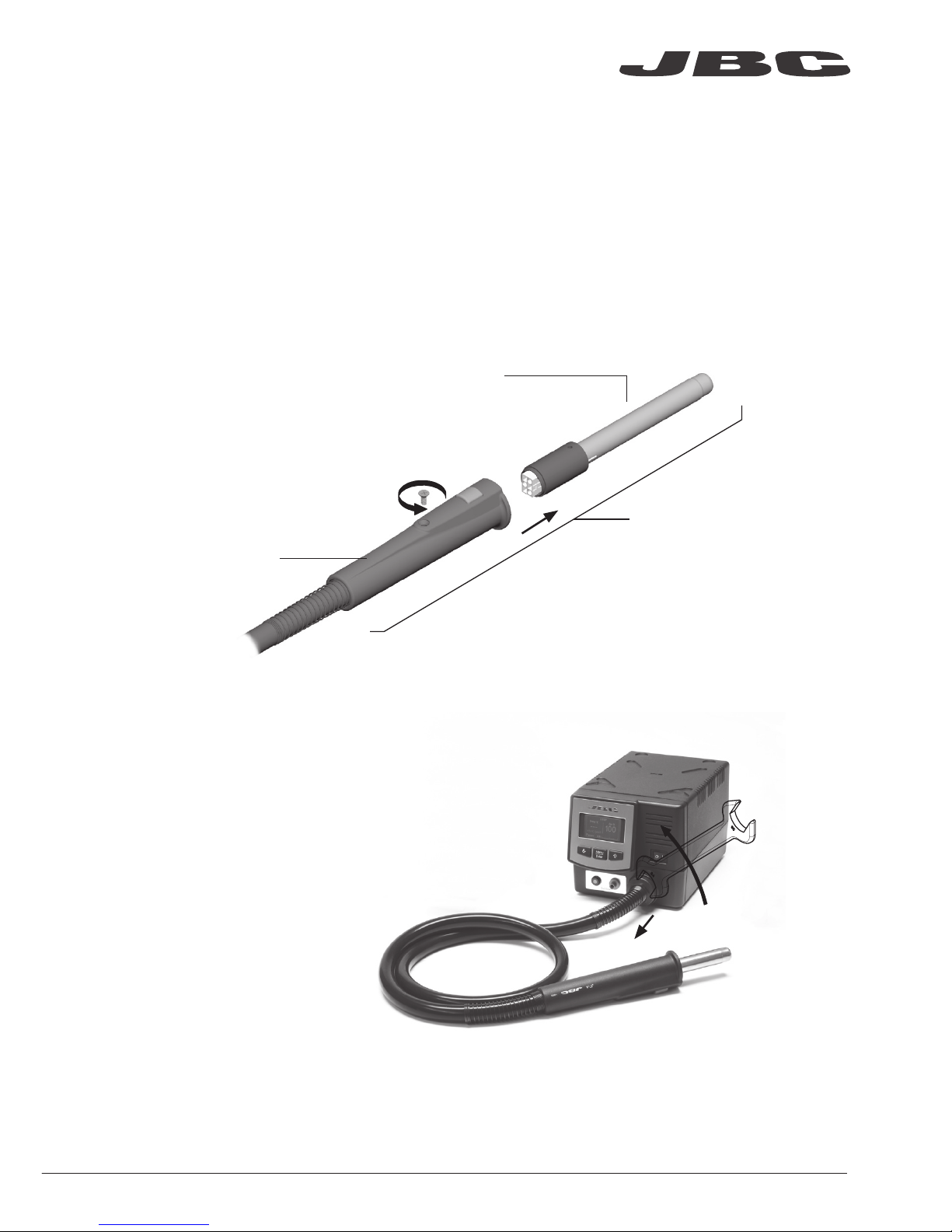

JT-T2A / JT-T1A Heater hose set
TE-TB Precision Heater hose set

Heating element

Hot Air switch
(ON / OFF)

Suction
Tube

Main
switch

Heater
inlet

Vacuum inlet for tripods
and extractors

Activation of
suction pump

Features

Control Unit

Ref. JTE-1B
JTE-2B
JTE-9B

ww w.jbctoo l s.com

4

Used to remove the JT NozzlesAdapted to JT-TA heating set.

In case of misalignment of the nozzle with the JT-TA heater:

1. Bend down the nozzle tab with a
screwdriver or flat nosed pliers.

Ref. Shape Size

JN2020 Straight Ø 8mm

JN8417 Straight Ø 10mm

JN2015 Bent Ø 4mm

JN2012 Bent Ø 6mm

JN6633 Bent Ø 8mm

JN7637 Flat 10 x 2mm

JN7638 Flat 20 x 2mm

JN7639 Flat 30 x 2mm

Straight Bent Flat

Ø mm Ø mm A x B mm

2. Insert the nozzle into the JT-TA
Heater again

Adjustable Stand

Nozzles
