INSTRUCTION MANUAL
Stands for HD
Handles and Tweezers
Ref. HD-SE / HDT-SD
www.jbctools.com
INSTRUCTION MANUAL
2
Packing List
The following items should be included in each stand:
Manual...............................................1 unit
Ref: 0021657
Ref. HD-SE HDT-SE
Stand ..................................................1 unit
Ref. HD-SE
Stand s for HD
Handles and Tweezers
Stand ..................................................1 unit
Ref. HDT-SE
Includes: Cable flange (Ref.0010546)
Stand cable 1m ............................... 2 units
Re f. 001128 3
www.jbctools.com
Features
3

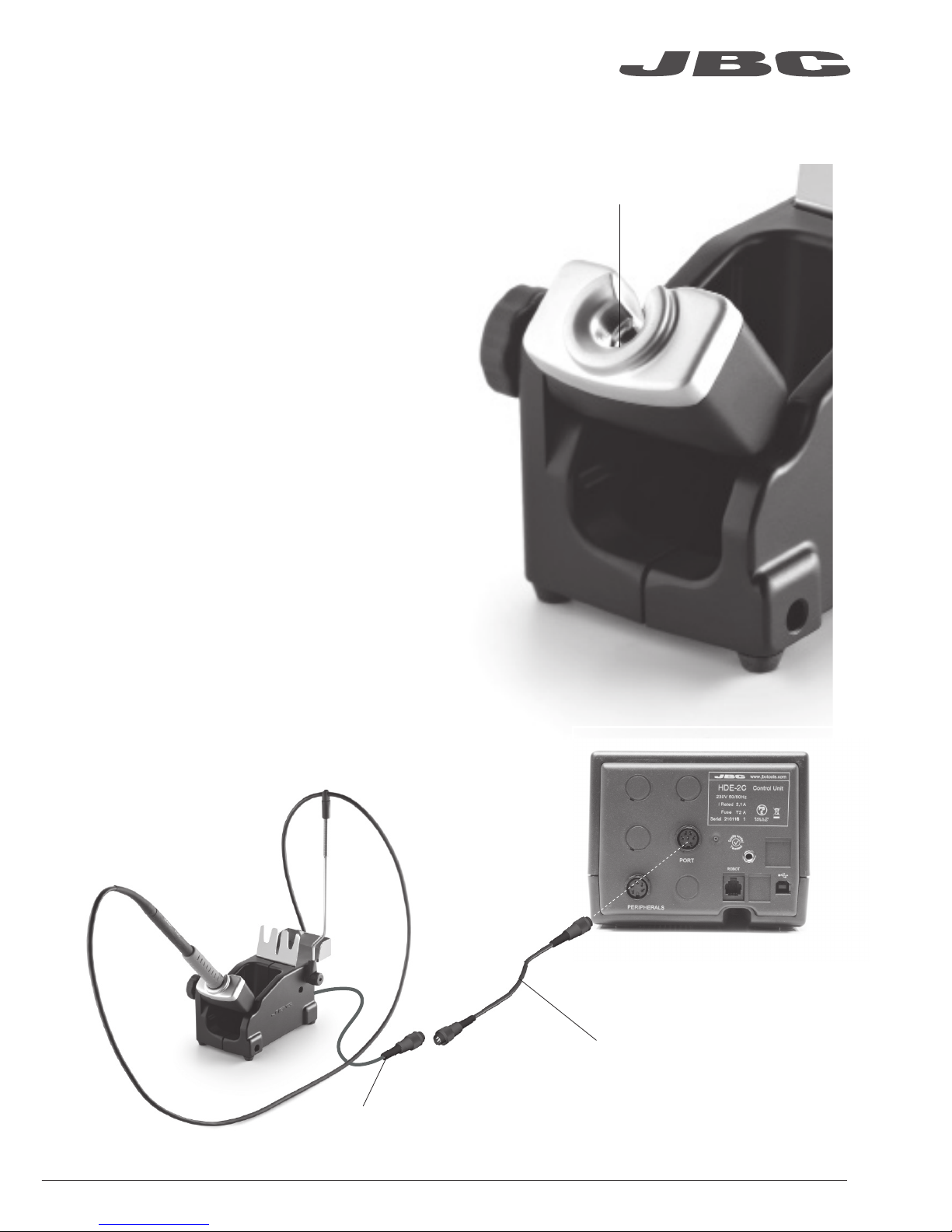

To HDE Control Unit
The HDT-SE Stand requires
two Heavy Duty stations (HDE)
to manage the C470 cartridges
individually thereby optimizing
their thermal performance.
Stand
Ref. HDT-SE
To HD470
Thermal Tweezers
To T470 Handles
Stand
Ref. HD-SE
To HDE Control Unit
using the Stand Cable
To HDE Control Unit
www.jbctools.com
4
Cartridge Extractor
1. Remove the cartridges using the extractor. Follow the ”Placing cartridges” guidelines.
Make sure the cartridges have cooled down before replacing them.
2
1
Handpiece screw
Follow these steps once you have loosened the handpiece screw.
2. You can also use the extractor to insert the cartridges and align them.
Tighten the screws for a correct use.
Handpiece screw
5
Assembly of Cable Collector and Adjustable Tool Holder
Assembly for HD-SE.
Assembly for HDT-S E.
Cable holder
Ref. 0010546
www.jbctools.com
6
Safety
- Do not use the stands for any purpose other than soldering or rework.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.
- Avoid the contact of flux with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
Accessories
Stand extension cable
Ref. A1286
Length: 1.5m
Stand cable
Ref. 0011283
7
Clean periodically
Maintenance
Before carrying out maintenance or storage,
always unplug the stand from the station and
the tool.
- Use a damp cloth to clean the stand.
Alcohol can be used only when cleaning
the metal parts.
- Check periodically that the metal parts of
the tool/stand are clean so that the station
can check the tool’s status.
- Periodically check all cables and tube
connections.
- Replace any defective or damaged parts.
Use original JBC spare parts only.
- Repairs should only be performed by a
JBC authorized technical service.
www.jbctools.com
0021657-0518
HD-SE
- Includes Sleep mode
- Net Weight 1.300 kg (2.87 lb)
- Package Weight 1.558 kg (3.43 lb)
- Package Dimensions 342 x 155 x 120 mm (13.46 x 6.10 x 4.72 in)
HDT-SE
- Includes Sleep mode
- Net Weight 1.3411 kg (3.11 lb)
- Package Weight 1.689 kg (3.72 lb)
- Package Dimensions 342 x 155 x 120 mm (13.46 x 6.10 x 4.72 in)
Complies with CE standards
ESD protected
Specifications
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
Warranty
JBC’s two-year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour. Warranty
does not cover product wear or misuse. In order for
the warranty to be valid, equipment must be returned,
postage paid, to the dealer where it was purchased.
Register your warranty within 30 days of purchase
in www.jbctools.com/productregistration
