www.jbctools.com
INSTRUCTION MANUAL
Heavy Duty station
Ref. HDE-B
2
Packing List
The following items should be included:
www.jbctools.com
HDE Control Unit ...................................... 1 unit
Ref. HDE-1B (120V)
HDE-2B (230V )
HDE-9B (100V )
HD Purpose
Handle ............................ 1 unit
ESD Tip Cleaner ........... 1 uni t
Ref. CL8499
Ref. T47 0 -A
Stand ............................................................ 1 unit
Ref. HD-SE
Sponge ............................ 1 unit
Ref. S0354
Cartridge
Holder ...............1 unit
Ref. SCH-A
Stand cable .... 1 unit
Re f. 001128 3
Power Cord .....1 unit
Ref. 0009417
(100V/120V)
0009401 (230V)
Manual ..............1 un it
Ref. 0021215
www.jbctools.com
INSTRUCTION MANUAL
Heavy Duty station
Ref. HDE-B
Check our website for the corresponding manuals. Also available in other languages.
3
Features & Connections
HDE Control Unit
Equipotential connection
USB-B connector
Power Socket
Stand cable
Re f. 001128 3
Peripheral connector
for joining modules
and pedals
Stand
Ref. HD-SE
RJ12 connector
for Robot system
C470 cartridges
Required but not supplied
HD Purpose
Handle
Ref. T470-FA
4
www.jbctools.com

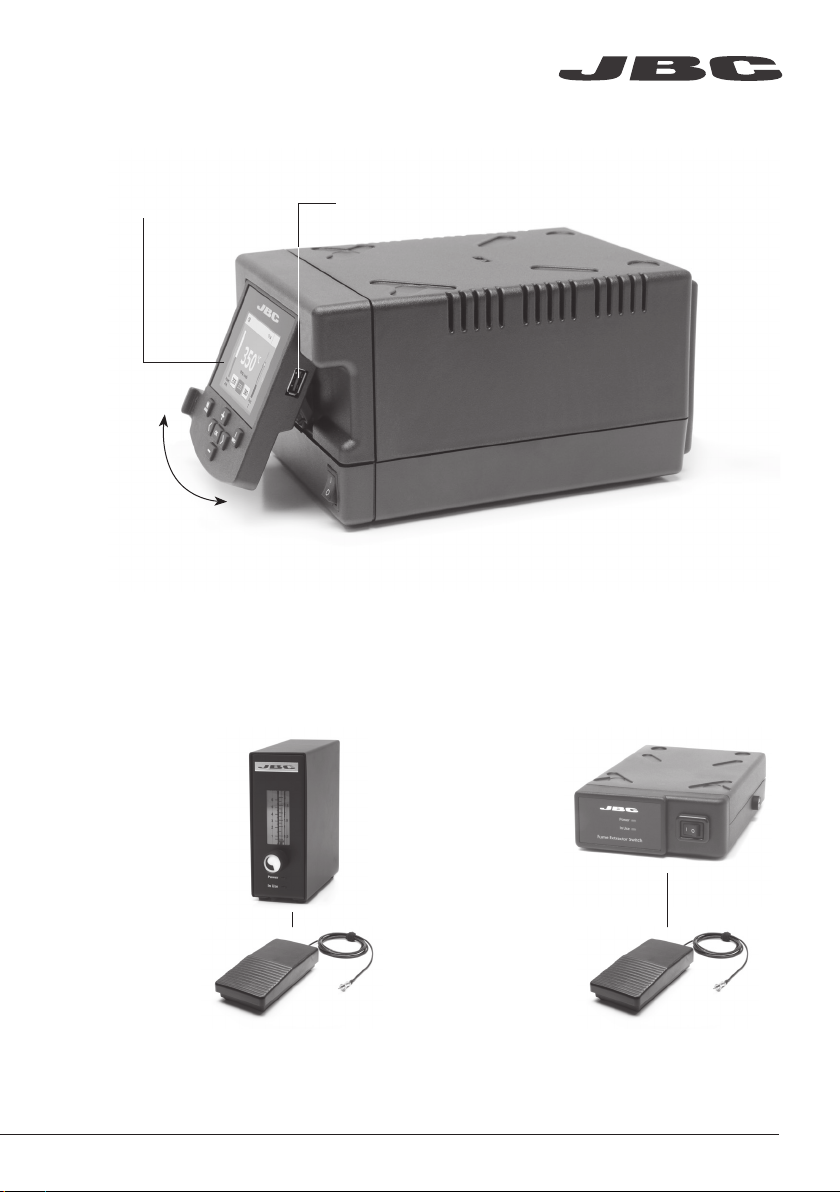

2.8” Color TFT screen
Tilt the display
for easy reading
USB-A connector
Peripherals
Join the station port with 1 module and 1 pedal. See the compatible peripherals below:
Nitrogen Flow
Regulator
Ref. MNE-A
Fume
Extractor Switch
Ref. FSE-A
Pedal
Ref. P-005
Use this foot switch to enable/disable a module or make the tool enter/exit Sleep mode.
If you do not have a module, you can link up the P-305 Pedal Kit to the tool port.
Pedal
Ref. P-005
5
Maintenance
Before carrying out maintenance, always allow the equipment to cool.
- Clean the station screen with a glass cleaner
or a damp cloth.
- Use a damp cloth to clean the casing and
the tool. Alcohol can only be used to clean
the metal parts.
- Periodically check that the metal parts of the
tool and stand are clean so that the station
can detect the tool status.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat
transfer to the solder joint.
- Periodically check all cables and tubes.
- Replace a blown fuse as follows:
Clean periodically
1. Pull of f the fuse holder and remove the
fuse. If necessar y use a tool to lever it off.
Fuse
- Replace any defective or damaged pieces. Only use original JBC spare parts.
- Repairs should only be performed by a JBC authorized technical service.
2. Insert the new fuse into the fuse holder
and return it to the station.
6
www.jbctools.com
Safety
It is imperative to follow safety guidelines to prevent electric shock, injury,
fire or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid the contact of flux with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
7
有害物质含量表
产品中有害物质的名称及含量
有害物质
部件名称
铅(Pb) 汞(Hg) 镉(Cd)
烙铁头 O O O O O O
手柄 O O O O O O
电源线 O O O O O O
主机 O O O O O O
电源插座 O O O O O O
保险丝 O O O O O O
主开关 O O O O O O
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
电位连接 X O O O O O
变压器 O O O O O O
线路板 X O O O O O
O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。
X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。
8
Specifications
HDE-1B 120V 50/60Hz. Input fuse: 4A. Output: 42V.
HDE-2B 230V 50/60Hz. Input fuse: 2A. Output: 42V.
HDE-9B 100V 50/60Hz. Input fuse: 5A. Output: 42V.
- Weight: 4,9 kg (10. 8 lb)
- Dimensions: 145 x 120 x 225 mm (3.54 x 4.13 x 7.09 in)
- Output Peak Power: 250W
- Temperature Range: 90 - 500 °C (190 - 932 °F) (±5%)
- Idle Temp. Stability (still air): ±1.5 ºC / ±3 ºF
- Tip to ground resistance: < 2 ohms
- Tip to ground voltage: < 2mV RMS
- Ambient operating temp: 10 - 40 ºC (50 - 104 ºF)
- Connections: USB-A / USB-B / Peripherals connectors
- RJ12 connector for Robot
Complies with CE standards.
ESD protected housing.
www.jbctools.com
9

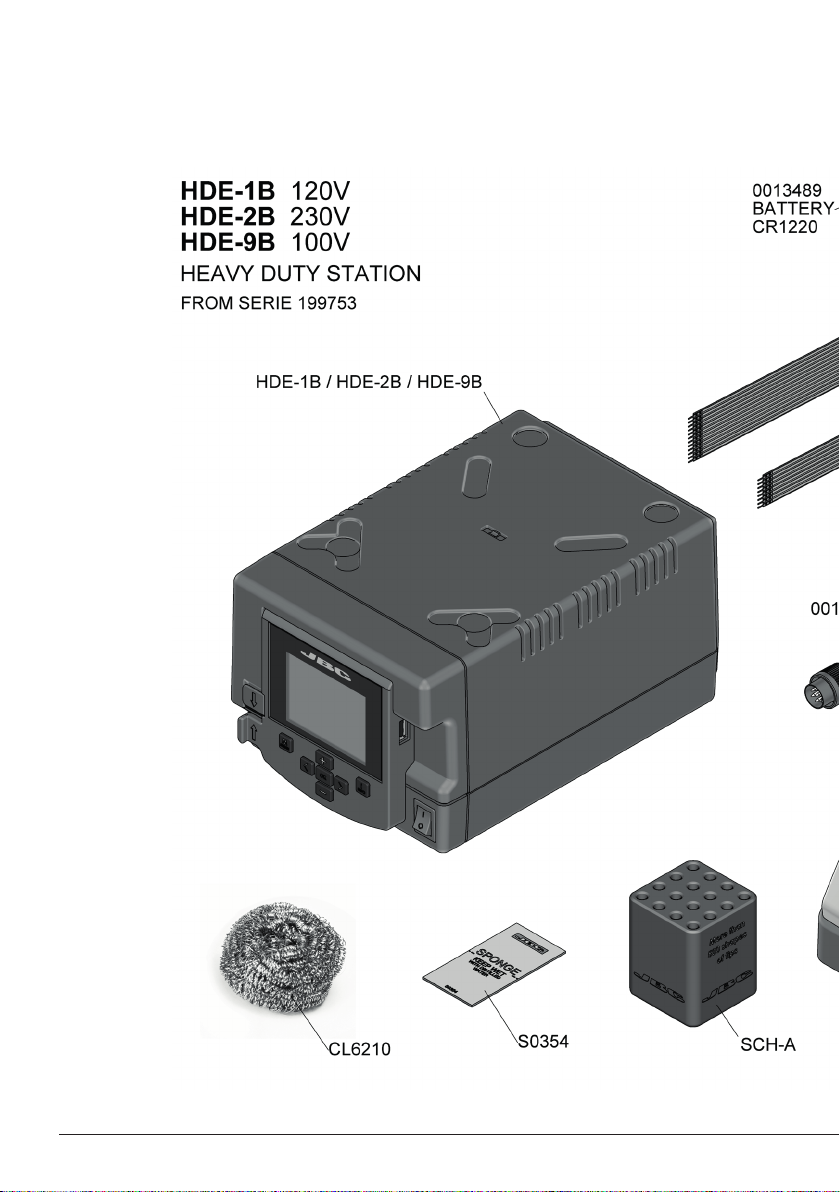

Exploded View
10
www.jbctools.com
11
Warranty
JBC’s two-year warrant y covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour. Warranty
does not cover product wear or misuse. In order for
the warranty to be valid, equipment must be returned,
postage paid, to the dealer where it was purchased.
Register your warranty within 30 days of purchase
in www.jbctools.com/productregistration
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facilit y.
Manual in other languages available on our website
www.jbctools.com
0021215-0318
