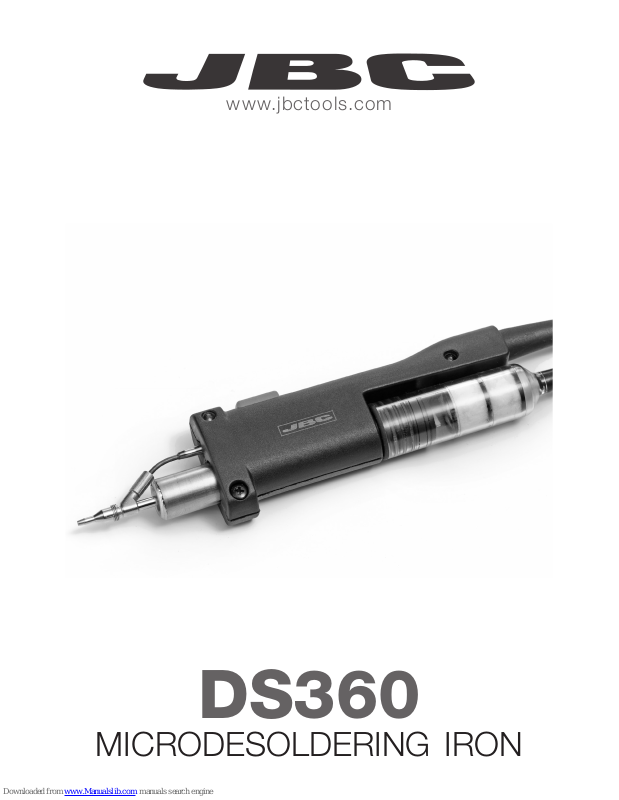

Page 1
DS360
MICRODESOLDERING IRON
www.jbctools.com
Page 2
INSTALLATION
2
DS360-A / MICRO DESOLDERING IRON
CONTROL UNIT
DS-SC
DESOLDERING
STAND
DS360-A
MICRO DESOLDERING IRON
DESOLDERING PUMP
C360002 x 5
MANUAL
C360004 x 5 0008473 x 2
FILTER
0008297
CLEANING BRUSH
0008467 x 2
SOLDER COLLECTOR
0008466
CLEANING RODS
Connectable control units:
DI, DD, DM and RM
Connectable singles line:
CS and CV
Power cord
socket
DS360-A
MICRODESOLDERING IRON
DS360
MICRODESOLDERING IRON
ww w.jbc too ls.c om
Page 3
$¡
%¡
CHANGING THE HEATING ELEMENT / DSV-DS
TIP RANGE
SELECTION OF THE TIP
3
C360-003
ØA:1.4
ØB:1
Ømax.pin: 0.8
C360-002
ØA:1.2
ØB:0.8
Ømax.pin: 0.6
C360-004
ØA:1.4
ØB:1
Ømax.pin: 0.8
Filter
Fixing screw
Heating element DSV-DS
1. To perform this operation, must remove the filter.
2. Undo the screw indicated in the picture and place the new heating element.
Ø Innerside nozzle
Ø Innerside nozzle > Ø Pin
Ø Pin
C360-001
ØA:1
ØB:0.8
Ømax.pin: 0.4
C360-007
ØA:1.9
ØB:1.4
Ømax.pin: 1.2
C360-006
ØA:3
ØB:1.5
Ømax.pin: 1.3
Page 4
WARRANTY
JBC’s 2 years warranty guarantees this equipment against all manufacturing defects, covering the replacement of defective parts and
all necessary labour.
Warranty does not cover product wear due to use or mis-use.
In order for the warranty to be valid, equipment must be returned,
postage paid, to the dealer where it was purchased enclosing this
fully filled in, sheet.
www.jbctools.com
SERIAL Nº
STAMP OF DEALER
DATE OF PURCHASE
0008864-0812
TECHNICAL SPECIFICATIONS
- Total weight: 176 gr. aprox
- ESD Safe
This product should not be
thrown in the garbage.
