Page 1

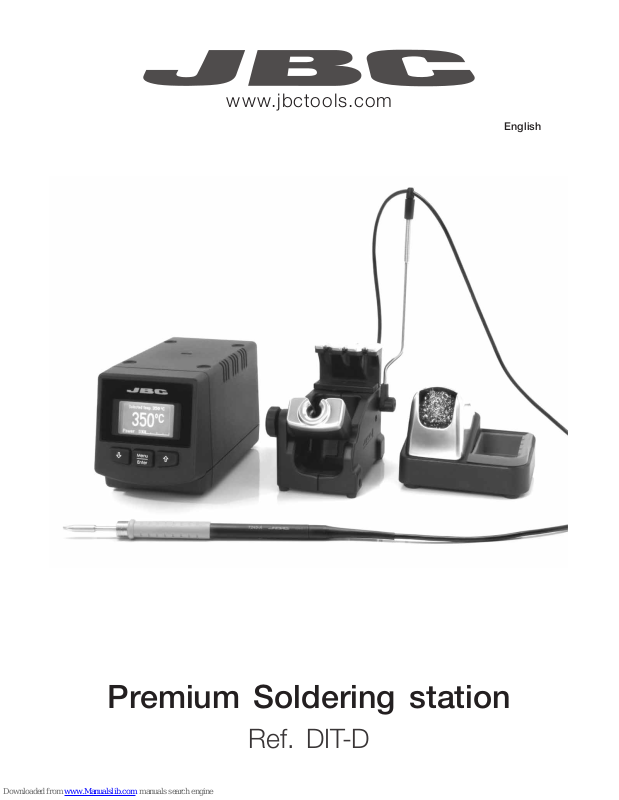

Premium Soldering station
Ref. DIT-D
English
www.jbctools.com
Page 2
2 3
Manual ...............................1 unit
Ref. 0014651
Packing List
The followin g items should b e included:
DI Contro l Unit ...............1 unit
Ref. DI-1D (120V)
DI-2D (230V)
DI-9D (100V)
Stand ..................................1 unit
Ref. AD-SD
Soft Thermal
Insulator Handle ........ 1 unit
Ref. T245-C
Premium soldering station
Ref. DIT-D
Power Cord .....................1 unit
Ref. 0009417 (100V/120V)
0009401 (230V )
Stand ca ble .................. 1 unit
Ref. 0011283
Tip Cleaner ......................1 unit
Ref. CL9885
Sponge ..............................1 unit
Ref. S0354
Cartr idge ..........................1 unit
Ref. C245903
ww w.jb ct oo ls .c om
www.jb ctoo ls. com
Page 3
4 5
Features USB Connector
JBC Updater
Download the l atest softwa re from our websi te to improve your solde ring station.
www.jbctools.co m/software.htm l
Update the statio n software v ia USB connec tion:
Power Socket
DI Contro l Unit
Ref. DI-1D (120V)
DI-2D (230V)
DI-9D (100V)
Stand
Ref. AD-SD
Stand ca ble
Ref. 0011283
Equipotentia l
connector
Cable USB AB
Desolde ring
Pump connecto r
Main switch
Fuse
Soft Thermal Insulator Handle
Ref. T245-C
JBC
Updater
JBC
Manager
JBC Manager
www.jbctools.co m/manager.html
Manage and m onitor as many stat ions as your PC can handle by using the JBC Manager. You can
export dat a to another PC.
Register Settings
Create graphs of th e
solderin g process in real
time with power a nd
temperature d ata.
Manager Settings
Change set tings for a
group of JBC stati ons at
the same time.
any JBC
station
USB
Hub
Cable
USB AB
ww w.jb ct oo ls .c om
Page 4
6 7
Cable coll ector
Keeps work area
free of cabl e.
Quick tip ch anger
The cart ridge extra ctor / inserte r system
permits swi tching car tridges witho ut
interrupti ng your work.
Adjustab le tool holde r
Suits your work p osition.
Adjustab le
cable coll ector
Adjustable Stand
Improve thermal transfer by cle aning the tip after each solder joint.
Tip Cleaner
Optional
Brass woo l
Ref. CL6210
Inox wool
Ref. CL6205
Brushes
Ref. CL6220
Tip-tinn er
Ref. TT-A
Sand
Ref. CL6211
Splashg uard
Non-slip b ase
Sponge
Ref. S0354
Wiper
Ref. CL0236
Very effe ctive cleani ng
method. It leaves a s mall layer
of solder on the t ip to prevent
oxidation bet ween clean ing
and rewetti ng.
It prevents spla shing
of solder par ticles
when using the b rass
wool.
No need to hold th e
base while cle aning
tips.
The least har mful cleani ng
method. Keep the sp onge damp
with distill ed water when work ing
to avoid tip wear.
A temperature resistant rece ptacle lets
the operator re move excess solde r by
gentle tapp ing or wiping. It can b e easily
removed for cleaning.
Tapping: Wiping:
Tap gently to remove
excess solde r.
Use the slots to
remove remain ing
particl es.
ww w.jb ct oo ls .c om
Page 5
Soft foam
Non-slip and s oft touch
Blue grip to quickly distinguish
from other handles
ø 1
ø 3,5
A
B
8 9
For general use
Work with C245 Cartr idge range.
Compatible Handles
Genera l Purpose Handle
Ref. T245-A
Blue General Purpose Handle
Ref. T245-PA
Non-slip Handle
Ref. T245-B
Soft Thermal Insulator Handle
Ref. T245-C
Note: All models are supplied with a 1.5m cable.
Changing cartridges
1. Removing 2. Inser ting 3. Fixing
Place the handle in the
extractor and p ull to
remove the car tridge.
Place the handle on top
of the new car tridge and
press down sl ightly.
Use the holes fo r fixing the
cartri dge* as follows:
A. For strai ght C210.
B. For curved C210.
C. For curved C245.
D. For straight C245.
B
C
A
D
Compatible cartridges
The DIT-D works with T245/T470 handles and C245 car tridges or w ith T210 handles and C210
cartri dges. Find the mo del that best su its your soldering needs in w ww.jbctoo ls.com
Round Chisel Round
bent
Bevel Special
models
Save time and cha nge cartr idges safel y without switch ing the station of f.
*Important
It is essential to insert the cartridges as far as the mark for a proper connection.
Mark
ww w.jb ct oo ls .c om
Page 6
Tool in the stand
A ct u a l T e m p . 1 8 0oC
Sleep
Tool in the stand after sleep
No heat
A ct u a l T e m p . 2 0oC
Hibernation
0
c
Selected temp.
35 0 oC
P ow e r 10 %
350
0
c
Selected temp.
35 0 oC
P ow e r 10 %
Fixed temp.
35 0 oC
Levels ºC
27 0 3 50 4 00
350
Ma in m en u
4 Counters
5
Program version
Tool 245
Tool
245 Tool 245
St at io n se tt in gs To ol s et ti ng s
Ba ck Ba ck
1 Temp unit
Celsius
2
Maximum temp 4000C
3
Minimum temp 2000C
4 Nitrogen mode OFF
1 Fix one temp
----
2
Temp levels set OFF
3
Sleep delay 0 min
5 Help text OFF
6
Beep ON
7
Change PIN
4 Sleep temp 1800C
5
Hibern delay 30 min
6
Temp adjust +00C
Exit
1 Reset settings
2
Station settings
3
Tool settings
Co un te rs
1 Plugged hours
0
2
Working hours 0
3
Sleep hours 0
4 Hibernation hours 0
Ba ck
5 No tool hours 0
6
Sleep cycles 0
7
Desold cycles 0
10 11
3. Hibernation
Operation
The JBC Exclusive Heating System
Our revolutio nary techn ology is able to re cover tip temper ature extremely quickly. It mean s the user
can work at a lower temperature an d improve the quali ty of soldering. The tip tempe rature is further
reduced tha nks to the Sleep an d Hibernatio n modes which increase the tip life by 5.
1. Work 2. Sleep
When the tool is lifted fro m the
stand the tip will heat up to the
selected tem perature.
When the tool is i n the stand,
the temperatu re reduces to
180ºC / 360º F (preset sl eep
temperature).
After long er periods of
inactivit y (pre-set to 30 mi n.),
the power is cut a nd the
tool cools down to ro om
temperature.
· Change tempe rature
(from 90 to 450º C)
· Select temp erature levels
· Fix one tempe rature
· Change Sle ep temperatur e
· Set Sleep de lay
(from 0 to 9 min or no Sleep)
· Set Hibern ation delay
(from 0 to 60 min or no
hibernati on)
Menu Screen
Original PIN: 0105
The work scre en provides
useful information of tool
status in real time.
Displays a spe cific fixe d temp.
Shown once you have
selected te mp. levels.
Work Screen
Process Control
Long time in
the stand
ww w.jb ct oo ls .c om
Page 7
12 13
1. Remove the fuse by pull ing the black ca p.
If necess ary use a tool to leve r it off.
2. Press the new fuse into the hold er and
replace it in the station.
Maintenance
Fuse
- Replace any d efective or dam aged piece s. Use origina l JBC spare par ts only.
- Repairs sh ould only be pe rformed by a J BC authorized te chnical ser vice.
Clean per iodically
It is impe rative t o follow sa fety gui delin es to preven t elect ric
shock, i njur y, fire or expl osion.
- Do not use the equipment for any pu rpose other tha n solderin g or rework. Incor rect use may
cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unp lugging it, hold the plug, not the wire.
- Do not work on ele ctrically li ve parts.
- The tool shoul d be placed in th e stand when not in use in order to activ ate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station is
turn ed off. Handle w ith care, includ ing when adju sting the stand position.
- Do not leave the ap pliance unat tended whe n it is on.
- Do not cover the ven tilation grill s.
- Heat can cau se inflamable products to ign ite.
- Use a “non resid ue” classif ied flux and avo id contact with s kin or eyes to prevent i rritation.
- Be careful with the fumes pro duced when s oldering.
- Keep your work place clean and tidy. Wear appropr iate protection gla sses and glove s when
working to avoid p ersonal ha rm.
- Utmost care mu st be taken with li quid tin waste which can cause bu rns.
- This appli ance can be us ed by children over the age of eight and a lso persons with reduced
physi cal, sensor y or mental ca pabilities or lack of experi ence provide d that they have bee n given
adeq uate superv ision or instruction concerning use of the appliance and understand the hazards
involved. Children mu st not play with the ap pliance.
- Maintenanc e shall not be ca rried out by ch ildren unles s superv ised.
Safety
Before carr ying out ma intenance or stor age, always allow th e equipment to co ol and unplug th e
stand from the s tation and the tool.
- Clean the station screen wi th a glass clea ner
or a damp cloth.
- Use a damp cloth to cl ean the casin g, the stand
and the tool. Alc ohol can only b e used for clea ning
the metal par ts.
- Periodica lly check that the metal par ts of the tool
and stand are c lean so that the st ation can detect
when the tool is i n the stand.
- Maintain tip s urface cl ean and tinne d prior to
storage in orde r to avoid tip oxidation. Ru sty and
dirty surfaces re duce heat tran sfer to the solder
joint.
- Periodica lly check al l cable conne ctions.
- Replace a bl own fuse as follow s:
ww w.jb ct oo ls .c om
Page 8
14 15
Specifications
Premium So ldering st ation
DIT-1D/ DIT-2D/ DIT-9D
- Total weight: 4.4 kg (9.6 lb)
DI-1D 120V 50/60Hz. Input fuse: 2A. Ou tput: 23.5V.
DI-2D 230V 50/60Hz. Input fuse: 1A. Outpu t: 23.5V.
DI-9D 100V 50/60Hz. Input fuse: 2.5A. Output: 23.5V.
- Weight: 2.2 kg (9.6 lb)
- Dimension s: 90 x 105 x 180 mm
- Temperature Range: fro m 90°C (190°F) to 450°C (840°F )
- Idle Temp. Stabilit y (still air): ±1.5 ºC / ±3 ºF
- Output Peak Power: 130W
- Tip to ground resi stance: <2 ohms
- Tip to ground volt age: <2mV RMS
- Ambient operating temp: 10-40 ºC / 50 -104 ºF
- USB connector s tation-PC
Complies w ith CE standards
ESD protected hous ing “skin effect”
Exploded View
ww w.jb ct oo ls .c om
Page 9
0014651-0115
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear due to use
or mis-use.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
www.jbctools.com
