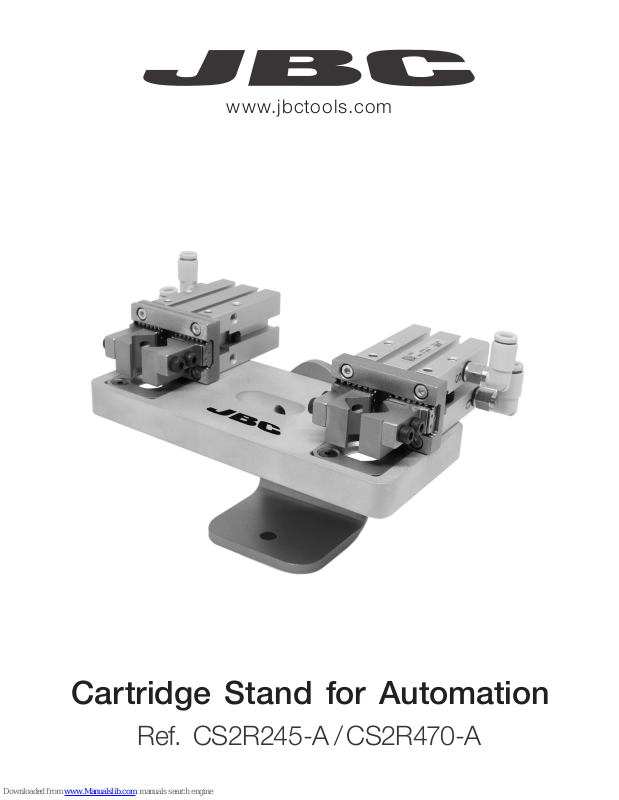

jbc CS2R245-A, CS2R470-A User Manual

Page 1
Cartridge Stand for Automation
Ref. CS2R245-A / CS2R470-A
www.jbctools.com
Page 2
2
Cartridge Stand for Automation .......... 1 unit
Screw .............................. 1 unit
DIN 912 M6x20
Ref. 0842925
Washer ............................ 1 unit
DIN 125 Ø6.4 mm
Ref. 0842925
Manual .............................. 1 unit
Ref. 0021526
Packing List
The following items should be included:
Ref. CS2R245-A /CS2R470-A
Cartridge Stand for Automation
www.jbctools.com
Page 3
3
Features
Mounting Hole
Gripper Actuators
Gripper Actuator
Fluid Air
Applicable tubing Ø4mm
Operating pressure 0,15 to 0,7 MPa
A Tube connection to fix cartridges
B Tube connection to release cartridges
A
A
B
B
The CS2R is designed to be used in automatic soldering processes. Thanks to the Gripper Actuators, it allows to hold the cartridges while they are not in use.
It can be used in combination with Automatic Soldering Irons (TRA) and the new Cartridges for Automation (R245 and
R470 ranges).
Assembly
The CS2R comes with a mouting hole, that serves to fixing it at the robot work place area. Use DIN912 M6 screws to attach it.
The Gripper Actuator must be connected to an air-circuit by using the tube connections A and B.
www.jbctools.com
Page 4
Push Button
Handle
4
Compatible Cartridges
Find the cartridge models that best suits your soldering needs in www.jbctools.com
Compatibility
Cartridge
Stand
Cartridge Range Control Unit Soldering Irons
R245 R470 UCR245 UCR470 TRA245 TRA470
CS2R245
CS2R470
Chisel Ref. R24 5002
Through hole Ref. R24 5004
Chisel Ref. R470008
Through hole Ref. R470012
Through hole Ref. R470003
Range 245 Range 470
Work Position Adjustment
The CS2R can be turned up to 35º in both directions to facilitate the tip’s insertion.
To pivot the CS2R, loosen anf tighten the handle to turning it. The Handle can be aligned vertically again by pressing the Push Button.
Page 5
5

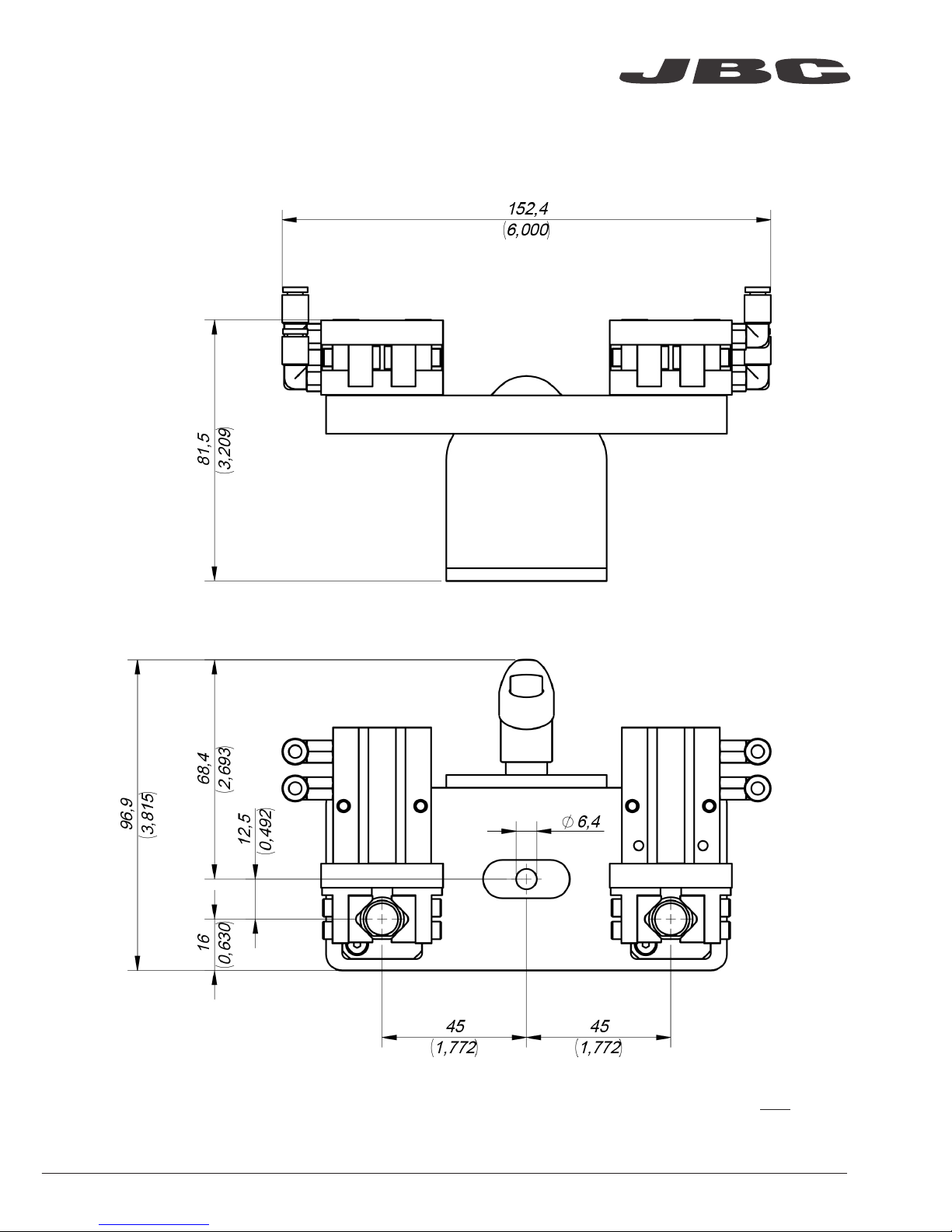

Dimensions
mm
(in)
www.jbctools.com
Page 6
6
*Not included, sold separately
Work Place Example
Solder Feeder*
Ref. SFR-A
Automatic Tip Cleaner*
Ref. CLMR-A
Soldering Head*
Ref. RBA-A
Automatic Soldering Iron*
Ref. TRA245-A TR A470-A
Automatic Cartridge Stand
Ref. CS2R245-A CS2R470-A
Control Unit*
Ref. UCR245-5A UCR470-5A
Guide Kit*
Ref. GSFR
Page 7
7
It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion.
Maintenance
- Before carrying out maintenance, always unplug the device.
- Use a damp cloth to clean the device. Alcohol can only be used to clean the metal parts.
- Periodically check that the metal parts of the device are clean.
- Periodically check all cables and tube connections.
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
- Under normal operating conditions, the air gripper lifespan is 10 million cycles. It is recommended to replace it at the end of its lifespan.
- Do not use the device for any other purpose.
- The temperature of accesible surfaces may remain high after the unit is turned off. Handle with care.
- Do not leave the appliance unattended when it is on.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
Safety
www.jbctools.com
Page 8
This product should not be thrown in the garbage. In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
www.jbctools.com
Warranty
JBC’s two-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In case of any manufacturing defect, the equipment must be returned, postage paid, to the dealer where it was purchased.
0021526-0618-V01
Specifications
- Net Weight 690 g (1.51lb)
- Dimensions 153 x 82 x 97 mm (6.02 x 3.23 x 3.82 in)
Complies with CE standards. ESD protected.
