Page 1
www.jbctools.com
Reference Guide
CP
MICRO TWEEZERS
STATION
Page 2
CP
MICRO TWEEZERS
STATION
Reference Guide
2
CP / MICRO TWEEZERS STATION
CONTENTS
CONTROL UNIT MICRO HOT TWEEZERS
PA-A
CABLE COLLECTOR
CC8193
CARTRIDGES
C120002 (x2)
MANUAL
PA
MICRO HOT TWEEZERS
Reference Guide
MANUALPOWER CORD
Page 3
1
2
3
3
COMPLETE STATION

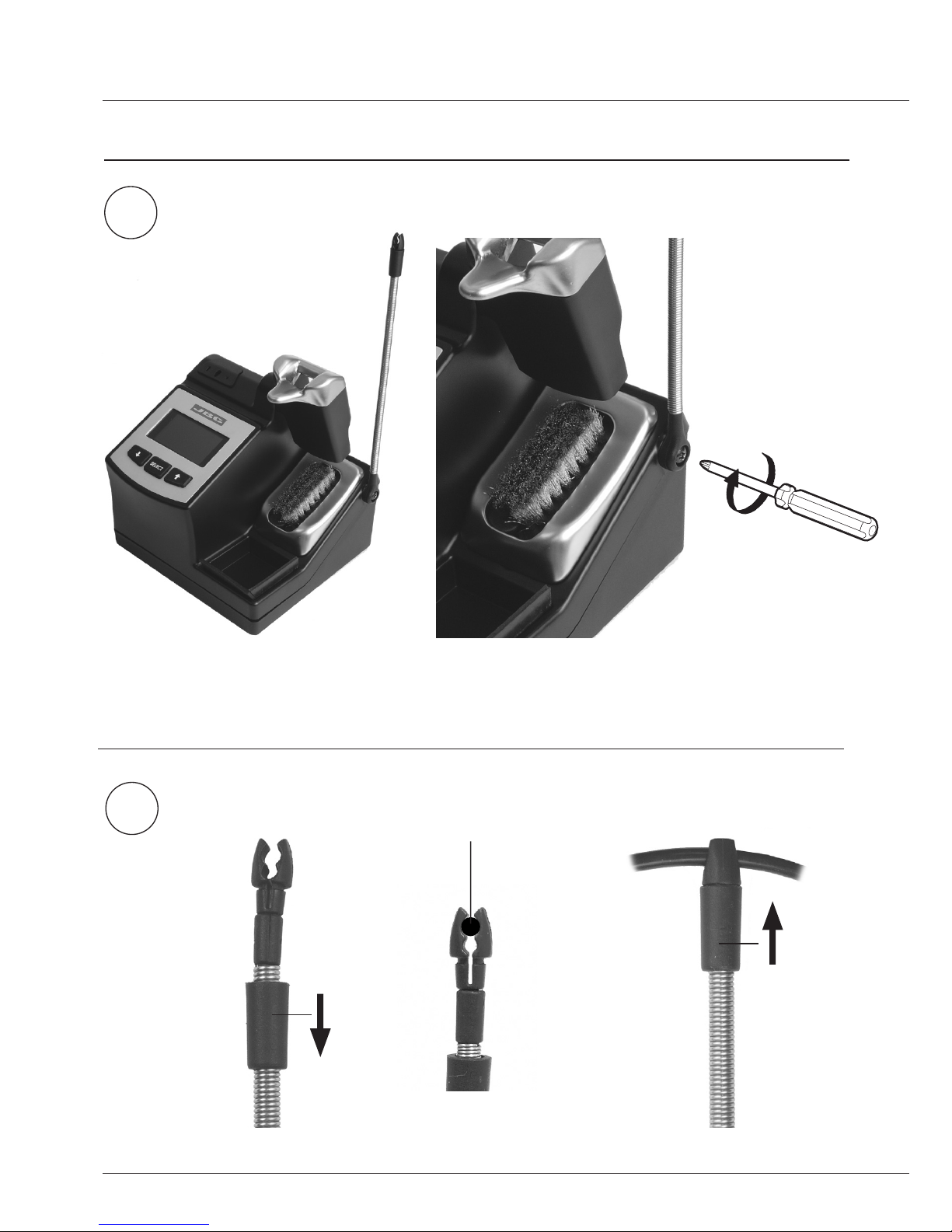

Page 4
1
2
4
CABLE COLLECTOR ASSEMBLY
CABLE ASSEMBLY
CABLE POSITION
Page 5
3
5
DOME RELEASE
METAL BRUSH
CL6217
STAND
CABLE COLLECTOR
Use the cable collector for
keeping workplace clear of
cable
METAL BRUSH
Use brush to clean tips and to
eliminate oxidation for easy
retinning
RUBBER BANDS
Tap cartridge smoothly against
bands to remove excess solder
from tip
Page 6
WORK
220
time
SLEEP
220
time
HIBERNATION
room
temperature
6
INSTALLATION
HEAT MANAGEMENT
Main switch
Equipotential
connector
CONTROL UNIT
MICRO HOT TWEEZERS
PA-A
Power Cord
Socket
JBC stations intelligently manage the tool temperature:
Work mode: When the tool is used, pre-set work temperature is 350º C.
Sleep mode: When the tool is in the stand, the temperature goes down to 220º C.
Hibernation mode: After longer periods of inactivity (pre-set i.e 30 minutes), the power is cut off and
the tool cools down to room temperature.
The advantage of this heat management is lifespan increase which ensure low cost of ownership.
Page 7
Main me nu
Count er s
Tool se tt in gs
1 Reset settings
2
Station settings
3
Tool settings
4
Counters
1
Plugged hours 0
2
Working hours 0
3
Sleep hours 0
1
Fix one temp -----
2
Temp levels set OFF
3
Sleep delay 0 min
5
Program version
4
Hibernation hours 0
5
No tool hours 0
6 Sleep cycles
0
4
Sleep temp 2200C
5
Hibernation delay 0 min
6
Temp adjust O OC
Tool PA
Tool PA
Exit
Back
Back
0
c
Tool
PA
P ow e r 1 0%
350
220
Sleep
C
o
Selected temperature
WORKING
SETTINGS
Decrease & move down
Selection
Increase & move up
Tip temperature
% Instant power supplied to the tool
Working tool model
Status
ORIGINAL PIN: 0105
SELECT key 2 seconds
to enter Menu
Stati on set ti ng s
1 Temp unit
Celsius
2
Maximum temp 4000C
3
Minimum temp 2000C
4
Help text OFF
5
Beep ON
6 Power limit 130W
7 Popup ON
8
Change PIN ON
Back
7
Page 8
MORE INFORMATION
www.jbctools.com
SERIAL N`
STAMP OF DEALER
DATE OF PURCHASE
0009520-0110
TECHNICAL SPECIFICATIONS
- Temperature selection from 90 to 450°C (±5%).
- Power: 75W.
- Safety transformer, mains separator and double isolation, with temperature protection fuse.
- CP-2A 230V control unit. Input: 230V 50Hz. Output: 24V.
- CP-1A 120V control unit. Input: 120V 60Hz. Output: 24V.
- Total weight of unit: 2,6 Kg.
- Complies with CE standards on electrical safety, electromagnetic compatibility and ESD protected housing
“skin effect”.
- RoHS compliant.
- Equipotential connector and the tool tip are connected to station mains ground supply for ESD protection.
This product should not be
thrown in the garbage.
ENGLISH / WARRANTY
JBC’s 2 years warranty guarantees this equipment against all manufacturing defects, covering the replacement of defective parts
and all necessary labour.
Warranty does not cover product wear due to use or mis-use.
In order for the warranty to be valid, equipment must be returned,
postage paid, to the dealer where it was purchased enclosing this
fully completed form.
