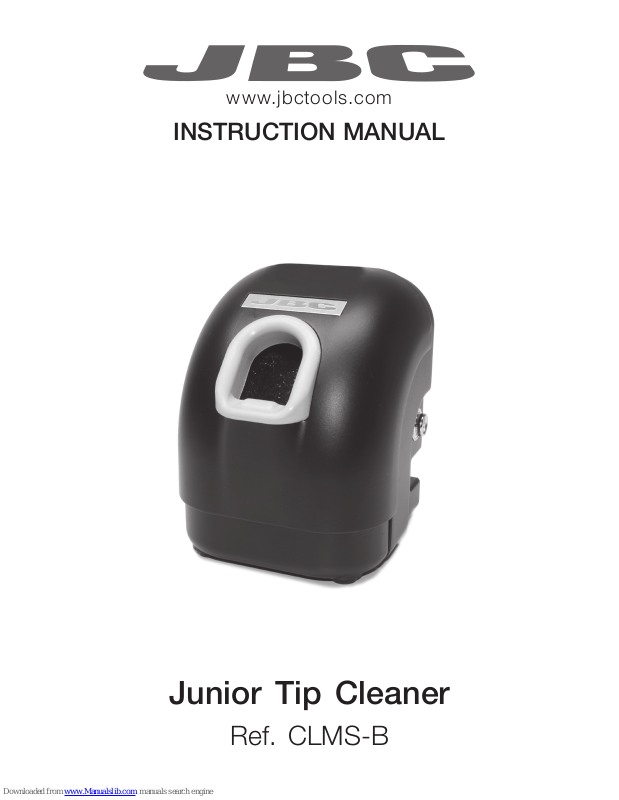

Junior Tip Cleaner
Ref. CLMS-B
INSTRUCTION MANUAL
www.jbctools.com
Page 2
Junior Tip Cleaner .................................... 1 unit
Ref. CLMS-B
Packing List
The following items should be included:
CLMS Metal Brushes ................................ 1 unit
Ref. CLMS-A8
Manual .......................................................... 1 unit
Ref. 0017509
AC Adapter ................................................. 1 unit
Ref. 0015971
Ref. CLMS-B
Junior Tip Cleaner
USEU
INSTRUCTION MANUAL
2
www.jbctools.com
Page 3
Operation & Features
Power socket
Solder
waste
Top view
Splashguard
Keeps the work
area clean
Green light
Indicates when it
is activated
Button at the opening
Press here and the brushes run
for a few seconds
The CLMS-B consists of 2 motorized brushes that are activated by pressing the button at the opening.
For the best uniform cleaning, place the tip between the 2 brushes and turn it for at least 1 second.
ESD safe connector
1 sec.
www.jbctools.com
3
Page 4
Bottom view
Continuous mode
The tip cleaner has a second operating mode whereby the brushes run continuously.
Switch ON/OFF
Turn the switch to OFF and
the brushes are activated in
continuous mode.
Changing brushes and cleaning
Replace the brushes easily and clean the solder collector tray as follows:
1. Opening the splashguard 2. Removing the brushes 3. Removing the solder
collector tray
Unplug from the mains and
press the tab at the top to
open the splashguard.
Remove by pulling out the
brush at the bottom end.
Once cleaned, return the tray
followed by the brushes.
4
Page 5

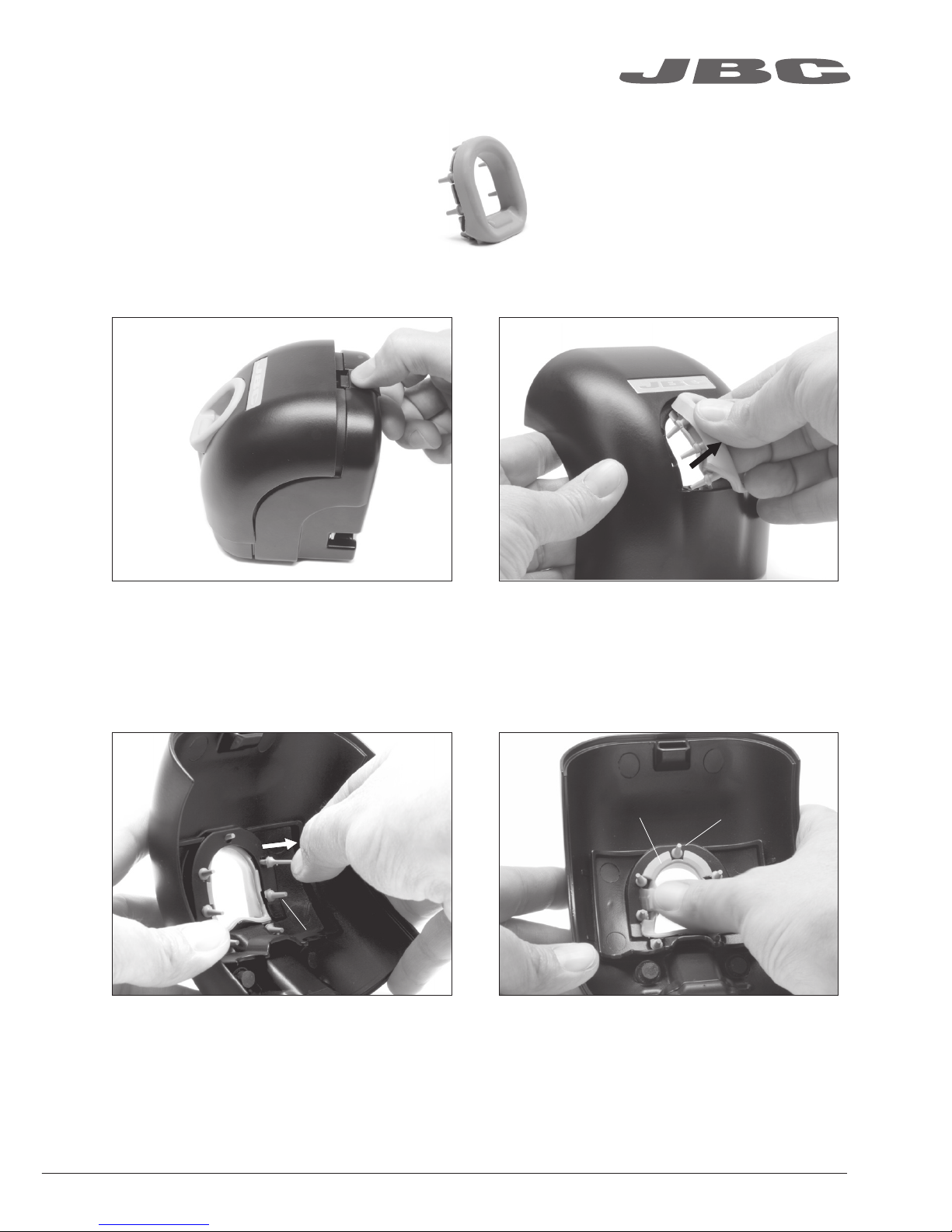

Changing Gate Protector
Easily replace the Gate Protector
(Ref. 0015972) as follows:
rib cut the tabs
tabs
3. Inserting 4. Pressing into place
2. Removing1. Opening
Unplug from the mains and slide the tab on the
top to open the splashguard.
Pull out the damaged gate protector.
Insert the new one and when the tabs are
positioned pull them to secure the gate
protector in place.
Once in place, cut off the tabs to avoid contact
with the brushes.
www.jbctools.com
5
Page 6
It is imperative to follow safety guidelines to prevent electric shock,
injury, fire or explosion.
Maintenance
Before carrying out maintenance or storage, always unplug the equipment from the mains.
- Use a damp cloth to clean the splashguard and the inside.
- Keep the brushes and the tray clean and replace when necessary.
- Replace any defective or damaged parts. Use original JBC spare parts only.
- Repairs should be performed only by a JBC authorized technical service.
- Do not use the appliance for any purpose other than tip cleaning. It is not a tool stand.
- The AC Adapter power supply must be plugged into approved bases. Be sure that it is properly
grounded before use. Remove it by pulling the plug, not the wire.
- Do not leave the appliance unattended when on.
- Avoid contact when brushes are turning.
- Keep your workplace clean and tidy. Wear protective glasses and gloves to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
Safety
6
Page 7

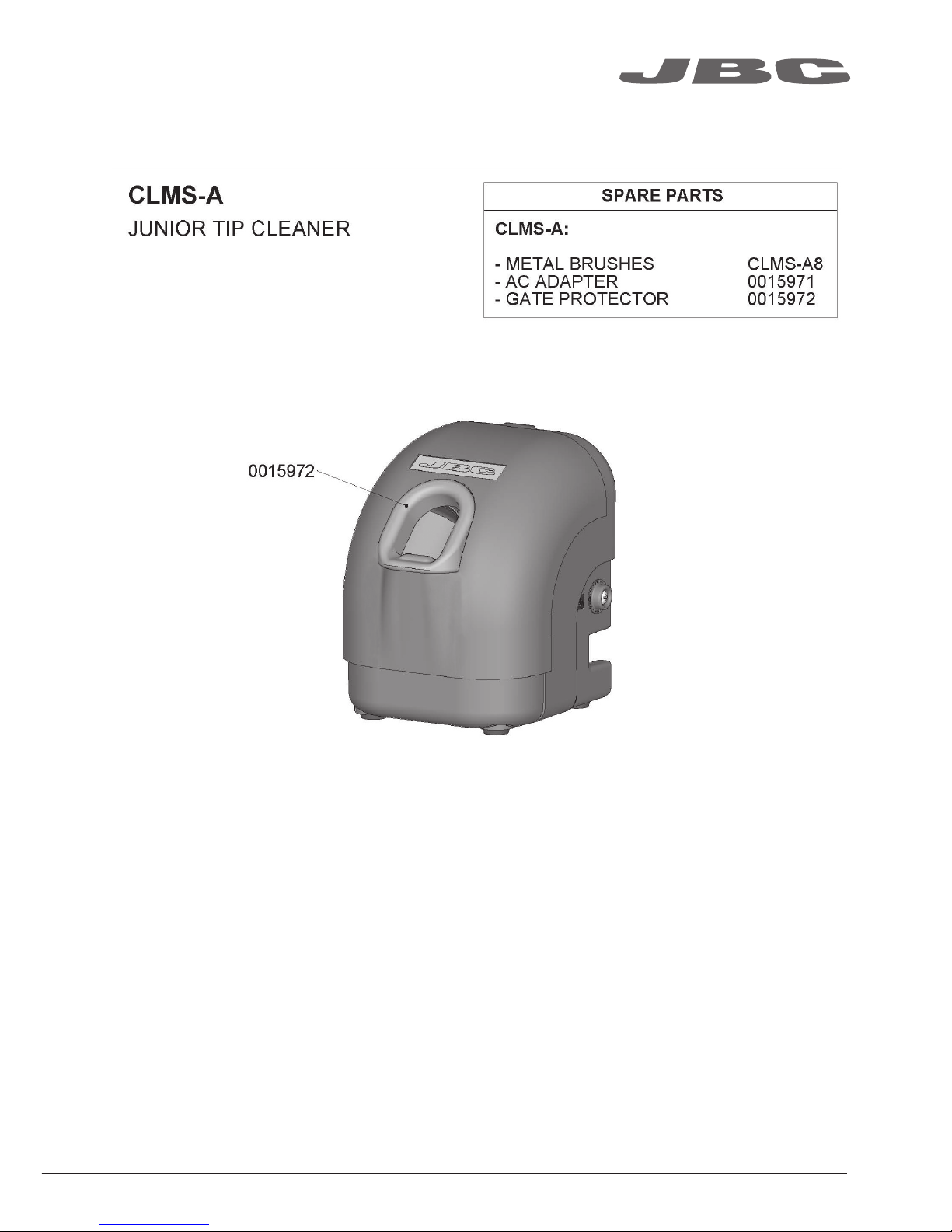

Exploded View
www.jbctools.com
7
Page 8
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
0017509-1116
- Weight: 1.45 kg (3.2 lb)
- Dimensions: 91 x 95 x 114 mm
- Brush diameter: 34 mm
- Brush speed: 550 rpm
650 rpm (continuous mode)
- AC Adapter: Input: 96 - 264 V, 50Hz
Output: DC 12V, 1A
-ESD safe connector
Complies with CE standards.
ESD protected housing “skin effect”.
Specifications
