Precision Soldering Station
Ref. CD-SE
Page 2

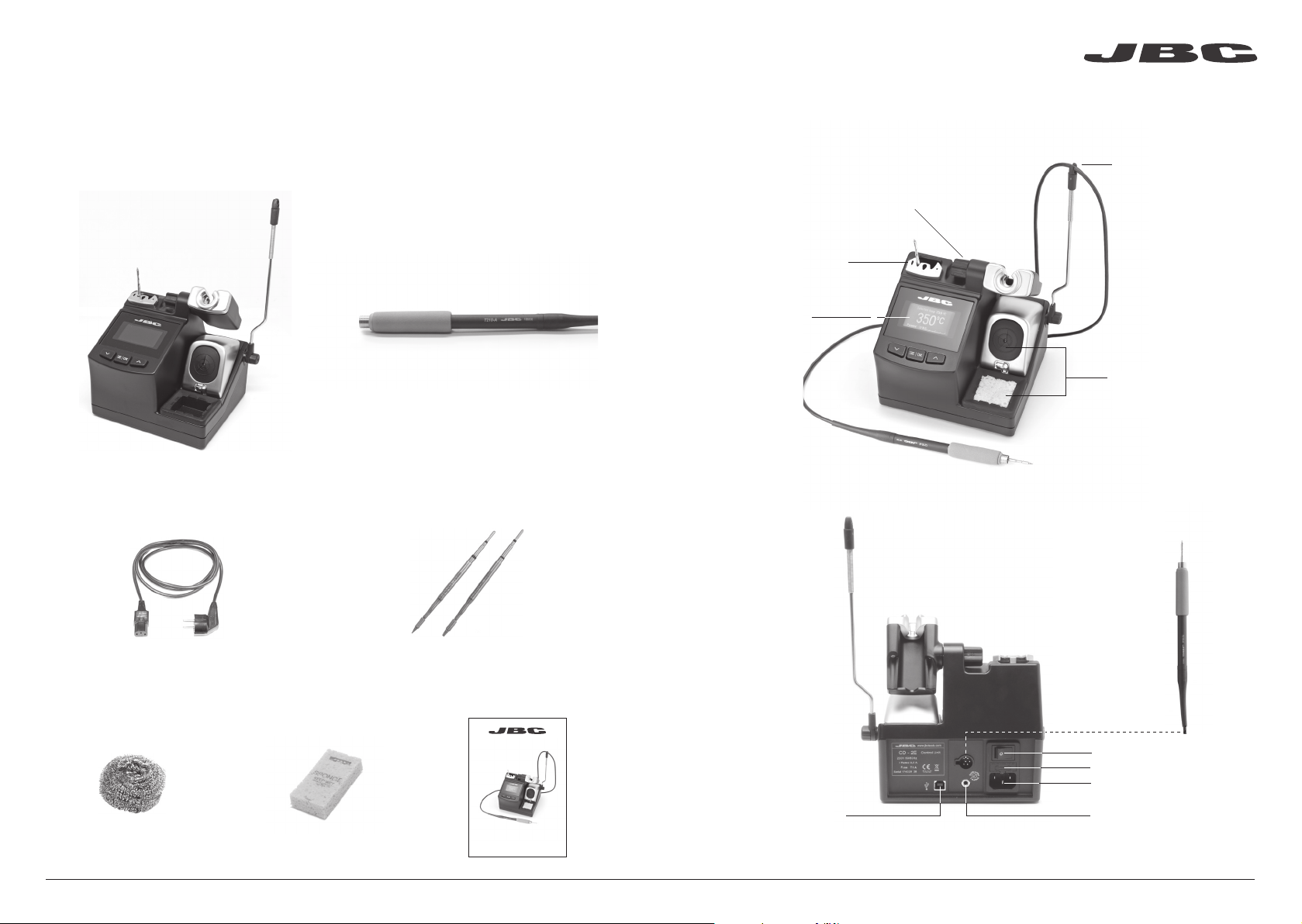

Packing List
The following items should be included:
www.jbctools.com
Features
CD Control Unit ........................................ 1 unit
Ref. CD-1E (120V)
CD-2E (230V )
CD -9 E (100V)
Power Cord ................................................ 1 unit
Ref. 0009417 (100V/120V)
0009401 (230V)
Precision Purpose Handle .................... 1 unit
Ref. T210-A
Cartridges ................................................. 2 units
Ref. C210001 (x1)
C210008 (x1)
Cable collector
Adjustable Stand:
Intelligent Heat Management
Quick Tip Changer
Process
Screen
Tip Cleaner brass wool
with antisplash
membrane
Precision Purpose
Handle
Ref. T210-A
Brass Wool .................... 1 unit
Ref. C L6 210
Sponge ........................... 1 unit
Ref. S0354
Manual ............................ 1 unit
Ref. 0016876
www.jbctools.com
Precision Soldering Station
Ref. CD-SE
USB-B connector
Main switch
Fuse
Power Socket
Equipotential connection
2 3
Page 3

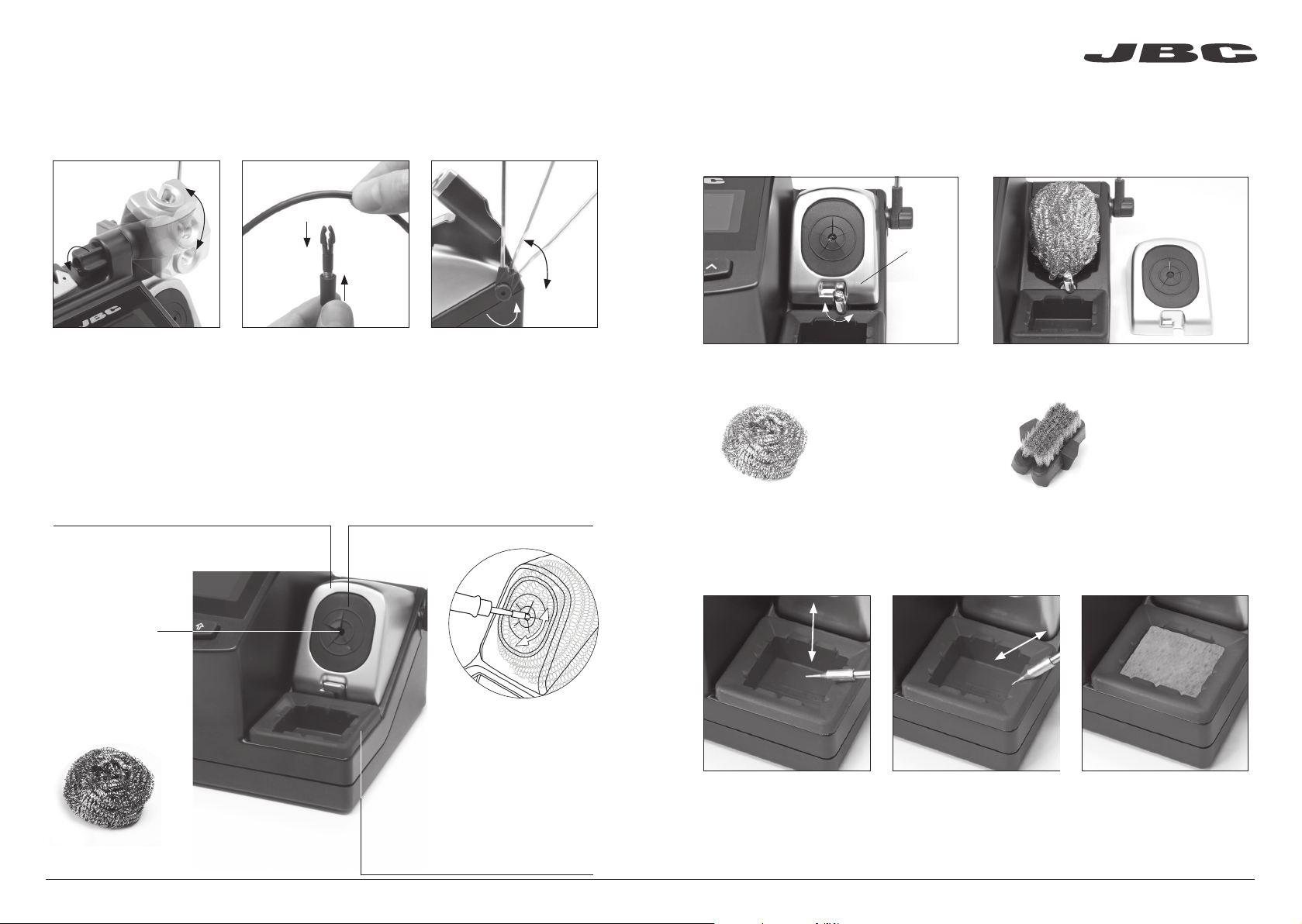

Adjustable stand Cable collector (Ref. CC3702)
www.jbctools.com
Adjust the tool stand to suit
your work position.
Fix the cable on the collector so that the working area is free of
cable.
Tip Cleaner
Select the option to suit your needs and improve the thermal transfer of the tip.
Splashguard
Ref . 0017576
When using the brass wool, it prevents
splashing of solder particles
Brass Wool
Ref. C L6 210
Very effective
cleaning method.
Leaves a small layer
of solder on the tip,
preventing oxidation
between cleaning
and rewetting.
Antisplash Membrane
Ref. 0 0175 74
Prevents splashing and keeps the work area
clean.
If the tip is ver y dirty,
JBC first recommends
cleaning it with the wiper
to remove excess solder.
Wiper
Ref. CL0160
A temperature resistant receptacle
for removing excess solder by gently
tapping or wiping.
Removing the Splashguard
1. Unlock the splashguard.
More cleaning options (not supplied):
Inox Wool
Ref. CL6205
Provides a superior
cleaning of the tip.
Wiper
Ref. CL0160
Tapping:
Tap gently to remove excess
solder.
2. Lift off.
Lock
Wiping:
Use the slots to remove
remaining particles.
Metal Brush
Ref. CL6220
When used carefully,
it provides a more
thorough cleaning.
Sponge
Ref. S0354
The least harmful cleaning
method. Keep the sponge
damp with distilled water
when working to avoid tip
we a r.
4 5
Page 4
ø 1
ø 1,5
ø 3,5
Quick Tip Changer
www.jbctools.com
USB Connector
Save time and change cartridges safely without switching the station off.

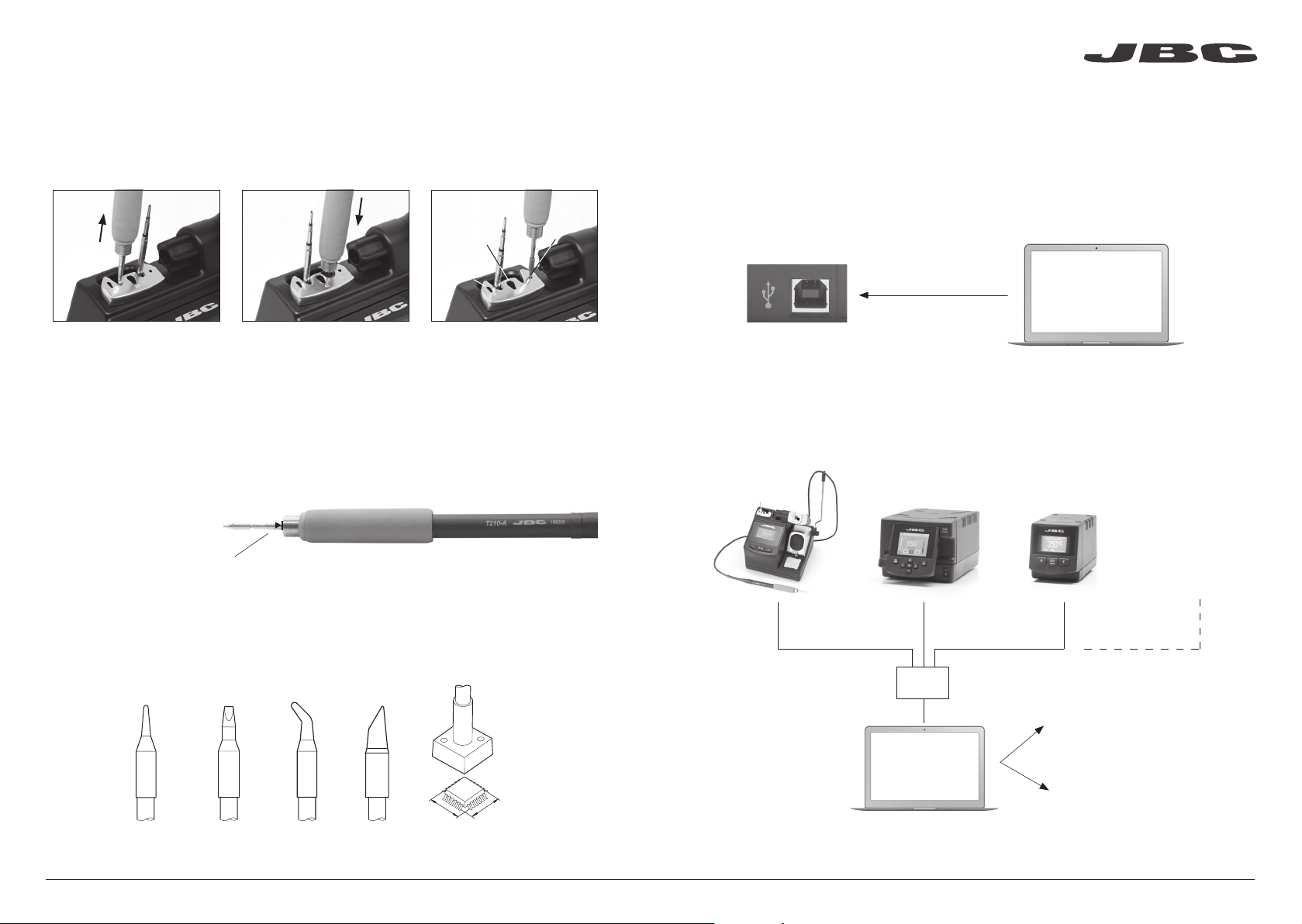

1. Removing 2. Inserting 3. Fixing
C
B
Place the handpiece in the
extractor and pull to remove
the cartridge.
*Important
It is necessary to insert the cartridges as far as the mark for a proper connection.
Place the handpiece on top
of the new car tridge and
press down slightly.
Mark
Use the holes for fixing the
cartridge* as follows:
A. For straight C210.
B. For curved C210.
C. For C245.
Download the latest software from our website to update your soldering station.
JBC Updater
www.jbctools.com/software.html
Update the station software via USB connection:
A
Cable USB AB
JBC
Manager
software
JBC Manager
www.jbctools.com/manager.html
Manage and monitor as many stations as your PC can handle by using the JBC Manager.
You can export data to another PC.
any JBC
station
Compatible cartridges
The CD-S stations work with C210 cartridges and T210 handles.
Cable USB AB
Find the model that best suits your soldering needs in w ww.jbctools.com
USB
Hub
Manager Settings
Change settings for a group
of JBC stations at
the same time.
Register Settings
Create graphs of the
soldering process in real
time which show power and
temperature data.
Round Chisel Round
bent
A
Bevel Special models
B
JBC
Manager
software
6 7
Page 5

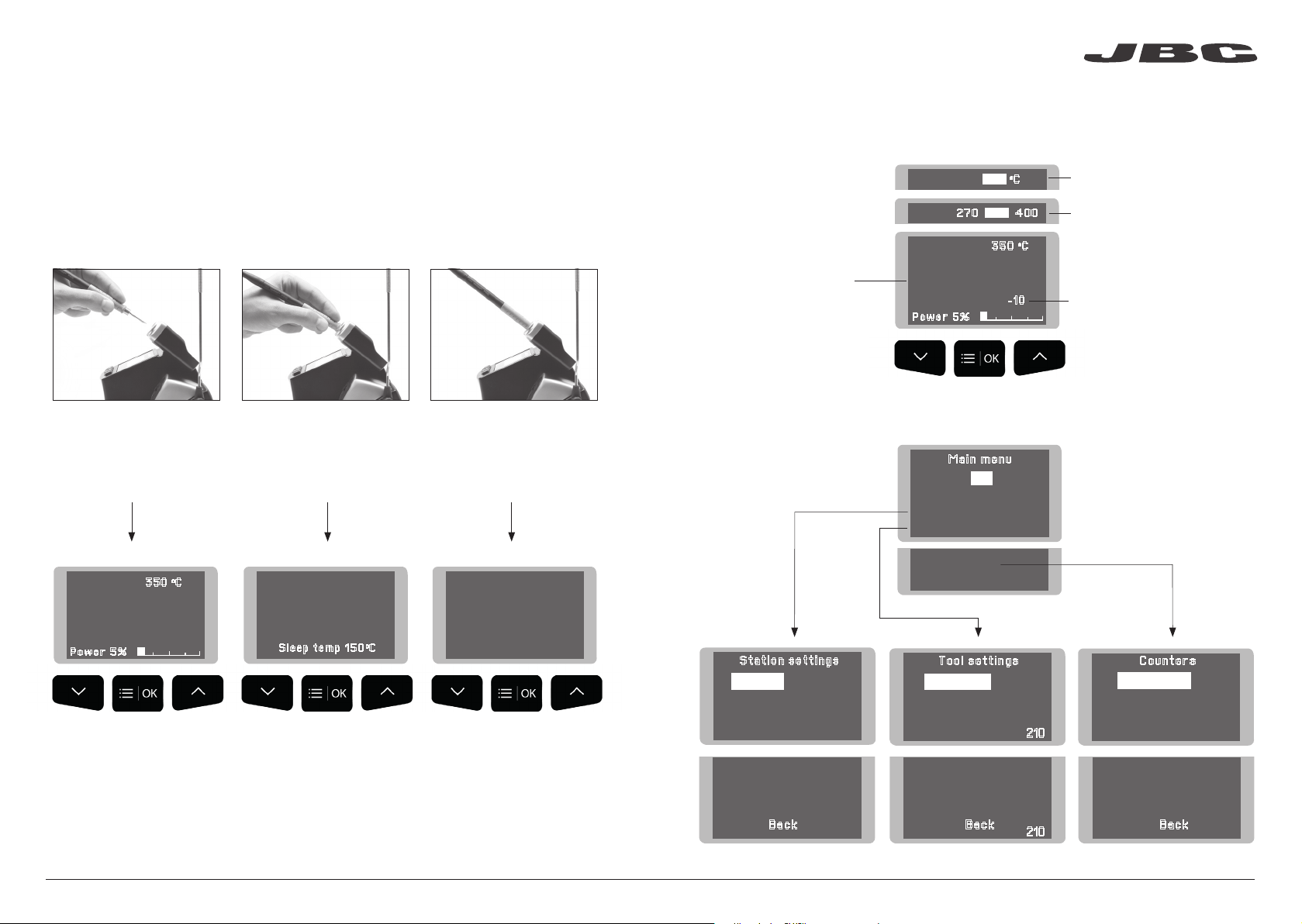

Operation
www.jbctools.com
Control Process
The JBC Exclusive Heating System
This revolutionar y technology is able to recover tip temperature extremely quickly.
This allows the user to work at a lower temperature.
As a result, tip life increases by 5.
1. Wo rk
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
Selected temp
350
Power 5%
350 oC
0
c
2. Sleep
When the tool is in the stand,
the temperature falls to the
preset sleep temperature.
Sleep
0
c
350
Sleep temp 150oC
3. Hibernation
Long time in
the stand
After longer periods of
inactivity, the power is cut off
and the tool cools down to
room temperature.
Hibernation
350
Tool in the stand, no heat
Work Screen
Displays a specific fixed temp.
Shown when you have selected
temp. levels. T he values must be
adjusted for the task.
“Temp. Adjust ” parameter.
It provides a more precise
adjustment between the selected
temp and the actual one.
The work screen provides
useful information of tool
status in real time.
Fixed temp.
Levels ºC
270 350 400
Selected temp.
350
Power 5%
350 oC
350 oC
0
c
-10
Menu Screen
Original PIN: 0105
0
c
Station settings
1 Temp unit
2
Maximum temp 4000C
3
Minimum temp 2000C
4
Metronome ----
Celsius
Main menu
Exit
1 Reset settings
2
Station settings
3
Tool settings
4 Counters
5
Program version
Tool settings
1
Fix one temp -----
2
Temp levels set OFF
3
Sleep delay 0 min
Tool 210
Counters
1
Plugged hours 0
2
Working hours 0
3
Sleep hours 0
· Change temperature
(from 90 to 450ºC)
· Select temperature levels
· Fix one temperature
· Change Sleep temperature
· Set Sleep delay
(from 0 to 9 min or no Sleep)
· Change Hibernation delay
(from 0 to 35 min)
5 Help text OFF
6 Beep ON
7
Change PIN
Back
4
Sleep temp 1500C
5
Hibernation delay 10 min
6
Temp adjust + O OC
Back
Tool 210
4
Hibernation hours 0
5
No tool hours 0
6 Sleep cycles
0
Back
8 9
Page 6
Parameters
Be careful when using these parameters. They can reduce tip life if not used properly. Please follow
the recommended guidelines:
www.jbctools.com
Station Settings
Temperature unit
Celsius (ºC) or Fahrenheit (ºF)
Maximum temperature
Set the maximum
temperature to work with.
Max. temp by default is 400°C
(750°F). This is considered
high enough to work with
most lead-free applications.
Minimum temperature
Set the minimum
temperature to work with.
Min. temp. by default is
200ºC (392ºF). This is considered to be a proper star ting
point for leaded applications.
Metronome
This activates a beep sound.
Frequencies vary from 1 to 50
seconds.
Help text
Activate this parameter to
receive info from the system.
Beep
Enable/disable the beep
sound of the keypad.
Change pin
Change the default security
PIN number (0105).
Recommendations Parameter description
N/a
The station temperature
range is 90-450ºC
(190-840ºF). Change the
temperature limits when
working with less common
applications such as low / high
melting point soldering (HMP)
or plastics (e. g. riveting).
Useful for setting a work rate
in repetitive jobs. The beep
lets you know the length of
time the tip must be in contact
with the soldering joint.
N/a
N/a
The PIN must be entered
every time a parameter is
changed.
Warnings
In most cases,
working with temperatures
over 400°C (750°F) can
damage the PCB and its
components. Even in short
time periods of tip contact
with the soldering joint, the
flux may not work properly
and could seriously reduce
tip life.
If the solder joint requires
more power (e.g. multilayered or high dissipation
boards), JBC strongly
recommends using other
aids like preheaters.
N/a
N/a
N/a
N/a
Tool Settings
Fix one temperature
Fix a value within the
temperature range of the
station (90 - 450ºC /
190 - 840ºF).
Temperature levels set
Similar to “Fix one temp”
parameter. In this case, the
user can set up to 3 values for
different power requirements.
Sleep delay
Set the time that the tool will
remain at the selected temperature when in the stand before entering sleep mode. The
tip temperature will then drop
to the Sleep temperature.
Sleep temperature
This is the set temperature the
tip reaches when returned to
the stand.
Recommendations Parameter description
Ideal for soldering more than
one component at a specific
temperature. The station will
reject any attempt to change
the temperature.
This allows a quick change
between 3 different temperatures. Set them according
to the allowed values for your
soldering applications.
Because our tools reach the
working temperature from the
deafult Sleep mode in only a
few seconds, this parameter is
preset to 0 min. Once the tool
is returned to the stand the
temperature will automatically
drop to the sleep temperature,
extending tip life and avoiding
oxidation. Retinning the tip
before placing the tool in the
stand will protect the tip and
extend its life.
The sleep temperatures are
set to achieve a balance
between preventing oxidation
and reaching the working temperature in a few seconds.
Warnings
N/a
N/a
Setting these
parameters to higher
values will unnecessarily
accelerate oxidation
and shor ten tip life
especially when working
with temperatures up to
450°C (840°F).
10 11
Page 7
Maintenance
www.jbctools.com
Tool Settings
Parameter description Warnings
Hibernation Delay
Set the time the tool will
remain at Sleep temperature
before entering the Hibernation mode. At this time,
the power supply is cut of f
and the tip remains at room
temperature.
Temp Adjustment
It provides a more precise
adjustment between the
selected temperature and the
actual one.
Recommendations
This function completely
protects the tip from oxidation
during long periods of inactivity while the tool is in the stand.
Retinning the tip before placing the tool in the stand also
helps prevent oxidation and
extends the life of the tip.
Set values within ±50°C
(± 90°F) to achieve zero error.
JBC strongly recommends
the use of TID-A or TIA-A
Thermometers to obtain
precise readings.
Increasing the default
value will accelerate
oxidation and shorten the
tip life.
When the user changes the cartridge type, the
parameter should be reset
to 0°C/F or to the value
needed for this cartridge.
E.g. If a correction of
+20°C (+36°F) is set for the
C245966 (thick type) and
then the user changes the
cartridge for a C245030
(which is thinner) without
resetting, they would be
working at a temperature
of +20°C (+36°F) lower for
the C245030 which does
not need any temperature
adjustment.
Before carrying out maintenance, always allow the equipment to cool.
- Clean the station screen with a glass cleaner or a damp cloth.
- Use a damp cloth to clean the casing and the
tool. Alcohol can only be used to clean the
metal parts.
- Periodically check that the metal parts of the
tool and stand are clean so that the station
can detect the tool status.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat transfer
to the solder joint.
- Periodically check all cables and tubes.

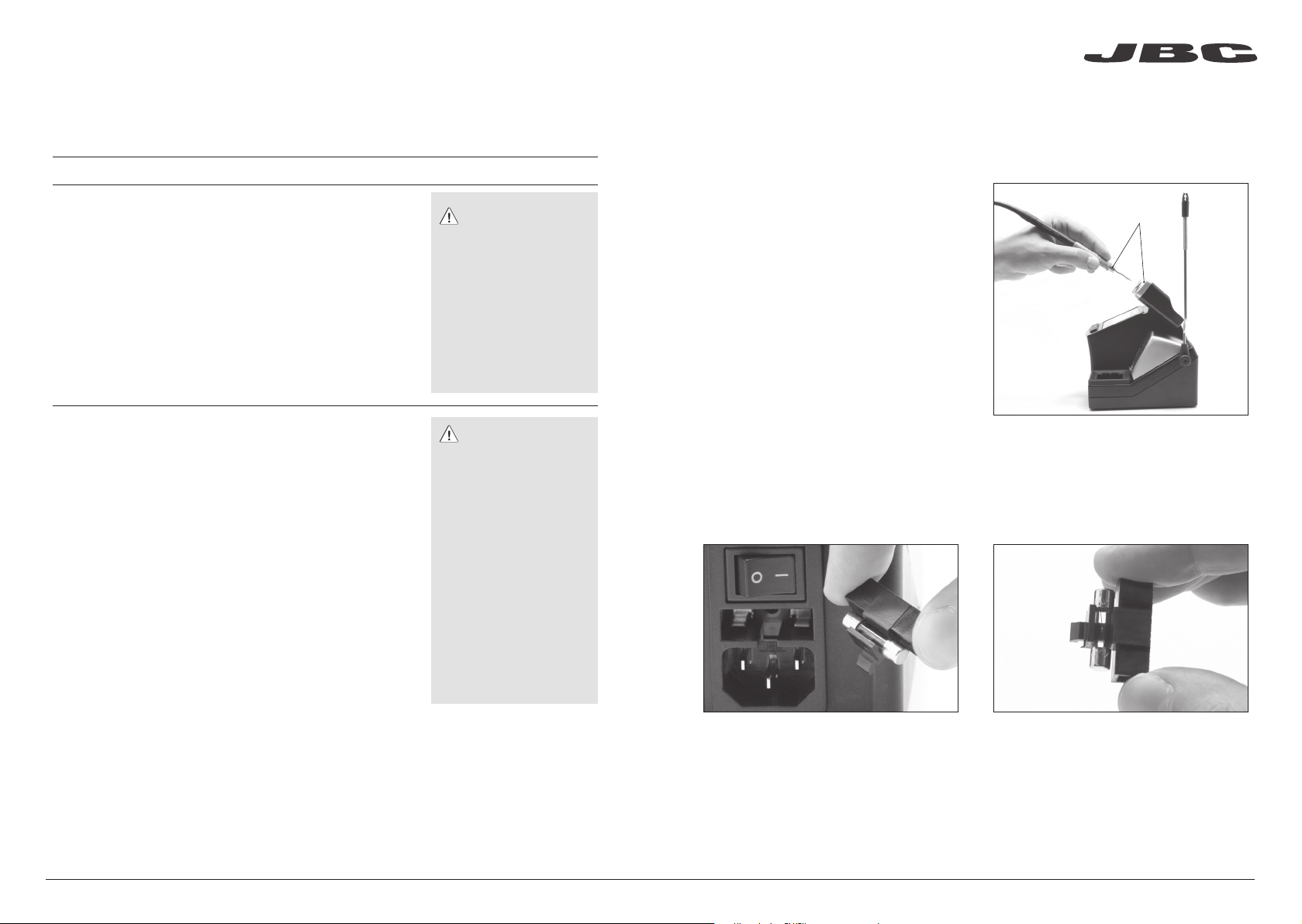

- Replace a blown fuse as follows:
1. Pull off the fuse holder and remove the
fuse. If necessar y use a tool to lever it off.
2. Press the new fuse into the fuse holder
and replace it in the station.
Clean
periodically
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
12 13
Page 8

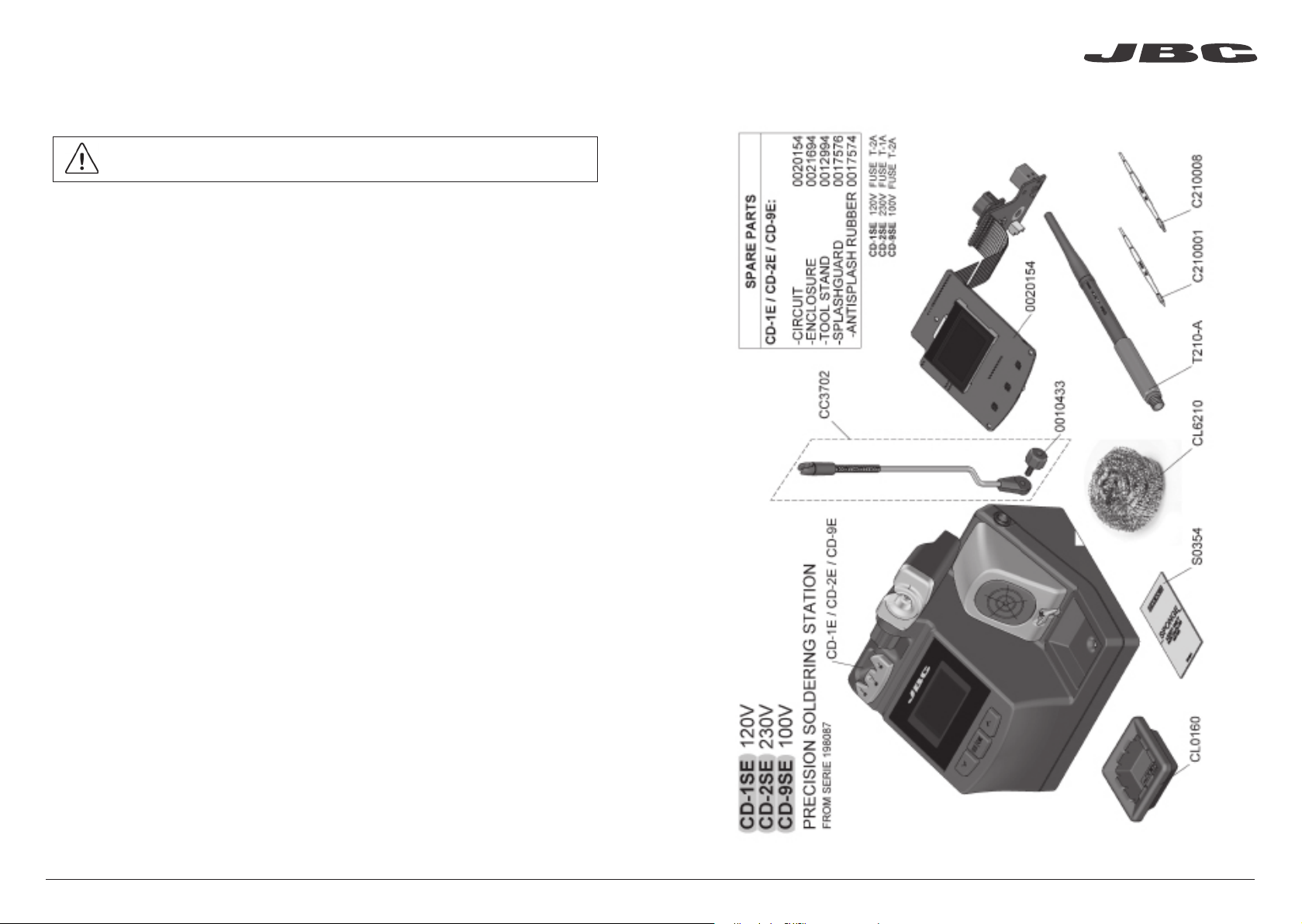

Safety Exploded View
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Make sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid the contact of flux with skin or eyes to prevent irritation
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
www.jbctools.com
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
14 15
Page 9
Specifications
CD -1SE 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD -1E
CD-2SE 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. Control Unit model: CD-2E
CD-9SE 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD-9E
- Net Weight: 2,86 Kg (.31 lb)
- Dimensions: 150 x 175 x 145 mm
- Output Peak Power CD-SE: 40W
- Temperature Range: 90 - 450 °C (190 - 840 °F) (±5%)
- Idle Temp. Stability (still air): ±1.5 ºC / ±3 ºF
- Tip to ground resistance: <2 ohms
- Tip to ground voltage: <2mV RMS
- Ambient operating temp: 10 - 40 ºC / 50 - 104 ºF
- USB connector station-PC
Complies with CE standards
ESD protected housing “skin effect”
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facilit y.
Manual in other languages available on our website
www.jbctools.comwww.jbctools.com
0017916-0818
Loading...
