INSTRUCTION MANUAL
Compact Soldering Station
Ref. CD-BQE
Page 2
Packing List
The following items are included:
CD Control Unit ............................................ 1 unit
Ref. CD-1E (120V)
CD-2E (230V )
CD -9 E (100V)
Power Cord .................................................... 1 unit
Ref. 0009417 (100V/120V)
0009401 (230V)
General Purpose Handle ...................... 1 unit
Ref. T245-A
Brass Wool .................................................... 1 unit
Ref. C L6 210
Sponge ............................................................ 1 unit
Ref. S0354
2
Manual ............................................................. 1 unit
Ref. 0022909
www.jbctools.com
INSTRUCTION MANUAL
Compact Soldering Station
Ref. CD-BQE
Page 3
Features
www.jbctools.com
Quick Tip Changer
Process
Screen
Adjustable Stand:
Intelligent Heat Management
Cable collector
Tip Cleaner brass wool
with antisplash
membrane
General Purpose
Handle
Ref. T245-A
Main switch
Fuse
Power Socket
Equipotential connectionUSB-B connector
3
Page 4
Adjustable stand Cable collector (Ref. CC3702)
Adjust the tool stand to suit
your work position.
Fix the cable on the collector so that the working area is free of
cable.
Tip Cleaner
Select the option to suit your needs and improve the thermal transfer of the tip.
Splashguard
Ref . 0017576
When using the brass wool, it prevents
splashing of solder particles
Antisplash Membrane
Ref. 0 0175 74
Prevents splashing and keeps the work area
clean.
Brass Wool
Ref. C L6 210
Very effective
cleaning method.
Leaves a small layer
of solder on the tip,
preventing oxidation
between cleaning
and rewetting.
4
If the tip is ver y dirty,
JBC first recommends
cleaning it with the wiper
to remove excess solder.
Wiper
Ref. CL0160
A temperature resistant receptacle
for removing excess solder by gently
tapping or wiping.
Page 5
Removing the Splashguard
www.jbctools.com
1. Unlock the splashguard.
More cleaning options (not supplied):
Inox Wool
Ref. CL6205
Provides a superior
cleaning of the tip.
Wiper
Ref. CL0160
2. Lift off.
Lock
Metal Brush
Ref. CL6220
When used carefully,
it provides a more
thorough cleaning.
Sponge
Ref. S0354
Tapping:
Tap gently to remove excess
solder.
Wiping:
Use the slots to remove
remaining particles.
The least harmful cleaning
method. Keep the sponge
damp with distilled water
when working to avoid tip
we a r.
5
Page 6
ø 1
ø 3,5
A
B
Changing the Grips
Easily replace the Grips for T245-A and T245-C using the slip-on tabs (Ref. 0016057)
1. Inserting tabs
tabs
new grip
Put the slide-on tabs into the
new grip.
2. Inserting handle
Push the grip with the tabs
onto the handle.
3. Removing tabs
To remove the tabs, hold the
grip and pull. Use a pliers if
necessary.
Quick Tip Changer
Save time and change cartridges safely without switching the station off.
1. Removing 2. Inserting
Place the handpiece in the
extractor and pull to remove
the cartridge.
Place the handpiece on top
of the new car tridge and
press down slightly.
3. Fixing
Use the holes for fixing the
cartridge* as follows:
A. For straight C210.
B. For curved C210.
C. For C245.
C
A
B
*Important
It is essential to insert the
cartridges as far as the mark
for a proper connection.
Compatible cartridges
The CD-B stations work with
C245 cartridges.
Find the model that best
suits your soldering needs in
www.jbctools.com
6
Mark
Conical Chisel Conical-bent Bevel Special models
Page 7
www.jbctools.com

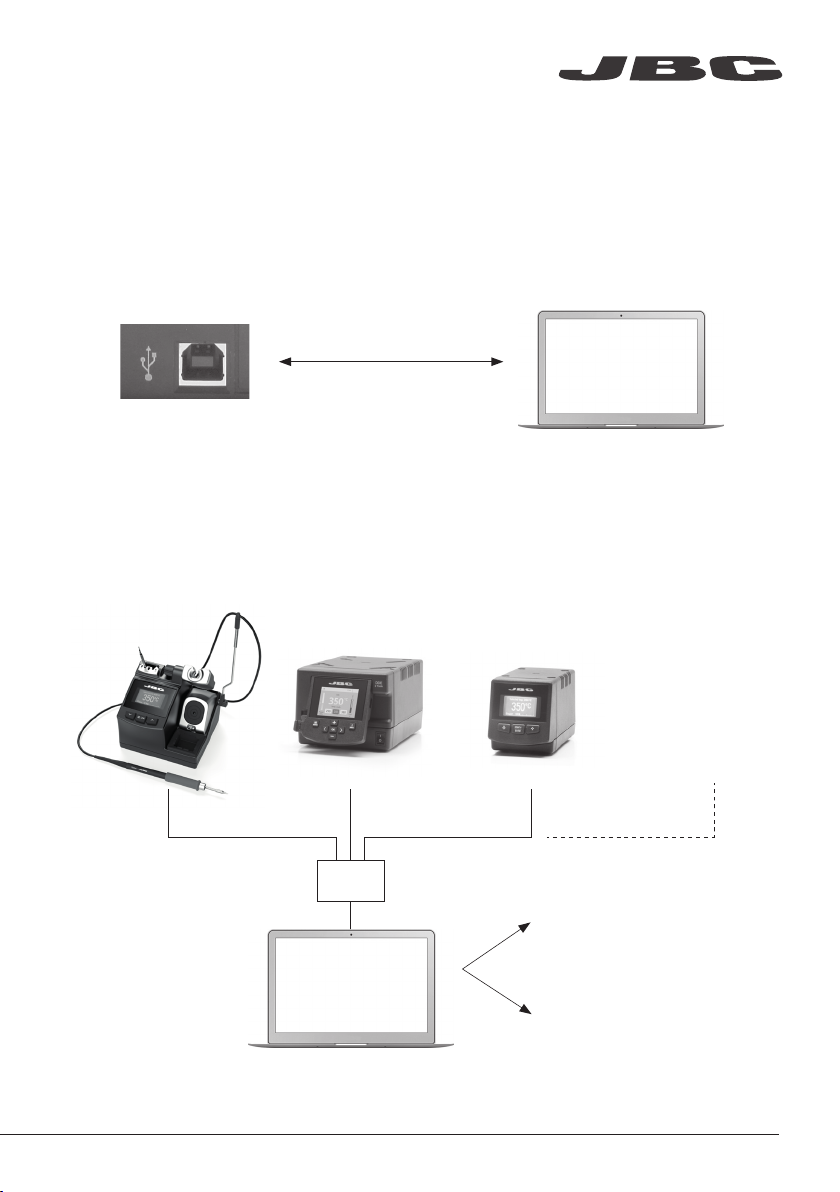

USB Connector
Download the latest software from our website to improve your soldering station.
JBC Updater
www.jbctools.com/software.html
Update the station software via USB connection:
Cable USB AB
JBC
Updater
JBC Manager
www.jbctools.com/manager.html
Manage and monitor as many stations as your PC can handle by using the JBC Manager.
You can export data to another PC.
Cable USB AB
USB
Hub
JBC
Manager
Manager Settings
Change settings for a
group of JBC stations
at the same time.
Register Settings
Create graphs of the
soldering process in
real time with power
and temperature data.
any JBC
station
7
Page 8

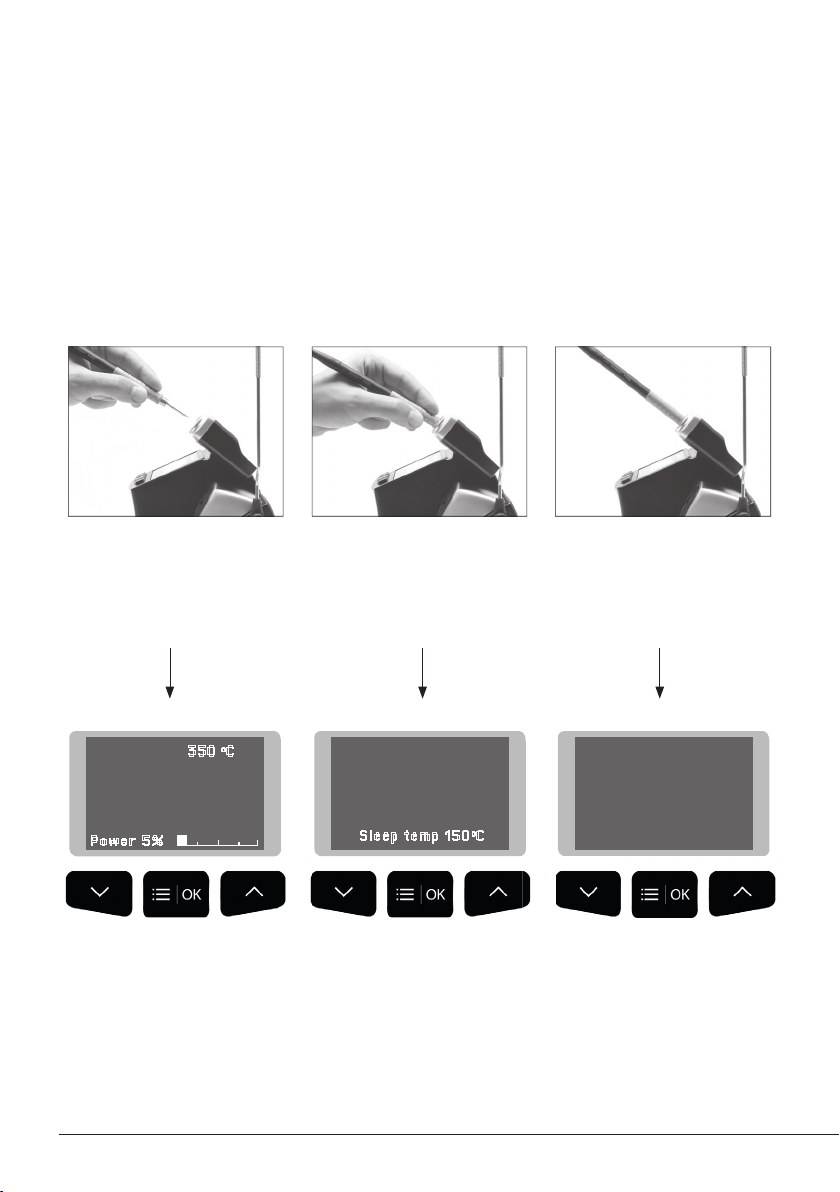

Operation
The JBC Most Efficient Soldering System
This revolutionar y technology is able to recover tip temperature extremely quickly.
This allows the user to work at a lower temperature.
As a result, tip life increases by 5.
1. Wo rk 2. Sleep 3. Hibernation
Long time in
the stand
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
Selected temp
350
Power 5%
· Change temperature
(from 90 to 450ºC)
· Select temperature levels
· Fix one temperature
350 oC
0
c
When the tool is in the stand,
the temperature falls to the
preset sleep temperature.
Sleep
0
c
350
Sleep temp 150oC
· Change Sleep temperature
· Set Sleep delay
(from 0 to 9 min or no Sleep)
After longer periods of
inactivity, the power is cut off
and the tool cools down to
room temperature.
Hibernation
0
c
350
Tool in the stand, no heat
· Change Hibernation delay
(from 0 to 35 min)
8
Page 9
Control Process

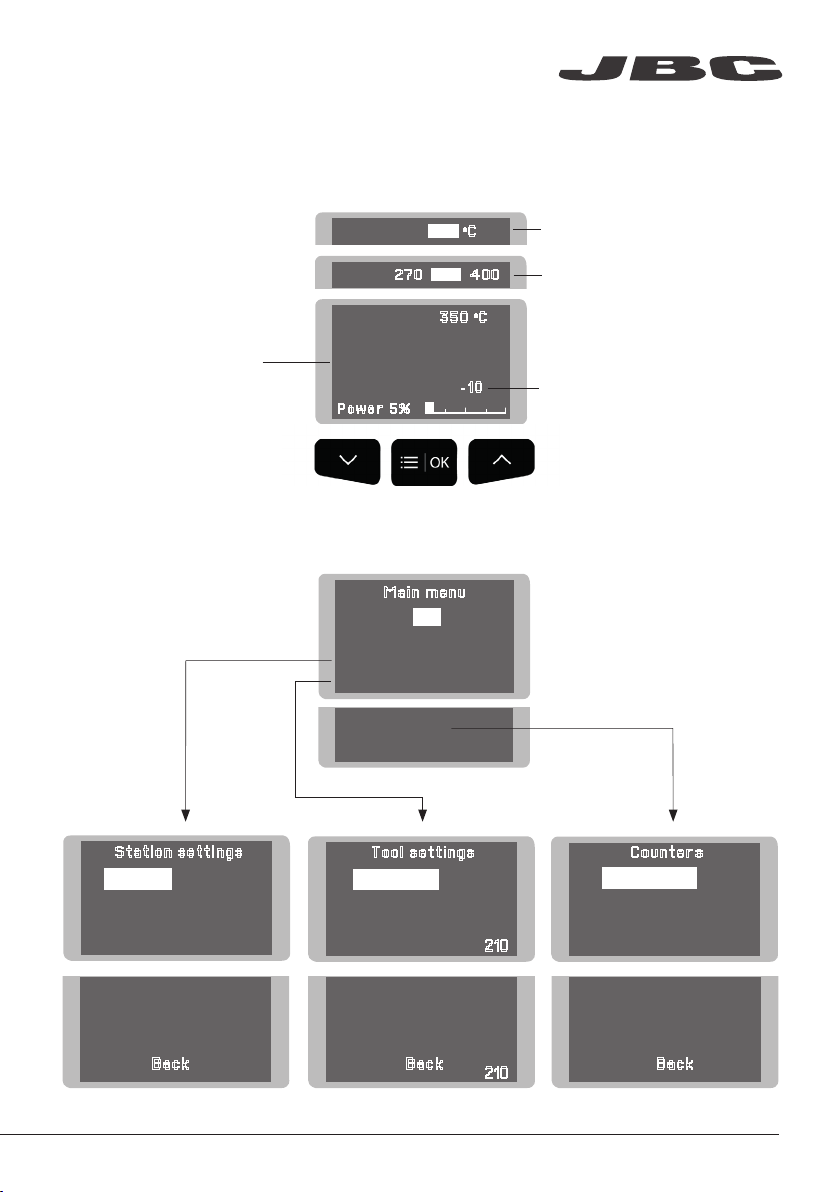

Work Screen
www.jbctools.com
The work screen provides
useful information of tool
status in real time.
Menu Screen
Default PIN: 0105
Fixed temp.
Levels ºC
Selected temp.
350 oC
270 350 400
350 oC
350
Power 5%
Main menu
Exit
1 Reset settings
2
Station settings
3
Tool settings
4 Counters
5
Program version
Displays a specific fixed temp.
Shown when you have selected
temp. levels. T he values must be
adjusted for the task.
0
c
-10
“Temp. Adjust ” parameter.
It provides a more precise
adjustment between the selected
temp and the actual one.
Station settings
1 Temp unit
2
Maximum temp 4000C
3
Minimum temp 2000C
4
Metronome ----
5 Help text OFF
6 Beep ON
7
Change PIN
Celsius
Back
Tool settings
1
Fix one temp -----
2
Temp levels set OFF
3
Sleep delay 0 min
Tool 210
4
Sleep temp 1500C
5
Hibernation delay 10 min
6
Temp adjust + O OC
Back
Tool 210
Counters
1
Plugged hours 0
2
Working hours 0
3
Sleep hours 0
4
Hibernation hours 0
5
No tool hours 0
6 Sleep cycles
0
Back
9
Page 10
Parameters
Be careful when using these parameters as they may reduce the tip life if not used properly.
Please follow the recommended guidelines:
Station Settings
Temperature unit
Celsius (ºC) or Fahrenheit (ºF)
Maximum temperature
Set the maximum
temperature to work with.
Max. temp by default is 400°C
(750°F). This is considered
high enough to work with
most lead-free applications.
Minimum temperature
Set the minimum temperature
to work with.
Min. temp. by default is 200ºC
(392ºF ). This is considered to
be a proper starting point for
leaded applications.
Metronome
This activates a beep sound.
Frequencies vary from 1 to 50
seconds.
Help text
Activate this parameter to
receive info from the system.
Recommendations Parameter description
N/a
The station temperature
range is 90-450ºC
(190-840ºF). Change the
temperature limits when
working with less common
applications such as low / high
melting point soldering (HMP)
or plastics (e. g. riveting).
Useful for setting a work rate
in repetitive jobs. The beep
lets you know the length of
time the tip must be in contact
with the soldering joint.
N/a
Warnings
In most cases,
working with temperatures
over 400°C (750°F) can
damage the PCB and its
components. Even in short
time periods of tip contact
with the soldering joint, the
flux may not work properly
and could seriously reduce
tip life. If the solder joint
requires more power
(e.g. multilayered or high
dissipation boards), JBC
strongly recommends using
other aids like preheaters.
N/a
N/a
Beep
Enable/disable the beep
sound of the keypad.
Change pin
Change the default security
PIN number (0105).
10
N/a
The PIN must be entered every
time a parameter is changed.
N/a
N/a
Page 11
Tool Settings
www.jbctools.com
Fix one temperature
Fix a value within the
temperature range of the
station (90-450ºC/190-840ºF).
Temperature levels set
Similar to “Fix one temp”
parameter. In this case, the
user can set up to 3 values for
different power requirements.
Sleep delay
Set the time that the tool
will remain at the selected
temperature when in the stand
before entering sleep mode.
The tip temperature will then
drop to the Sleep temperature.
Recommendations Parameter description
Ideal for soldering more than
one component at a specific
temperature. The station will
reject any attempt to change
the temperature.
This allows a quick change
between 3 different temperatures. Set them according
to the allowed values for your
soldering applications.
Because our tools reach the
working temperature from the
deafult Sleep mode in only a
few seconds, this parameter is
preset to 0 min. Once the tool
is returned to the stand the
temperature will automatically
drop to the sleep temperature,
extending tip life and avoiding
oxidation. Retinning the tip
before placing the tool in the
stand will protect the tip and
extend its life.
Warnings
N/a
N/a
Setting these
parameters to higher values
will unnecessarily accelerate
oxidation and shorten tip
life especially when working
with temperatures up to
450°C (840°F).
Sleep temperature
This is the set temperature the
tip reaches when returned to
the stand.
The sleep temperatures are
set to achieve a balance
between preventing oxidation
and reaching the working
temperature in a few seconds.
11
Page 12
Tool Settings
Parameter description Warnings
Hibernation Delay
Set the time the tool will
remain at Sleep temperature
before entering the Hibernation
mode. At this time, the power
supply is cut off and the tip
remains at room temperature.
Temp Adjustment
It provides a more precise
adjustment between the
selected temperature and the
actual one.
Recommendations
This function completely
protects the tip from oxidation
during long periods of
inactivity while the tool is in the
stand.
Retinning the tip before
placing the tool in the stand
also helps prevent oxidation
and extends the life of the tip.
Set values within ±50°C
(± 90°F) to achieve zero error.
JBC strongly recommends
the use of TID-A or TIA-A
Thermometers to obtain
precise readings.
Increasing the default
value will accelerate
oxidation and shorten the
tip life.
When the user changes
the cartridge type, the
parameter should be reset
to 0°C/F or to the value
needed for this cartridge.
E.g. If a correction of
+20°C (+36°F) is set for the
C245966 (thick type) and
then the user changes the
cartridge for a C245030
(which is thinner) without
resetting, they would be
working at a temperature
of +20°C (+36°F) lower for
the C245030 which does
not need any temperature
adjustment.
12
Page 13

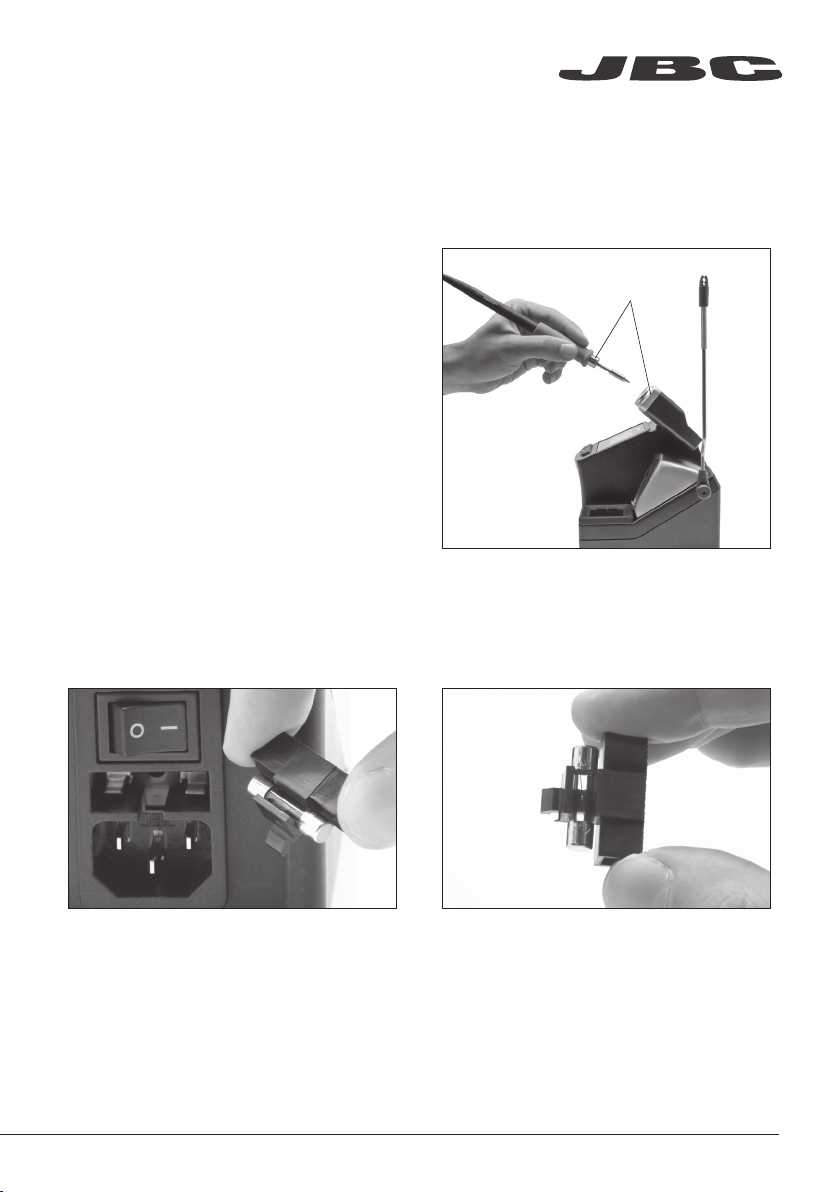

Maintenance
Before carrying out maintenance, always allow the equipment to cool.
- Clean the station screen with a glass cleaner or a damp cloth.
www.jbctools.com
- Use a damp cloth to clean the casing and the
tool. Alcohol can only be used to clean the
metal parts.
- Periodically check that the metal parts of the
tool and stand are clean so that the station
can detect the tool status.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat transfer
to the solder joint.
- Periodically check all cables and tubes.
- Replace a blown fuse as follows:
1. Pull of f the fuse holder and remove the
fuse. If necessar y use a tool to lever it off.
Clean
periodically
2. Insert the new fuse into the fuse holder
and return it to the station.
- Replace any defective or damaged pieces. Only use original JBC spare parts.
- Repairs should only be performed by a JBC authorized technical service.
13
Page 14
Safety
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cable must be plugged into approved bases. Make sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot after the station
is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight as well as persons with reduced
physical, sensory or mental capabilities or lacking experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
14
Page 15
www.jbctools.com
有害物质含量表
产品中有害物质的名称及含量
有害物质
部件名称
铅(Pb) 汞(Hg) 镉(Cd)
烙铁头 O O O O O O
手柄 O O O O O O
电源线 O O O O O O
主机 O O O O O O
电源插座 O O O O O O
保险丝 O O O O O O
主开关 O O O O O O
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
电位连接 X O O O O O
变压器 O O O O O O
线路板 X O O O O O
O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。
X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。
15
Page 16
Specifications
CD -1B QE 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD -1E
CD-2BQE 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. Control Unit model: CD-2E
CD-9BQE 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD-9E
- Temperature Range: 90 - 450 °C (190 - 840 °F) (±5%)
- Idle Temp. Stability (still air): ±1.5 ºC / ±3 ºF
- Output Peak Power CD-BE: 130 W
- Tip to ground resistance: <2 ohms
- Tip to ground voltage: <2mV RMS
- Ambient operating temp: 10 - 50 ºC / 50 - 122 ºF
- USB connector station-PC
- Control Unit Weight: 2,67Kg (5.88 lb)
- Control Unit Dimensions: 150 x 175 x 145 mm (5.9 x 6.9 x 5.7 in)
- Total Package: 234 x 234 x 258 mm / 3.15 kg
9.2 x 9.2 x 10.2 in / 6.94 lb
Complies with CE standards
ESD protected housing “skin effect”
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 3 0 days of purchase.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
www.jbctools.com
0022909-0519
Loading...
