jbc CD-BD User Manual

www.jbctools.com

Compact Soldering Station

Ref. CD-BD

English 2

Page

Deutsch 29

Español 15

中文 43

ww w.jb ctools. co m

2 3

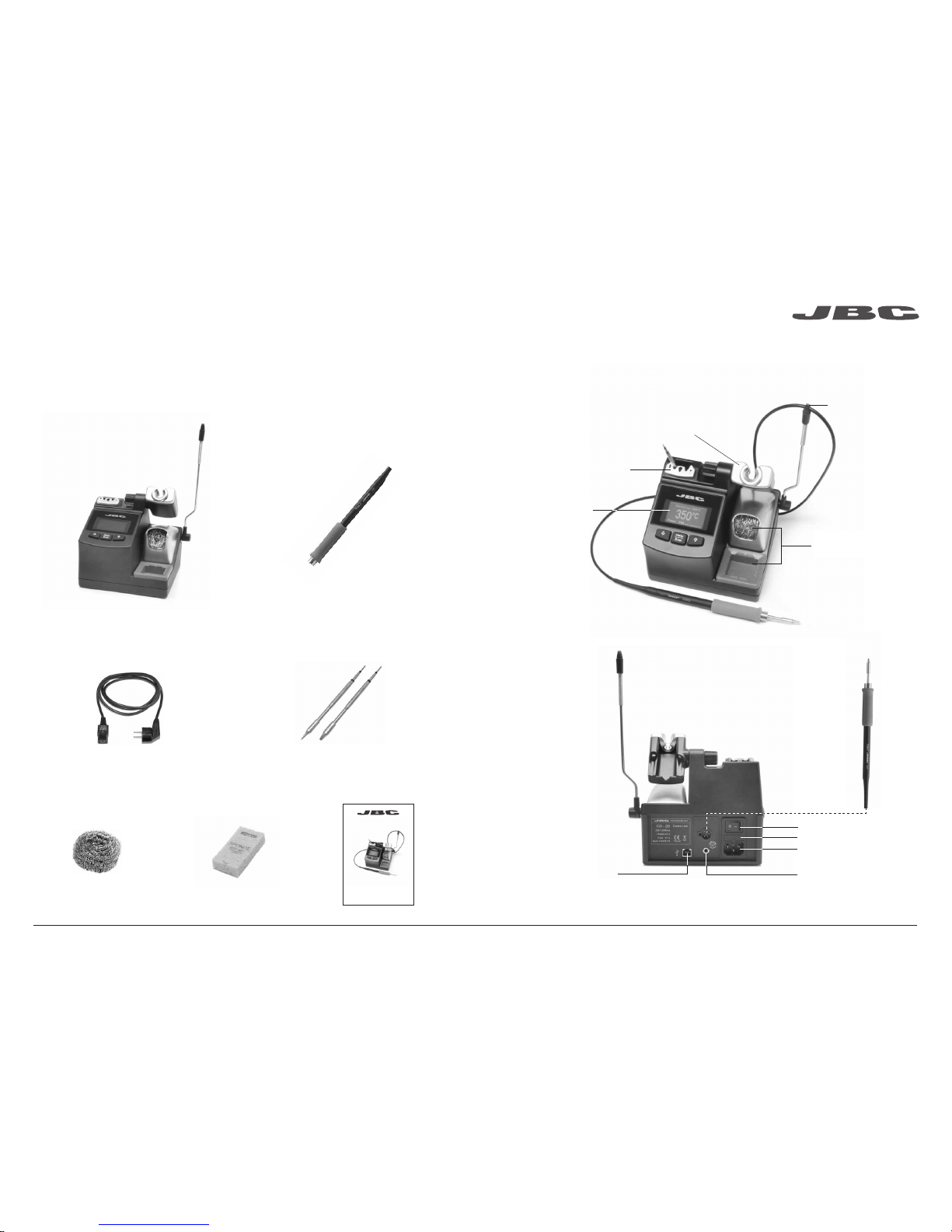

Packing List

The following items should be included:

Power Socket

Main switch
Fuse

Cable colle ctor

Quick Tip Changer

Tip Cleaning System

Process
Control

Adjustable Stand:
Intelligent Heat
Management

Equipotential connection

USB-B connector

Features

Soft Thermal

Insulator Handle

Ref. T245-C

Power Cord ................................................. 1 unit

Ref. 0009417 (100V/120V)
0009401 (230V)

Manual .......................... 1 unit

Ref. 0014621

CD Control Unit ....................................... 1 unit

Ref. CD-1D (120V)
CD-2D (230V)
CD-9D (100V)

Brass Wool ................. 1 unit

Ref. CL6210

Cartridges ................................................. 2 units

Ref. C245903 (x1)
C245741 (x1)

Soft Thermal Insulator Handle ......... 1 unit

Ref. T245-C

Sponge ........................ 1 unit

Ref. S0354

Compact Soldering Station

Ref. CD-BD

www.jb ctoo ls. com

ww w.jb ctools. co m

4 5

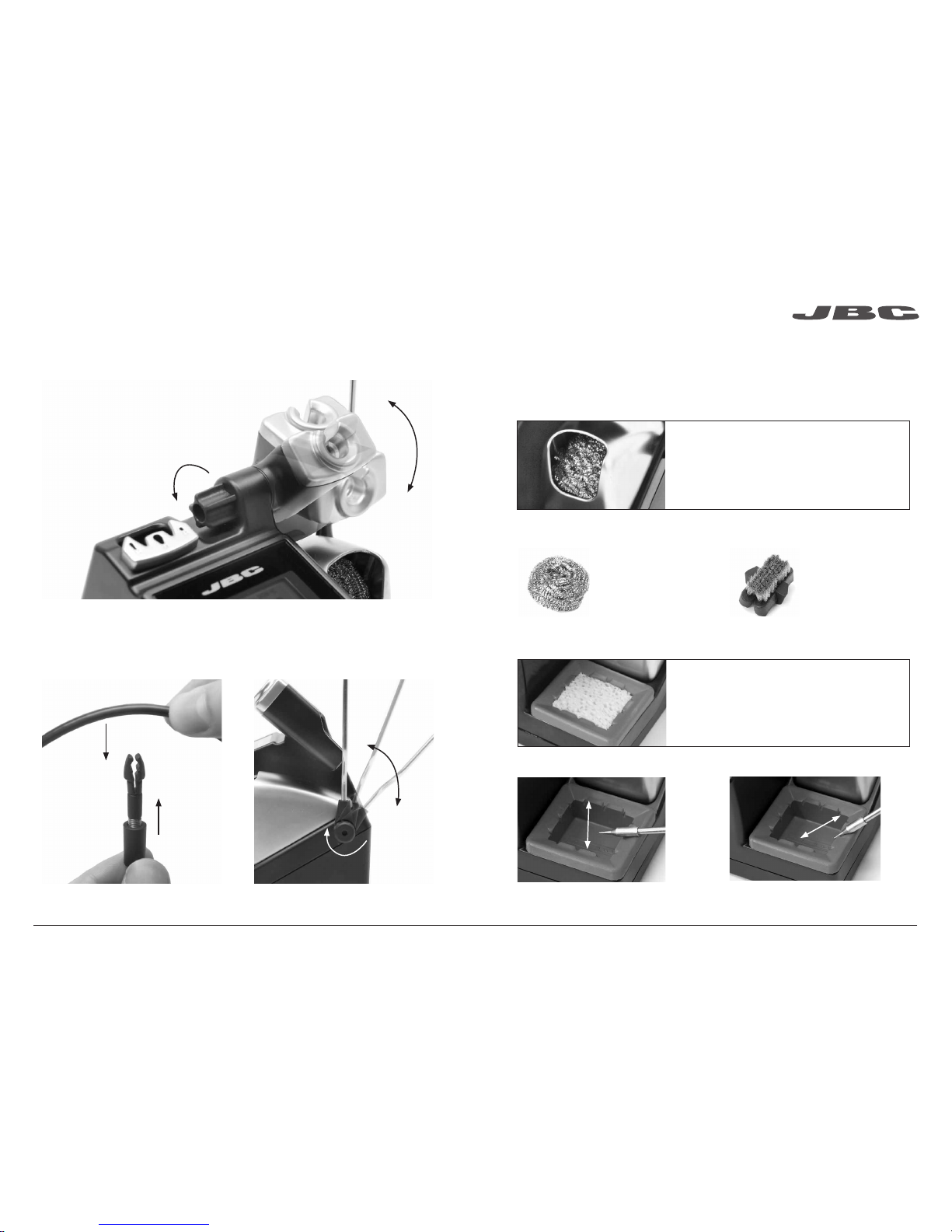

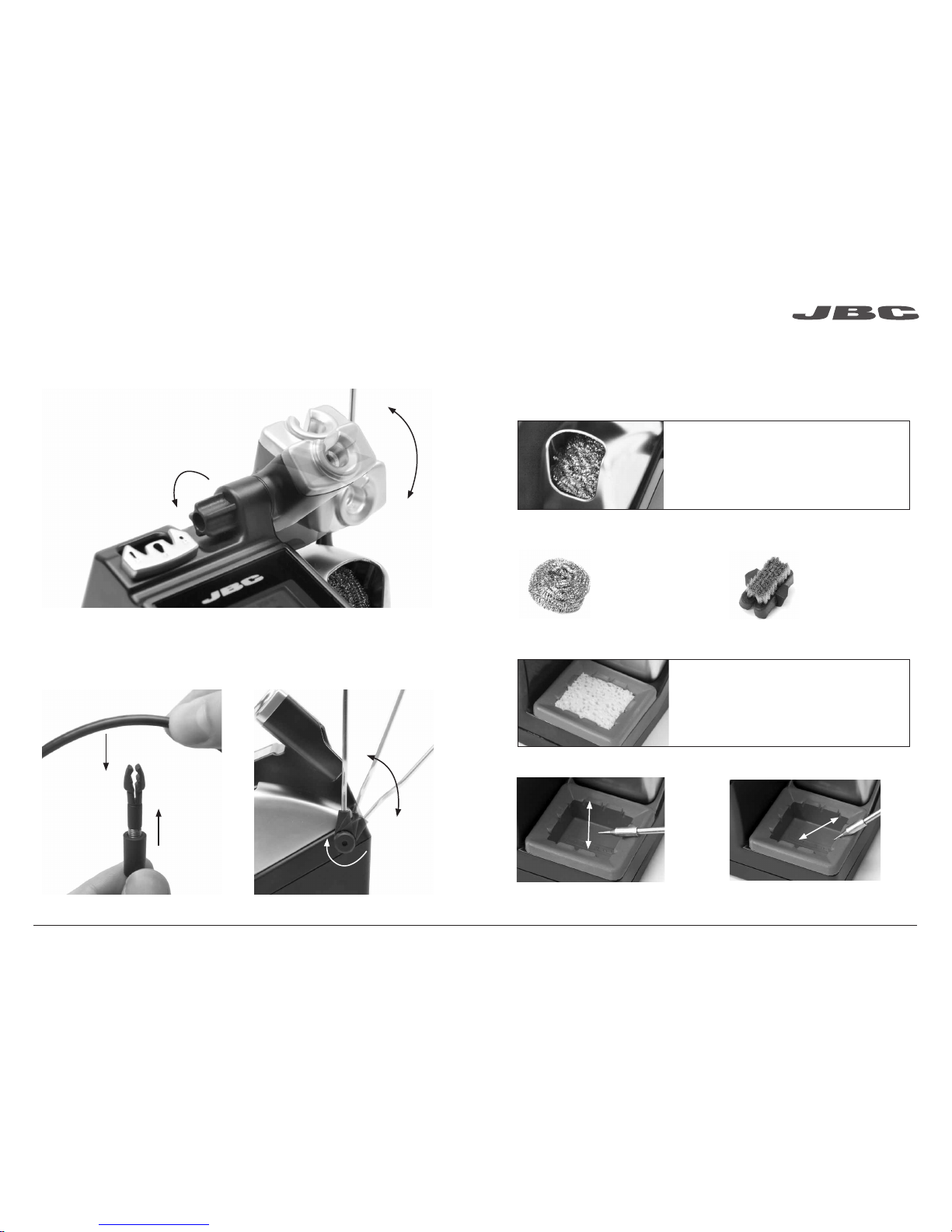

Adjustable stand

Cable collector

Adjust the tool stand to suit your work position.

Place the cable on the collector so that the working area is free of cable.

Tip Cleaner

Sponge

Ref. S0354
The least harmful cleaning method. Keep the sponge
damp with distilled water when working to avoid tip
wear.

Brass Wool

Ref. CL6210
Very effective cleaning method. Leaves a small layer
of solder on the tip preventing oxidation between
cleaning and rewetting.

Select the option that best suits your needs and improve the thermal transfer of the tip.

More options for the splashguard (not supplied):

Inox Wool

Ref. CL6205
Provides a superior
cleaning of the tip.

Metal Brush

Ref. CL6220
When used carefully,
it provides a more
thorough cleaning.

Splashguard

Wiper

Tapping:

Tap gently to remove excess solder.

Wiping:

Use the slots to remove remaining
particles.

Soft foam

Non-slip and soft touch

Blue grip to quickly distinguish
from other handles

Blue grip to quickly distinguish
from other handles

Foam

ww w.jb ctools. co m

6 7

For precision use

Works with C210 Cartridge range

For general use

Works with C245 Cartridge range

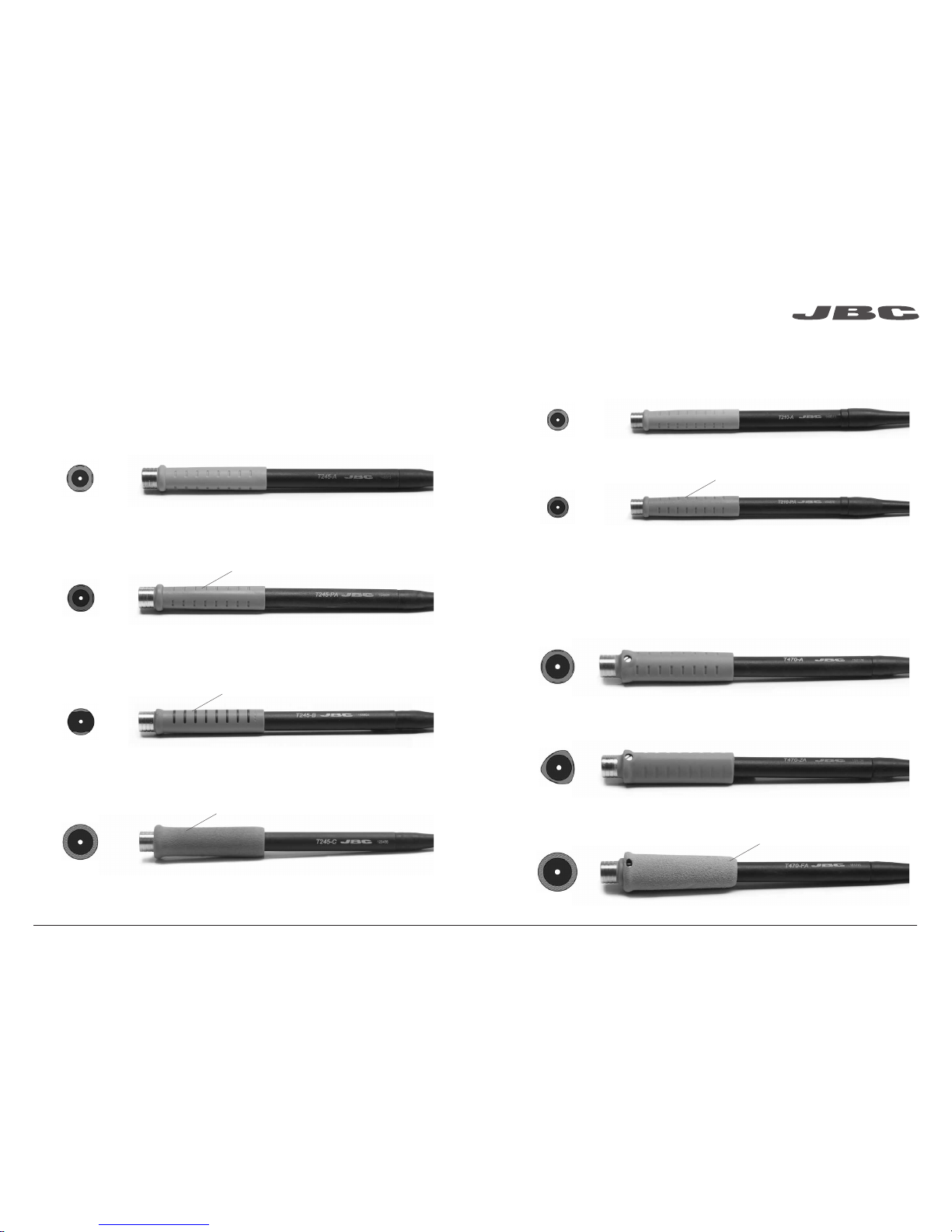

Compatible Handles

For greater demands

Important: Only work with C245 cartridges when used with a CD station.

Precision Purpose Handle

Ref. T210-A

Blue Precision Handle

Ref. T210-PA

General Purpose Handle

Ref. T245-A

Blue General Purpose Handle

Ref. T245-PA

Non-slip Handle

Ref. T245-B

For intensive soldering jobs requiring continued high thermal power. They feature good thermal
insulation and a screw which fixes the cartridge and prevents its rotation.

General Purpose HD Handle General Purpose HD Handle with 3m cable

Ref. T470-A Ref. T470-SA

Tri-lobed Handle

Ref. T470-ZA
For better handling of the tool.

Thermal Insulator HD Handle Thermal Insulator HD Handle with 3m cable

Ref. T470-FA Ref. T470-MA

Note: All models are supplied with a 1.5m cable except those specified with 3m.

Soft Thermal Insulator Handle

Ref. T245-C

Note: All models are supplied with a 1.5m cable.

ø 1

ø 1,5

ø 3,5

A

B

ww w.jb ctools. co m

B

C

A

8 9

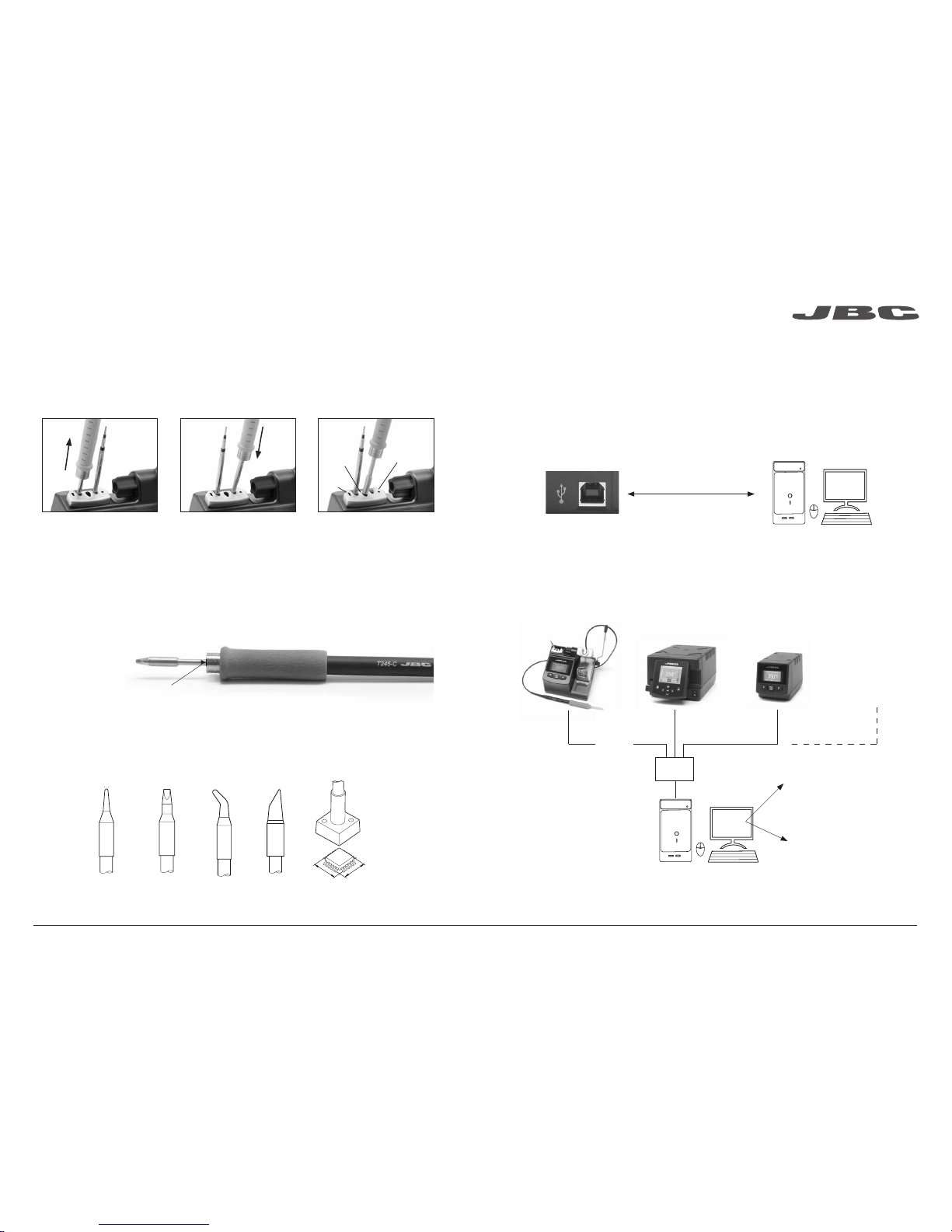

USB Connector

Download the latest software from our website to improve your soldering station.

JBC Updater

www.jbctools.com/software.html

Update the station software via USB connection:

Cable USB AB

JBC

Manager

JBC

Updater

JBC Manager

www.jbctools.com/manager.html

Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can
export data to another PC.

Register Settings

Create graphs of the
soldering process in real
time with power and
temperature data.

Manager Settings

Change settings for a
group of JBC stations at
the same time.

any JBC

station

USB
Hub

Cable

USB AB

Quick Tip Changer

Round Chisel Round

bent

Bevel Special models

Compatible cartridges

The CD stations work with C245 cartridges and T245/T470 handpieces or C210 cartridges with
T210 handpieces. Find the model that best suits your soldering needs in w ww.jbctools.com

Save time and change cartridges safely without switching the station off.

1. Removing 2. Inserting 3. Fixing

Place the handpiece in the
extractor and pull to
remove the car tridge.

Place the handpiece on top
of the new cartridge and
press down slightly.

Use the holes for fixing the
cartridge* as follows:

A. For straight C210.
B. For curved C210.
C. For C245.

*Important

It is essential to insert the cartridges as far as the mark for a proper connection.

Mark

Ma in m en u

4 Counters
5

Program version

Exit
1 Reset settings

2

Station settings

3

Tool settings

4

Hibernation hours 0

5

No tool hours 0

6 Sleep cycles

0

Tool 245

Ba ck

Ba ck

1

Fix one temp -----

2

Temp levels set OFF

3

Sleep delay 0 min

5 Beep ON
6

Change PIN

1 Temp unit

Celsius

2

Maximum temp 4000C

3

Minimum temp 2000C

4

Help text OFF

1

Plugged hours 0

2

Working hours 0

3

Sleep hours 0

Co un te rs

To ol s et ti ng s

St at io n se tt in gs

0

c

Selected temp.

35 0 oC

P ow e r 5%

Fixed temp.

35 0 oC

Levels ºC

27 0 3 50 40 0

350

- 10

4

Sleep temp 1500C

5

Hibernation delay 10 min

6

Temp adjust + O OC

Tool 245

Ba ck

S le e p te m p 15 0oC

Sleep

Too l i n t he s tan d, no h eat

Hibernation

0

c

P ow e r 5%

350

Selected temp

35 0 oC

0

0

c

c

150 20

ww w.jb ctools. co m

10 11

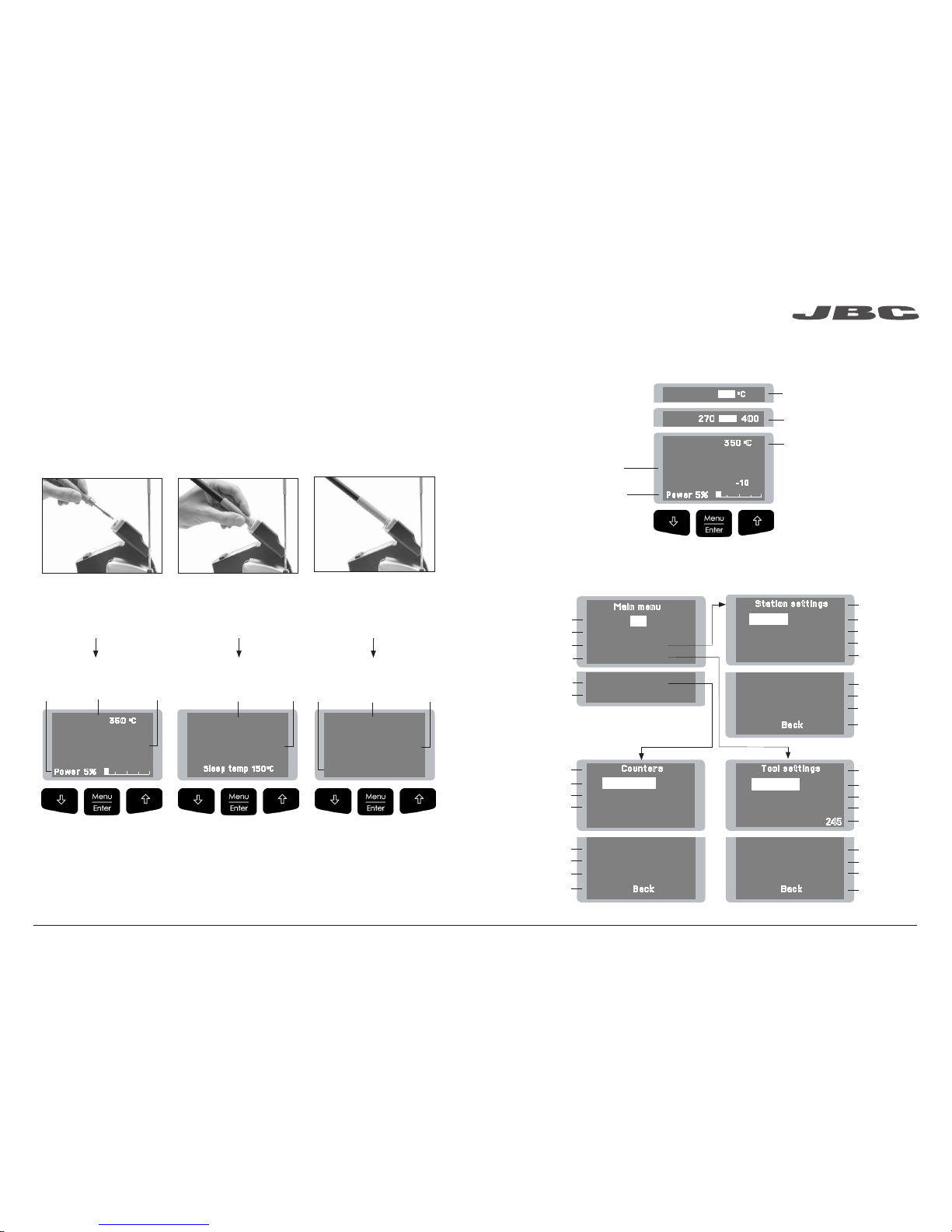

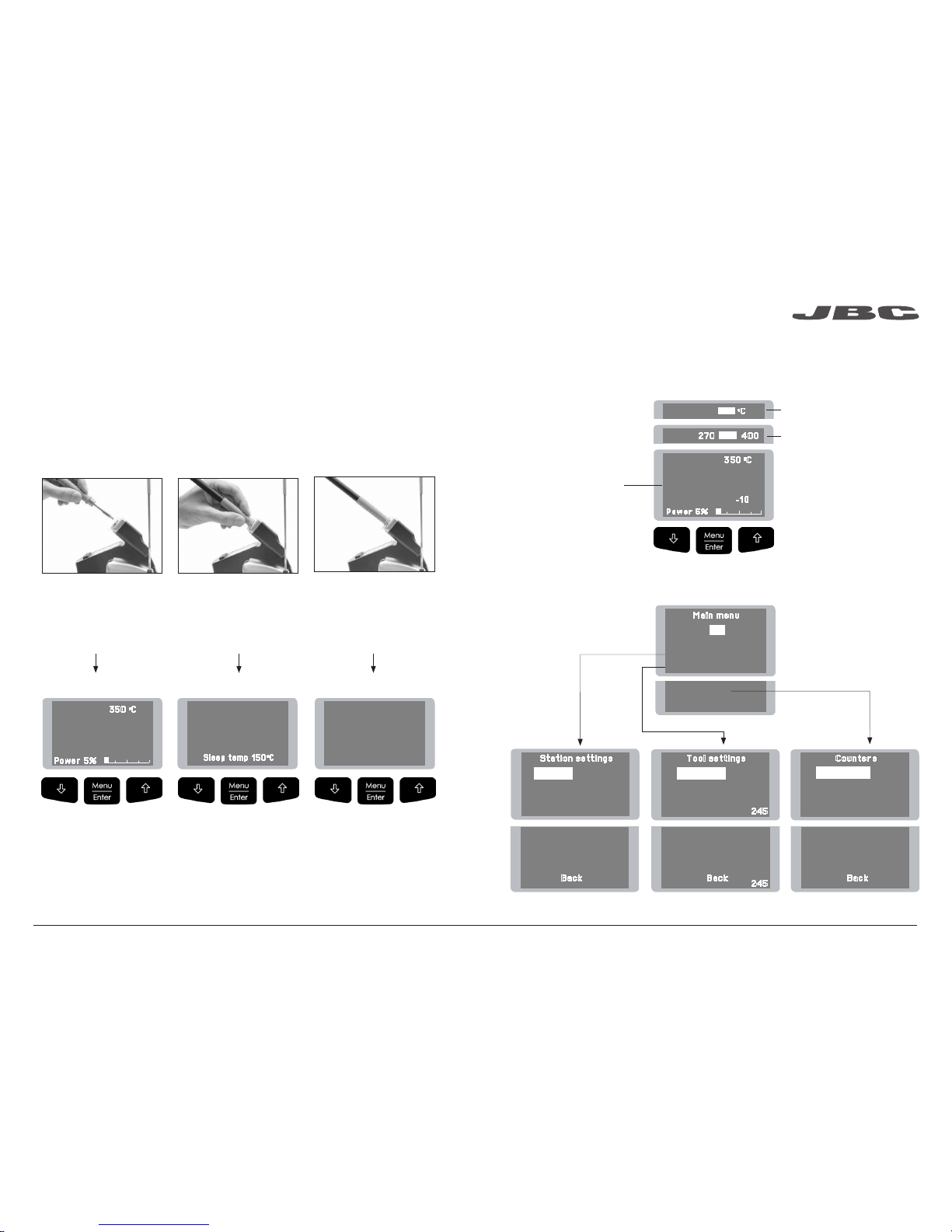

Menu Screen

Original PIN: 0105

The work screen provides
useful information of tool
status in real time.

Work Screen

Process ControlOperation

The JBC Exclusive Heating System

This revolutionary technology is able to recover tip temperature extremely quickly.
This allows the user to work at a lower temperature.
As a result, tip life increases by 5.

· Change tempe rature
(from 90 to 450ºC)

· Select temperature levels

· Fix one temperature

· Change Sleep temperature

· Set Sleep delay
(from 0 to 9 min or no Sleep)

· Change Hibe rnation delay
(from 0 to 35 min)

Long time in
the stand

1. Work

When the tool is lifted from the
stand the tip will heat up to the
selected temperature.

2. Sleep

When the tool is in the stand,
the temperature falls to
150ºC / 302ºF (preset sleep
temperature).

3. Hibernation

After longer periods of
inactivit y (pre-set to 30 min.),
the power is cut of f and the
tool cools down to room
temperature.

Displays a specific fixed temp.

Shown when you have
selected temp. levels. The
values must be adjusted
according to the work needs.

“Temp. Adjust” parameter.
It provides a more precise
adjustment between the
selected temp and the
actual one.

ww w.jb ctools. co m

12 13

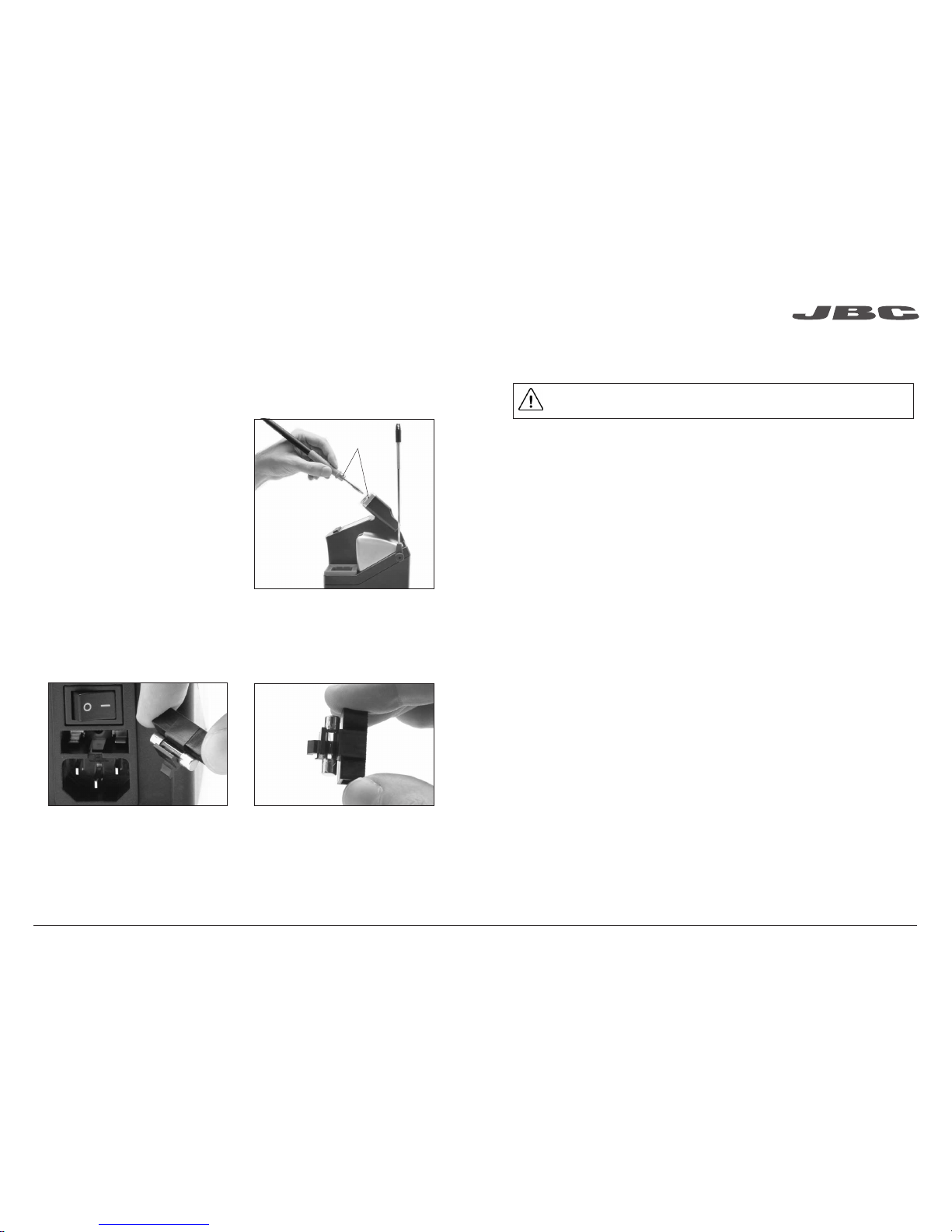

Before carr ying out maintenance or storage, always allow the equipment to cool.

- Clean the station screen with a glass cleaner
or a damp cloth.

Clean
periodically

- Use a damp cloth to clean the casing and
the tool. Alcohol can only be used to clean
the metal par ts.

- Periodically check that the metal parts of
the tool and stand are clean so that the
station can detect the tool status.

- Maintain tip surface clean and tinned prior
to storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat
transfer to the solder joint.

- Periodically check all cables and tubes.

It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station is
turned off. Handle with care, including when adjusting the stand position.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Use a “non residue” classified flux and avoid contact with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate super vision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

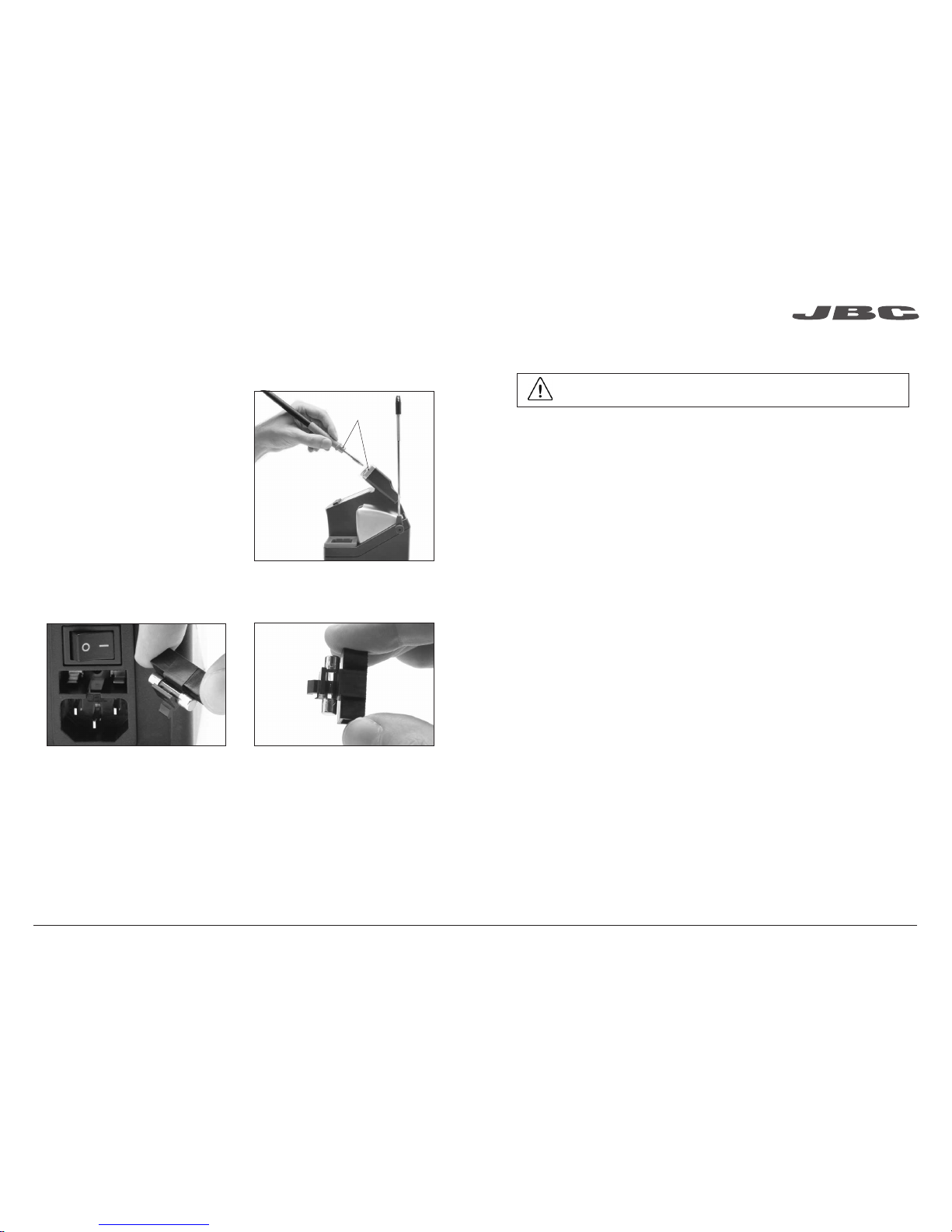

Maintenance Safety

1. Remove the fuse by pulling off the black

cap. If necessary use a tool to lever it off.

2. Press the new fuse into the holder and
replace it in the station.

- Replace a blown fuse as follows:

- Replace any defective or damaged pieces. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

ww w.jb ctools. co m

14 15

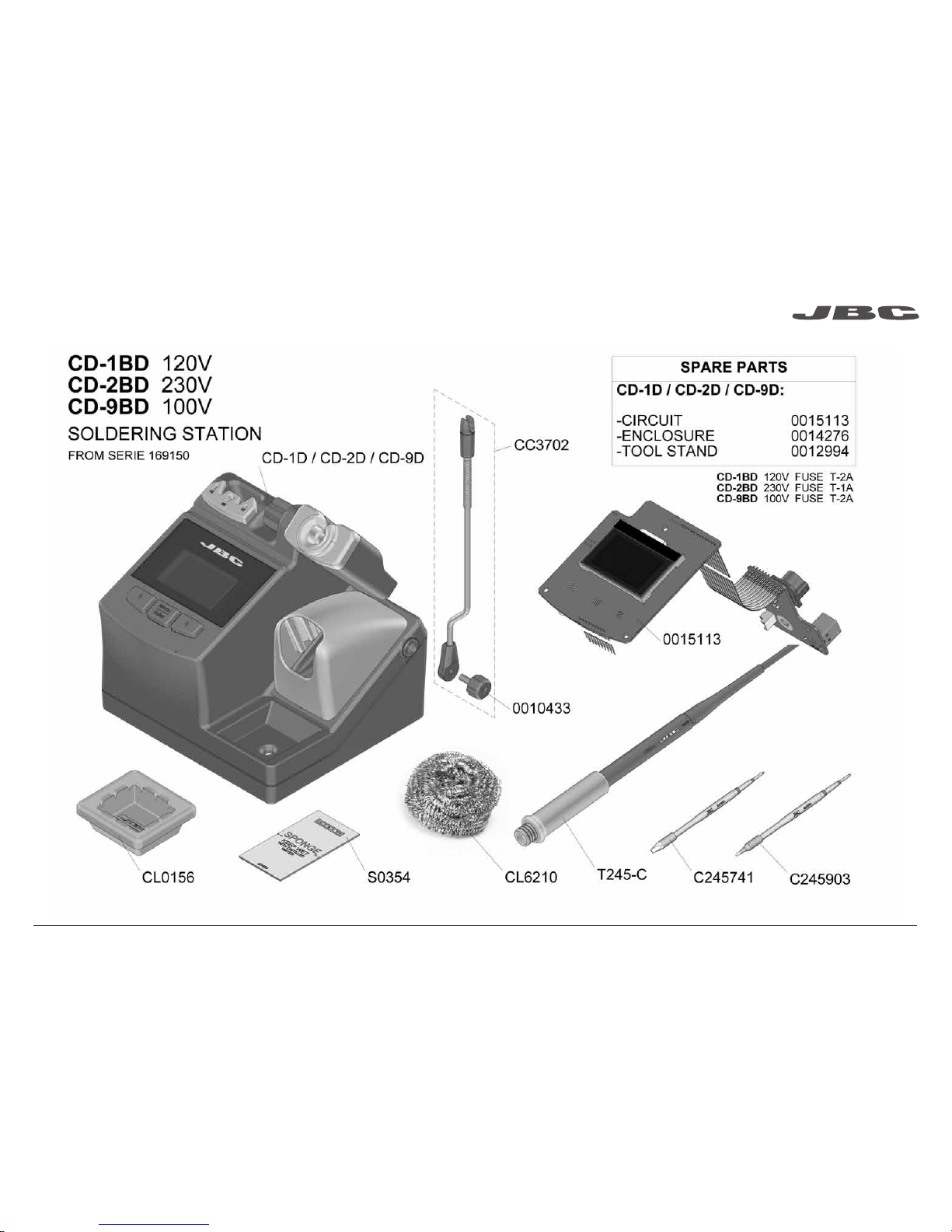

Specifications

CD-1BD 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD -1D
CD-2BD 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. Control Unit model: CD-2D
CD-9BD 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD-9D

- Weight: 2.6 Kg (5.7 lb)

- Dimensions: 150 x 175 x 145 mm

- Output Peak Power CD-BD: 130W

- Temperature Range: 90-450°C (190°-840°F) (±5%)

- Idle Temp. Stability (still air): ±1.5 ºC / ±3 ºF

- Tip to ground resistance: <2 ohms

- Tip to ground voltage: <2mV RMS

- Ambient operating temp: 10-40 ºC / 50-104 ºF

- USB connector station-PC

Complies with CE standards
ESD protected housing “skin effect”

Estación soldadora

Compact

Ref. CD-BD

ww w.jb ctools. co m

16 17

Compact Soldering Station

Ref. CD-BD

www.jb ctoo ls. com

Power Cord

Cable de Red ......................................... 1 unidad

Ref. 0009417 (100V/120V)
0009401 (230V)

Composición

Los siguientes artículos deben estar incluidos:

CD Control Unit

Unidad de Control CD ........................ 1 unidad

Ref. CD-1D (120V)
CD-2D (230V)
CD-9D (100V)

Brass Wool

Lana de latón ........ 1 unidad

Ref. CL6210

Cartridges

Cartuchos .......................................... 2 unidades

Ref. C245903 (x1)
C245741 (x1)

Sponge

Esponja ................... 1 unidad

Ref. S0354

Entrada de Red

Interruptor de red
Fusible

Conexión Equipotencial

Conector USB-B

Características

Manual .................... 1 unidad

Ref. 0014621

Soft Thermal

Insulator Handle

Mango suave y con
aislamiento térmico

Ref. T245-C

Soft Thermal Insulator Handle

Mango suave y con aislamiento térmico.. 1 u.
Ref. T245-C

Recogecable

Cambio rápido
de cartucho

Sistema de limpieza
de puntas

Control del
proceso

Soporte Ajustable:
Gestión inteligente
del calor

ww w.jb ctools. co m

18 19

Golpeteo:

Sacuda ligeramente los car tuchos
para soltar el exceso de estaño.

Soporte Ajustable

Recogecable

Ajuste el soporte de la herramienta para adaptarlo a su posición de trabajo.

Limpiador de puntas

Sponge

Esponja

Ref. S0354
El método de limpieza menos dañino. Mantenga la
esponja húmeda con agua destilada cuando trabaje
para evitar el desgaste de la punta.

Brass Wool

Lana de latón

Ref. CL6210
Método muy eficaz. Deja una pequeña capa de
estaño en la punta para prevenir la oxidación entre la
limpieza y la rehumectación.

Elija la opción que se ajuste mejor a sus necesidades y mejore la transferencia térmica de la punta.

Más opciones para la cúpula anti-salpicaduras (no incluidas):

Inox Wool

Lana inoxidable

Ref. CL6205
Proporciona una limpieza
superior de la punta.

Metal Brush

Cepillo de metal

Ref. CL6220
Si se usa con cuidado,
proporciona una limpieza
más profunda.

Protector anti-salpicaduras

Limpiador

Coloque el cable en el recogedor para mantener ordenada su área de trabajo.

Limpieza:

Utilice las ranuras para eliminar las
partículas adheridas a la punta.
