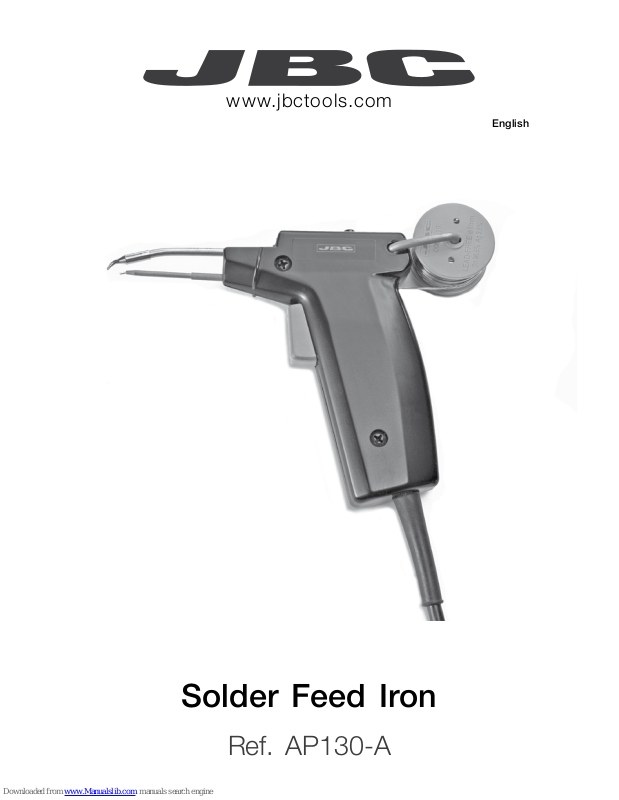

Page 1
English
Solder Feed Iron
Ref. AP130-A
www.jbctools.com
Page 2
2
Packing List
The following items should be included:
Solder Feed Iron
Ref. AP130-A
Solder Feed Iron ....................................... 1 unit
Reel ................................................................ 1 unit
Feeding Tube ............................................. 1 unit
Reel
Ref. 0002801
Feeding Tube
Ref. 0006559
Manual
www .jbc tool s.c om
Solder Feed Iron
Ref. AP130-A
Page 3
3
Power cord
socket
Equipotential
connection
Features
Solder Feed Iron
Ref. AP130-A
Solder Feed Stand
Ref. AP-SD
Control Unit
Ref. DD-2B / DD-2B / DD-9B
The AP130-A Solder Feed Iron is fully compatible with any JBC station within the Modular Line and
with the CF Solder Feed station within the Compact Line.
ww w.j b c tools.com
Page 4
2. Inserting
3. Aligning
4. Fixing
4
Align the tip of the cartridge with the feeding
tube. Use a plier for a safe tip alignment.
Changing cartridge
For a safe cartridge change, unplug the tool or turn the station off before following these guidelines:
Loosen the screw and remove the cartridge.
Use a plier to remove it if still hot.
1. Removing
Alignment
Important: Tighten the screw again. This is
necessary for the tool to function.
Important: Insert the cartridge as far as
the mark for a correct connection.
Mark
Page 5
1. Remove the remaining solder wire
3. Insert the new solder wire
5
Pull out the solder remaining inside the
feeding tube. Use a plier if necessary.
Note: Always use 0.8 - 1.0 mm diameter solder wire.
Insert the solder wire and push the trigger
intermittently until the solder feed system
works by itself.
Replacing solder wire
2. Replace the solder reel
Push the empty reel to remove it and fit the
new one.
ww w.j b c tools.com
Page 6
Note: All the cartridges shown are actual size.
The AP130-A Solder Feed Iron works with C130 cartridge range. Find the model that best suits your
soldering needs in www.jbctools.com
ø 0,6
ø 3
ø 0,8
2,2x1
ø 4
ø 1,7
3,2x1,5
4,8x1,5
ø 1
1,2x0,7
1,8x0,8
ø 2,2
C130-401
C130-405
C130-416
C130-402 C130-403
C130-406
C130-417
C130-409
C130-418 C130-419
C130-404C130-410
Compatible Cartridges
6
Page 7
7
For production in line, we recommend using
our BE-SA Solder Reel Holder which allows to
work with up to 2.5 Kg of solder wire.
Simply wrap a couple of turns of the solder
wire around an empty reel as shown.
Solder Reel Stand
Accessories
Solder Reel Stand
Ref. BE-SA
Solder Feed Iron
Ref. AP130-A
The fume extractor is an easy & safe solution to suck the fume generated at the solder joint.
Fume Extractor
Suction pump
and filter
Fume Extractor
Ref. F1204
ww w.j b c tools.com
Page 8
0008861-0614
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear due to use
or mis-use.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
www.jbctools.com
