Jay R. Smith 1001, 1002, 1010, 1010E, 1011 User Manual
...
1010
1010-E
1015
11
2
2
3
4
5
6
7
8
9
10
11
CUSTOMER
DRIVEN
SMITH
®

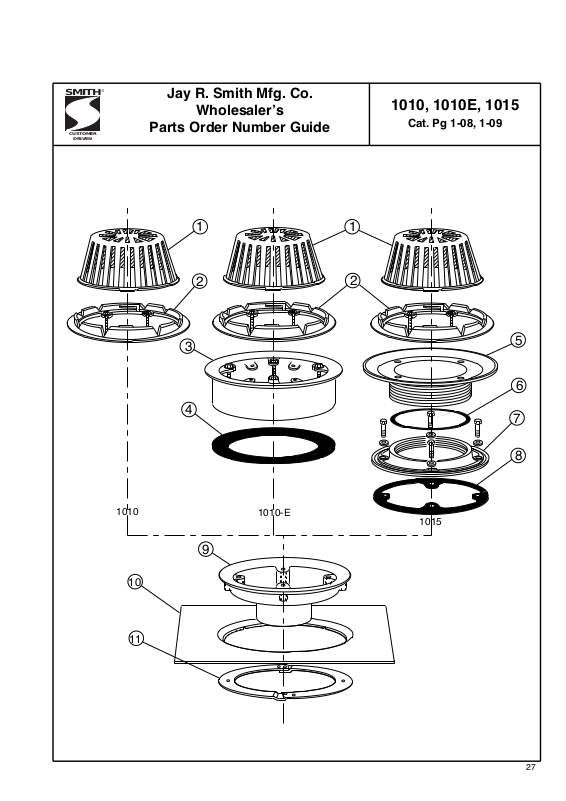

Jay R. Smith Mfg. Co.
Wholesalerʼs
Parts Order Number Guide
1010, 1010E, 1015
Cat. Pg 1-08, 1-09
27
CUSTOMER
DRIVEN
SMITH
®
Jay R. Smith Mfg. Co.
Wholesalerʼs
Parts Order Number Guide
1001, 1002, 1010,
1010E, 1011, 1015
Cat Pg 1-07, 1-08, 1-09
28
The following for use on 2” thru 8” sizes with maximum flange size of 16”
Universal Replacement Collar, Poly Dome 1001
CI Dome for 1001 1001CID
Universal Replacement Collar 1002
Vandal Proof Domes -U
1 Polyethylene Dome 1010D
1 Cast Iron Dome 1010CID
1 Rough Bronze Dome 1010RBD
1 Aluminum Dome 1010AD
1 Galvanized Cast Iron Dome 1010CIDG
1 8” High Cast Iron Dome 1010CID8
Secured Grate for 1010 1010G
2 Flashing Clamp and Gravel Stop 1010C
Galv Flashing Clamp and Gravel Stop 1010CG
Poly Bag of 4 Bolts f/1010 Collar R-1010
4 Extension Gasket 75094-94-6
3, 4 CI Extension, 1” w/Gasket & Bolts 1010E01
3, 4 CI Extension, 2” w/Gasket & Bolts 1010E02
3, 4 CI Extension, 3” w/Gasket & Bolts 1010E03
3, 4 CI Extension, 4” w/Gasket & Bolts 1010E04
1011 Collar and Gravel Guard 1011C/GG
6 “O” Ring for Adjustable Extension 76698-94-6
8 Molded Gasket for Adj Extension 75043-94-6
5, 6, 7, 8 Extension Kit Complete 1015EK
1015 Hardware Kit 1015HWK
9 CI Body, 2” Caulk 1010C02B
9 CI Body, 3” Caulk 1010C03B
9 CI Body, 4” Caulk 1010C04B
9 CI Body, 5” Caulk 1010C05B
9 CI Body, 6” Caulk 1010C06B
9 CI Body, 8” Caulk, 16” Flange 1010C08B-16
9 CI Body, 10” Caulk, 16” Flange 1010C10B-16
9 CI Body, 2” No-Hub 1010Y02B
9 CI Body, 3” No-Hub 1010Y03B
9 CI Body, 4” No-Hub 1010Y04B
PART DESCRIPTION ITEM NUMBER
CUSTOMER
DRIVEN
SMITH
®
Jay R. Smith Mfg. Co.
Wholesalerʼs
Parts Order Number Guide
1010, 1010E
Cat Pg 1-08
29
9 CI Body, 5” No-Hub 1010Y05B
9 CI Body, 6” No-Hub 1010Y06B
9 CI Body, 8” No-Hub, 16” Flange 1010Y08B-16
9 CI Body, 10” No-Hub, 16” Flange 1010Y10B-16
9 CI Body, 2” Threaded 1010T02B
9 CI Body, 3” Threaded 1010T03B
9 CI Body, 4” Threaded 1010T04B
9 CI Body, 5” Threaded 1010T05B
9 CI Body, 6” Threaded 1010T06B
9 CI Body, 8” Threaded, 16” Flange 1010T08B-16
9 CI Body, 10” Threaded, 16” Flange 1010T10B-16
10 Sump Receiver 1010R
11 Underdeck Clamp w/Trim 1010UDC
Trim Only f/Underdeck Clamp R-500
The following for use on 8” and 10” sizes with 20” DIA flange
1 Cast Iron Dome, 8-10” Outlet 1010CID10
1 Aluminum Dome, 8-10” Outlet 1010AD10
1 Rough Bronze Dome, 8-10” Outlet 1010RBD10
2 Flashing Clamp and Gravel Stop 1010C-8
5
⁄16 x 13⁄4” Bolts f/1010C-8, ea, (5 reqd) 76186-86-6
3 CI Extension, 2” w/Gasket & Bolts 1010E02-20
3 CI Extension, 4” w/Gasket & Bolts 1010E04-20
5, 6, 7, 8 Not Available in 20” Flange
9 Cast Iron Body, 8” Caulk Outlet 1010C08B
9 Cast Iron Body, 10” Caulk Outlet 1010C10B
9 Cast Iron Body, 8” No-Hub Outlet 1010Y08B
9 Cast Iron Body, 10” No-Hub Outlet 1010Y10B
10 Sump Receiver 1010R8
11 Underdeck Clamp w/Trim 1010UDC8
Trim Only f/Underdeck Clamp R-500
PART DESCRIPTION ITEM NUMBER
CUSTOMER
DRIVEN
SMITH
®
Jay R. Smith Mfg. Co.
Wholesalerʼs
Parts Order Number Guide
1070, 1080
Cat Pg 1-11
30
Fig 1070
1 PVC Standpipe 4 1/2” H x 4” Dia 1070SP-4
1 PVC Standpipe 4 1/2” H x 6” Dia 1070SP-6
1 Flash Clamp only f/4” Dia PVC, CI Npl 1070C-4
1 Flash Clamp only f/6” Dia PVC, CI Npl 1070C-6
1, 2 PVC Standpipe 4” Dia w/Flashing Clamp 1070D
1, 2 PVC Standpipe 6” Dia w/Flashing Clamp 1070D-6
1, 2 CI Standpipe 4” Dia w/Flashing Clamp 1070DCI
1, 2 CI Standpipe 6” Dia w/Flashing Clamp 1070DCI-6
Fig 1080
1 Water Dam Collar, 2” High 1080WDC
1 Water Dam Collar, 3” High 1080WDC3
1 Water Dam Collar, 4” High 1080WDC4
1 Water Dam Collar, 6” High 1080WDC6
1
2
1
Fig. 1070 Fig. 1080
PART DESCRIPTION ITEM NUMBER
CUSTOMER
DRIVEN
SMITH
®
Jay R. Smith Mfg. Co.
Wholesalerʼs
Parts Order Number Guide
1083, 1088
Cat Pg 1-11
31
1 Polyethylene Dome, 2”-6” Outlet 1010D
1 Cast Iron Dome, 2”-6” Outlet 1010CID
2 Flashing Collar & Cone 1083C
3 Flow Rate Control 05239-10-0
2, 3
Flashing Collar & Cone w/Flow Rate Control
1083F
Poly Bag of 4 Bolts f/Collar R-1010
PART DESCRIPTION ITEM NUMBER
1
3
2
4
