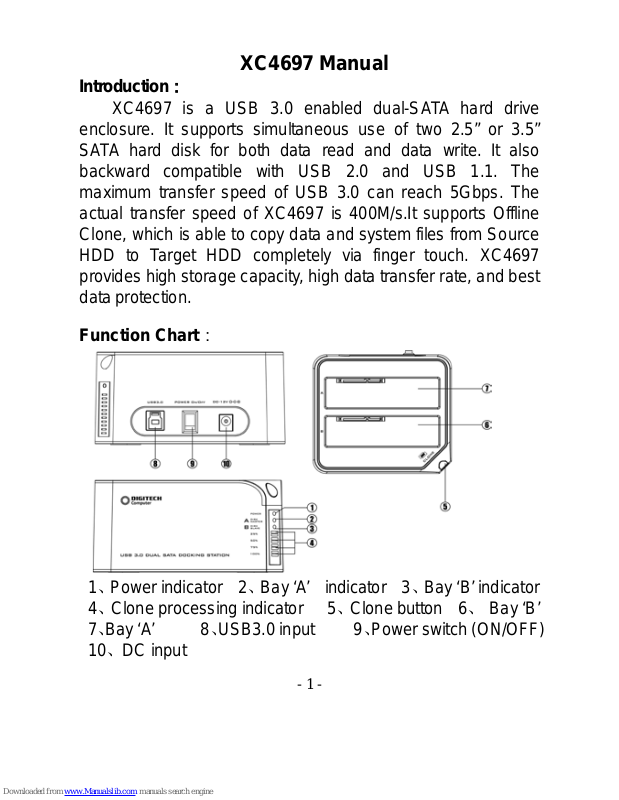

XC4697 Manual
Introduction：
XC4697 is a USB 3.0 enabled dual-SATA hard drive
enclosure. It supports simultaneous use of two 2.5” or 3.5”
SATA hard disk for both data read and data write. It also
backward compatible with USB 2.0 and USB 1.1. The
maximum transfer speed of USB 3.0 can reach 5Gbps. The
actual transfer speed of XC4697 is 400M/s.It supports Offline
Clone, which is able to copy data and system files from Source
HDD to Target HDD completely via finger touch. XC4697
provides high storage capacity, high data transfer rate, and best
data protection.
Function Chart：
1、Power indicator 2、Bay ‘A’ indicator 3、Bay ‘B’ indicator
4、Clone processing indicator 5、Clone button 6、 Bay ‘B’
7、Bay ‘A’ 8、USB3.0 input 9、Power switch (ON/OFF)
10、DC input
Page 2
- 2 -
Caution:
1. Once using E-SATA interface, it can only recognize one HDD
in PC. If 2 HDDs are inserted in the dock, it can onl y recognize
Bay ‘A’ HD D. If only insert one HDD in the dock, both Bay’A ’ and
Bay ’B’ can be recognized.
Function：
• Complies with Gen2i/Gen2m of Serial ATA II Electrical
Specification 2.6
• Supports SATA II Asynchronous Signal Recovery (Hot Plug)
feature
• Support s SATA to SATA pass through
• Complies with USB 3.0 Specification, USB Mass Storage
Class, Bulk-Only Transport S pecification
• Supports USB Super-Speed/High-Speed/Full-S peed Operation
• Support s USB HID operation
• Support s USB2.0/USB3.0/eSA TA power saving mode
• Support s Dual LUN for USB2.0/USB3.0
• One Touch Backup
• Easy to Install and Set-up
• Supports clone function
• Design for Win2000, WinXP, WinVista, Win7, MAC 9.2 or
later version.
Page 3
- 3 -
CLONE:
Please note the below conditions before clone:
- Bay ‘A’ = SO URCE HDD,
- Bay ’B’ = TARGET HDD
- TARGET HDD ‘s capacity MUST be larger than SOUR CE
HDD, other wise the CLONE cannot be completed. (Same
capacity is also not acceptable)
- Before CLONE function starts, make sure the information
in TARGET HDD is not important; once CLONE started, all
information from the SOURCE HDD will be covered into
TARGET H DD ..
- Once the docking is connected to USB interface, the offline
Clone will be invalid. Clone can only process by using USB
Clone Function.
1, Offline clone
a、Insert source HDD to Bay ‘A’; target HDD to Bay ‘B’, and then
turn on the power
Page 4
- 4 -
b、Once the Bays indicators are on, that means XC4697 is
ready for clone.
c、Press and hold the clone button for 3 seconds until the
indicator light is on, press the button once more for Clone
confirmation. Offline clone is starting to process.
Page 5
- 5 -
d、Clone progress indicator flashes and shows the progress
(25%, 50%, 75%, 100%).
e、Once clone is finished, all progress indicators will light up.
f、Turn of f power and t ake out the HDD carefully
Page 6
- 6 -
2, USB Clone
Drive Installation
a、Please insert the CD drive and click “setup.exe”. Choose
your language and click “ Next”
b、Fill in the S/N # accordingly (you can find the S/N# on the
cover of CD drive)
Page 7
- 7 -
c、Click “Install” for installat ion
d、Installation progress is showed
Page 8
- 8 -
e、please click “Done” once installation is finished.
3, Clone from Source HDD to Target HDD
a、Please insert Source HDD and Target HDD well to the
docking, connect XC4697 to PC via USB cable. Turn on the
power , you can find the clone icon on the right bottom of window ,
then double click the CLONE Icon to start the program.
CLONE Icon
Page 9
- 9 -
b、Clone drive activated, please click “St art”
c、Press start to proceed with Clone.
Page 10
- 10 -
d、Clone progress is showed
e、Click “OK” once clone is finished
Page 11
- 11 -
f、You should find the same contents of Source HDD in Target
HDD
g、If your target HDD has extra space, the system will allocate it
to “unallocated” area automatically, please refer to the below
picture. （Windows system only allows a maximum of four
primary partitions, if the original disc already exist four primary
partitions, then it can not distinguish the extra space but logical
drives can have more than one ）
Page 12
- 12 -
HDD Partition
a、Open Disk management and select the unallocated area
b、Right click 〝N ew p artition〞for further action
Page 13
- 13 -
c、“Next”
d、Base on your need and click “Next”
Page 14
- 14 -
e、Please enter the new partition capacity an d click “Next” for
further action
f、Assign the drive letter and “Next”
Page 15
- 15 -
g、Select “quick format” to format the new partition
h、Click “finish”
Page 16
- 16 -
i、Partition completed, the new partition can be found.
