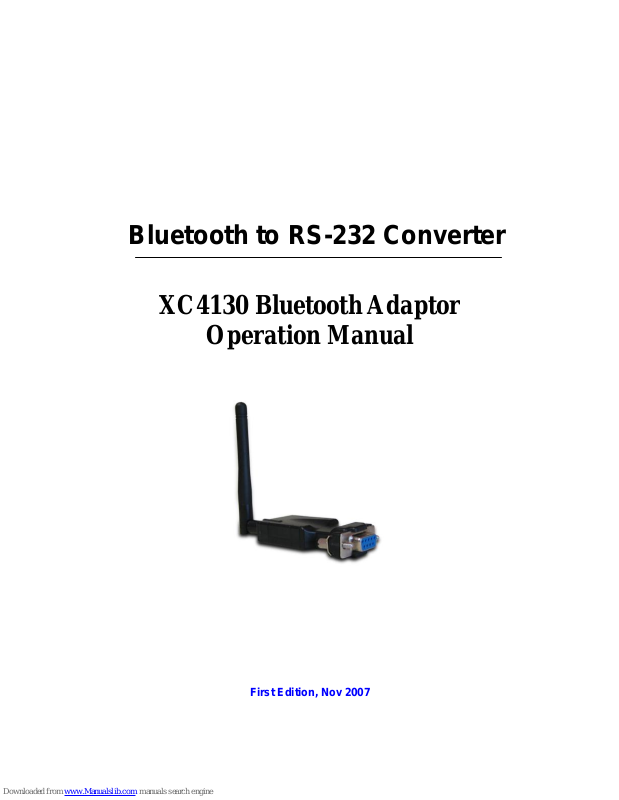

Bluetooth to RS-232 Converter
XC4130 Bluetooth Adaptor
Operation Manual
First Edition, Nov 2007
Page 2
1
Table of Contents
1. Introduction ……………………………………………………………….. 2
2. Package checklist ………………………………………………………….. 3
3. Product Specification …………………………………………………... 4
4. Product Panel Views Description ……………………………………. 5
E-BT232 Product Views ……………………………………………………… 5
DC-In Power Outlet …………………………………………………………... 5
Antenna Connecter …………………………………………………………… 6
Serial I/O Port of RS-232 …………………………………………………….. 6
Synchronous Button …………………………………………………………... 6
LED Indicators ………………………………………………………………... 7
5. Hardware Installation …………………………………………………… 8
6. BT232 Config Tool Installation & Setup …………………………. 9
Tool Installation ………………………………………………………………. 9
BT232 Config Tool Parameters Configuration ……………………………….. 10
Apply “Connect” ……………………………………………………………… 12
Apply “Write” ………………………………………………………………… 13
Apply “Read” …………………………………………………………………. 13
Appendix A - Pin Outs and Cable Wiring ………………………. 14
DC Power Outlet ……………………………………………………………… 14
RS-232 Pin Assignment ……………………………………………………….. 14
RS-232 Wiring Diagram ……………………………………………………… 14
Page 3
2
11
Introduction
Thank you for your purchase of XC4130 as the Bluetooth to Serial Adapter.
Featuring Bluetooth wireless technology, it is for replacement of standard RS232
cable perfectly, with standard RS232 interface, so it can be easily adopted for
industrial machines with RS232 interface. XC4130 is compatible with all Bluetooth
V.2.0-certified and is backward compatible with v1.1/1.2 devices. You can connect
your computers (Master) with RS232 devices (Slave) 100 meters away without
cables in your working environments.
Security of Bluetooth wireless communication is very strong because it uses the
frequency hopping and 128bit encryption in 2.4Ghz frequency range. Hardware
setting is very easy and simple. The maintenance is very convenient, too. One
pair of XC4130 will try to connect automatically whenever powered on after
finishing the device’s parameters configured. It does not require extra software for
operation. No installation of driver and application software needed.
Page 4
3
22
Package checklist
A complete XC4130 package includes following items:
n 1 unit of XC4130 Bluetooth to RS232 converter with Antenna
n 1 unit of Power Adaptor (5V DC, 200mA)
n Quick Installation Guide of software CD
NOTE: Please notify your sales representative if any of the above items is
missing or damaged.
Page 5
4
33
Product Specification
l Serial Port
No. of Port: RS-232 x 1 Port
● Port Type : DB9 female
● Speed : 1200 bps〜115.2K bps
● Parity : None , Odd , Even
● Data Bit : 8
● Stop Bit : 1 , 2
● Flow Control : DTR / DSR
● Socket Status/Control : DTR/DSR
● RS-232 Signals : Rx , Tx , GND , RTS , CTS , DTR , DSR
l Bluetooth I/O Port
No. of Port: Bluetooth x 1 Port
● Compliant with Bluetooth v2.0+EDR
● Support Bluetooth Serial port profile(SPP)
● Operate in 2.4GHz – 2.483GHz ISM Band
● Support Bluetooth Radio with Class 1 & 2 RF
● Operating Distance up to 100 Meters
l Power : 5V DC / 200mA, Consumption 80mA
l Led Lamp :
SYS (red), Pairing (green)
l Environment : Operating Temperature: 0℃〜60℃
Storage Temperature : -25℃〜70℃
l Dimensions : 65 x 30 x 12 mm ( W x D x H, not include antenna )
l Weight : 35 gm ( not include power )
Page 6
5
44
Product Panel Views Description
XC4130 Product Views
DC-In Power Outlet
The XC4130 Bluetooth to RS232 is powered by a single 5V DC (Inner
positive / outer negative) power supply and 200mA of current. A suitable
power supply adapter is part of the packaging. Connect the power line to the
power outlet beside of antenna connector and put the adapter into the
socket. If power supplies properly, the red color LED will be on.
DC-In
Power Outlet
Serial I/O Port
RS-232
Sync Button
LED Indicators
Antenna
Page 7
6
Antenna Connector
The connector for antenna is standard Reverse SMA jack. Simply connect
to 2.0dBi dipole antenna and 50 Ohms impedance which can support
2.4GHz frequency. (The Antenna is changeable for high gain Antenna.)
Serial I/O Port of RS-232
Connect the serial I/O RS-232 port into the device as computers and serial
devices. (RS-232 RX/TX has been CROSS OVER)
Set-up Button
The purpose is for synchronizing between XC4130 device and “BT RS232
Config Tool” software. After finishing setup parameter of “BT RS232 Config
Tool” software, when you click icon of “Connect” in “BT RS232 Config Tool”
software, please use any point tip to push this button immediately on left
side of device. The icon of “Connect” will turn into “Disconnect” which
means the device is activated successfully.
Page 8
7
LED Indicators
Red Color LED：
Power indicator
(When power on, the red color LED will be on all the time.)
Green Color LED：
Before connecting to synchronize between device and “BT RS232 Config
Tool” software, the green LED will be blinking.
After connecting to synchronize between device and “BT RS232 Config
Tool” software, the green & red LED will be blinking alternately.
Page 9
8
55
XC4130 Hardware Installation
1. Connect XC4130 Bluetooth adapter to COM Port of PC and then to connect
DC power adapter and jack into power outlet and DC-in outlet. You will see
the red LED is going to be on and the green LCD will be blinked.
2. After running the BT RS232 Config Tool and finish configuration. Click the
icon of “Connect” in tool software and press the SET-UP button of XC4130
Bluetooth adapter immediately.
3. The green LED will be turn on. The E-BT232 Bluetooth adapter will be
activated. There are two types of RS232 devices in field. One is DTE - Data
Terminal Equipment (such as PC) and the other one is DCE - Data
Communication Equipment (such as Modem). You can setup your E-BT232
device as what type of the RS232 device you are going to connect in DTE or
DCE mode to work with it.
At DCE device side is meaning to connect DTE E-BT232 to the remote DCE
RS232 device (such as Modem). On the contrary, DTE device side to connect
DCE E-BT232 of any DTE device, such as computer device. For example,
you can connect remote modem with DTE E-BT232 and meanwhile at PC
side, you can either connect DCE E-BT232.
Page 10
9
66
BT RS232 Config Tool Installation & Setup
When setting up XC4130 adapter for the first time, you have to install and run
“BT1.exe” as “BT RS232 config tool” first in your computer device. The utility CD
is enclosed in the device box. Before using XC4130 adapter, you have to pair it
with another E-BT232 device.
All the XC4130 Bluetooth to RS-232 Adapters must be configured before using.
The purpose of configuration is to pair two XC4130 devices for an exclusive
connection between them and pairing done by utilizing Bluetooth address and PIN
code.
l Tool Installation
When setting up XC4130 adapter for the first time, please install the utility
software of “BT RS232 config tool” first which is an executable program in
Windows 32 bit environments. XC4130 config tool is used to detect and
setup the installed.
Page 11
10
l XC4130 Config Tool Parameters Configuration
Double click the icon of BT1 as “BT RS232 Config Tool”, the
configuration screen will pop-up as the above picture.
A. COM Port
Select COM port number, you have to avoid the port conflict with other
devices in computer and use port number is available.
B. Device Name
Select device name to identify each device and you can follow the
name by tool access or retyping the new name by yourself.
C. Local Address
Local address will be changed automatically after finishing the
parameter configuration.
D. Peer Address
Peer address for two or more devices to communicate in a same
network address.
Page 12
11
E. PIN Code
PIN code for the purpose of security consideration during as like a
pass key. Device uses this “PIN Code” to identify during connecting
and communication.
F. Role
Role is for identifying role of the device as master or slave. The item of
“Role” is “Master”, the device will play like DTE mode - Data Terminal
Equipment (such as PC). If the item of “Role” is “Slave” and device will
play like DCE - Data Communication Equipment (such as Modem).
You can setup your E-BT232 device as the type of RS232 device you
are going to connect in DTE or DCE mode to work with.
G. Discoverable
The item of discoverable is for allowing (or not) the device detected by
other Bluetooth devices.
H. Baud Rate
The item of baud rate is for the pack transmission speed. The baud
rate range from 1200 bps〜115.2K bps and depend on transmission
distance and environments. Normally, the parameter of baud rate is
sat around 9600 bps N, 8, 1.
I. Handshake(DSR/DTR)
The item of handshake sat at the “Disable” item.
J. Stop Bit
The item of stop bit sat at the “One Bit” item.
K. Parity
The item of parity sat at the “None” item.
Page 13
12
Apply “Connect”
After finishing the parameters configuration, click the icon of “Connect” in
BT RS232 Config Tool screen and meanwhile press the SET-UP button
immediately on the left side of the device. And then the next screen of
parameters configuration pop-up. The icon of “Connect” changes to
“Disconnect” and two icons will be turned into active mode on the bottom of
the BT232 Config Tool screen.
Page 14
13
Apply “Write”
Click the bottom of “Write”, means saving all parameters after configuring into
the “BT RS232 Config Tool”.
Apply “Read”
Click the bottom of “Read”, means to loading all parameters as last saving
from the “BT232 Config Tool”. The local address will be updated as the real
device address at first time.
Page 15
14
A
Appppeennddiixx
A
A
Pin outs and Connector
□
□
□
DC Power outlet
□
□
□
RS-232 Pin Assignment
The pin assignment scheme for 9-pin male connector on DTE is as show
below.
PIN 1 : X PIN 2 : TXD PIN 3 : RXD PIN 4 : DSR
PIN 5 : GND PIN 6 : DTR PIN 7 : CTS PIN 8 : RTS
PIN 9 : DC 5V
□
□
□
RS-232 Wiring Diagram
Serial Device XC4130 Converter
2 RX 2 TX
3 TX 3 RX
5 GND 5 GND
4 DTR 4 DSR
6 DSR 6 DTR
(Flow Control)
(Flow Control)
