Page 1
11
ST 1025 Moving Head Light
Please read the instructions carefully before use
User Manual
Page 2
1
TABLE OF CONTENTS
1. Safety Instructions
2. Technical Specifications
3. Installation
4. How to set the unit
5. How to control the fixture
6. DMX512 Configuration
7. DMX512 Connections
8. Troubleshooting
9. Fixture Cleaning
10
9. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.
Page 3
9
8. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. Some fixtures don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of the
master/ slave mode signal.
2. Wrong DMX address in the fixture. Set the proper address.
D. No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
2
1. Safety Introductions
WARNING
Please keep this User Manual for future consultation. If you sell the fixture to another
user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the fixture.
Before operating, ensure that the voltage and frequency of power supply match the
power requirements of the fixture.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Disconnect main power before servicing and maintenance.
Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only,
but always by taking its base.
Maximum ambient temperature is Ta : 40℃. Don’t operate it where the temperature is
higher than this.
In the event of serious operating problem, stop using the fixture immediately. Never try
to repair the fixture by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Always use the same type spare parts.
Do not connect the device to any dimmer pack.
Do not touch any wire during operation and there might be a hazard of electric shock.
To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain
or moisture.
The housing must be replaced if they are visibly damaged.
Do not look directly at the LED light beam while the fixture is on.
Caution
There are no user serviceable parts inside the fixture. Do not open the housing or attempt
any repairs yourself. In the unlikely situation, your unit may require service, please contact
your nearest dealer.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.
Page 4
3
2. Technical Specifications
Voltage: 100-240V, 50/60HZ
Power consumption :80W
Light source: 7*10W RGBW(4 in 1)
Beam Angle：４５°
Play mode:sound,Auto,DMX512,Master/save
Dimenson:177*177*240MM
Weight: 2.8 kg
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of
the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the
unit when installing the fixture.
The
equipment must be fixed by professionals. And it must be fixed at a place where is out
of the touch of people and has no one pass by or under it.
4. How To Set The Unit
4.1 Control Panel
8

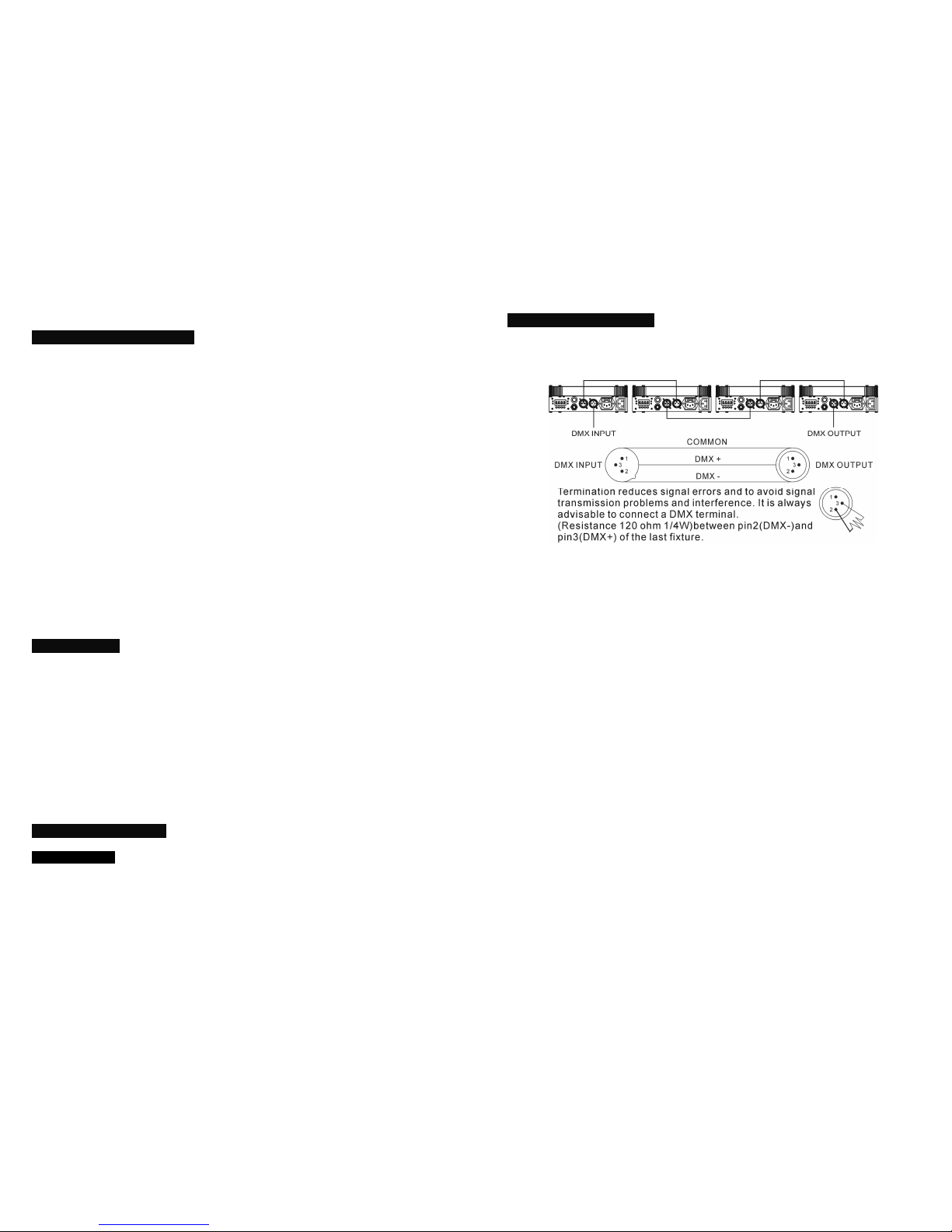

7. DMX512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. Connect the fixture together in a “daisy chain” by XLR plug cable from the output
of the fixture to the input of the next fixture. The cable cannot be branched or
split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded
connectors can easily distort the signal and shut down the system
3. The DMX output and input connectors are pass-through to maintain the
DMX
circuit when one of the units’ power is disconnected.
4. At last fixture, the DMX cable has to be terminated with a terminator to reduce
signal errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin
3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
5. Each lighting fixture needs to have an address set to receive the data sent by
the controller. The address number is between 0-511 (usually 0 & 1 are equal to
1).
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
5 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
Pin4/5: Not Used.
Page 5
7
13 DMX Channels Mode:
Channel Value Function
CH1
0-255 PAN
CH2
0-255 PAN FINE
CH3
0-255 TILT
CH4
0-255 TILT FINE
CH5
0-255 Motor speed (CH1,CH2,CH3,CH4)
0-255
Dimmer/Strobe
CH
6
CH7
0-255
Red dimmer
CH8
0-255
Green dimmer
CH9
0-255
Blue dimmer
CH10
0-2
White dimmer
Color+Strobe
CH11
none
4
Menu To select the program functions
Up To go forward in the selected functions
Down To go backword in the selected functions
Enter To confirm the selected funtions
Number Description
1 fuse
2 AC input
3
DMX in
4 DMX out
0-255
0-255
85-169
Auto slow
CH12
Auto fast
3-84
0-255
Sound mode
CH13
rest
170-255
Page 6
5
4.2 Main Function
MENU function
A001 DMX address
soud
Sound control mode
slou Automatic slow mode
run0
fast
leon/ loff
colr
stEP
Pan /tilt adjustment
rest
rpan
Pan reverse
rtIt Tilt reverse
Digital display always light/ Digital display cut after 1minute
Rest
5. How to control the fixture
There are three ways to control the fixture
A. Universal DMX controller
B. Master/Slave operation
A. Universal DMX controller
The fixture can be set the DMX address remotely by universal DMX controller. First, you
need to programming two scenes into a chase, and then link the fixtures to the universal
DMX controller. When you run the chase, all the fixtures of the cha
in will be set
the series
DMX address automatically. The fixture uses four channels. Please refer to the following
diagram to set the address for the first four units.
B. Master/Slave operation
The fixture will allow you to link 16 fixtures together and operate without a controller. In
6
Master/Slave mode, the first fixture will control the others to give an automatic, sound
activated, synchronized light show. This function is good when you want an instant show.
The first fixture it’s DMX input cable will have nothing connect it, and the other fixtures will
be set
in slave mode automatic
ally. Their DMX input cables connect the last fixture DMX
output cable (daisy chain). Any fixture can act as a Master or as a Slave
6. DMX512 Configuration
5 DMX Channels Mode:
Channel Value Function
CH1
0-255 Pan
CH2
0-255 Tilt
CH3
0-255 pan/ tilt speed (CH1,CH2)
0-7
none
CH4
8-134
luminosity 0-100%
Manual selection of RGBW color
load
Initialisation
Automatic fast mode
135-239 strobe
240-255
0-223
color choice CH4<8
color+strobe CH4>8
224-235
color gradual
CH5
luminosity 0-100%
jump
236-255
