Jaycar Electronics QC8019 User Manual

Mini HD Camera

w/ HD Recording in 720p

QC8019

2

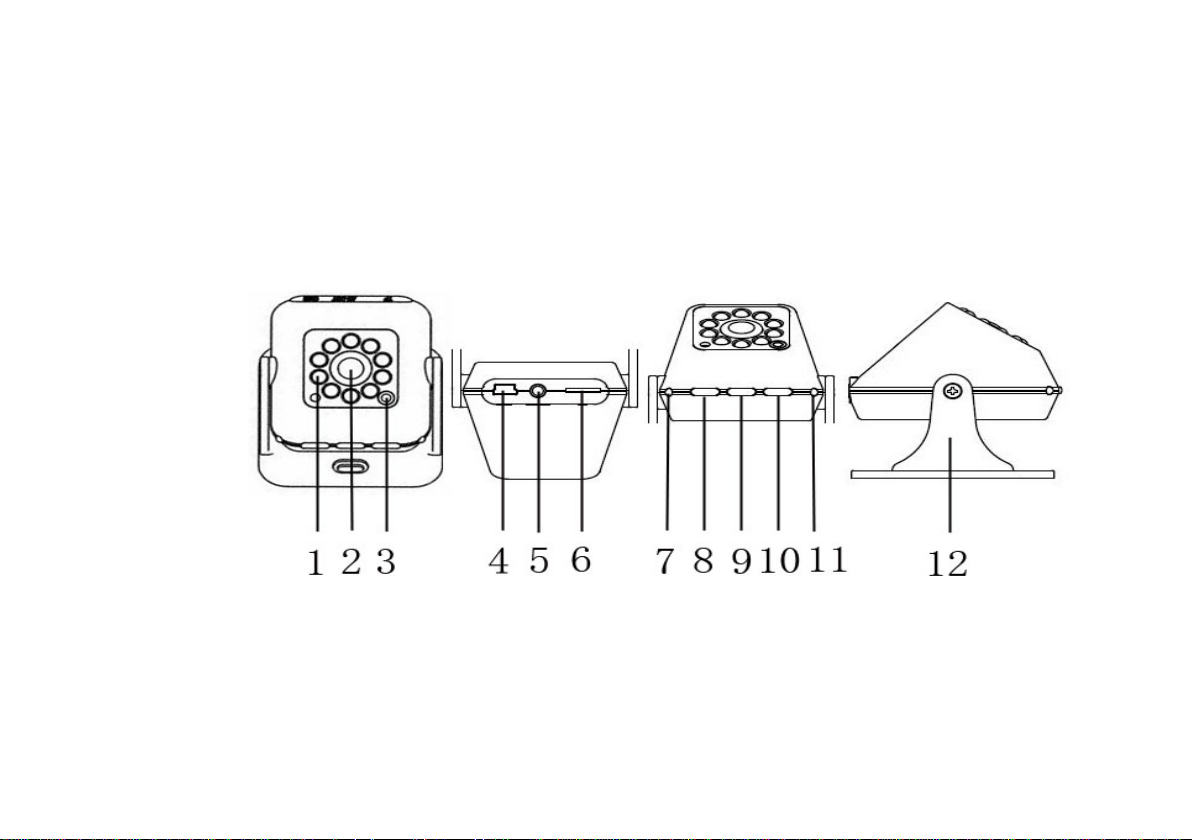

Product Features

3

1. Infrared lamp 2. Lens 3. Remote control 4. USB

5. TV-OUT 6. TF card slot 7. Blue light (work instructions)

8. Camera key 9. Playback key 10. Capture key

11. Red (charge indicator) 12. Mounting br ac ket

4

Operation:

1. Insert the TF card 2. With the remote, press the power

button,

this will put the camera in standby mode.
Note:

1. SD file format for encoding is FAT32

2. If the battery voltage is low, a blue indicator light will flash,
and automatic shutdown will occur after 10 seconds.

3. If you do not insert the TF card, ten blue indicator lights will flash,
automatic shutdown will occur after 10 seconds.

5

Camera:

1. Video Camera: In Standby, Press the

button on the remote

control, a continuous blue light starts flashing, indicating that video is in

progress. Press the

button again to stop recording.

Note:

1. The cameras automatic coverage feature will overwrite any previously
recorded data when the memory card is full.

6

2. Motion Detection Mode: In standby, press the button on the
remote control to enter this mode

Motion Detection:

*Camera will start to record when obj ects are detected within 3m range
*If an object is not detected after 10 seconds, after motion detection is

triggered, then camera will enter standby.
*Recording will commence again, when the motion detection is triggered.

7

Note:

1. Motion detection state, no moving objects, it will automatically save the
data

2. Continuous video motion detection mode, video will be saved every 10
seconds

3. Press the button again to cancel the motion detection function.

8

Note

1. If recording process is not manually stopped and power to battery is
drained, video will not be saved.

2. In long recording mode, video will automatically be saved every 1
minute.

Photo Mode: In standby mode, Press the camera key to enter
Photo Mode.

Press the camera button, the blue light will flash once, indicating a
successful photo.

9

Clock function during video

The camera supports the process of inserting a video clock upon set up of
camera; please follow these steps to update the time.
* Changing Date/Time:

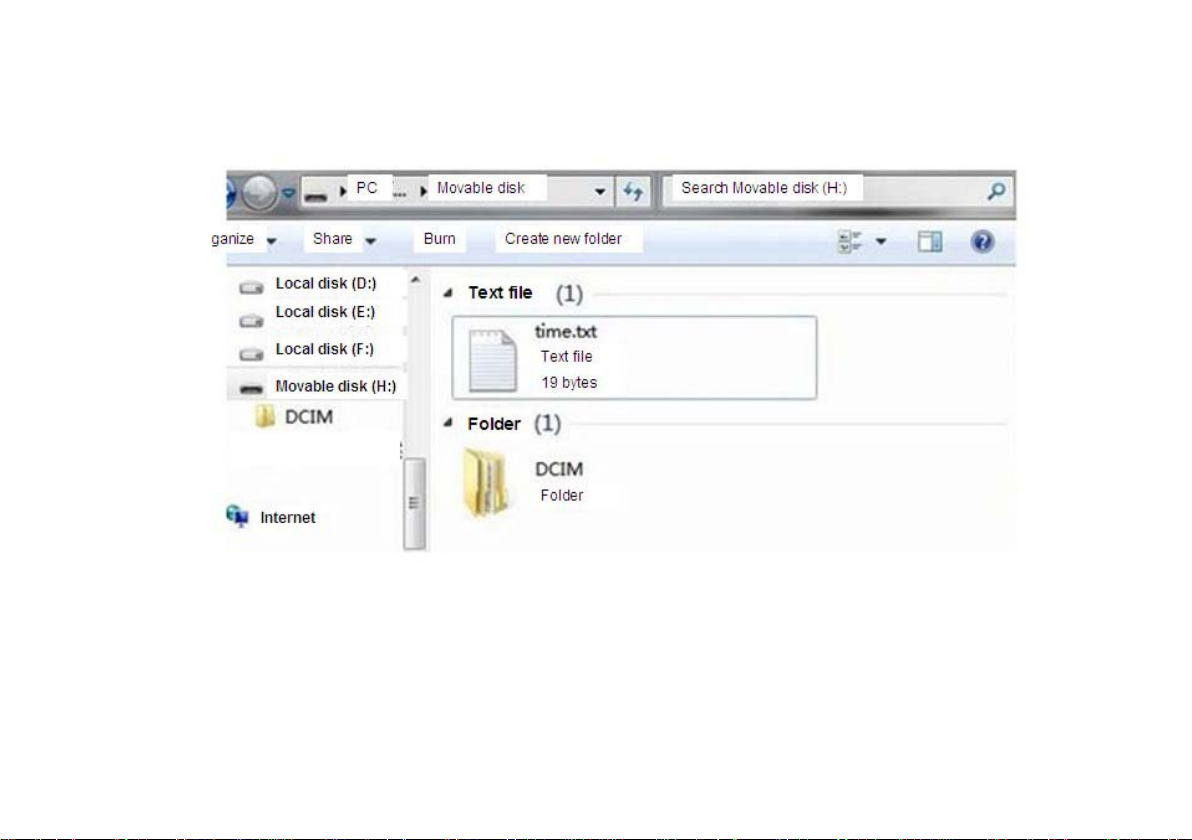

1. Create a text file and save name as - time.txt, as shown below:

10

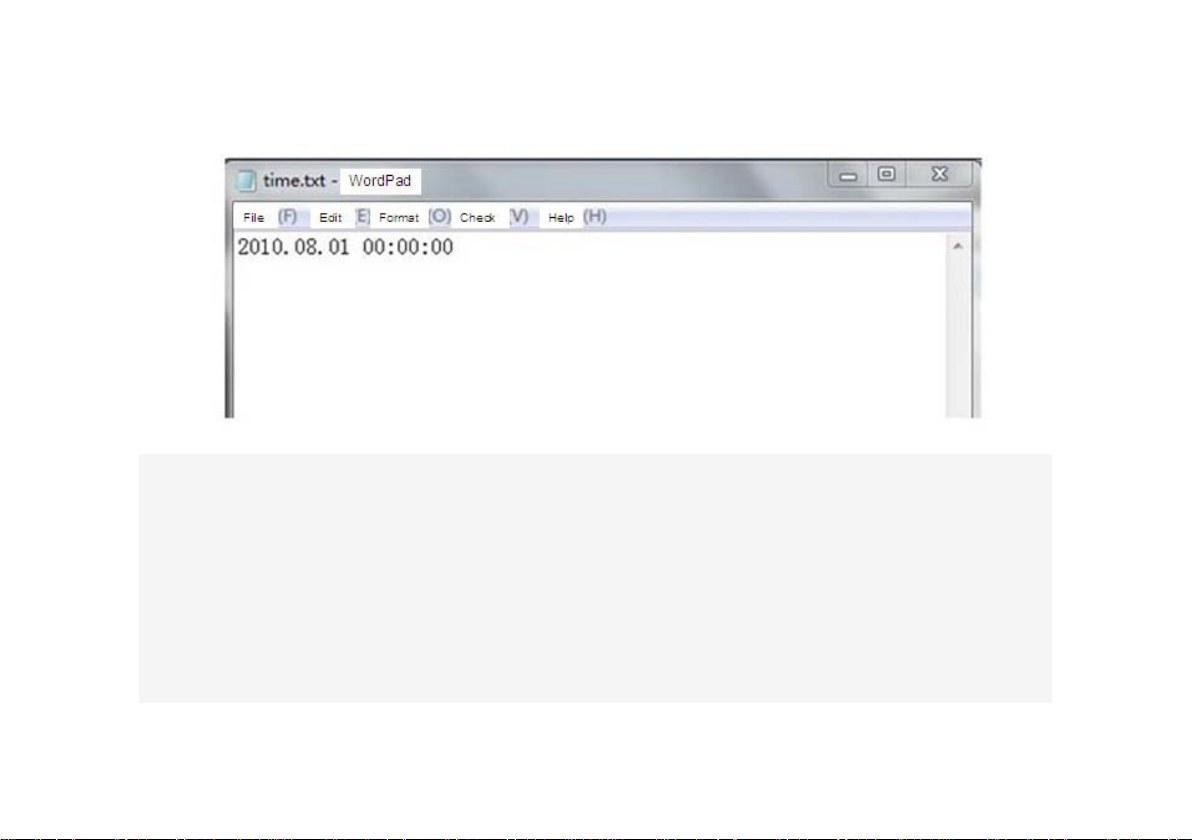

2. Open time.txt file, fill in year/month/day hours/minutes/seconds, as
shown below:

11

3. Complete the above steps, place TF card into the cameras TF card
slot, power on, time will be automatically updated, time.txt files will
disappear from the battery-powered clock, the time update, please do not
remove the battery

12

Note：

1. time.txt input interface must be entered in English

2. Year/Month/Day and hour/minutes/seconds, ensure there is a space

3. When time update is successful time.txt will disappear

4. When camera is not used for long periods or not updated, time will
revert to the initial state, the initial state time is 2011.01.01 00:00:00

5. Remove the battery again after the update

13

Camera Power

(1): When the TF Card is inserted into the camera, connect the power
adapter, it will automatically open the camera function;
(2):Disconnect the power adapter, the camera will automatically save the
video data and automatically shut down;
(3): Pressing the camera button during recording will stop recording;
pressing the camera button again will re-start recording.
(4): Connect the power adapter again and the camera will automatically

14

turn on again and start recording;

Power continued recording function

The camera has a rechargeable battery, with charging time up to 3 hrs
(1): The camera will automatically shut down when the battery is

low;charge battery then press the power
turn on camera.

(2): Press the

button on the remote control you can star t recording

button on the remote to

15

Charging

When charging connect camera to computer or power supply. Red
charging light will illuminate when charging.

File storage and playback

Files may be Played or transferred by USB cable to computer.

Data transfer mode：

1. When the camera is off, connect USB and the computer will detect

16

camera.

2. In data tranfer mode, video and photos can be directly copied to the
PC. A blue light will flash when data is successfully transferring

3. To disconnect devi c e, disc onnect USB cable or eject device.
Note：

Data transfer mode will also charge the battery, red light will be
illuminated.
PC Camera

This device can also be used as a PC camera, after installing supplied

17

software and drivers using the USB cable to PC;

Internet video capabilities
Network video mode:

1): Press the

button on the remote control, the camera will turn on

in standby mode, with the camera connected by USB to the PC, the
camera will be detected by the PC, it then can be used as a PC camera .

2): The PC can also be used in professional video capture software,

real-time video recording on the PC storage device

Note:

18

Battery will charge when in video mode, Red light will be illuminated.

AV-OUT video playback

1): The camera can connect to other devices through the supplied AV-

OUT cable (Yellow for video, white for audio). Pressing the playback
button will enter the playback screen;

2): Video playback interface screen, key up or down to, select the desired

video/photo, press the playback button to select

4): During playback, you may pause the video by pressing the playback

19

button.

5): Press the playback button to return to playback mode

6): When video is playing a blue light will be illuminated.

Remote playback operation：

1. Connect the cameras AV-OUT cable and connect the other end to

the devices audio and video input (white for video, red for audio);

2. Press the

mode

button on the remote control to switch to playback

20

3. Playback mode, you can press the or button on the remote

control to enter playback mode menu.

4. Select the file you want to play, then press

5. Press the button

on the remote control to exit playback mode.

button to play the file

Note:

The camera uses NTSC video format, please adjust your TV to the
corresponding standard or automatic mode.

21

Specification

Pixels

1.3 million pixels CMOS
Perspective 140 degree
Minimum illumination 1Lux
Battery capacity 1020maH
Continuous recording time >5 hour
Power
Storage temperature

200ma/3.7V（max）

-10℃～70℃

22

Operation temperature

-10℃～60℃
Memory card TF card
Memory card capacity 1GB--32GB

Video decoding using Motion, JPEG

Video format

recording into AVI file format
USB interface Mini5Pin USB1.1/2.0
Storage consumption 1GB about 13 min
Charging time Around 3 hour
