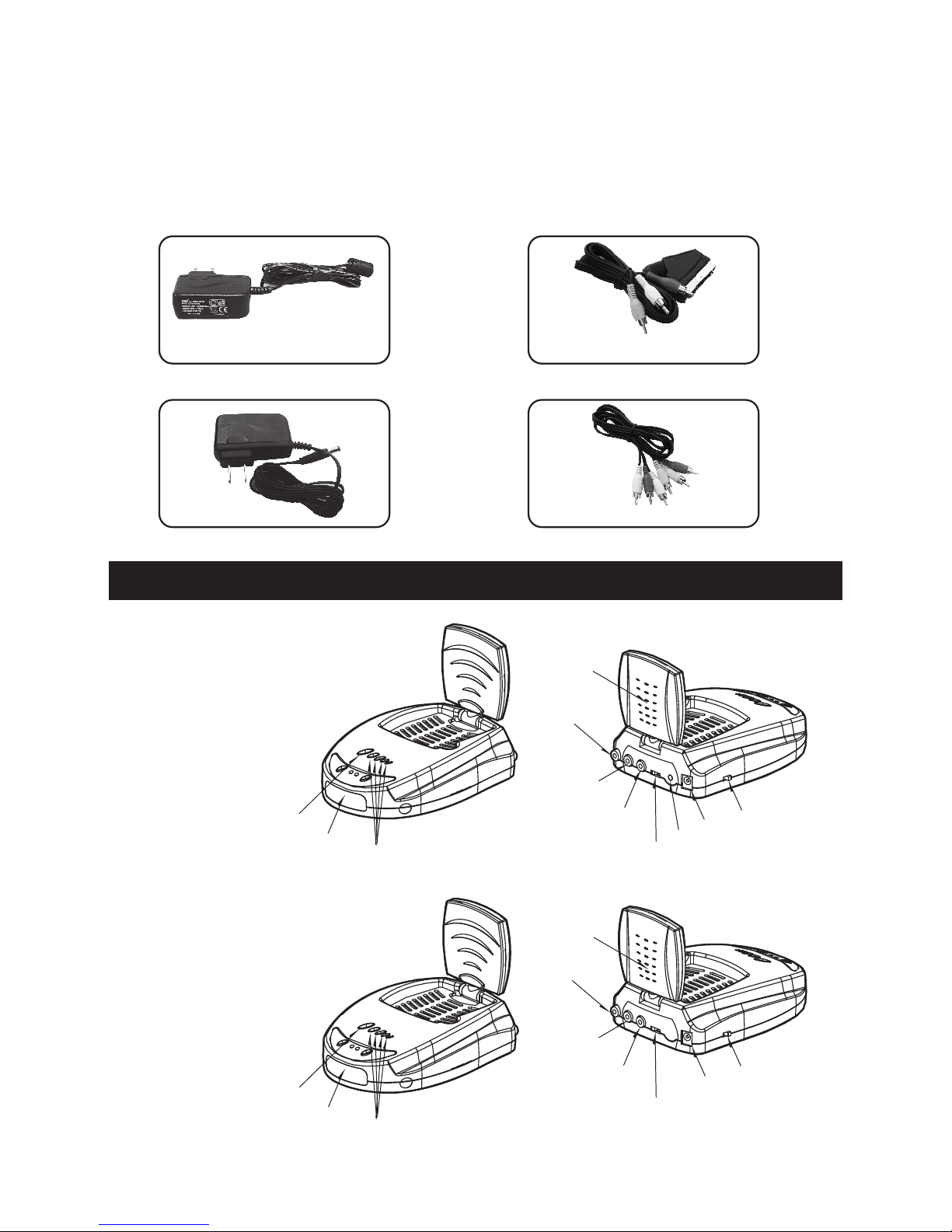

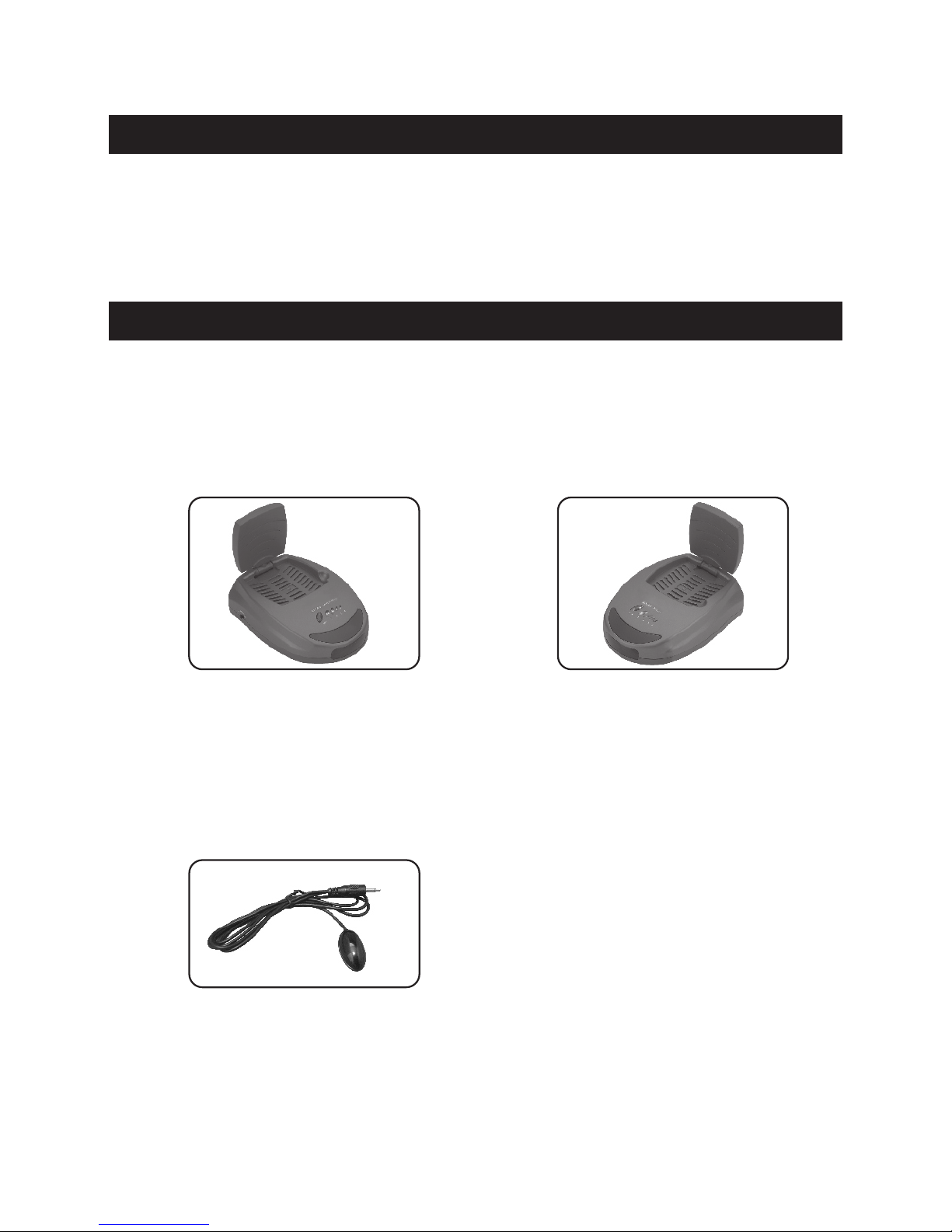

Indicator lights show the channel it configured as.
2 – Channel selection button to find optimal reception.
3A – Remote control window sends IR rays, to remotely control
the source AV equipment.
3B – Remote control window receives IR rays from remote
controller.

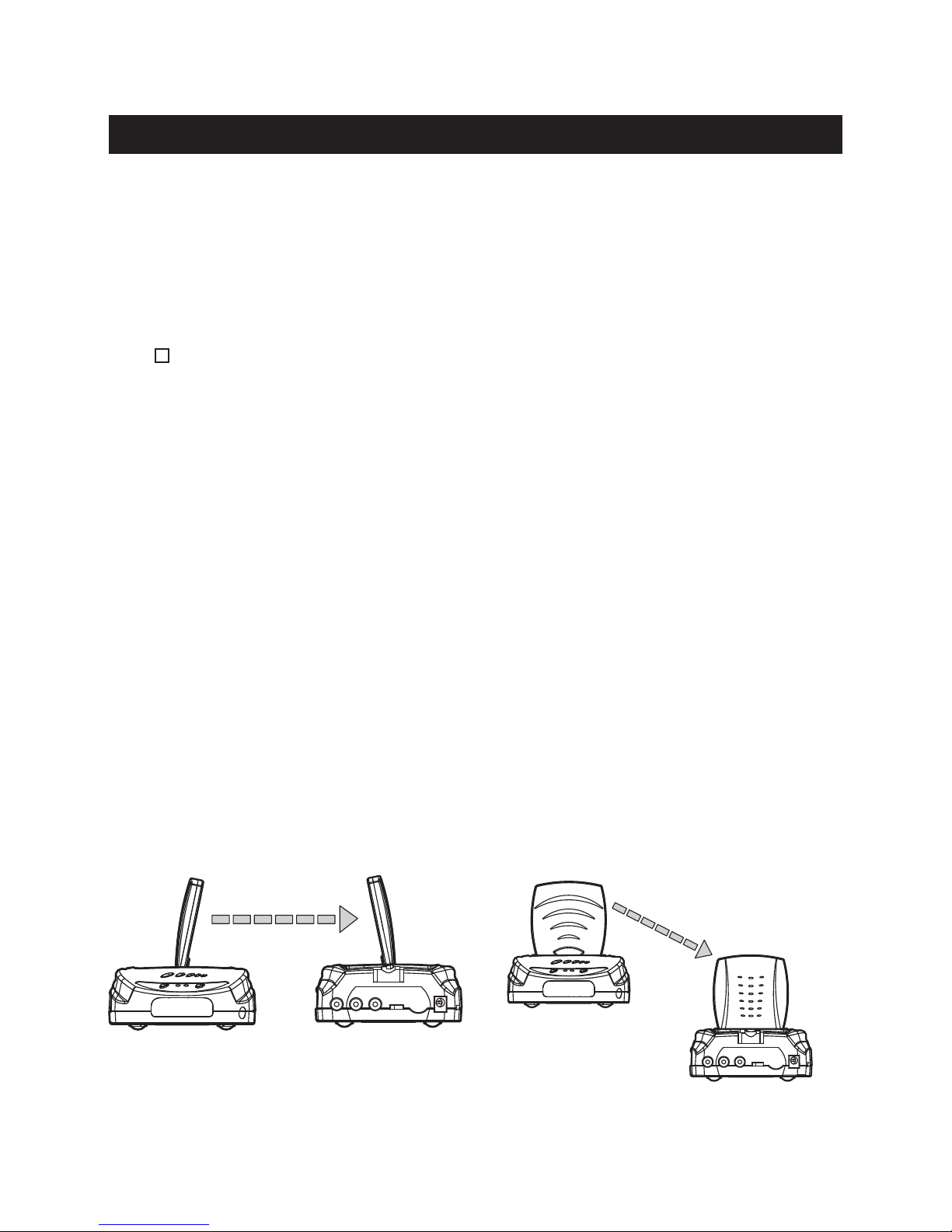

4A – Directional 5.8GHz A/V antenna sends A/V signal from
source equipment.
4B – Directional 5.8GHz A/V antenna receives audio and video
signal.
5 – Power on/off switch.
6 – DC power input, connect to power supply. (9V).
7 – IR Mouse output, to remotely control source AV equipment.

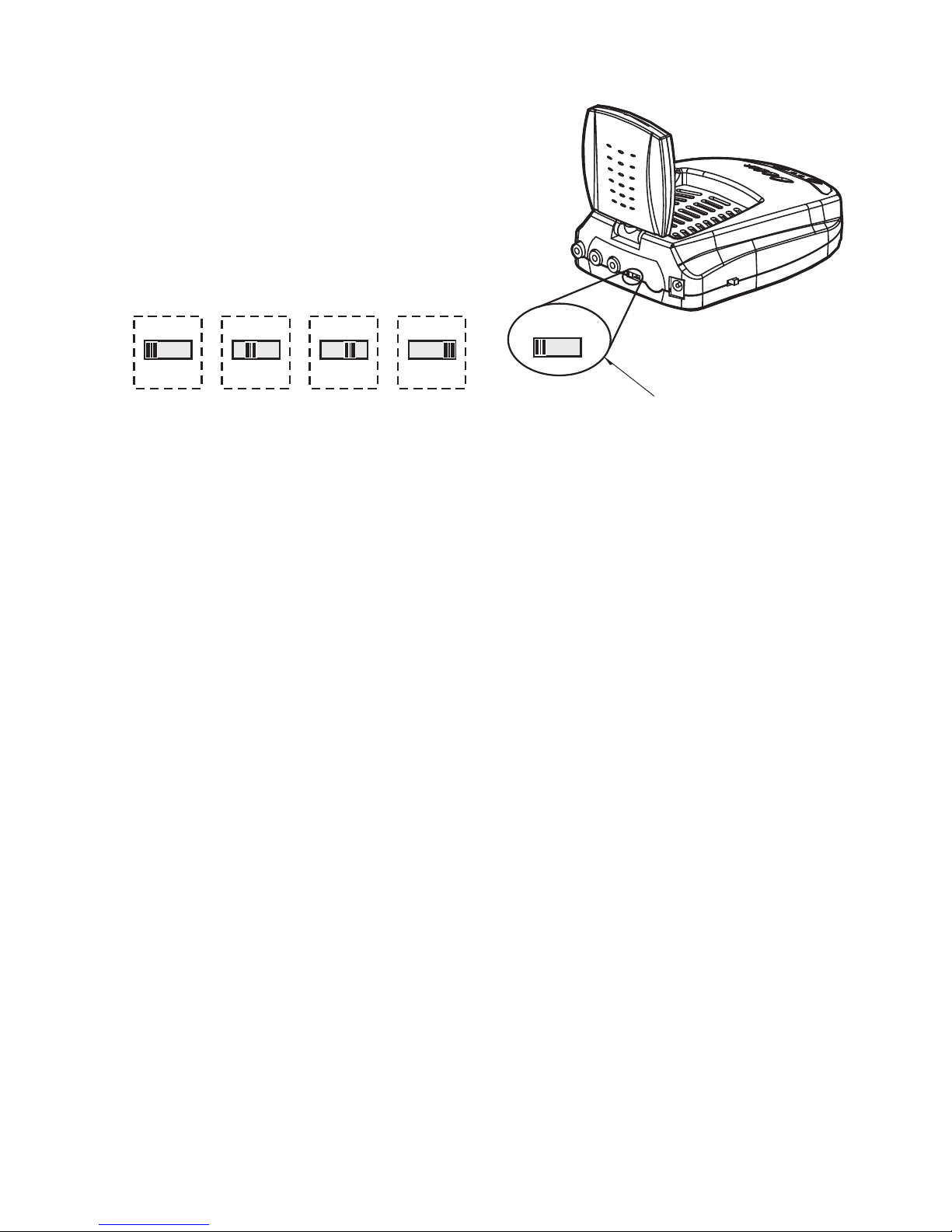

8 – ID Code, the transmitter and receiver must to be configured
as the same ID Code.

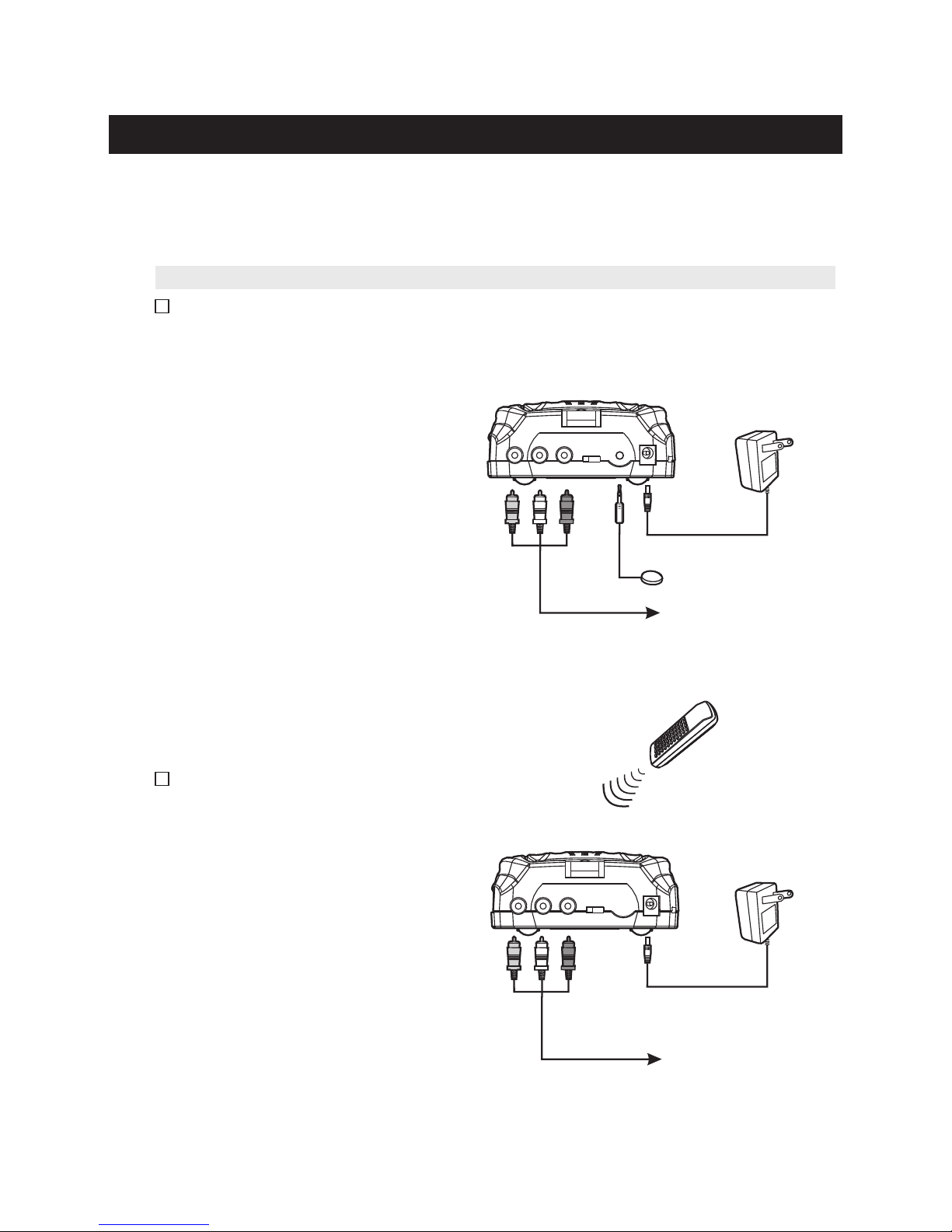

9A – Video Jack, (yellow), input from source AV equipment.
9B – Video Jack, (yellow), output to TV.
10A– Audio Jack, Right (red) , input from source AV equipment.
10B– Audio Jack, Right (red), output to TV.
11A– Audio Jack, Left (white), input from source AV equipment.
11B– Audio Jack, Left (white), output to TV.
1 –
3
ID Code
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
ID 1 ID 2 ID 3 ID 4
8
1 2 3 4
ID
