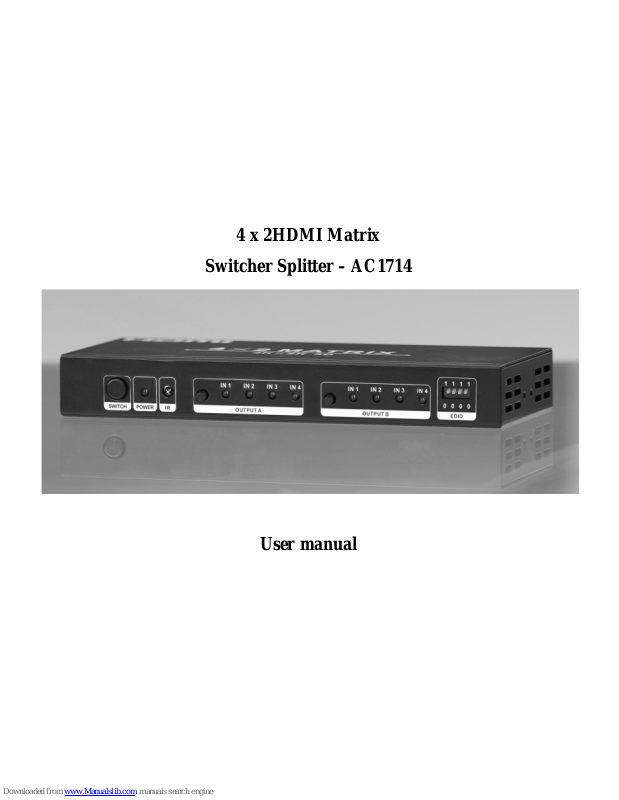

Jaycar Electronics AC1714 User Manual

4 x 2HDMI Matrix

Switcher Splitter – AC1714

User manual

1

 Introduction

This is a high performance HDMI Matrix with 4 x HDMI inputs & 2 x HDMI outputs. It allows any 4

connected source (Blue-Ray player, HD DVD player, console, etc.) to be shown on the any of the two

displays simultaneously, and supports 4K×2K, 3D, 12-bit Deep Color. With its 3Gbps bandwidth and

the additional features of the latest HDMI standards you can be sure of great HDMI distribution.

 Features

1. HDMI 1.4a video format support up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz

2. 3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.

3. Supports deep color up to 48-bit per pixel.

4. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).

5. Supports the reception of any audio data conforming to the HDMI specification 1.4 such ad

L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR

6. Supports EDID control via EDID Selector.

2

 Package

1. HDMI Matrix ------------------------------------------------------------------------------------ 1PCS

2. 5V1A DC Power Supply adaptor ------------------------------------------------------------- 1PCS

3. Operation Manual ------------------------------------------------------------------------------- 1PCS

4. Remote controller---------------------------------------------------------------------------------1PCS

 Specifications

1. Frequency Bandwidth 2.97Gbps

2. Input Ports 4 x HDMI Female input ports

3. Output Ports 2 x HDMI Female output ports

4. Power Supply DC 5V 1A

5. ESD Protection Human Body Model: ± 8kV (air-gap discharge)

± 4kV (contact discharge)

6. Dimensions (mm) 85(W) X 192 (D) X 26 (H)

3

 Operation controls and Functions

Front Panel

1. ON/OFF: Power on/off switch.

2. POWER LED: This red LED illuminate when the device is connected to power & switched on.

3. IR IN: Remote control receiver.

4. OUTPUT A: Press this button to select input sources to HDMI OUT A，and the LED will

indicate the corresponding input source.

5. OUTPUT B: Press this button to select input sources to HDMI OUT B，and the LED will

indicate the corresponding input source.

4

6. EDID Selector: Select HDMI output signal format use the EDID Selector.

Number EDID Selector Video / Audio Format Number EDID Selector Video / Audio Format

1 0000 1080p / Stereo Audio 2.0 10 1001 4K2K / Stereo Audio 2.0

2 0001 1080p / Dolby/DTS 5.1 11 1010 4K2K / Dolby/DTS 5.1

3 0010 1080p / HD Audio 7.1 12 1011 4K2K / HD Audio 7.1

4 0011 1080p / Stereo Audio 2.0 13 1100 Reserve

5 0100 1080p / Dolby/DTS 5.1 14 1101 Reserve

6 0101 1080p / HD Audio 7.1 15 1110 Reserve

7 0110 3D / Stereo Audio 2.0 16 1111 Auto mode (Default)

8 0111 3D / Dolby/ DT S 5.1

9 1000 3D / HD Audio 7.1

5

Rear Panel

1. HDMI OUTPUT: These sockets connect to a HDTV or monitor using HDMI cable.

2. HDMI INPUT: These sockets connect to HDMI source’s output, i.e. from DVD player, game

console, etc

3. DC IN: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet.

6

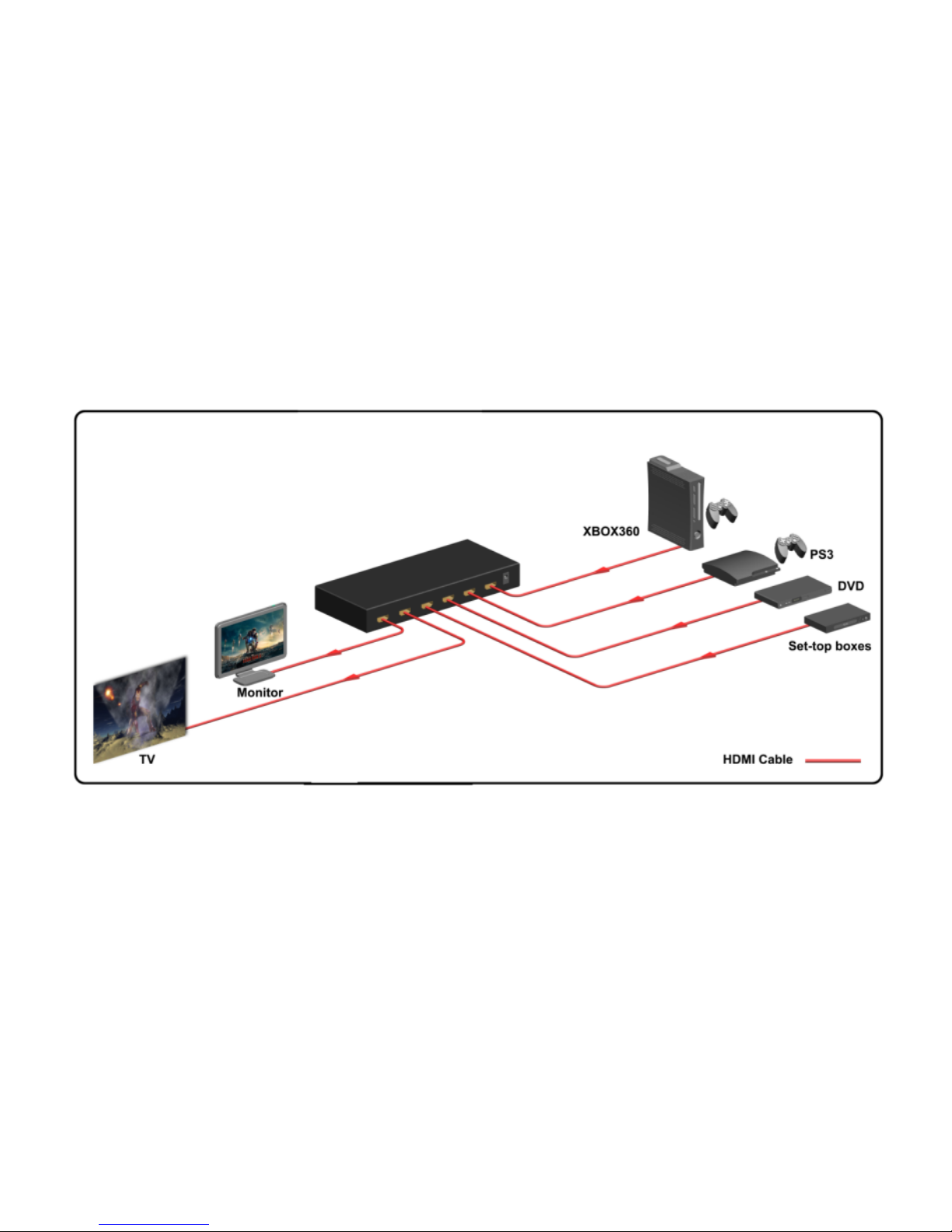

 Application Example

7

Remote control

OUTPUT A: Press IN1\IN2\IN3\IN4 button to select input source to HDMI

OUTPUT A, and the LED will indicate the corresponding input source. Press

button OUTPUT A will cycle from input IN1\IN2\IN3\IN4.

OUTPUT B: Press IN1\IN2\IN3\IN4 button to select input source to HDMI

OUTPUT B, and the LED will indicate the correspondin g input source. Press

button OUTPUT B will cycle from input IN1\IN2\IN3\IN4.

IMPORTANT:

- Never attempt to open, repair or modify any part o f this unit or its access ories.

- Never get any part of the device or its accessories wet.

- Failure to adhere to t hese points will result in a void of war ranty.
