Page 1

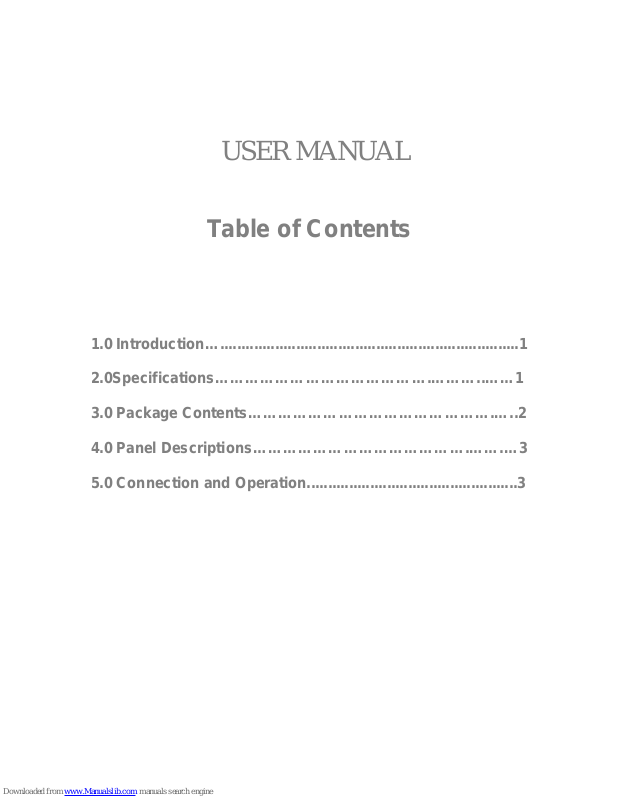

USER MANUAL
Table of Contents
1.0 Introduction….......................................................................1
2.0Specifications…………………………………….………..……1
3.0 Package Contents………………………………………….…..2
4.0 Panel Descriptions…………………………………….…….…3
5.0 Connection and Operation..................................................3
Page 2
HDMI Splitter 1X2 with full 3D and 4Kx2K (340MHz)
Signal Inputs/Output
Input DDC Signal
5 volts p-p (TTL)
Maximum Single Link Range
4kX2k
Output Video
HDMI(with full 3D and 4Kx2K)
Operating Frequency
Vertical Frequency Range
50/60Hz
Video Amplifier Bandw i dth
3.4Gbps/340MHz
Resolutions(HDTV)
Interlaced(50&60Hz)
480i,576i,1080i
Progressive(50&60Hz)
480p,576p,720p,1080p,4Kx2K
HDMI Splitter 1X2 with Full 3D and 4Kx2K
(340MHz), Pigtail Type
1.0 INTRODUCTION
This HDMI Amplifier Splitter is an HDMI splitter with two outputs. It distributes the
input of the HDMI signal into the two identical outputs simultaneously. It adopted
pigtail type design to reduce cost and provide more convenience for customers. It
supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.4
Gpbs/340MHz.
This HDMI Amplifier Splitter offers solutions for HDTV retail and show site,
HDTV, STB, DVD and Projector factory , noise, space and sec uri ty concerns, data
center control, information distribution, conference room presentation, school and
corporate training environments.
1.1 FEATURES
This HDMI Splitter has many features that enable it to perform in a superior
manner. Among those features you will find:
Easy to Use: Install in seconds, no need of setting.
One HDMI Input, two HDMI outputs
Supports Full 3D and 4Kx2K resolution.
Supports highest video resolution 1080p.
Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
Supports 12bit per channel (36bit all channel) deep color.
Supports HDCP 1.3
Supports uncompressed audio such as LPCM
Supports compressed audio such as DTS Digital, Dolby Digital（including
DTS-HD and Dolby True HD）.
2.0 SPECIFICATIONS
１
Page 3
HDMI Splitter 1X2 with full 3D and 4Kx2K (340MHz)
Mechanical
Size(L-W-H)
Warranty
Limited Warranty
1 Year Parts and Labor
Environmental
Operating Temperature
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
-10℃ to +80℃
Storage Humidity
5% to 90 % RH (no condensation)
Power Requirement
External Power Supply
5V DC@ 2A
Power consumption (Max)
8W
63×54×18mm
0℃ to +70℃
Note: Specificatio ns are subject to change without not ice.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, pl ease che ck the pack aging and mak e sure the
following items are contained in the shipping carton:
1) Main unit
2) 5V DC Power Supply.
3) User’s Manual.
4.0 PANEL DESCRIPTIONS
5.0 CONNECTION AND OPERATION
1) Plug the Pigtail of the HDMI Splitter into HDMI source device.
2) Connect output devices to the outputs of the HDMI Splitter by using HDMI
２
Page 4
HDMI Splitter 1X2 with full 3D and 4Kx2K (340MHz)
cable. (HDMI cables are optional)
*please refer to the connection diagram section.
3) Insert the DC side of 5v power supply into it and then connect the AC side of
the power supply into the wall outlet.
Attention: Insert / Extract cable gently.
5.1 CONNECTION DIAGRAM
P/N 3022
