S E C T I O N
E N G L I S H
S E C T I O N

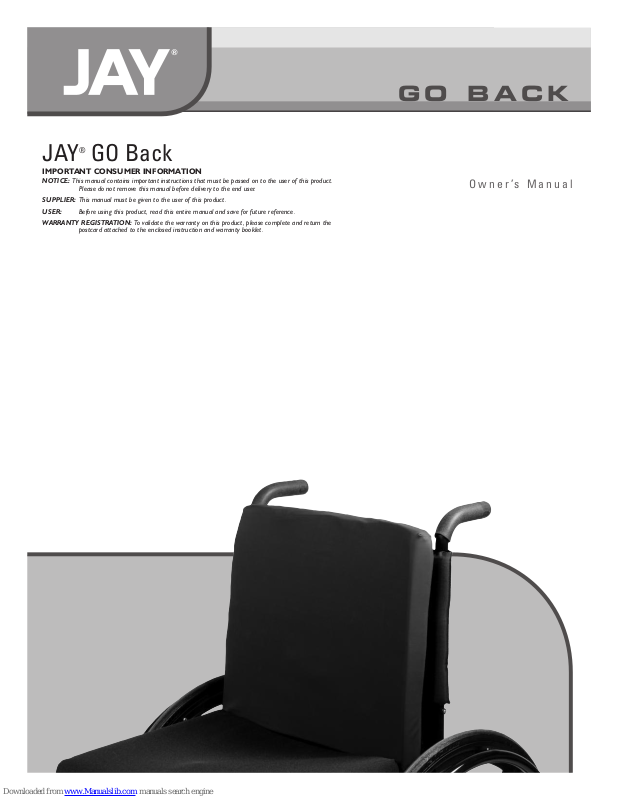

JAY®GO Back
IMPORTANT CONSUMER INFORMATION
NOTICE: This manual contains important instructions that must be passed on to the user of this product.
SUPPLIER: This manual must be given to the user of this product.
USER: Before using this product, read this entire manual and save for future reference.
WARRANTY REGISTRATION: To validate the warranty on this product, please complete and return the
Please do not remove this manual before delivery to the end user.
postcard attached to the enclosed instruction and warranty booklet.
G O B A C K
O w n e r ’ s M a n u a l
Page 2
ENGLISH
INTR O D UCT I ON
MAIN T ENAN C E & C LEA N I NG
Sunrise Medical recommends that a clinician such as a doctor
or therapist experienced in seating and positioning be consulted to determine if a GO Back is appropriate. Backs
should only be installed by an authorized Sunrise Medical
supplier.
THE JAY GO BACK
The JAY GO Back is designed to provide the important benefits of
proper back support for a wide variety of users. It is designed to
a
provide simple, comfortable and effective support to help maximize
function and increase sitting tolerance. In addition, it is light-weight,
durable and easy to use.
Maximum user weight:
300 lbs. (136 kg) for sizes 12" to 21" widths
500 lbs. (227 kg) for sizes 22" to 26" widths
WARNING
Installing a back support on a wheelchair may affect the
center of gravity of the wheelchair and may cause the
wheelchair to tip backwards potentially resulting in injury.
Always assess for the potential need for anti-tippers or
amputee axle adapter brackets to be added to the
wheelchair to help increase stability.
MAINTENANCE
Sunrise recommends that the JAY Go Strap Assembly be checked
for wear and tear every 6 months. Contact your authorized Sunrise
Medical supplier immediately to replace any broken components.
Do not continue to use the system after identifying loose or broken
components.
EASY CLEANING
NOTE– When disassembling the back for cleaning, note the position and
Outer Cover
Wipe down outer cover using a soft cloth and warm soap and
water. The outer cover can be machine washed in warm water and
light detergent as needed.
NOTE– Remove foam from inside of cover prior to machine
washing.
The foam core may be washed by hand with light soap and water.
Strap Assembly
Wipe down strap assembly as needed using light soap and warm
water.
ATTENTION
If you have any additional questions regarding cleaning procedures,
please contact your authorized Sunrise Medical dealer.
orientation of the Strap Assembly and cover for correct reassembly.
– Do not machine wash the strap assembly.
WARNING
Do not use JAY GO Back to push or lift wheelchair.
Improper use may cause the back to unexpectedly
detach from the wheelchair.
WARNING
Do not use the JAY GO back cover or straps to lift
wheelchair.
GO BACK
Strap Assembly
Foam Core
Outer Cover
Laundry Care Symbols
Machine wash in warm water
(50° C)
Only non-chlorine bleach,
when needed
Drip dry
Do not iron
Do not dry clean
119166 Rev. A
2
Page 3
ENGLISH
INSTAL L ATION A ND A D JUS T MENT
INSTALLATION
To install the JAY GO Back, first remove the outer cover from the
strap assembly. Then install the strap assembly onto the back canes
of the wheelchair by wrapping the Velcro sleeves around the back
canes and engage the Velcro fully. (A)
IMPORTANT
assembly is appropriate to the top of the back canes and leaves
nough room underneath the strap assembly for the cushion.
e
NOTE– Align grommet holes of the JAY Go back with the grommet holes (if
Ensure the horizontal Velcro adjustment straps are facing rearward.
Then install the cover making sure the padded side of the cover is
next to the back of the client. Lastly, fold the back flap of the cover
over the back of the strap assembly.
– Note the height of the back. Make sure the strap
present) on the wheelchair. If provided, install the wheelchair back
cane screws as shown in Figure B.
A
B
C
ADJUSTMENT
To adjust the tension of the JAY GO Back, first lift up the back
cover flap to expose the horizontal Velcro straps (C). Then adjust
each strap individually to the desired tension (D).
ATTENTION
may cause damage to the integrity of the back canes.
Lastly, fold down the back cover flap over the horizontal Velcro
adjustment straps to complete your adjustment.
– AVOID over-tightening of the strap assembly as this
24 MONTH LIMITED WARRANTY
Each JAY GO Back is carefully inspected and tested to provide peak
performance. Every JAY GO Back is guaranteed to be free from
defects in materials and workmanship for a period of 24 months
from the date of purchase, provided normal use. Should a defect in
materials or workmanship occur within 24 months from the original date of purchase, Sunrise Medical will, at its option, repair or
replace it without charge. This warranty does not apply to punctures, tears or burns, nor to the back’s removable cover.
D
WARRA N TY
Claims and repairs should be processed through the nearest
authorized supplier. Except for express warranties made herein, all
other warranties, including implied warranties of merchantability
and warranties of fitness for a particular purpose are excluded.
There are not warranties which extend beyond the description on
the face hereof. Remedies for breach of express warranties herein
are limited to repair or replacement of the goods. In no event shall
damages for breach of any warranty include any consequential
damages or exceed the cost of non-conforming goods sold.
3
119166 Rev. A
