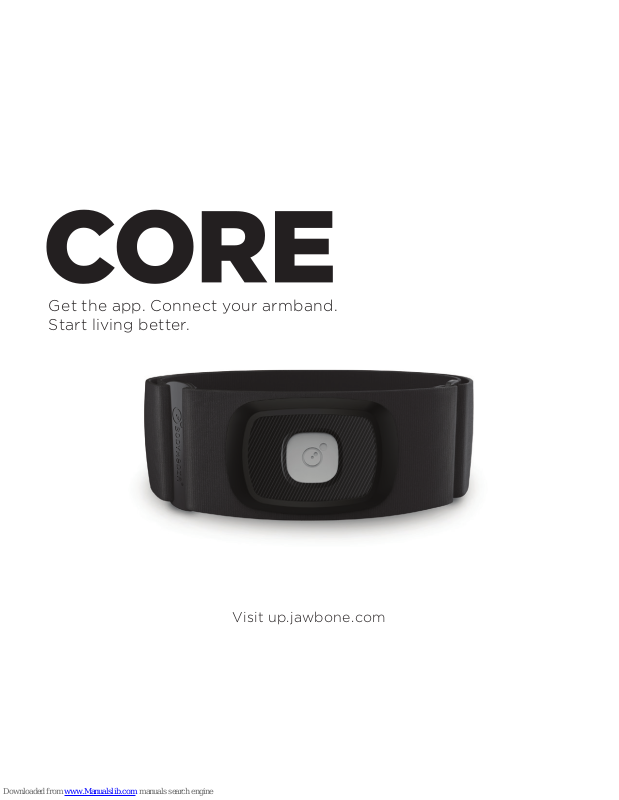

Jawbone CORE User Manual

Visit up.jawbone.com

Get the app. Connect your armband.
Start living better.

2 3

SENSOR MODULE

To remove the sensor module from the strap, press down evenly on both
sides of the front face of the sensor module until it comes out of the strap.
To reattach the sensor module, align the large indentation on the inside of
the strap with the tab on the sensor module. Press evenly on both sides
until the sensor module firmly snaps into place.

GET THE APP

Go to up.jawbone.com

Already using UP?

Make sure you have the latest version of the app.

CONNECT YOUR ARMBAND

Follow the instructions to pair your
armband and create your profile.

Already using UP?

Tap the icon in the top right corner of the home

screen, “Add new band” and follow the instructions.

4 5

STATUS BUTTON

STRAP

SENSOR MODULE

ADJUSTERS

STATUS LIGHT

STATUS INDICATORS

Sound

3 Beeps

Single Alert tone

None

Alert tone every 15 seconds

Status Light

Solid Light for a few Seconds

Slow blinking light

Fast blinking light

None

Status

Armband Collecting Data*

Low Battery

Battery Depleted

Armband not configured to app

*It may take up to 10 minutes for the armband to
begin collecting data after it is placed on the arm.

KEEP YOUR ARMBAND CHARGED

Your armband should last at least four days when fully charged. The UP
app will notify you when the battery is low. To charge your armband,
remove the sensor module from the strap, place the sensor module into
the dock and plug it into a USB port.

The status light will flash two times when fully charged. This may take
up to two hours.

DOCK

6 7

Questions? Support?
jawbone.com/support/core

HOW TO WEAR CORE

Wear on the back of your left tricep (your arm and CORE should be clean, dry,
and free of lotion or oil). Make sure the sensors touch your skin and the logo on
the button points up toward the right.

Use the adjusters to tighten and loosen the strap, before putting it on your arm.
Make sure the strap is not too tight—you should be able to place three fingers
beneath it. Once the strap is adjusted to a comfortable fit, there is no need to
readjust it. Simply slide the armband on and o your arm by stretching the strap.

8 98 9

WARNINGS

• Always con sult a physician befo re starting any new d iet or exercise progr am.

• This sys tem (CORE device and UP a pp) is not to be used for diag nostic purpose s and is not intended to b e a substitute for
the medic al advice or super vision of your pers onal physician.

• Becaus e everyone’s skin is dif ferent you may experi ence irritation or re dness after wear ing the armband. I f this
occurs, d iscontinue use and c onsult your physicia n.

• If you have know n metal allergies , consult your physici an prior to wearing.

• Do not wear o n an open wound, sore , burn, blister or ra sh.

• To reduce po tential for skin irri tation, limit wear ing the device to a maxim um of 23 hours per day.

• To reduce the pote ntial risk of skin irri tation, dry your ar m and the armband th oroughly before wea ring.

• To avoid skin bur ns, do not wear whe n it has been exposed to exc essively hot tempe ratures includi ng direct sun expos ure.

• Choking h azard. This produ ct contains small p arts. Keep out of th e reach of children un der 3 years.

• Be caref ul not to over-tighten the stra p while on your arm. If yo u feel constrictio n or loss of circulatio n at any time,
loosen th e adjustable stra p and readjust it to a mor e comfortable set ting. If you experie nce pain, bruisin g, swelling, or
discolor ation of the arm, disc ontinue use and cons ult a physician.

CAUTIONS

• Check COR E for sharp edges or d amage before eac h use.

• The armba nd and dock shoul d not be used in airpla nes, hospitals , or any location that pr ohibits cellular t elephones
or electr onic devices.

• Do not plac e the CORE in close proxi mity to other devices th at can cause elec tromagnetic inter ferences of any
natu re.

• Do not inci nerate.

• Rough handling can break internal components.

• Never drop or shoc k the armband and do ck and always store it in a sa fe and dry place whe n not in use.

• If the ar mband is droppe d, ensure that it is wor king properly an d not physically dam aged before relyi ng on readings.

• Do not attem pt to open the armban d or dock yourself. It co ntains no user-ser viceable parts . Refer all servic ing to
qualifi ed Service Perso nnel. Opening th e armband or dock yo urself will void the war ranty.

• Do not use un approved accessor ies.

• This prod uct is not defibrill ation proof.

• The equip ment is not suitabl e for use in the presenc e of a flammable ane sthetic mixture with a ir or with oxygen or
nitro us oxide .

• Medical electrical equipment requires special precautions regarding electromagnetic environments (EMC) and must
be instal led and put into serv ice according to the EM C information provid ed in the User Manua l. Portable and m obile
radio frequency (RF) communications equipment can affect medical electrical equipment.

• The equip ment of the system sho uld not be used adja cent to or stacked with oth er equipment.

• Avoid exposin g the equipment to ext reme temperature s like saunas, dire ct sunlight, mois ture, sand, dust , leaving in
freezing c onditions, or mec hanical shock .

• All refere nces to the equipmen t have been replaced by th e product name, C ORE.

ACCESSORIES

• Addition al strap sizes and acces sories available a t jawbone.com/core

CORE CARE

Clean the a rmband regular ly after sweating or wh en it becomes notice ably moist or dirt y. Failure to keep the armb and
clean, o r improper cleani ng may irritate the skin a nd affect the sen sor performanc e. Minimize use of solve nts, cleaners
or other ch emicals and do not s terilize any part(s).

• To clean the sen sor module, use a clo th or towel moistened wit h mild soap and water to wi pe the metal sensor s that
touch the sk in. Remove any excess soa p and dry with a cloth or towe l completely before w earing.

• To clean the stra p, hand wash with mild s oap and warm water, rinse , then air dry. For optim al performance a nd
lifespan o f the strap, avoid machi ne drying.

• The senso rs may be disinfecte d by wiping with a soft clot h dampened with 70% is opropyl alcohol. A llow 5-10 minutes
for dryin g before wearing. Al ways disinfect the se nsor module and rep lace the armband s trap prior to use by other s.

• Though th e armband was desig ned for wearabilit y and long-term use , it is a sensitive monito ring device. Rough
handling can break internal components.

SAFE DISPOSAL

Dispose of t he CORE armband , battery, and this pa ckaging in accorda nce with local regul ations. Do not dispo se of the
battery i n the sensor modul e with regular house hold waste.

10 11

SN

10 11

SYMBOL DEFINITIONS

Consult instructions for use FCC Decla ration of Conformit y

Non-ionizing radiation Batter y Charger System Com pliance

Type B Applied P art Bluetooth® Wireless Technology

Date of Manu facture

Manufacturer

CAUTION Serial Number

The Waste Electrical and Electronic
Equipment Regulations indicates
separate collection for electrical and
electronic equipment

Electrical Safety
Armband tested to applicable safety
standards by MET Laboratories

Recyclable

SYSTEM ACCURACY (PER DAY, ADULTS)

• Total calori es/METs for free livin g activities: mean e rror < 10%

• Total minutes of p hysical activity : mean error < 5%

• Total step count : mean error < 9%

PRODUCT SPECIFICATIONS

SENSORS

• Accelerom eter (3-axis)

• Heat Flux

• Skin Temperature

• Galvani c Skin Response (GSR)

MATERIALS

• Sensor M odule: PC/PBT, ther moplastic uretha ne, 316L grade s tainless steel

• Adjusta ble strap/wing assem bly: Nylon, elas tane, silicone, 3 16L stainles s steel, PC/PBT an d rubber coating

Batter y power: At least 4 days
Batter y type: Internal lith ium polymer cell
Radio Frequency: 2.4GHz
Contains a class 2 Bluetooth wireless technology transceiver
Transmitter o utput power: <2. 5mW
Sensor M odule size: (l) 26mm x (w) 36mm x ( h) 13mm [1 .0” x 1.4” x 0.5” ]
Armban d weight (with adjustab le strap): 30g (1.1oz)
Water resist ance: IPX5 classif ied
Operati ng temperature/h umidity: +5°C - 40° C (40°F to 10 4°F)/ 5 - 95% RH non- condensing
Storage tem perature/humi dity: -20°C - 55°C (-4°F to 13 1°F) / 5 - 95% RH non -condensing

12 1312 13

USER ENVIRONMENT

1.5m 1.5m

2.5m

1.5m

Computer and Wireless
Communicator

Diagram n ot to scale.

GUIDANCE AND MANUFACTURER’S DECLARATION - EMISSIONS

The Armba nd is intended for us e in the electromag netic environment s pecified below. Th e customer or user
of the Armb and should ensure th at it is used in such an env ironment.

EMISSIONS TEST

RF Emissi ons CISPR 11

Harmon ics IEC 6100-3 -2

Flicker IEC 6 100-3-3

COMPLIANCE

Class B, G roup 1

N/A

N/A

ELECTROMAGNETIC ENVIRONMENT–GUIDANCE

The Armba nd uses RF energy o nly for its internal
functio n. Therefore, its R F emissions are ver y low
and are not l ikely to cause any inter ference in nearby
electronic equipment

The Armba nd is suitable for us e in all establishm ents,
including domestic, and those directly connected to
the publi c low-voltage power sup ply network that
supplies buildings used for domestic purposes

GUIDANCE AND MANUFACTURER’S DECLARATION - IMMUNITY

The Armba nd is intended for us e in the electromag netic environment s pecified below. Th e customer or user
of the Armb and should ensure th at it is used in such an env ironment.

IMMUNITY TEST

ESD IEC 61 000-4-2

EFT IEC 61 000-4-4

Voltage Dips/
Drop out IEC
61000-4-11

Power Frequency
50/60H

Magneti c Field IEC
61000-4-8

IEC 60601
TEST LEV EL

COMPLIANCE
LEVEL

±6kV Contact
±8kV Air

±2kV Mains
±1kV I/O s

±1kV Differential
±2kV Common

>95% Dip fo r

0.5 Cycles
60% Dip for 5
Cycles
30% Dip for 2 5
Cycles
>95% Dip fo r 5
Seconds

3A/m

±6kV Contact
±8kV Air

N/A

N/A

N/A

3A/m

ELECTROMAGNETIC ENVIRONMENT–GUIDANCE

Floors sh ould be wood, concr ete, or ceramic tile. I f
floors a re synthetic, they r/h sho uld be at least 30%

Mains powe r quality should b e that of a typical
commercial or hospital environment

Mains powe r quality should b e that of a typical
commerci al or hospital envir onment. If the user o f the
Armband requires continued operation during power
mains inte rruptions, it is rec ommended that the
Armban d be powered from an uni nterruptible power
supply or b attery.

Power freq uency magnetic fi elds should be that o f a
typical c ommercial or hosp ital environment .

14 1514 15

GUIDANCE AND MANUFACTURER’S DECLARATION - EMISSIONS

The Armba nd is intended for us e in the electromag netic environment s pecified below. Th e customer or user
of the Armb and should ensure th at it is used in such an env ironment.

IMMUNITY TEST

Conducted RF
IEC 61000-4-6

Radiated RF
IEC 61000-4-3

IEC 60601
TEST LEV EL

COMPLIANCE
LEVEL

3 Vrms
150 kHz to
80 MHz

3 V/m
80 MHz to

2.5 GHz

3 Vrms
150 kHz to
80 MHz

3 V/m
80 MHz to

2.5 GHz

ELECTROMAGNETIC ENVIRONMENT–GUIDANCE

Portable and mobile communications equipment
should be s eparated from Arm band by no less than
the distances calculated/listed below:

D=(3.5/V1)(Sqrt P)

D=(3. 5/E1)(Sqrt P) 8 0 to
800 MHz

D=(7/EI)(Sqrt P)
800 MHz to 2 .5 GHz

Where P is th e max power in watts and D i s the
recommended separation distance in meters.

Field stre ngths from fixed tran smitters, as dete rmined
by an electr omagnetic site sur vey, should be less than
the compli ance levels (V1 an d E1).

Interfe rence may occur in the vi cinity of equipme nt
containing a transmitter.

RECOMMENDED SEPARATION DISTANCES FOR THE PRODUCT

The Armba nd is intended for us e in the electromag netic environment s pecified below. Th e customer or user
of the Armb and can help prevent e lectromagnetic i nterference by mai ntaining a minimum d istance between
portable and mobile RF Communications Equipment and the Armband as recommended below, according to
the maximum output power of the communications equipment.

MAX OUTPUT POWER
(WAT TS)

SEPARATION (M) 150KHZ
TO 80MHZ

D=(3.5/V1)(SQRT P)

SEPARATIO N (M) 80 TO
800MHZ

D=(3.5/V1)(SQRT P)

SEPARATIO N (M) 800MHZ
TO 2.5G HZ

D=(7/E1)(SQRT P)

0.01

0.1

1

10

100

0.1166

0.3689

1.1666

3.6893

11.6666

0.1166

0.3689

1.1666

3.6893

11.6666

0.2333

0.7378

2.3333

7.3 786

23.3333

16 1716 17

RE GUL AT OR Y S TATE M E NT

FCC Decla ration of Conformit y – We, BodyMedia, I nc., One Gateway Cen ter, 420 Fort Duquesn e Boulevard, Suite 1 900,
Pittsbu rgh, PA 15222, a who lly owned subsidiar y of Jawbone, decl are under our sole re sponsibility tha t the products,
BodyMe dia, Inc. and Bo dyMedia® Armba nd (Model AB200) an d Dock (Model CR 200), comply with par t 15 of the FCC
rules. O peration is subjec t to the following two con ditions: (1) This d evice may not cause ha rmful interferen ce, and (2)
This device m ust accept any inter ference received, i ncluding interf erence that may caus e undesired opera tion.

This equi pment has been test ed and found to comply w ith the limits for a Clas s B digital device, pu rsuant to part 15 of
the FCC Rule s. These limits are d esigned to provide re asonable protect ion against harmf ul interference i n a residential
install ation. This equip ment generates, u ses and can radiate r adio frequency e nergy and, if not ins talled and used
in accorda nce with the instruc tions, may cause ha rmful interfere nce to radio communic ations. However, there i s no
guarante e that interferen ce will not occur in a par ticular installa tion. If this equip ment does cause ha rmful interfere nce
to radio or tel evision reception , which can be determ ined by turning the eq uipment off and on , the user is encour aged
to try to corre ct the interferen ce by one or more of the foll owing measures:

• Reorien t or relocate the recei ving antenna.

• Increas e the separation bet ween the equipme nt and receiver.

• Connec t the equipment into a n outlet on a circuit se parate from the receive r.

• Consult th e dealer or an exper ienced radio/T V technician for hel p.

CAUTION : Changes or modi fications to this equ ipment not express ly approved by the part y responsible for
complia nce could void the user ’s authority to oper ate the equipment.

RF Expos ure information: Se e 2.1093 of the FCC Rul es

This prod uct is a Type B Applied Par t complying with the sp ecified require ments of the Standa rd to provide protectio n
against electric shock, particularly regarding allowable Leakage Current.
IEC 6060 1-1, Edition 3.1, 2 012-08, Medi cal Electrical Eq uipment - Part 1: G eneral requirem ents for basic safe ty and
essential performance
IEC 6060 1-1-2, Third Edition , 2007-03, Medic al Electrical Equ ipment - Part 1-2: Ge neral requirem ents for basic safet y
and essential performance - Collateral standard: Electromagnetic compatibility - Requirements and tests
AAMI 60601-1: ANSI /AAMI ES 60601-1:20 05, Medical Ele ctrical Equipme nt – Part 1: Genera l Requirements fo r Basic
Safety an d Essential Perf ormance
ANSI/I EC 60529, 2004 , Degrees of Protecti on Provided by Enclosu res (IP Code)
IEC 6095 0-1, Edition 2.1 , 2012-05, Infor mation Technology Equ ipment - Safety - Pa rt 1: General Req uirements
UL 1642 , Standard for Safet y, Lithium Batteries
IEC 62133 , Edition 2.0, 2012 , Secondary cel ls and batteries con taining alkalin e or other non-acid e lectrolytes - Safe ty
requirem ents for portab le sealed seconda ry cells, and for b atteries made from t hem, for use in por table applicati ons
WEEE, 20 06 No. 3289, Enviro nmental Protecti on - The Waste Electric al and Electronic E quipment Regula tions
Califor nia Energy Commis sion - 2012 Applian ce Efficiency Reg ulations, CEC-4 00-2012-019 -CMF

47CFR Part 1 5 Subpart B & ICES -003, Issue 4 Feb ruary 2004 for C lass B Digital Device s
47CFR Part 1 5 Subpart C 15. 247 & RSS-210, Issue 8 , December 2010 f or Intentional Radi ators
ETSI EN 30 0 328 (Article 3. 2 of R&TTE Directive)
ETSI EN 30 1 489-1 with ETSI EN 4 89-17 (Article 3 .1(b) of R&TTE Directive)
RoHS requirements

BodyMedia, Inc.
One Gateway C enter
420 Fort Du quesne Blvd.
Suite 190 0
Pittsburgh, PA 15222
USA

10089 1_Rev1

QUESTIONS? SUPPORT?

JAWBONE.COM/SUPPORT/CORE

CORE
