Jaton Video-67Pro-3D User Manual

Video-67Pro-3D

Multimedia Accelerator

User’s Manual

version 2.00

COPYRIGHT ©1999 JATON CORPORATION, USA

NOTICE

The information in this document is subject to change in order to
improve reliability, design, or function without prior notice and does
not represent a commitment on the part of the company. In no event
will the company be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or the inability to use the
product or documentation, even if advised of the possibility of such
damages. No part of this manual may be reproduced or transmitted in
any form or by any means without the prior written permission of the
company.
May 1999, Rev A

2

Table of Contents

1. INTRODUCTION........................................................................ 5

1.1 COMPATIBILITY............................................................................ 5

1.2 CHECK LIST.................................................................................. 5

1.3 FEATURES..................................................................................... 5

1.3.1 Resolution and Color Selection............................................. 9

1.3.2 3D and 2D GUI Accelerator ................................................. 9

1.3.3 VESA DPMS and VESA DDC2B supported..........................10

1.3.4 DirectDraw Supported .........................................................10

1.3.5 Geometry Processor .............................................................10

2. ADAPTER INSTALLATION.....................................................11

2.1.1 Adapters Layouts .................................................................11

2.1.2 Hardware Installation..........................................................11

3. DRIVERS INSTALLATION ......................................................13

3.1 MICROSOFT WINDOWS®95..........................................................13

3.1.1 Welcome screen from Video-67Pro’ CD..............................13

3.1.2 Microsoft Windows®98 ........................................................14

3.1.3 Microsoft Windows NT™4.0.................................................14

4. FREQUENTLY ASKED QUESTIONS (FAQ) .........................15

5. TROUBLESHOOTING .............................................................17

6. APPENDIX A: VIDEO MODE TABLE....................................19

7. APPENDIX B: PINOUT AND SYNC FREQUENCIES ............23

7.1 ANALOG COLOR DISPLAY PINOUTS (DB 15) .................................23

7.2 CONVERSION TABLE: PIN ADAPTERS ...........................................23

7.3 ANALOG VIDEO SIGNALS .............................................................24

8. SHIELDED CABLE WARNING...............................................24

8.1 TRADEMARK ACKNOWLEDGMENTS..................................25

8.2 TECHNICAL SUPPORT ...................................................................26

9. LIMITED WARRANTY............................................................26

9.1 OTHER LIMITS.............................................................................26

9.2 EXCLUSIVE OBLIGATION. .............................................................27

9.3 OTHER STATEMENTS....................................................................27

3

9.4 TERMS AND CONDITIONS..............................................................27

9.5 SERVICES AGREEMENT: ................................................................28

9.6 ENTIRE OBLIGATION....................................................................28

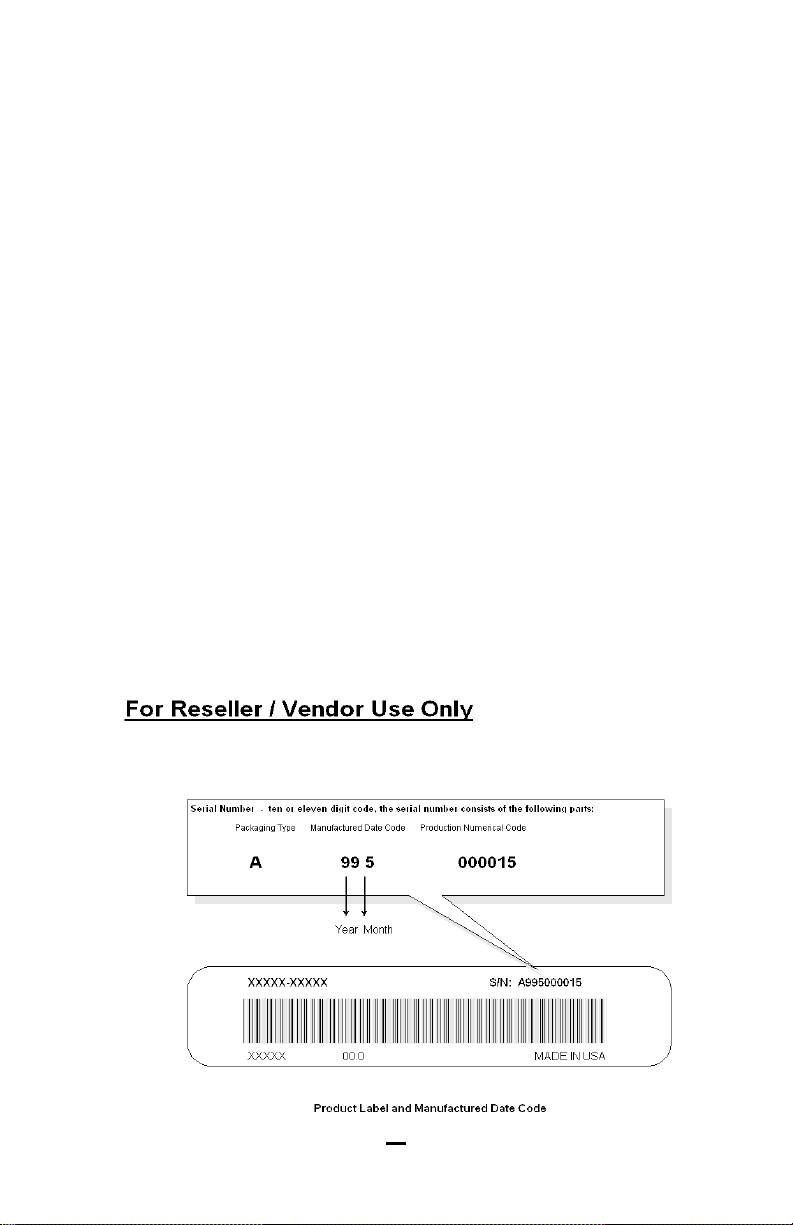

10. REDUCING WARRANTY CLAIM REJECTIONS...............28

4

1. Introduction

Congratulation on your purchase of the Jaton 2D and 3D Graphics &
Video Accelerator Video-67Pro.
The Video-67Pro uses advanced 3DImàge975x 3D/2D Graphical User
Interface (GUI) accelerator with built-in high-speed 24-bit True Color
DAC and video acceleration circuitry and Synchronous Graphics
RAM and PCI Bus design. It accelerates graphics display up to 16.7
Million True Color at 1024x768 at up to 85Hz vertical refresh rate.
Video-67Pro is Windows®9x Plug and Play compatible. It supports
MS DirectX and Active Movie. Free MPEG player software is also
included in the Video-67Pro software CD. It allows all MPEG-1 files
and Video CD and other titles to be played back at up to 30 frame-per­second without expensive video hardware. It is bundled with most
popular arcade games and 3D graphics application.

1.1 Compatibility

þ PCI Local Bus v 2.0 and v 2.1
þ Interlace or non-interlace analog monitor
þ Multi-sync or PS/2 monitors
þ VESA DDC1 and DDC2B monitors
þ PC97 Graphics Compliant

1.2 Check List

The package you have purchased should contain the following:

þ Video-67Pro Multimedia Accelerator
þ Software and Document CD
þ Video-67Pro Quick Start Guide

If any of these items are missing or damaged, contact your dealer.
Important: Keep all packaging materials that accompany your

adapter in the event you need to return the product.

1.3 Features

þ “Deep Green PC” power management: VBE/PM and

DAC power down

5

þ PCI Specification V2.1 compliant I/O Bus
þ VESA Super VGA BIOS Extension Standard, VBE

Version 2.0

þ Integrated VESA feature connector

2D Graphics Acceleration

Optimized single cycle 2D graphics engine with a complete feature set
in all 8, 16 and True Color modes:

þ 256 Raster operation (ROPs)
þ 16 bit overlay with scaling
þ Trapezoidal fill, solid or pattern
þ Polygon fill, solid or pattern
þ Line drawing and Clipping
þ Stretch and Transparent BLT
þ Internal hardware cursor (64x64x2 or 32x32x2)
þ Built-in 64x32 pattern register

Direct Draw Support:

þ Hardware Page Flipping
þ Fast system memory to screen memory BLT
þ Color and Chroma key support
þ Transparent and stretch BLTs
þ Overlay support for YUV and RGB

3D Graphics Acceleration

þ Balanced the 3D pipeline
þ Complete 3D primitive support
þ Texture Mapping
þ letized Texture
þ Bi-linear filtering
þ Mip-Mapping up to 8 levels
þ Video texture mapping
þ Lighted texturing
þ Gouraud Shading for smooth shading
þ Alpha blending for transparency effects

6

þ Fog
þ Z-buffering at 16/32 bpp

MPEG and Video Acceleration

þ On-chip Color Space Conversion (CSC), horizontal

and vertical interpolated scaling, and overlay control
for 30 fps software MPEG/video CODEC
acceleration

þ Anti-tear support
þ Direct Draw /DCI/ENDIVE acceleration with

independent x and y minimization/zoom and color
space conversion

Graphic Display Colors, Refresh rates and Resolutions*

þ 640x480 16, 256, 64K, and 16M colors,
þ 800x600 256, 64K, and 16M colors,
þ 1024x768 256, 64K, and 16M**,
þ 1280xl024 256, 64K** colors,
þ 1600x1200 256 colors,

Resolution Colors 87i 96i 60 70 72 75 85

640x480 16

256
64K

16M

800x600 256

64K

16M

1024x768 256

64K

16M**

1280x1024 256

64K**

1600x1200 256

64K**

l l l l l
l l l l l
l l l l l
l l l l l
l l

l
l l l l
l l l l
l l l l
l l l
l l l
l l l

l l
l l

*The display resolution and refresh rates available depends on the
display mode and monitor capacity.
**4 mega bytes of display memory required.

7

8

Compatibility

þ Pentium® or compatible system with PCI slot
þ Interlace or non-interlace analog monitor
þ Multi-sync or PS/2 monitors
þ VESA DDC1 and DDC2B monitors detection
þ PC97 Graphics Compliant

Software Driver

þ MS Windows®95/98
þ MS Windows NT

Software drivers will be updated from time to time. Drivers
not on the CD may be downloaded from Web site or BBS.

1.3.1 RESOLUTION AND COLOR SELECTION

640x480 16, 256, 64K(Hi-color), 16M(True-color),
800x600 256, 64K(Hi-color), 16M(True-color),
1024x768 256, 64K(Hi-color), 16M(True-color),
1028x1024 256, 64(Hi-color),
1600x1200 256, 64(Hi-color),

®

4.0

1.3.2 3D AND 2D GUI ACCELERATOR

Accelerates the most frequently used 2D functions in today’s graphics­intensive environments plus complete 3D GUI acceleration:

þ Complete 3D primitive support
þ Texture mapping
þ Gouraud Shading for smooth shading
þ Alpha blending for transparency effects
þ Fog
þ Z-buffering at 16/32 bit-per-pixel
þ Page flipping for double and triple buffering for

smooth animation effects

9

1.3.3 VESA DPMS AND VESA DDC2B SUPPORTED

Supports VESA Display Power management Signaling (DPMS)
which decreases energy consumption when used with a monitor that
meets the VESA standards for power management. Supports VESA
DDC 2b standards for automatically selecting the correct display setup
on a monitor that meets the VESA DDC standard.

1.3.4 DIRECTDRAW SUPPORTED

DirectDraw for Windows® 95/98 are memory manger for video
memory. Using such memory manager for video manger, a program
can manipulate video memory with ease, taking full advantage of the
blitting and color decompressing capabilities of Video-67Pro video
hardware.

1.3.5 GEOMETRY PROCESSOR

The optional Geometry Processor off loads the intensive Geometry
Calculations from the CPU, thus triples the transform rate during 3D
graphics applications to 700K triangles per second.

10

2. Adapter Installation

2.1.1 ADAPTERS LAYOUTS

Adapter's Plate

1

14

DB 15 VGA

Figure 2-1 8267K Board Layout

2.1.2 HARDWARE INSTALLATION

Video - 67Pro - 3D

PCB - 82067K

CON1

Trident

3DImage975x

Display memory

!! WARNING !!

Discharge static
electricity by touching
the GROUND such as
metal part of your case
connected with good
power ground before you
handle the electronic
circuit boards.

The manufacturer assumes no liability for any damage, caused directly or indirectly, by
improper installation of any components by unauthorized service personnel. If you do
not feel comfortable performing the installation, consult with a qualified computer
technician.

11

To install the adapter into your system, follow these steps:

1. Turn OFF all power to your system, including any peripherals
(printer, external drives, modem, etc.).

2. Disconnect the power cord and the monitor cable from the
back of the computer.

3. Unfasten the cover mounting screws on your system and
remove the system cover. Refer to your system user manual
for instructions and to determine the location of the mounting
screws.

4. Remove any graphics adapter that already exists on your
motherboard. Start by removing the screw that holds the
adapter retaining bracket in place (keep this screw, you will
need it later). Then, gently pull straight up on the adapter
card itself, and remove it from the motherboard.

5. If appropriate, you can use the expansion slot left vacant by
the existing graphics adapter you just removed. Otherwise,
select an appropriate unused PCI bus expansion slot for the
new adapter. Refer to your computer system manual for the
location of the PCI bus expansion slots. Remove the
retaining screw that holds the slot cover in place. Slide the
slot cover out and put the screw aside (you will need it to
secure the adapter).
If you just removed an existing graphics adapter and are not
going to use that expansion slot, you can install the slot cover
you just removed from the unused expansion slot to cover the
open hole.

6. Install the adapter. To install the adapter in the selected
expansion slot, carefully line up the gold-fingered edge
connector on the adapter directly above the expansion slot
connector on the motherboard. Then press the adapter into
place, completely, using only as much pressure as is safely
necessary. DO NOT USE excessive force. Use the
(remaining) screw you removed to secure the adapter
retaining bracket in place.

7. Replace the computer cover. Secure the cover with the
mounting screws you removed in Step 3.

12

You have now completed the installation of your new graphics adapter
on your system.

3. Drivers Installation

3.1 ÿ Microsoft Windows®95

3.1.1 WELCOME SCREEN FROM VIDEO-67PRO’ CD

This CD supports Windows®95 autorun feature. “Welcome” menu
will appear automatically on the screen after the CD is inserted to the
CD-ROM drive.

Steps:

1. Start Windows® 95 with VGA or SVGA drive detected.

2. Insert the display Driver CD into your CD-ROM drive

(e.g. X:).

3. Autorun file pops up “Welcome” screen from Jaton’ CD.

4. Click on the “Display Driver” selection bar.

5. Tab to the “Settings” then click on “ Advance” button.

13

6. Click on “Change”, then “Have Disk”.

7. Path into “X: \V-67Pro\WIN95\Video67P.INF” (X is the

letter of your CD-ROM drive), and click OK.

8. The display device selected “Video-67Pro, 3DImàge975

PCI/AGP ( vXXXXXX), then press on OK button.

9. Close and apply to finish PCI’s display driver

installation.

10. Restart Windows to complete installation.

3.1.2 ÿ MICROSOFT WINDOWS®98

The steps are as same as Windows®95’s installation, but the path for subdirectory \V­67Pro\Win98\ is instead.

3.1.3 ÿ MICROSOFT WINDOWS NT™4.0

Steps:

1. SELECT the “Display” icon in control panel and then SELECT the

“Settings” page.

2. SELECT “Display Type...” button in the “Settings” page.

3. SELECT “Change...” button from the Adapter type section.

4. SELECT “Have Disk...” button from the Change Display page.

5. Microsoft Windows NT 4.0 will prompt you for the correct path where the

video drivers are located. ENTER the path “X:\V-67Pro\Winnt4\” where
X: is the CD ROM drive where the Video-67Pro Software & Documents
CD has been inserted.

6. If the driver “Trident Windows NT 4.0 Display Driver for

9397\975\985\9397DVD” is listed under the Display list, SELECT the
“OK” button to continue.

7. Once the driver files are copied, RESTART Microsoft Windows NT 4.0

for the changes to take effect.

8. SELECT the desired color palette (the number of colors), desktop area

(resolution), and refresh frequency in the settings page of Display
Properties and then SELECT the “Test” button in the same page to
determine whether your selection works properly. SELECT “Apply” to
active the selected mode.

14

Note: The procedure of display driver installation it required setup with service pack3

(Microsoft® Windows NT™4.0) first.

4. Frequently Asked Questions (FAQ)

Q1 Why do we need 3D graphics capability in our PC?
Answer

3D technology is becoming increasingly important (and
common) not only in games, but also in other applications such
as VRML, which allows 3D scene descriptions in Web
applications. 3D technology is used for image editing, modeling,
and an increasing number of in home and business applications.
In games, as well as other applications, 3D acceleration not only
allows better visual qualities and more realistic scenery
attributes than software alone, but it also allows a higher frame
rate, which translates into a more interactive experience for the
enduser.

Q2 What does “Rendering Engine” mean?
Answer

“Rendering Engine” generically applies to the part of the
graphics engine that draws 3D primitives, usually triangles. In
most implementations, the rendering engine is responsible for
interpolation of edges and "filling in" the triangle.

Q3 What does the set-up engine do in a graphics controller?
Answer

A set-up engine allows drivers to pass triangles in the form of
raw vertex information; whereas, most common designs force
triangles to be pre-processed for the rendering engine in terms
of delta values for edges, color, and texture.

Q4 Why does a 3D graphics chip need to have both a rendering
engine and a setup engine?

Answer

Any “3D application”, a game, VRML, or modeling package, can
benefit from 3D rendering. This is especially true of applications
that use texturing extensively, because texturing and texture

15

filtering are very intensive operations at the pixel level in terms
of CPU operations and demands for memory bandwidth.
Without a set-up engine in a graphics controller, the CPU has to
calculate the delta values for edges, color, and textures; the
drivers need to handle ten (10) times more extensive data. This
results in slower 3D pipeline operations between the CPU and
the graphics controller.

Q5 If we use powerful CPUs, such as a Pentium™ 200, can a
standard 2D graphics card achieve 3D performance?

Answer

Yes and no. Software rendering can take advantage of "tricks"
learned by force of necessity through years of trial and error.
With such stratagems, the speed of software rendering for
simple scenes can approach that of low-level hardware 3D
rendering. On the other hand, as scenes become more complex
(or frame sizes become larger), there are conflicts between
using the CPU for high-level game logic, geometry, lighting, and
rendering, all of which increase their demands. No current CPU
or system can perform advanced quality-enhancements (bilinear
filtering and alpha blending) in real time. Even general case
texture mapping with RGB lighting is too much for the current
CPU generation.

Q6 What does "software 3D" mean ?
Answer

Software 3D is generally used to mean using non-specific (2D)
hardware in conjunction with the CPU to render for 3D
applications. Some of these techniques allow usable 3D
applications when high-powered and/or MMX™-equipped CPU's
are employed along with special-case software optimization
techniques. As stated above, SW 3D can achieve credible
results with today's (software optimized) applications, but the
rising popularity of good 3D hardware at the consumer price
level is inexorably compelling the public to expect hardware
level scene enhancements and frame rates.

Q7 What is “SGRAM”?
Answer

Synchronous Graphics Random Access memory (SGRAM) is a
new and improved type of memory, custom-designed for
graphics use.

16

Q8 What is the advantage of SGRAM as compared to ordinary
DRAM?

Answer

SGRAM is now capable of running at much higher speeds than
Fast Page Mode or EDO DRAM. Also, SGRAM is able to
execute a small number of frequently executed operations, such
as buffer clears, specific to graphics applications, independently
of the controller.

5. Troubleshooting

The following are some recommended steps to take if the GUI
accelerator adapter will not boot or operate properly in your system:

1. Ensure that the monitor or TV brightness and contrast
controls are properly adjusted.

2. Check to see if your monitor or TV is properly connected to
the card. Be sure your monitor's pin definitions match those
of your GUI accelerator card (See Appendix B). For TV out,
ensure that the composite signal is connected to a “Video
Input” RCA jack on the TV (or check the S-video
connection). Read the TV owner’s manual to select the
proper signal jack for the display.

3. Turn the system on and confirm that the power supply is
operating properly; i.e., that the fan operates and the system
power light turns on.

4. Check to see if the card is firmly seated in its PCI bus
expansion slot. It should not be making contact with any
other cards in the system.

Note: Turn the system off before adjusting the card.

Problem: Windows hangs up during or after installing a driver.

Solution A: Reread installation procedures to be sure you have

installed the drivers correctly.

Problem: Windows color palette does not look right or colors

changing.

Solution: Most likely a defective RAMDAC, memory chip, clock

chip, or crystal. Contact your dealer to have the problem
repaired.

17

Problem: Can't display certain modes.

Solution A: Run the SVM program (See the User's Guide for more

information on the SVM program). If the SVM program
fails, go to Solutions B, and C.

Solution B: Check to see that there is enough memory on the GUI

accelerator to run this mode. For example, to run display
mode 79H (1024x768-64K colors, refer to the tables in
Section 2), 2 MB of display memory is required.

Solution C: If Solutions A, or B do not resolve this problem, it may

be hardware related. Check the specifications of the
monitor.

18

6. Appendix A: Video Mode Table

The adapter’s video modes include all of the following:

TABLE 6-1: STANDARD VGA MODE SUPPORT

ModeMode

##

0h,1h 320x200-16 31.4 70 512K 40x25 Text
2h,3h 640x400-16 31.4 70 512K 80x25 Text
4h,5h 320x200-4 31.4 70 512K 40x25 Graph

6h 640x200-2 31.4 70 512K 80x25 Graph

7h 720x350-Mono 31.5 70 512K 80x25 Text
Dh 320x200-16 31.4 70 512K 40x25 Graph
Eh 640x200-16 31.4 70 512K 80x25 Graph
Fh 640x350-2 31.4 70 512K 80x25 Graph

10h 640x350-16 31.4 70 512K 80x25 Graph
11h 640x480-2 31.4 60 512K 80x30 Graph
12h 640x480-16 31.4 60 512K 80x30 Graph
13h 320x200-256 31.4 70 512K 40x25 Graph

ResolutionResolution

-Colors-Colors

HorzHorz

KHzKHz

VertVert

HzHz

MemMem

ReqReq

TextText
Res.Res.

ModeMode

TypeType

19

TABLE 6-2: EXTENDED VGA MODE SUPPORT

ModeMode

##

2Ch 320x200-256 31.6 70 512K 40x12 Graph
2Dh_4 320x240-256 43.3 85 512K 40x15 Graph
2Dh_3 320x240-256 37.5 75 512K 40x15 Graph
2Dh_2 320x240-256 37.9 72 512K 40x15 Graph
2Dh_1 320x240-256 31.5 60 512K 40x15 Graph
2Eh_3 400x300-256 53.7 85 512K 50x18 Graph
2Eh_2 400x300-256 46.9 75 512K 50x18 Graph
2Eh_1 400x300-256 37.9 60 512K 50x18 Graph

3Bh 320x200-16M 31.6 70 512K 40x12 Graph
3Ch_4 320x240-16M 43.3 85 512K 40x15 Graph
3Ch_3 320x240-16M 37.5 75 512K 40x15 Graph
3Ch_2 320x240-16M 37.9 72 512K 40x15 Graph
3Ch_0 320x240-16M 31.5 60 512K 40x15 Graph
3Dh_3 400x300-16M 53.7 85 512K 50x18 Graph
3Dh_2 400x300-16M 46.9 75 512K 50x18 Graph
3Dh_1 400x300-16M 37.9 60 512K 50x18 Graph

42/3h 320x200-32K/64K 31.6 70 512K 40x12 Graph
44/5h_4 320x240-32K/64K 43.3 85 512K 40x15 Graph
44/5h_3 320x240-32K/64K 37.5 75 512K 40x15 Graph
44/5h_2 320x240-32K/64K 37.9 72 512K 40x15 Graph
44/5h_1 320x240-32K/64K 31.5 60 512K 40x15 Graph
46/7h_4 400x300-32K/64K 53.7 85 512K 50x18 Graph
46/7h_3 400x300-32K/64K 46.9 75 512K 50x18 Graph
46/7h_2 400x300-32K/64K 37.9 60 512K 50x18 Graph

50h 640x480-16 31.5 60 512K 80x43 Text
51h 640x473-16 31.5 60 512K 80x43 Text
52h 640x480-16 31.5 60 512K 80x60 Text
53h 1056x350-16 31.3 70 512K 132x25 Text
54h 1056x480-16 31.3 60 512K 132x30 Text
55h 1056x473-16 31.3 60 512K 132x43 Text
56h 1056x480-16 31.3 60 512K 132x60 Text
57h 1188x350-16 31.3 70 512K 132x25 Text
58h 1188x480-16 31.3 60 512K 132x30 Text
59h 1188x473-16 31.3 60 512K 132x43 Text

5Ah 1188x480-16 31.3 60 512K 132x60 Text
5Bh_3 800x600-16 53.7 85 512K 100x75 Graph
5Bh_2 800x600-16 46.8 75 512K 100x75 Graph
5Bh_1 800x600-16 37.8 60 512K 100x75 Graph

5Ch 640x400-256 31.6 70 512K 80x25 Graph
5Dh_4 640x480-256 43.2 85 512K 80x30 Graph
5Dh_3 640x480-256 37.5 75 512K 80x30 Graph

ResolutionResolution

-Colors-Colors

HorzHorz

KHzKHz

VertVert

HzHz

MemMem

ReqReq

Text Res.Text Res. ModeMode

TypeType

20

ModeMode

##

ResolutionResolution

-Colors-Colors

HorzHorz

KHzKHz

VertVert

HzHz

MemMem

ReqReq

Text Res.Text Res. ModeMode

TypeType

5Dh_2 640x480-256 37.8 72 512K 80x30 Graph
5Dh_1 640x480-256 31.4 60 512K 80x30 Graph
5Eh_3 800x600-256 53.7 85 512K 100x37 Graph
5Eh_2 800x600-256 46.8 75 512K 100x37 Graph
5Eh_1 800x600-256 37.8 60 512K 100x37 Graph
5Fh_5 1024x768-16 68.7 85 512K 128x48 Graph
5Fh_4 1024x768-16 60.4 75 512K 128x48 Graph
5Fh_3 1024x768-16 56.4 70 512K 128x48 Graph
5Fh_2 1024x768-16 48.5 60 512K 128x48 Graph
5Fh_1 1024x768-16 35.5 87i 512K 128x48 Graph
62h_5 1024x768-256 68.7 85 1M 128x48 Graph
62h_4 1024x768-256 60.0 75 1M 128x48 Graph
62h_3 1024x768-256 56.4 70 1M 128x48 Graph
62h_2 1024x768-256 48.3 60 1M 128x48 Graph
62h_1 1024x768-256 35.5 87i 1M 128x48 Graph
63h_3 1280x1024-16 80.0 75 1M 160x64 Graph
63h_2 1280x1024-16 63.9 60 1M 160x64 Graph
63h_1 1280x1024-16 46.4 87i 1M 160x64 Graph
64h_4 1280x1024-256 91.1 85 2M 160x64 Graph
64h_3 1280x1024-256 80.0 75 2M 160x64 Graph
64h_2 1280x1024-256 63.9 60 2M 160x64 Graph
64h_1 1280x1024-256 46.4 87i 2M 160x64 Graph
65h_2 1600x1200-16 75 60 1M 200x75 Graph
65h_1 1600x1200-16 62.5 96i 1M 200x75 Graph
66h_4 1600x1200-256 106.3 85 2M 200x75 Graph
66h_3 1600x1200-256 93.8 75 2M 200x75 Graph
66h_2 1600x1200-256 75 60 2M 200x75 Graph
66h_1 1600x1200-256 62.5 96i 2M 200x75 Graph

1

6Ah_1

800x600-16 37.8 60 512K 100x75 Graph

6Bh 640x400-16M 31.6 70 2M 80x25 Graph
6Ch_4 640x480-16M 43.2 85 2M 80x30 Graph
6Ch_3 640x480-16M 37.5 75 2M 80x30 Graph
6Ch_2 640x480-16M 37.8 72 2M 80x30 Graph
6Ch_0 640x480-16M 31.4 60 2M 80x30 Graph
6Dh_3 800x600-16M 53.7 85 2M 100x37 Graph
6Dh_2 800x600-16M 46.8 75 2M 100x37 Graph
6Dh_1 800x600-16M 37.8 60 2M 100x37 Graph
66h_2 1600x1200-256 75 60 2M 200x75 Graph
6Eh_5 1024x768-16M 68.7 85 4M 128x48 Graph
6Eh_4 1024x768-16M 60.0 75 4M 128x48 Graph
6Eh_3 1024x768-16M 56.4 70 4M 128x48 Graph
6Eh_2 1024x768-16M 48.3 60 4M 128x48 Graph

21

ModeMode

##

ResolutionResolution

-Colors-Colors

HorzHorz

KHzKHz

VertVert

HzHz

MemMem

ReqReq

Text Res.Text Res. ModeMode

6Eh_1 1024x768-16M 35.5 87i 4M 128x48 Graph

72/3h 640x400-32K/64K 31.6 70 1M 80x25 Graph
74/5h_4 640x480-32K/64K 43.2 85 1M 80x30 Graph
74/5h_3 640x480-32K/64K 37.5 75 1M 80x30 Graph
74/5h_2 640x480-32K/64K 37.8 72 1M 80x30 Graph
74/5h_1 640x480-32K/64K 31.4 60 1M 80x30 Graph

76/7h _4 800x600-32K/64K 53.7 85 1M 100x37 Graph

76/7h_3 800x600-32K/64K 46.8 75 1M 100x37 Graph
76/7h_2 800x600-32K/64K 37.8 60 1M 100x37 Graph
78/9h_5
78/9h_4
78/9h_3
78/9h_2
78/9h_1

7A/Bh_3
7A/Bh_2
7A/Bh_1
7C/Dh_4
7C/Dh_3
7C/Dh_2
7C/Dh_1

1024x768-32K/64K
1024x768-32K/64K
1024x768-32K/64K
1024x768-32K/64K

1024x768-32K/64K
1280x1024-32K/64K
1280x1024-32K/64K
1280x1024-32K/64K
1600x1200-32K/64K
1600x1200-32K/64K
1600x1200-32K/64K
1600x1200-32K/64K

68.7 85 2M 128x48 Graph

60.0 75 2M 128x48 Graph

56.4 70 2M 128x48 Graph

48.3 60 2M 128x48 Graph

35.5 87i 2M 128x48 Graph
80 75 4M 160x64 Graph

63.9 60 4M 160x64 Graph

46.4 87i 4M 160x64 Graph

106.3 85 4M 160x64 Graph

93.8 75 4M 160x64 Graph

75.0 60 4M 160x64 Graph

62.5 96i 4M 160x64 Graph

NOTES:

1. VESA mode. Same as 5Bh_1.

2. The "i" in the vertical frequency column denotes "interlaced". The "N"
and "P" in the TV Out column denote "NTSC" and "", respectively.

TypeType

22

7. Appendix B: Pinout and Sync

Frequencies

7.1 Analog Color Display Pinouts (DB 15)

PIN FUNCTION

1

Red Video

2

Green Video

3

Blue Video
4 Not Used
5 Ground
6 Red Return (ground)
7 Green Return (ground)
8 Blue Return (ground)
9 Vcc (+5v DDC Power)

10 Sync Return (ground)
11 Monitor ID (not used)
12 SDA (DDC support)
13 Horizontal Sync
14 Vertical Sync
15 SCL (DDC support)

1

1

1

Note: Analog monochrome type monitors use green video for all
video input and ignore red and blue video.

7.2 Conversion Table: Pin Adapters

If you will be using a 9-to-15 pin adapter cable to link your 9 pin
monitor connector to the 15 pin accelerator card connector, check
Table 7-2 carefully before you install the cable. The 9-to-15 pin
adapter cables are available from a variety of sources, but they need to
match the specifications in Table 7-2 to work properly with your new
card.

23

The adapter cable requires a D-shaped 9 pin female connector and a
D-shaped 15 pin male connector.

TABLE 7-2. 9-TO-15 PIN CONVERSION TABLE

9 PIN SIGNALS PIN NO. 15 PIN SIGNALS PIN NO.

Red 1 Red 1

Green 2 Green 2

Blue 3 Blue 3

Horz Sync 4 Horz Sync 13

Vert Sync 5 Vert Sync 14

Red Ground 6 Return Red 6

Green Ground 7 Return Green 7

Blue Ground 8 Return Blue 8
Sync Ground 9 Digital Ground 10

Ground 5

7.3 Analog Video Signals

Black Level = 0 V
Full Intensity (White) Level = +0.7 V

8. SHIELDED CABLE WARNING

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:

Reorient or re-locate the receiving antenna.
Increase the separation between the equipment and the receiver.

24

Connect the equipment into an outlet on a circuit different from
that

to which the receiver is connected.
Consult an experienced radio/TV technician for help.

The user may find the following booklet prepared by the Federal
Communications Commission helpful:

“How to Identify and Resolve Radio/TV Interference Problems”.

This booklet is available from the U.S. Government Printing Office,
Washington, DC 20402, Stock No. 004-000-00345-4.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation,
“SHIELD INTERFERENCE CABLE(S) MUST BE USED
ACCORDING TO FCC 15.27©.”
CAUTION: Changes or modifications not expressly approved by the
Manufacturer could void your authority to operate this equipment in
accordance with FCC rules and regulations.

8.1 TRADEMARK ACKNOWLEDGMENTS

Trident Microsystems, Inc. 1997. All rights reserved.
Trident Microsystems, Inc. 3DImàge975x™ User’s Guide
Trident Microsystems, Inc. assumes no responsibility for the use of any circuit other than circuits

embodied in an Trident Microsystems, Inc. product. No other circuit patent licenses are implied.
IBM is a registered trademark and PS/2 and OS/2 are trademarks of International Business Machines

Corp.
Microsoft, Microsoft Windows, and Microsoft Word are registered trademarks of Microsoft Corp.
Pentium is a trademark of Intel Corp.
RAMDAC is a trademark of Brooktree Corporation.
3DImàge9750, 3DImàge9753 and TVGA are registered trademarks of Trident Microsystems, Inc.
VESA is a trademark of Video Electronics Standards Association.
All other product names or trademarks are property of their respective owners.

Copyright protection claimed includes all forms and matters of copyrightable material and information
now allowed by statutory or judicial law or hereinaffer granted, including without limitation, material
generated from the software programs which are displayed on the screen such as icons, screen display
looks, etc. Reproduction or disassembly of embedded computer programs or algorithms prohibited.

25

8.2 Technical Support

In the event you have a technical problem with this product,
please read the README files in the driver disks. Updated
drivers are available through Jaton BBS and Web site. Have
following information handy when you contact technical
support:

þ Name of the product.
þ Software Driver and Version.
þ System Information, such as CPU speed, BIOS version, Monitor

Specification, etc.

þ Description of the problems including any error messages.

Telephone:

BBS modem dial-up:

FAX :

Internet:

email :

[phone] 9-5 PST Mon. - Fri.

[phone] (8N1)

[phone]

http://www.jaton.com

[e-mail]

9. Limited Warranty.Limited Warranty.

Manufacturer warrants that the products sold hereunder are free from
defects in material and workmanship for a period of two (2) years from
manufacturing date. This limited warranty applies only to the original
purchaser of Jaton Product and is not transferable. This limited
warranty does not apply if failure to the Product Registration, or over
thirty (30) days from purchase (original invoice date). This Limited
Warranty does not cover any incompatibilities due to the user’s
computer, hardware, software or any related system configuration in
which the Jaton Products interfaces. Proof of purchase will be require
before any consideration by Manufacturer occurs.

9.1 Other Limits.

The forgoing is in lieu of all other warranties, expressed or
implied. Including but not limited to the implied warranties of

26

merchantability and fitness for a particular purpose. Manufacturer
does not warrant against damages or defects arising out of improper
or abnormal use of handling of the products; against defects or
damages arising from improper installation (where installation is by
persons other than Manufacturer), against defects in products or
components not manufactured or installed by Manufacturer, or
against damages result from non-manufacturer made products or
components. This warranty does not apply if the Product has been
damaged by accident, abuse, nor misuse. This warranty also does not
apply to products upon which repairs have been effected or attempted
by persons other than pursuant to written authorization by
Manufacturer.

9.2 Exclusive Obligation.

This warranty is exclusive. The sole and exclusive obligation of
Manufacturer shall repair or replace the defective products in the
manner and for the period provided above. Manufacturer shall not
have any other obligation with respect to the Products or any part
thereof, whether based on contract, tort, strict liability or otherwise.
Under no circumstances, whether based on this Limited Warranty or
otherwise, Manufacturer shall not be liable for incidental, special, or
consequential damage.

9.3 Other Statements.

Manufacturer’s employees or representatives’ ORAL OR OTHER
WRITTEN STATEMENTS DO NOT CONSTITUE
WARRANTIES, shall not be relied upon by Buyer, and are not a part

of the contract for sale or this Limited Warranty.

9.4 Terms and Conditions.

Direct Jaton Customer: This warranty applies only for a period

of two (2) years from purchase date of
Jaton original invoice.

Reseller/ Vendor: This warranty applies only for a period

of two (2) years from manufacturing
date.

Registered User: This warranty applies only for a period

of two (2) years from purchase date and
register within 30 days of purchase date
from legal reseller.

27

Others: If the products do not conform to this

Limited Warranty (as herein above
described), Manufacturer should charge
services such as repair, replacement
whether based on its costs. Shipping and
installation of the replacement Products
or replacement parts shall be at User’s
expanse.

9.5 Services agreement:

(1) All applicants shall completed service request form from

Manufacturer.

(2) All returned checks will be charged a $20.00 fee by

Manufacturer.

(3) All repair and replacement services allow 4-6 weeks from the

date of receiving by Manufacturer.

(4) All products without warranties require service processing fee

$20 (payment in advance), which is not refundable.

9.6 Entire Obligation.

This Limited Warranty states the entire obligation of Manufacturer
with respect to the Products. If any part of this Limited Warranty is
determined to be void or illegal, the remainder shall remain in force
and effect. Some states do not allow limitation of implied warranties,
or exclusive or limitation on product incidental or consequential
damages, so above limitation may not apply to you. This warranty
gives you specific legal rights. You may have other rights which may
vary from state to state.
This warranty applies only to this product, and is governed by the law

of the State of California.

10. Reducing Warranty ClaimReducing Warranty Claim

Rejections.Rejections.

To reduce the potential of incurring damages not covered by
Manufacturers warranties, we strongly recommend the following:

28

• read your manuals before installing peripherals and/or

before making changes to the machine’s configuration;

• ask your dealer if there are any known problems with the

system requirements or installation procedures for any
add-on products that your are purchasing;

• buy industry standard products where compatibility issue

are more likely to surface;

• If you are unsure about installation for a new product,

contact your dealer’s service department.

We believe it is important for you to know and understand what your
warranty coverage provides and what it does not.

We also want you to be aware that most hardware warranties only
relate to the function of the hardware. In most cases, no assurances are
given by the manufacturer that the hardware item will work in
conjunction with any other hardware item. If a computer product is not
working because it is not compatible with another product, or because
it has not been properly installed and set-up, the manufacturer does
not pay for the service time. To help avoid these inconveniences,
contact a professional consultant that one can help you determine the
possibility of incompatibility issue before you purchase add-on or
accessories.

29
