3DForceFX 5600

3DForceFX 5600-256

Display Power by GeForceFX 5600 with AGP 8X

Diamond Edition

User’s Guide

Version 1.00

Contents

INTRODUCTION .........................................................................5

FEATURES..................................................................................6

INEFX ENGINE.............................................................................6

NTELLISAMPLE TECHNOLOGY.........................................................6

I H

IGH-PRECISION GRAPHICS ...........................................................7

NVIEW MULTI-DISPLAY TECHNOLOGY..............................................7

IGITAL VIBRANCE CONTROL (DVC)...............................................7

NIFIED DRIVER ARCHITECTURE (UDA)..........................................7

AGP 8X ........................................................................................ 7

0.13 M 400MH A M N O V

DVI ............................................................................................... 9

O VIVO R C O

ICRON PROCESS TECHNOLOGY............................................8

Z RAMDACS......................................................................8

RCHITECT FOR CG........................................................................8

ICROSOFT® DIRECTX® 9.0 OPTIMIZATIONS AND SUPPORT...........8

EW 64-PHASE VIDEO SCALER....................................................... 8

PENGL® 1.4 OPTIMIZATIONS AND SUPPORT ................................8

IDEO MIXING RENDERER (VMR)...................................................9

VERALL PERFORMANCE................................................................9

EFERENCE DATA.................................................................9

OMPATIBILITY.............................................................................11

PERATING SYSTEMS ..................................................................11

SYSTEM REQUIREMENT......................................................... 11

CHECK LIST..............................................................................11

HARDWARE DESCRIPTION ....................................................12



DISPLAY DEVICES OUTPUT...................................................13

HARDWARE INSTALLATION ...................................................14

NSTALLATION PROCEDURES.........................................................14

TEPS:........................................................................................14

SOFTWARE INSTALLATION...................................................15

 WINDOWS 98 DRIVER INSTALLATION..................................15

 WINDOWS ME DRIVE INSTALLATION ...................................19

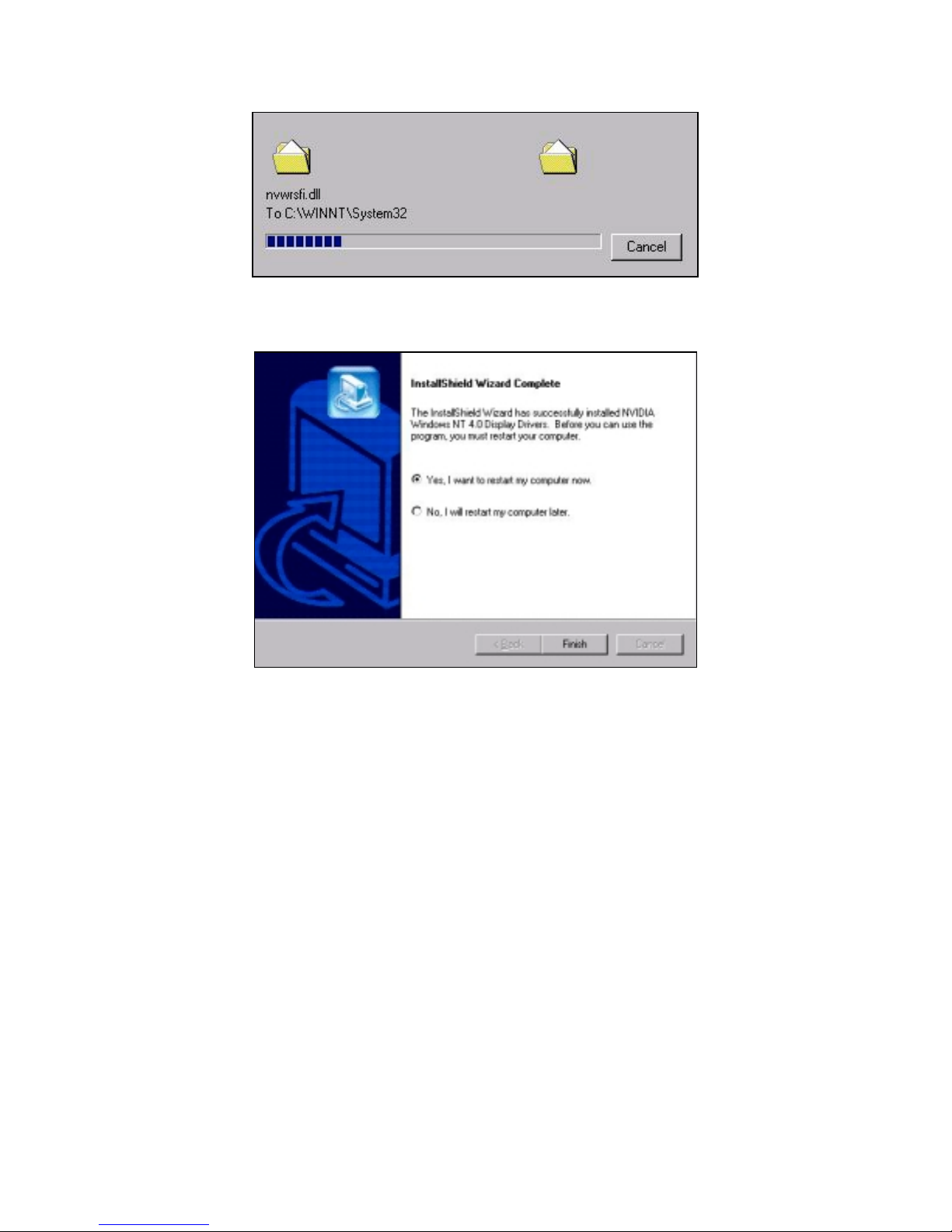

MICROSOFT WINDOWS NT™4.0........................................23

 WINDOWS 2000 DRIVER INSTALLATION..............................27

 WINDOWS XP DRIVER INSTALLATION .................................31

WDM D

3D LC SHUTTER GLASSES..................................................... 36

H 3D LC H S H H

RIVER INSTALLATION........................................................ 35

ARDWARE COMPONENTS............................................................36

SHUTTER GLASSES VGA-PT SYNCHRONIZER .....................37

ARDWARE SPECIFICATION..........................................................37

YSTEM REQUIREMENT.................................................................38

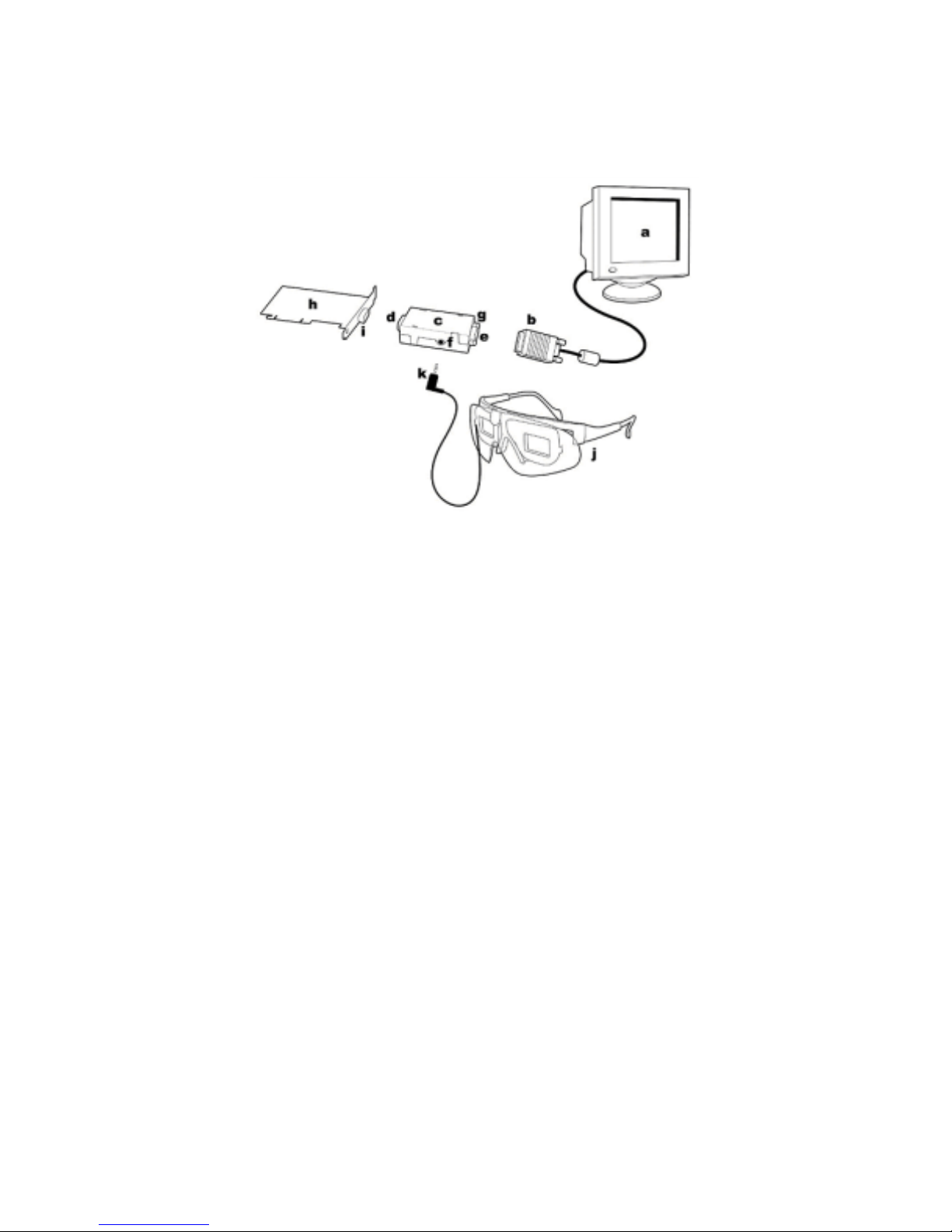

ARDWARE INSTALLATION............................................................39

OW TO W E A R APEC’S 3D LC SHUT T ER GLASSES .......................41

How to adjust the proper length of ear piece..........................41

How to wear LC shutter glasses over your own regular glasses41

OFTWARE INSTALLATION ............................................................42

You must install the following drivers according to the listed

sequence................................................................................42

TECHNICAL ASSISTANCE.......................................................43

REQUENTLY ASKED QUESTIONS (FAQ).......................................45

PINOUT AND SYNC FREQUENCIES....................................... 47

NALOG COLOR DISPLAY PINOUTS (DB 15)..................................47

A C

ONVERSION TABLE: PIN ADAPTERS.............................................47

TO-15 PIN CONVERSION TABLE .................................................48

IGITAL VISUAL INTERFACE (DVI - I) CONNECTOR.........................48

ECHNICAL SUPPORT...................................................................49

OW TO OBTAIN WARRANTY SERVICE..........................................50

LIMITED WARRANTY...............................................................52

THER LIMITS..............................................................................52

XCLUSIVE OBLIGATION. ..............................................................53

THER STATEMENTS....................................................................53

ERMS AND CONDITIONS..............................................................53

ERVICES AGREEMENT:................................................................54

NTIRE OBLIGATION..................................................................... 54

REDUCING WARRANTY CLAIM REJECTIONS. ..................... 55

Introduction

IntroductionIntroduction

3DForceFX 5600 series video accelerators are nVIDIA GeForceFX 5600 core technology based 128MB/256MB DDR memory modules built-in onboard totally. These AGP 8x-bus video accelerators are capable of driving very complex geometry and character animation images on your PC desktop incomparably, with truly genuine filling experience you may anticipate like never before. The particular emphasis of this AGP’s ability that is very ease of play all fancy PC games with preferred resolution, unique visual effects, life-like, and these much of realistic graphical improvements must be performed on high-end computers.

The nVIDIA GeForceFX Graphics Processing Unit (GPU) is 0.13µ Micron Process Technology, which delivers high performance through faster clock rates. CineFX engine produces gaming effects on par with the hottest motion pictures. Combined with 128-bit studio quality color processing technology, 3D worlds and characters are more real than anything is that’s come before. Powered by the CineFX engine, the GeForce FX shifts the focus from simple pixel fill rate to sophisticated pixel shading. To maximized programming choice, the nVIDIA CineFX engine includes the most complete hardware feature implementation for both OpenGL and Microsoft DirectX environments, including total support for the DirectX 9.0-vertex and pixel shader specification.

Well-developed CineFX engine features include the support of 1024 instructions in a single rendering pass, allowing for complex effects that aren’t practical in any other architectures. Complex lighting can dramatically improve the realism of images, but traditionally adds the rendering time. With GeForce FX all of those gorgeous enhancements are possible without sacrificing performance.

The Intellisample process uses gamma-adjusted sampling, taking into account the dramatic physical differences between how your eyes and monitor perceive light and color, making for much smoother and more natural edge transitions.

New nVIDIA GPUs and PC platforms will incorporate AGP 8X capabilities and take full advantage of AGP 3.0 specification. As always, nVIDIA solution incorporate new technology and advances without compromising the overall stability and quality of the system, and nVIDIA Unified Driver Architecture (UDA) makes it painless to take advantage of new capabilities as the are introduced.

For a number of years, Jaton has done a spectacular job of competing in the tough graphics card market. We’ve largely accomplished his task by always offering a little something extra over the competition. Jaton has been extremely innovative in the VIVO field, having championed both video out and video in, and also given users such neat little programs such as WinDVD Creator, which allows end users the ability to place a camera to record events.

We’ve also added a new Multi-standard video decoder and encoder chip onto our 3DForceFX 5600 Series Diamond Edition accelerators for high quality video input and TV output functions. This is a highly integrated circuit especially designed for desktop PC video applications and is a remarkable option - as opposed to just RGB and DVI such as the other makers offer.

However, as time and the market march on, the features that has always provided over the competition have now became more and more commonplace.

A matchless of hardware and software technology combination, the primary principles of 3DForce FX 5600 series video accelerators that will contribute many of new features and more benefits to your desktop computing as well as the best-performance integrated, unusual quality and exceedingly resolution.

Features

CineFX Engine

Powers cinematic effects beyond imagination. With advanced vertex and pixel shader capabilities, stunning and complex special effects are possible. In addition, increased horsepower delivers faster and smoother gameplay.

Intellisample Technology

Intellisample's intelligent gamma-adjusted antialiasing and advanced adaptive anisotropic filtering deliver silky-smooth, ultrarealistic visuals at lightning speeds. Say goodbye to the jaggies for good: your current games will benefit immediately from this

state-of-the-art technology, and the games to come will positively rock your world.

High-Precision Graphics

By combining the incredible dynamic range of today's state-ofthe-art 3D motion pictures with 128-bit studio-precision color, the GeForce FX brings you the industry’s best image quality for the most demanding applications.

nView Multi-display Technology

The nView hardware and software technology combination delivers maximum flexibility for multi-display options, and provides unprecedented end-user control of the desktop experience.

Digital Vibrance Control (DVC)

Allows the user to adjust color controls digitally to compensate for the lighting conditions of their workspace, in order to achieve accurate, bright colors in all conditions.

Unified Driver Architecture (UDA)

Guarantees forward and backward compatibility with software drivers. Simplifies upgrading to a new NVIDIA product because all NVIDIA products work with the same driver software.

AGP 8X

Provides double the bandwidth of AGP 4X—2.1GB/sec. vs.

1.1BG/sec. AGP 8X enables more complex models and detailed textures, creating richer and more lifelike environments. Uninterrupted data flow allows for smoother video streaming and faster, more seamless gameplay.

0.13 Micron Process Technology

Delivers high performance through faster clock rates.

400MHz RAMDACs

Industry’s fastest RAMDACs support QXGA displays with ultrahigh, ergonomic refresh rates.

Architect for Cg

Ensures that the newest, cutting-edge special effects in applications will run flawlessly. Speeds up content creation so game developers can get their new games out to PC users faster than ever before.

Microsoft® DirectX® 9.0 Optimizations and Support

Ensures the best performance and application compatibility for all DirectX 9 applications.

New 64-phase Video Scaler

Highest quality for scaling DVD and other video to full-screen HDTV resolutions.

OpenGL® 1.4 Optimizations and Support

Ensures the best performance and application compatibility for all OpenGL applications.

Video Mixing Renderer (VMR)

Harnesses the power of the 3D graphics engine to empower the user to view multiple video windows simultaneously with superior quality, and avoids the problems associated with video overlay.

DVI

Able to drive large displays with up to 1600x1200 resolution.

Overall performance

• 1.4 billion pixels per second fill rate

• 88 Million vertical per second fill rate

• Up to 11.2 GB per second on memory bandwidth

• 128MB/256MB DDR TSSOP onboard supported

VIVO Reference data

• Video decoder

− Two built-in analog anti-aliasing filter

− Two 9-bit ADCs

− On-chip clock generator

− Line-locked system clock frequencies

− Automatic detection of 50Hz and 60Hz field

frequency, and automatic switching between PAL and NTSC standards

− Luminance and chrominance signal processing for PAL BHGI, PAL N, combination PAL N, PAL M, NTSC M, NTSC-Japan, NTSC N, NTSC 4.43 and SECAM

− Cross-color reduction for NTSC by chrominance comb filtering

− PAL delay line for correcting PAL phase error

− Multstandard VBI data slicer decoding World Standard Teletex (WST), North-American Broadcast Text System (NABTS), Closed Caption (CC), Wide Screen Signaling (WSS), Video Programming System (VPS), Vertical Interval Time Code (VITC) variants (EBU/SMPTE) etc.

− active video

− decoded VBI data

• Video Scaler

− Both up and down scaling

− Conversion to square pixel format

− NTSC to 288 lines (video phone)

− Phase accuracy better than 1/64 pixel or line,

horizontally or vertically

− Independent scaling definitions for odd and even fields

− Anti-aliasing filter for horizontal scaling

• Video encoder

− Digital PAL/NTSC encoder with integrated high

quality scaler and anti-flicker filter for TV output from a PC

− 27 MHz crystal-stable sub carrier generation

− Maximum graphics pixel clock 45 MHz at double

edged clocking, synthesized on-chip or from external source

− Up to 800x600 graphics data at 60 Hz or 50 Hz underscan range

− Three DACs at 270 MHz sample rate for CVBS, VBS and C signals; all at 10-bit resolution

− Non-interlaced input at maximum 4:4:4 sampling

− Down scaling from 1:1 to 1:2 and up to 20% up

scaling

Support for hardware cursor

Compatibility

• nVIDIA Unified Driver Architecture (UDA)

• Fully compliant professional OpenGL 1.4

• Microsoft DirectX 9.0

• WHQL-certified for windows XP, Windows Me, windows

2000, Windows NT, and Windows 98

Operating Systems

• Windows®95/98, Windows® Me, Windows® 2000, Windows® NT (all), Windows® XP

System Requirement

• Intel Pentium® P4, or compatible system with AGP 2x4x8x Bus Extension Slot

• CD-ROM drive, Quad speed or faster

• Hard Drive with at least 20MB Free space

• MS Windows® 98/Me/NT 4.0/2000/XP operating systems

Check List

• 3DForceFX 5600 or 3DForceFX 5600-256 Diamond Edition Multimedia Accelerator

• 8” cable converter for VIVO MD 9pin connector adapt to S_Video and Composite RCA connectors.

• DVI to RGB converter for Dual RGB out

• Software & Documents CD

• Quick Start Guide (Printed)

Hardware Description

DVI-I 24Pin (DVI out)

MD-9PIN (VIVO)

DB 15 VGA (RGB out)

Bracket

Product Name / PCB Version

3DForceFX 5600 3DForceFX 5600-256

82238A 82238A

Width

NVIDIA

GeForce FX

5600

Y201

AGP Bus 8x4x2x

Core Chipset PCB Size Memory / Size

nVIDIA GeForce FX 5600 nVIDIA GeForce FX 5600

W = 6.875" x H = 4" W = 6.875" x H = 4"

8M*16 x 8 DDR TSSOP

16M*16 x 16 DDR TSSOP

Display Memory

128MB 256MB

Height

Display Devices Output

Display Devices OutputDisplay Devices Output

VIDEO OUTPUT

LCD Display Panel

TV set

CRT Monitor

Composite Video Connector

S_Video Connector

DVI to RGB Converter

MD-9PIN Conn ector

DB 15 VGA Connector

Camcorder

VCR

WIESON

DVI out Connector

VIDEO INPUT

1. RGB out - DB15 VGA connector to analog monitor.

2. VIVO - MD9 connector for Video I/O with adapt to S_Video and RCA Composite converter c abl e.

3. DVI out - DVI connect or to LCD display panel.

4. DVI convert to RGB with DVI-RGB converter for Dual RGB out.

AGP Plate

Hardware Installation

Installation Procedures

!! WARNING !!

Discharge static electricity by

touching the GROUND such as

metal part of your case

connected with good power

ground before you handle the

electronic circuit boards.

The manufacturer assumes no liability for any damage, caused directly or indirectly, by improper installation of any components by unauthorized service personnel. If you do not feel comfortable performing the installation, consult with a qualified computer technician

Steps:

1. Turn OFF all powers to your system, including any peripherals (printer,

external drives, modem, et c.).

2. Disconnect the power cord and the m oni tor cable from the back of the

computer.

3. Unfasten the cover mount i ng screws on your system and remove the

system cover. Ref er to your system user manual for instructions to determine the location of the mounting screws.

4. Remove the retaining screw that hol ds the slot cover in place. Slide

the slot cover out and put the sc rew aside (you will need it to sec ure the adapter).

5. To install the adapter in AGP expansion slot, carefully line up the gol d-

fingered edge connector on the adapter direc tly above the expansion slot connector on the motherboard. Then press the adapter into pl ace, completely. Use t he (remaining) screw you removed to s ecure the adapter-retaining bracket in plac e.

6. Replace the computer c over. Secure the cover with the mounting

screws you removed in Step 3.

You have now completed the instal l ation of your new graphics adapter on your system.

 Upgrade Steps:

Add or change your video adapter to an existing system, you may proceed a few steps before you install the new hardware and software (video display driver). The followings are some of the considers:

1. To change a new adapter, please remove the existing video driver, or replace it to SVGA driver from Windows®98/Me system before you remove the existing hardware.

2. To added a new adapter, ensure the mainboard that has available IRQ for new devices, and there is no conflict between the others.

3. If you try adding this video adapter to an ALL-IN-ONE mainboard (which video port built-in already), then you have to disable that port first. Otherwise, that will be a problem for the new video adapter setup.

4. The driver installation for system upgrade as same as below, if error occur when you proceed step 1,2 or 3, please consult with your system dealer or the existing hardware manufacturer support.

Software Installation

Software InstallationSoftware Installation

 Windows

Upgrade video adapter to an existing system. (Windows has been pre-loaded)

1. Select [Next] to install Standard VGA Graphics Adapter at Add New Hardware Wizard screen.

2. Check [Search for the best driver for your device] then select [Next]



98 Driver Installation

3. Insert the software’s CD.

4. Check [Specify a location:], Under that enter D:\Win9x, then select [Next].

5. Select [Next] to install “3DForceFX 5600, nVIDIA GeForceFX 5600” driver.

6. Select [Finish] to restart the computer.

To a new system:

1 SELECT the “Display” icon from control panel and then tab on

“Settings” screen.

1. Select Advanced at selection bar.

2. Click on Adapter tab screen.

3. Click the Change button.

4. Click the Next button at Update Device Driver Wizard.

5. Click the Next button.

6. Select Display a list of the drivers in a specific location... Then click the Next.

7. Insert the Software’s CD then Click the Have Disk button.

8. Under Copy manufacturer’s file from statement you may input D:\Win9x, click the OK button. (Where D is the letter of your CD-ROM drive, typically, D or E Drives, etc.)

9. Select ”3DForceFX 5600, nVIDIA GeForceFX 5600”, then Click the OK button.

10. Click the Next button.

11. Click the Finish button.

12. Click the Close button.

13. Click Close at the Display Properties screen.

14. Click the Yes button next to restart computer.

InstallShield Program:

Since the Microsoft InstallShield program has been added into our software’s CD, the Display Driver Installation and its procedures are much easier for users to run with Windows 98/Me operating systems. When you power-up the computer and boots-up in W i ndows, the Plugn-Play detects new hardware and pops-up install wizard. Do Not [Cancel] because you must place a default display setting from Microsoft Windows for your video adapter, then restart your Windows. After the desktop has loaded completely, insert the software’s CD into CD ROM drive and proceed the display driver installation which provided from hardware manufacturer.

1. Autorun feature brings-up the “Welcome Screen”, and you may point to “display driver” then press on it.

2. Microsoft InstallShield Wizard has start loading its setup process;

please wait until it has completed.

3. Click on “Next” to continue the process.

The Windows system will copy all driver files from source media to

your local hard disk; please wait until the process has completed.

5. Click on “Finish” to restart your computer, the new display driver will be in place after Windows boots-up.

 Windows



Me Drive Installation

Upgrade video adapter to an existing system. (Windows has been pre-loaded)

1. Select [Next] to install Standard VGA Graphics Adapter at Add New Hardware Wizard screen.

2. Check [Search for the best driver for your device] then select [Next]

3. Insert the software’s CD.

4. Check [Specify a location:], Under that enter D:\Win9x, then select [Next].

5. Select [Next] to install “3DForceFX 5600, nVIDIA GeForceFX 5600” driver.

6. Select [Finish] to restart the computer.

To a new system:

1. SELECT the “Display” icon from control panel and then tab on “Settings” screen.

2. Select Advanced at selection bar.

3. Click on Adapter tab.

4. Click the Change button at Adapter Screen

5. Click [Specify the location of the driver (Advanced)] then check Next.

6. Insert Software’s CD to CD-ROM.

7. Click Specify a location then under Copy manufacturer’s file from statement you may input D:\Win9x, click the Next button. (Where D is the letter of your CD-ROM drive, typically, D or E drives, etc.)

8. Click Next to install “3DForceFX 5600, nVIDIA GeForceFX 5600” driver.

9. Click the Finish button.

10. Click the Yes button next to restart comput er.

InstallShield Program:

CD ROM drive and proceed the display driver installation which provided from hardware manufacturer.

1. Autorun feature brings-up the “Welcome Screen”, and you may point to “display driver” then press on it.

2. Microsoft InstallShield Wizard has start loading its setup process;

please wait until it has completed.

3. Click on “Next” to continue the process.

4. The Windows system will copy all driver files from source media to

your local hard disk; please wait until the process has completed.

5. Click on “Finish” to restart your computer, the new display driver will be in place after Windows boots-up.

 Microsoft Windows

The procedure of display driver installation it required setup with service pack 6 (Microsoft® Windows NT™4.0) first. After your windows desktop has loaded with service pack 6 completely, you may insert the software CD into CD ROM drive and following the install steps below:



NT™4.0

Upgrade video adapter to an existing system. (Windows has been pre-loaded)

1. SELECT the “Display” icon in control panel and then SELECT the “Settings” page.

2. SELECT “Display Type...” button in the “Settings” page.

3. SELECT “Change...” button from the Adapter type section.

4. SELECT “Have Disk...” button from the Change Display page.

5. Windows NT 4.0 prompt you for the location where those files for video driver. INPUT the path or unfold with “X:\Winnt4\”. (X: is the CD ROM drive where the Software & Documents CD has been inserted.)

6. If the driver “3DForceFX 5600, nVIDIA GeForceFX 5600” is listed under the Display list, SELECT the “OK” button to continue.

7. Once the driver files are copied, RESTART Microsoft Windows NT 4.0 for the changes to take effect.

8. SELECT the desired color palette (the number of colors), desktop area (resolution), and refresh frequency in the settings page of Display Properties and then SELECT the “Test” button in the same page to determine whether your selection works properly. SELECT “Apply” to active the selected mode.

InstallShield Program:

Since the Microsoft InstallShield program has been added into our software’s CD, the Display Driver Installation and its procedures are much easier for users to run with WindowsNT™ operating system. After the desktop has loaded with service pack 6 completely, insert the software’s CD into CD ROM drive and proceed the display driver installation which provided from hardware manufacturer.

1. Autorun feature brings-up the “Welcome Screen”, and you may point to “display driver” then press on it.

2. Microsoft InstallShield Wizard has start loading its setup process;

please wait until it has completed.

3. Click on “Next” to continue the process.

4. Scroll down and select on the “3DForceFX 5600, nVIDIA

GeForceFX 5600”, then click on “OK” for next screen.

5. The Windows system will copy all driver files from source media to

your local hard disk; please wait until the process has completed.

6. Click on “Finish” to restart your computer, the new display driver

will be in place after Windows boots-up.

 Windows

Upgrade video adapter to an existing system. (Windows has been pre-loaded)



2000 Driver Installation

1. Select [Next] at Found New Hardware Wizard.

2. Check [Search for a suitable driver for my device (recommended)] then select [Next].

3. Insert the Software’s CD.

4. Check [Specify a location:]

5. Under [Copy manufacturer’s files from:] enter D:\WIN2K&XP, where D is your CD_ROM drive. Then click on [OK].

6. Select [Next] to install “3DForceFX 5600, nVIDIA GeForceFX 5600” driver.

7. Select [Finish] to restart the computer.

InstallShield Program:

Microsoft Windows®2000 detects this new hardware and places appropriate display driver from its system folder automatically - it doesn’t matter you have added a new driver or changed the existing one. To maximum the video board acceleration and increase its performance, you may install the manufacturers display driver as the follows:

1. Autorun feature brings-up the “Welcome Screen”, and you may

point to “display driver” then press on it.

2. Microsoft InstallShield Wizard has start loading its setup process;

please wait until it has completed.

3. Click on “Next” to continue the process.

4. Click on “Yes” to continue the installation. Otherwise, you may

terminate the process by clicking on “No”.

5. Click on “Finish” to restart your computer, the new display driver

will be in place after Windows boots-up.

 Windows

Upgrade video adapter to an existing system. (Windows has been pre-loaded)

1. Select [Next] at Found New Hardware Wizard.

2. Check [Search for a suitable driver for my device (recommended)] then select [Next].

3. Insert the Software’s CD.

4. Check [Specify a location:]

5. Under [Copy manufacturer’s files from:] enter D:\WIN2K&XP, where D is your CD_ROM drive. Then click on [OK].

6. Select [Next] to install “3DForceFX 5600, nVIDIA GeForceFX 5600” driver.

7. Select [Finish] to restart the computer.



XP Driver Installation

InstallShield Program:

Microsoft Windows® XP detects this new hardware and places appropriate display driver from its system folder automatically - it doesn’t matter you have added a new driver or changed the existing one. To maximum the video board acceleration and increase its performance, you may install the manufacturer display driver as the follows:

1. Autorun feature brings-up the “Welcome Screen”, and you may

point to “display driver” then press on it.

2. Microsoft InstallShield Wizard has start loading its setup process;

please wait until it has completed.

3. Click on “Next” to continue the process.

4. Click on “Continue Anyway” to carry through the installation. Otherwise, you may terminate the process by clicking on “Stop Installation”.

5. The Windows system will copy all driver files from source media to

your local hard disk; please wait until the process has completed.

6. Click on “Finish” to restart your computer, the new display driver

will be in place after Windows boots-up.

Notice:

We believed that the all steps where mentioned above are the clear and the correct procedures for installing display driver from manufacturer software’s CD to your operating system. Any procedures other than these processes have not been specified.

WDM Driver Installation

This software is the Universal Video Capture Driver from nVIDIA (WDM), which can be enabled receipt and work with a video stream. To install the WDM driver, you may click on the “WDM Driver” link button of “Welcome” screen then following the screen instruction to complete its process.

If autorun is unavailable to bring-up the “Welcome” screen for your WDM Driver installation, you may explore on the software’s CD, unfold [WDM] directory, and then click on “setup.exe” to start the WDM program. The WDM software is compatible to install and run with all Microsoft Windows operating systems.

Notice:

We believed that the all steps where mentioned above are clear and the correct procedures for install display driver from manufacturer software’s CD to your operating system, Any procedures other than these processes have not been specified.

3D LC Shutter Glasses

3D LC Shutter Glasses3D LC Shutter Glasses

Hardware Components

After purchasing APEC’s 3D LC shutter glasses, please make sure that you have the following 2 components inside the package: 3D LC shutter glasses and VGA-PT synchronizer.

3D LC shutter glasses VGA-PT synchronizer

Hardware Specification

Component Specification

Working Voltage(V) 12 5 Working Current(mA) < 0.02 < 2.0 Working

Temperature(°C) Working Vertical

Refresh Rate(Hz) Weight(gm) 50(w/o wire) 30 Dimension(cm3) N/A 62 x36 x12.7

Certification N/A FCC / CE Patent Applied N/A pending

3D LC shutter

glasses

0 ~ 50 0 ~ 50

< 150 > 50

VGA-PT

synchronizer

(w/o connector)

System requirement

3D Acceleration Card

Monitor Any Multiscan CRT monitors which

CPU Pentium 90 MHz or greater(also refer to

Memory 8 MB System Memory.

O/S Windows 95/98/Me/XP/2000, with

VGA Driver nVIDIA Unified Driver Architecture (UDA)

Any chipset from one of the following nVIDIA product families: TNT (including any TNT2 and Vanta

products) GeForce (including any GeForce256,

GeForce2, GeForce3 and GeForce4 products)

supports at least 100Hz vertical sync refresh rate at the resolution of 640X480 or higher.

LCD Monitor is not supported.

specific game requirements)

DirectX8 runtime installed.

installs as mentioned earlier.

Stereoscopic Driver

Games Support Direct3D(D3D) and OpenGL.

Photos Support JPS format

nVIDIA Stereo Driver (StereoE.exe).

Hardware Installation

Connection

A. PC monitor G. Bolt B. Monitor's VGA signal input

cable

C. VGA-PT synchronizer I. Graphic card's VGA output

D. 15-pin male connector J. 3D LC shutter glasses E. 15-pin female connector K. 3D LC shutter glasses’ plug F. Glasses jack

Steps:

H. APEC’s graphic card

signal port

1. Turn off power of the computer. Disconnect monitor's

VGA signal input cable (b) from graphic card's VGA output signal port (i).

2. Connect VGA-PT synchronizer(c) 15-pin male

connector (d) to graphic card's VGA output signal port (i).

3. Screw in the bolts (g) solidly.

4. Connect monitor's VGA signal input cable (b) to VGA-

PT synchronizer(c) 15-pin female connector (e).

5. Connect 3D LC shutter glasses' plug (k) to VGA-PT

synchronizer(c) glasses jack (f). Please make sure that the plug is connected all the way to the end.

6. The installation of 3D glasses is done. Please turn on

power of the computer, and boot up PC to Windows environment.

Special Note:

• After the completion of 3D glasses’ installation, please do not

disconnect VGA-PT synchronizer anytime when your PC is powered on. Be sure to turn off the power of your PC anytime before you want to connect or disconnect VGA-PT synchronizer.

• 3D LC shutter glasses will not work unless nVIDIA’s stereoscopic

effect is enabled.

• Do not turn off and on your monitor when using stereo mode.

nVIDIA’s stereo signal may be malfunction if monitor’s power is reset. APEC’s LC shutter glasses will detect the stereo signal and stop working automatically if the correct stereo signal is not provided. It is necessary to reboot your PC in order to make stereo available again if this situation occurs.

How to wear APEC’s 3D LC shutter glasses

The cool styling APEC’s 3D LC shutter glasses has a lightweight design. The adjustable ear piece allows to fit kids and adults and is able to provides the most comfortable use.

How to adjust the proper length of ear piece

The tail of 3D LC shutter glasses’ ear piece can be pulled out or pushed in for obtaining a proper length.

How to wear LC shutter glasses over your own regular glasses

3D LC shutter glasses can be over regular glass es and be supported stable if 3D glasses’ ear piec e can be set on the regular glasses’ ear piece.

Software Installation

It is necessary to install three driver programs, i.e. DirectX 8.0, nVIDIA basic VGA driver (UDA) and nVIDIA Stereo drivers (

StereoE.exe) on nVIDIA’s VGA cards. Please follow the

instructions below to install those three drivers.

You must install the following drivers according to the listed sequence.

• Install Microsoft DirectX 8.0(or later).

• Install nVIDIA Unified Driver Architecture VGA driver (UDA).

• Install nVIDIA Stereoscopic Driver (StereoE.exe).

In order to convert 2D images of any Direct3D (D3D) or OpenGL based game into exciting 3D stereos copic images as well as to display 3D photos with JPS format,

1. DirectX 8.0 - You may click on “DirectX” selectable button from Welcome screen picture.

2. nVIDIA VGA Driver - You may click on “Display Driver” selectable button from Welcome screen as mentioned previously.

3. nVIDIA Stereo drivers - You may click on “Browse CD” selectable button from Welcome screen picture and open “3DGlasses” folder, then click on ”StereoE.exe” to install Stereoscopic Driver.

Technical Assistance

Q: Why is t he di splay shifted or changed si zes when I switch display modes ? Explain and Suggestion:

Some monitors l ack auto-sizing features or j ust do not synchronize properly to the video board output. In some cases, horizontal and verti cal display adjustments may be necessary. Use the monitor control panel func tions to adjust screen.

In other cases, mode type and refresh rate adjustments may be necess ary. Use the utility program, which provided by video card manufacturer or production developer. To centering the display with normal type (mode 3), and to reduce (decrease) the refresh rate with the monitor's specifi cation.

Q: What ki nd monitors can display 800x600 mode or hi gher resolution mode? Explain and Suggestion:

To display 800x600 resolution at 60Hz refresh rate, the monitor mus t be capable of synchronizing a 31.5KHz horizontal scan rate (e.g., NEC 2A, 3D). At 72Hz refresh rate, the monitor must be capable of s ynchronizing a 48.0KHz scan rate (e.g., Sony HG 1304, NEC 4D, 5D, Seiko 1450).

To display 1024x768 interlaced mode; the monitor must be c apabl e of synchronizing a 35.5KHz horizontal s can rate (e.g., NEC 3D, Seiko 1430 or

1440). To display 1024x768 non-interlaced mode at 60Hz, the monitor mus t be

capable of synchronizing a 48.7KHz scan rate (e.g., Sony HG 1304, NE C 4D, 5D, Seiko 1450).

To display 1024x768 non-interlaced mode at 70Hz, the monitor must be capable of synchronizing a 56.4KHz sc an rate (e.g., NEC 4D).

Q: Windows screen won't come up, it kicks back to DOS prompt. Why?

Explain and Suggestion: Windows® 95

Inadvertently, certain c onf i guration files (e.g., msdos.sys, and command.com) have been changed in the system. Proceed to correct that, i s re-boot the system with a system (Windows® 95) formatted floppy di skette.

There are many reasons to causi ng t he system booting-up with un-appropriated steps. Base on Micros of t support wizard on their WE Bsite, there are many technical articles to help users with this subjec t, such as troubleshoot i ng with VXD errors, virus, Fatal exceptions, et c., more details cover on each issue are descriptive and familiar with, and exclusively further to our support.

Q: System hangs-up after installing video driver. Explain and Suggestion:

Today, most video drivers are developed for 32-bit processing and m ay requi re a channel to Code/Decode. Conflict between device drivers and TSR (termi nateand-stay-resident) programs will inverted the display, and are particularly effectual at crashing computer. The most effective way to check for conflicts i s to replace with the original video driver, or delete and re-i nstall the current video driver to the system.

Accomplishing IRQs (Interrupt Request Query) set tings or troubleshooting the conflicts on hardware source may necessary. Most A GP video cards designed for Plug-n-Play, that means video card IRQ's set up whic h controls by main board’s (motherboard) circuitry and BIOS. Physically pulling out other devices from system , and re-starts the com put er. Confirm and modify your IRQ addresses with qualified computer technician.

Q: Multiple images or unreadabl e screen after loading video driver. Explain and Suggestion:

There are a variety of reasons why the display might be distorted. One common reason is a monitor mis-match. S ome older multi-frequenc y monitors are unable to switch video modes without bei ng turned off, then turned on again.

If the problem occurri ng i n windows, make sure that you have loaded that proper video driver, and that the driver is compatible with the monit or bei ng used. Try re-configuring your application s oftware to use a compatible video mode. If problem persist in windows, load the standard generic VGA driver. The generic VGA driver should function properl y with vi rtually every video board and VGA (or SVGA) monitor availabl e.

If that is an unsati sfactory solution, you may have to upgrade to a monitor t hat supports the desired video m ode.

Some new monitors are also synchronizing this problem because built-in DDC (Data-Digital-Channel) feature. S ometime that DDC aut omatically setup t he display frequency without loading video dri ver. Try to turn it off, or change settings of moni tor type in your system.

Q: Selection of color, resolution and refresh rate c ombination that always backs to default after restart the system.

Explain and Suggestion:

Accordingly, there m ust be a bug (defected source-c ode) i n vi deo dri ver, or in the system. Debug the source-code or fix the error in video driver that s houl d be done by the driver developer. Likewise, upgrade the video driver f rom the manufacturer or from the original software developer is neces sary.

Frequently Asked Questions (FAQ)

Q1 Why do we need 3D graphics capability in our PC? Answer

3D technology is becomi ng i ncreasingly important (and common) not only in games, but also in ot her appl i cations such as VRML, which all ows 3D scene descriptions in Web applications. 3D technology is used for image editing, modeling, and an increasing number of in home and business applications. In games, as well as other appli cations, 3D accelerati on not only allows better visual qualities and m ore real i stic scenery attri butes than software alone, but it also allows a higher frame rate, which translates into a more i nteractive experience for the end user.

Q2 What does “Rendering Engi ne” mean? Answer

“Rendering Engine” generically applies to t he part of the graphics engine that draws 3D primitives, usuall y t ri angl es. In most implementations, the rendering engine is responsible for interpolation of edges and "filling in" t he t riangle.

Q3 What does the s et-up engine do in a graphics controller? Answer

A set-up engine allows drivers to pass triangles in the form of raw vertex information; whereas, most common designs force triangles t o be pre-processed for the rendering engine in terms of delta values for edges, col or, and texture.

Q4 Why does a 3D graphics chip need to have both a rendering engine and a setup engine?

Answer

Any “3D application”, a game, VRML, or modeling package, can benefit from 3D rendering. This is especiall y t rue of an application that uses t exturing extensively, because texturing and texture filt eri ng are very i ntensive operations at the pixel level in terms of CPU operations and demands for memory bandwidth. Without a set-up engine in a graphics control l er, the CPU has to calculate the delta values for edges, color, and textures; the drivers need to handle ten (10) times m ore extensi ve dat a. This results in sl ower 3D pipeline operations between the CPU and the graphics controller.

Q5 If we use powerful CPUs, such as a P entium™ 200, can a standard 2D graphics card achieve 3D performance?

Answer

Yes and no. Software rendering can take advantage of "tricks" learned by force of necessity through years of trial and error. With such stratagems, the speed of software rendering for simple s cenes can approach that of low-level hardware 3D rendering. On the other hand, as scenes become more complex (or frame sizes become larger), there are conflicts between usi ng t he CPU for high-level game logic, geomet ry, lighting, and rendering, all of which i ncrease their demands. No current CPU or s ystem can perform advanced qualityenhancements (bilinear filtering and alpha blending) in real time. Even general case texture mapping with RGB lighti ng i s too much for the c urrent CPU generation.

Q6 What does "s of tware 3D" mean? Answer

Software 3D is generally used to mean using non-specific (2D) hardware in conjunction with the CPU to render f or 3D appl i cations. Some of t hese techniques allow usable 3D applicati ons when high-powered and/or MMX™equipped CPU's are employed along with special-case software optimization techniques. As stated above, SW 3D can achieve credible results with today's (software optimized) applications, but the rising populari ty of good 3D hardware at the consumer price l e vel i s inexorably compelling the public t o expect hardware level scene enhancements and f rame rates.

Q7 What is “SGRA M”? Answer

Synchronous Graphics Random A ccess Memory (SGRAM) is a new and improved type of mem o ry, custom-designed for graphi cs use.

Q8 What is the advantage of as compared to ordinary DRAM? Answer

is now capable of running at much higher speeds than Fast Page Mode or EDO DRAM. Also, is able to execute a small number of frequently executed operations, such as buffer clears, specifi c to graphics applicati ons, independently of the controller.

Pinout and Sync Frequencies

Analog Color Display Pinouts (DB 15)

PIN FUNCTION

Red Video

Green Video

Blue Video 4 Not Used 5 Ground 6 Red Return (ground) 7 Green Return (ground) 8 Blue Return (ground) 9 Vcc (+5v DDC Power)

10 Sync Ret urn (ground) 11 Monitor ID (not used) 12 SDA (DDC s upport) 13 Horizontal S ync 14 Vertical Sync 15 SCL (DDC support )

Note: Analog monochrome type monitors use green video for all video input and ignore red and blue video.

Conversion Table: Pin Adapters

If you will be using a 9-to-15-pin adapter cable to link your 9-pin monitor connector to the 15-pin accel erator card connector, chec k Table carefully before you install the cable. The 9-t o-15 pi n adapter cables are available from a vari ety of sources, but they need t o match the specif i cations in Table to work properly with your new card.

The adapter cable requires a D-shaped 9 pin female connector and a D-shaped 15 pin male connector.

9-to-15 Pin Conversion Table

9 PIN SIGNALS PIN NO. 15 PIN SIGNALS PIN NO.

Red 1 Red 1

Green 2 Green 2

Blue 3 Blue 3

Horz Sync 4 Horz Sync 13

Vert Sync 5 Vert Sync 14

Red Ground 6 Return Red 6

Green Ground 7 Ret urn Green 7

Blue Ground 8 Ret urn Blue 8

Sync Ground 9 Digital Ground 10

Ground 5

Analog Video Signals

Black Level = 0 V Full Intensity (White) Level = +0.7 V

Digital Visual Interface (DVI - I) Connector

1 8 C1 C2

17 24 C3 C4

24 pin DVI FEMALE connector buil t -i n onboard.

Pin Number Signals

1TMDS Data 2 2TMDS Data 2 + 3 TMDS Data 2 Shield 4 No Connection 5 No Connection 6DDC Clock 7 DDC Data 8 No Connection 9TMDS Data 1 -

10 TMDS Data 1 + 11 TMDS Data 1 Shield 12 No Connection 13 No Connection 14 +5 V Power 15 Ground (for +5 V) 16 Hot Plug Detect 17 TMDS Data 0 18 TMDS Data 0 + 19 TMDS Data 0 Shield 20 No Connection 21 No Connection 22 TMDS Clock Shield 23 TMDS Clock + 24 TMDS Clock <

Technical Support

In the event you have a technical problem with this product, pl ease read the README files in the software CD_ROM. Updated drivers are available through Jaton Web site. Have following information handy when you contact technical s upport :

 Name of the product.  S of tware Driver and Version.  S ys tem Informati on, such as CPU speed, BIOS version, Monitor

Specification, et c.

 Des cription of the problems i ncluding any error messages.

Telephone:

FAX:

email:

Website:

(408) 934-9369 9-5 PST Mon. - Fri.

(408) 942-6699

vgasupport@jaton.com

www.jaton.com

How to Obtain Warranty Service

In the worldwide contact: www.jaton.com

In United States contact:

Jaton Corporation.

Service Center 556 S.Milpitas Blvd., Milpitas, CA 95035 (408)-934-9369

In Europe contact:

Jaton Europe B.V.

Overwegwachter 3, 3034 G, Potterdam, Netherland (Holland) 31-10-412-1154

In Thailand contact:

Jaton (Thailand) Co., Ltd.

27th Floor, Panjathani Tower 127/32 Nonsee Rd., Chongnonsee Yannawa, Bangkok 10120 Thailand Tel: 662-681-0388

In Taiwan contact:

In Australia contact:

Jaton Technology pty, Ltd.

Unit 8, 41-49 Norcal Road, Nunawading, Vic 3131 Australia Tel: (Mel) 03 9873 3999 (Syd) 02 9476 8781 Fax 03 9873 3933

FCC SHIELDED CABLE WARNING:

This equipment has been tes ted and found to comply with the lim its for a Cl ass B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interferenc e, and (2) this device m ust accept any interference received, including interference that may cause undesired operation,

“SHIELD INTERFERENCE CABLE (S) MUST BE USED ACCORDING TO FCC 15.27©.” CAUTION: Changes or modificati ons not expressly approved by the Manufacturer could voi d your

authority to operate this equipment in accordance with FCC rules and regul at i ons.

SOFTWARE LICENSE AGREEMENT:

The Company grants the customer a non-exclus ive, non-transferable license to use the software in this package for i nternal use on a singl e computer s ystem. No other lic ense of any kind is granted to any part of t he product or any of the intellect ual property therein.

TRADEMARK AND COPYRIGHT:

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology

must be authorized by Macrovision Corporation , and is intended for home and other limited viewing used only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

All Trademarks and Registered Trademarks belong to respective owners.

Limited Warranty.

Manufacturer warrants that the products sold hereunder are free from defects in material and workmanship for a period of two (2) years from manufacturing date. This limited warranty applies only to the original purchaser of Jaton Product and is not transferable. This limited warranty does not apply if failure to the Product Registration, or over thirty (30) days from purchase (original invoice date). This Limited Warranty does not cover any incompatibilities due to the user’s computer, hardware, software or any related system configuration in which the Jaton Products interfaces. Proof of purchase will be requiring before any consideration by Manufacturer occurs.

Other Limits.

The forgoing is in lieu of all other warranties, expressed or implied. Including but not limited to the implied warranties of merchantability and fitness for a particular purpose.

Manufacturer does not warrant against damages or defects

arising out of improper or abnormal use of handling of the products; against defects or damages arising from improper installation (where installation is by persons other than Manufacturer), against defects in products or components not manufactured or installed by Manufacturer, or against damages result from non-manufacturer made products or components. This warranty does not apply if the Product has been damaged by accident, abuse, nor misuse. This warranty also does not apply to products upon which repairs have been affected or attempted by persons other than pursuant to written authorization by Manufacturer.

Exclusive Obligation.

This warranty is exclusive. The sole and exclusive obligation of Manufacturer shall repair or replace the defective products in the manner and for the period provided above. Manufacturer shall not have any other obligation with respect to the Products or any part thereof, whether based on contract, tort, and strict liability or otherwise. Under no circumstances, whether based on this Limited Warranty or otherwise, Manufacturer shall not be liable for incidental, special, or consequential damage.

Other Statements.

Manufacturer’s employees or representatives’ ORAL OR OTHER WRITTEN STATEMENTS DO NOT CONSTITUE WARRANTIES, shall not be relied upon by Buyer, and are not a

part of the contract for sale or this Limited Warranty.

Terms and Conditions.

Direct Jaton Customer: This warranty applies only for a

period of two (2) years from purchase date of Jaton original invoice.

Reseller/ Vendor: This warranty applies only for a

period of two (2) years from manufacturing date.

Registered User: This warranty applies only for a

period of two (2) years from purchase date and register within 30 days of purchase date from legal reseller.

Others: If the products do not conform to this

Limited Warranty (as herein above described), Manufacturer should charge services such as repair, replacement whether based on its costs. Shipping and installation of the replacement Products or replacement parts shall be at User’s expanse.

Services agreement:

(1) All applicants shall completed service request form from

Manufacturer.

(2) All returned checks will be charged a $20.00 fee by

Manufacturer.

(3) All repair and replacement services allow 4-6 weeks from

the date of receiving by Manufacturer.

(4) All products without warranties require service processing

fee $20 (payment in advance), which is not refundable.

Entire Obligation.

This Limited Warranty states the entire obligation of Manufacturer with respect to the Products. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in force and effect. Some states do not allow limitation of implied warranties, or exclusive or limitation on product incidental or consequential damages, so above limitation may not apply to you. This warranty gives you specific legal

rights. You may have other rights, which may vary from state to state.

This warranty applies only to this product, and is governed by the law of the State of California.

Reducing Warranty Claim Rejections.

To reduce the potential of incurring damages not covered by Manufacturers warranties, we strongly recommend the following:

• Read your manuals before installing peripherals and/or before making changes to the machine’s configuration;

• Ask your dealer if there are any known problems with the system requirements or installation procedures for any add-on products that your are purchasing;

• Buy industry standard products where compatibility issue are more likely to surface;

• If you are unsure about installation for a new product, contact your dealer’s service department.

We believe it is important for you to know and understand what your warranty coverage provides and what it does not.

We also want you to be aware that most hardware warranties only relate to the function of the hardware. In most cases, no assurances are given by the manufacturer that the hardware item will work in conjunction with any other hardware item. If a computer product is not working because it is not compatible with another product, or because it has not been properly installed and set-up, the manufacturer does not pay for the service time. To help avoid these inconveniences, contact a professional consultant that one can help you determine the possibility of incompatibility issue before you purchase add-on or accessories.

Warranty Service Use Only

Serial Number - ten or eleven digit code, the serial number consists of the following parts:

Packaging Type Manufactured Date Code Production Numerical Code

A 00 8 000015

Year Month

XXXXX-XXX-XX S/N: A008000015

Product Label and Manufactured Date Code

XXXX XX XXXXXX00.0xxxx/xxxx

Jaton 3DForceFX 5600, 3DForceFX 5600-256 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
