Jaton 3DFORCEFX5200 User Manual
3DForce FX5200 series
nVIDIA GeForceFX™ 5200
User’s Manual
Version 5.00
Copyright © 2005 Jaton Corporation, USA
Contents
INTRODUCTION.............................................................5
FEATURES.....................................................................6
INEFX ENGINE................................................................6
C
H
IGH-PRECISION GRAPHICS...............................................6
NVIEW MULTI-DISPLAY TECHNOLOGY..................................6
D
IGITAL VIBRANCE CONTROL (DVC)..................................6
U
NIFIED DRIVER ARCHITECTURE (UDA).............................7
AGP
8X............................................................................7
0.15μ
MICRON PROCESS TECHNOLOGY .............................7
8
PIXELS/CLOCK RENDERING PIPELINE ..............................7
A
RCHITECTED FOR CG.......................................................7
M
ICROSOFT® DIRECTX® 9.0 OPTIMIZATIONS AND SUPPORT
........................................................................................8
N
EW 64-PHASE VIDEO SCALER..........................................8
O
PENGL® 1.4 OPTIMIZATIONS AND SUPPORT ....................8
V
IDEO MIXING RENDERER (VMR) ......................................8
DVI
(OPTIONAL)................................................................8
O
VERALL PERFORMANCE ...................................................8
C
OMPATIBILITY..................................................................9
O
PERATING SYSTEMS........................................................9
SYSTEM REQUIREMENT..............................................9
CHECK LIST...................................................................9
HARDWARE DESCRIPTION .......................................10
DISPLAY DEVICES OUTPUT......................................10
2
HARDWARE INSTALLATION ......................................12
NSTALLATION PROCEDURES............................................12
I
S
TEPS: ...........................................................................13

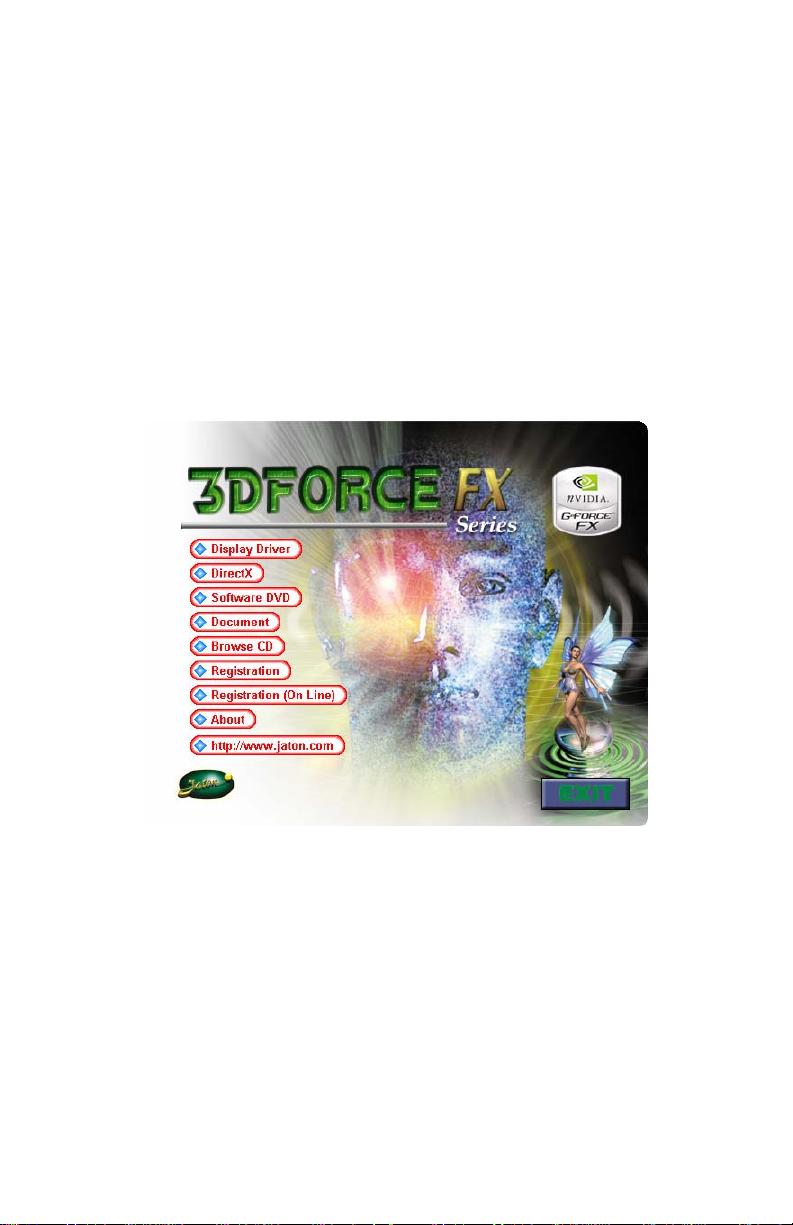

SOFTWARE INSTALLATION......................................14
á

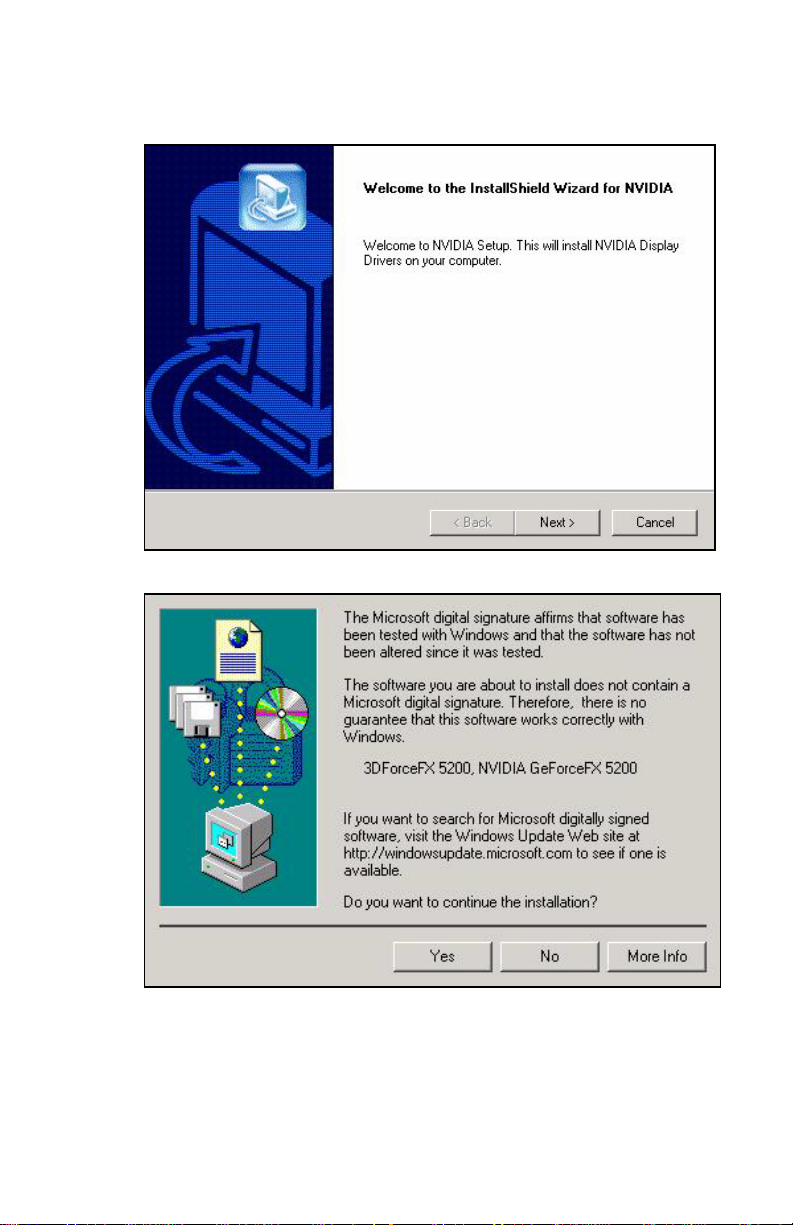

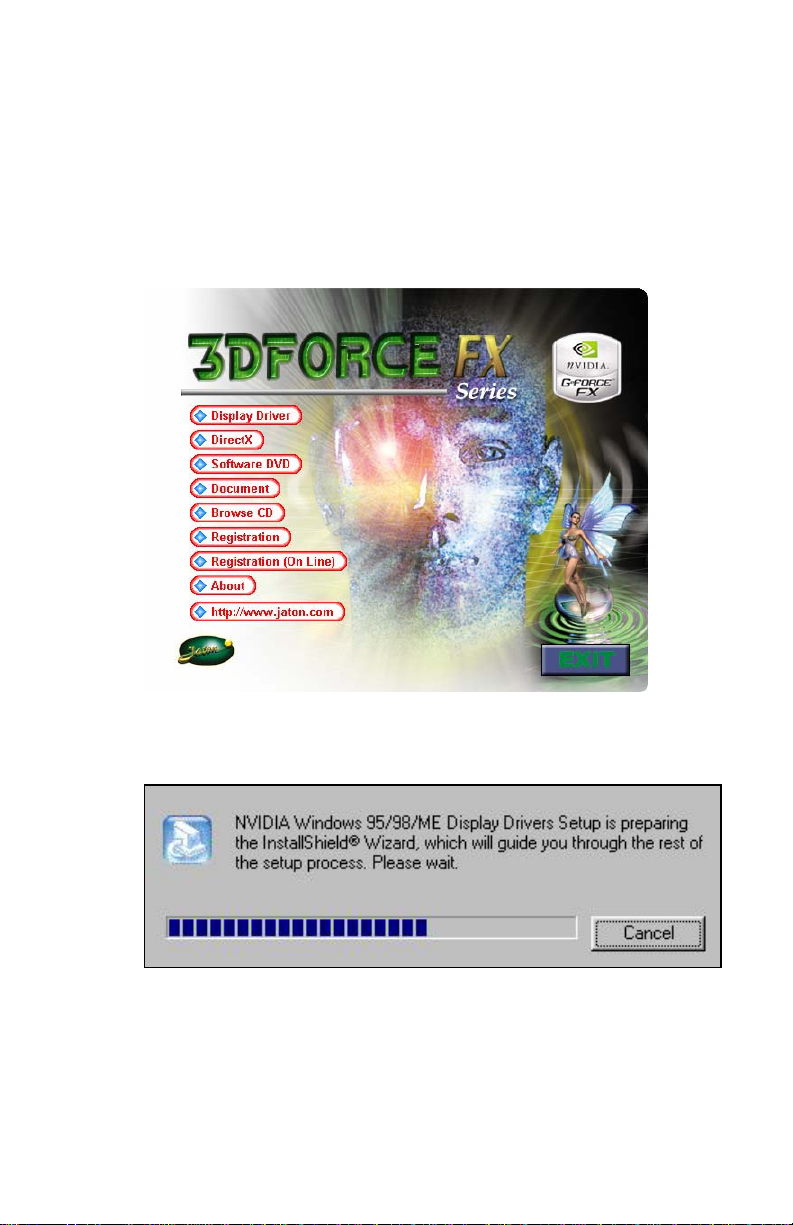

WINDOWS® 98 DRIVER INSTALLATION......................14
á

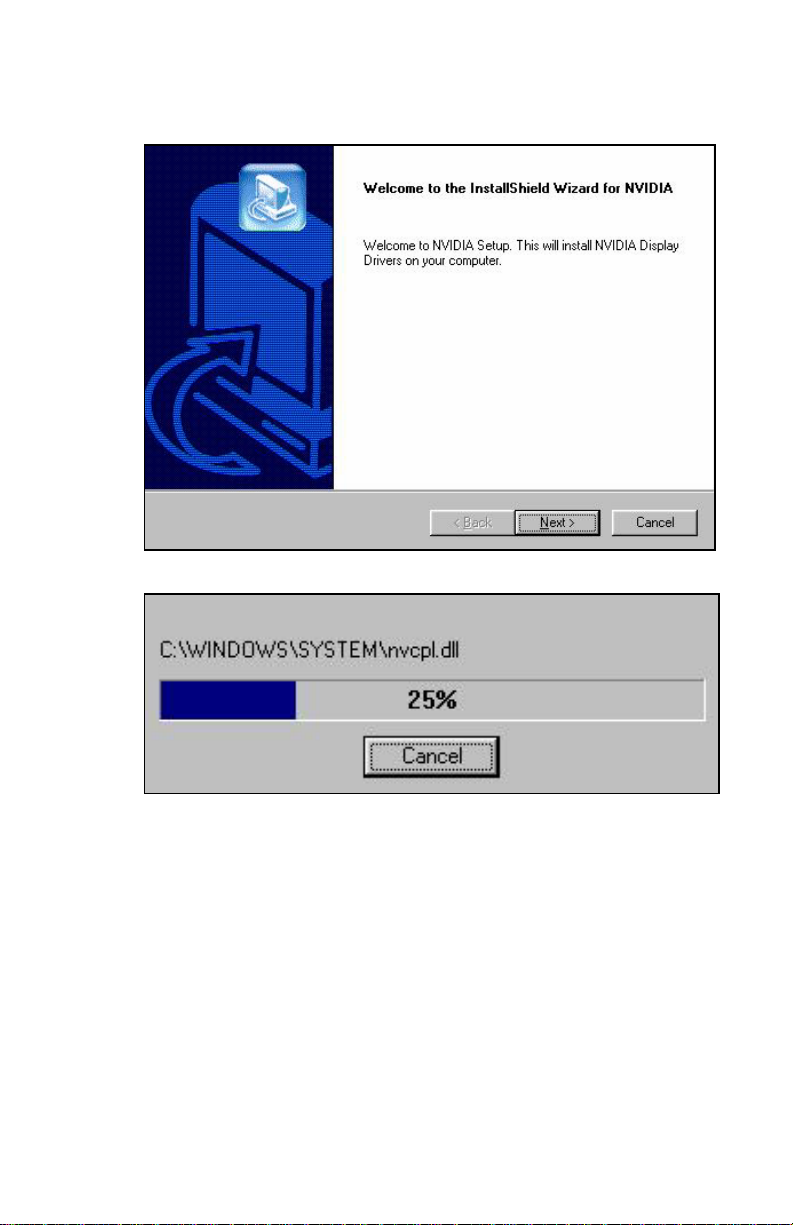

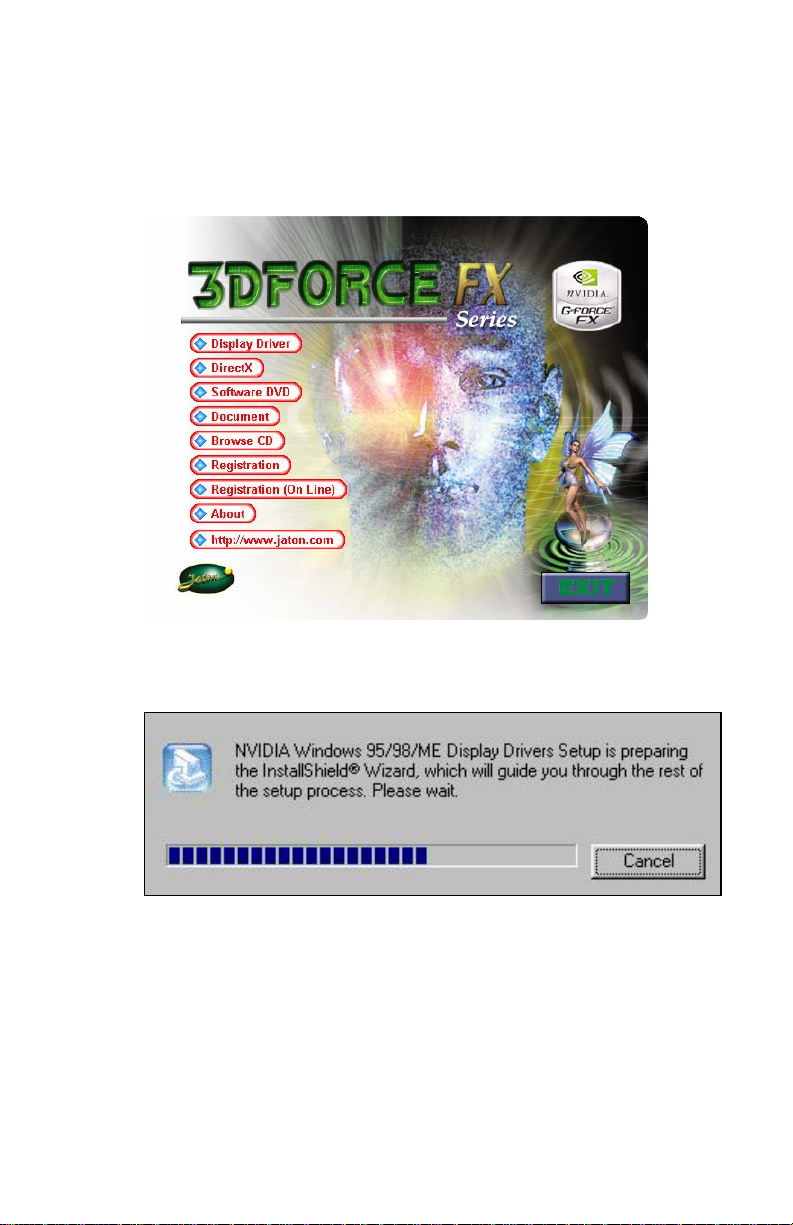

WINDOWS® ME DRIVE INSTALLATION .......................18
á

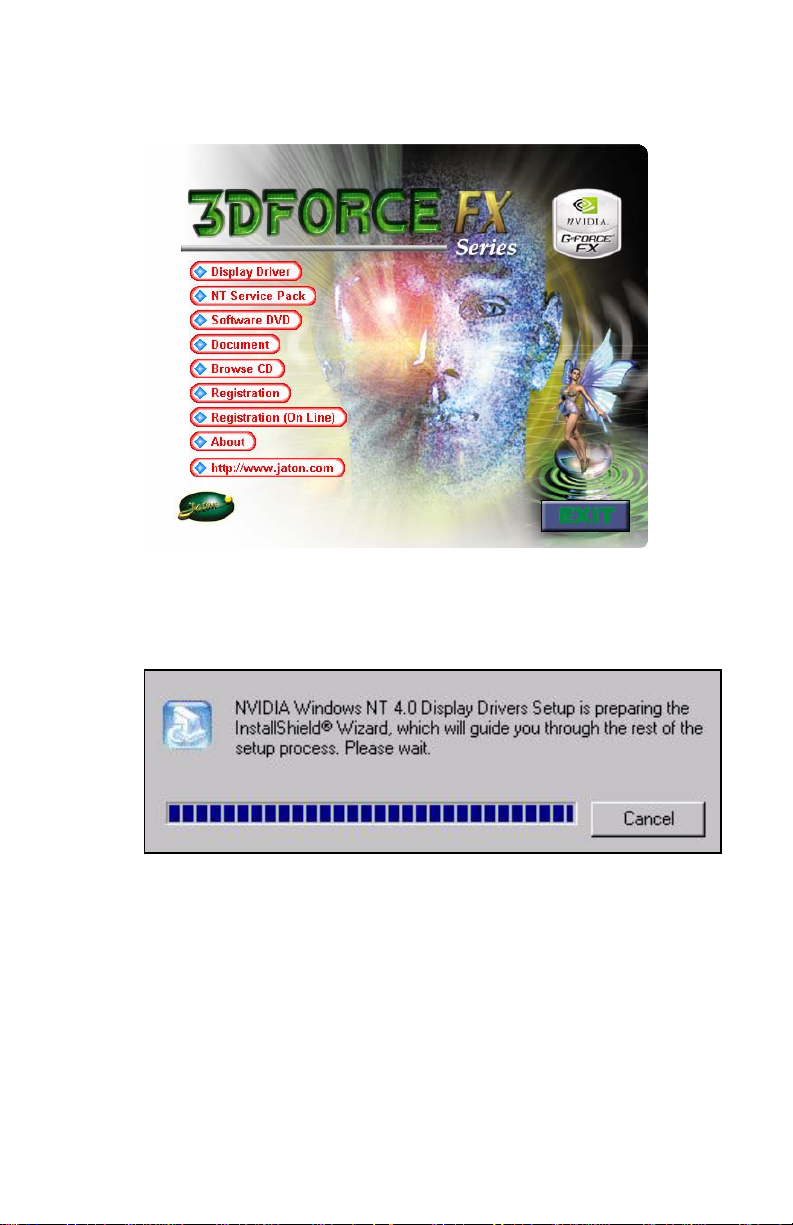

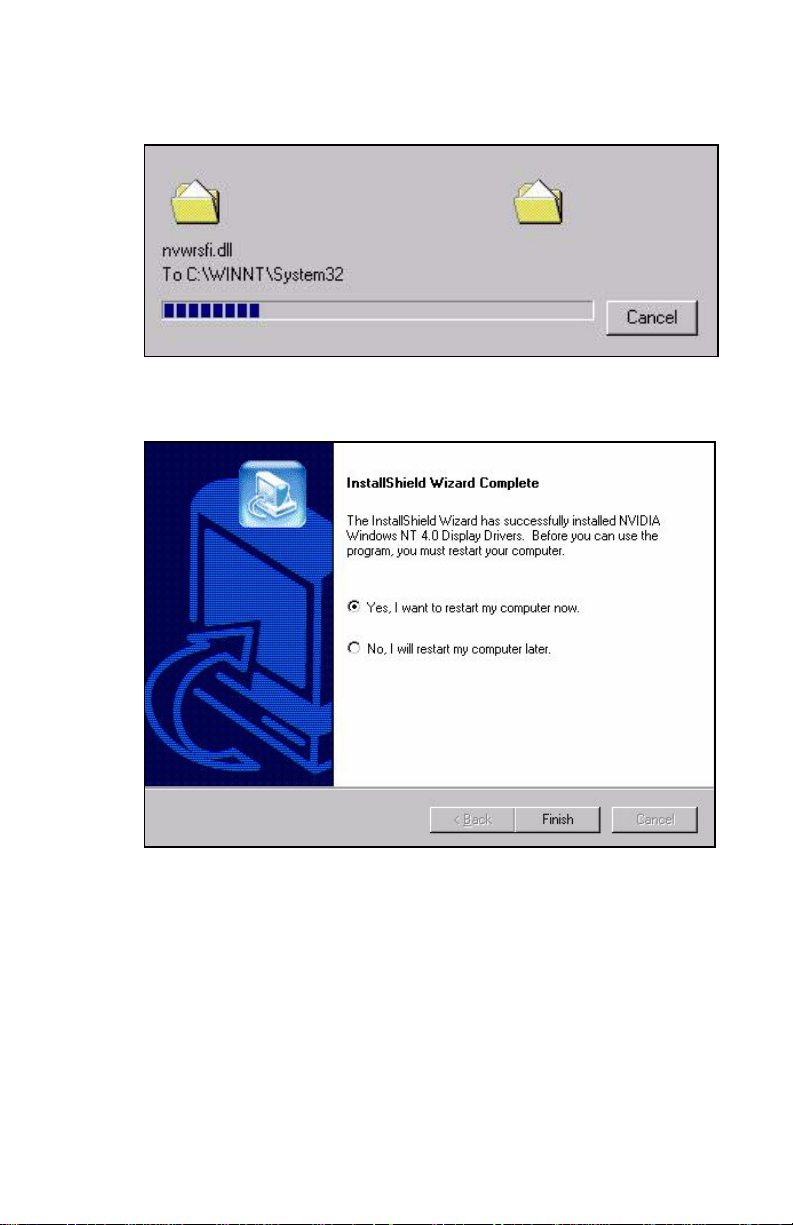

MICROSOFT WINDOWS® NT™4.0............................22
á
WINDOWS® 2000 DRIVER INSTALLATION..................26
á

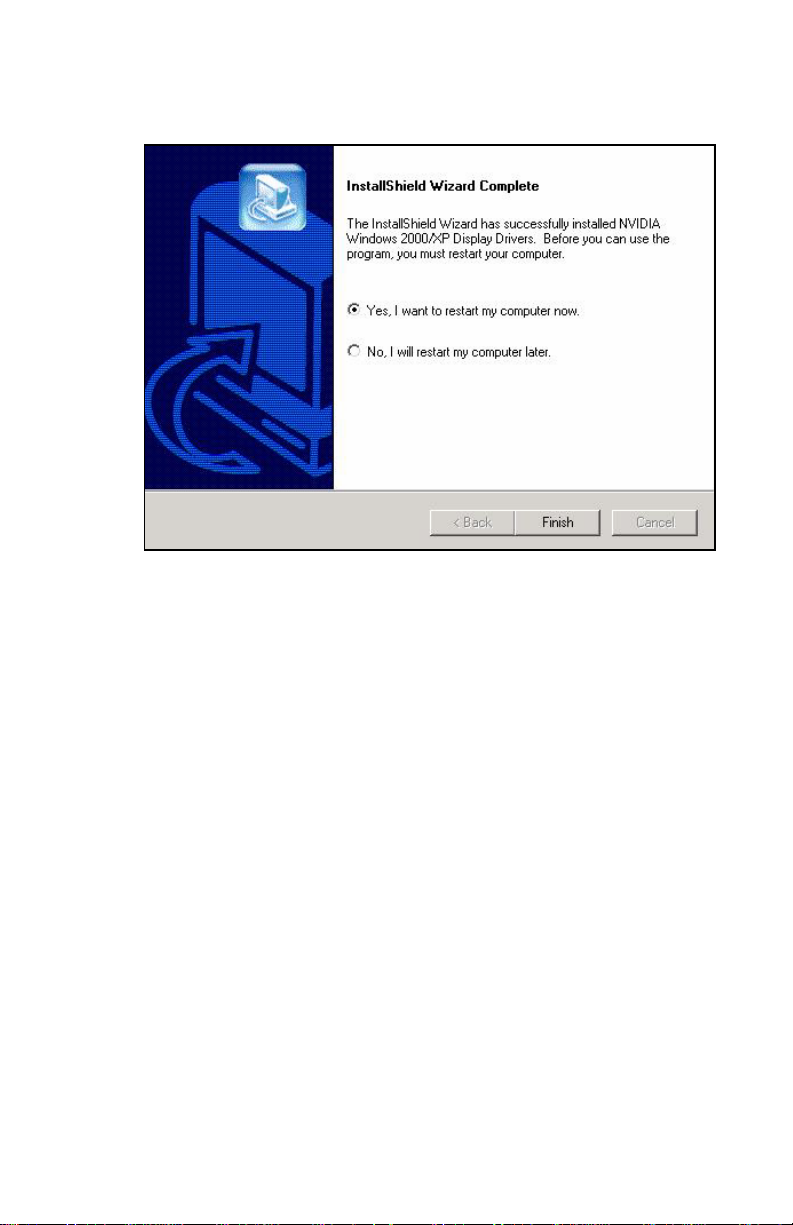

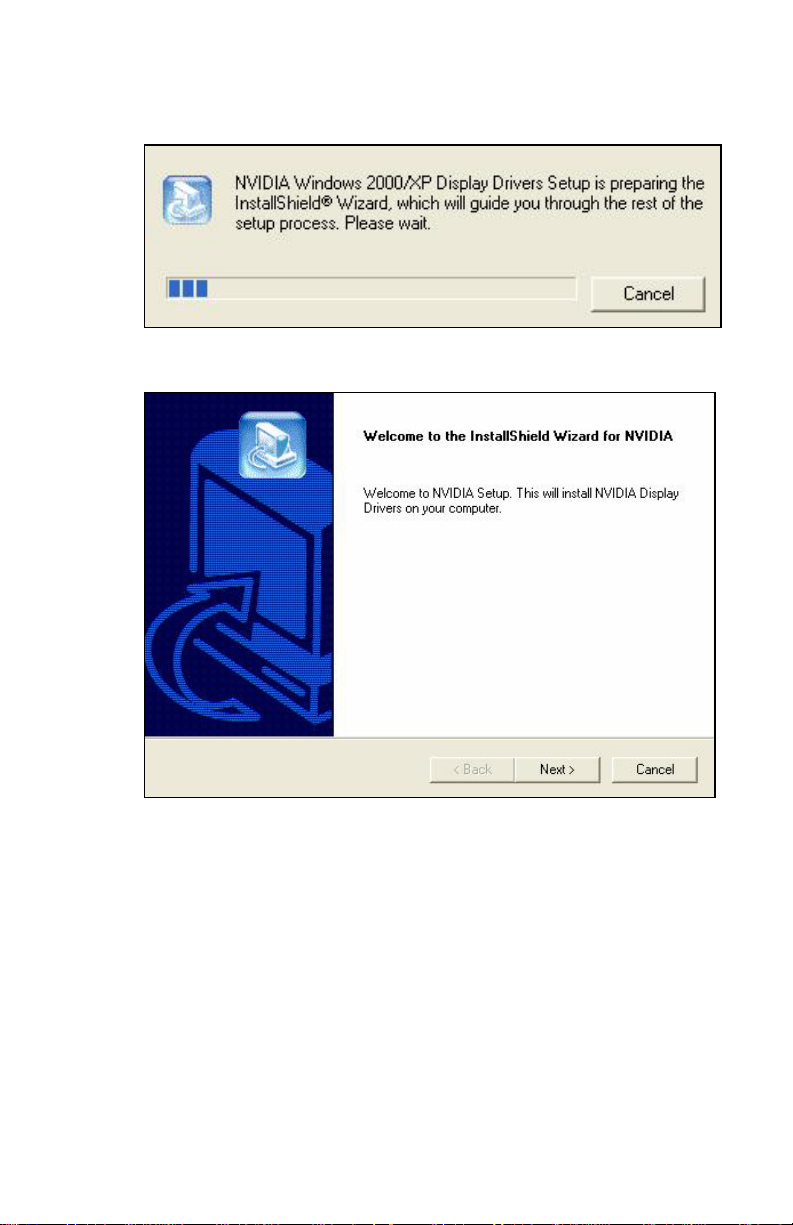

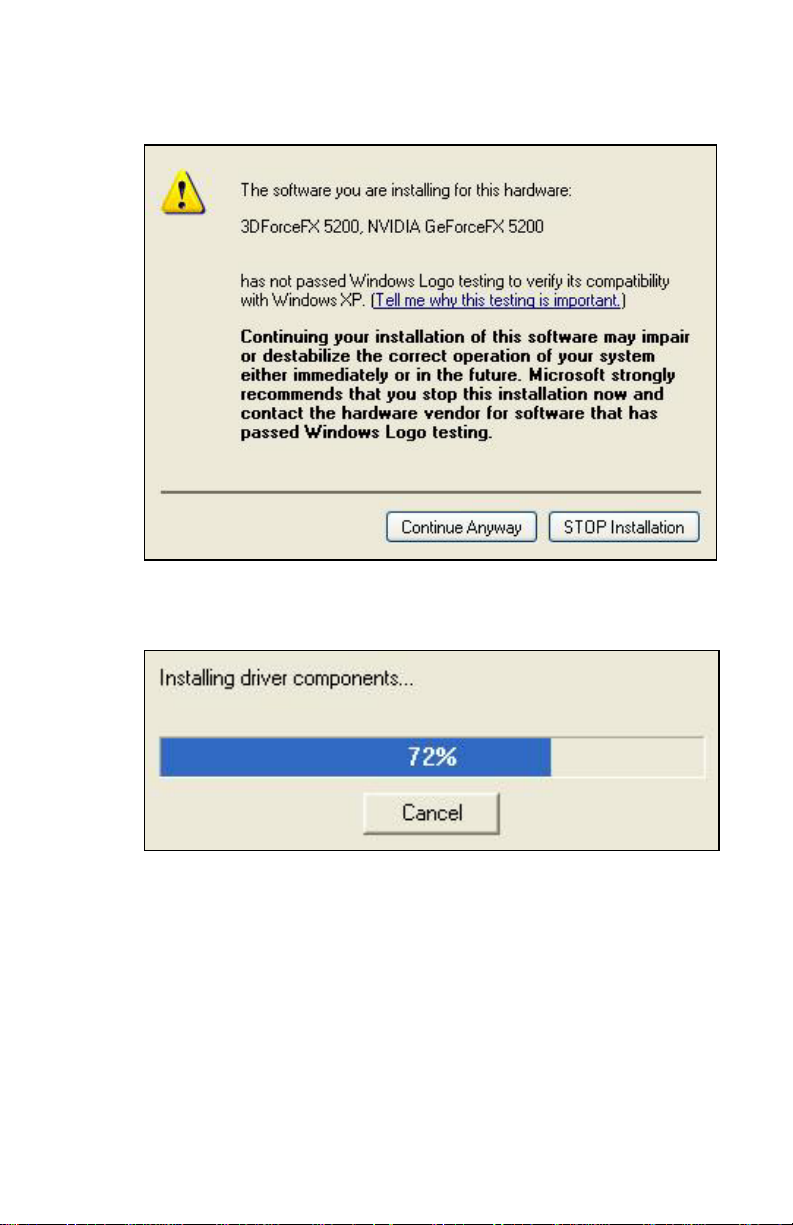

WINDOWS® XP DRIVER INSTALLATION .....................30
TECHNICAL ASSISTANCE..........................................34
F
REQUENTLY ASKED QUESTIONS (FAQ) ..........................36
PINOUT AND SYNC FREQUENCIES..........................39
NALOG COLOR DISPLAY PINOUTS (DB 15) .....................39
A
C
ONVERSION TABLE: PIN ADAPTERS................................39
9-
TO-15 PIN CONVERSION TABLE.....................................40
D

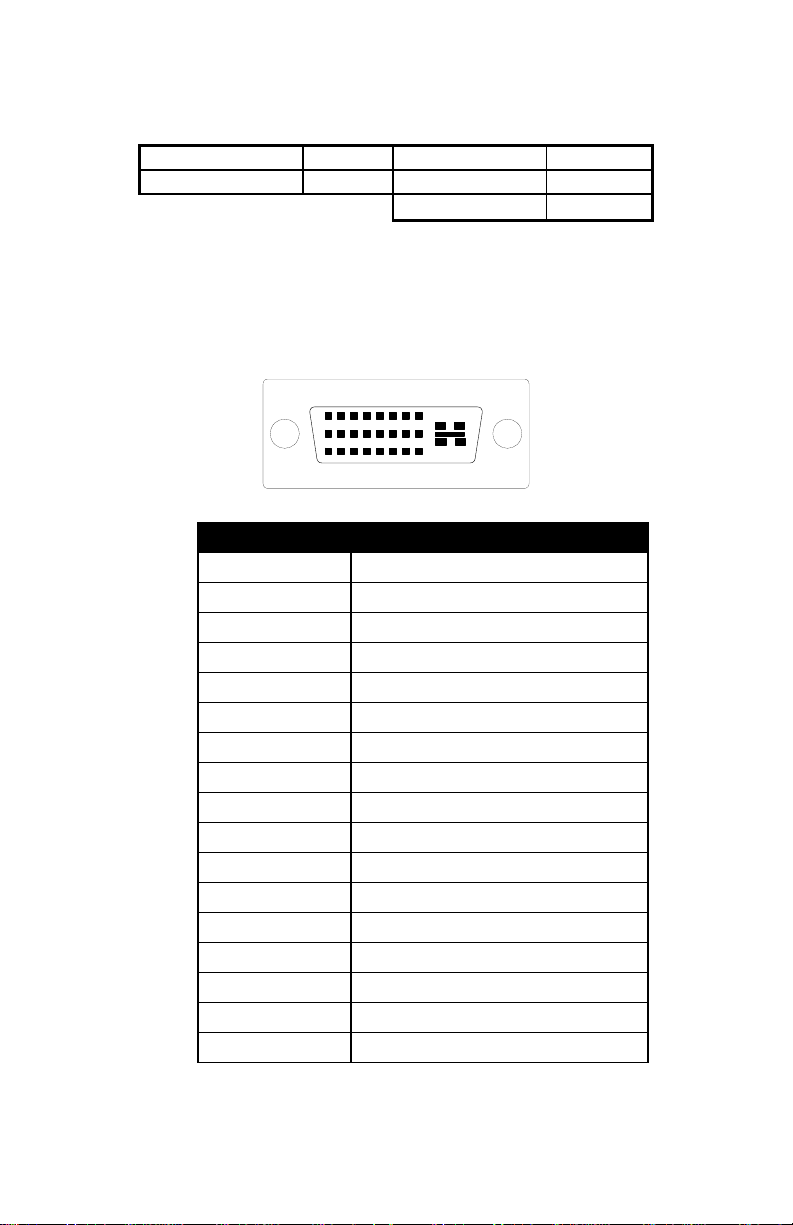

IGITAL VISUAL INTERFACE (DVI) CONNECTOR ................40
T
ECHNICAL SUPPORT ......................................................41
H
OW TO OBTAIN WARRANTY SERVICE..............................42
LIMITED WARRANTY. .................................................44
THER LIMITS.................................................................44
O
E
XCLUSIVE OBLIGATION...................................................45
O
THER STATEMENTS.......................................................45
T
ERMS AND CONDITIONS. ................................................45
S
ERVICES AGREEMENT:...................................................46
3
E
NTIRE OBLIGATION........................................................46
REDUCING WARRANTY CLAIM REJECTIONS.........47
4
Introduction
3DForce FX5200 series video accelerators are NVIDIA
GeForceFX™ 5200 core technology based 128MB DDR
memory modules built-in onboard totally. These AGP 8x-bus
video accelerators are capable of driving very complex
geometry and character animation images on your PC desktop
incomparably, with truly genuine filling experience you may
anticipate like never before. The particular emphasis of these
AGP’s ability that is very ease of play all fancy PC games with
preferred resolution, unique visual effects, life-like, and these
much of realistic graphical improvements must be performed
on high-end computers.
The NVIDIA® GeForce FX5200 Graphics Processing Unit
(GPU) is 0 .15μ Micron Process Technology, which delivers
high performance through faster clock rates. CineFX engine
produces gaming effects on par with the hottest motion
pictures. Combined with 128-bit studio quality color processing
technology, 3D worlds and characters are more real than
anything is that’s come before. Powered by the CineFX engine,
the GeForce FX shifts the focus from simple pixel fill rate to
sophisticated pixel shading. To maximize programming choice,
the NVIDIA CineFX engine includes the most complete
hardware feature implementation for both OpenGL® and
Microsoft® DirectX® environments, including total support for
the Directx 9.0-vertex and pixel shader specification.
Well-developed CineFX engine features include the support of
1024 instructions in a single rendering pass, allowing for
complex effects that aren’t practical in any other architecture.
Complex lighting can dramatically improve the realism of
images, but traditionally adds the rendering time. With GeForce
FX all of these gorgeous enhancements are possible without
sacrificing performance.
New NVIDIA GPUs and PC platforms will incorporate AGP 8X
capabilities and take full advantage of AGP 3.0 specification.
As always, NVIDIA solution incorporate new technology and
advances without compromising the overall stability and quality
of the system, and NVIDIA Unified Driver Architecture (UDA)
makes it painless to take advantage of new capabilities as they
are introduced.
5
A matchless of hardware and software technology combination,
the primary principles of 3DForce FX5200 series video
accelerators that will contribute many of new features and more
benefits to your desktop computing as well as the bestperformance integrated, unusual quality and exceedingly
resolution.
Features
CineFX Engine
Power cinematic effects beyond imagination. With
advanced vertex and pixel shader capabilities, stunning
and complex special effects are possible. In addition,
this feature increases horsepower which will deliver
faster and smoother gameplay.
High-Precision Graphics
By combining the incredible dynamic range of today's
state-of-the-art 3D motion pictures with 128-bit studioprecision color, the GeForce FX brings you the
industry’s best image quality for the most demanding
applications.
nView Multi-display Technology
The nView hardware and software technology
combination delivers maximum flexibility for multi-display
options, and provides unprecedented end-user control of
the desktop experience.
Digital Vibrance Control (DVC)
Allows the user to adjust color controls digitally to
compensate for the lighting conditions of their
workspace and to achieve accurate and bright colors in
all conditions.
6
Unified Driver Architecture (UDA)
Guarantees forward and backward compatibility with
software drivers. Simplifies upgrading to a new NVIDIA
product because all NVIDIA products work with the
same driver software.
AGP 8X
Provides double the bandwidth of AGP 4X—2.1GB/sec.
vs. 1.1BG/sec. AGP 8X enables more complex models
and detailed textures, creating richer and more lifelike
environments. Uninterrupted data flow allows for
smoother video streaming and faster, more seamless
gameplay.
0.15μ Micron Process Technology
Delivers high performance through faster clock rates.
8 Pixels/Clock Rendering Pipeline
Makes all of your favorite games run faster.
Architected for Cg
Ensures that the newest, cutting-edge special effects in
applications will run flawlessly. Speeds up content
creation so game developers can get their new games
out to PC users faster than ever before.
7
Microsoft® DirectX® 9.0 Optimizations and Support
Ensures the best performance and application
compatibility for all DirectX 9 applications.
New 64-phase Video Scaler
Highest quality for scaling DVD and other video to fullscreen HDTV resolutions.
OpenGL® 1.4 Optimizations and Support
Ensures the best performance and application
compatibility for all OpenGL applications.
Video Mixing Renderer (VMR)
Harnesses the power of the 3D graphics engine to
empower the user to view multiple video windows
simultaneously with superior quality, and avoids the
problems associated with video overlay.
DVI (Optional)
Able to drive large displays with up to 1600x1200
resolutions.
Overall performance
• 1.3 billion texels per second fill rate
• 81 Million vertical per second fill rate
• Up to 10.4 GB per second on memory bandwidth
• 128MB DDR TSSOP onboard supported up to 128-
bit data bus access
8
Compatibility
• NVIDIA Unified Driver Architecture (UDA)
• Fully compliant professional OpenGL 1.4
• Microsoft DirectX 9.0
• WHQL-certified for windows XP, Windows 2000,
Windows NT, Windows Me, and Windows 98
Operating Systems
• Windows®95/98, Windows® Me, Windows® 2000,
Windows® NT (all), Windows® XP
System Requirement
• Intel Pentium® P4, or compatible system with AGP
2x/4x/8x Bus Extension Slot
• CD-ROM drive, Quad speed or faster
• Hard Drive with at least 50MB Free space
• MS Windows® 98/Me/NT 4.0/2000/XP operating
systems
Check List
• 3DForce FX5200, 3DForce FX5200LE or 3DForce
FX5200TV Multimedia Accelerator
• 3” cable (TV-Out) converts MD 4pin to Composite
RCA (3DForce FX5200 and 3DForce FX5200LE
only)
• DVI to RGB converter for Dual RGB out (3DForce
FX5200 only)
• Software & Documents CD
• Quick Start Guide (Printed)
9
Hardware Description
(I) 3DForce FX5200 / FX5200LE
Width
NVIDIA
GeForce FX
5200
AGP Bus 8x
Display Memory
DVI-I 24Pin
(DVI out)
MD-4PIN
(TVout)
DB 15 VGA
(RGB out)
Bracket
Y201
Height
Product Name / PCB Version
3DForceFX 5200
3DForceFX 5200LE
82228A
82228A
Core Chipset
nVIDIA GeForce FX 5200
nVIDIA GeForce FX 5200
PCB Size Memory / Size
W = 6.6" x H = 4"
W = 6.6" x H = 4"
8M*16 x 8 DDR TSSOP
16M*16 x 4 DDR TSSOP
128MB
128MB
Note: 3DForce FX5200LE’s memory data bus access limits on 64-bit
only.
(II) 3DFORCE FX5200TV
RCA Composite
(TV out)
DIM-4Pin
(TV out)
DB 15 VGA
(RGB out)
nVIDIA
FX5200
Display
Memory
Product Name / PCB version Core Chipset PCB Size Memory / Size
3DForce FX5200TV 82208D Nvidia GeForceFX 5200 W = 6.25" x H = 2.45" 16M*16 x 4 DDR 128MB
P203 DB 15 VGA + MD 4Pin + RCA Composite For low pr ofile PC use onlyL = 3.118" , W = 0. 725"
Special Bracket(s) A lt ernat ive
Alternative brackets can be purchased at http://store.anvshopper.net/index.html
10
Display Devices Output
(I) 3DForce FX5200 / FX5200LE
Quad Output Optional
1. RGB out
2. TVout
3. DVI out
4. DVI convert to RGB (Dual RGB)
LCD Display Panel
TV set
3
2
2
1
CRT Monitor
Convert Cable
Composite RCA
S_Video TVout
DVI to RGB Converter
4
DVI out Connector
MD-4PIN Connector
DB 15 VGA Connector
AGP Plate
CRT Monitor
1. RGB out - DB15 VGA connector to analog monitor.
2. TV-Out - MD4 connector converts S-Video to RCA Composite
Output, or direct connects S-Video to TV set.
3. DVI out - DVI connector to LCD display panel.
4. DVI converts to RGB with DVI-RGB converter for Dual RGB out.
Note: 3DForce FX5200LE doesn’t bundle DVI-RGB converter in its
original package.
11
(II) 3DFORCE FX5200TV
Composite RCA
TV
CRT
Monitor
S-Video Connector
DB 15 VGA Connector
Hardware Installation
Installation Procedures
!! WARNING !!
Discharge static electricity by
touching the GROUND such
as metal part of your case
connected with good power
ground before you handle the
electronic circuit boards.
The manufacturer assumes no liability for any damage, caused
directly or indirectly, by improper installation of any
12
components by unauthorized service personnel. If you do not
feel comfortable performing the installation, consult with a
qualified computer technician
.
Steps:
1. Turn OFF all powers on your system, including any
peripherals (printer, external drives, modem, etc.).
2. Disconnect the power cord and the monitor cable from the
back of the computer.
3. Unfasten the cover mounting screws on your system and
remove the system cover. Refer to your system user manual
for instructions to determine the location of the mounting
screws.
4. Remove the retaining screw that holds the slot cover in
place. Slide the slot cover out and put the screw aside (you
will need it to secure the adapter).
5. To install the adapter in AGP expansion slot, carefully line up
the gold-fingered edge connector on the adapter directly
above the expansion slot connector on the motherboard.
Then press the adapter into place, completely. Use the
(remaining) screw you removed to secure the adapterretaining bracket in place.
6. Replace the computer cover. Secure the cover with the
mounting screws you removed in Step 3.
You have now completed the installation of your new graphics adapter
on your system.
Upgrade Steps:
Add or change your video adapter to an existing system,
you may precede a few steps before you install the new
hardware and software (video display driver). The
followings are some of the considerations:
1. To change a new adapter, please remove the
existing video driver, or replace it to SVGA driver
from Windows®98/Me system before you remove
the existing hardware.
2. To add a new adapter, ensure the mainboard that
has available IRQ for new devices, and there is no
conflict between the others.
13
3. If you try add this video adapter to an ALL-IN-ONE
mainboard (which video port built-in already), then
you have to disable that port first. Otherwise, that
will be a problem for the new video adapter setup.
4. The driver installation for system upgrade as same
as below, if error occur when you proceed step 1, 2
or 3, please consult with your system dealer or the
existing hardware manufacturer support.
Software Installation
á Windows
Upgrade video adapter to an existing system.
(Windows has been pre-loaded)
1. Select [Next] to install Standard VGA Graphics
Adapter at Add New Hardware Wizard screen.
2. Check [Search for the best driver for your device]
then select [Next]
3. Insert the software’s CD.
4. Check [Specify a location:], under that enter
D:\Win9x, then select [Next].
5. Select [Next] to install “3DForce FX5200, NVIDIA
GeForce FX5200” driver.
6. Select [Finish] to restart the computer.
To a new system:
1 SELECT the “Display” icon from control panel and then
tab on “Settings” screen.
1. Select Advanced at selection bar.
2. Click on Adapter tab screen.
®
98 Driver Installation
14
3. Click the Change button.
4. Click the Next button at Update Device Driver
Wizard.
5. Click the Next button.
6. Select Display a list of the drivers in a specific
location... Then click the Next.
7. Insert the Software’s CD then Click the Have Disk
button.
8. Under Copy manufacturer’s file from statement
enter D:\Win9x, click the OK button. (Where D is
the letter of your CD ROM drive, typically, D or E
Drives, etc.)
9. Select”3DForce FX5200, NVIDIA GeForce FX5200”,
then Click the OK button.
10. Click the Next button.
11. Click the Finish button.
12. Click the Close button.
13. Click Close at the Display Properties screen.
14. Click the Yes button next to restart computer.

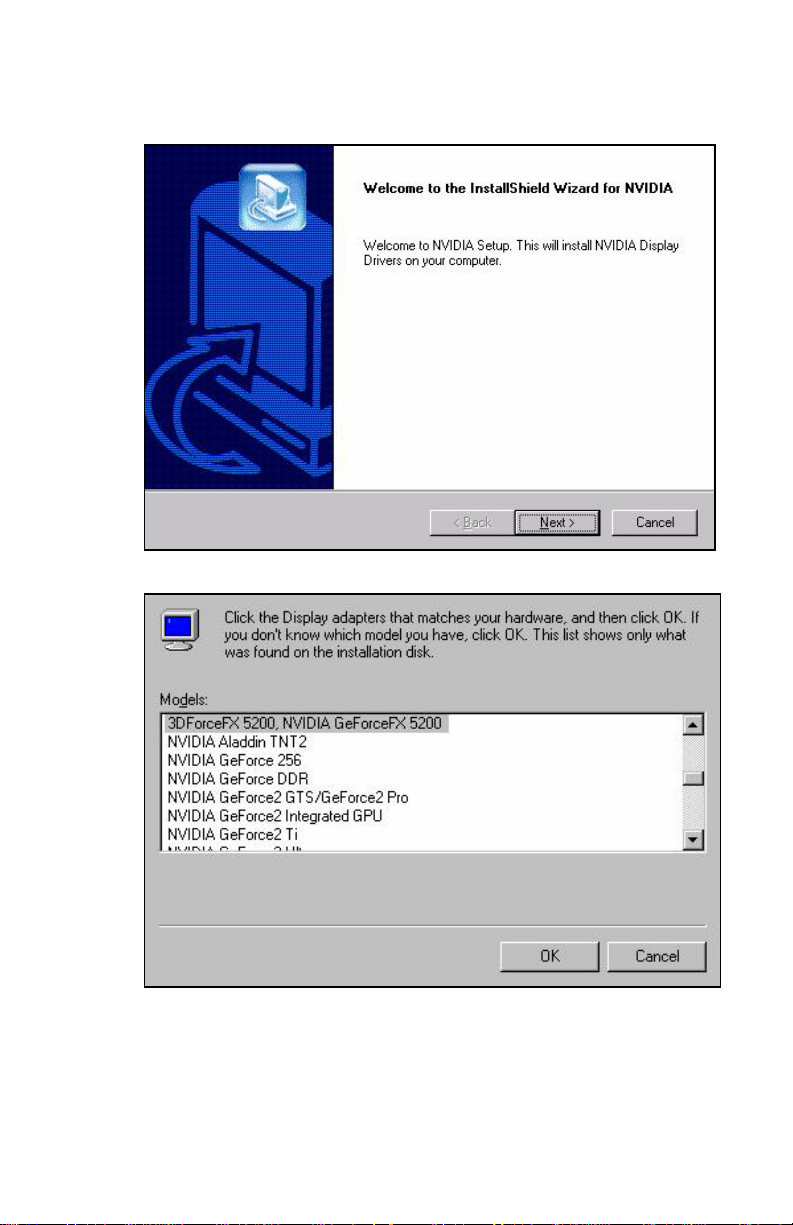

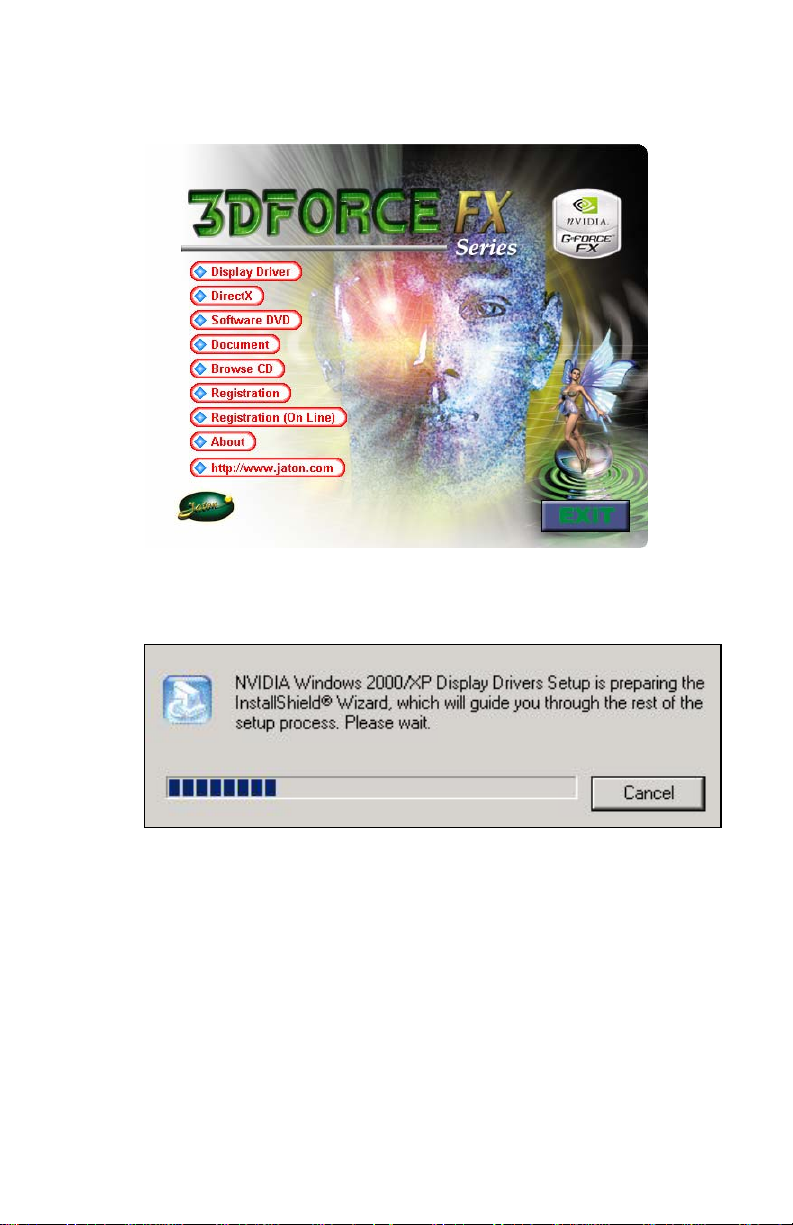

InstallShield® Program:
Since the Microsoft InstallShield® program has been added
into our software’s CD, the Display Driver Installation and its
procedures are much easier for users to run with Windows®
98/Me operating systems. When you power-up the computer
and boot-up to Windows, the Plug-and-Play detects new
hardware and it pops-up the install wizard. Do Not [Cancel]
because you must place a default display setting from
15
Loading...
