Operating Manual

TABLE OF CONTENTS

IMPORTANT NOTICE....………………………………………………….

I. OUTLINE ……………………………………………….……………….

1. COMPONENTS……………………………………………………………………

1.1 Components Table……………………………………………….………………….

1.2 Connection System …………………………………………………………………

2. FEATURES & FUNCIONS…………………………………………………….

2.1 Features …………………………………………………………………………………

2.2 Functions ………………………………………………………………………………

3. SPECIFICATION……………………………………………………………….

3.1 Main Body…………………………………………………………………………………

3.2 Wireless Diagnostic Module…………………………………………………….

3.3 Environmental Features……………………………………………………………

4. MAIN BODY……………………………………………………………………….

4.1 External Shape……………….………………………………………………………

4.2 Key Pad Components…………….…………………………………………………

4.3 Key Function…………………….………………………………………………………

4.4 Status LED Display………….………………………………………………………

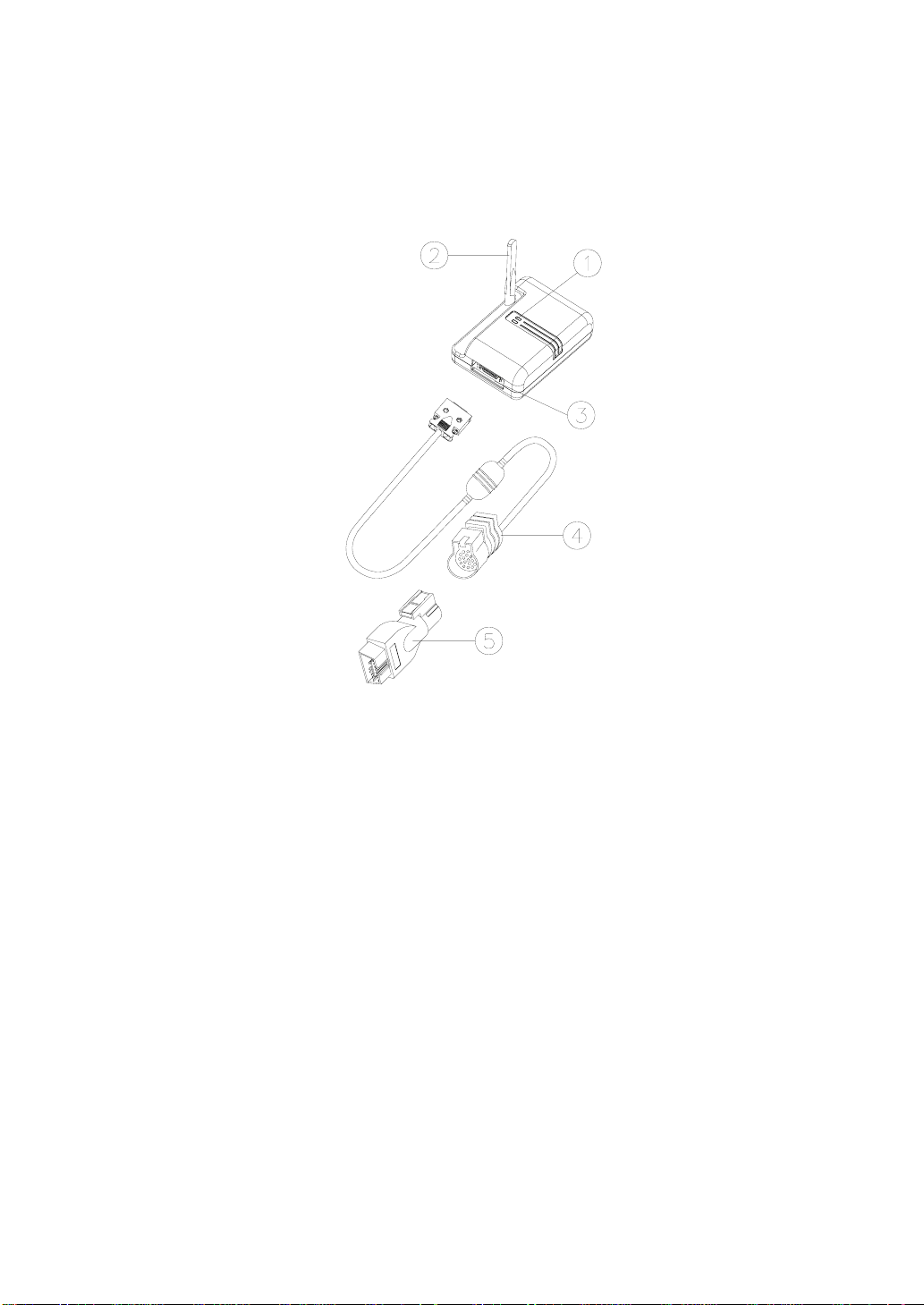

5. WIRELESS DIAGNOSTIC MODULE……..………………............

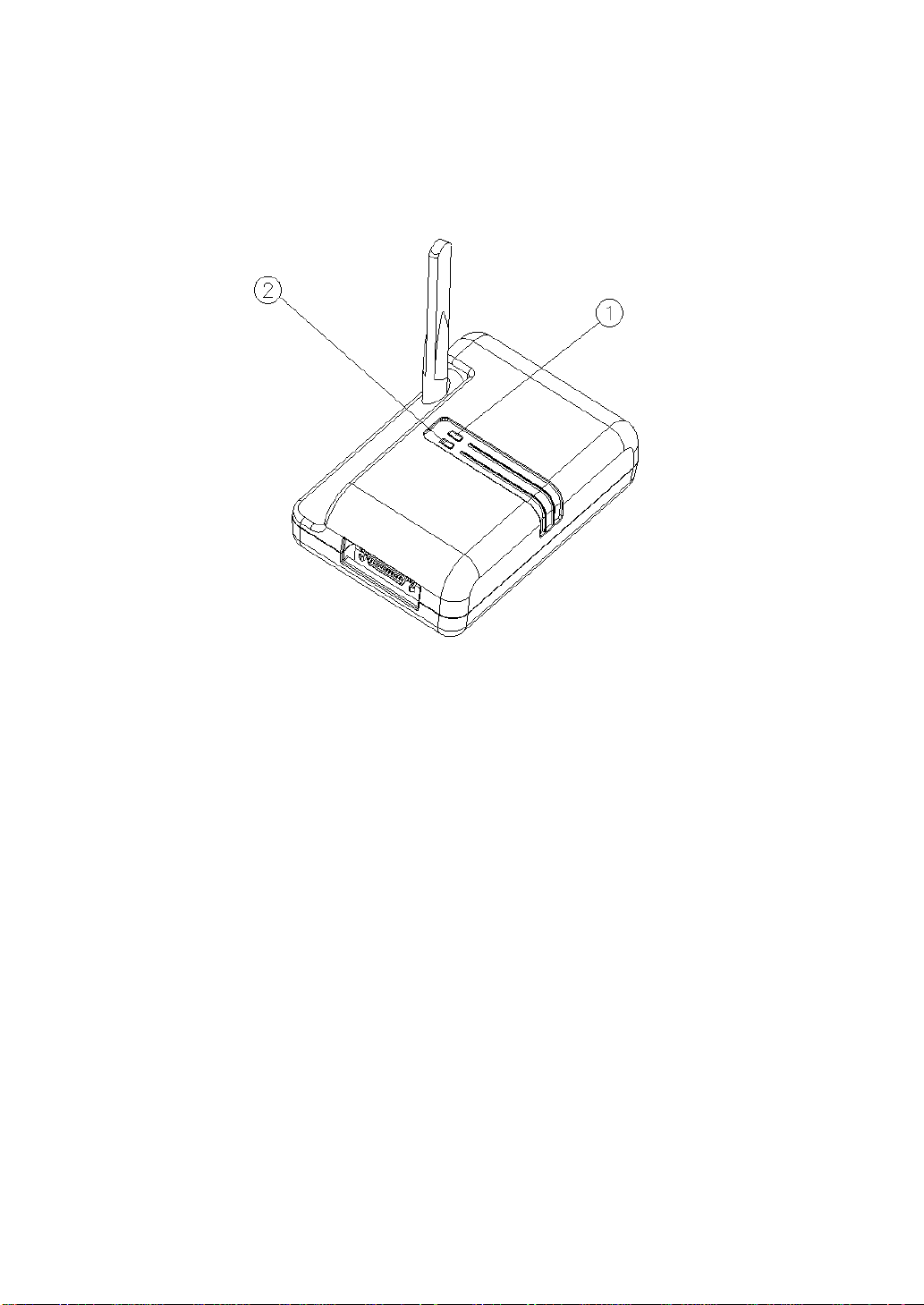

5.1 External Shape & Connection…………………………………………………

5.2 Status LED Display……………………………………………………………………

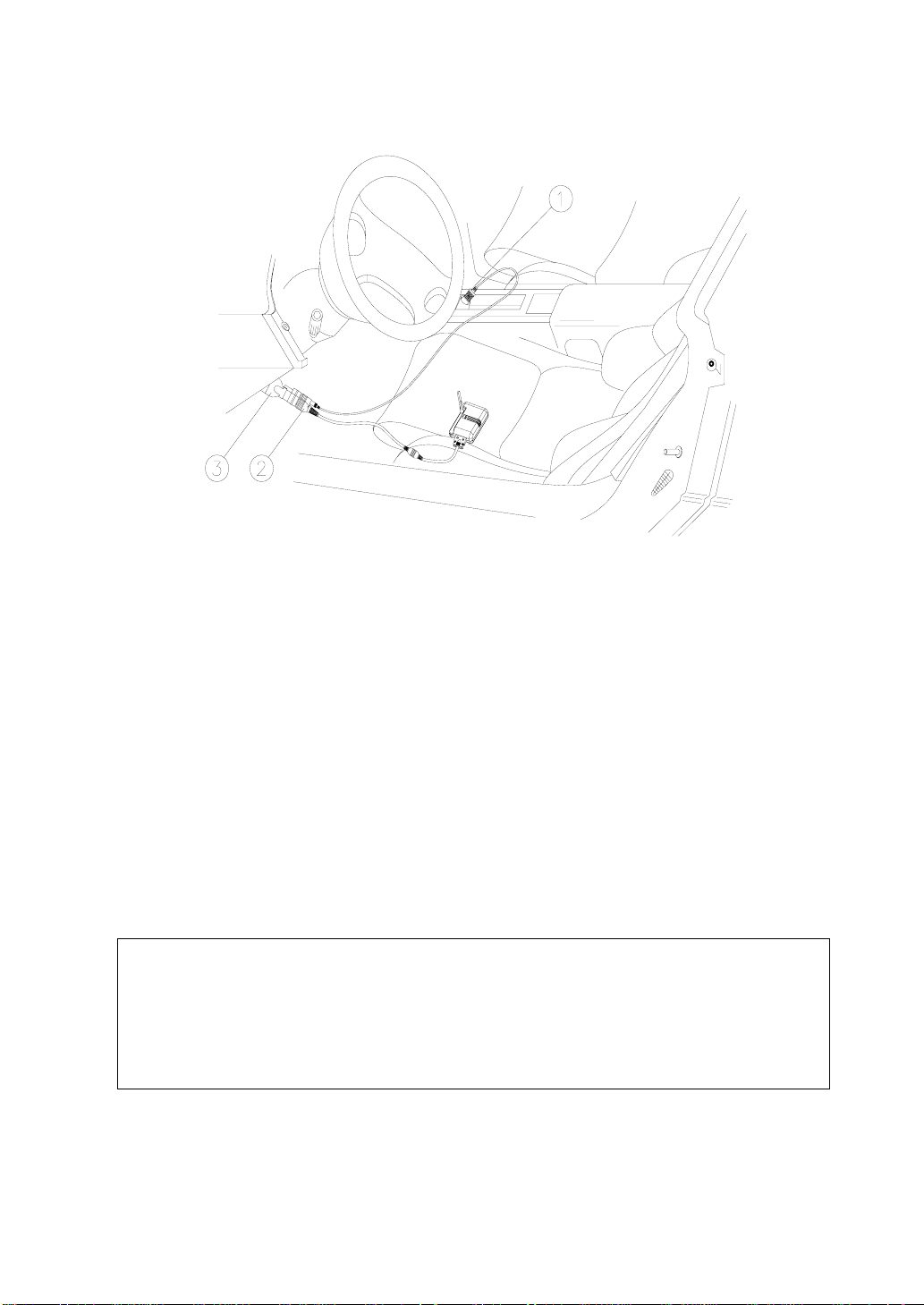

5.3 Vehicle Connection……………………………………………………………………

5.4 Cigar Lighter Power Supply ……………………………………………………

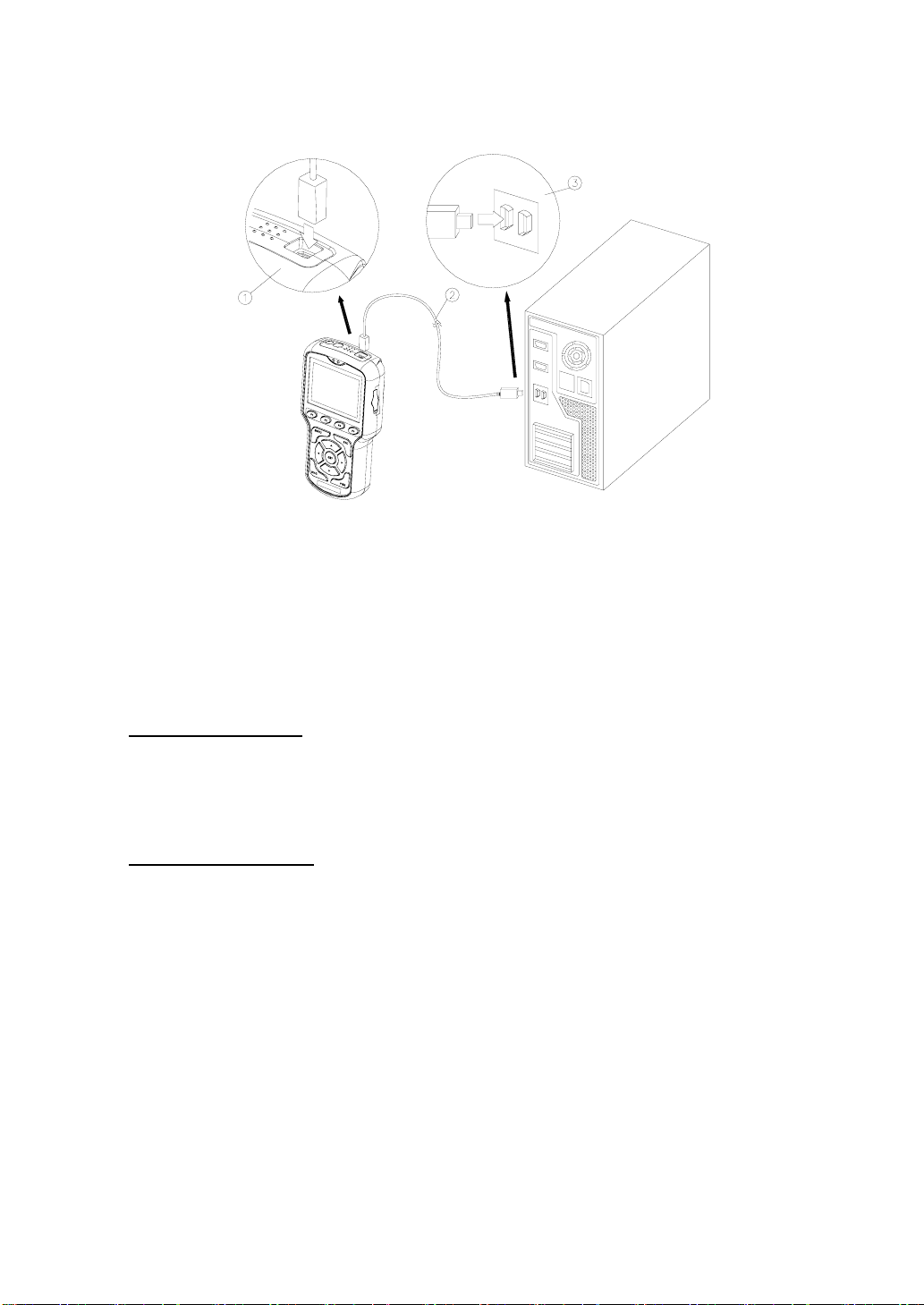

6. COMPUTER CONNECTION ………………………………..............

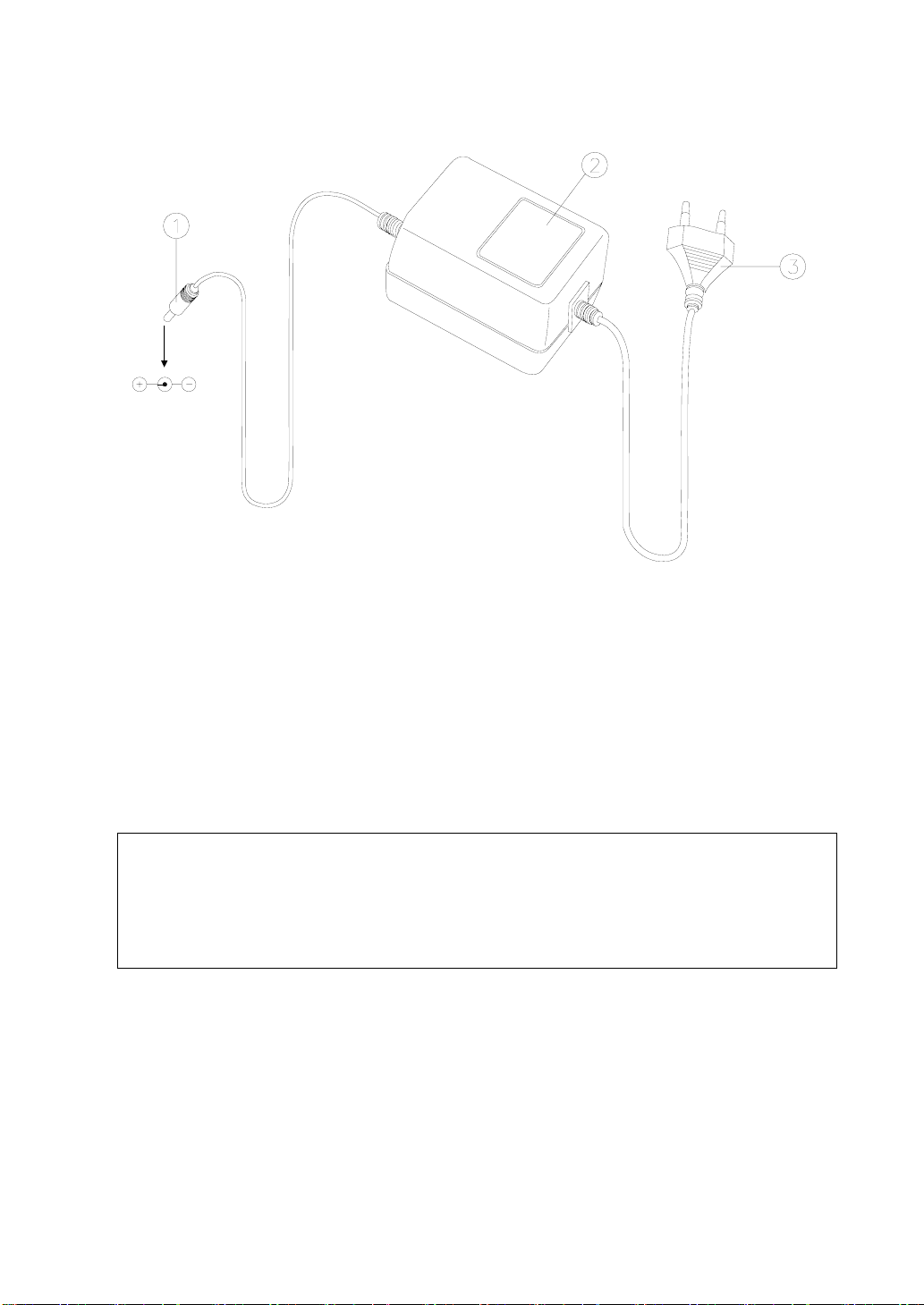

7. AC/DC POWER ADAPTOR…………………………………………………

8. RECHARGEABLE BATTERY ….………………………………………… ..

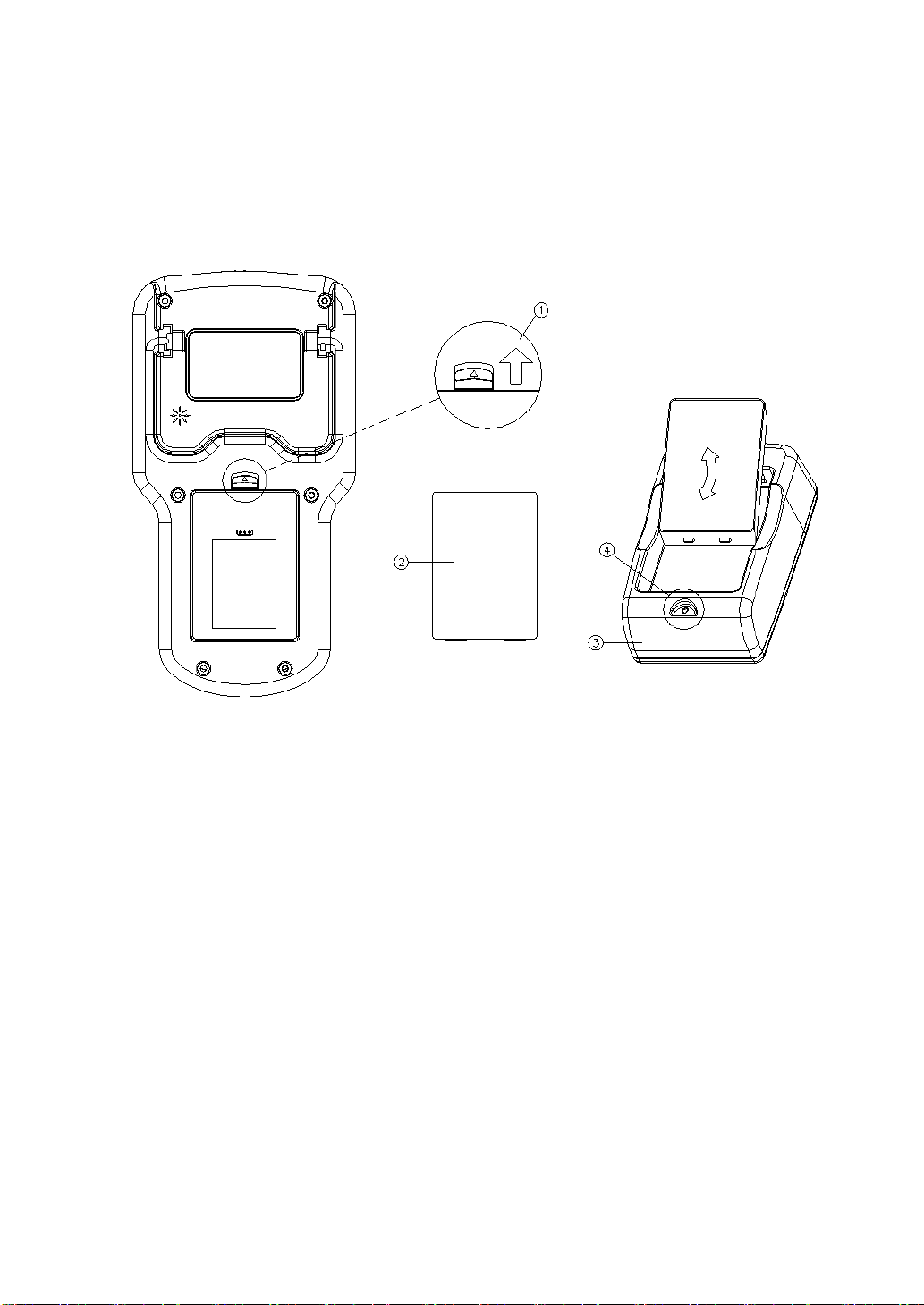

8.1 Insertion and Removal..……………………………………………….

8.2 Charging…………………………………………………… ….............

8.3 Li-ion Rechargeable Battery ………………………………………

9. PROGRAM CARD……………………………………………………………..

9.1 Installation and Removal ……………………………………………

9.2 Program Card…………………………………………………............

II. HOW TO USE…………………………………………………………….

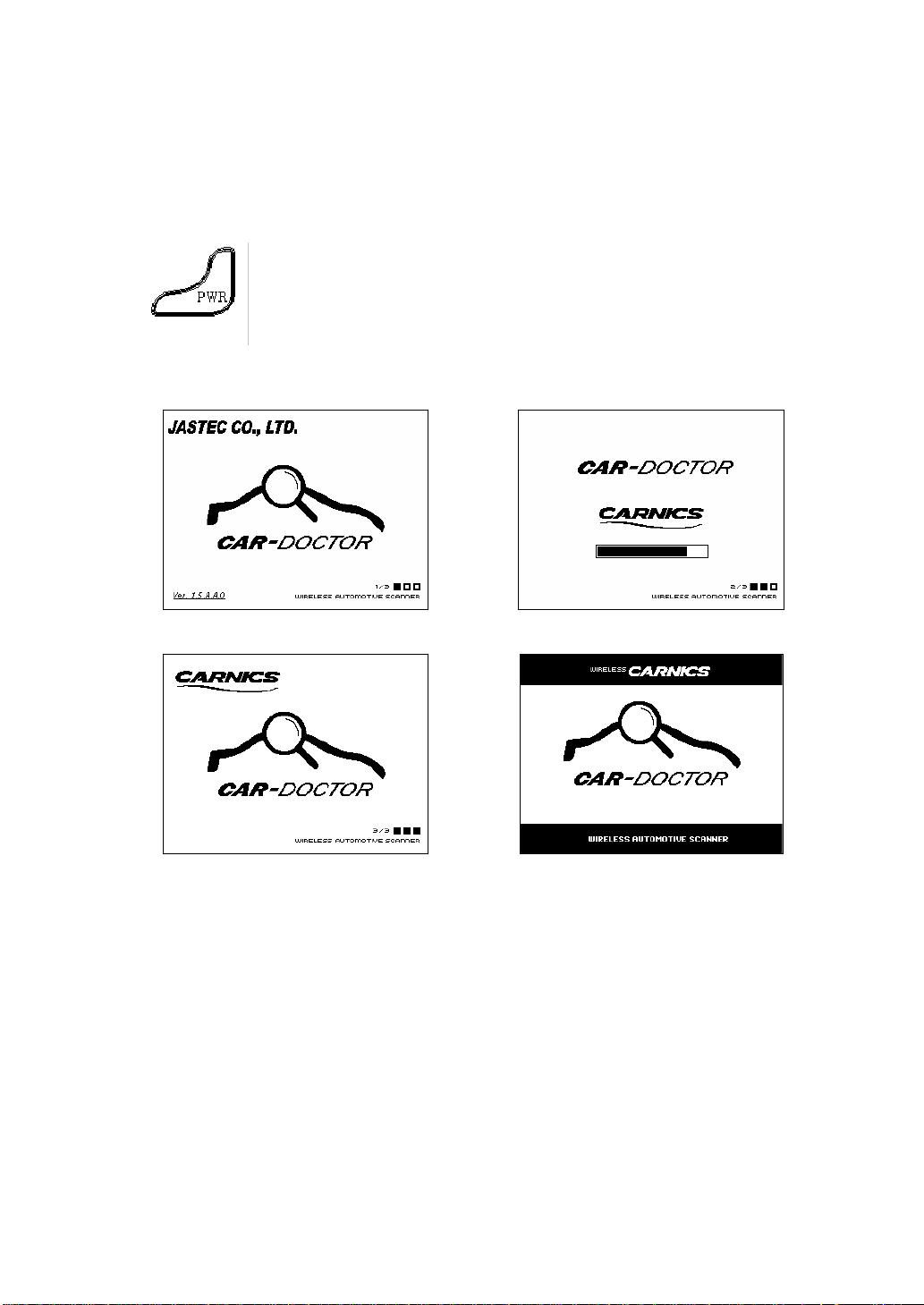

1. POWER ON/OFF………………………………………………………………….

2. MENU………………………………………………………………………………….

2.1 MAIN MENU ….……….…………….……….………………………………………….

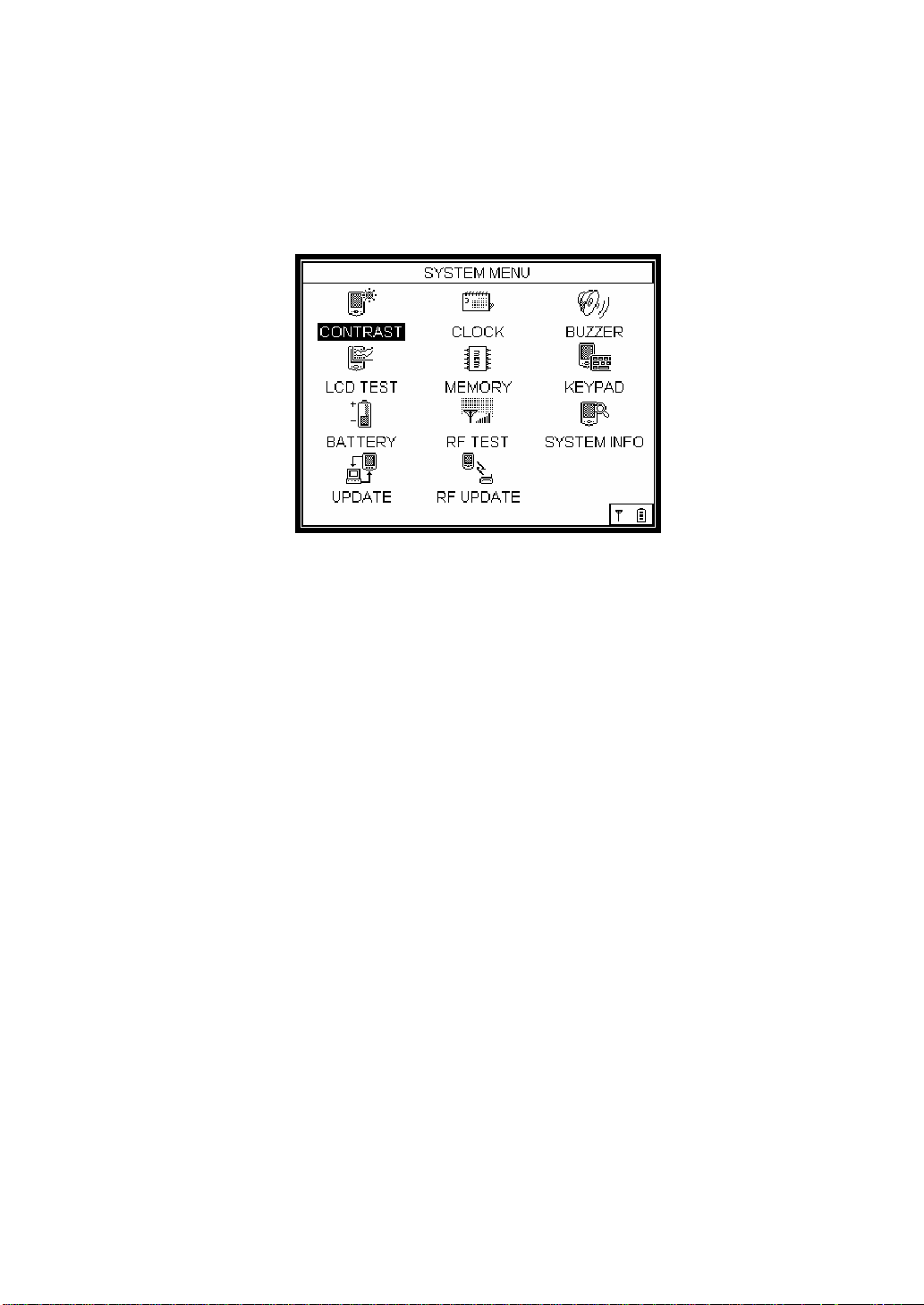

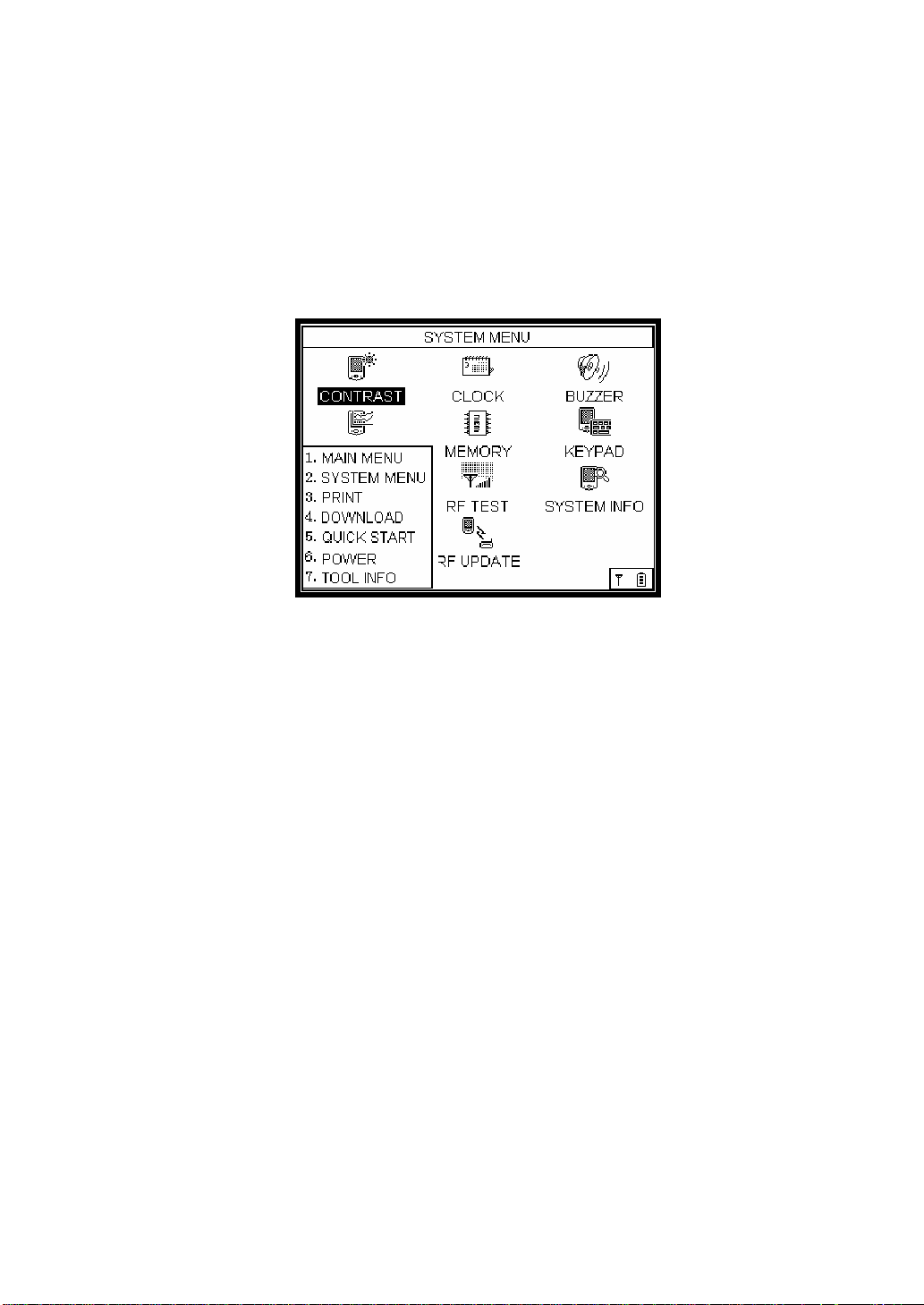

2.2 SYSTEM MENU….……….………. ……………………………………………………

2.3 PRINT….……….…………………………………………………………………………….

2.4 DOWNLOAD….……….… …………………….…………………….……………….

2.5 QUICK START….……….………………………………………………………………

2.6 POWER….……….…………………………………………………….………………...

2.7 Tool Info.…………………………………………………………………………….…..

3. MAIN MENU(DIAGNOSIS)…………………………………………………

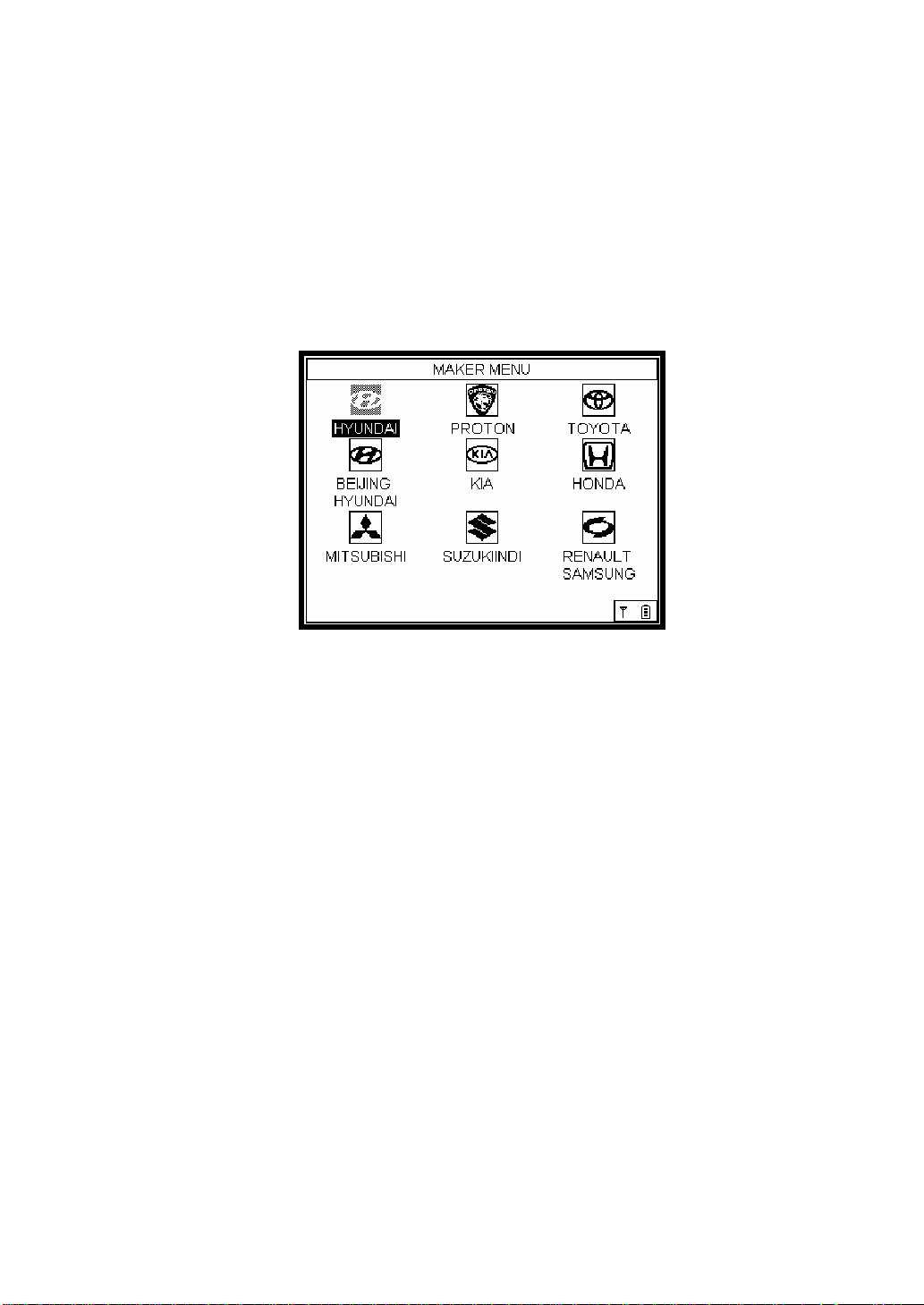

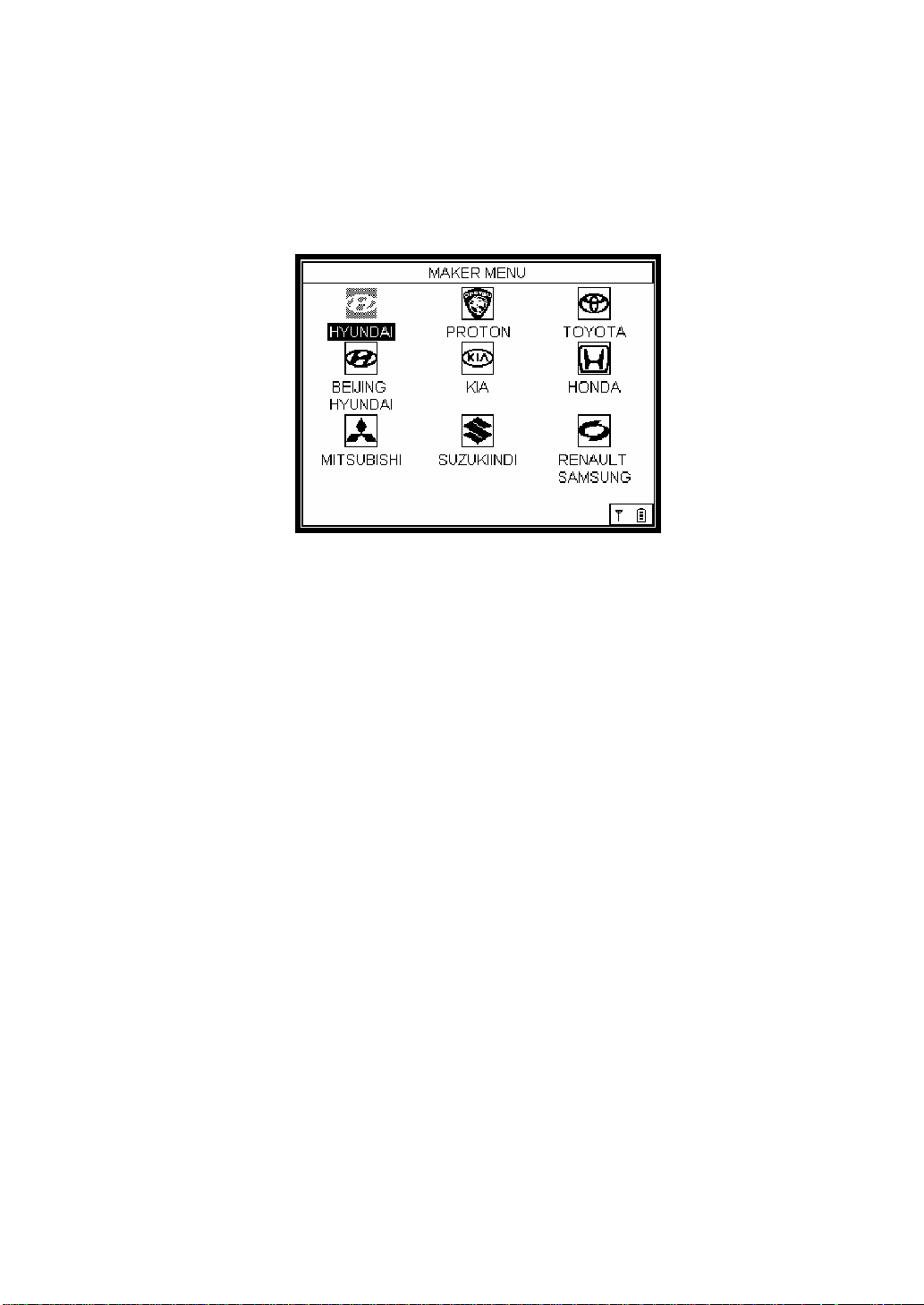

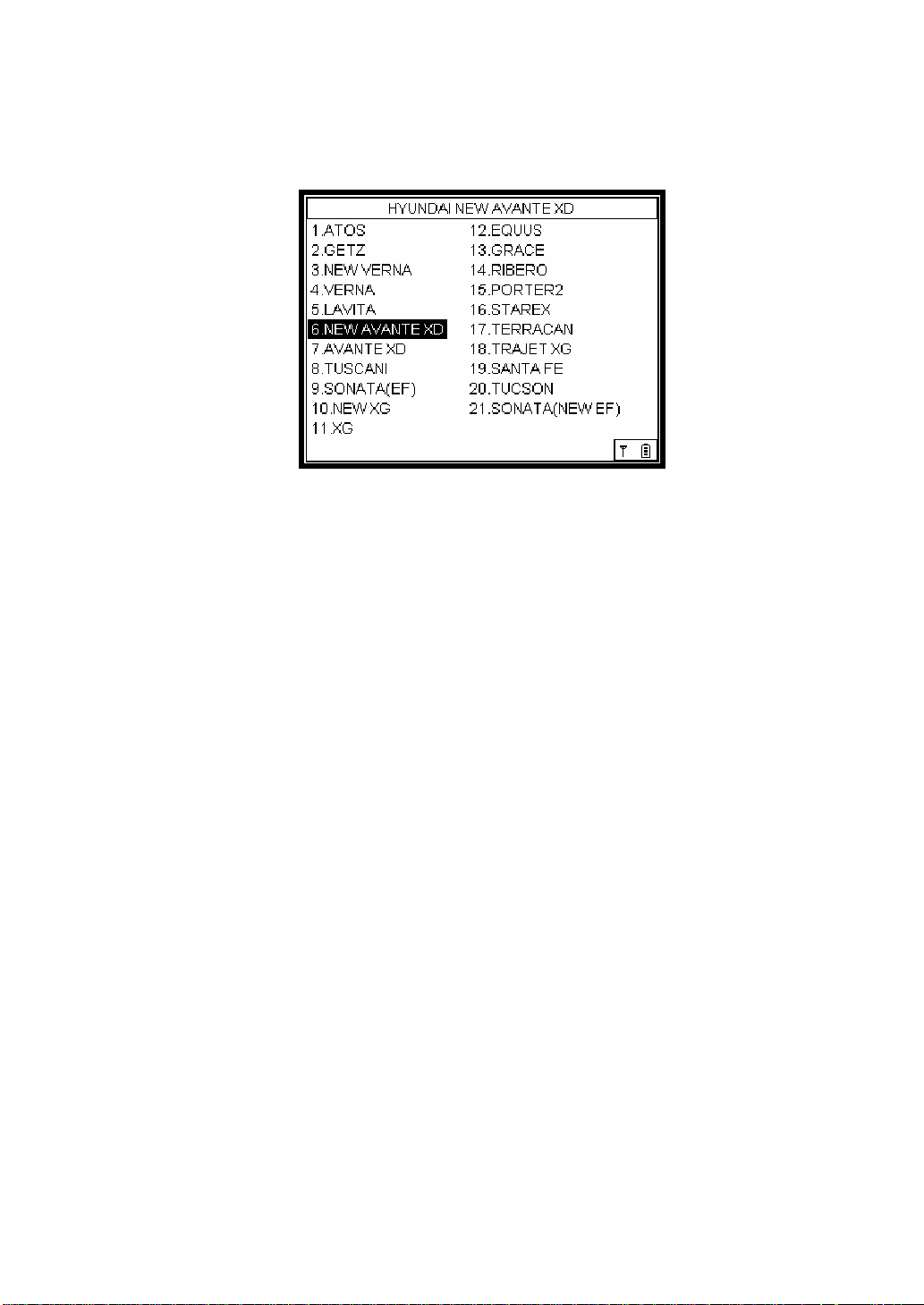

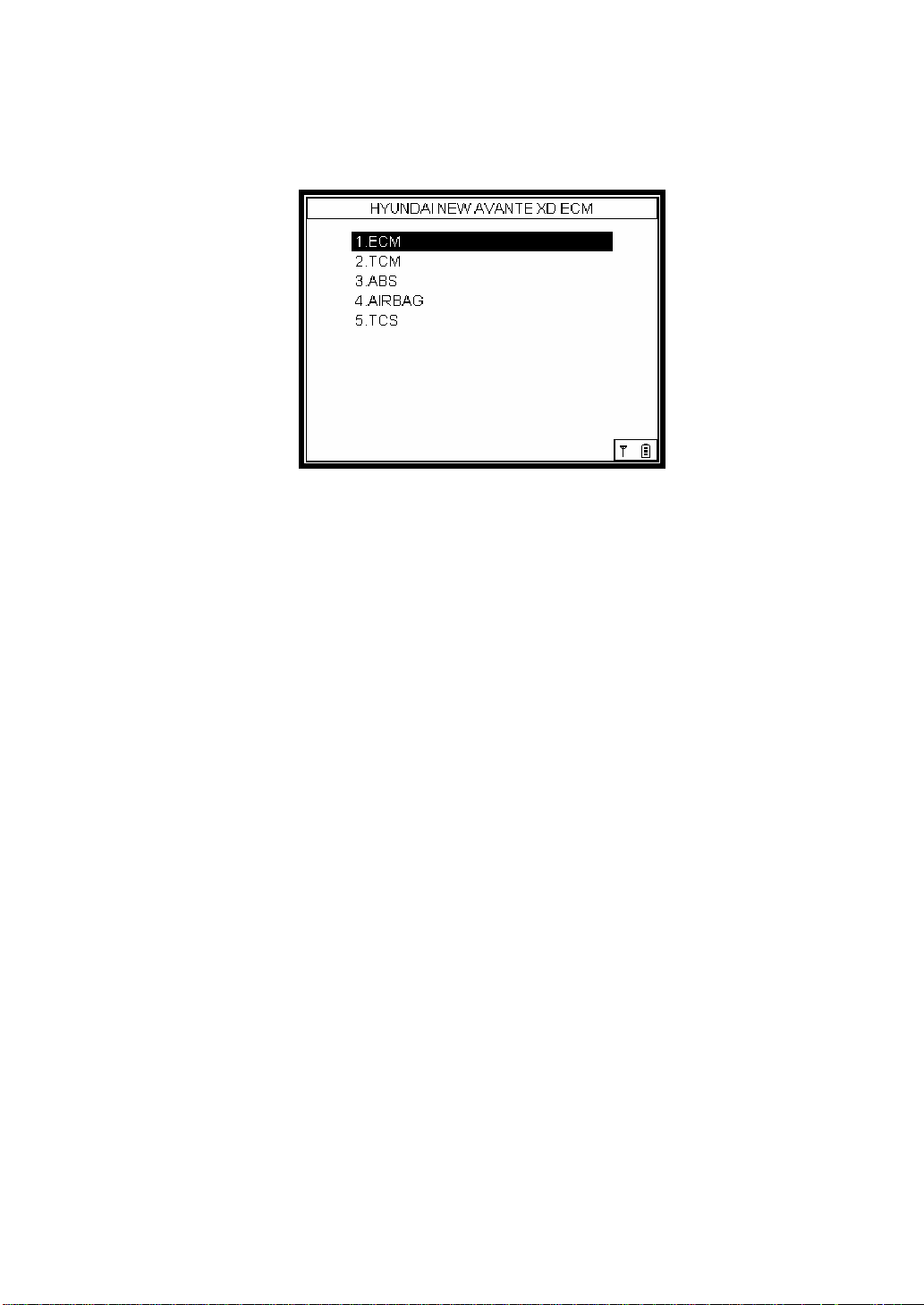

3.1 Car Selection……………………………………………………………..…………….

3.2 Self-Diagnosis………………………………………………………………………...

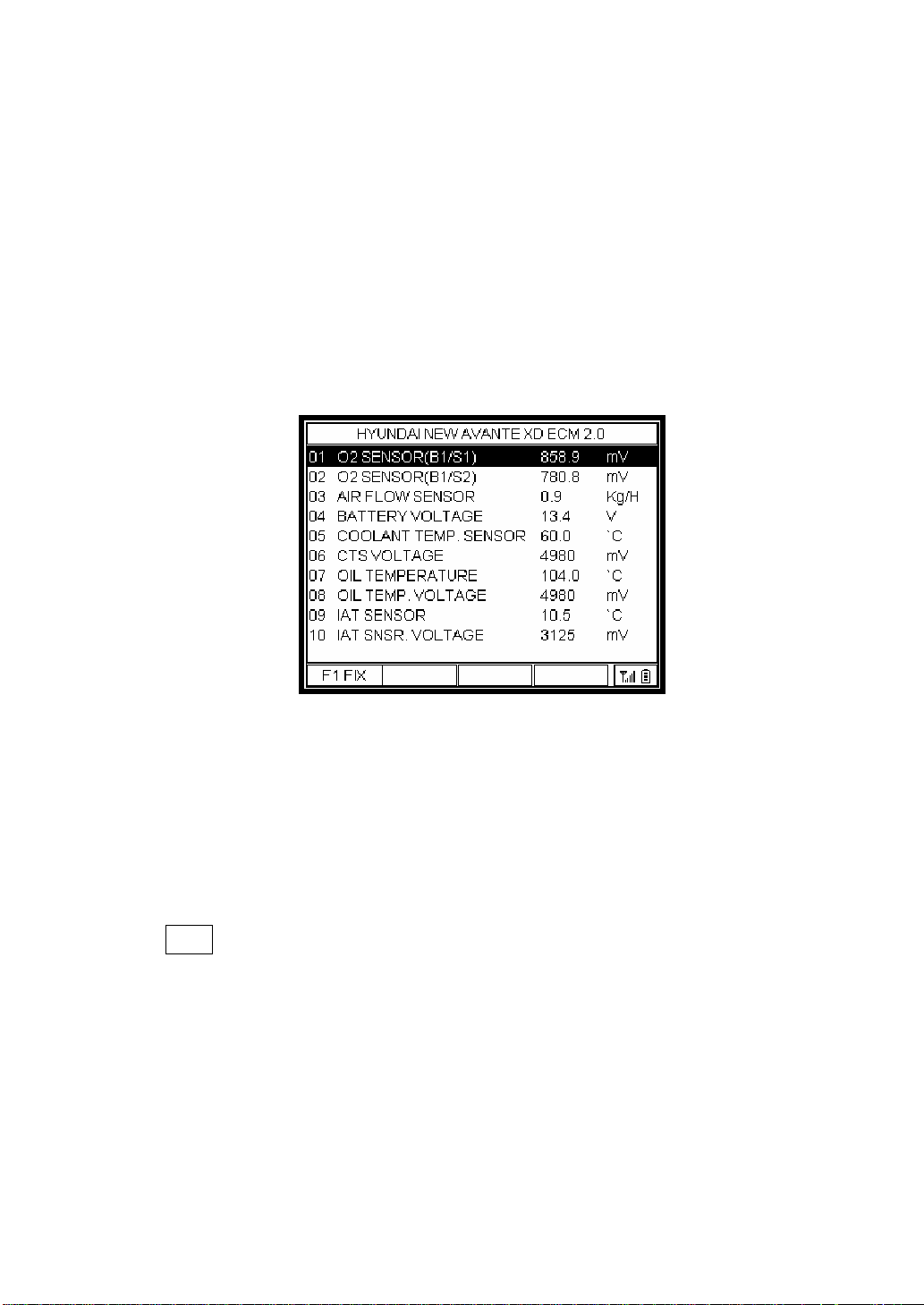

3.3 Service Data …………………………………………………………………………..

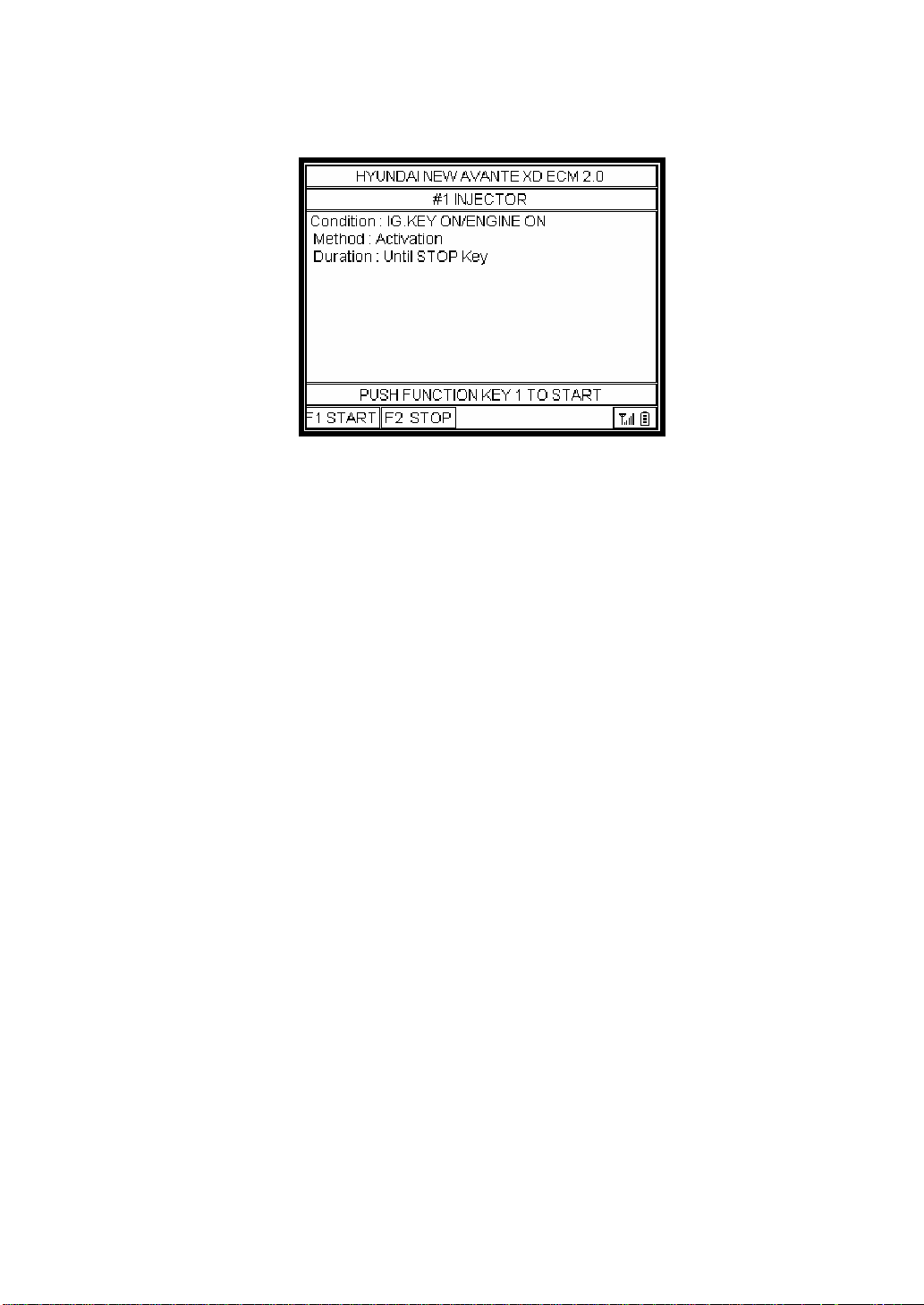

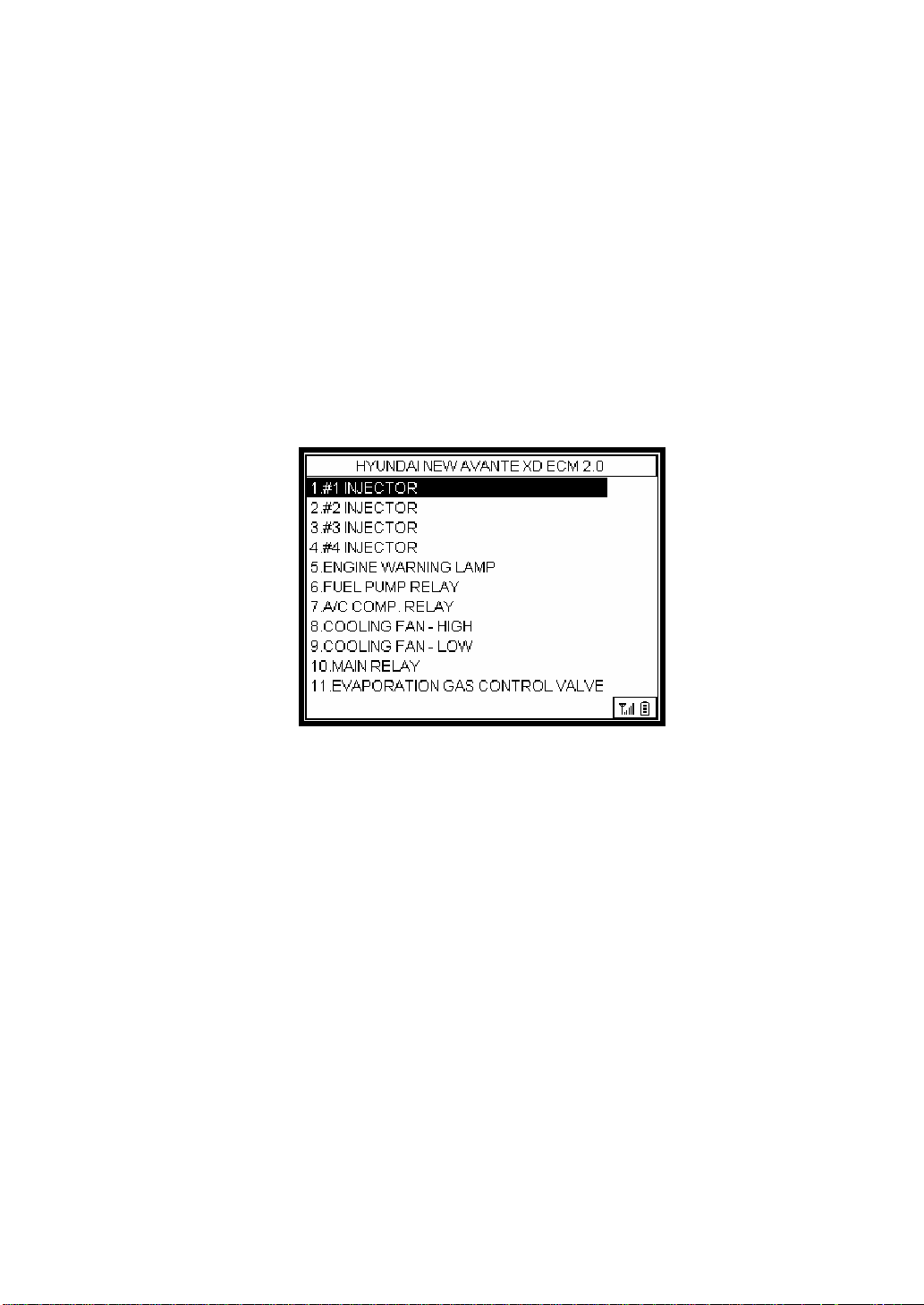

3.4 How to use the Actuator Mode………………………………………………

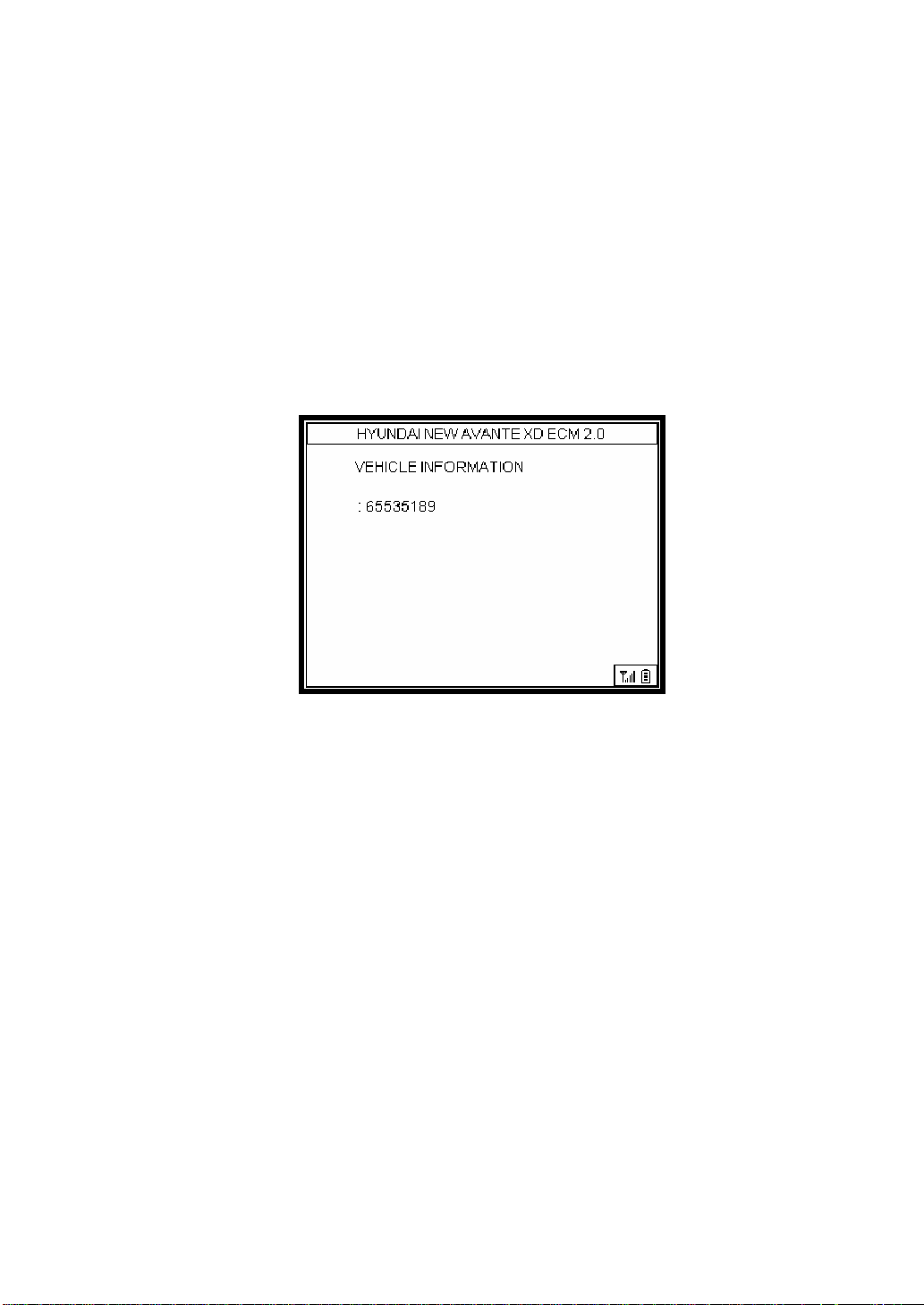

3.5 ECU ID Check ………………………………………………………………………

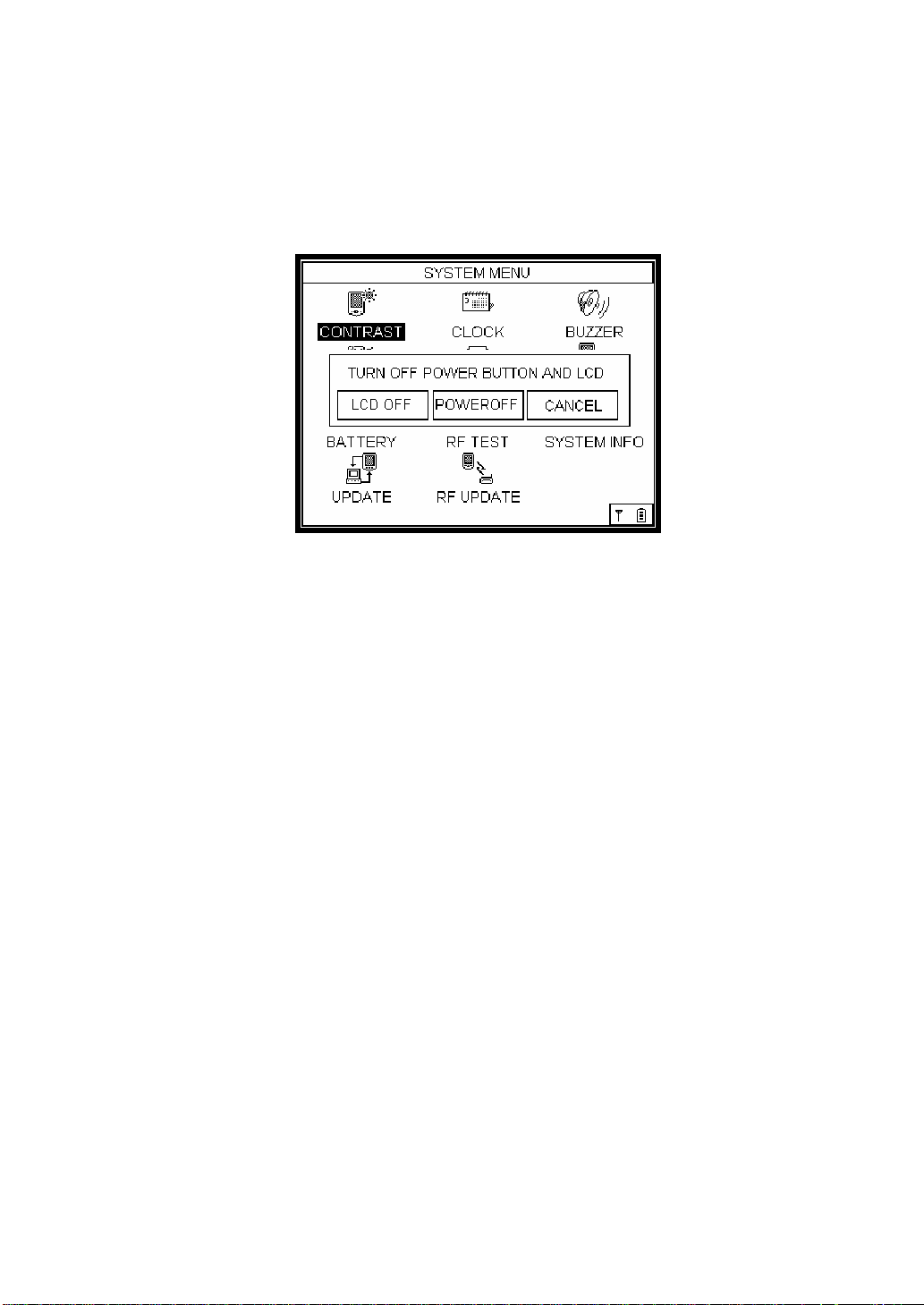

4. SYSTEM MENU…………………………………………………………………

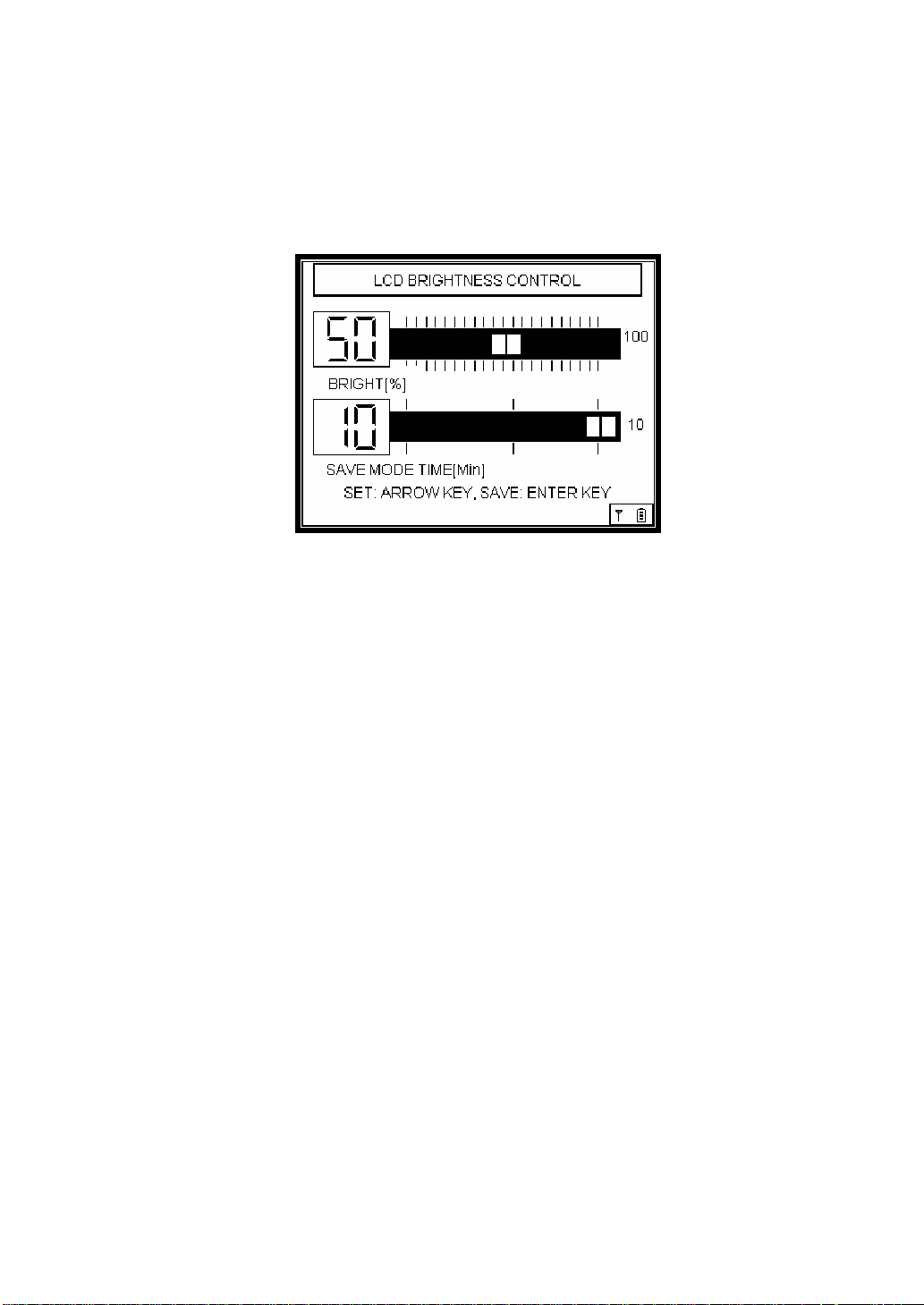

4.1 LCD Brightness Control & Save Mode Time Setting…………….

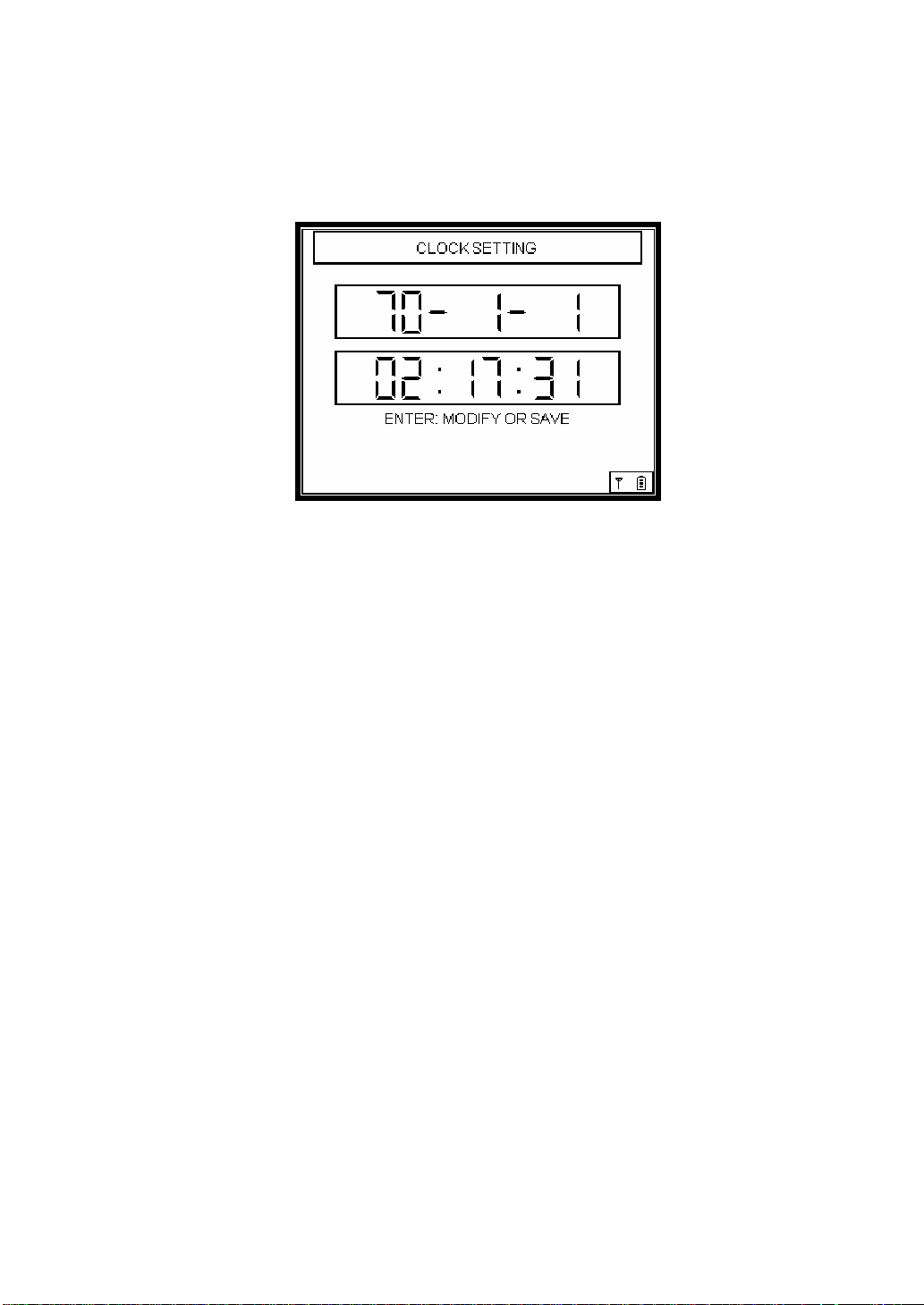

4.2 Clock Setting…………………………………………………………………………...

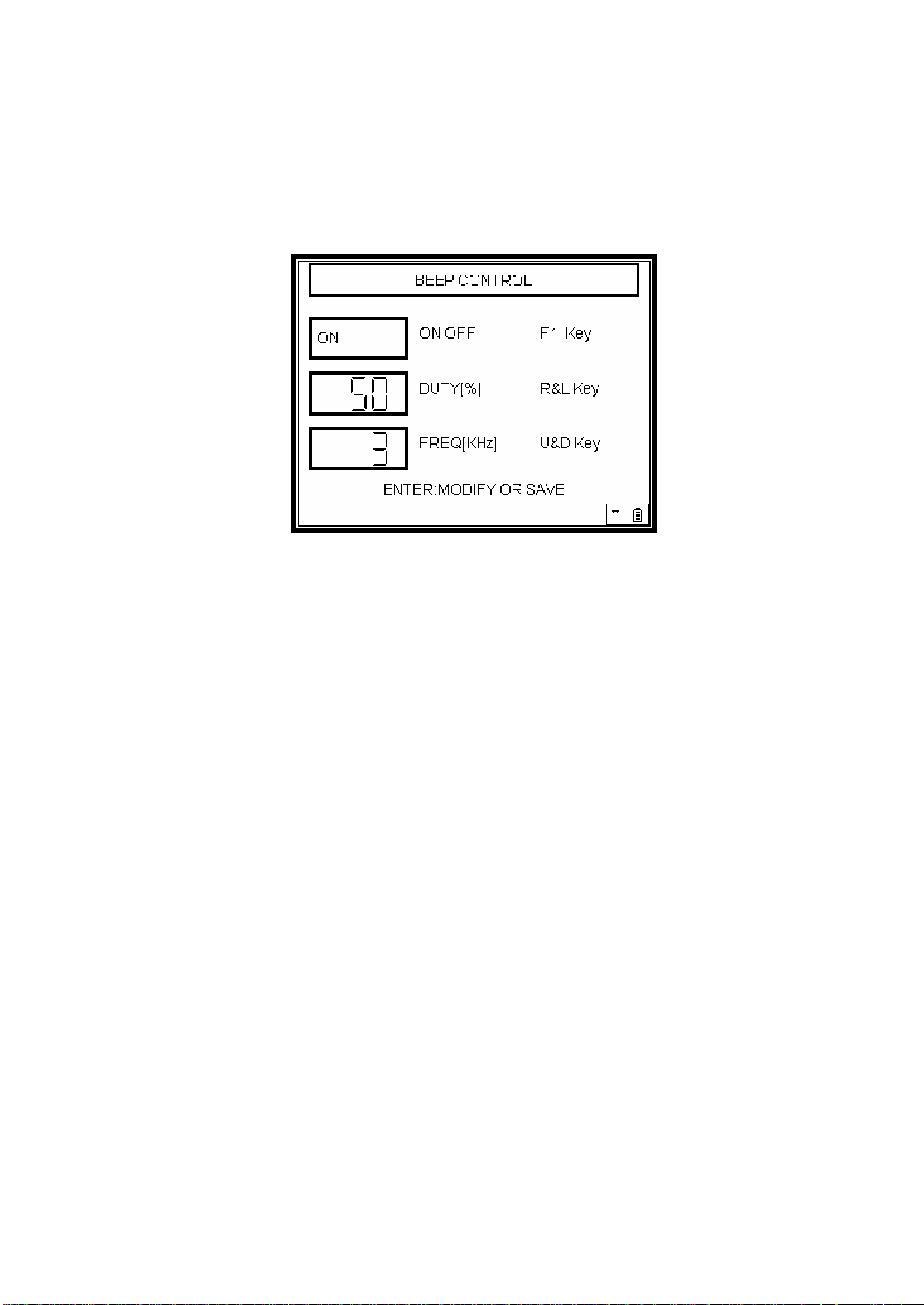

4.3 Buzzer Setting…………………………………………………………..............

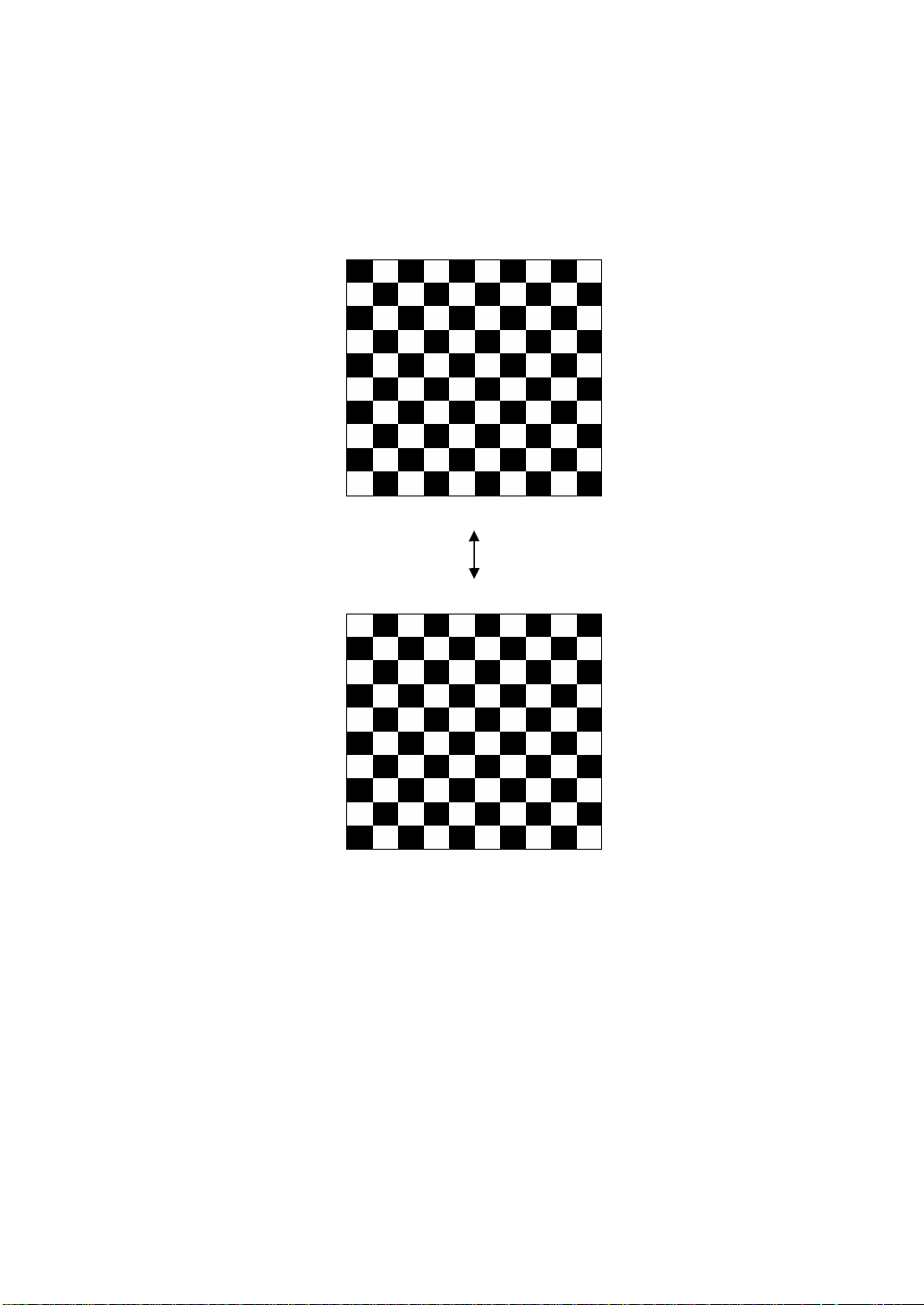

4.4 LCD TEST……………………………………………………………………………….…

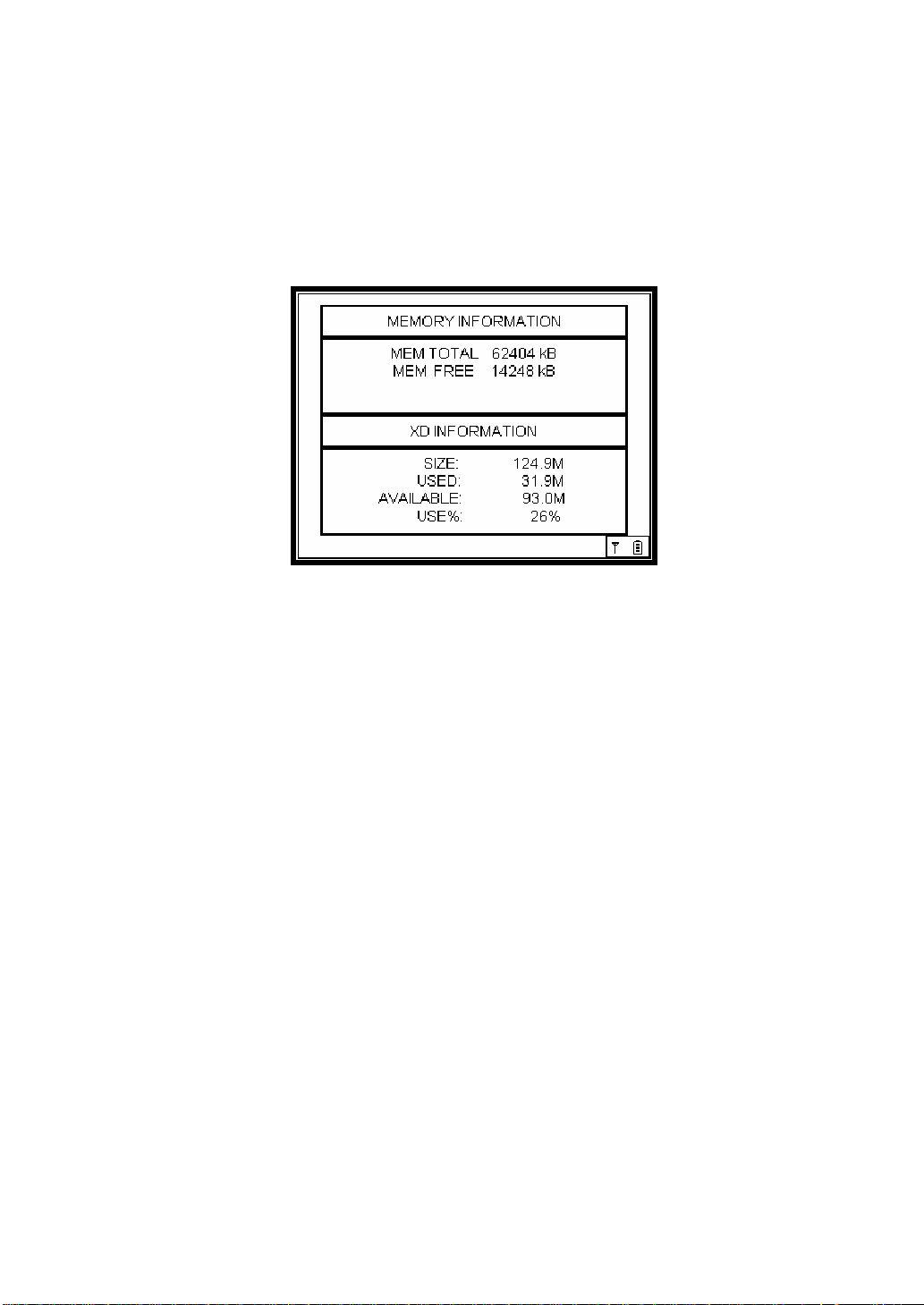

4.5 Memory Information………………………………………………………………..

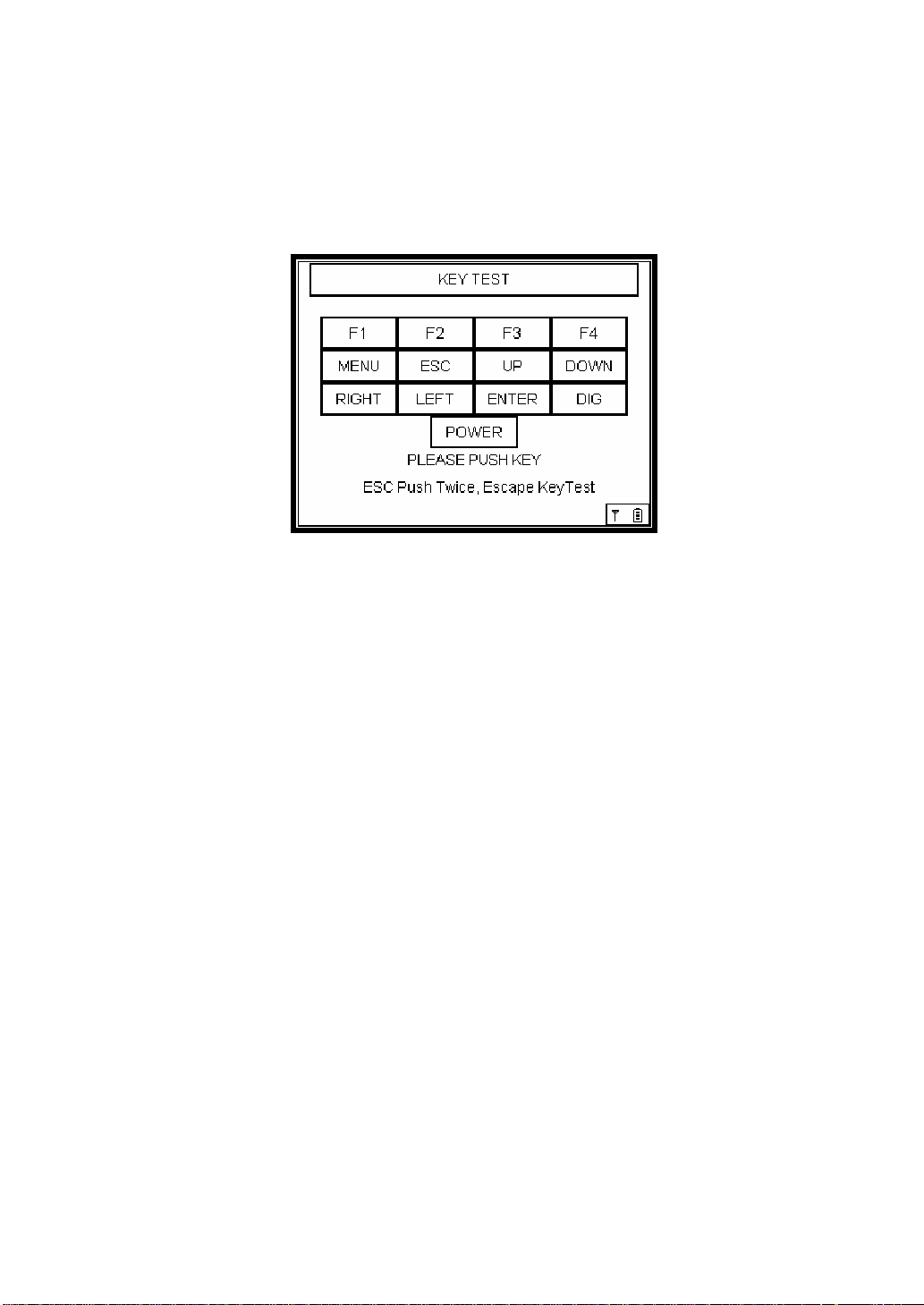

4.6 KEY Test ……………………………………………………………………………….…

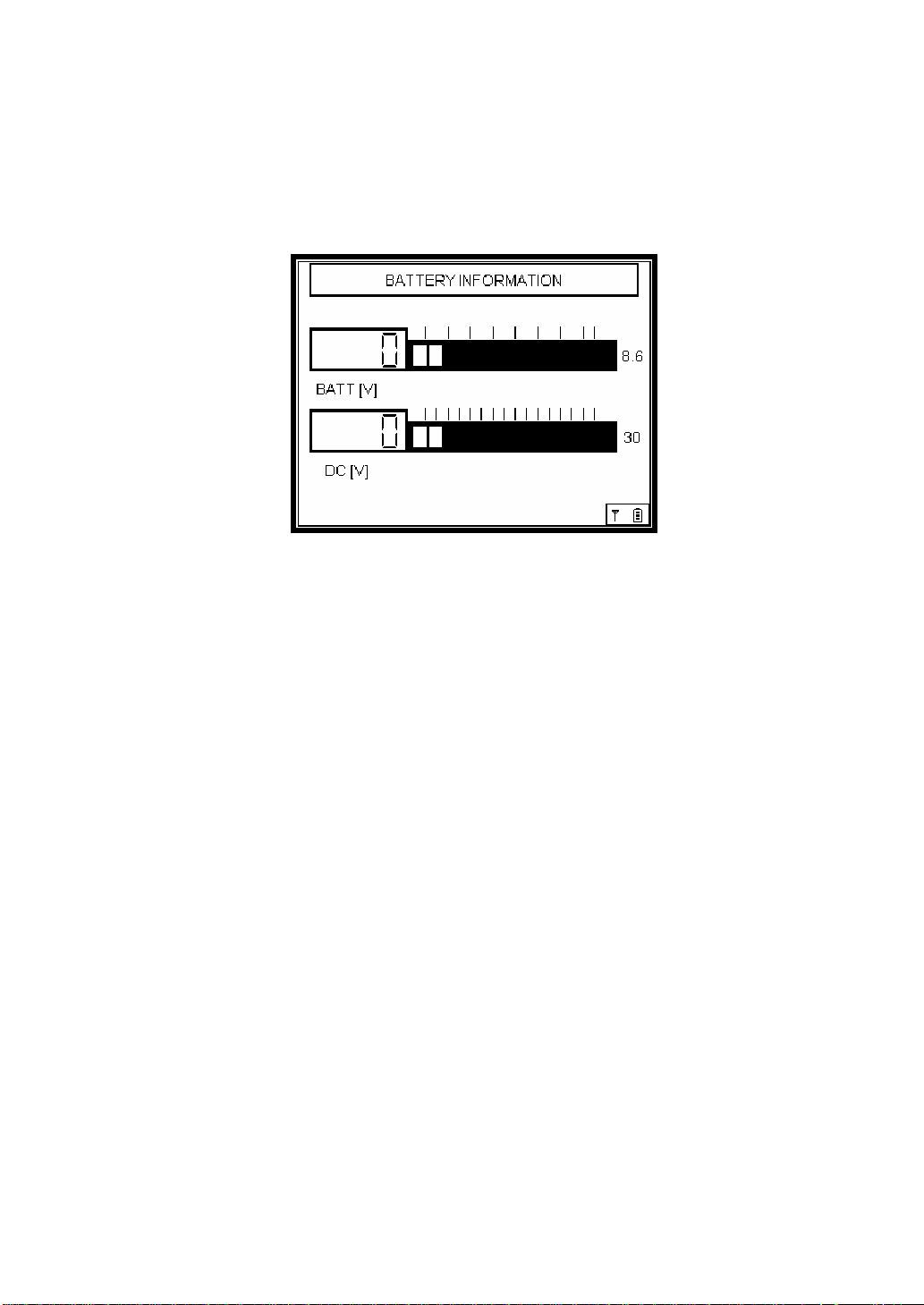

4.7 Battery Voltage Information…………………………………………………..

4.8 RF-TEST ……………………………………………………………………………………

4.9 Update ….……………………………………………………………………………..

4.10 Tool Info. ……………………………………………………………………………….

III. APPENDIX………………………………………………………………

FOREWORD

Today, we are entering a new paradigm with the advent of the ubiquitous society, which is rapidly changing our lifestyle with intelligent, networked, and wireless systems. Cars have also been developed into “intelligent” vehicles that feature better stability and driving efficiency by applying topnotch electric and electronic control system, no longer requiring physical control. In keeping pace with such trends, we developed the much upgraded and high-performing next-generation diagnostic system, the wireless CarDoctor. The Car-Doctor uses a wireless communication system that enables easy and convenient diagnosis and repair of vehicle defects.

Please carefully read this manual before using the Car-Doctor to ensure getting the utmost efficiency with the diagnostic system and to shorten the maintenance hours. In addition, for your convenience, we recommend using this manual along with the maintenance guide.

JASTEC Co., Ltd.

Car-Doctor Development Team

IMPORTANT NOTICE

Please read and follow the following warnings and precautions for the safe and effective us e of the Car-Doctor. Any defect or damage caused by misuse of the product cannot be covered by the warranty for free A/S.

WARNING!

1. Use the battery carefully; it may explode or cause fire.

z Do not subject it to excessive shock or puncture it.

z Do not put it in high-temperature areas or subject it to heat.

z Do not let it get wet and be sunk under water.

z Keep the battery charging terminal away from metals.

2. Do not subject to strong electrical currents.

Voltage beyond the specified level can damage the Car-Doctor.

3. Use only the AC/DC power adaptor provided with the product.

4. Do not disassemble or assemble the Car-Doctor.

If warranty indication is damaged, free A/S will not be available.

CAUTION!

Please be careful in using the Car-Doctor. It consists of high-precision parts including

semiconductors.

1. Do not use the Car-Doctor in places with drastically shifting levels of moisture and

temperature or where dust and liquid oil exist.

2. Avoid placing it under the direct rays of the sun, and do not leave it in the car for long.

3. Preheat it for about 30 minutes when using in a cold area. The properties of electronic parts including the LCD may change in temperatures below 0℃.

4. Charge the battery before using the Car-Doctor.

5. Use the bag after arranging the cable to ensure the cover is well f itted.

6. Avoid subjecting the device to excessive shock when opening and closing the bag (shock may

damage the device).

FCC NOTICE: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: ( 1) This devices may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference w ill not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority t o operate the equipment.

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

I. OUTLINE

USB 12Mbps

2.4G Hz Wireless Communication

Wireless Modu le

Wireless Autom otive Scanner

Diagn ostic Communication

[Picture I-1. Outline]

1. COMPONENTS

F 3 F

F 1 F

C S

E M

▲

▶ T N

◀

▼

R W P

G A I

[Picture I-2. Components]

1.1 Components Table

NO Component Name Component No.

1 Bag 068-M3012 2 Operating Manual MJJ-CR6-E0001

3 Main Body 068-E0001 4 Program Card (built into the main body) JXD-128

5 Rechargeable Battery (main) JBT-01

6 Program Card Case -

OBD-II 16P Adaptor CB-96-0063

GM Daewoo 12P Adaptor CB-96-0061

Ssangyong OBD-II 16P Adaptor CB-96-0063S

Kia 20P Adaptor CB-96-0064

Kia 6P Adaptor CB-96-0066

Renault Samsung/Nissan 14P Adaptor CB-97-0046

Proton OBD-II 16P Adaptor CB-96-0063P

HONDA 3P Adaptor 068-M1002

BMW 20P Adaptor 068-M1003

Toyota Rectangle-17P Adaptor 068-M1004

8 AC/DC Power Adaptor JAD-12V

9 Wireless Diagnostic Module 068-E0002 10 Main Cable 068-M1001 11 Battery Charger 068-E0003

12 (back-up)Rechargeable Battery(Optional) JBT-01

13 USB Communication Cable USB-AB-2M

14 Cigar Lighter Cable CB-96-0069-02

15 Battery Cable CB-96-0069-01

Ssangyong 14P Adaptor 015-M1002-C Ssangyong 20P Adaptor 015-M1001-C

Hyundai 12P Adaptor CB-96-0065 Benz 3P Adaptor 068-M1005

17 Self Test Adaptor 068-M1006

18 Benz 38P Adaptor(Optional) 068-E0004

※ Diagnostic adaptors and cables of No. 7 and 16 may vary depending on product type.

1. 2 Connection System

[Picture I-3. Car-Doctor System]

2. FEATURES AND FUNCTIONS

2.1 Features

1) Wireless Communication System

Through the high-speed data transmission function and the application of highly stable wireless system, the Car-Doctor can diagnose a car in close range while moving.

2) 32-BIT High-performance CPU

The 32-BIT high-speed CPU enables faster and more accurate processing of data, and to have various itemized data that are helpful in identifying source in def ects diagnosis.

3) Top-notch and highly stable Linux OS

The embedded Linux system effectively and stably manages the sys tem and hardware, software, database, and diagnostic data.

4) Database OS

Efficiency, stability, and security are guaranteed by building the DB on car type and diagnostic data, and the data on a new car can easily be upgraded.

5) Powerful Graphic Function

You can easily spot changes in diagnost ic data through the line and bar graphs made by analyzing the diagnostic data.

6) USB Upgrade Function

Easy and high-speed upgrade on a new car is made possible by connecting to a computer through USB.

7) CAN Communication Support

The case is an all-in-one type that combines strong ABS ma terial insid e and uretha ne on its exterior to absorb and withstand shock and this strong and luxurious cas e was made by applying the latest dual-injection molding technology.

8) Noblesse Case

9) User-friendly Design

Handy-type design, high-resolution and easy-to-use LCD that is small and light, with soft-touch key pad and large buttons for easy usage.

2.2 Function

1) MAIN MENU: Car Diagnosis Checkup Function

z Defect Diagnosis and Data Check

Engine, automatic transmission, ABS, airbag, suspension, traxion, air-conditioner

z Removal of Defects z Data Analysis and Storage

Graph Function (Line/Bar Graph)

2) SYSTEM MENU: Setup and Self-diagnosis Function

z Screen Adjustment z Time Setting z Sound (buzzer) setting z LCD TEST z Battery Capacity z Memory Capacity z RF TEST z System Information

※ RF TEST: check the communication b etween the wireless diagnostic module and

main cable.

3) SNAP-SHOT Analysis Analyzes the stored data

4) Database Update Function

When diagnostic software for new car is added

5) Firmware Update Function

Adds or complements functions

3. SPECIFICATION

3.1 Main Body

Case

Display

Key Pad

Main CPU

Dark gray and blue, Dual injection

Interior: ABS material; Exterior : Ur ethane

Monochrome graphic LCD (Resolution: 320 × 240)

Power LED (Red/Green), Communication LED (Red/Green )

Material: Rubber Function Keys: 4; Operation Keys: 4; Direction Keys: 4; Power Key: 1

32-Bit High Performance CPU

Main Clock: 200 MHz (Max. 266 MHz)

Program Card

Wireless

Communication

Rechargeable

Battery

External Power

Power

Consumption

Size [mm]

Embedded Linux 2.4

Type: Flash Memory Card

Basic 128 MB (can be expanded up to 256/512 MB)

Frequency : sharing 2.4-GHz frequency band

Speed : 125 K–1 Mbps

Ultra-sensitive Built-in Antenn a

USB 1.1 Full Speed (12 Mbps)

RS-232 Communication (service functions including A/S) Runtime : over three consecutive hours (when completely

charged) Recharge Time: within two hours

Final Charge Voltage: 8.0–8.4 [V] , 1700 [mAH]

DC 11 ～ 30 V Input

Below 4 W (But, Max. 9.4 W in charging)

Width: 120 Length: 225 Thickness: 47 Weight: 645 [g] (with battery: 115 [g])

3.2 Wireless Diagnostic Module

Dark gray and blue, Dual injection

Case

Interior: ABS material; Exterior : Ur ethane

Display

Wireless

Communication

Power LED (Red/Green), Communication LED (Red/Green )

Frequency : sharing 2.4-GHz frequency band

Speed: 125 K–1 Mbps

Ultra-sensitive Built-in Antenna , 90˚ rotation 26 PIN Input/Output Terminal (power input, communication

input/output )

Vehicle

Communication

Operating

Temperature

Input Power

Power Consumption

Supporting all the vehicle interfaces including NRZ, UART, RS232C, CAN, PWM, VPWM, CLOCK, and PULSE.

0℃ – 50℃

Inputting DC 9 ～ 30V of vehicle battery power

Below 3W

Width: 82 Length: 117 Thickness: 36

Size [mm]

Weight : 222 [g]

3.3 Environmental Features Condition Feature

Temperature

Relative Humidity

Operating Temperature: 0 to 50℃ (32 to 104℉) Storage Temperature: –40 to 70℃ (–40 to 158℉) Operating Humidity: 15% to 95% at 40℃ Storage Humidity: 90% at 65℃

4. Main Body

4.1 External Shape

① LCD Screen

② Key Pad

③Status LED Display

Power Connector

④

⑤ RS-232 Port

⑥ USB Port

⑦ Program Card Slot

[Picture I-4. External Shape]

⑧Main Body Support

Rechargeable Battery

⑨

4.2 Key Pad Components

F1 F2 F3 F4

MENU ES C

▲

ENT

◀▶

▼

PWRDIAG

① Function Key F1,F2,F3, F4

② MENU Key

③ ESC Key

4.3 Key Function

④ Direction Key W, X, S, T

⑤ ENTER Key ENT

⑥ Diagnosis Key DIAG

[Picture I-5. Key Pad]

⑦ Power Key PWR

Component Function

Four function keys are located on right below the LCD screen. Because the functions vary according to each mode, the mechanic can select the desired item and display it a t eac h mode.

Function Key

F1, F2, F3, F4

MENU Key

Function Key Operation for Car Diagnosis and Checkup

- F1 (Item Fixing): Fixing the ite m the cursor selected

- F2 (Item Cancel): Canceling the fixed item

- F3 (Line Graph): Display the item that the curser fixed with line graph

- F4 (Bar Graph): Display the item that the curser fixed with bar graph.

Basic Menu MAIN - SYSTEM - PRINT - DOWNLOAD, etc Press MENU to display the Selection screen.

Direction

ESC Key

Up/Down

Key

Left/Right

ENTER Key

ENT

Diagnosis Key

DIAG

Power Key

PWR

S T

W X

Close the current screen and exit. Back to previous menu screen.

Move the cursor up or down on the selected screen.

Move the cursor to the left and right at the selected screen. Used in page transfer in the screen where several page exist. (◀: Page Up, ▶: Page Down)

Select the item when the cursor is located. Transfer into the selected menu screen

Quick Diagnostic Function Move to the car type menu that was recently diagnosed.

Turn the power on and off. Press it for over 4 seconds, and the power will go off.

4.4 Status LED Display

PWR COM

① PWR: Power LED ② COM: Communication LED

[Picture I-6. LED Display]

4.4.1 PWR LED: Upper Left

Displays the current status of power and battery

No Lighting Normal state

Power ON

Red Lighting Charging state

Green Lighting Indicates proper charging state

Yellow Lighting

Indicates the battery is fully charged (charging completed)

Power OFF

Note: When the PWR LED blinks in red while in use, supply the power or replace the battery. If not, battery discharge may occur and the device will lose power.

Red Blinking

Red Lighting In use

Green Lighting Indicates proper charging state

Yellow Lighting Indicat es full charging sta te

Indicates the need for charging and battery replacement

4.4.2 COM LED: Upper Right

Display the current wireless communication status (Communication Status with Wireless Module).

• Red Lighting: Data Transmission

• Green Lighting: Data Receipt

• In case wireless communication is in normal state in diagnosing a car, the red and green lights at COM LED come out alternately, or yellow light comes out.

5. WIRELESS DIAGNOSTIC MODULE

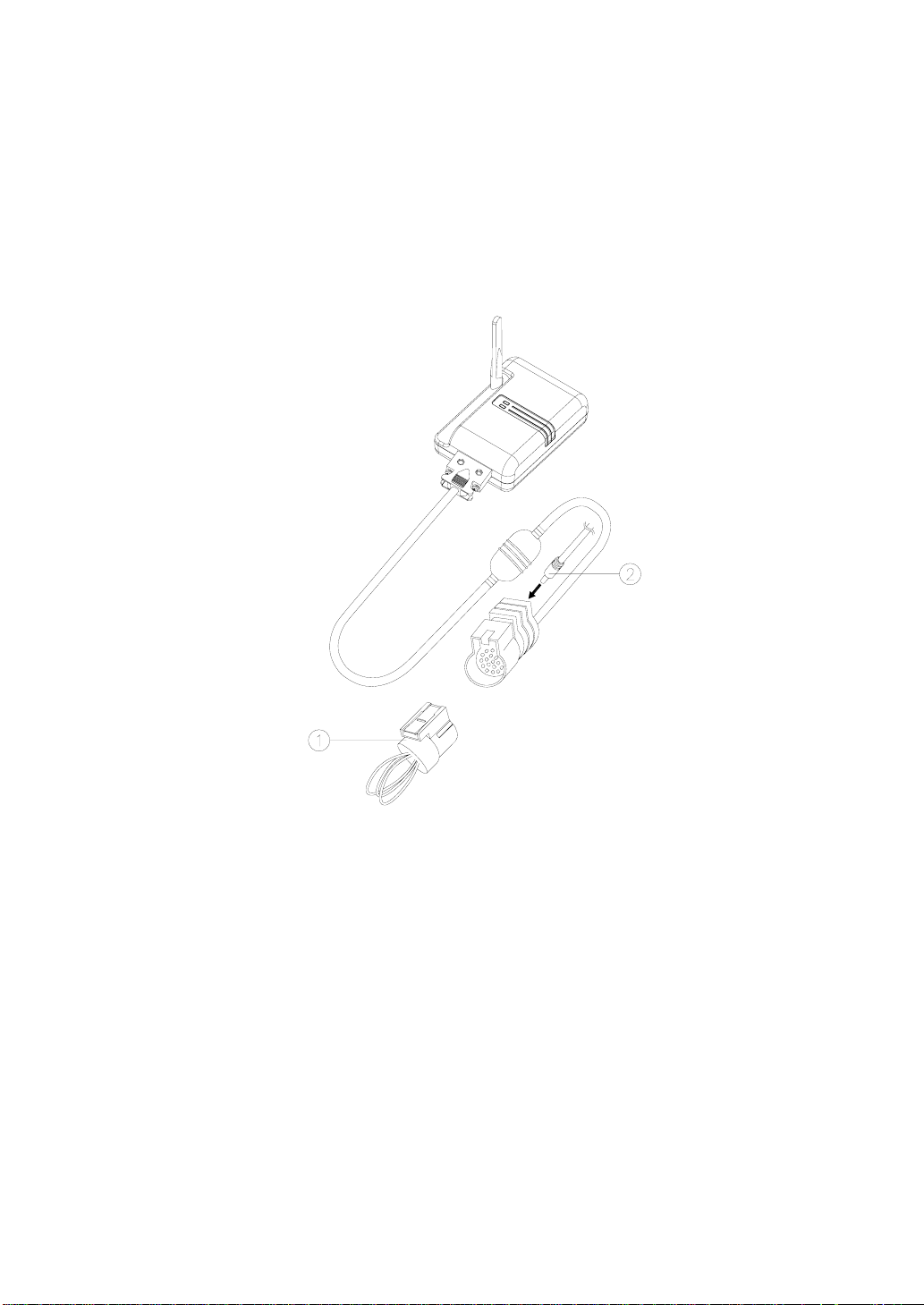

5.1 External Shape & Connection

① Status LED Display

② Antenna

Connection Sequence

① Connect main cable 26-pin connector to the main connector (put it to full until it is clicked).

② Connect the car adaptor to the main cable 19-pin adaptor. ③ Set the antenna upright up to 90°

③ Main Connector (26 PIN)

④ Main Cable (26–19 PIN)

[Picture I-7. Wireless Module]

⑤ Car Adaptor

+ 43 hidden pages
