MODEL: CUT40(L13 1 ) /CUT60( L20 4 )/CUT80 ( L20 5)

INVERTER CUTTER

OPERATOR’S MANUAL

CUT100(L20 1 ) /CUT60( L21 1 )

L2040A S C -A4

You Can buy this product at our E-shop:

Šią prekę galite įsigyti mūsų el. parduotuvėje:

BUY NOW

FORWARD

Thank you for JASIC inverter cutter. In order to ensure your safety and correct operation, please read this manual carefully before operation. Keep this manual properly for future references.

This product is designed and manufactured according to relevant national and international standards, an d meets GB155 79 , IC E6 09 74 , EN60974,

AS60974 and UL60974 standard. Relevant design plans and manufacturing

technologies of this product are patented.

SHENZHEN JASIC TECHNOLOGY CO., LTD.

Address: No. 3, Qinglan 1st Road, Pingshan District, Shenzhen, Guangdong, China

Postcode: 518118

Fax: 0755-27364108

Website: http://www.jasictech.com

Tel: 0755-29651666

SAFETY

Precautions for installation

Beware of electric shock!

Install grounding device according to application standard.

Do not touch live parts with naked skin, wet gloves or wet clothes.

Be sure you are insulated from ground and workpiece.

Cover the cover plate of the machine before power on to avoid an electric shock.

Confirm the safety of your working position.

Beware of fire hazard!

Please install the machine on non-combustible materials to avoid a fire. Make ensure there are no inflammables near the cutting position to avoid a fire.

Beware of explosion !

Do not install the machine in an environment with explosive gas to avoid an explosion.

Replacing the components can be dangerous.

Only professionals can replace the components of the machine.

Make sure there are no foreign bodies such as wire leads, screws, gaskets and metal bars falling into the machine inside when replacing the components.

Make sure the connecting wires inside the machine are correctly connected after replacing the PCB s, and then t he mach ine can b e run. Othe rwise , there i s a risk of damage to prope rty.

Precautions for operation

Smoke-may be harmful to your health!

Keep your head away from the smoke to avoid inhalation of waste gas in cutting. Keep the working environment well ventilated with exhaust or ventilation equipment when .cutting

Arc radiation-may hurt your eyes and burn your skin!

Use proper mask and wear protective clothing to protect your eyes and body.

Use proper mask or curtain to protect onlooker from being injured.

Magnetic field can make cardiac pacemaker a bit wonky!

People with cardiac pacemaker should consult the doctor before carrying

out .cutting

Stay away from the power source to reduce the affect of magnetic filed.

Improper use and operation may result in a fire or an explosion!

Cutting spark may result in a fire, so please make ensure there are no inflammables near the position, and pay attention to fire safety.cutting Ensure there is fire extinguisher nearby, and make sure someone has been trained to operate the fire extinguisher. Do not weld closed container. Do not use this machine for pipe thawing.

Hot workpiece can cause severe scald!

Do not touch hot workpiece with bare hands. Cool the torch for a while after continuously working.cutting

Excessive noise does great harm to people’s hearing!

Wear ear covers or other hearing protectors when .cutting Give warning to onlooker that noise may be potentially hazardous to

hearing.

Moving parts may injure your body!

Please keep away from moving parts (like fan). Each door, panel, cover, baffle plate, and protective device the like

should be closed and located correctly.

Seek professional support when trouble strikes!

When trouble strikes in installation and operation, please inspect according to related contents in this manual.

If you still cannot understand fully, or you still cannot solve the problem, please contact the dealer or the service center of JASIC to obtain professional support.

Precautions for discard

Pay attention to the following when discarding the machine: Burning the electrolytic capacitors in the main circuit or on the PCBs may cause an explosion. Burning the plastic parts such as the front panel may produce poisonous gas. Dispose it as industrial waste.

cutting

TABLE OF CONTENTS

1. GENERAL DESCRIPTION . . . .

1.1 Model coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Technical parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.3 Size and weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.4 Composition and configuration of the machine system . . . . . . . . . . . . . . . . . . . . 3

1.5 Functions and characteristics of the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.6 System characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2. INSTALLATION AND CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.1 Installation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3. OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.1 Panel functions of L131 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Panel functions of L204/L205 . . . . . . .

3.2 /L211. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Panel functions of L201. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.3

3.4 Operation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.5 . . . . . . . . . . . . . . . . . . . . . . . . .

Notes for cutting operation . . . . . . . . . . . . . . . . . . . . . . . . 12

3.6 Cutting parameters table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.7 Replacement of electrode and nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.1 Daily maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.2 Periodic check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 . .

. .

cutting . .

. . . . . . . . . . . .

. . . . . . . . .

1. GENERAL DESCRIPTION

1.1 Model coding

CUT XX (XXXX)

1.2 Technical parameters

Table 1 1: General technical parameters-

Items

Rated input power supply

Rated input capacity KVA( )

Power factor

Rated output (A/V)

Rated duty cycle(%)

No-load voltage(V)

Output current range (A)

Arc ignition ode m

Post-flow time (S)

Gas pressure range (Mpa)

Insulation grade

Cooling mode

Enclosure ingress protection

Efficiency (%)

Figure 1 1: Model coding-

CUT40 (L131)

Single phase

AC220V 50/60Hz

6. 4

0. 70

40/9 6

230

20-4 0

0.2- 0.4

Product code Code for rated output current

Inverter air plasma cutter

CUT60 (L211)

0. 70

60/1 04

300

25-6 0

Models

CUT60 (L204)

3 phase AC380/415V 50/60Hz-

0. 70

60/1 04

310

20-6 0

0.3- 0.5

Air cooling

IP21S

CUT80 (L205)

0. 70

80/11 2

310

20-8 0

CUT100 (L201)

15.2

0.93

10 10/ 20

315

20-1 00

1.3 Size and weight

Table 1-2: Overall size and weight of the machine

Model

Overall size (L*W*H)

Weight Kg( )

CUT40 (L 131) C UT60 L2 04( )/( L211)

415*155*315 540*250*380

9 17 26.5

CUT80 L 205( )

540*250*380

17.4

CUT10 0 L201( )

568*259*446

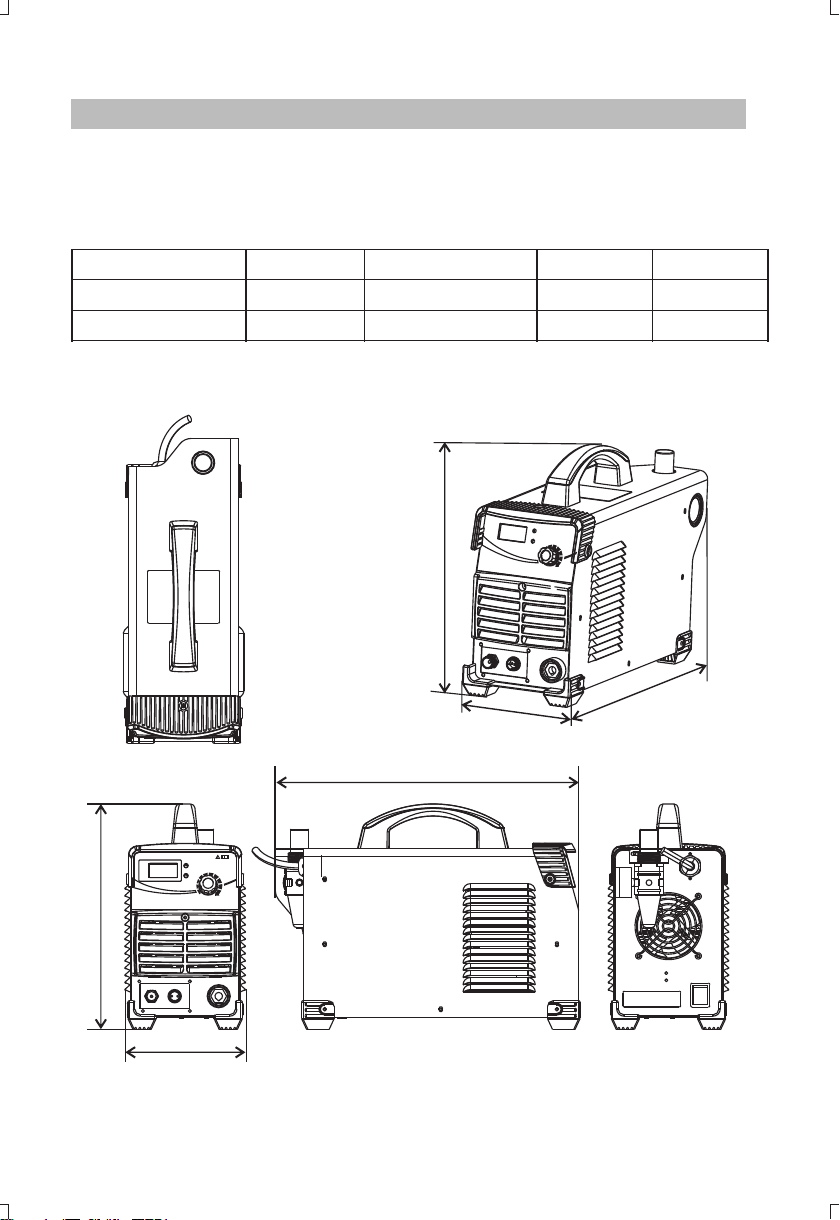

Figure 1-2: Appearance and size of the machine Unit: mm( )

1.4 Composition and configuration of the cutting machine system

1) Composition

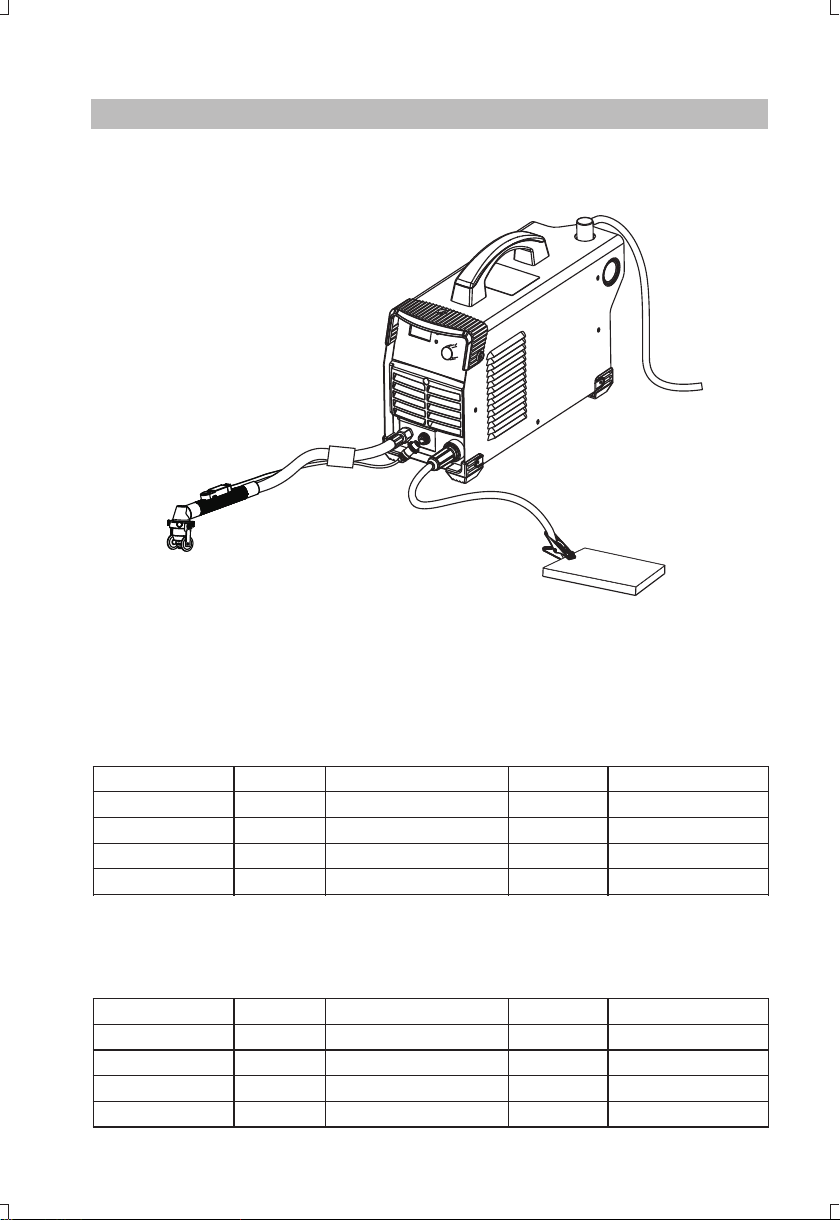

Figure 1-3: Composition of the cutting machine system

2 Configuration)

Name

Cutting machine

Cutting torch

Earth clamp

Operator’s manual

Name

Cutting machine

Cutting torch

Earth clamp

Operator’s manual

Table 1-3: Configuration of CUT40(L131)

Material code

10048248

10003276

10049239

Table 1-4: Configuration of CUT60(L204)/CUT60(L211)

Material code

10049815

10003276

10049239

Specification

CUT40(L )131

PT-31

300A-6mm²-KDP16D(3m)

CUT series

Specification

CUT60(L204)/(L211)

P80 5m 60A( )

300A-16mm²-2.5m

CUT series

Quantity pcs ( )

Remark

Standard configuration

Remark

Standard configuration

Table 1-5: Configuration of CUT80(L205)

Name

Cutting machine

Cutting torch

Earth clamp

Operator’s manual

Name

Cutting machine

Cutting torch

Earth clamp

Operator’s manual

Material code

10049816

10049813

10049239

Table 1-6: Configuration of CUT100(L201)

Material code

10048212

10003277

10049239

Specification

CUT80(L205) P80 5m 80A( )

300A-16mm²-2.5m

CUT series

Specification

CUT100(L201)

BP-80 5m

300A-6mm²-KDP16D(3m)

CUT series

Quantity pcs ( )

Remark

Standard configuration

Remark

Standard configuration

1.5 Functions and characteristics of the cutting machine

CUT series are inverter cutting machines made by our company with advanced inverter technology. They are more mature products with stable performance. With PWM technology and high power component MOSFET (or IGBT), it inverts the DC voltage, which is rectified from 50Hz/60Hz input AC voltage, to 30K~100KHz AC high voltage. Then the voltage is dropped and rectified to output the high power DC power supply for cutting. The machine adopts switching power supply inverter technology, greatly reducing the volume and weight of the cutter, and obviously enhancing the conversion efficiency by 30%.

Features of CUT series

Economic and practical by adopting compressed air as the plasma gas source. The cutting speed has increased by 1.8 times when compared with oxyacetylene cutting.

It can cut thick steel plate conveniently and quickly. It is easy to ignite arc, and post-flow function is available.

It has a wide range of use, especially for cutting stainless steel, copper, cast iron and aluminum, etc.

With simple operation and high cutting speed, smooth cutting surface can be obtained, and polishing is unnecessary.

It adopts HF arc ignition mode.

1.6 System characteristics

1) Duty cycle

Rated duty cycle refers to the percentage of the normal work time of the machine under rated maximum current holding in the period when taking 10 minutes as a period. The rated duty cycle of this machine is 40 -60%. Using the cutting machine continuously overrunning the rated load may lead to overheating of the machine, and frequently using the machine overrunning the rated load may accelerate the aging of the machine or even burn the machine.

Q(%)

100

①④② ③

CUT40(L131)

①

CUT60(L204)/CUT60(L211)

②

CUT80(L205)

③

CUT100(L201)

④

2) Output characteristics

U2(V)

Figure 1-4: Duty cycle

Figure 1-5: Output characteristic curves

150120

(A)I

External characteristic of maximum output External characteristic of minimum output Relationship with ratedload

2(A)I

2. INSTALLATION AND CONNECTION

2.1 Installation requirements

1) Connection of input cable

In order to ensure personal safety and avoid electric shock, please ground the machine reliably by connecting the ground wire (yellow-green wire) of the machine to the grounding device in the switching box.

A primary power supply cable is available for this cutting machine. Connect the power supply cable to the rated input power. The primary cable should be tightly connected to the correct socket to avoid oxidization. Check whether the voltage value varies in acceptable range with a multi-meter.

The cross section of the leads used in the switching box should meet the requirements of the maximum input capacity of the machine.

2) Connection of output cable

Connection of cutting torch

Connect the copper nut on the cutting torch to the gas-electric connector on the front panel of the machine, and tighten it clockwise to avoid gas leakage. Insert the quick plug on the work clamp into the “+” output terminal on the front panel of the machine, and tighten it clockwise.

Connection of the torch trigger

Insert the plug of the torch trigger on the cutting torch into the socket of torch trigger on the machine panel. (For models with pilot arc function, connect the pilot arc wire on the cutting torch to the terminal for pilot arc wire on the machine panel.) Install the electrode into the cutting torch by turning it slowly, and tighten it. Then, get the nozzle and protective sleeve installed in sequence.

Connection of earth cable

Insert the quick plug on the earth cable into the quick socket marked with “ ” at the bottom of the front panel of the machine, and tighten it clockwise. Clamp the workpiece with the work clamp at the other end of the earth cable.

3) Installation and operation of the reducer valve

Pressure control knob

Connecting frame

Pressure gauge

Gas hose

Figure 2-1: Installation of the reducer valve

Steps for reducer setting are as follows: start the gas flow; lift the pressure control knob upward; adjust the gas pressure to the desired value by rotating the knob (rotate to “+” direction to increase gas pressure; rotate to “-” direction to reduce gas pressure); press down the pressure control knob to get the knob locked. Drain the water by turning the drain knob when there is too much water in the filter cup.

Filter cup

Drain knob

4) Installation of the cutting torch

－Screw the electrode into the torch head. －Screw the nozzle into the torch head, and

tighten it.

－Screw the protective sleeve into the torch head, and tighten it.

－Fix the bracket on the torch head, and tighten the fastening screw.

Figure Installation of cutting torch head 2-2:

Torch head

Electrode

Nozzle

Protective sleeve

Bracket

Torch handle

2.2 Precautions

1) Make sure the place to install the machine can bear the weight of the cutting machine.

2) Do not install the machine at places where water droplet splash may be produced, such as near water pipes.

3) Cutting should be carried out in dry environment with humidity of 90% or less.

4) The temperature of the working environment should be between -10℃ and 40℃.

5) Avoid cutting in the open air unless sheltered from sunlight and rain. Keep it dry at all times and do not place it on wet ground or in puddles.

6) Avoid cutting in dusty area or environment with corrosive chemical gas.

7) Do not carry out cutting with the cutting machine placed on a platform with a pitch greater than 10°.

Overcurrent/overvoltage/overheating protection circuit is installed in this machine. When the mains voltage, output current or inner temperature exceeds the set standard, the machine will stop automatically. However, excessive use (e.g. too high voltage) of machine may also damage the machine, so please note:

This cutting machine can create powerful cutting current and has strict cooling requirements that cannot be met with natural ventilation. Therefore the built-in fan is very important in enabling the machine to work stable with effective cooling. The operator should make sure that the louvers be uncovered and unblocked. The minimum distance between the machine and nearby objects should be 25cm.

This machine is of automatic mains voltage compensation, which ensures that the cutting current varies within the given range. In case that the input mains voltage exceeds the tolerance value, it would possibly damage the machine. The operator should understand this circumstance fully and adopt relevant precautions.

Remember to observe the max load current at any moment (refer to the corresponding duty cycle). Make sure that the cutting current should not exceed the maximum load current. Overload could obviously shorten the machine's lifespan, or even damage the machine.

A sudden halt may occur with the yellow LED on the front panel on while the machine is of over-load status. Under this circumstance, it is unnecessary to restart the machine. Keep the built-in fan working to lower the temperature inside the machine. Cutting can be continued after the inner temperature falls into the standard range and the yellow LED is off.

3. OPERATION

3.1 Panel functions of L131

1 40

L204

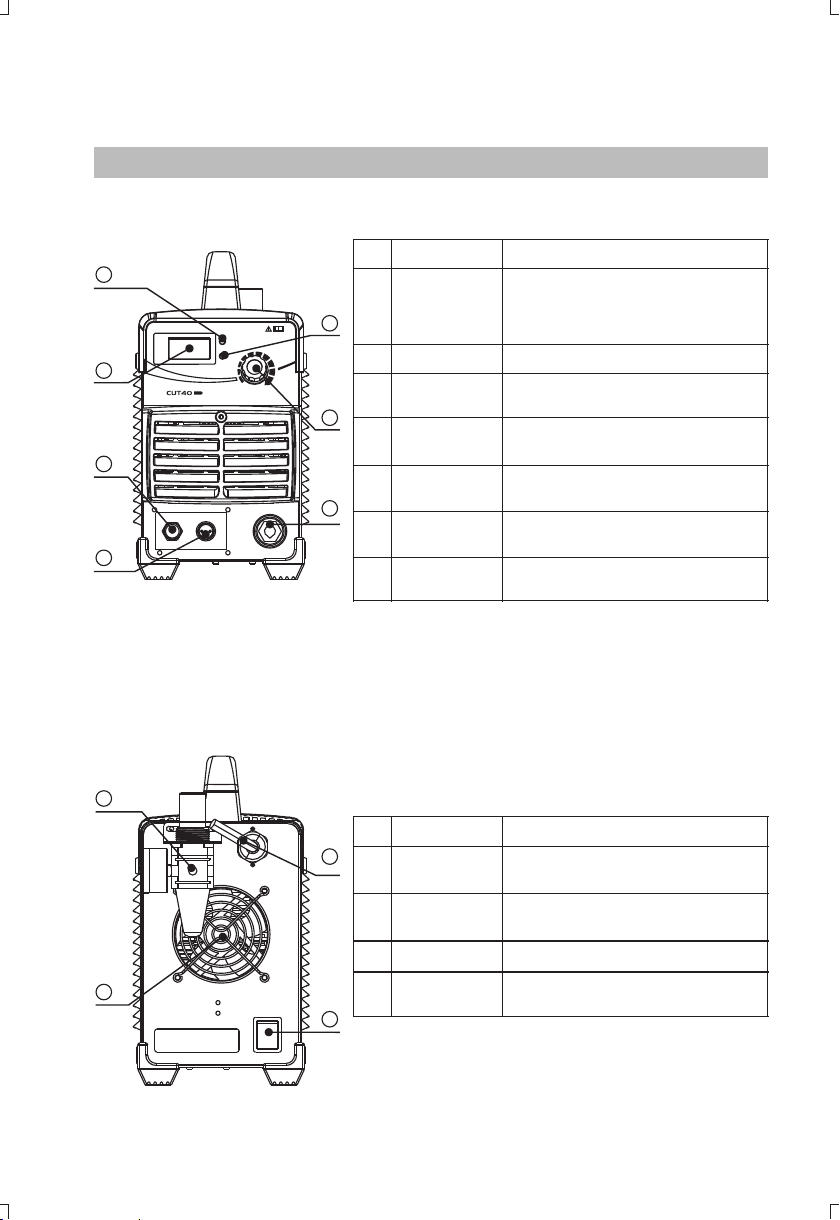

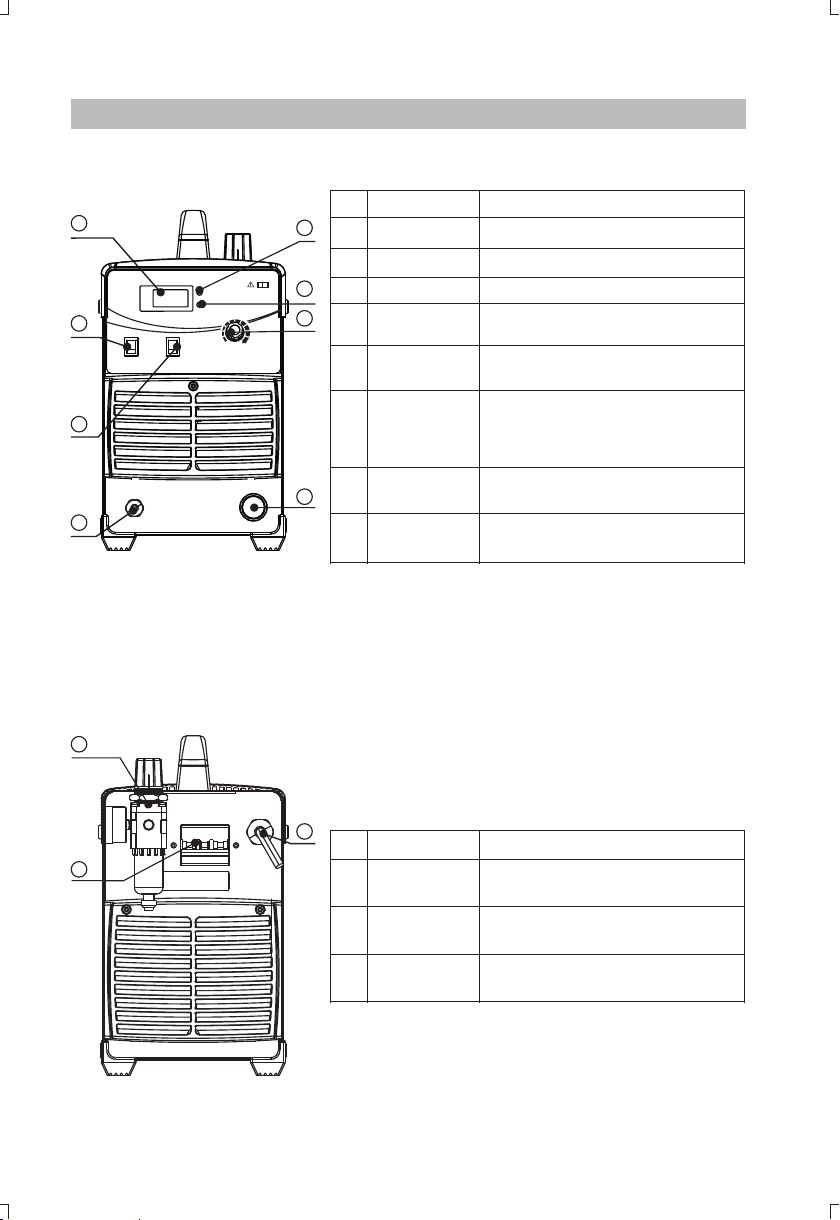

Figure 3-1: Front panel of L131

No. Part name Function

Overheating

indicator

Digital meter To display the cutting current.

Gas-electric

connector

Interface for

torch trigger

Overcurrent

indicator

Current control

knob

“+” output

terminal

To indicate the temperature inside the machine is too high and the machine is under overheating protection status when it illuminates.

To connect the cutting torch.

To connect the control signal of cutting torch.

To indicate the machine is under overcurrent protection status when it illuminates.

To adjust the output current value.

To connect the earth clamp.

No. Part name Function

Air reducer

valve

Cooling fan

Cable

Power switch

To adjust the pressure of the input air.

For heat dissipation through forced air cooling.

For power supply input.

To control the ON/OFF of the input power of the machine.

Figure 3-2: Back panel of L131

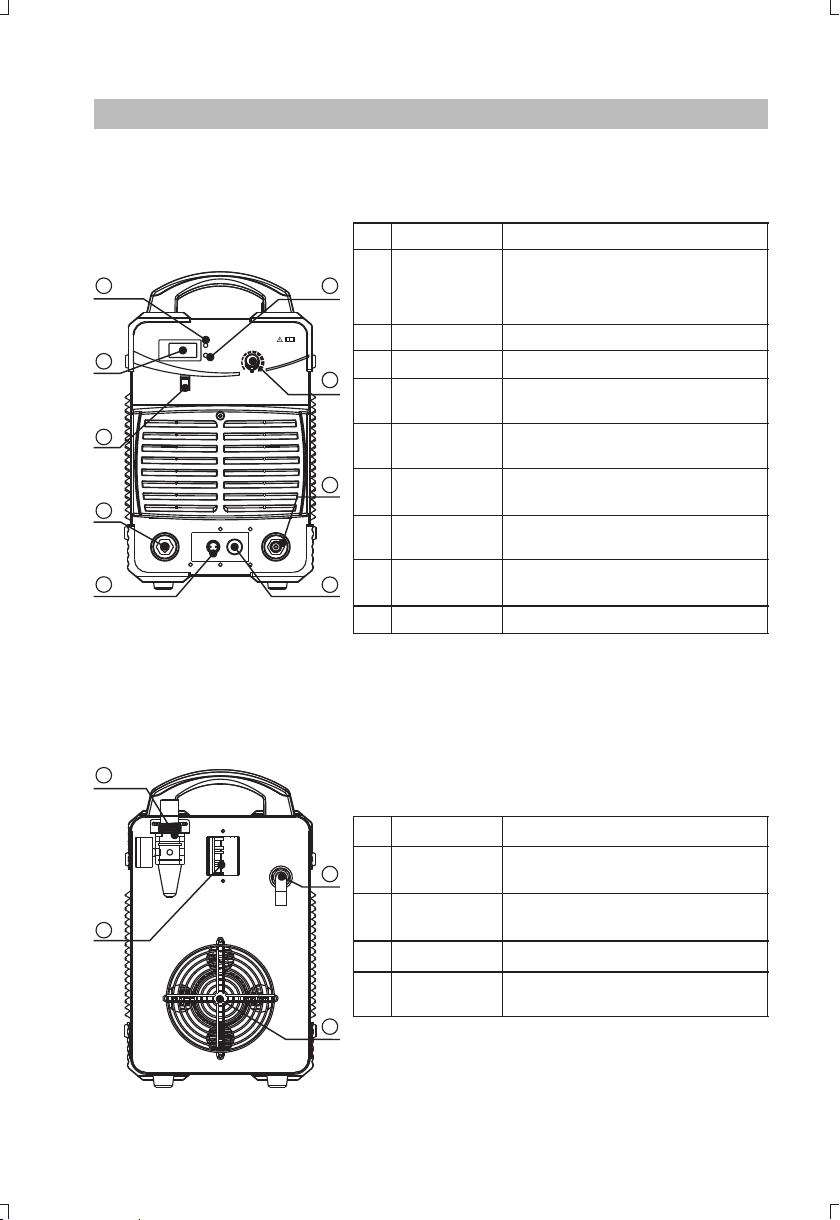

3.2 Panel functions of L204/L205/L211

No. Part name Function

1 60

Figure 3-3: Front panel of L204/L205/L211

Digital meter To display the cutting current.

Rocket switch

Rocket switch “+” output

terminal

Power indicator

Overheating indicator

For gas-check/cutting status conversion.

For 2T/4T cutting mode conversion.

To connect the earth clamp.

To indicate the machine is powered on when it illuminates.

To indicate the temperature inside the machine is too high and the machine is under overheating protection status when it illuminates.

Current control knob

“-” output terminal

To adjust the output current value.

To connect the cutting torch

No. Part name Function

Figure 3-4: Back panel of L204/L205/L211

Air reducer valve

Power switch

Cable

To adjust the pressure of the input air.

To control the ON/OFF of the input power of the machine.

For power supply input.

3.3 Panel functions of L201

20 10 0

Figure 3-5: Front panel of L201

No. Part name Function

Overheating

indicator

Digital meter To display the cutting current.

Rocket switch

“+” output

terminal

Interface for

torch trigger

Overcurrent

indicator

Current control

knob

“-” output

terminal

Terminal

To indicate the temperature inside the machine is too high and the machine is under overheating protection status when it illuminates.

For 2T/4T cutting mode conversion.

To connect the earth clamp.

To connect the control signal of cutting torch.

To indicate the machine is under overcurrent protection status when it illuminates.

To adjust the output current value.

To connect the cutting torch

Terminal for pilot arc.

Figure 3-6: Back panel of L201

No. Part name Function

valve

Power switch

Cable

Cooling fan

Air reducer

To adjust the pressure of the input air.

To control the ON/OFF of the input power of the machine.

For power supply input.

For heat dissipation through forced air cooling.

3.4 Operation method

1) Turn on the power switch of the machine, and the power indicator illuminates.

2) Select proper working mode and proper function. There are two working modes available on the machine panel: 2T and 4T. There are two functions available: normal cutting and metal mesh cutting. The electrode and nozzle are more easily to wear out in metal mesh cutting.

3) Push the torch trigger on the cutting torch, the cutting machine works.

4) Set cutting current according to the thickness of workpiece.

5) Bring the copper nozzle of the cutting torch into contact with the workpiece (For models with pilot arc function, keep a distance of about 2mm between the copper nozzle of the torch and the workpiece.), and then push the torch trigger. After the arc is ignited and started, raise the cutting torch to the position about 1mm above the workpiece, and start cutting.

3.5 Notes for cutting operation

It is recommended not to ignite the arc in the air if not necessary, for it will shorten the lifespan of the electrode and nozzle of the torch.

It is recommended to initiate the cutting from the edge of workpiece, unless penetration is needed.

Ensure spatters fly from the bottom of workpiece while cutting. If spatters fly from the top of workpiece, it indicates that the workpiece can not be fully cut because the cutting torch is moved too fast or the cutting current is too low.

Keep the nozzle slightly touching the workpiece or keep a short distance between the nozzle and workpiece. If the torch is pressed against the workpiece, the nozzle may stick to the workpiece, and smooth cutting is unavailable.

For cutting round workpiece or to meet precise cutting requirement, molding board or other assistant tools are needed.

It is recommended to pull the cutting torch while cutting.

Keep the nozzle of cutting torch upright over the workpiece, and check if the arc is moving with the cutting line. If the space is not enough, don’t bend the cable too much, step on or press upon the cable to avoid suffocating of gas flow. The cutting torch may be burned because the gas flow is too small. Keep the cutting cable away from edge tools.

Clean up the spatters on the nozzle timely, for it will affect the cooling effect of the nozzle. Clean up the dust and spatters on the torch head after using everyday to ensure good cooling effect.

The workpiece is not cut fully. This may be caused by:

The cutting current is too low. The cutting speed is too high. The electrode and nozzle of the torch are burned. The workpiece is too thick.

Molten slag drops from the bottom of workpiece. This may be caused by:

The cutting speed is too low. The electrode and nozzle of the torch are burned. The cutting current is too high.

3.6 Cutting parameters table

Select proper current according to the cutting parameters table, workpiece material, cutting thickness and cutting speed, etc. (The figure in the below table is an approximation.)

Table 3-1: Cutting speed ( in) when cutting current is 40Am/m

Cutting thickness (mm)

Mild steel

Galvanized steel

Stainless steel

Aluminum

Brass

Red copper

Table 3-2: Cutting speed ( in) when cutting current is 60Am/m

Cutting thickness (mm)

Mild steel

Galvanized steel

Stainless steel

Aluminum

Brass

0.75

1.9

0.8

0.5

1.5

0.5

0.3

0.2

0.4

0.15

0.12

9876543210.1

2520151050.1

0.1

Red copper

0.5

Table 3-3: Cutting speed ( in) when cutting current is 80Am/m

Cutting thickness (mm)

Mild steel

Galvanized steel

Stainless steel

Aluminum

Brass

Red copper

Table 3-4: Cutting speed ( in) when cutting current is 100Am/m

Cutting thickness (mm)

Mild steel

Galvanized steel

Stainless steel

Aluminum

Brass

0.1

3.3

2.9

0.7

3.3

2.9

0.7

0.5

0.65

1.1

0.5

0.65

1.1

0.95

0.6

0.1

1.1

0.95

0.6

0.1

0.65

0.38

0.65

0.38

0.5

0.25

0.5

0.25

30 35

252015

0.3

0.15

30 35

252015

0.3

0.15 0.1

0.1

Red copper

0.7

0.1

3.7 Replacement of electrode and nozzle

When the phenomena below occur, the electrode and nozzle should be replaced. Otherwise, there will be strong arc in the nozzle, which will break down the electrode and the nozzle, or even burn the torch. Nozzles of different models are different, so ensure the nozzle is of the same model when replacing it.

Electrode wear＞1.5mm Distortion of the nozzle Cutting speed declining, arc with green flame Difficult in arc ignition Irregular cut

4. MAINTENANCE

4.1 Daily maintenance

WARNING The power of the switching box and the cutting machine should be shut down before

daily checking (except appearance checking without contacting the conductive body) to avoid personal injury accidents such as electric shock and burns.

1) Daily checking is very important in keeping the high performance and safe operation of this cutting machine.

2) Do daily checking according to the table below, and clean or replace components when necessary.

3) In order to ensure the high performance of the machine, please choose components provided or recommended by Shenzhen Jasic Technology Co., Ltd. when replacing components.

Table 4-1: Daily checking of the cutting machine

Items Checking requirements Remarks

Whether any of the components are damaged

Front panel

Back panel

Cover

Chassis

Routine

or loosely connected; Whether the output quick sockets are tightened; Whether the abnormity indicator illuminates.

Whether the input power cable and buckle are in good condition;

Whether the air intake is unobstructed.

Whether the bolts are loosely connected.

Whether the screws are loosely connected.

Whether the machine enclosure has color fading or overheating problems;

Whether the fan sounds normal when the machine is running;

Whether there is abnormal smell, abnormal vibration or noise when the machine is running.

If unqualified, check the interior of the machine, and tighten or replace the components.

If unqualified, tighten or replace the components.

If abnormal, check the interior of the machine.

Items

Earth cable

Cutting cable

Table 4-2: Daily checking of the cables

Checking requirements

Whether the grounding wires (including workpiece GND wire and cutting machine GND wire) break off.

Whether the insulating layer of the cable is worn, or the conductive part of the cable is exposed;

Whether the cable is drawn by an external force;

Whether the cable connected to the workpiece is well connected.

Remarks

If unqualified, tighten or replace the components.

Use appropriate methods according to the work site situation to ensure safety and normal cutting.

4.2 Periodic check

WARNING

Periodic check should be carried out by qualified professionals to ensure safety. Thepower of the switching box and the cutting machine should be shut down before periodic check to avoid personal injury accidents such as electric shock and burns. Due to the discharge of capacitors, checking should be carried out 5 minutes after the machine is powered off.

Tips:

All maintenance and checking should be carry out after the power is completely cut off. Make sure the power plug of the machine is pulled out before uncovering the cutting machine. When the machine is powered on, keep hands, hair and tools away from the moving parts such as the fan to avoid personal injury or machine damage.

Avoid rain, water and vapor infiltrating the machine. If there is, dry it and check the insulation of the cutting machine (including that between the connections and that between the connection and the enclosure) with an ohmmeter. Only when there are no abnormal phenomena anymore, can the machine be used.

Put the machine into the original packing in dry location if it is not to be used for a long time.

Generally, periodic check should be carried out every 6 months, and it should be carried out every 3 months if the cutting environment is dusty or with heavy oily smoke.

5. TROUBLESHOOTING

The abnormity indicator on the front panel would illuminate in case of any failures inside the cutting machine.

Malfunction Phenomena

Turn on the machine, the power indicator illuminates, the fan does not work, and the control button does not function.

Turn on the machine, the power indicator illuminates and the fan works. When pressing the control button of the cutting torch, the solenoid valve inside the machine functions, but there is no HF discharge rustling and the red LED inside the machine is on.

Arc can not be ignited.

Cause and Solution

Overvoltage protection occurs: Shut down the machine, and restart it after a few minutes.

1) The MOSFET (or IGBT) on the top PCB is damaged. (The drive module is damaged.)

2) The step-up transformer on the bottom PCB is damaged.

3) The control module is damaged.

The arc ignition part fails:

1) There is electrode sticking inside the discharge nozzle or the interelectrode distance of the discharge nozzle is too long.

2) There is short circuit or bad contact in the primary coil of the arc ignition transformer.

3) There is leakage of the HF capacitor 102/10KV.

4) The relay is damaged.

1) The input voltage is too low.

2) The air pressure is overly high or overly low.

SHENZHEN JASIC TECHNOLOGY CO., LTD.

No. 3, Qinglan 1st Road, Pingshan District, Shenzhen, Guangdong, China

www.j asic.com.cn

Jasic CUT40 (L131), CUT60 (L204), CUT80 (L205), CUT60 (L211), CUT100 (L201) Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
