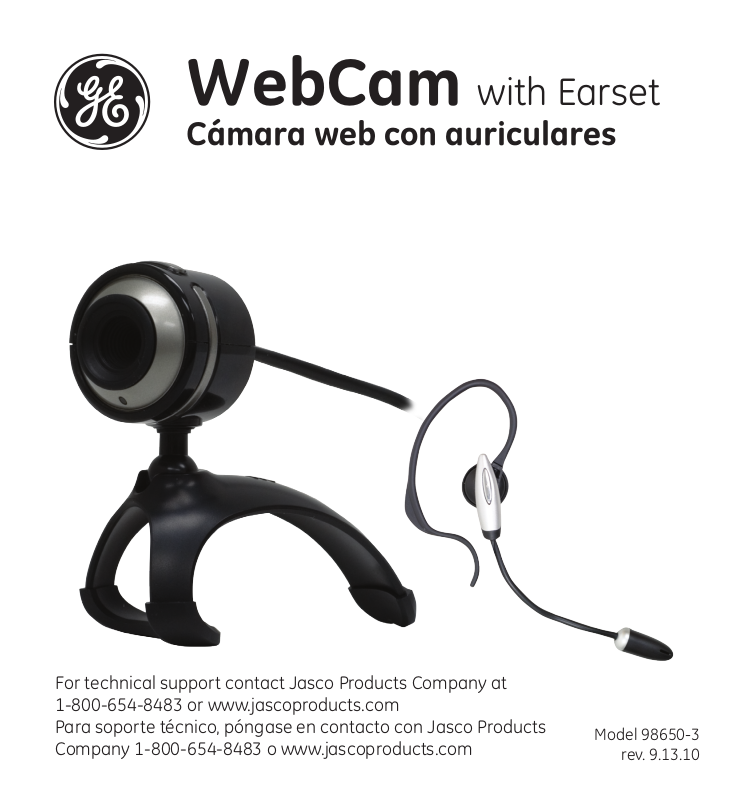

Jasco 98650-3 User Manual
WebCam with Earset
Cámara web con auriculares
For technical support contact Jasco Products Company at
1-800-654-8483 or www.jascoproducts.com
Para soporte técnico, póngase en contacto con Jasco Products
Company 1-800-654-8483 o www.jascoproducts.com
Model 98650-3
rev. 9.13.10
Table of Contents
Cautions ..........................................................................................................................................................01
System Requirements………………………..…………………………………. ..........................................................01
Maintenance Care And Storage ..........................................................................................................01
Contents…………………………………………….. .....................................................................................................02
Installation .....................................................................................................................................................03
Mounting Your Camera ...........................................................................................................................04
How To Use The Headset With Your PC ...........................................................................................04
Arcsoft Software .........................................................................................................................................05
Trouble Shooting .........................................................................................................................................10
Two Year Limited Warranty ...................................................................................................................11
FCC Statement .............................................................................................................................................11
Instrucciones en Español ........................................................................................................................12
Cautions
Read Before Using Your Web Camera
1. You must install the camera driver BEFORE connecting the camera to
your computer.
2. Please read this user’s manual before operating your Web Camera.
3. Do not leave camera connected to the USB port if camera is not going to be used
for a long period of time. This can adversely affect the picture quality.
System Requirements
1. Operating System
• Microsoft® Windows® 2000
• Microsoft® Windows® XP
• Microsoft® Windows® Vista
• Microsoft® Windows® 7
2. CD Drive
3. USB Port
4. Microphone & Head Phone Jack.
Maintenance Care and Storage
1. Do not use or store the camera in high humidity and/or extreme
high/low temperature.
2. Do not touch the lens with your fingers.
3. Do not drop the camera or get the camera wet.
4. Do not try to repair the camera.
5. To clean the camera, use a dry cloth. Do not use organic solvents, such as alcohol
etc. to clean the camera.
6. Store the camera in a dry and clean place.
1
Contents
1. Web Camera
2. Headset
3. CD with driver and Arcsoft Software
4. Instruction Manuals
Getting to Know Your Web Camera
Snap Shot
Adjustable Lens
LED
Multi-Function Stand
Manual Adjustable
Focusing Ring
Note: You must install the camera driver BEFORE connecting the camera to
your computer.
2
Installation
Please note that you must install the camera drivers BEFORE you connect the
camera to the USB port of your computer.
1. You must install all relevant updates, service packs, and patches for your operating system. These are available on Microsoft’s® website under “Resources”. Use the
“Windows Update” link. (www.microsoft.com).
2. Insert the included 98650 WebCam CD into the CD Rom Drive. (The CD should
auto load).
3. If CD does not auto load, follow these steps:
a. Double click on My Computer
b. Double click on the CD icon on the CD drive
c. Double click on setup.exe
4. The installation menu will come up. Select Driver.
5. Follow the installation wizard instructions.
6. It may be necessary to have your Windows installation disk available to install
any additional windows drivers onto your computer. You will receive a prompt if this
is necessary.
7. (Optional) On the installation menu, select ArcSoft WebCam Companion 3.0 or
ArcSoft Magic-i. Follow the on screen instructions to install the photo and video editing software. You may need to reboot your computer.
8. (Optional) Select User’s Manuals to open a PDF version of the 98650 Instruction
Manual in either English or Spanish. You will need Adobe Reader to open the user’s
manuals.
9. (Optional) To download Acrobat® Reader® select Acrobat Reader from the menu
screen and follow the instructions. You may need to reboot your computer.
10. When you have installed the driver, and any optional software you want to install,
select Exit.
3
11. Remove the warning label from the USB plug of your Web Camera.
12. After your computer reboots, plug your Web Camera’s USB plug into the USB port
of your computer.
13. Open your preferred Video Chat Client (Skype™, Windows Live™ Messenger,
Google™ Talk, AIM® & Yahoo® Messenger) and enjoy!
Mounting your Camera
The Web Camera may be used on a stable flat surface, such as a desk, or attached to
a laptop screen using the laptop clip.
How To Use the Headset with your PC
Warning: Listening to loud sounds for prolonged periods may permanently damage
your hearing. Before putting on the earphone, turn the volume down, then put the
earphone on and slowly increase the volume until you find a comfortable listening
level.
1. Place snugly in ear.

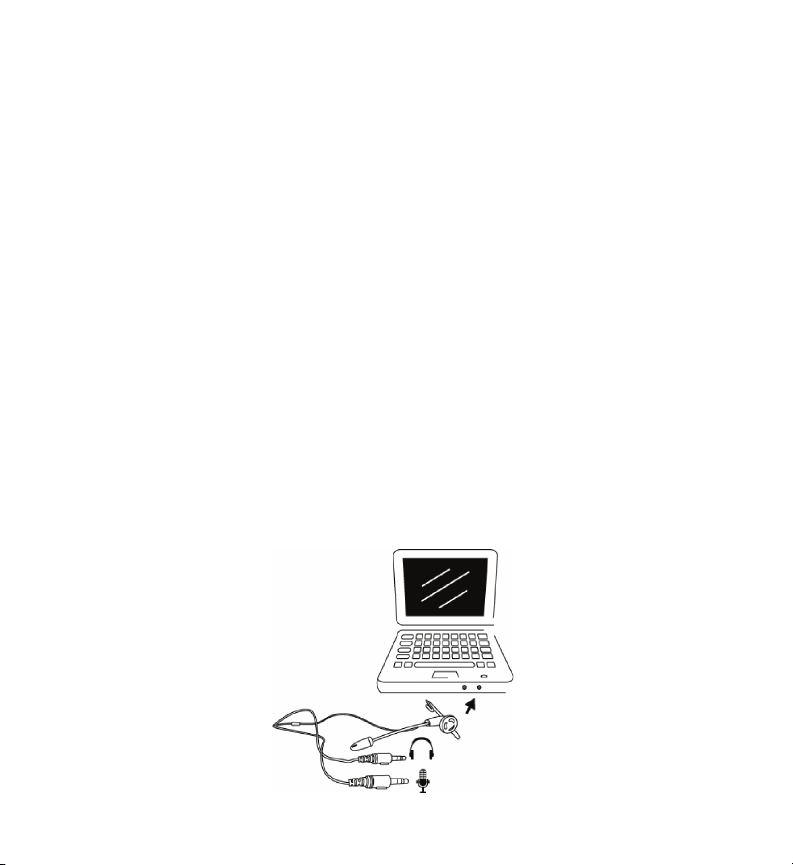

2. Plug the Headset into your PC, match the earphone symbol (green jack) and microphone (pink jack) to the female ports of your desktop or notebook.
3. Slowly increase the volume until you find a comfortable listening level.
4
Software Installation
ArcSoft WebCam Companion 3.0
1. Turn on the computer and insert CD installation Disc into your CD-ROM drive.
Select and click “ArcSoft WebCompanion”
2. Choose Setup Language
3. Click “Next”
4. Click “Yes”
5

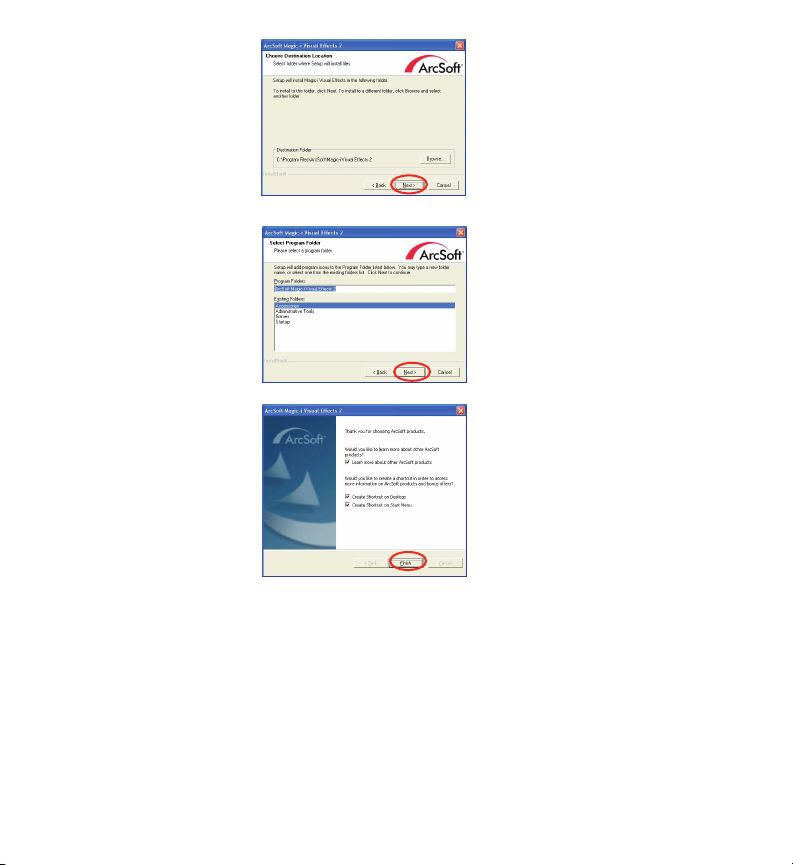

5. Click “Next”
6. Click “Next”
7. Click “Finish”
6
