1. Table of Content

1. Introduction ...................................................................... 3

2. Nameplate. ...................................................................... 4

3. Appliance Dimension. ...................................................... 5

4. Specifications. ................................................................. 5

5. Installation. ...................................................................... 6

Floor protection. ................................................................... 6

Floor protection plate minimum dimensions. ................... 6

Clearances of the stove until the floor plate protection. ... 6

Minimums clearances to combustible material. .................... 7

Assembly before installation ............................................ 8

Legs installation. .............................................................. 8

Fan and Snap disc box installation. ................................. 8

Firebricks installation............................................................ 9

Floor firebricks installation. .............................................. 9

Back firebricks installation. .............................................. 9

Side firebricks installation .............................................. 10

Firebricks installation on the pipes. ................................ 10

General stove installation steps. .................................... 12

Chimney connector installation. ......................................... 13

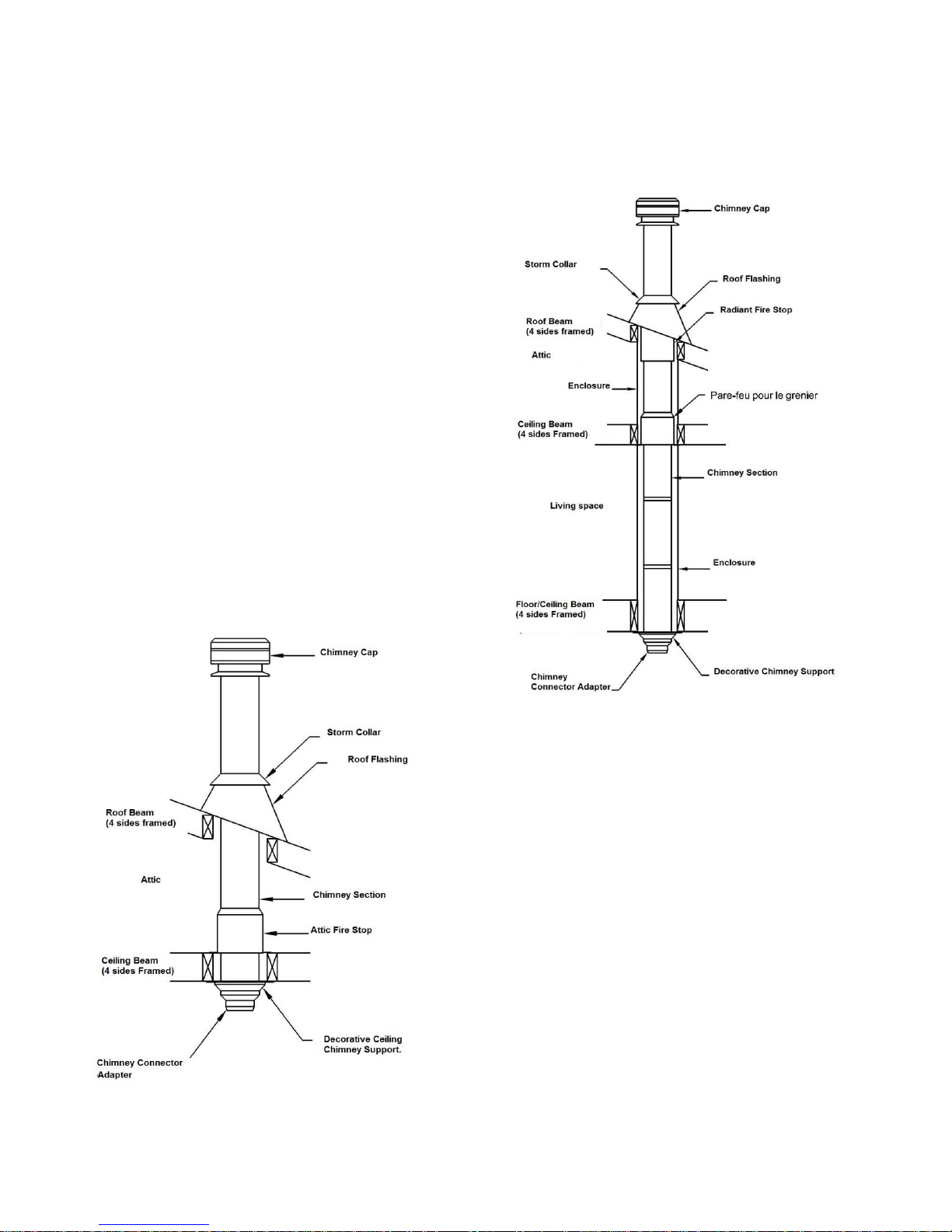

Chimney installation, General steps ................................... 14

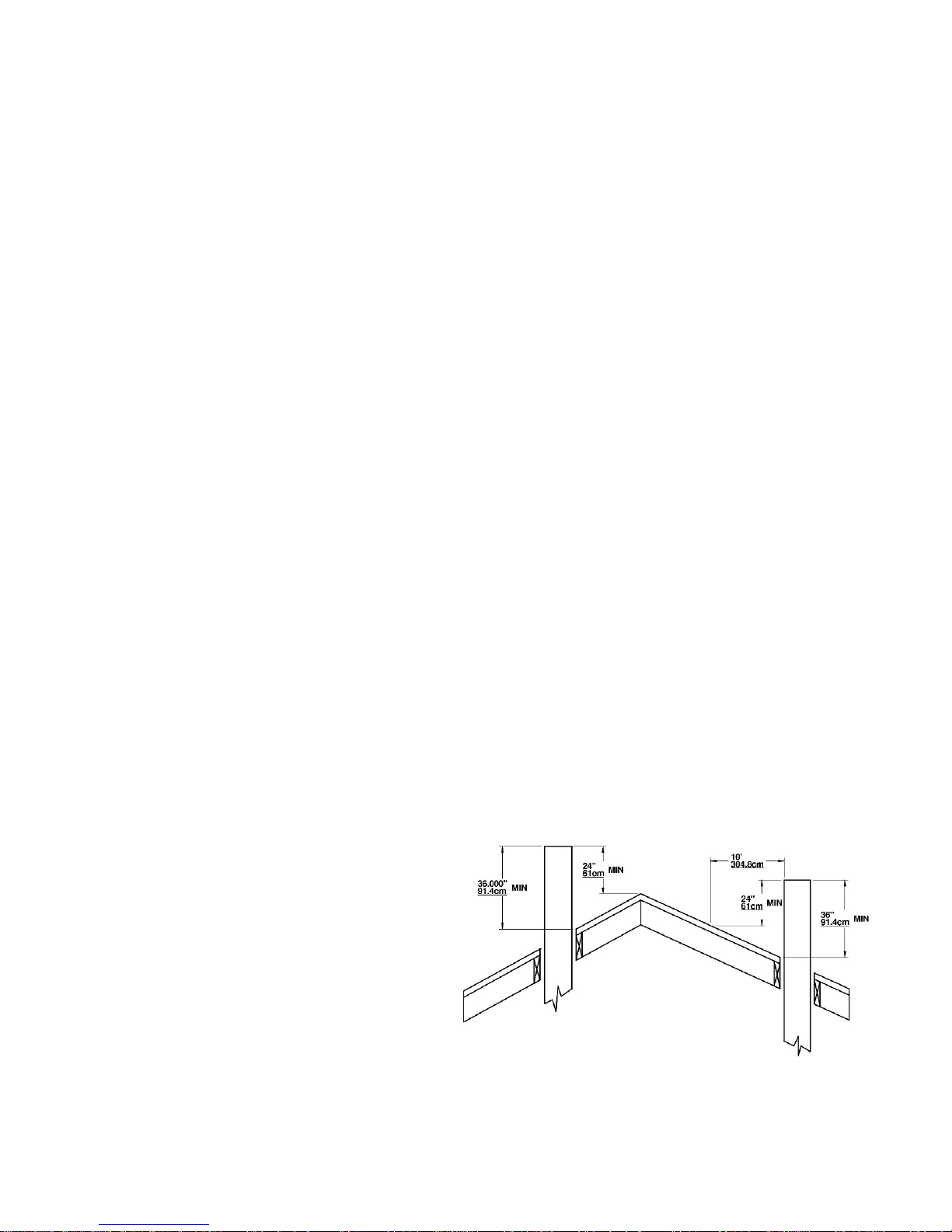

Inside Masonry Chimney, Vertical Installation ............... 15

Outside Vertical Installation. .......................................... 15

Cathedral Vertical Installation ........................................ 15

Offset Installation ........................................................... 16

Vertical Installation......................................................... 17

6. External combustion air source. .................................... 18

Exterior Air Intake pipe. ................................................... 18

Installation of Air Intake Pipe. ........................................ 18

Air Inlet Obstruction ....................................................... 18

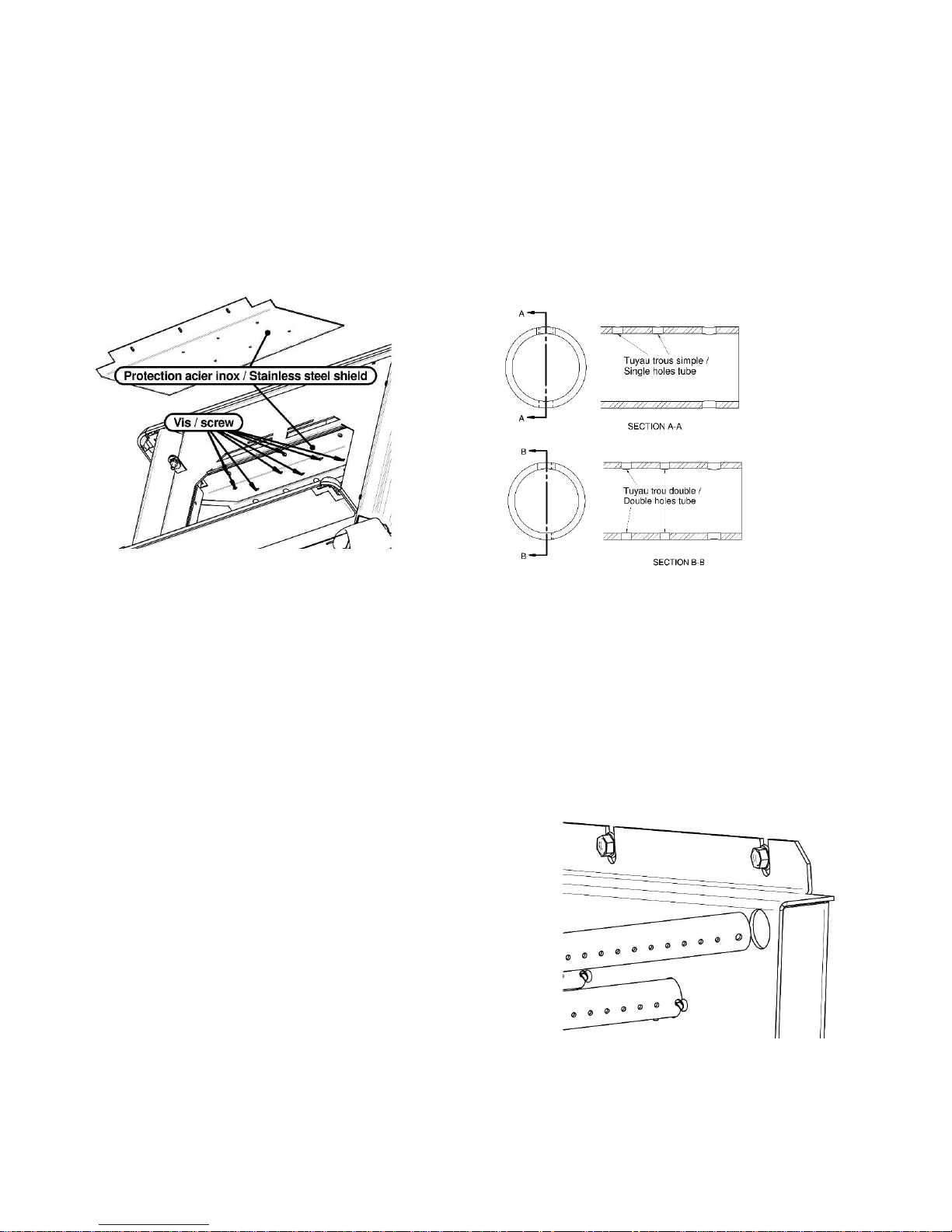

Stainless steel deflector replacement................................. 19

Front deflector Add-on Replacement. ............................ 19

Stainless steel tubes Installation. ................................... 19

Tube support installation. ................................................... 20

7. Operating Instructions ................................................... 21

Primary and secondary air admission control. ............. 21

Lightning fire. ................................................................... 21

First fire. ............................................................................. 21

Keep a fire. ........................................................................ 21

Fans Controls. ................................................................... 22

Wood storage .................................................................... 22

8. Maintenance. ................................................................. 22

Ash Removal. .................................................................... 22

Ash Disposal. ..................................................................... 22

Creosote Formation. .......................................................... 22

Chimney Inspection. .......................................................... 22

Chimney Sweeping. ........................................................... 23

Door care. .......................................................................... 23

Air Tighten Adjustment. ...................................................... 23

Door adjustment (hinges side). ...................................... 23

Door adjustment (right side) .......................................... 23

Cleaning up glass .......................................................... 23

Uninstalling and installing door. ..................................... 23

Broken glass replacement. ............................................ 23

Fiberglass rope replacement. ........................................ 24

What to do in case of Chimney Fire. .............................. 24

9. Appendix 1..................................................................... 25

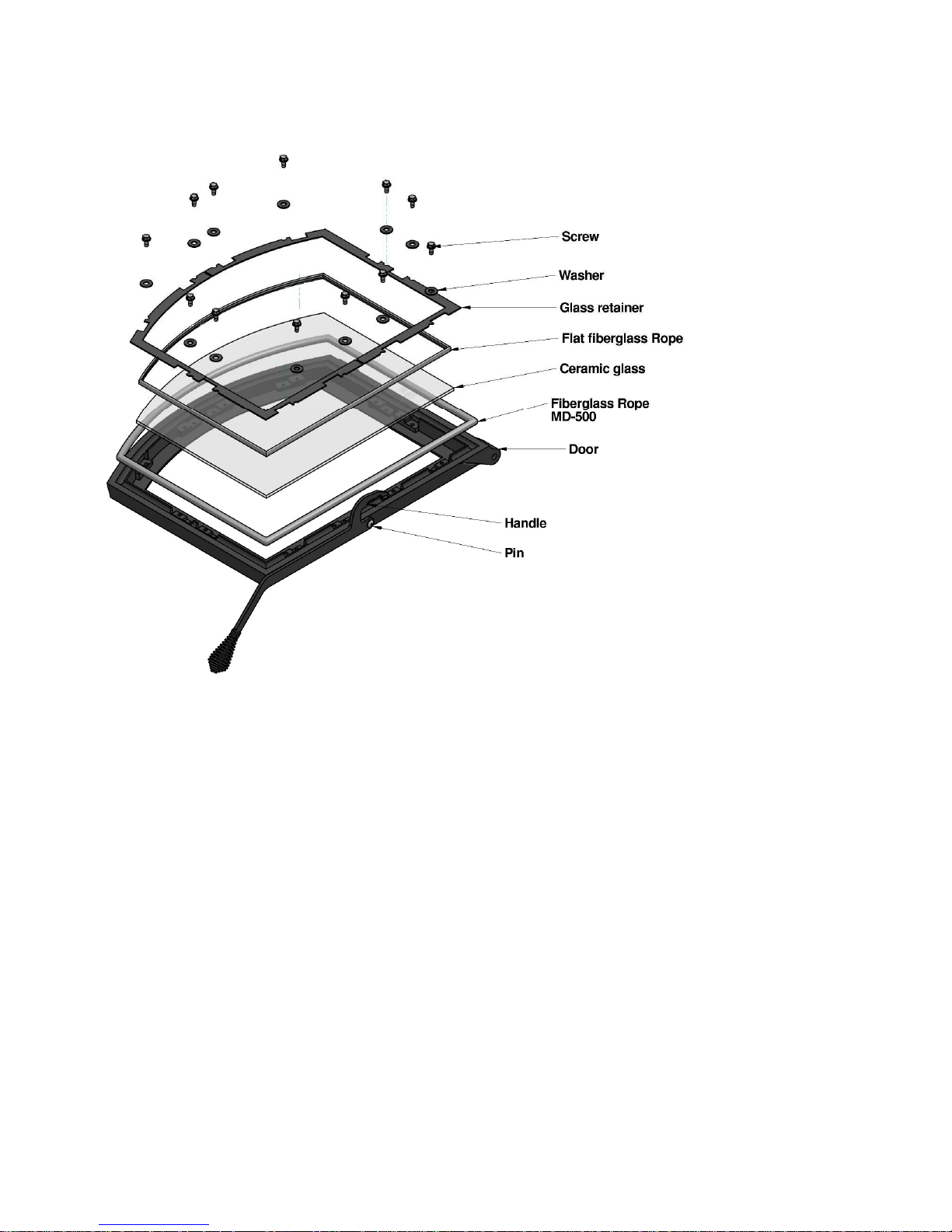

Door assembly ................................................................... 25

Square Door .................................................................. 25

Arc Door ........................................................................ 26

10. Appendix 2 ................................................................ 27

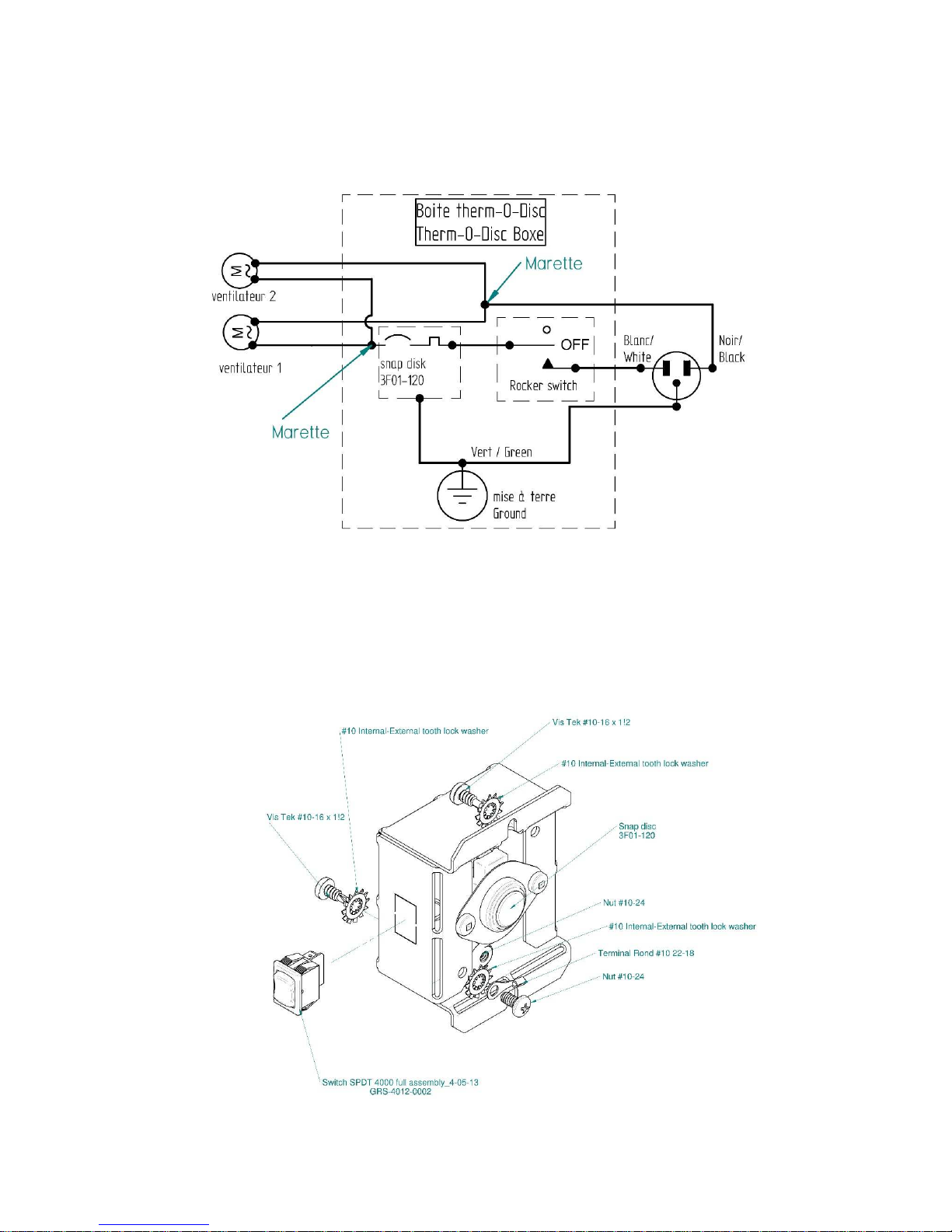

Fans electric wiring diagram. ............................................. 27

Therm-O-disk Box parts description. .................................. 27

11. Appendix 3 ................................................................ 28

Parts that can be replaced ............................................. 28

12. J. A. ROBY LIMITED LIFE WARRANTY – WOOD

BURNING STOVES & FIREPLACES..................................... 29

1. Introduction

Read all instructions carefully before install your new J.A. Roby stove. A good installation is very important for a safe and effective use of J.A. ROBY INC stove. In the doubt about the instruction step to install your appliance correctly, we suggest to call a professional master installer. A wrong installation may result with a fire, burns and possible death.

Keep these instructions. This appliance must be connect to

• A HT type factory-built chimney approved UL103 or ULC 629 with 6 inches diameter (15.24 cm)

• A code-approved masonry chimney with a flue liner with a 6 inches diameter (15.24cm)

WARNING

N.B: BE WARNED THAT THE LOCAL’S CODES AND RULES CAN HAVE MORE SPECIFIC REQUIREMENT THAN THIS MANUAL. YOU CAN CONSULT A MASTER INSTALLER, FIRE OFFICIALS OR LOCAL BUILDING ABOUT RESTRICTION AND INSTALLATION INSPECTION IN YOUR AREA AND TO DETERMINE IF YOU NEED TO OBTAIN A PERMIT

DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION DUCTWORK UNLESS SPECIFICALLY APPROVED FOR SUCH INSTALLATIONS.

THIS APPLIANCE IS BUILT FOR BURNING SEASONED CORDWOOD ONLY.

USE OF ANY OTHER TYPE OF FUEL LIKE COAL/ CONSTRUCTION WOOD/ TREATED WOOD/ FLAMABLE LIQUID/ TRASH/ OR ANY FLAMABLE THING CAN OVERFIRE AND DAMAGE THE STOVE.

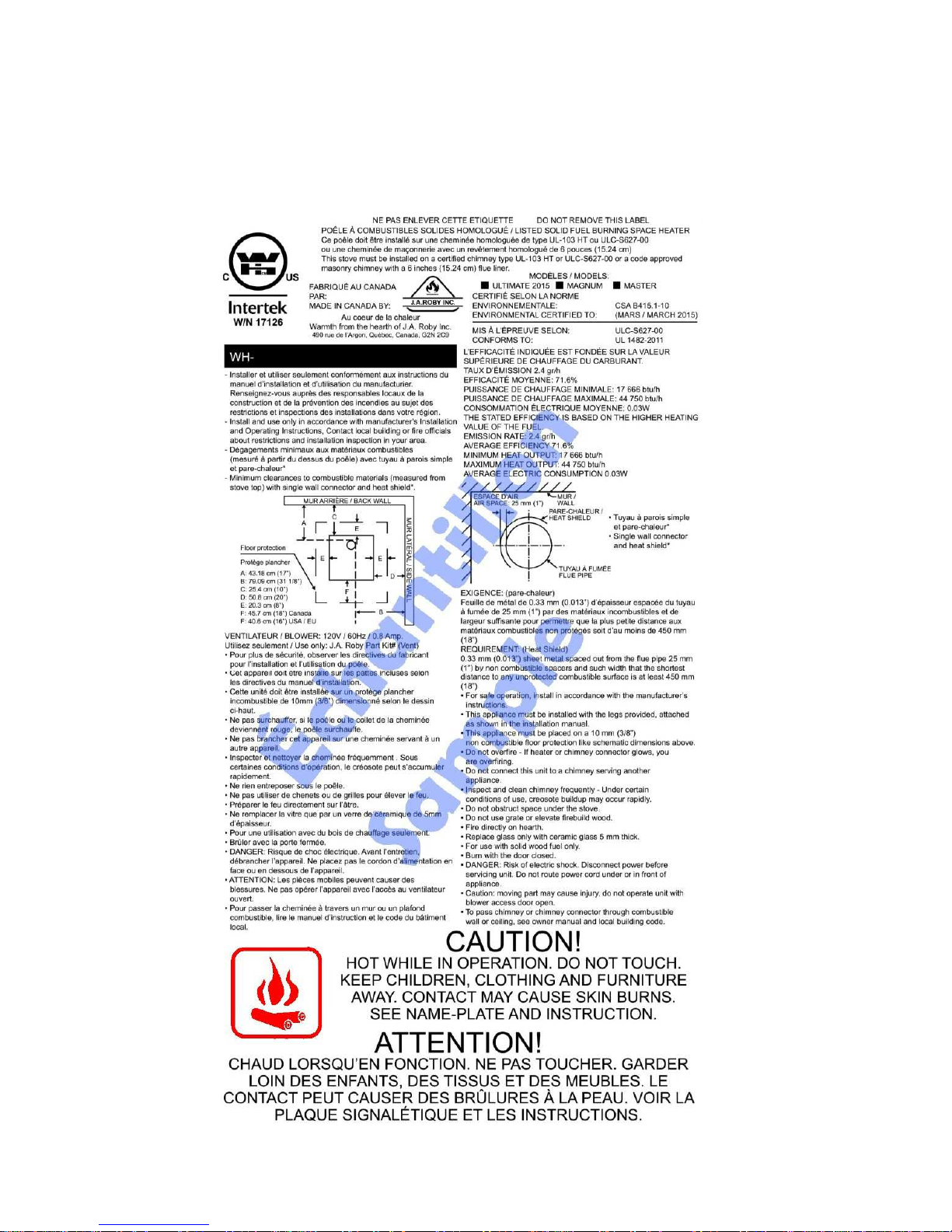

2. Nameplate.

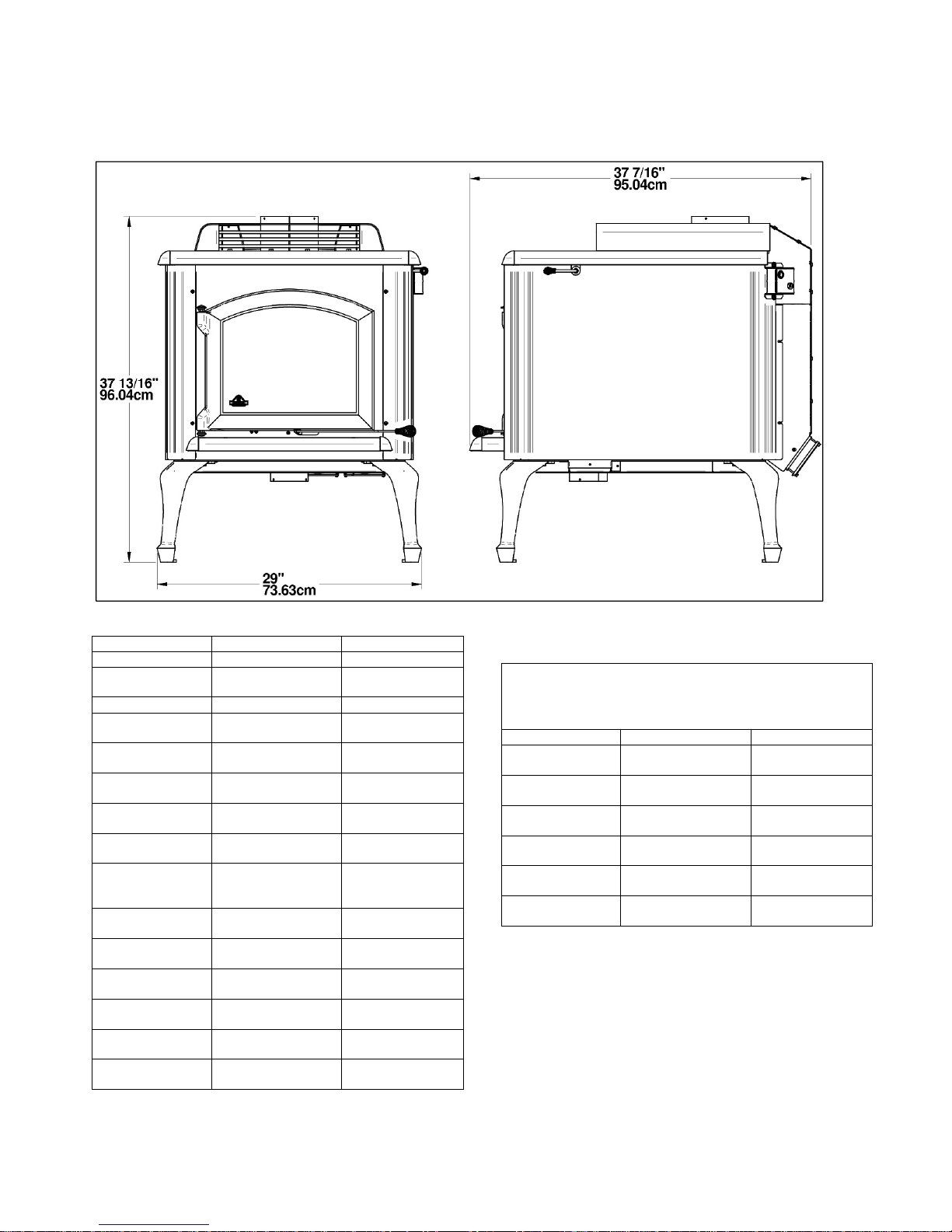

3. Appliance Dimension.

4. Specifications.

Option Ultimate 2015 Magnum Combustible Wood Wood Recommended

surface area

3800 ft²

Capacity 120 000 BTU/h 120 000 BTU/h Flue pipe

diameter

6 Inches

15.4 cm

6 inches

Minimal chimney height

12 feet 365 cm

Exterior Height 37 13/16 inches

96 cm

29 inches

73.6 cm

Exterior Width 29 inches

73.6 cm

29 inches

73.6 cm

Exterior Depth 37 7/16inches

95. cm

37 7/16inches

95. cm

Door Opening 16 inches x 9.5

inches

40.6 cm x 25.4 cm

16 inches x 9.5 inches

40.6 cm x 25.4 cm

Interior Height 15 ½ inches

38 cm

15 ½ inches 38 cm

Interior Width 20 ½ inches

50.8 cm

20 ½ inches

50.8 cm

Interior Depth 25 ¼ inches

64 cm

25 ¼ inches

64 cm Maximum log length

24½ inches

62.2 cm

24½ inches

62.2 cm Average combustion time

3 to 8 hours 3 to 8 hours

Weight 507 pounds

230 Kg

507 pounds 230 Kg

Clearances to combustible

material

Ultimate 2015 Magnum Back 10 inches

25.4 cm

10 inches

25.4 cm

Beside 20 inches

50.8 cm

20 inches

50.8 cm

Front 48 inches

121.9 cm

48 inches

121.9 cm Minimum Ceiling Height

84 inches

213.4 cm

84 inches

213.4 cm Back of Flue Collar

17 inches

43.18 cm

17 inches

43.18 cm Side of Flue Collar

31 1/8 inches

79.09 cm

31 1/8 inches

79.09 cm

5. Installation.

Floor protection.

Your stove must be installed on a non-combustible material plate to protect the floor and avoid fire would be caused by:

• Projections of sparks when door opening or loading logs

• The heat radiation when stove runaway should have an ignition to the floor and the coating.

• Flow of creosote when there is a fire chimney

The coating used must be non-combustible and approved according to standard UL1618 for USA or approved to the locals codes (Example: cement, brick, ceramic tiles…)

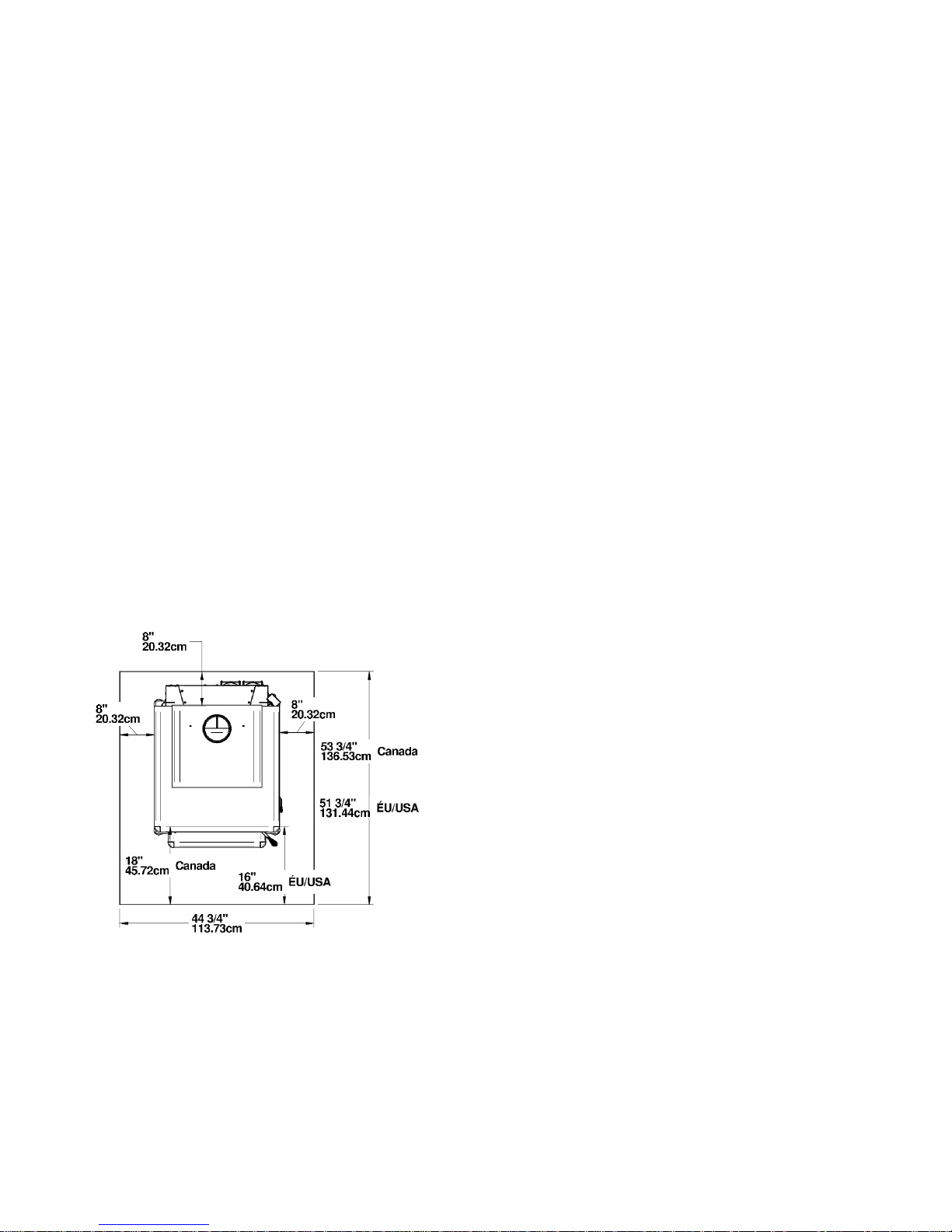

Floor protection plate minimum dimensions.

The following dimensions are the minimums values and it can be higher.

Canada:

• 44 ¾ (113.73 cm)

• 53 ¾ (136.53 cm)

• 3/8 in thickness (1 cm)

USA:

• 44 ¾ (113.73 cm)

• 51¾ (131.44 cm)

• 3/8 in thickness (1 cm)

•

It’s necessary to protect the floor behind the horizontal connecting pipe section to the chimney of 2 inches (5cm) besides connecting pipe and up to the vertical connecting pipe. You can extend the protection plate while respecting the clearances of each side of stove.

Clearances of the stove until the floor plate protection.

The following dimensions are the minimums values and it can be higher.

Canada:

• 8 in (20.3 cm) behind

• 8 in (20.3 cm) beside

• 18 in (45.7 cm) in front of the door opening.

United States:

• 8 in (20.3 cm) behind

• 8 in (20.3 cm) beside

• 16 in (40.64 cm) in front of the door opening.

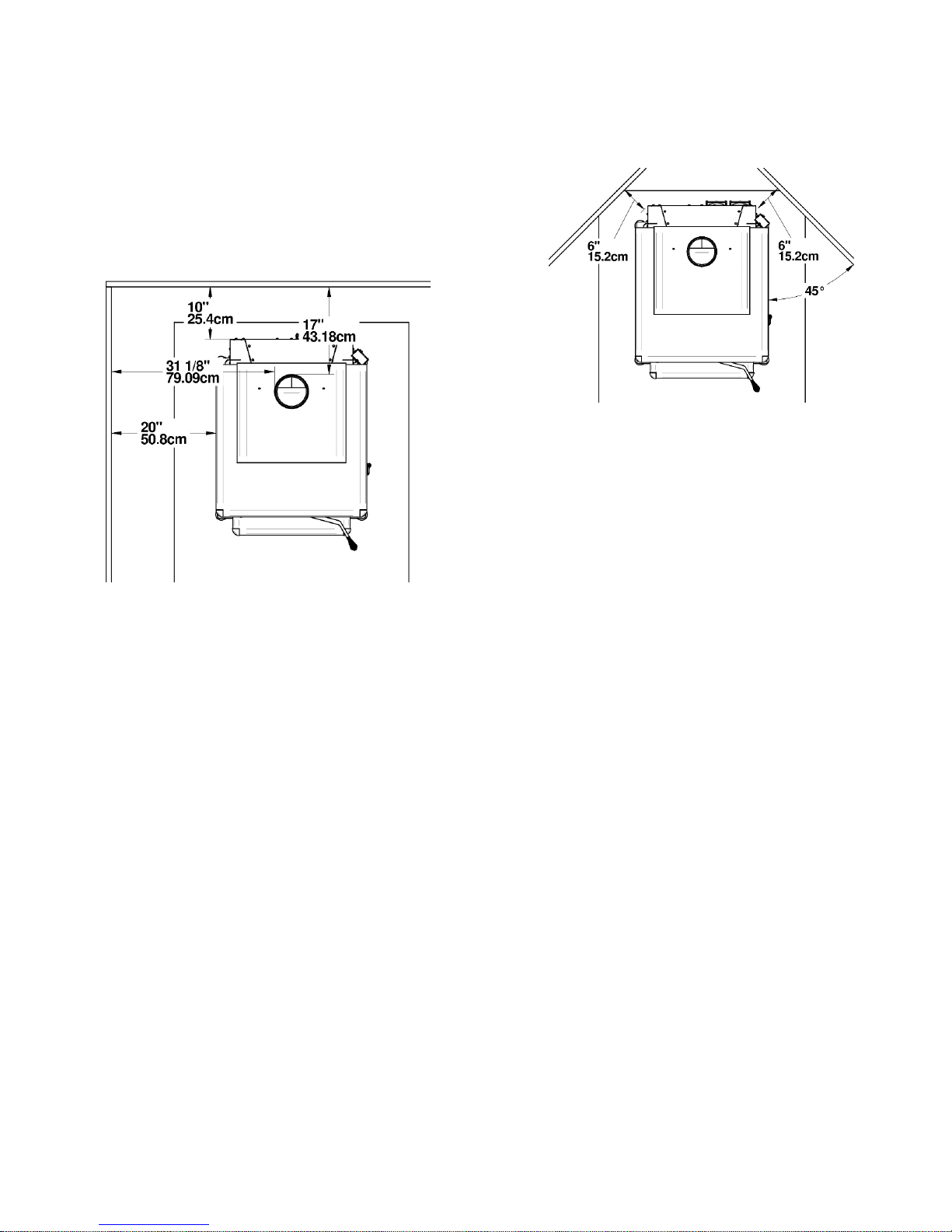

Minimums clearances to combustible material.

With these reduced clearances, this appliance take a minimum of space where is installed. Whether in the living room or the dining room, the Cook stove will complete your decorate by his originality and heating, it requires a minimum clearance of 10 inches to the back (for a smoke simple pipe with a heat shield ) and a 20 inches lateral MINIMUM clearance.

• In the case with a smoke simple pipe without heat shield, you must installed the cooker stove that the smoke pipe is to 18 inches of all combustible material therefore the MINIMUM clearance at the back of the stove will be 16¼ inches (41.3cm).

• For a 45° corner installation, or other corner

installation, the minimum clearance between the stove and combustible material must be 6 inches.

• To know how to reduce that dimension you have

to contact your local authority to know how to install heat shield on a wall. Installation with reduced clearances must comply with standard NFPA211 or CAN/CSA-B365.

Assembly before installation

According to chosen option, to save more storage space and shipping. The stove leg couldn’t be assembled in the shop, you must assembly before install the cooker stove.

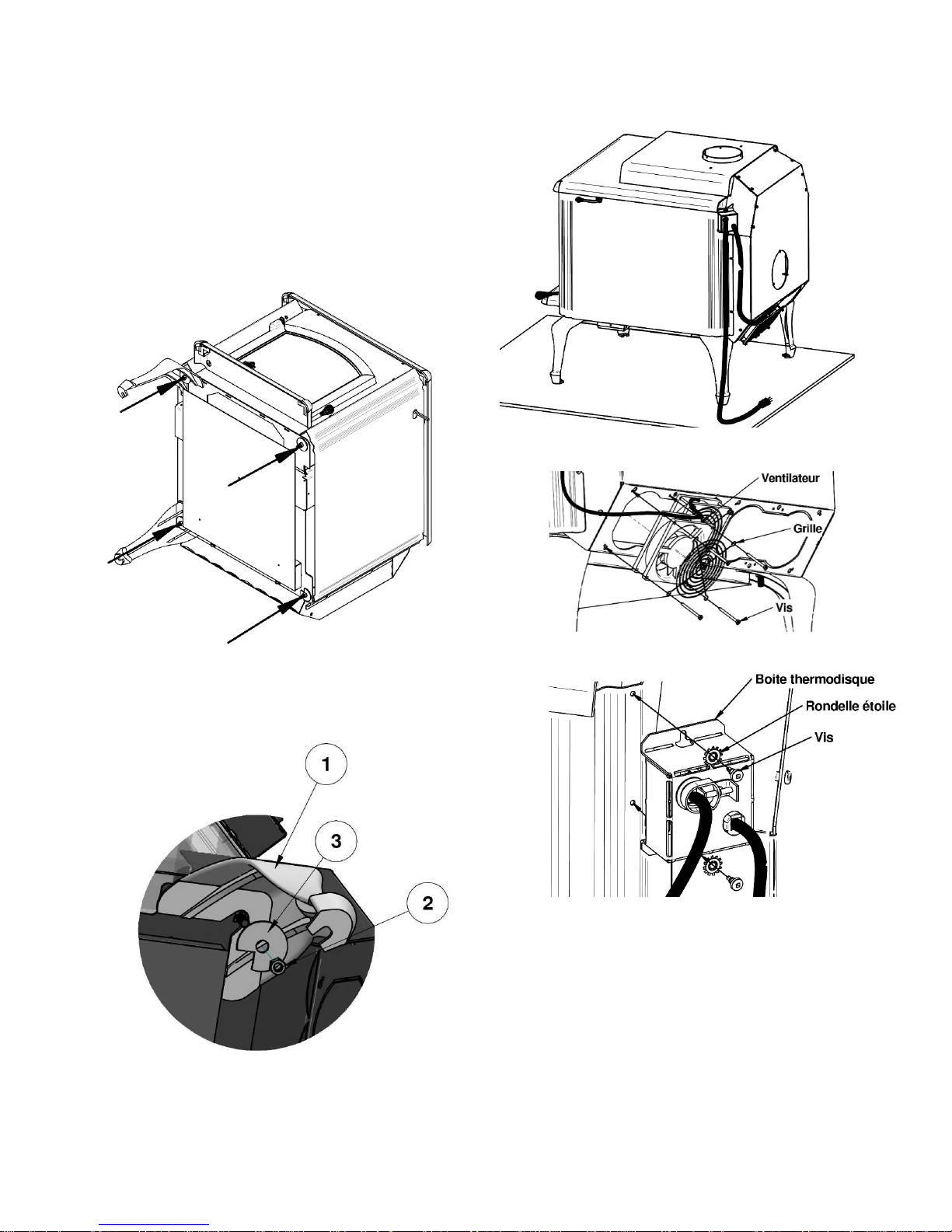

Legs installation.

1) Remove legs and bricks from combustion chamber to lighten the stove.

2) Unscrew the stove from the skids.

3) Put the stove on the back and be careful to protect the paint.

4) Unscrew the nut not completely

5) Install the legs (#1) like the illustration and secure it with nut and washer (#2, #3) (Attention: Be sure the legs are in place, correctly positioned and in contact with the bottom of the stove.)

Fan and Snap disc box installation.

1) Screw fan putting electrical wire in the centered bottom of both Fan

2) Screw snap disc box into the holes made for that at the back side near the vent box.

WARNING: NEVER ROUTE POWER CORD UNDER OR IN FRONT OF THE APLIANCE

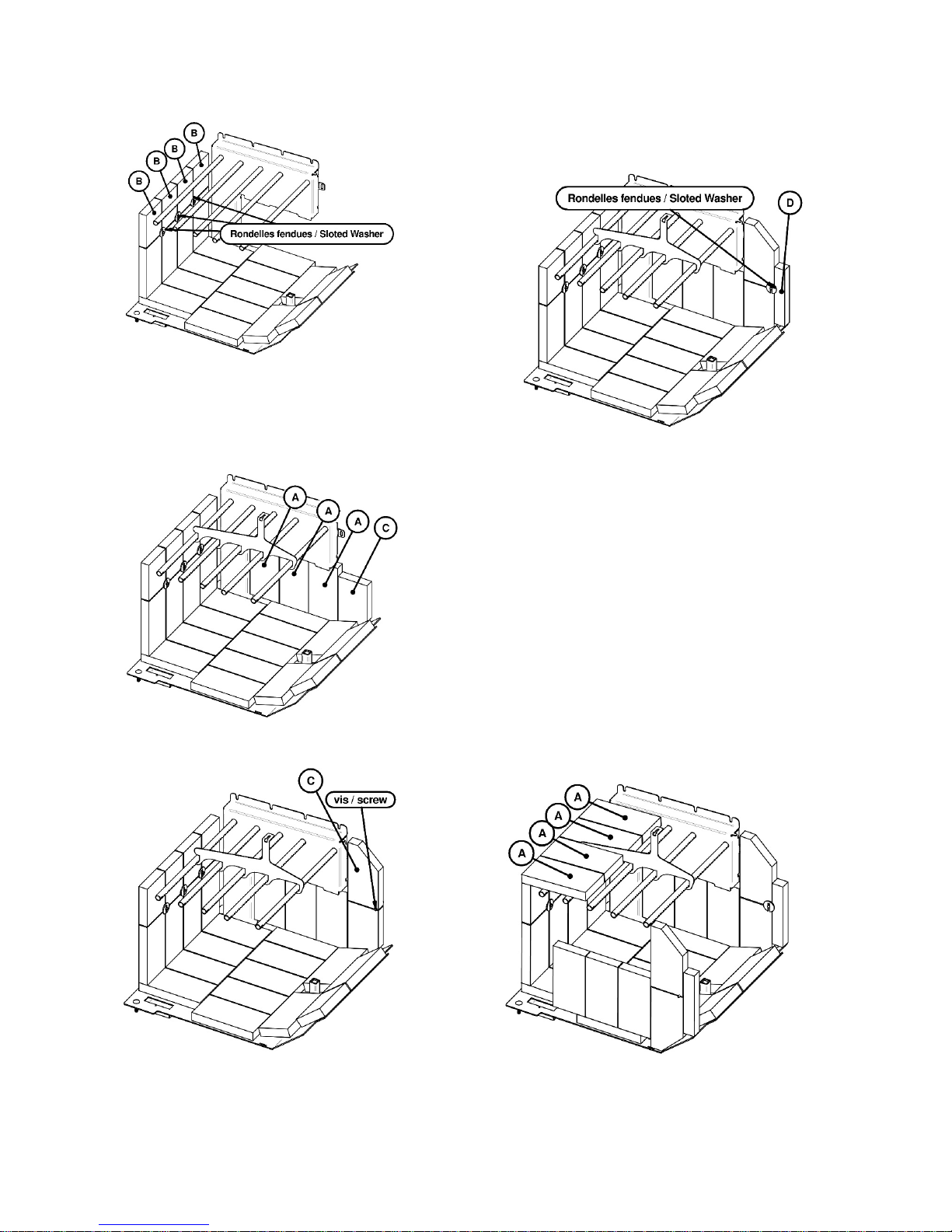

Firebricks installation.

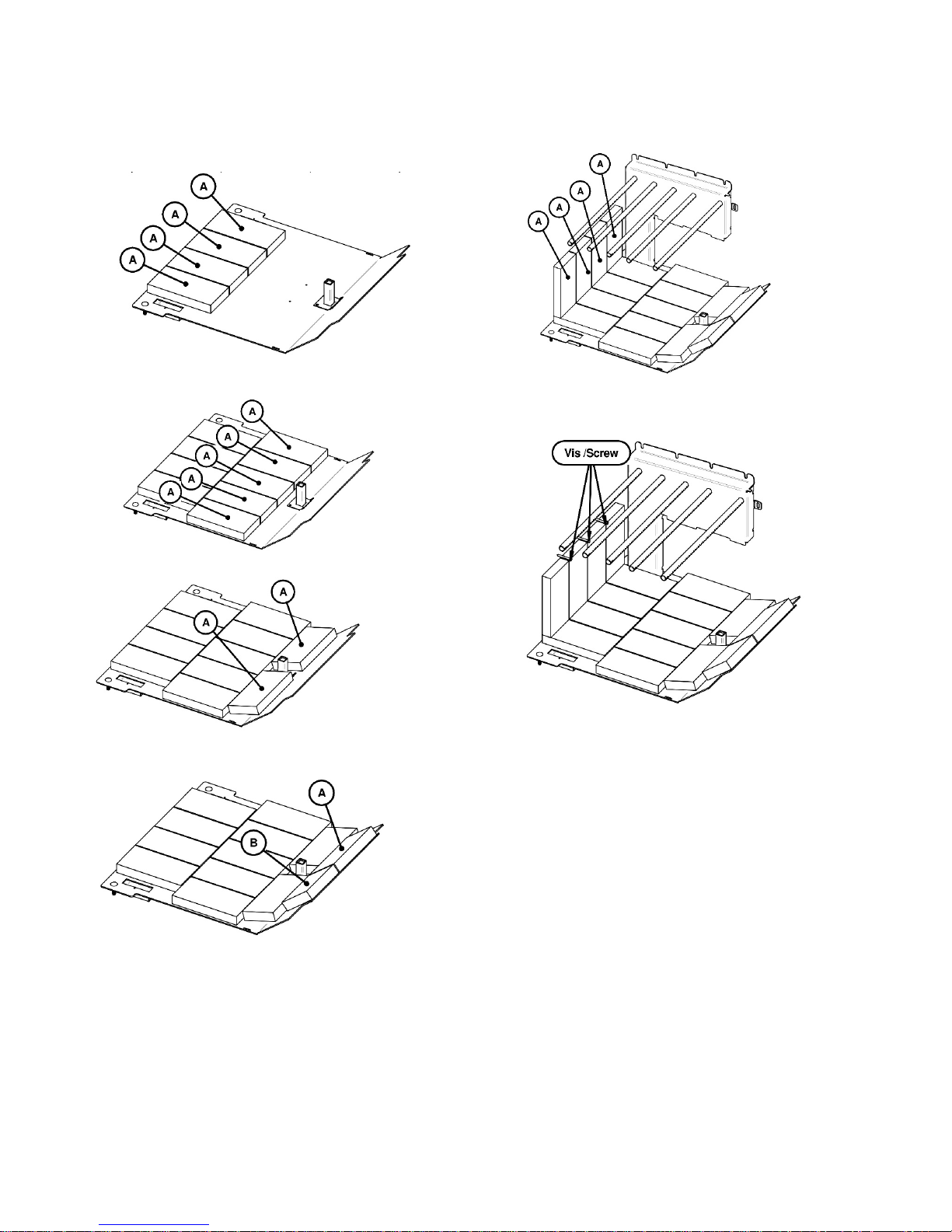

Floor firebricks installation.

1) Put 4 bricks «A» in the bottom like the picture.

2) After, insert 5 bricks «A» in front the 4 bricks previously placed.

3) Insert 2 brick «A» each side of the pilot.

4) Insert brick «A» and «B» to finish under the door.

Back firebricks installation.

1) Put 4 bricks «A» on the back wall.

2) Begin to screw the 3 bricks screws in the hole for this purpose, after insert split washer through the screw and do not tight the screws now

3) Add two horizontal bricks «A» above de 5 previously placed.

4) To finish, put the slotted washer and tighten the 3 bricks screw

Side firebricks installation

1) Put 3 bricks «A» and 1 angled brick «C» beside the right air corridor. ».

2) Start to screw the brick screw just enough to install the slotted washer.

3) Put 2 horizontal « D » bricks over the screws and another in front of the bricks like illustration. Put the slotted washer and finish screwing it.

4) Repeat steps1 2 and 3 to do the other side of the stove.

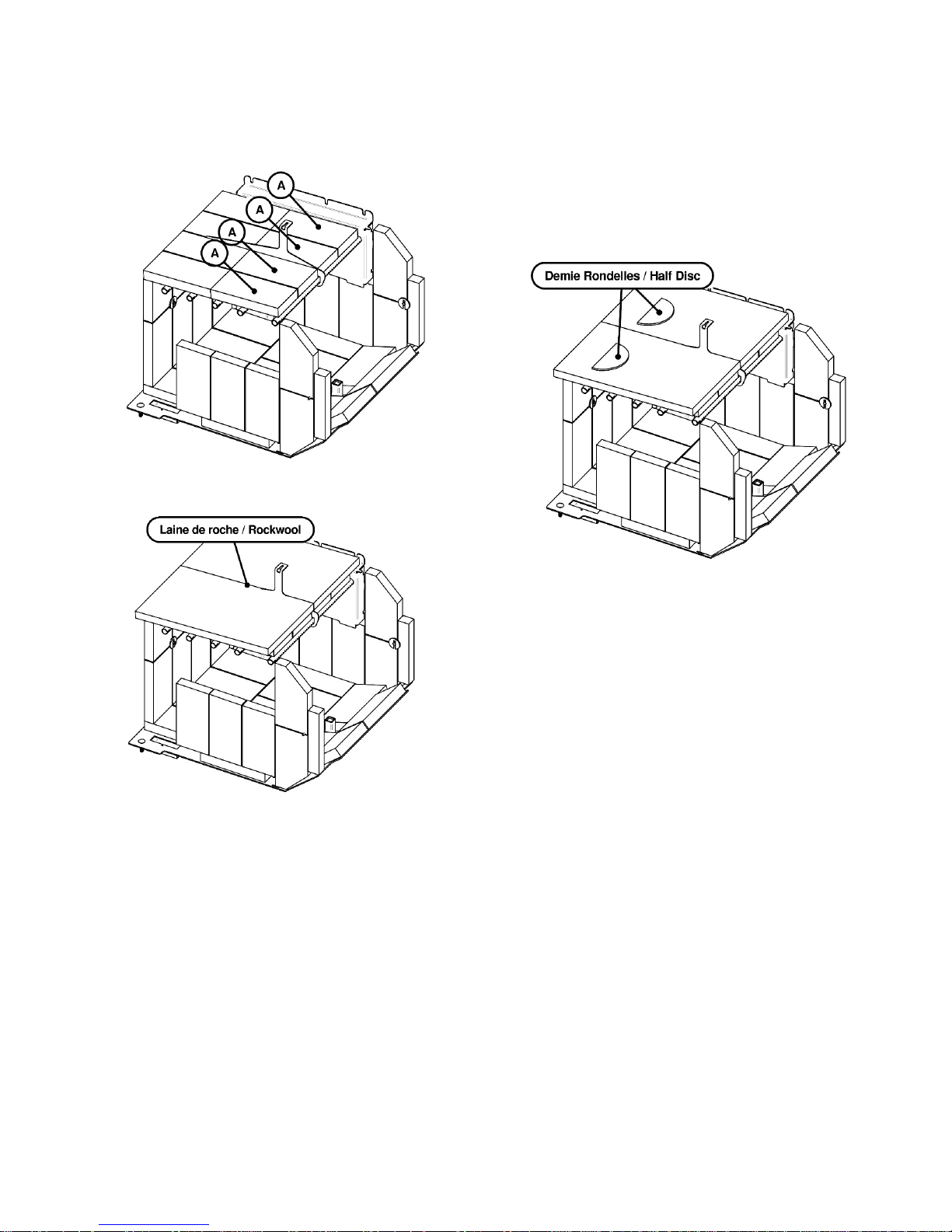

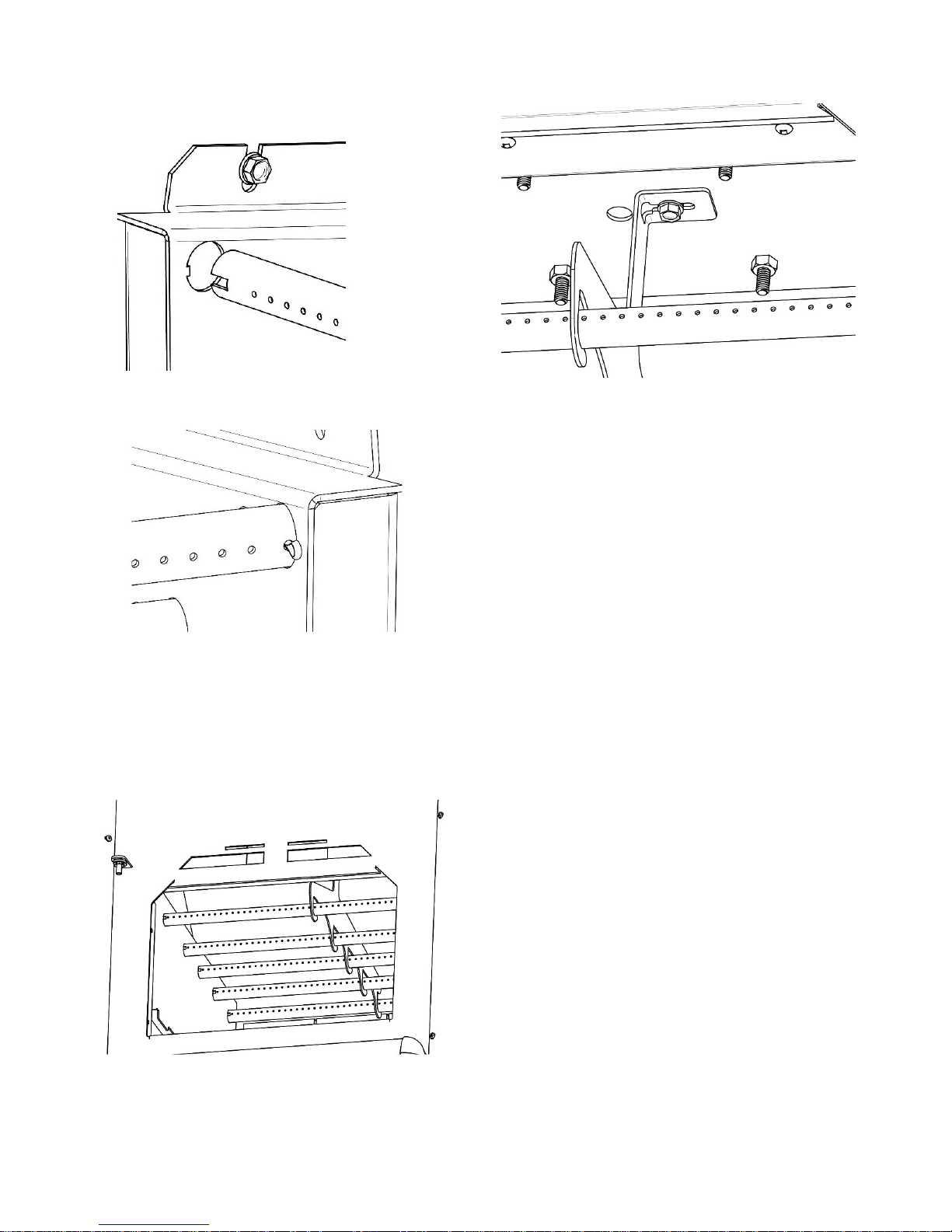

Firebricks installation on the pipes.

The firebricks must be put on the 5 pipes from the bottom of combustion chamber. Bricks keep a maximum of heat inside the combustion chamber and help the air ratio to burn the most of wood pollution gas made by wood steam and wet wood.

Put the rockwool above the brick, it prevent leakage between the bricks and keep a maximum heat inside combustion chamber. It must cover up all the bricks and the each side of top of the air corridor.

IMPORTANT: The rockwool must not obstruct the smoke exit way. Check in the flue collar and make sure that is in the good position.

1) Put 4 « A » bricks over the last tree top pipes and push it to the back brick. Be sure to eliminate any gap space between the back bricks previously placed and the brick you install.

2) Put four (4) bricks « E » over the two front pipes. It must be placed like the illustration. Be sure to eliminate any gap space between back bricks previously placed.

3) Put the rockwool over the bricks and assume then the smoke exit way is not obstructed.

4) Put two half metal disk over the rockwool near the rear deflector already in place. Be sure to put it under the rear deflector to maximise the clearance between rockwool and the rear deflector. You can look by flue collar to be sure the rockwool is not obstructig the space.

WARNING: Obstructing smoke exit way under deflector can force fume to exit by the door when open it and the stove must not work properly.

General stove installation steps.

1) Read the entire owner and installation manual before install and use your stove.

2) Chose a spot where to install your cook stove. Read section about floor protection dimension and about localisation of stove over the floor protection plate, and for combustible material clearance. Once you have decided where to install the stove, mark the roof at the center of chimney

o To be sure that the vertical center of the

chimney is set. Use a plumb line and mark the center on the floor.

3) Check if it possible to pass chimney without damaged the structural integrity of your house, if so, you have to move the location of the stove while keeping the minimum clearance or more to be sure. If you can’t move the stove and have to cut through a beam. Be sure to keep the structural integrity of your house by following state of the art and National building code.

• We recommend to install this appliance by a certified installer

Note: This appliance have to be connected to 6 inches (15.24 cm) factory build chimney HT UL 103 or CAN/ULC S629 compliant or a 6 inches (15.24 cm) masonry chimney with a homologated sleeve inside.

4) Install the chimney following the manufacturer instruction.

5) Put the stove directly on the floor aligned vertically with the center of chimney, and trace the side of the stove on the floor and remove it.

6) Trace the protection floor 8 inches (20.3 cm) to the offset clearance from the side and the back of the stove and then trace the front offset clearance at 16 inches (40.6 cm) In US and 18 inches (45 cm) in Canada. From the front of the door opening.

7) Install the floor protection plate inside the last mark. (It must be non-combustible)

8) Put the stove on the protection floor plate and respect the offset clearance set at step 6. Be sure to centering chimney with the flue collar. We recommend to fix the stove to the floor with bolt in the slot make for that.in the legs.

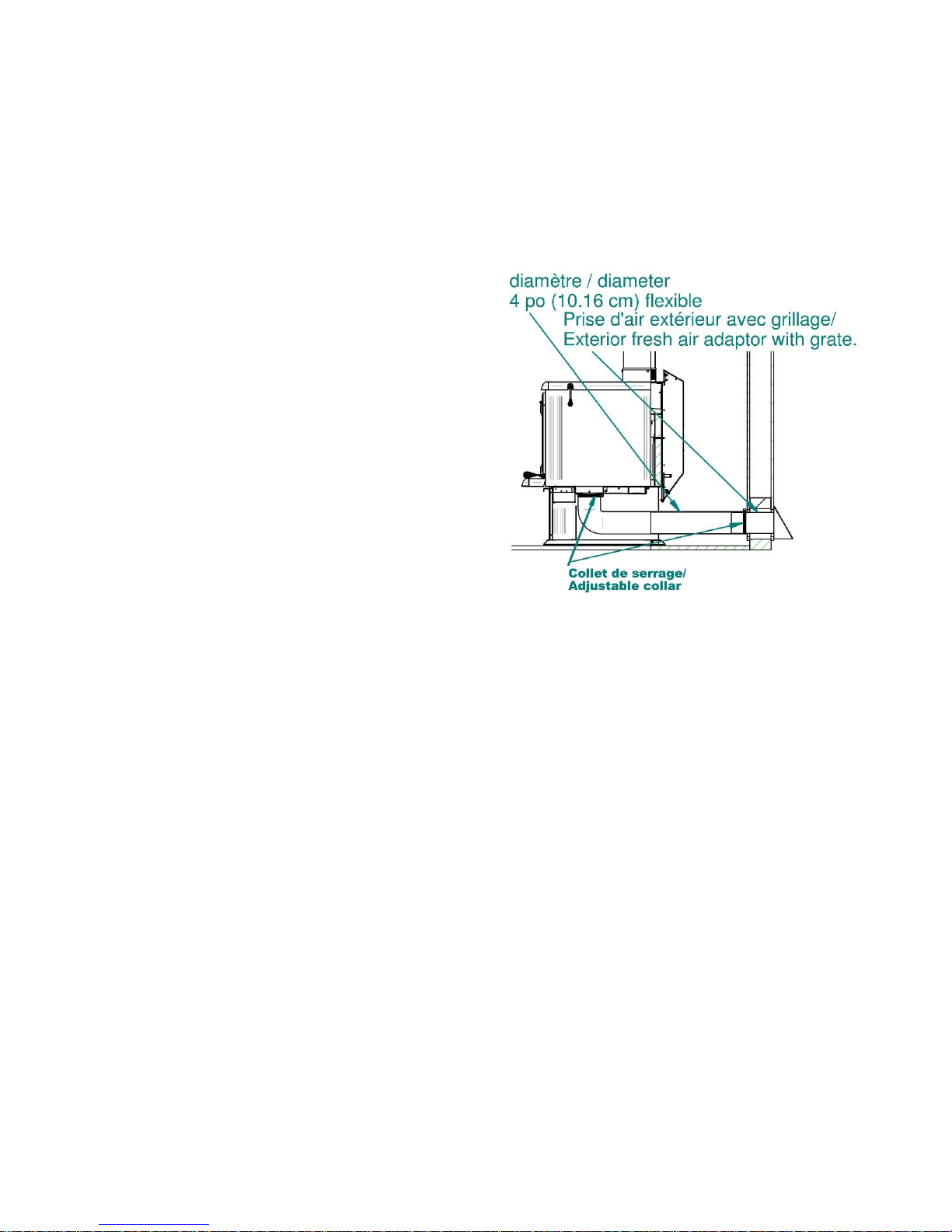

9) If you have an outside air inlet you must use 4 inches (10.16 cm) flexible aluminum pipe. The pipe must be sealed with thermal resistant sealant

10) Install the chimney connector on the stove collar first and screw it with 3 screws, then continue with the next chimney connector section up to the chimney support collar. Always use 3 screw on each joint section.

Note:

• The single wall or double wall chimney connector

must be 6 inches diameter and have a minimum thickness of 24 gauge (0.025 inches 0.64 mm)

• Do not use galvanised steel chimney connector.

Chimney connector installation.

The chimney connector is a set of single wall or double wall flue pipes and elbow installed between the stove collar and the chimney collar. The single wall chimney connector is sold into any hardware store and are not homologated and certified. Some rules must be followed to install it and can be found in the installation codes for wood heater.

• Double wall chimney connector. The stove was design and tested with a single wall chimney connector with heat shield but it is possible to

install a 6 inches (15.2 cm) double wall certified chimney connector

ATTENTION:

• For the clearance between combustible materials and double wall chimney connector, see manufacturer manual.

• Single wall chimney connector.. For the single wall chimney connector you must use The

single wall or double wall chimney connector and it must be 6 inches diameter and have a minimum thickness of 24 gauge (0.025 inches 0.64 mm) For the single wall section

and elbow. Install a metal heat shield, 1 inches (25.4 mm) offset.

ATTENTION:

• If heat shield is not present you must move away the stove to keep 18 inches (45.7 cm) clearance between combustibles materials and the chimney connector.

• Any horizontal section must have a 1/4 inches (6.35 mm) by feet (30 cm) slope toward the chimney collar.

• Clearance between roof and horizontal single wall chimney connector must be 18 inch (45.7 cm) or more.

• Clearance between roof and horizontal double wall chimney connector, follow chimney connector manufacturer indication

ALL SECTION AND ELBOW MUST BE CLEAN AND IN GOOD CONDITION AND MUST BE APROVED FOR A CORDWOOD FUEL.

1. Chimney connector assembly installation. Make a summary installation of all sections and elbows (if necessary) to ensure that you meet the clearances and inclinations of the horizontal sections and check that you have all the necessary parts to final installation.

o For direct vertical installation you will need.

 1 adequate length for vertical section  1 x adequate length of telescopic chimney

connector section allowing you to connect the last chimney connector section to the roof support collar.

Note: Additional section can be used for higher roof.

o For horizontal run installation you will need

 1 adequate length of vertical section  1 x 90° elbow or 2 x 45°elbow.  1 x adequate length of telescopic chimney

connector section

Note: For better performance two 45 degree elbow, with or without straight section between are preferable.

2. Disassemble the whole thing and start screwing the pieces from the stove to the roof chimney collar

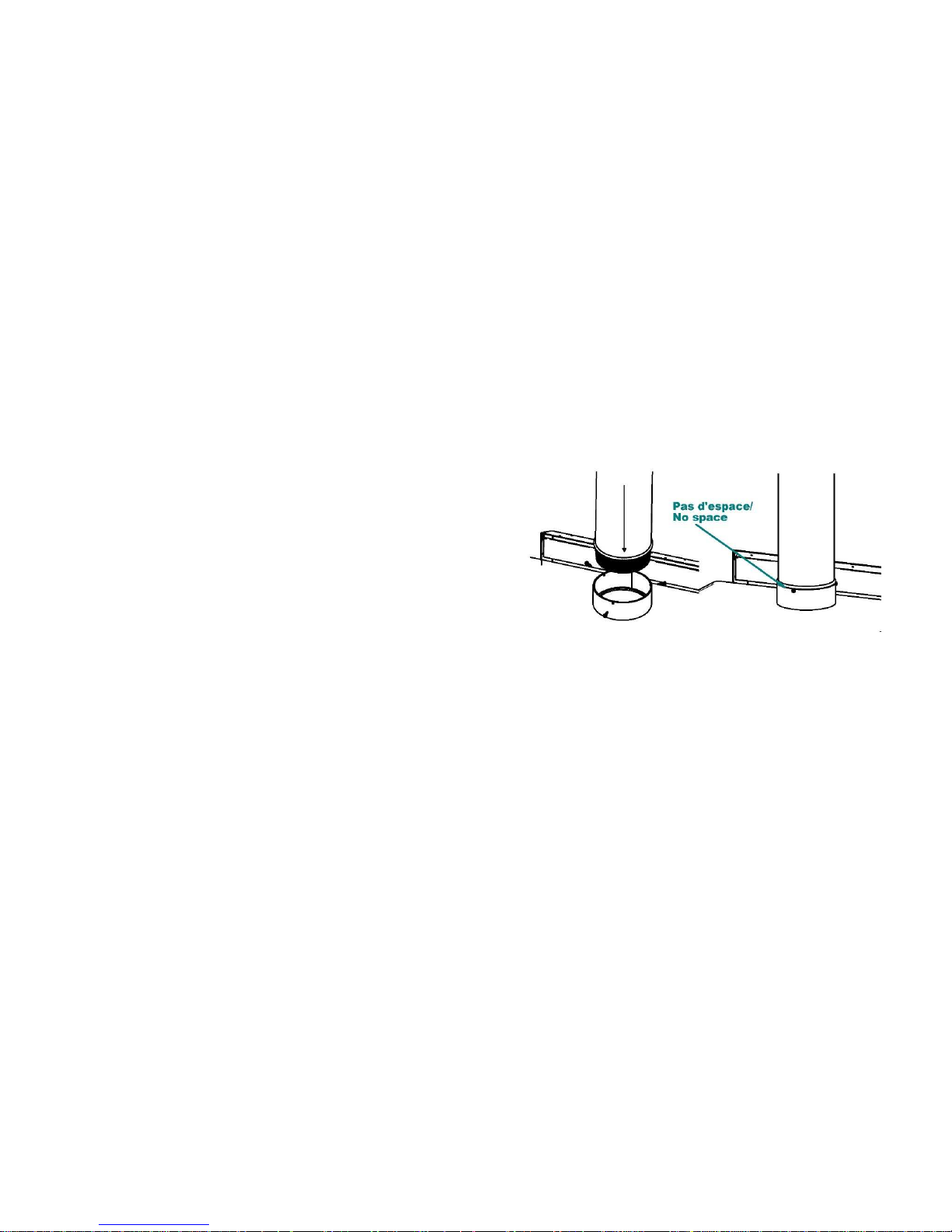

3. Insert entirely the roll formed end into the stove collar and screwing it with a minimum of 3 screws.

WARNING: It is mandatory to screw the pipe to the stove collar and also at each joints with a minimum of 3 screws.

4. Install all the next section up to the roof chimney

support and screw every chimney connector parts with 3 screws

WARNING: It’s mandatory to screw all joint with a minimum of 3 screw.

5. Install all the next section and screw it to the last

6. Screw the last section to the ceiling chimney collar. DO NOT CONNECT CONECT THIS UNIT TO A CHIMNEY

FLUE SERVING ANOTHER APPLIANCE.. CONNECTOR PIPES SHOULD NEVER PASS THROUGH

THE CEILING, THROUGH A WALL, IN A CLOSET, IN AN ATTIC OR OTHER ENCLOSED AREA THAT COULD CAUSE HEAT BUILDUP. IF YOU NEED TO PASS THROUGH COMBUSTIBLE MATERIAL, MAKE SURE THAT YOUR INSTALLATION COMPLIES WITH CAN / CSA-B365.

Chimney installation, General steps

Use only approved chimneys. The same size as the output collar. 6 inches in this case. The chimneys used must be tested according to CAN/ULC S629 M87 in Canada and to UL 103 (type HT) In USA. The Cook stove can be install with a masonry chimney according to ULC S635, ULC S640 and UL 1777. The masonry chimney must be equipped with a stainless steel sleeve and meet the standards for the masonry chimney with inner sleeve.

Provide a place to sweeping. When possible, it is preferable to avoid an outside chimney or

built on an exterior wall, and this is even more important for colder areas. Outside chimneys generally have a less efficient draught. They can even have an inverse draught because it is hard to heat them enough so that they can reach their operating temperature. A greater accumulation of creosote, a less efficient draught and a lesser performance are some characteristics of cold chimneys. Draught is proportional to the total chimney height as well as its temperature. It is therefore possible to get a better draught by increasing the chimney's height and by reducing the heat loss with an insulated lining. The chimney has to be installed with a stainless steel lining. Make sure that all smoke pipe joints are really airtight. A leak reduces the efficiency of the appliance and could even make its utilization dangerous.

Note: This is a general chimneys installation method. Always refer to the manufacturer’s manual of the chimney for a more detailed method for your chimney.

1) Determine the total length needed for your chimney..

2) Cut the holes into all floor and roof

3) If you need to cut a joist, be sure to strengthen the adjacent joists and frame hole respecting the minimum dimensions to be maintained between combustible materials and the firewall. Follow the manufacturer's instructions in the manual supplied with the firestop. Never cut a structural beam.

4) Frame the holes in each level and attic respecting the minimum distance recommended by the manufacturer's manual of your chimney. And install firestop in each level.

5) Frame the hole into the roof.

6) Install the chimney support at the ceiling where Cook stove is installed.

7) Stack and lock the factory built chimney section on the support and above the roof.

• The chimney must be over 36 inches (91.4 cm) over the higher point into the roof opening.

• The chimney must also be 24 inches over the highest point on the roof inside 10 ft (304 cm) radius around chimney.

• The minimum length of chimney is 12 feet (365.8 cm).

• ATTENTION: Be sure the chimney section are lock together and lock onto the chimney support.

• Note: More lengthen chimney than the minimum can add more draft and help to the good working operation of the cook

stove Try the minimum length first then add section if you need more draft.

8) Put the roof flashing over the chimney and seal it with roof caulking.

9) Nail roof flashing, and reinstall roof covering.

10) Slide the storm collar over the chimney and seal it with high temperature caulking.

11) Lock the chimney cap and install the spark arrestor if necessary

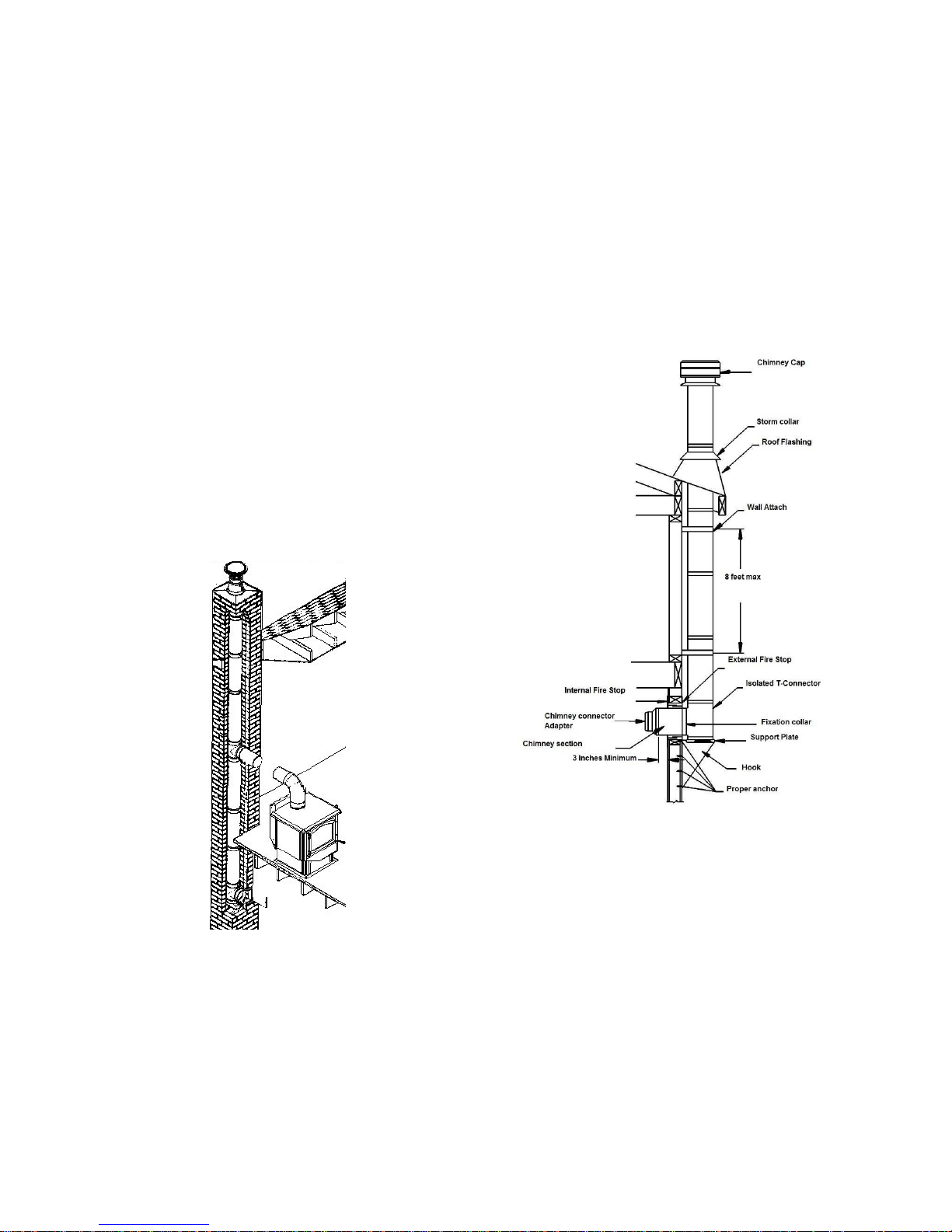

Inside Masonry Chimney, Vertical Installation

The wood appliance must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA211 (USA) norms. Follow the chimney manufacturer’s instructions to install the chimney.

The chimney masonry must have inside a certified metallic sleeve cover up all the chimney height. The sleeve must be at the same diameter of the flue collar; 6 inches (15.2 cm). The junction between sleeve and the chimney connector must be tight and sealed to avoid fume to go indoor.

To pass into a combustible wall between stove and the masonry chimney. The installation method have to be safe to prevent fire. Find the lasts information to your local authority to be sure of the manner you have to.

To install the stove onto an abandoned masonry fireplace and use the good condition masonry chimney the chimney must have inside a certified metallic sleeve cover up all the chimney height. The sleeve must be at the same diameter than the flue collar 6 inches (15.2 cm). The junction between sleeve and the chimney connector must be tight and sealed to avoid fume to go indoor. Don’t forget to add a sweep opening.

Outside Vertical Installation.

The wood appliance must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA211 (USA) norms. Follow the chimney manufacturer’s instructions to install the chimney.

To pass into a combustible wall between stove and the chimney. The installation method have to be safe to prevent fire. Find the lasts information to your local authority to be sure of the manner you have to. An internal fire stop and an external fire stop must be used.

Cathedral Vertical Installation

The wood appliance must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA211 (USA) norms. Follow the chimney manufacturer’s instructions to install the chimney.

Always pass chimney between joists. If a joist need to be cut, referring to the National Building code to know how to do it safely to avoid structural integrity fail. Call a carpenter or a certified Installer.

Always frame around chimney. Keep minimal clearances written into your chimney manual.

Do not fill the gap between the fire stop and the chimney. Nothing must be in contact with the chimney.

Always install a fire stop at each level, in a Floor, in a ceiling, attic and in a Roof.

Always pass with a straight section into a level joist. The chimney should be support by the cathedral roof. Build a

box around it to install ceiling support at is base. Weight of the chimney never be allow to be support by the

stove.

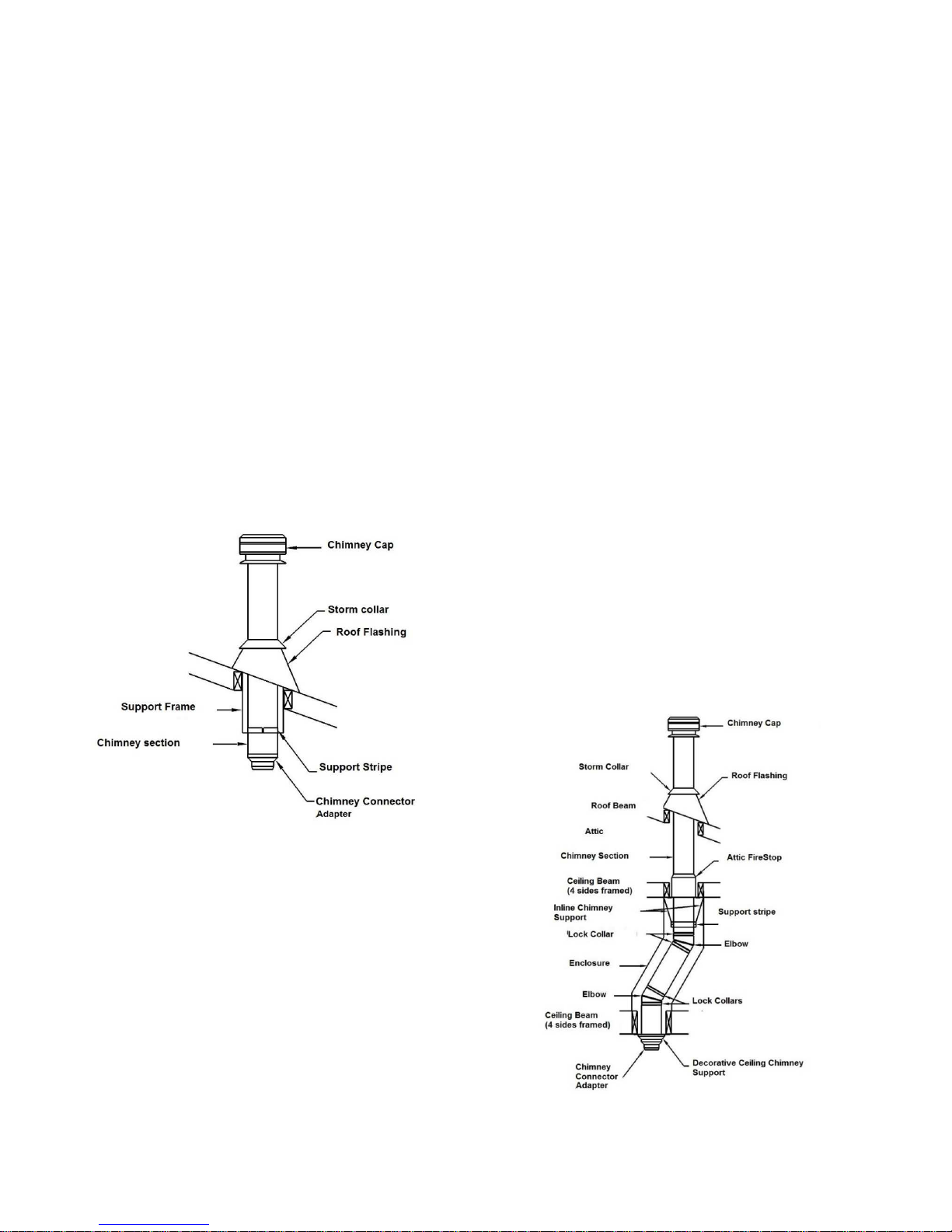

Offset Installation

The wood appliance must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA211 (USA) norms. Follow the chimney manufacturer’s instructions to install the chimney.

Always frame around chimney. Keep minimal clearances written into your chimney manual.

Do not fill the gap between the fire stop and the chimney. Nothing must be in contact with the chimney.

Always install a fire stop at each level, in a Floor, in a ceiling, attic and in a Roof.

A special fire stop need to be install into the attic. It keep isolation and avoid the attic isolation to be in contact with the chimney.

Always pass with a straight section into a level joist. Chimney weight have to be support by the lower level with a

Ceiling support. Chimney weight have to never be onto the elbows. Install a

support band to support the upper straight section over the elbow.

Weight of the chimney never be allow to be support by the stove.

Some restriction have to be respect regarding the maximum angle and lenght of the offset. See chimney manual for this restriction. Or local building code.

Vertical Installation

The wood appliance must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA211 (USA) norms. Follow the chimney manufacturer’s instructions to install the chimney.

Always frame around chimney. Keep minimal clearances written into your chimney manual.

Do not fill the gap between the fire stop and the chimney. Nothing must be in contact with the chimney.

Always install a fire stop at each level, in a Floor, in a ceiling, attic and in a Roof.

A special fire stop need to be install into the attic. It keep isolation and avoid the attic isolation to be in contact with the chimney.

Always pass with a straight section into a level joist. Chimney weight have to be support by the lower level with a

Ceiling support. Weight of the chimney never be allow to be support by the

stove.

6. External combustion air source.

In conventional designed house, natural ventilation is enough to operate the wood stove.

In some new energy saving house, natural ventilation is not enough to good operation of your stove. To avoid reverse circulation of smoke caused by negative pressure when turning on some fan on like: Bathroom fan, Cooking fan or a drying machine. Open slightly a window in the same room than the appliance to compensate the depressurisation, or install

optional exterior air inlet. WARNING: DO NOT INSTALL IN MOBILE HOME

A mobile home on a foundation is considered like a conventional house.

Exterior Air Intake pipe.

This appliance is not certified for the mobile home installation. An external optional air intake is need to be installed. Call you sale representative to buy one.

We recommend to use a 4 inches (10.7 cm) aluminum flexible pipe, a damper and a caped air inlet equipped with grate

Other pipe material must be complied with ULC-S110 norms or UL-181 Class1 norms, equipped with thermal resistant isolation and must be corrosion resistant

The stove must be fix to the structure when a exterior air intake is installed.

Installation of Air Intake Pipe.

1) To install the exterior air intake pipe, find the hole under the cook stove back and fold the 3 tabs outside the Intake box. Insert the pipe into the hole and screw the pipe using the 3 holes in the tabs. Put a generous layer of high temperature latex caulking onto the joint to ensure the pipe is sealed.

2) Cut the exterior wall and install Air Inlet kit following the manufacturer installation instructions. Be sure to

seal it correctly to preserve the vapour barrier of your house.

3) Install a small rigid section with a damper onto the interior end of the Air Inlet (The damper is to reduce the cold air circulation into the stove when it is not in service.)

4) Plug the flexible air inlet pipe onto the damper section and seal it.

5) Put a thermal resistant isolation onto the pipe if the pipe is not isolated.

Air Inlet Obstruction

If the stove extinguish after closing is door, it’s possible than the air inlet is obstruct by something. After a long unused period, insects or animals can build a nest into the air inlet. In winter, after a storm, snow can accumulate over the air inlet and obstruct it.

Before warming season, always inspect air inlet pipe to be sure nothing is obstructed the outside air inlet.

Stainless steel deflector replacement.

Add-on stainless-steel plate are used into combustion chamber to protect the steel from wear corrosion cause by extreme temperature and extreme conditions into combustion chamber.

When it’s too wear they have to be replaced.

Front deflector Add-on Replacement.

Remove the rockwool, half round plate, and the 2 front tubes.(see Stainless steel tubes replacement section.

Replacement of the add-on deflector.

• Remove all the screws of the add-on stainless steel deflector.

• Install the new deflector and screw it in place. Pay attention to put all screw.

• Install previously disassembled tube, rockwool and half round plate. Following instruction into the stainless steel tubes replacement section.

Stainless steel tubes replacement.

Although the tubes are in stainless steel. With extreme temperature and conditions the tubes are eventually corroding and perforating by normal deterioration. They must be replaced by a new one to ensure performance of your stove.

Stainless steel tubes Installation.

Two type of tubes is used into the stove. Three of this are a single holes perforation and are in the back of heat chamber. The front heat chamber is covered by the two other and are double sided perforated

To ensure proper tubes orientation, a groove is cut at one end of tubes, and a corresponding emboss is cut into the hot air side channel.

Step to install a tube.

1) Insert the tube into the round hole into the hot air side channel.

2) Align and insert the groove into the other side.

3) Push completely the grooved end and insert the cotter pin into the last hole at the other side.

4) Split the cutter pin to lock it

5) Install the next tube

To remove tubes, do steps in reverse order

Tube support installation.

Put the support over the tube and fix it with the screw into the top of combustion chamber like the next illustration.

7. Operating Instructions

• OPERATE ONLY WHEN DOOR IS CLOSED: Keeping

the door open can over fire and do permanent damage to the stove or a chimney fire.

• It’s recommended to install a CO, CO2 and smoke

detector into the same room than the stove.

• NEVER SLAP THE DOOR.

• NEVER BURN INFLAMMABLE LIQUID: Inflammable

liquid make too much uncontrolled heat and can make permanent damage to the stove or a chimney fire.

• ALWAYS CHEK IF AIR INLET IS NOT OBTRUCT

BEFORE LIGHTNING A FIRE.

• NEVER ELEVATE FIRE WITH GRATE OR ANDRION.

ALWAYS MAKE FIRE DIRECTLY ON THE HEART.

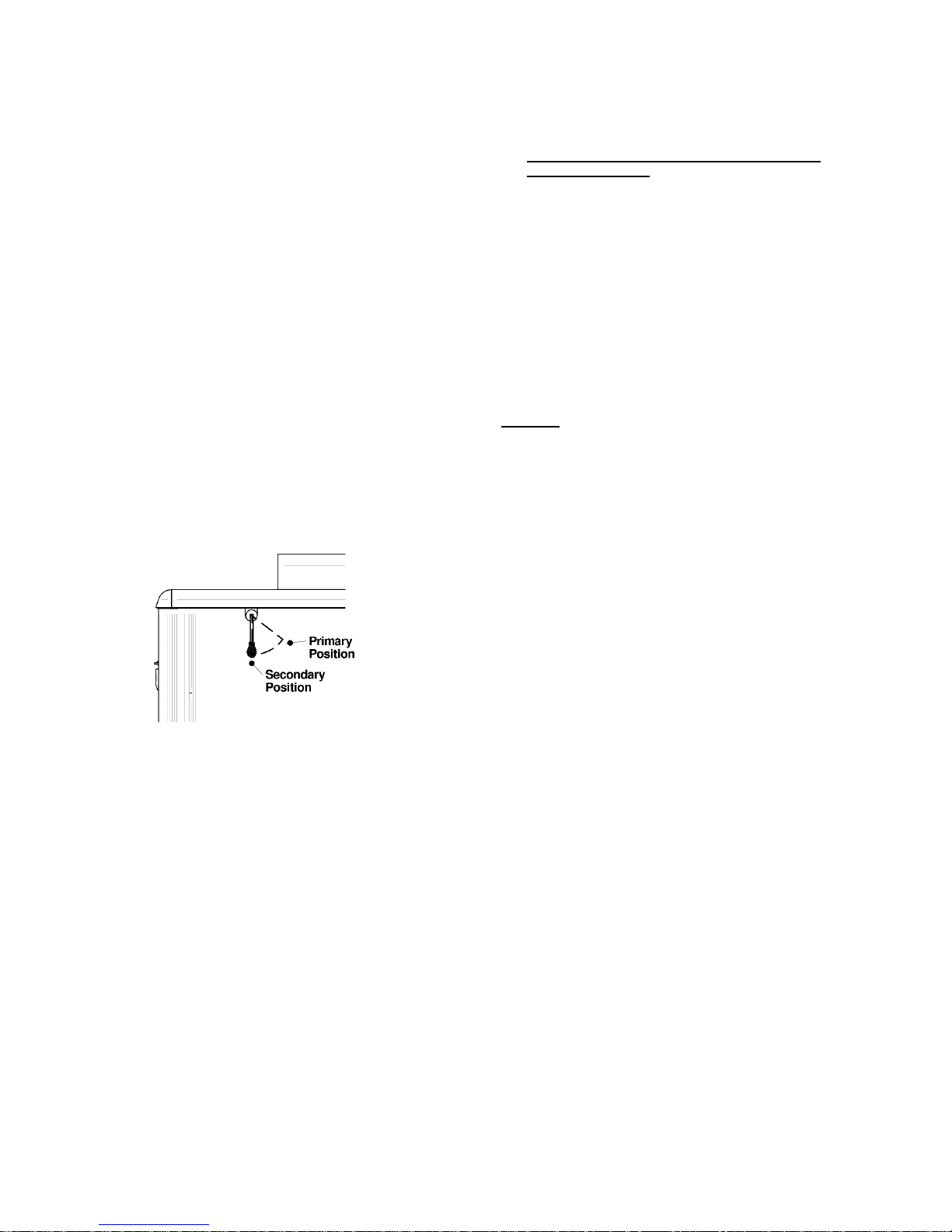

Primary and secondary air admission control.

When the handle on the left side of the stove is vertical the air admission is from the tube only, this is what we called “Secondary air admission”. Else when the handle is angle back the air admission is direct and from the top of the door opening, this is what we called “Primary air Admission”

Warning: Operate stove with the Primary air admission fully open for a long period of time, can damage the stove.

IS PROHIBITED TO MODIFY AIR ADMISSION TO OBTAIN A BRIGHT FIRE OR FOR ANY OTHER REASON. MODIFICATION CAN AVOID GUARANTEE.

Lightning fire.

After installing correctly the stove following the installation instruction of the manufacturer, you are ready to light it.

1) Turn the admission handle in horizontal position to set the primary air admission.

2) Be sure to close all cooking holes

3) Turn the deviation knob in the non-cooking position

4) Put paper and lightning wood into the combustion chamber like your preferred disposition and light it

5) Close partially the door keeping a slight opening. When chimney have enough heat buildup close completely the door and lock it. Wait for a good fire buildup.

6) Once you have an ember fire, it’s time to add logs. Follow now the instruction section on how to keep a fire

DO NOT OVER CHARGE THE STOVE OVER THE UPPER BRICK ROW

You can control the combustion by turning up or down the handle. The wood will burn more rapidly when more primary air is set. Otherwise the wood burn more slowly and more efficiently with the handle set to secondary air. You can balance the primary and secondary air to have more heat, to cook.

Warning: Operate stove with the Primary air admission fully open for a long period of time, can damage the stove by over firing.

NEVER LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS SIGHTLY OPEN. ALWAYS CLOSE THE DOOR AFTER LIGHTNING.

CAUTION: NEVER USE GAZOLINE, GAZOLINE TYPE LANTERN FUEL, KEROSEN, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS TO START OR “FRESHEN UP “A FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE HEATER WHILE IT IS USE.

NEVER BURN TRASH.

First fire.

The first hours of operation, you must heat it gradually. In order to allow an appropriate cooking of the paint and in order to facilitate its adhesion with metal, do not heat the appliance with a strong fire. It will also avoid thermal shock which could lift up the paint or make it whiten.

Make sure that the room is ventilated enough in order to eliminate the odours and the smoke coming from the paint during the first hours of utilization. It is normal that a light smoke is released from the paint during the first hours of use.

Even if this nuisance is temporary, open the windows and the doors in order to ensure a good ventilation. This special paint is conceived to tolerate temperatures until 1200°F (650°C).

Keep a fire.

To add firewood into the stove and keep a fire.

1) Turn the handle to horizontal position and wait a few second to let the fire adjusting to the new conditions..

2) Open the door handle to the first position and wait a few second to balance pressure to avoid fume to escape from stove

3) Wide open slowly the door.

4) Move embers with poker near to the door to oxygen it and make it burned completely

5) Add firewood over the ember, keeping it away from the glass door to avoid flame touching the ceramic glass.

DO NOT BUILD A FIRE TOO CLOSE OF THE WINDOW.

6) Close the door slightly and wait to be sure the wood is burning.

7) One the wood is burning close and lock the door.

8) Adjust the air admission handle to needed setting.

NEVER LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS SIGHTLY OPEN. ALWAYS CLOSE THE DOOR AFTER ADDING A LOAD.

Fans Controls.

The optional switch on the snap disc box is only to power up and down the fan

On power up position the fan is control by a snap disc factory set to 120 Fahrenheit (49 ° Celsius)

On Off Position all the fans shut down. When the switch is not installed the operation is the same as it

power up.

NEVER ROUTE THE ELECTRIC WIRE OF FANS IN FRONT OR UNDER APPLIANCE

Wood storage

The readily cordwood must be store into dry place, away from bad weather.

It should not be store under the stove or too close of it. If any wood is stored next to the stove it must respect the

minimum clearances to avoid self-ignition temperature. 10 inches (25.4 cm) behind. 20 inches (50.8 cm) beside. 48 inches (122 cm) in front of it.

8. Maintenance.

Ash Removal.

The wood burning make some residual called ash and must be remove from the combustion chamber to help oxygen circulation

The ash have to be removed periodically every 2 or 3 days into heavy warming period. Never had excessive accumulation into the combustion chamber because it can reduce performances of your stove by diminish the air circulation between logs.

The best time to remove ash is after a long warming period like morning when the stove is relatively cold enough to manipulate ash and the chimney is yet hot. The hot chimney draft will vacuum the dust inside the stove.

To clean combustion chamber from ash you must have the following tool.

• Ash shovel

• Ash brush.

• A metal bucket with airtight lid.

Some embers is mix with ash and still lit a few hours or a few days. Is very important than the metal lid was airtight. The bucket must be put on a non-combustible tile or brick.

Ash Disposal.

Some embers is mix with ash and can still lit. If embers have enough oxygen it can still lit some hours and so some few days.

It’s mandatory to store ash pending disposal:

• Into a metal container with an airtight metal lid

correctly closed

• Outside the house on a non-combustible material.

• Far enough any combustible material.

• Far enough any inflammable liquid and vapor.

• Enough long to be thoroughly cooled.

If the ash are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled.

NEVER PUT TRASH INTO THE ASH CONTAINER

Creosote Formation.

When wood is burning slowly, it produces tar and other organic vapors, which combine with expelled moisture to form creosote. The creosote vapor condense in the relatively cool chimney flue of a slow-burning fire As a result, creosote residue accumulates on the flue lining, When ignited this creosote makes an extremely hot fire

The chimney connector and chimney should be inspect at least once a week during the first month after buying your stove to determine if a creosote buildup has occurred and to see how often you have to sweep it. Warmer is your fire, less creosote buildup as occurred.

Contact your local fire authority to know how to handle a chimney fire.

Chimney Inspection.

Wood moisture, wood species, the combustion quality, are some factors that can influence creosote buildup speed into chimney and chimney connector.

The chimney and the chimney connector must be inspected at least one every two month during the warming season or more depending of your installation. You can call a Chimney sweeper to evaluate the creosote formation or you can do it yourself by extinguish the wood stove, wait for cool down. Then unscrew the chimney connector and inspect the chimney connector and the factory build chimney with a spot light to see if a creosote buildup as occurred. For a masonry chimney insert a mirror in the cleanout opening at the bottom at the bright day. For an outdoor factory build chimney open the cap at the bottom of chimney.

A 1/8 inches (3 mm) or more creosote buildup, smaller apparent diameter and if you cannot see the chimney cap. It’s a sign that is time to sweep your chimney connector and your chimney to remove creosote.

Chimney Sweeping.

Chimney Sweeping need a special tool like some fiberglass rod an adapted diameter brush and some rope

Sweeping chimney also requires to climb on the roof to remove the chimney cap and sometime a too high chimney section too.

We recommend to call a Professional chimney Sweeper certified by APC in Quebec, the WETT in the rest of Canada or by NFI in United States.

Door care.

The door is the mobile element that need a special attention. Its tightness is primordial. One of the first signs of wear braided fiberglass rope is the white soot seems to stick on the glass located where the air leak.

Air Tighten Adjustment.

If the braided fiberglass rope still seems good enough and little flatten it need probably to be tighten

Door adjustment (hinges side).

Important: To keep squareness of the door Keep the door locked and loosen only one hinge at a time.

1) Loosen lightly upper hinge

2) Push the door right beside the upper hinge to tighten the braided fiberglass rope. Then tighten the hinge.

3) Loosen lightly lower hinge.

4) Push the door right beside the lower hinge to tighten the braided fiberglass rope. Then tighten the lower hinge.

5) Open the door and insert a piece of paper between the frontage of stove and the braided fiberglass rope and close it.

6) If the paper easily slide when you pull it, do steps 1 to 5 another time.

7) If after some try the piece of paper slide easily. The braided fiberglass rope must be changed.

Door adjustment (right side)

This side adjustment is do with the screw under the door near the hook hole..

1) Unlock and open the door.

2) With a screwdriver turn clockwise the adjustment screw a quarter turn.

3) Put a piece of paper between the frontage of stove and braided fiberglass rope and close and lock the door.

4) If the paper easily slide when you pull it, do steps 1 to 3 another time.

5) If the door side touch the frontage of the stove and the piece of paper slide easily. The braided fiberglass rope must be changed.

On some version of stove two screw is for retain the door.

Cleaning up glass

To clean the glasses, J.A. Roby Inc. recommends using products sold for this purpose or an oven cleaner avoiding touching paint part.

• Avoid cleaning with abrasives or when the glass is hot. Cleaning glass when is hot can cause a thermal shock and broken the glass.

Uninstalling and installing door.

To uninstall keep the lower hinge tighten.

1) Keep the door lock.

2) Untighten the upper hinge without remove the nut.

3) Unlock the door and carry it while open.

4) Tilt the door off the upper hinge

5) Lift the door off the lower hinge..

Installing the door.

1) Insert the bottom hinge

2) Close the door align it and lock it.

3) Tighten the upper hinge then align the washer with the hinge support.

4) Make the air tighten adjustment.

Broken glass replacement.

WARNING: NEVER OPERATE STOVE WHEN THE GLASS IS BROKEN OR CRACK

NEVER SLAP THE DOOR. NEVER BUILD FIRE TOO NEAR THE GLASS NEVER PUT WATER ONTO THE GLASS TO AVOID A

THERMAL SHOCK.

Replace only with a 5mm ceramic glass with the right shape.

DO NOT USE SUBTITUTE

Steps to replace glass.

1) Loosen partially the screws retaining the four glass supports. And remove the support. (On the cook stove door remove completely the screw.)

2) Remove the broken glass and all pieces of broken glass. And clean the door.

3) Stick the flat fiberglass rope around the glass without pulling it excessively. A sticking side is already on the flat rope.

4) Install the new glasses and put the lower support first and gently tighten screw. Tighten it too much can make a pressure point and can break the glass when it became hot.

5) Install the top support and gently tighten screw

6) Check the tightening Tighten it too much can make a pressure point and can break the glass when it became hot

If you cannot replace glass in place you may have to remove the door to make it. Look in this manual to know how.

Fiberglass rope replacement.

Use a ½ inches (12.7mm) braided fiberglass rope. It is possible to replace the braided fiberglass rope with the

door on the stove, but if you want you can remove door.

Fiberglass rope preparation.

1) Take the end of the fiberglass rope and push fiber inside to make a clean end.

2) Add little touch of high temperature latex inside the end of the fiber glass rope.

3) Remove old fiberglass rope and clean the groove

4) Starting at the lower corner near the hinge put the fiberglass rope into the grove without giving any tension and cut it ½ inches over the require length

5) Take the fresh cut end of the fiberglass rope and push the fiber inside to make a clean end.

6) Add high temperature latex inside the end of fiberglass rope.

Fiberglass rope installation.

1) Put a high temperature latex inside the clean groove to glue the fiberglass rope.

2) Starting at the lower corner near the hinge put fiberglass rope into the groove without giving any tension

3) Align the two fiberglass rope ends and put some high temperature latex between.

4) Install the door if you uninstall it

What to do in case of Chimney Fire.

Contact your local authority to know what to do in case of Chimney fire. And be sure to know procedure in case of chimney fire.

1. Close all door and put the handle to secondary position.

2. Close damper

3. Spay water on combustible material around stove.

4. Call Fire department and trigger alarm.

5. Never touch the chimney while is burning.

6. Do an inspection to chimney and repair it when needed. .

9. Appendix 1

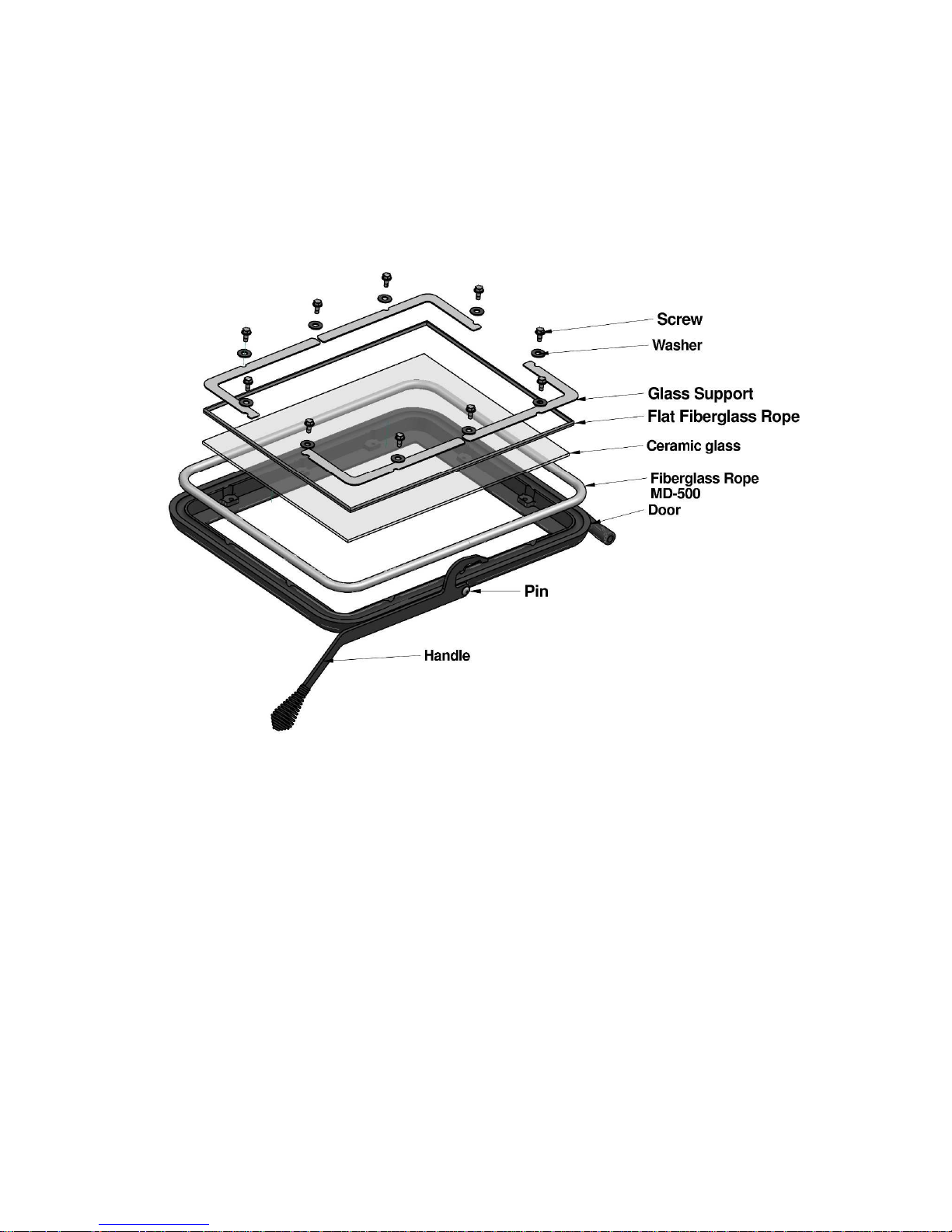

Door assembly

Square Door

Arc Door

10. Appendix 2

Fans electric wiring diagram.

Therm-O-disk Box parts description.

11. Appendix 3

Parts that can be replaced

• Bricks

• Stove ceramic glass Arc

• Stove ceramic glass Rectangular

• Spring Handle

• Stove Door with handle

• Fans

• Flat fiber glass rope (around glass)

• Round fiberglass rope

• Ash Plug

• Slotted Brick Washer

To ordered parts call your stove seller representative.

12. J. A. ROBY LIMITED LIFE WARRANTY – WOOD BURNING STOVES & FIREPLACES

J. A. ROBY’s warranty only applies to original buyer and is non-transferable. This warranty covers brand new products only, which have not been altered, modified nor repaired since shipment from factory. The products covered by this warranty must be manufactured after review date indicated at the bottom of page. Proof of purchase (dated bill of sale), model name and serial number must be supplied when making any warranty claim to your J. A. ROBY dealer. Registered your warranty is not required.

The appliance must be installed by an authorized service technician or contractor. Installation must be done in accordance with the installation instructions included with the product and all local and national building and fire codes. Any service call related to an improper installation is not covered by this warranty. This warranty applies to normal residential use only. This limited warranty does not cover damages caused by misuse, improper installation, lack of maintenance, accident during transportation, alterations, power failure, venting problems, downdrafts, abuse, over firing or neglect. Operating the appliance on high for extended periods of time is neglect. Any defect or damage caused by the use of unauthorized parts or others than original parts void this warranty.

This limited warranty does not cover any scratch, corrosion, warping or discoloration. The manufacturer may require that defective products be returned and/or that digital pictures be provided to support the claim. Returned products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be defective, the manufacturer will repair or replace such defect. The transportation fees to ship back the product to the purchaser will be paid by the manufacturer2. The external labour fees related to warranty repair are not covered. The manufacturer may at its discretion, decide to repair or replace any part or unit after inspection and investigation of the defect. The manufacturer may at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part (s). The manufacturer shall not in no event be liable for any special, indirect or consequential damages of any nature whatsoever which exceeds the original purchase price of the product. All parts replaced under this limited life warranty are subject to a single claim.

Any damage to the appliance, combustion chamber, heat exchanger, enameled cast iron cooking plate or other components due to water, weather damage, long periods of dampness, condensation, damaging chemical or cleaner will not be the responsibility of J. A. ROBY. Failure of any components which is attributed to poor maintenance, is not warrantable and will not be covered by this policy. J.A. ROBY neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product.

The manufacture of your new appliance and the following materials are warranted against defects as mentioned below:

WARRANTY DESCRIPTION 100%

50% current

retail price

Ashtray, handles, doors and cast iron legs Life Combustion chamber 5 years

From 5 years

to life

Secondary air tubes 5 years Heat exchanger 2 years

From 2 years

to life

Switches, thermodisc, wiring and electrical components, standard blowers and rheostat

2 years

Tempered glass, optional blower and

gasketing

1 year

Ceramic glass (thermal breakage only1) 1 year

Replacement parts (with proof of purchase)

90 days

Due to on-doing product improvements, all specifications and design are subject to change without prior notice.

Before shipping your unit or defective component to our plant, you must obtain from J. A. ROBY dealer an authorization number. Any merchandise shipped to our plant without authorization will be refused automatically and returned to sender.

1= Digital pictures required 2= Shipping cost are not covered outside CANADA

Review oct. 2014

STOVES &

FIREPLACES

J. A. Roby ultimate 2015 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
