Page 1
ISO 9001 Certified
Lead with technology
Win customers with service

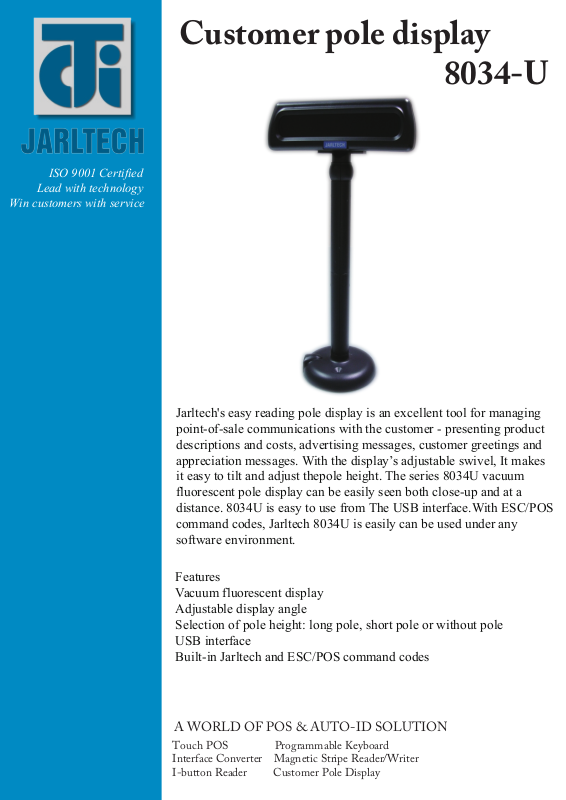

Customer pole display
8034-U
Jarltech's easy reading pole display is an excellent tool for managing
point-of-sale communications with the customer - presenting product
descriptions and costs, advertising messages, customer greetings and
appreciation messages. With the display’s adjustable swivel, It makes
it easy to tilt and adjust thepole height. The series 8034U vacuum
fluorescent pole display can be easily seen both close-up and at a
distance. 8034U is easy to use from The USB interface.With ESC/POS
command codes, Jarltech 8034U is easily can be used under any
software environment.
Features
Vacuum fluorescent display
Adjustable display angle
Selection of pole height: long pole, short pole or without pole
USB interface
Built-in Jarltech and ESC/POS command codes
A WORLD OF POS & AUTO-ID SOLUTION
Touch POS Programmable Keyboard
Interface Converter Magnetic Stripe Reader/Writer
I-button Reader Customer Pole Display
Page 2
-
-
-
-
-
-
-
-
-
-
-
Innovate with Technology
Jarltech International Inc.
3F , No.1 , Lane 538 ,
Chung Cheng Road ,
Hsin Tien ,
Taipei Taiwan , R.O.C
Tel : +886 2 2218 8082
Fax : +886 2 2218 8765
E mail : [email protected]
Jarltech Europe GmbH
Raiffeisenstr. 7 , D 61250
Usingen Deutschland
Tel : +49 (0) 6081/6000
Fax : +49 (0) 6081/600 500
E mail : [email protected]
Jarltech China Co.Ltd
Room 3E , HuiFeng Building ,
No.20 , Lane 380 ,
TianYaoQiao Road
Xuhui District , Shanghai ,
China 200030
Tel : (021) 6468 1447
5424 2622
Fax : (021) 6468 1447
E mail : [email protected]
DISPLAY
TYPE :Alphanumeric dot martix vacuum fluorescent display
Text mode: 20 Characters X 2 lines
Character size: 5mm(w) x 10mm (H) ,5x7 dot
Display color: Blue Green
Brightness: 700 cd/m2
Adjustable angle: 360 swivel and 45 tilt (6-position)
BOTTOM PLATE
Material: ABS plastic with metal place.
Screw holes available for pole fixed
Interface
USB 1.1 user access 8034 via virtual Com port
SOFTWARE PROGRAMMING
Jarltech , ESC/POS , Ultimate mode.
POWER REQUIREMENT
5V DC from HOST USB port
PHYSICAL
Display panel dimensions: 214 (L) x 70 (W) x 40 (H)mm
Pole height:140mm X 2 pcs
Weight: 950 g
Material: ABS plastic
Win customers with service
Specifications
Colors: White or Gray
web: www.jarltech.com.tw
