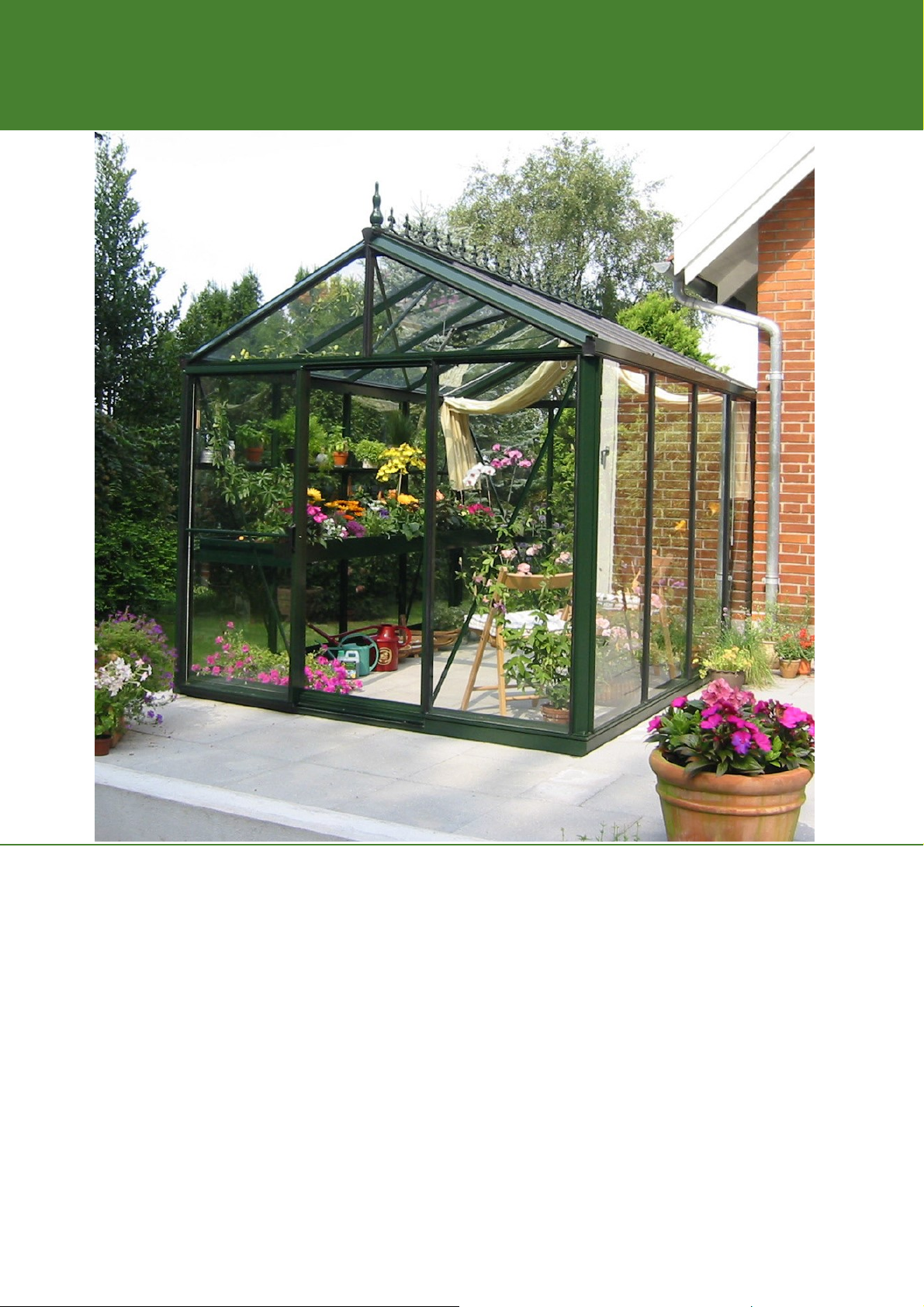

Royal Victorian Greenhouse
VI23,34,36,46
Version 2020_2
04.17.20
Note: This is an all-inclusive manual. It shows optional accessories and customizations that may not apply
to your greenhouse. Direct any questions to Exaco.
www.exaco.com
MOUNTING INSTRUCTIONS
Please watch our animated assembly
video on our Exaco Trading Co
YouTube Channel.
Find the link at www.exaco.com
877-760-8500
PRODUCT INFORMATION
Dear customer,
Thank you for buying a Janssens high-quality aluminium greenhouse.
REMARKS
In this manual, you will find the assembly instructions for all basic/standard-model greenhouses.
However, this manual also contains page which apply to optional accessories that may not be included
with your kit. This greenhouse is designed for cultivation of plants/flowers. Therefore leakage, water
drops and condensation inside the building are allowed. The building may only be entered by competent
persons during cultivation or maintenance. Aluminium profiles that are not painted may show black
stains, these stains are not a production error: they can be easily removed with a aluminium cleaner available
at a home improvement store. The rubber strips have been treated with oil/silicone on the interior to
facilitate the assembly. The building should be mounted on a solid concrete foundation deep enough to
get a solid and frost-free ground. Anchoring of the foundation should be made by the owner or
operator and should be checked periodically. During winter, the roof will need to be cleared of snow or
supported in a suitable way. The greenhouse should be built in a location protected from strong winds.
Protective gear (such as protective gloves) should be used during assembly in order to avoid injuries. One
should at all times pay attention to the local building regulations.
ASSEMBLY ORDER
The assembly procedure is the same for all our greenhouses.
- Sorting of the profiles/extrusions according to the model/size of greenhouse. The aluminum profiles
(extrusions) are identified by their cross-section and length.
- Assembly of the complete aluminium framework.
- Leveling of the construction using a level
- Anchoring/securing of the
- Glazing installation
greenhouse to the
ground
REQUIRED TOOLS
- Metric or Combination Measuring Tape
(highly recommended)
- Socket wrench or spanner 10mm
- Level
- Screwdriver
- Drill + drill bit 4.2 mm
- Scissors (to cut the rubber).
We reserve the right to change the construction without prior notice!
Questions? Need Assembly Support?
Please call Exaco at 877-760-8500, ext. 701 or email
customerservice@exaco.com.
Royal Victorian Foundation Drawing
A
VI23 2360mm/93"
VI34 3098mm/122"
VI36 3098mm/122"
VI46 3836mm/151"
X
VI23 3098mm/122"
VI34 4574mm/180"
VI36 6050mm/ 238.2"
VI46 6050mm/ 238.2"
B
Note: Do not set the corners in concrete
until the entire greenhouse frame is
complete, level and square.
You may need some play to install the
uprights.
VI 34,36,46 with Stem Wall
measure-
Call for
sliding
door
ments!
This page only applies when you have a
door extension kit and are placing your
greenhouse on a wall. (2020 HDD)
A = 3.098 | 3.836
B = 2.360 | 3.098 | 3.836
4.574 | 5.312 | 6.050
C = 829 | 1.567 | 2.305
D = 703
E = 829 | 1.567 | 2.305
!!! A = C + D + E !!!
hinged door ONLY!
200 | 400
H
600 | 1.025
A|B|C|E
A = 3.098 | 3.836
B = 2.360 | 3.098 | 3.836
Call Exaco for
sliding door
measure-
ments!
4.574 | 5.312 | 6.050
C = 829 | 1.567 | 2.305
D = 1.441
E = 829 | 1.567 | 2.305
!!! A = C + D + E !!!
hinged door ONLY!
Divide millimeters by 25.4 to get inches, or use Google.
Please note - Customizable: Door/s can be
placed on any side in any bay/s, so your A
measurement could be your gable end OR
your long wall. Use the above measurements
in conjunction with the measurements from
the previous page.
All dimensions are external dimensions of the aluminum profiles!!
VI 23 on Stem Wall- One door on Gable (shown with narrow panes)
A = 2.360
B = 2.360 | 3.098 | 3.836
200 | 400
H
600 | 1.025
Call for
sliding
door
measure-
ments!
A|B|C|E
4.574 | 5.312 | 6.050
C = 829
D = 703
hinged door ONLY!
E = 829
!!! A = C + D + E !!!
All dimensions are external dimensions of the aluminum profiles!!
4700 mm M34/M36
COLLI A (HELIOS)
WEIGHT:
M23/M24 19 kg
M34/M36 25 kg
250 x 150 x 3200 mm M23/M24
DIMENSIONS:
ITEM M23 / M24 M34 / M36
PRO6120 foundation profile 2360 mm 2 pc 3098 mm 2 pc
B19_1030 round tube Ø19 1030 mm 2 pc
L40X40GATFUND 400 mm 4 pc 400 mm 4 pc
PRO20229 horizontal gable prof. 2244 mm 2 pc 2982 mm 2 pc
PRO21214 wind bracings roof 2543 mm 4 pc 2757 mm 4 pc
PRO1456 glazing bar 547 mm 2 pc 703 mm 2 pc
PRO1456 glazing bar 65 / 90 396 mm 2 pc
PRO1456 glazing bar 90 / 65 396 mm 2 pc
E400330 halfmoon glazingrubber 1 pc 20 lm 1 pc
SAPAKHELIOS 1 pc 1 pc
PVC gable pieces 4+4+2 pc
bolt M6x50 DIN933 A2 16 pc
Nut M6 16 pc
L2G 10 pc
Identify Parts by extrusion shape (cross-section) and length. If you don't
have one yet, we highly recommend a metric or combination tape measure!

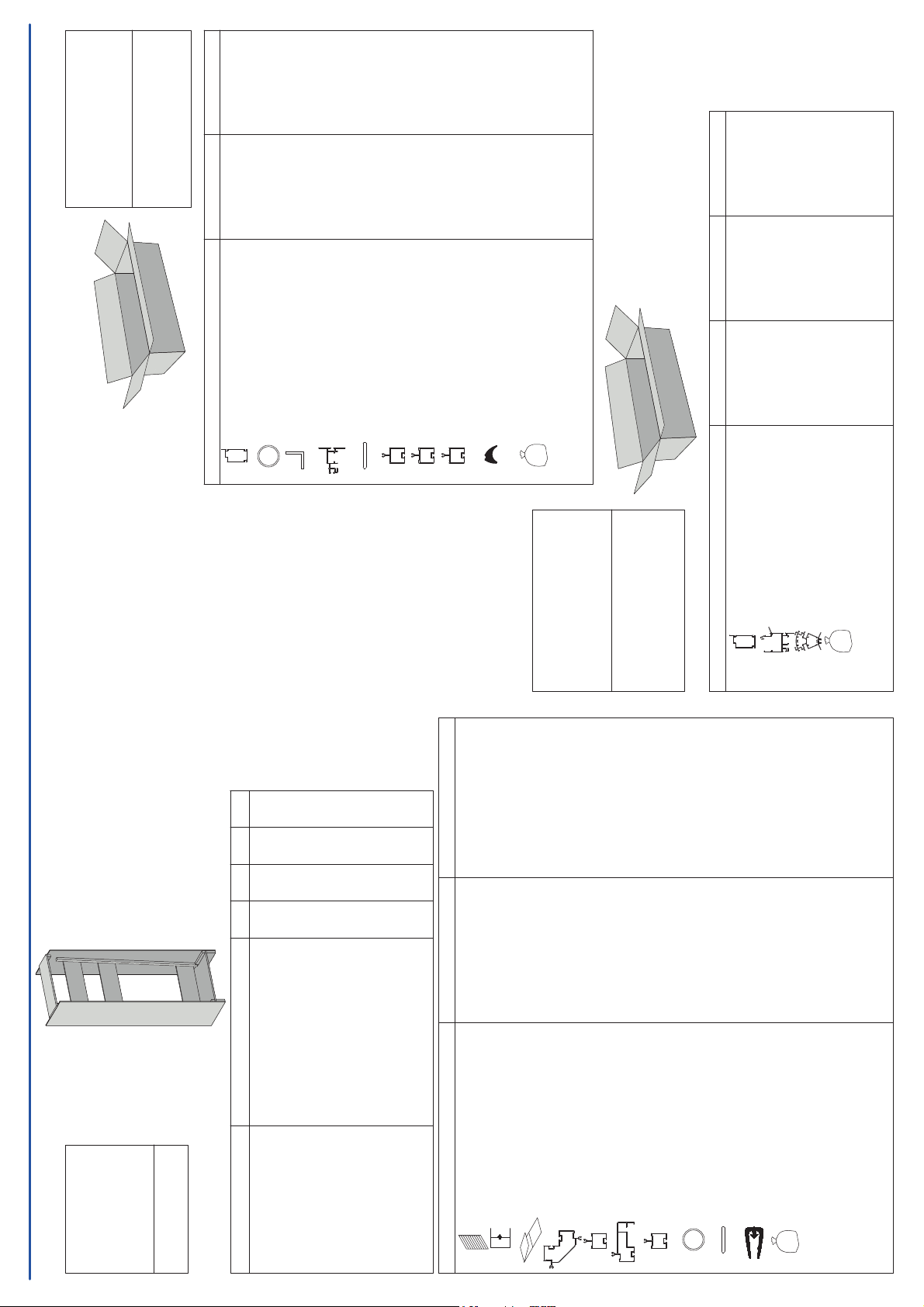

PACKING LIST Royal Victorian ("HELIOS MASTER")
COLLI B (HELIOS)
WEIGHT:
M23 26 kg
M24/M34 39 kg
M36 52 kg
DIMENSIONS:
ITEM M23 M24 / M34 M36
4700 mm M24/M34
6250 mm M36
250 x 150 x 3200 mm M23
PRO6120 foundation profile 3098 mm 2 pc 4574 mm 2 pc 6050 mm 2 pc
PRO20227 gutter profile 3098 mm 2 pc 4574 mm 2 pc 6050 mm 2 pc
PRO6760 ridge profile 3098 mm 1 pc 4574 mm 1 pc 6050 mm 1 pc
ZAK_BOUT 2 pc 3 pc 3 pc
nut cap M6 50 pc
nut M6 50 pc
bolt M6x12 DIN933 A2 50 pc
WEIGHT: MASTER
PALLET
M23 384 kg
M24 485 kg
M34 567 kg
800 x 900 x 2300 mm
M36 676 kg
DIMENSIONS:
POSITION GLAS DIMENSIONS M23 M24 M34 M36
sliding door 730 x 1850 mm 1 pc 1 pc 1 pc 1 pc
gabels 730 x 1850 mm 12 pc 16 pc 18 pc 22 pc
underneed louvre-vent 730 x 825 mm 1 pc 1 pc 1 pc 1 pc
screw 4.8x38 DIN7504 N A2 2 pc
screw 4.8x19 DIN7504 M A2 10 pc
ZAK_H 1 pc 1 pc 1 pc 1 pc
bolt M6x25 DIN933 A2 4 pc
glasholder 32 pc
PVC Ø40 90° 2 pc
ITEM M23 M24 M34 M36
LAMELLEN + ZAKJE_LAMEL 1 pc 1 pc 1 pc 1 pc
ESD_183_ZS 1 pc 1pc 1 pc 1 pc
DAKR_HEL 2 pc 3 pc 3 pc 4 pc
PRO6578 corner profile 1830 mm 4 pc 4 pc 1830 mm 4 pc 4 pc
PRO1456 glazing bar gable 1830 mm 8 pc 12 pc 1830 mm 14pc 18 pc
PRO6918 endbar roof 1230 mm 4 pc 4 pc 1630 mm 4 pc 4 pc
PRO1456 glazing bar roof 1230 mm 6 pc 10pc 1630 mm 10 pc 14 pc
PRO10980 round tube Ø40 1900 mm 2 pc 2 pc 1900 mm 2 pc 2 pc
PRO21214 wind bracings gabel 1975 mm 8 pc 8 pc 1975 mm 8 pc 8 pc
PRO1748 rubber 12m/rol 5 pc 6 pc 7 pc 8 pc
triangle H3 730 x 414 x 696 mm (113 plat) - - 4 pc 4 pc
triangle H1 1099 x 74 x 543 mm 4 pc 4 pc - -
triangle H2 730 x 74 x 411 mm - - 4 pc 4 pc
roof 730 x 1250 mm 6 pc 9 pc - -
roof 730 x 1650 mm - - 9 pc 12 pc
roofwindow 730 x 825 mm 2 pc 3 pc 3 pc 4 pc
underneed roofwindow 730 x 425 mm 2 pc 3 pc - -
underneed roofwindow 730 x 825 mm - - 3 pc 4 pc
PVC gutter pieces 2 + 2 pc
PRO1456
PRO6918
PRO20227
PRO6120
HELIOS
your size/layout may vary.
Key to Profile (Extrusion) Placement
Note: Model pictured in entire manual is VI34 -
Page: H_1
PRO6760
Ø19
PRO20229
PRO6578
PRO1456
TRE
PRO210
PRO6120
Before attaching,
insert 3
M6x15 bolts as
shown for the
sliding door
guide.
M6x15
PRO210
M6x50
Suggestion: If installed on a concrete
foundation you may cut PRO210 flush
with the bottom of PRO6120. To
anchor, use cut off PRO210 pieces as L-
brackets to secure the PRO6120 to the
concrete foundation. Please see
YouTube animated assembly video for
more information.
Page: H_3
B
X
X
PRO6120
Note: When assembling the foundation in this
step, only hand-tighten the nuts. The corners
may needto be slightly loose to attach the
corner uprights (PRO6578).
A
LOW THRESHOLD
Upgrade OPTION for Sliding Door:
PRO29909
See pages H_37 (SDL1-2) for instructions
Note: Insert bolts now
Page: H_4
PRO29909
See pages H_35 (H_34-36) for instructions
Single or Double
Standard OPTION:SLIDING DOOR
Double
Single
See pages H_52 (HD1 -HD10) for instructions
Upgrade OPTION: HINGED DOOR
PRO6578
Optional: Insert a bolt into each corner post channel for
where the top shelf and/or Seed Tray will be located. See
page H_62 and H_63 for location information.
Page: H_5
M6x15
M6x15
PRO6578
Page: H_6
PRO20229
OPTIONAL: If you
purchased shade
curtains, insert the
slider loops into the
gutter profile channel
before this assembly
step. See page H_64
for more information.
PRO20229
PRO6578
PRO20227
Page: H_8
M6x15
M6x40
B > 4m58
!
If length > 4580mm (i.e. VI36
and VI46) then insert 2 bolts
in the center profile for Scroll
Supports - see H_20 and
H_21 for more information.
Page: H_9
PRO20227
PRO1456
PRO6120
NOTE! Before securing
vertical profiles insert bolts for:
Optional Seed Tray, see p. H_63
Louvered Window, see p. H_44-46
Optional Narrow Top Shelf, see p. H_62
M6x15
door frame see H_34.
use PRO29909 for the
NOTE! Sliding doors will
PRO20229
PRO20227
Page: H_10
TRE
PRO1456
M6x15
PRO6120
LG
PRO1456
Page: H_11
M6x15
PRO20229
short uprights.
Insert bolts to connect short
need as many bolts as you have
uprights to the PRO6918. You will
PRO6918
Page: H_12
M6x15
!
Only for models over
2360mm (i.e. VI34, 36,
46) See p. H_17
PRO6760
M6x15
Insert bolts into ridge beam:
2 for L brackets, 2 for diagonal supports
(except VI23), and 3 for misting system.
If you have the optional shadecloth -
insert sliders - see p. H_64-65 for count
and placement.
Page: H_13
LG
Page: H_14
M6x15
PRO1456
M6x15
If length > 4580mm (i.e.
VI36 and VI46) then insert
bolts for Scroll Supports -
see H_20 and H_21
M6x40
PRO20227
for VI36 and 46
PRO 1456 are ONLY
Long bolts shown in
Page: H_15
PRO1456
M6x15
PRO1456
B > 4m58
!
PRO1456
PRO6760
Page: H_16
M6x15
A > 2m36
over 2360mm
! !
Ø19
Only for models
(i.e. VI34, 36, 46)
Page: H_17
Ends of diagonal
bent appropriately.
support will need to be
A
!
TRE
TRE
Attach first at ridge beam
B
A
B
Page: H_18
Placement of Roof Wind Braces (TRE) - View from above
B
A
A
TRE
TRE
Attachment at gutter profile
B
A
B
Page: H_19
Placement of Roof Wind Braces (TRE) - View from above
A
A
B
B
Page: H_20
B > 4m58
Scroll Supports are included ONLY If
length > 4580mm (i.e. VI36 and VI46)
! !
PUSH
10MM
FIX
B > 4m58
1
2
10mm before tightening the scroll supports.
Very Important: Push the ridge beam up at least
Page: H_21
! !
Scroll Supports are included ONLY If
length > 4580mm (i.e. VI36 and VI46)
SILICONE
SILICONE
elbow to the
Note: Attach the
First, drill a small
greenhouse base.
hole in the back of
the elbow and then
frame of the
a small hole in the
screw to thread
greenhouse for the
into. Run the screw
through the hole on
the inside of the
greenhouse base.
elbow and into the
Page: H_22
Crossbar for framing roof vent opening. Roof Vents can be
installed in any bay. Insert bolts to attach conntecting plate.
M6x15
PRO1456
Page: H_23
PRO1456
M16x15
PRO1456
PRO1456
M16x15
OPTIONAL: THIS PAGE ONLY APPLIES TO 'RETRO' MODEL
PRO1456
PRO1456
PRO20227
PRO20780
POLYCARBONATE
10mm
PRO20227
Page: H_25
PRO20780
Glazing supports slide onto the gutter
profile, space them 100mm or 4 inches
from each roof profile.
4mm
GLASS
HELIOS polycarbonate 10mm

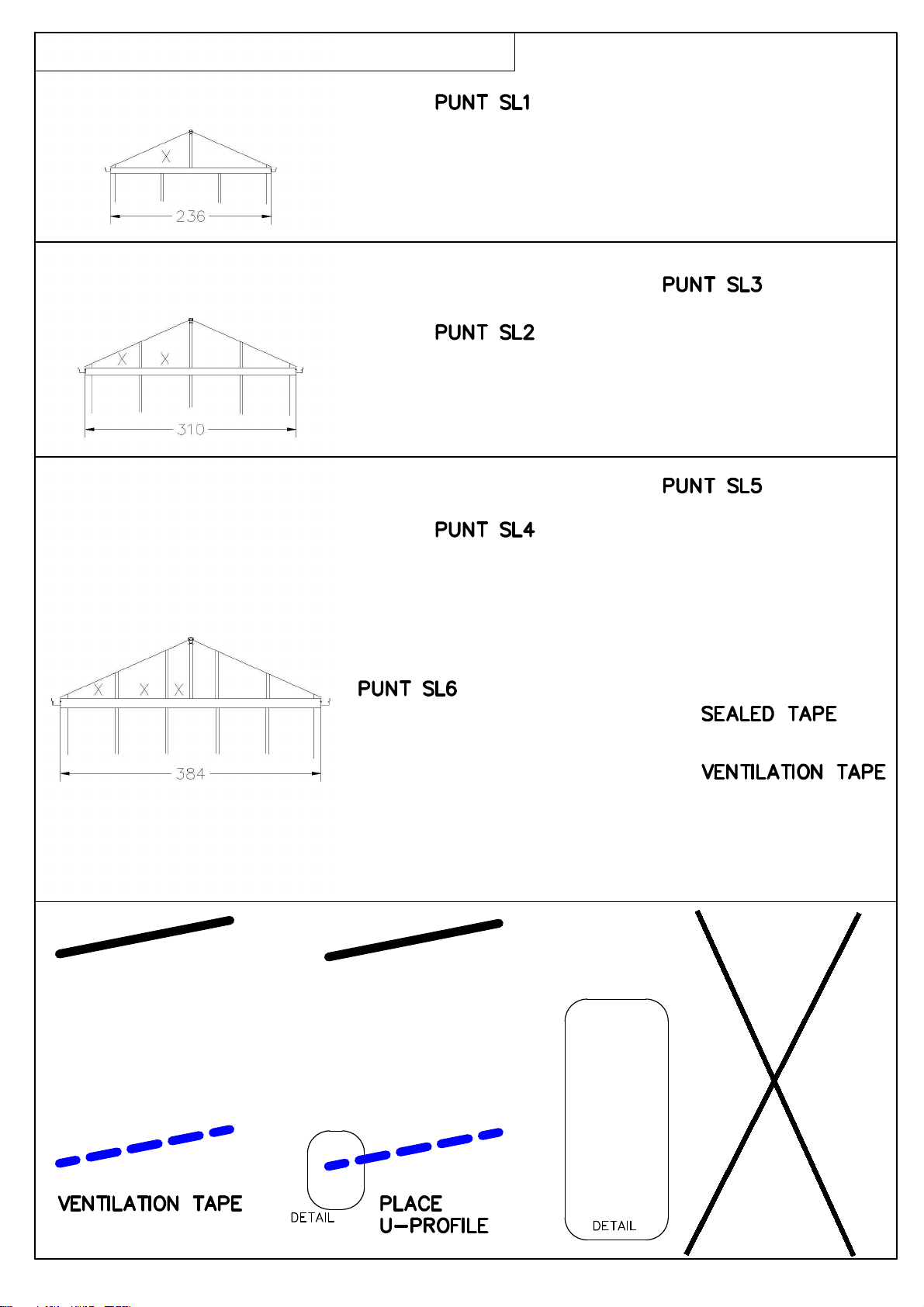

Remove the protective film, but leave
the silver sealed tape and ventialtion
tape on the ends. Ventilation tape
indicates the bottom of the panel.
This page is for polycarbonate units only.
The crescent seal
(E400330) is NOT
used with polycarbonate.
It may be shipped with
your unit, but it is only
for GLASS panels.
The U-profiles are
not used in the doors
and windows.
To install gasket,
roll it back on
itself as shown.
This exposes the
inner flange that
is pushed into the
channel. It will
be easier to insert
when warm and
4
PRO1748
pliable.
3
3
2
1
3
3
Page: H_26
3
2
SILICONE
1
Glazing shim installation:
Install the glass panels
then fix the shims to
either side of the glass
with a dab of silicon.
Then install the rubber
trim. Shims are only
installed in end panels as
shown below. Space the
shims 100mm/4" from the
top and bottom.
Polycarbonate units will
not use these shims.
SILICONE
SILICONE
SILICONE
Page: H_27
Crescent seal is
only installed in
the eaves and
roof. Not along
side walls.
PRO20227
PRO20229
PRO6918
Page: H_28
E400330
3
4
1
Page: H_29
PRO1456
PRO6918
2
PRO6760
To install heavy gasket, it is easiest to roll it back on itself as shown. This exposes the inner flange that is pushed into the channel.
It will be easier to insert when warm and pliable. Install the roof glazing pane by pane, inserting gaskets after each.
E400330
ACCESSORIES
This section contains many
of the optional accessories.
You will have some, but
likely not all, items seen in
this section.
Page: H_33
M16x15
Sliding door (standard for most models)
Some models will have double sliding doors.
PRO6121
PRO40352
E400330
Rubber seal is installed only on sides. If you have
double sliding doors, the brush seal will only be
installed on the outside edges.
Page: H_34

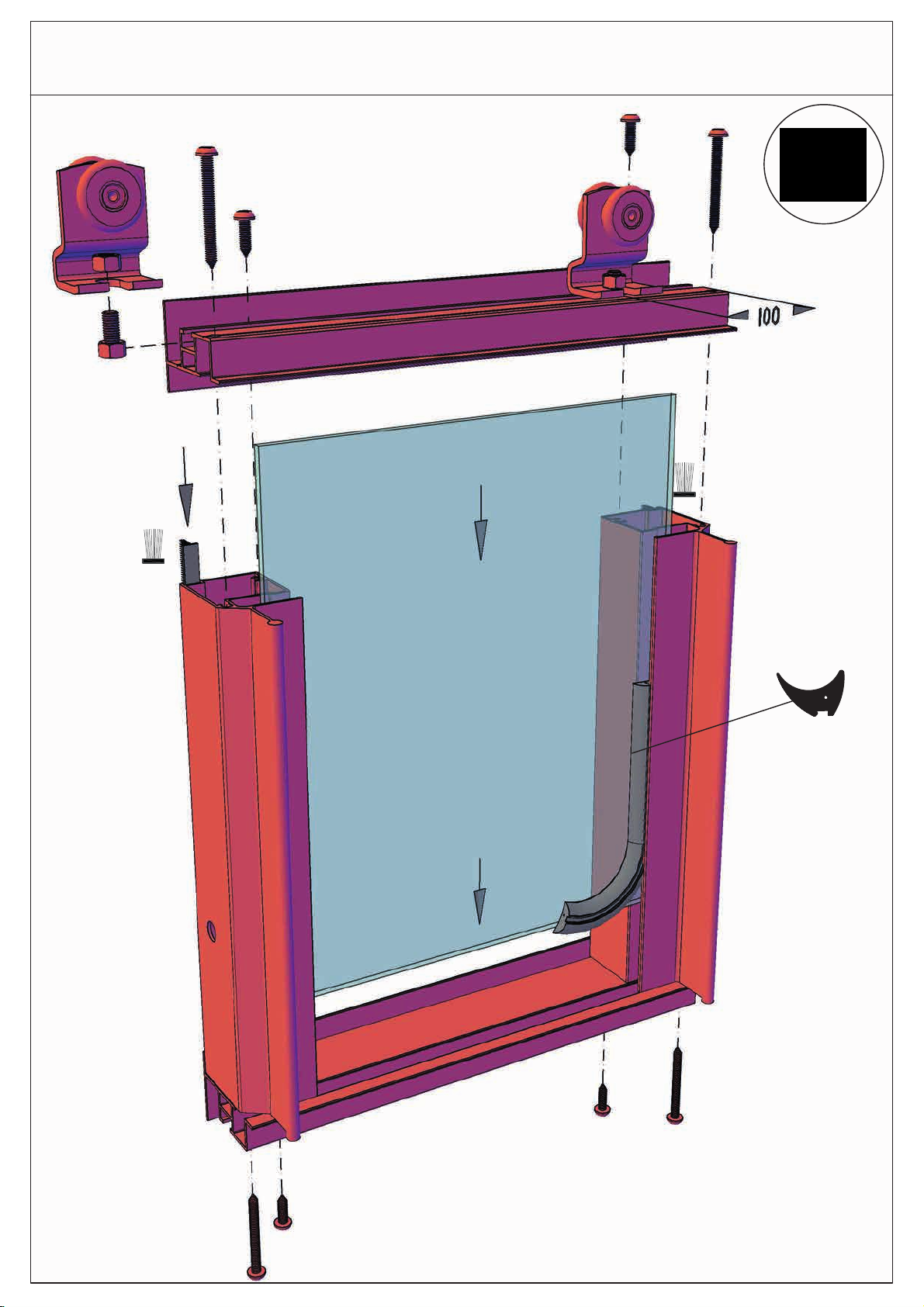

Sliding Door
STOP
PRO7876
STOP
PRO29909
M16x15
PRO6120
PRO39796
Page: H_35
OPTION
OPTION: Double Sliding Door
SILICONE
PRO7876
Note: Apply upward pressure when
installing the door support(in red).
PRO1456
As needed, use washer underneath
door hanger to level the door .
SILICONE
4X
SILICONE
4X
4X
Add L bracket to
close the gap
between the
doors where they
meet.
Page: H_36
OPTION: Sliding Door
OPTION
Lowered Threshold
Page: H_37
SDL1
OPTION: Sliding
OPTION
Door Lowered
Threshold (cont'd)
Page: H_38
SDL2
4mm
GLASS
PRO20780
Note: Rubber seal is
only installed on the
sides of the roof
PRO7615
window.
RUBBER E400330
Page: H_39
PRO7610
PRO7609
Note: A 1 inch long bolt is
Roof window - all hardware is in roof window package
inserted into the lower
profile. This bolt is for the
optional manual or the
spindle opener.
Roof Window Installation
Page: H_40
MUST be detached.
Standard manual opener shown
the closed position - auto opener
(generally not installed). However, it
may be used to secure the window in
Slide window into the ridge beam from
either end of the greenhouse. The
"hook" on the top of the roof window
profile will slide into the channel of the
ridge beam.
Note: Inserting a bolt on either side of
the roof window will prevent it from
moving side to side .
Please read instructions included with
the Ventomax auto opener to fully
understand the functioning and
maintenance of these unique openers.
Page: H_41
OPTION: Auto Opener (Ventomax)
Installing the automatic opener requires 2
bolts to be inserted into the roof crossbar for
the lower mount. The upper mount will clamp
onto the window profile. (Shown to the right)
OPTION: Spindle Manual Opener
Page: H_42
Next, hold the lower U-shaped mount up
to the crossbar and mark the center of
one hole. Using a 1/8" drill bit, drill the
first hole, then screw the bracket on,
check for level - then mark and drill the
second hole. Slide the brass part of the
opener over the bolt in the window
channel. Use the supplied nylock nut to
secure the opener on the top mounting
bolt. Finally thread the large side bolts
into the U-shaped mount and the opener
is installed.
Installation Option 1:
Mount top of opener to
window with a screw
Installation Option 2: Insert a 1 inch long bolt
into lower roof window channel. Slide to the
center and lock it in place with a nut as
shown below.
Louvre vent
1
____
Insert a
washer
between black
louvre frame
and the
greenhouse
profile at all
four bolt
locations.
4
3
2
If your model is equipped with the louvre vent automatic
opener please refer to the Installation and Care manual
packaged with the opener. You will need to remove the
manual opener following the directions.
Page: H_44
1
Louvre Vent (Cont'd)
2
PRO20229
PRO20227
PRO1456
PRO1456
Page: H_45
3
Louvre Vent (Cont'd)
4X
PRO1456
4
Page: H_46
OPTION:
2020 Hinged Door
Page: H_43
OPTION: 2020 Hinged Door
Page: H_50
HD 1
OPTION: 2020 Hinged Door
Single
Door
Page: H_51
HD 2
Page: H_52
HD 3
OPTION: 2020 Hinged Door
Page: H_53
HD 4
Double
Door
Page: H_54
HD 5
Page: H_55
HD 6
Single
Door
Double
Door
Page: H_56
HD 7
SILICONE
Page: H_57
HD 8
Page: H_58
HD 9
2 1
Double
Doors
Page: H_59
HD10
TAB2
Page: H_60
OPTION: 2 SLAT SHELF
TAB5
Page: H_61
OPTION: 5 SLAT SHELF
SCREW
SH
ALTERNATIVE
M6x15
Page: H_62
OPTION: 4" NARROW TOP SHELF
STANDARD
ST
!
11 1/2' ft
Diagonal Support for
seedtrays longer than
Page: H_63
SCREW
ALTERNATIVE
OPTION: SEEDBED
M6x15
STANDARD
1pc / 10cm
Ø10mm
HELIOS
Insert hooks every 6th loop
93 pcs
93 pcs
SUN310_300
93 pcs
93 pcs
SUN236_300
24 pcs
24 pcs
SUN310_73
24 pcs
24 pcs
1pc / 10cm
Page: H_64
Ø10mm
SUN236_73

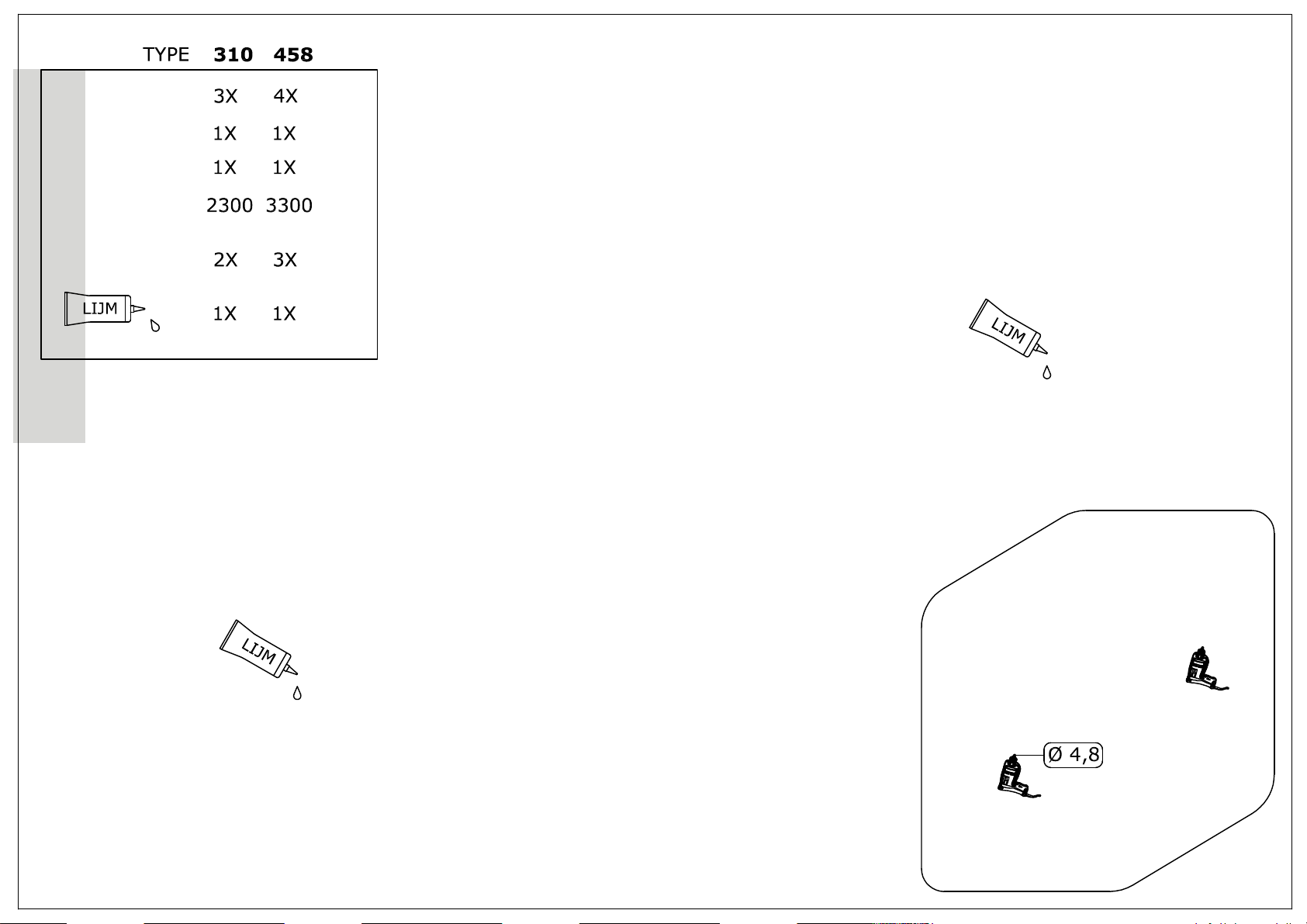

TYPE
OPTION: Shadecloth (please see next page as well)
OPTIONAL ACCESSORY: SHADECLOTH
Inserting the curlicue hooks into the curtain: The curlicue hooks that insert into the curtain will go in every 6th loop in the white
ribbon– look at the picture diagram to ensure you are inserting them in the correct direction so the curtain hangs well. Your curtains
will have one looped ribbon running across the center (for the ridge) and 3 white looped ribbons on either side. If you have a VI23
you will use the ribbons closest to the center, the VI34 and 36 as well as the Royal Orangerie use the center ribbons. The VI46 will
use the ribbons closest to the edge. Please note in the 10 ft long curtains there are 2” gaps located about 30” in from each edge
along the center ridge ribbon, this is not a defect. These gaps are intentional to allow for misting system support hooks (as needed)
and diagonal supports (VI 34/36/46). Please note: if you have forgotten to insert any items during assembly, you may “notch” the
channel with a ½” drill bit in an inconspicuous place. We can send a touch up paint pen if you need one.
VI 23 (7’9” x 10’2”) - One shadecloth section (SUN236-300). The misting system is best hung from one bolt/hook at one end of the
shadecloth and through the intentional gap at the other side. This allows for the curtain to be gathered around one of the hooks
when not needed. Insert the following in this order:
In ridge profile:
o 1 bolt (for L bracket that connects at gable end)
o Twist lock (optional)
o 30 Sliding Eye Hooks
o Twist lock (optional)
o 1 bolt (for L bracket that connects at gable end)
VI 34 (10’2” x 15’) - Has three separate curtains – (2) SUN310-73 (these smaller sections fit between each gable end and the
diagonal support) and (1) SUN310-300 (placed in the longer middle section). The misting system is best hung from 2 bolts/hooks
placed next to each diagonal support so the larger curtain moves freely in the middle. Insert the following in this order:
In ridge profile:
o 1 bolt (for L bracket that connects at gable end)
o 9 Sliding Eye Hooks
o 1 bolt for diagonal support
o 1 bolt for hook for misting system
o Twist lock (optional)
o 30 Sliding Eye Hooks
o Twist lock (optional)
o 1 bolt for hook for misting system
o 1 bolt for diagonal support
o 9 Sliding Eye Hooks
o 1 bolt (for L bracket that connects at gable end)
VI 36 (10’2” x 19’11”) and VI 46 (12’7” x 19’11”) -Shade cloths are (2) SUN310-300. The diagonal supports at the gable ends will
be inserted through the intentional gaps in the shadecloth. The misting system is best supported by (3) bolts/hooks: one by each
of the diagonal supports and one in the center. The VI 36 and VI 46 have additional “scroll” supports that are placed across the
gutter and ridge profiles in the middle of the greenhouse – there is no hardware inserted in these profiles for the supports, but
they will be mentioned. Insert the following in this order:
In each gutter profile:
o 1 Twist lock (optional
o 30 Sliding Eye Hooks
o 1 Twist lock
In each gutter profile:
o 1 Twist lock (optional
o 48 Sliding Eye Hooks
o 1 Twist lock
In ridge profile:
o 1 bolt (for L bracket that connects at gable end)
o 9 Sliding Eye Hooks
o 1 bolt for diagonal support
o 1 bolt for hook for misting system
o 20 Sliding Eye Hooks
o Twist lock (optional)
o 1 bolt for hook for misting system
o Space for “scroll” support
o 1 Twist lock (optional)
o 20 Sliding Eye Hooks
o 1 bolt for hook for misting system
o 1 bolt for diagonal support
o 9 Sliding Eye Hooks
o 1 bolt (for L bracket that connects at gable end)
In each gutter profile:
o 1 Twist lock (optional)
o 30 Sliding Eye Hooks
o Space for “scroll” support
o 30 Sliding Eye Hooks
o 1 Twist lock (optional)
Vi23
Vi34/36
Misting System
(If Equipped)
Note: If curtains are going to be installed, the
misting system should be hung with bolts as shown
to the left. The hangers will need top be bent into
position.
If there are no curtains it can be hung by drilling
holes and hooking the hangers through them.
(Shown below)
DA 5
Customer Service or
Assembly Questions?
Give us a call
Toll free: 1-877-760-8500
customerservice@exaco.com
Exaco Trading
www.EXACO.com
Please watch our animated assembly
video on our Exaco Tracing Co
YouTube Channel.
Find the link at www.exaco.com
Janssens NV Mechelsesteenweg 388, B-2500 Lier Belgium
(T) +32 15 30 67 80 (W) www.janssens-alusystems.be (E) info@janssens-
alusystems.be
Loading...
