Janitza UMG 604-PRO User guide

Part no. 33.03.125

Power Quality Analyser

UMG 604-PRO

User manual and technical data

A B

Doc. no. 1.033.059.6.e 08/2018

www.janitza.com

Janitza electronics GmbH
Vor dem Polstück 6
D-35633 Lahnau
Support tel. [phone]
Fax [phone]
E-mail: [e-mail]
www.janitza.com

UMG 604-PRO

www.janitza.de

1. General 1

1. 1 Disclaimer 1

1. 2 Copyright notice 1

1. 3 Technical changes 1

1. 4 Declaration of conformity 1

1. 5 Comments on the manual 1

1. 6 Meaning of symbols 1

2. Safety 3

2. 1 Safety information 3

2. 2 Safety measures 4

2. 3 Qualified staff 4

3. Proper use 5

3. 1 Inspection on receipt 5

3. 2 Scope of delivery 6

3. 3 Available accessories 6

4. Product description 7

4. 1 Measuring process 7

4. 2 Network failure detection 7

4. 3 Usage concept 7

4. 4 GridVis® network analysis software 7

4. 5 Features 8

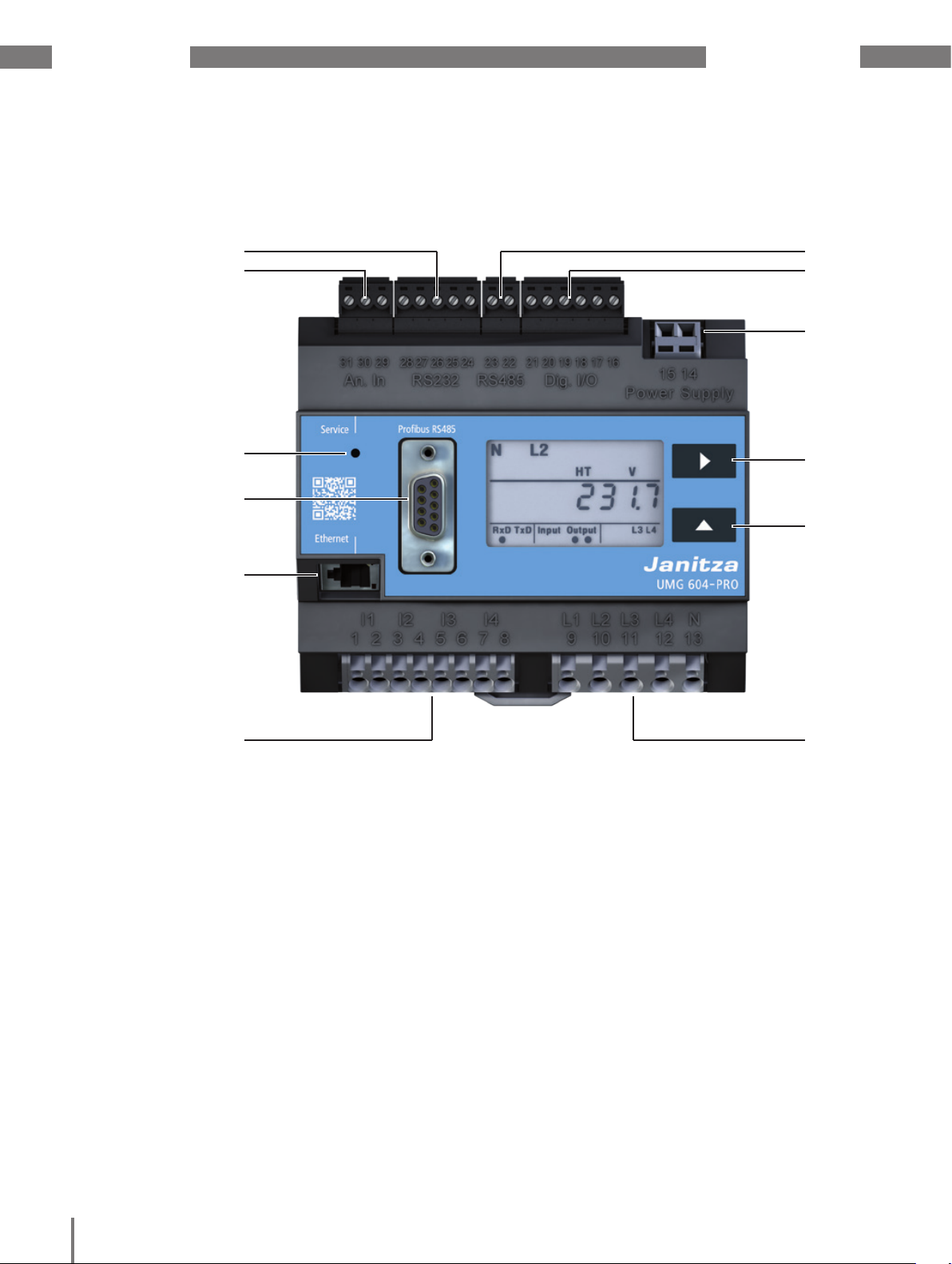

4. 6 Product overview 9

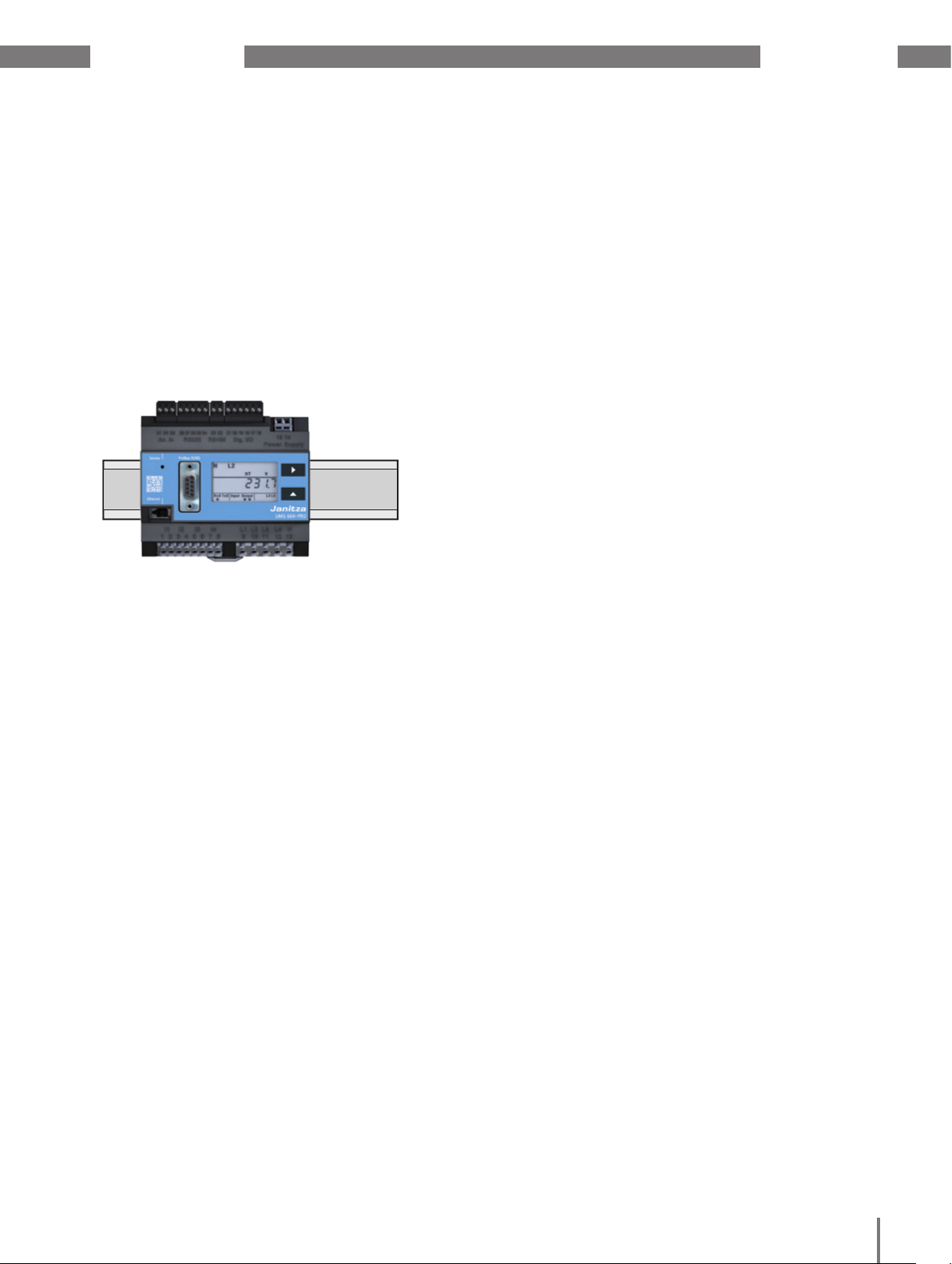

4. 7 Installation location 10

5. Network systems 11

5. 1 Three-phase 4-conductor systems 12

5. 2 Three-phase 3-conductor systems 12

5. 3 Rated voltages 13

6. Installation 15

6. 1 Disconnectors 15

6. 2 Supply voltage 15

6. 3 Measured voltage 16

6. 4 Current measurement 17

6. 4. 1 Ammeter 18

6. 4. 3 Direct measurement 18

6. 4. 2 Total current measurement 18

6. 5 Connection variants 19

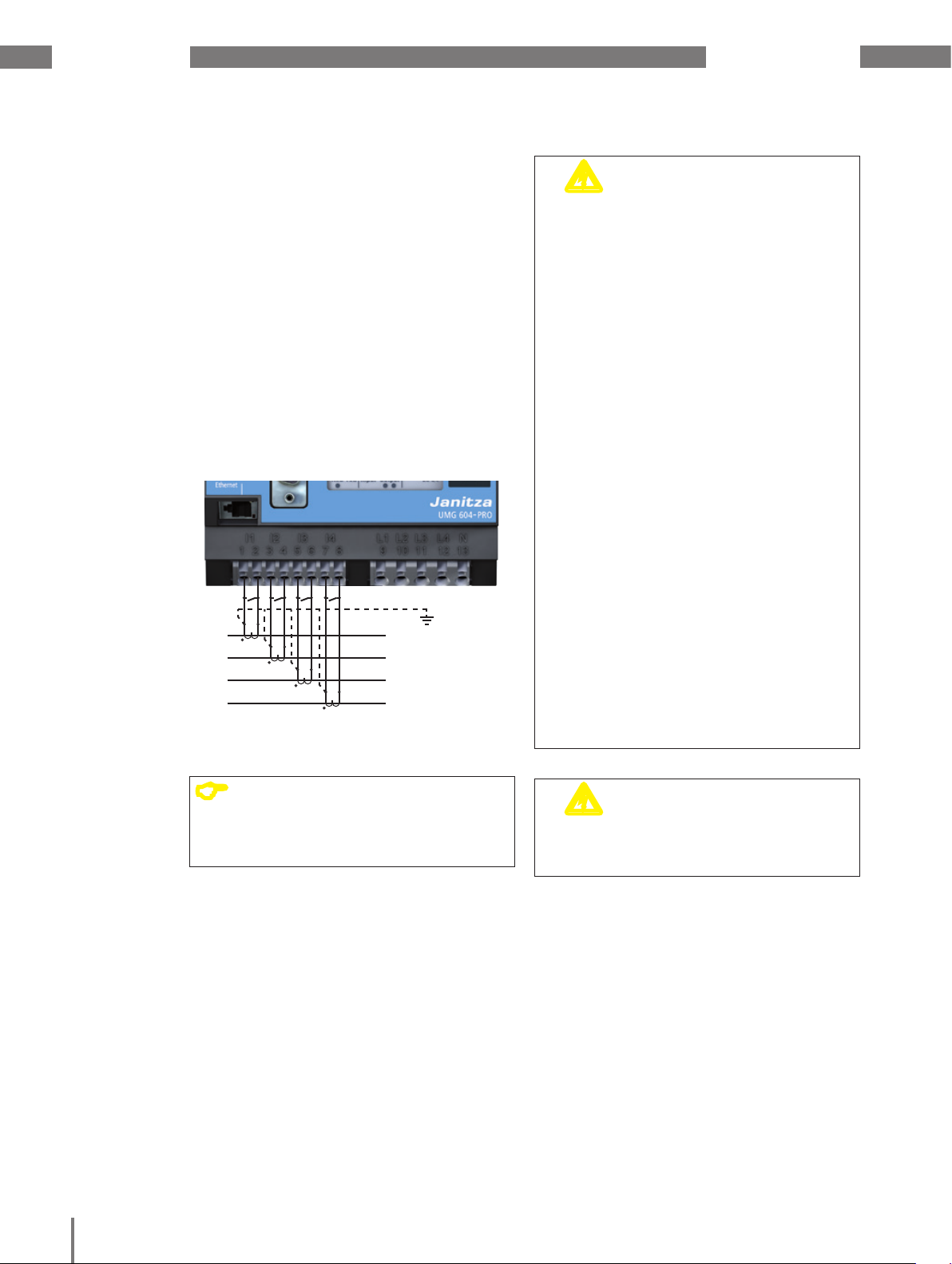

6. 5. 1 Voltage measurement 19

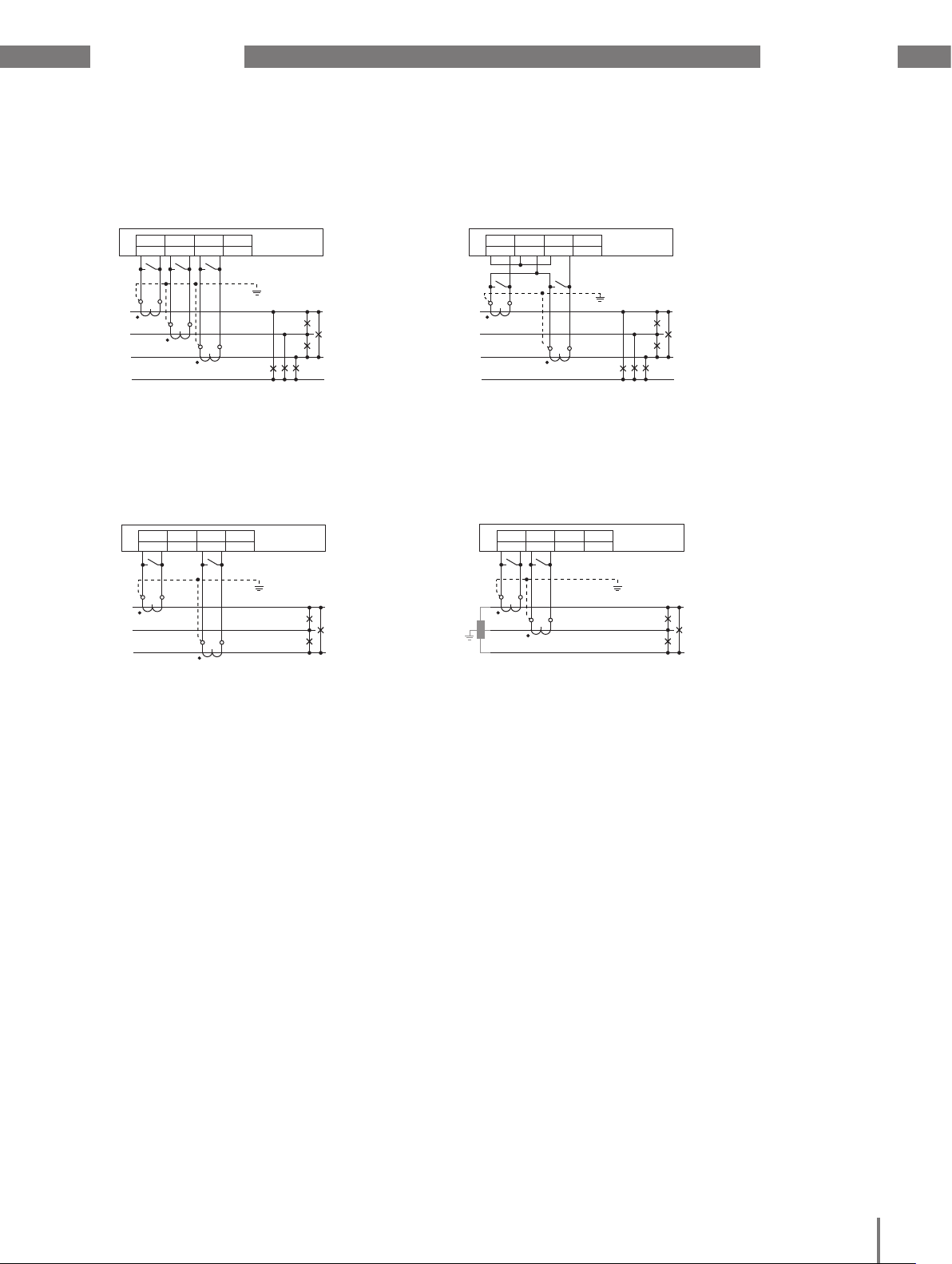

6. 5. 2 Current measurement 20

6. 5. 3 Supporting measurement, input V4 21

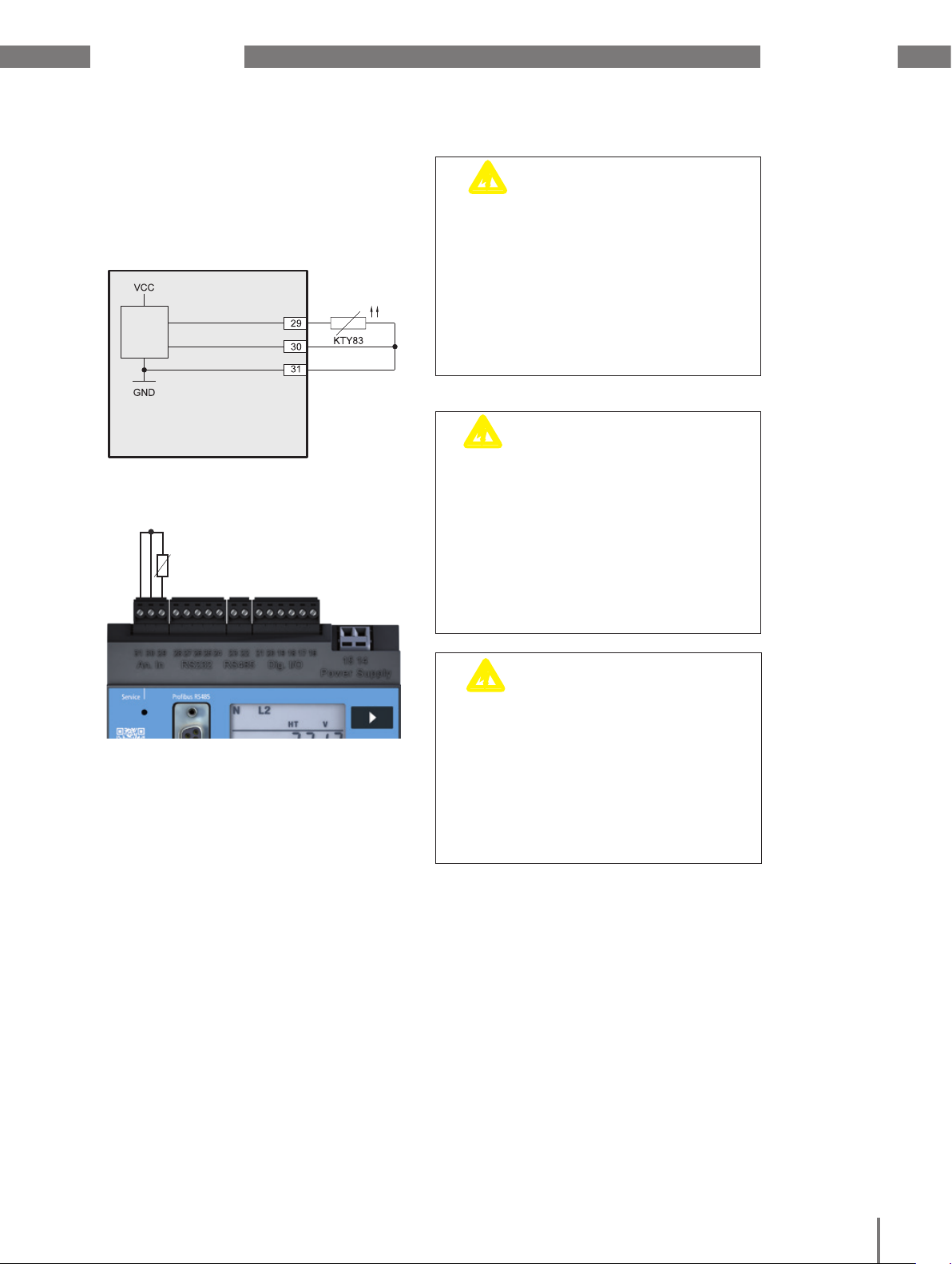

6. 6 Temperature measurement 22

I

www.janitza.de

7. Interfaces 23

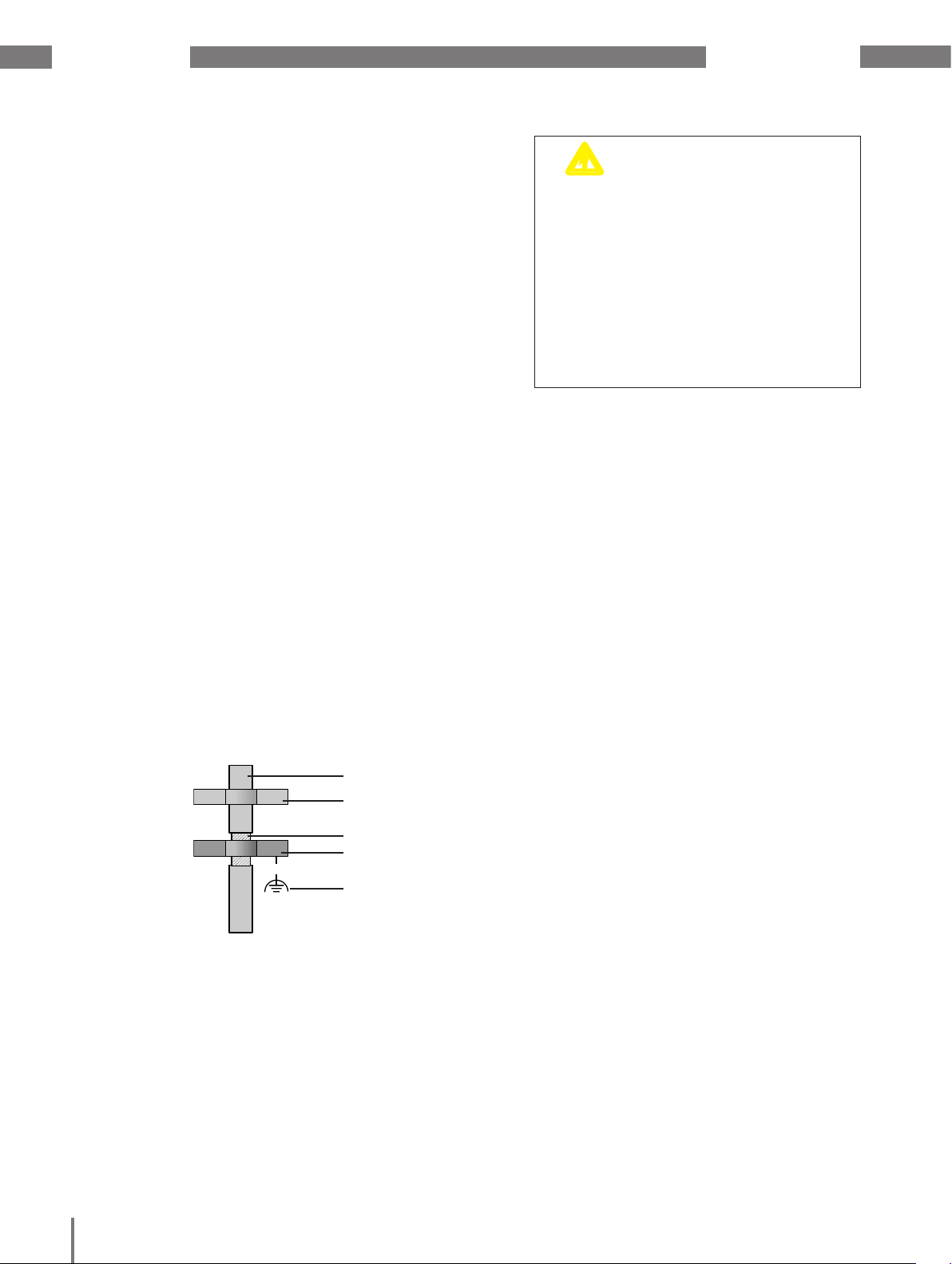

7. 1 Shielding 23

7. 2 RS232 24

7. 3 RS485 24

7. 3. 2 Cable type 25

7. 3. 1 Termination resistors 25

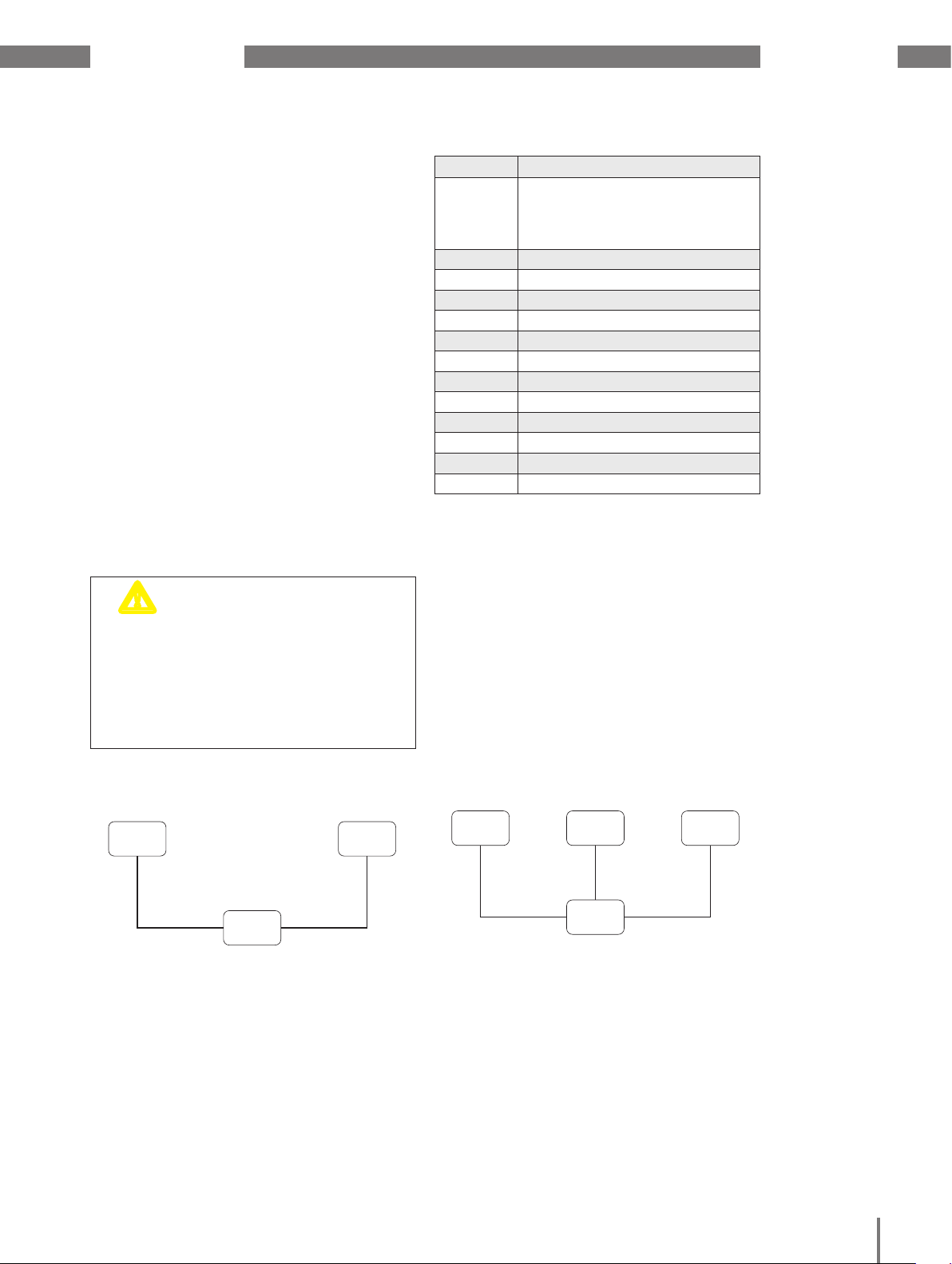

7. 4 Bus structure 26

7. 5 Profibus 27

7. 5. 1 Connection of the bus wiring 27

8. Digital inputs and outputs 29

8. 1 Digital inputs 29

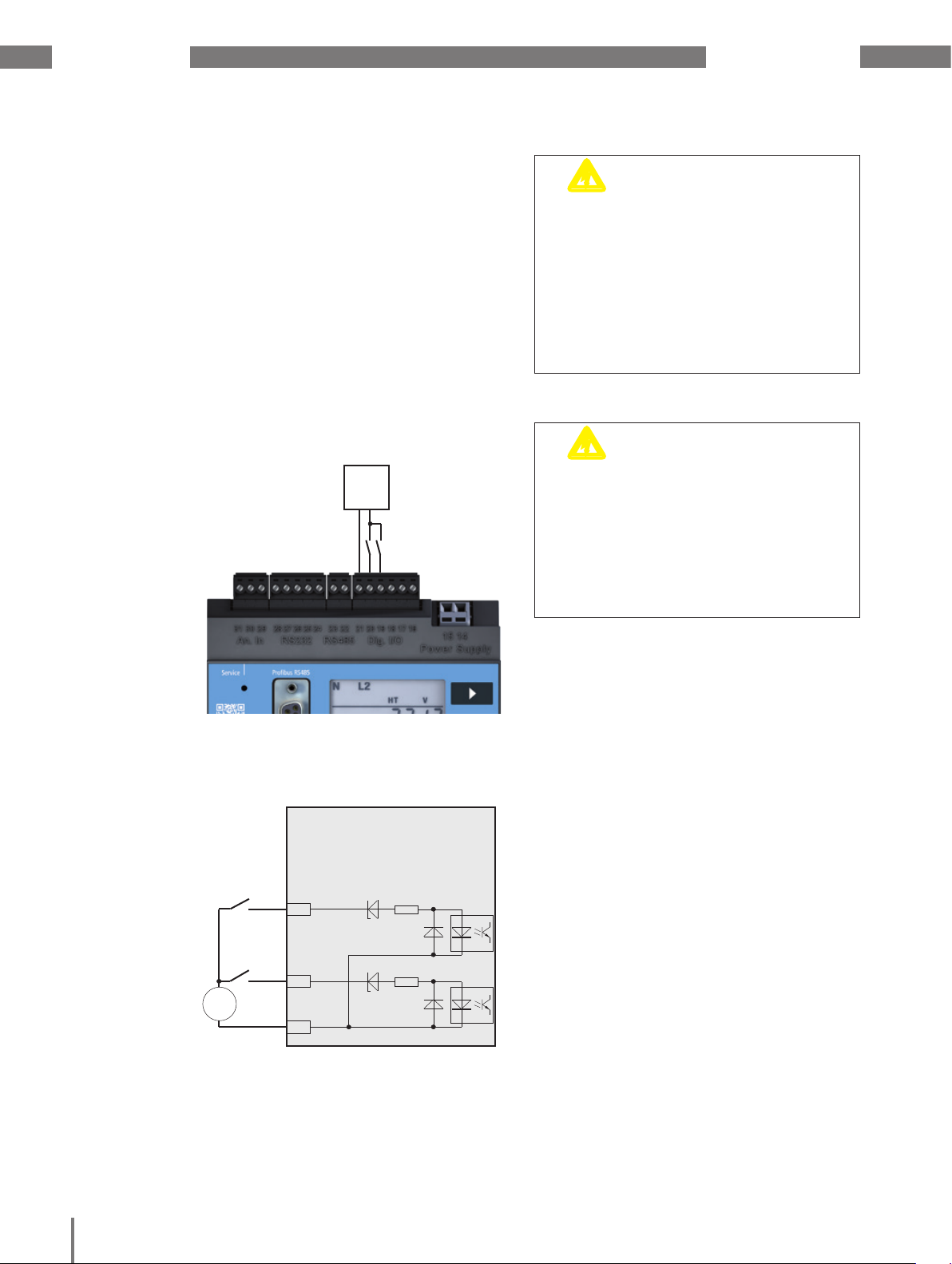

8. 2 S0 pulse input 30

8. 3 Digital outputs 31

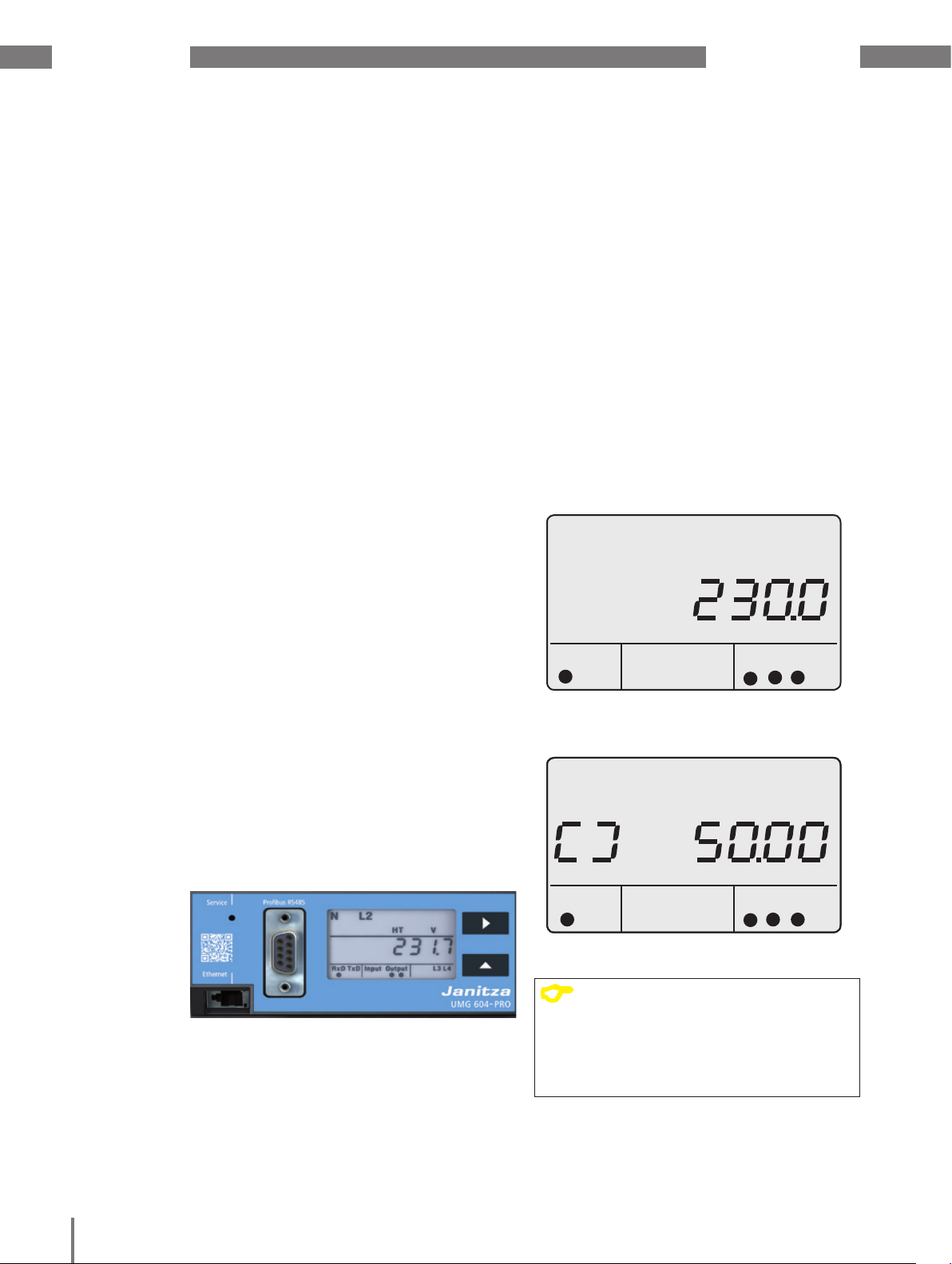

9. Commissioning 33

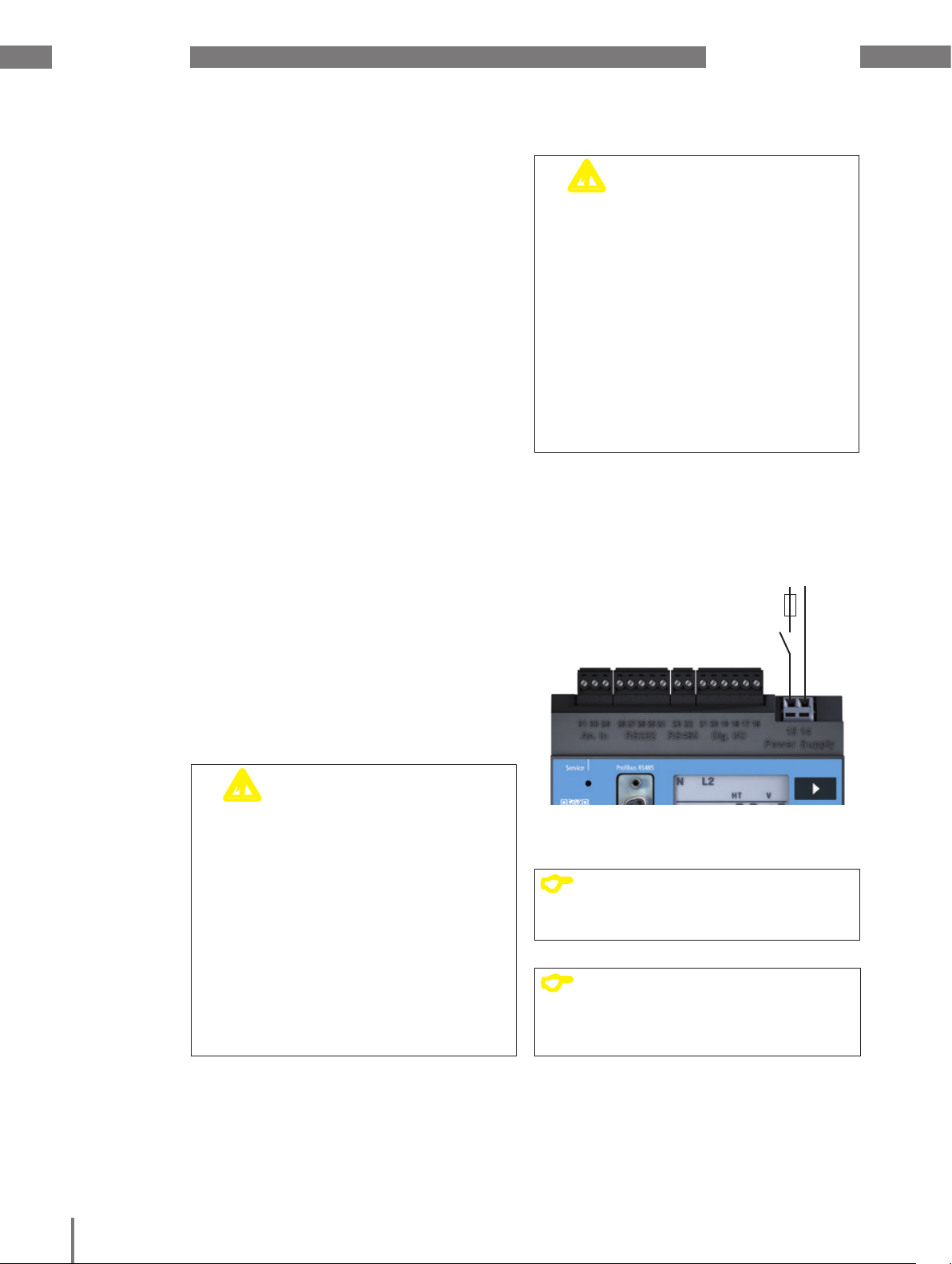

9. 1 Connecting the supply voltage 33

9. 2 Frequency measurement 33

9. 3 Connecting the measured voltage 33

9. 4 Phase sequence 33

9. 5 Applying the measured current 34

9. 6 Checking the power measurement 34

UMG 604-PRO

10. Operation 35

10. 1 Button functions 35

10. 2 Display mode 35

10. 3 Programming mode 36

10. 4 Display password 36

10. 5 Homepage password 36

11. Configuration 37

11. 1 Current transformer ratio 37

11. 2 Current connection variants 37

11. 3 Voltage transformer ratio 38

11. 4 Voltage connection variants 38

11. 5 RS232 configuration 39

11. 6 RS485 configuration 39

11. 7 Ethernet configuration 40

11. 8 Profibus configuration 41

11. 8. 1 Profiles 41

11. 8. 2 Device master file 41

11. 8. 3 Pre-set profiles 42

11. 9 Recording configuration 45

12. System information 47

II

UMG 604-PRO

www.janitza.de

12. 1 Measurement range exceeded 47

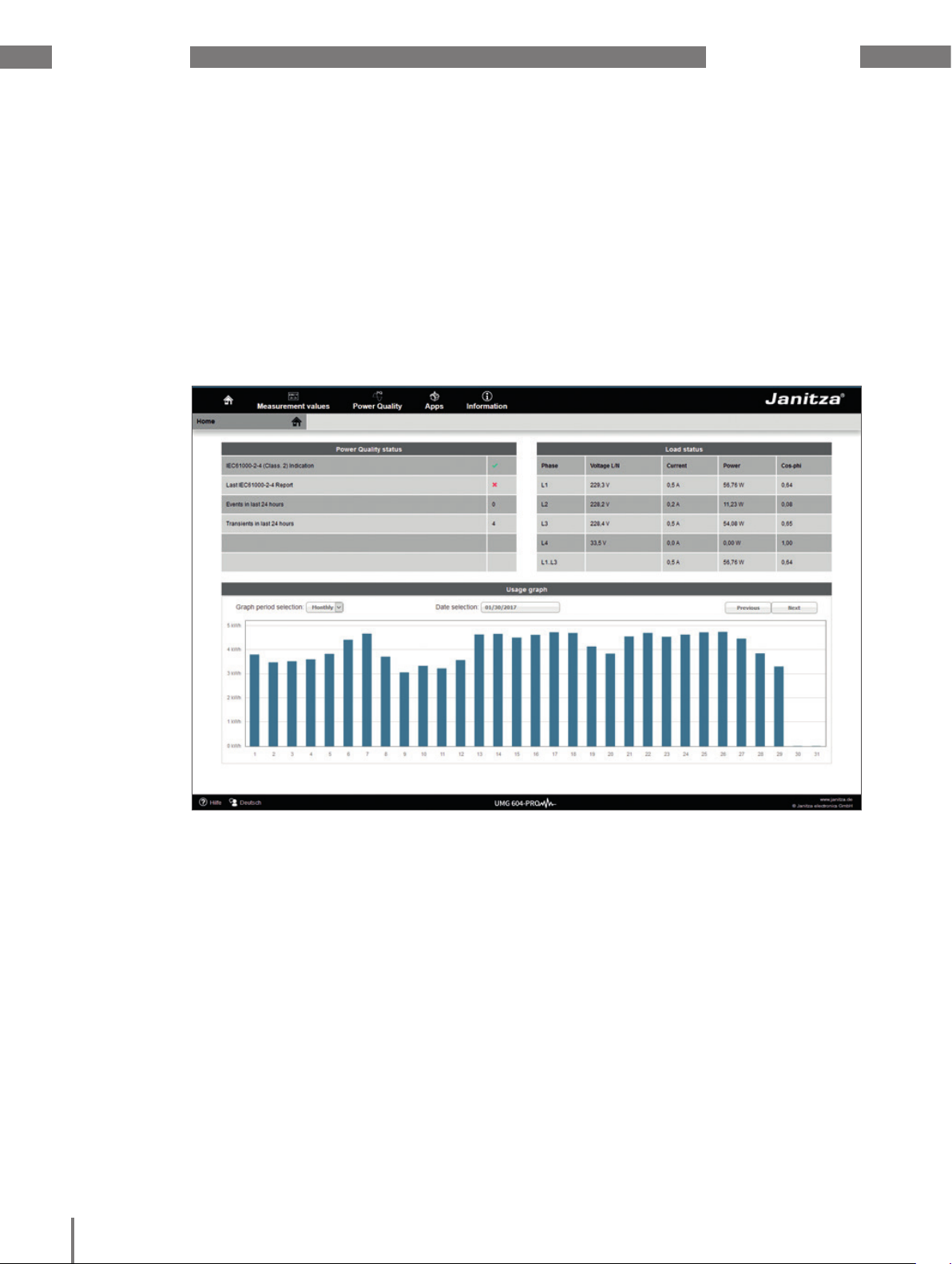

13. Device homepage 49

13. 1 Measured values 50

13. 1. 1 Short overview 50

13. 1. 2 Detailed measured values 51

13. 1. 3 Diagrams 52

13. 1. 4 Events 52

13. 1. 5 Transients 53

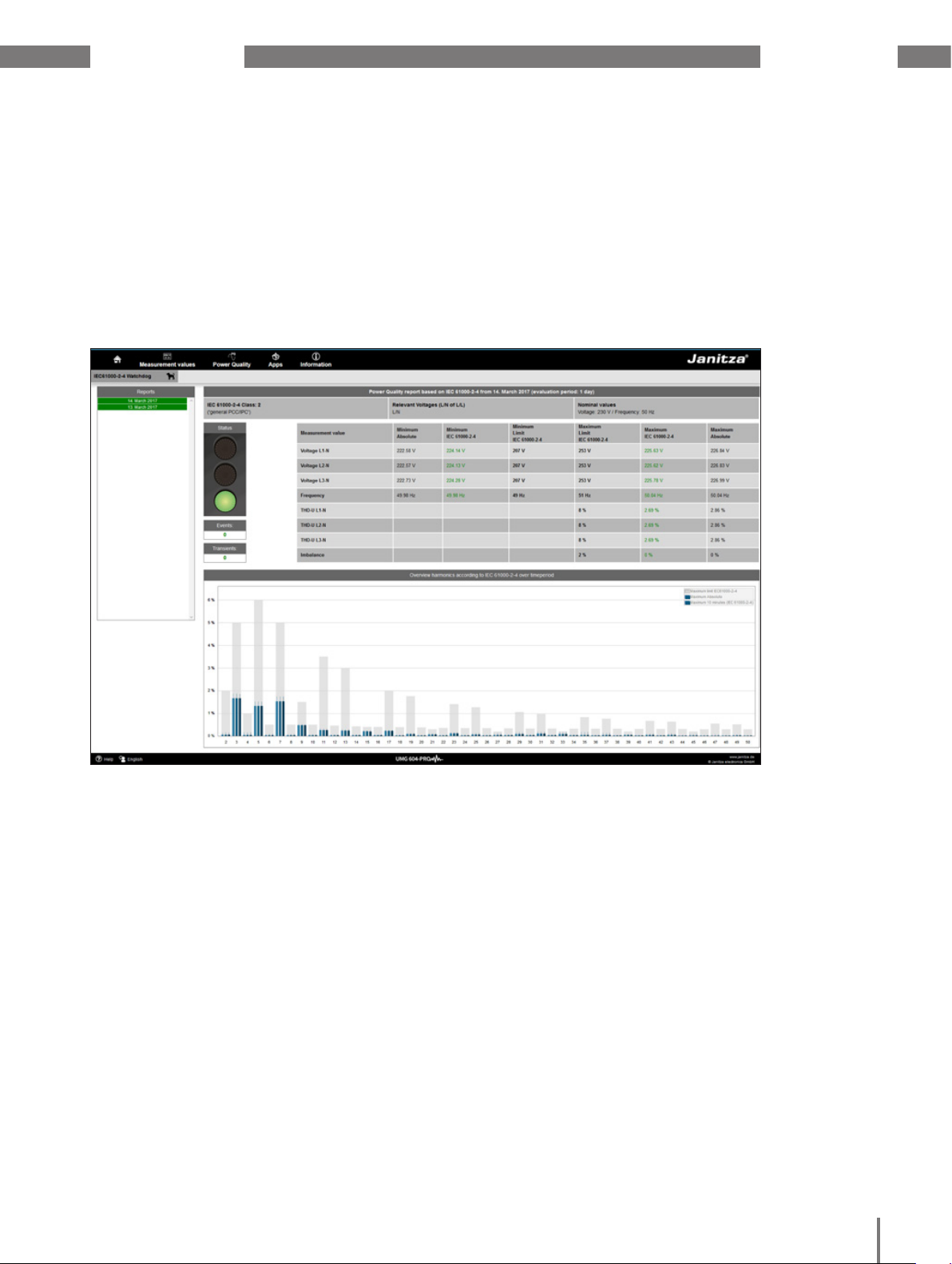

13. 2 Power quality 54

13. 3 Apps 55

13. 3. 1 Push Service 55

13. 4 Information 56

13. 4. 1 Device information 56

13. 4. 2 Downloads 56

13. 4. 3 Display 56

14. Service and maintenance 57

14. 1 Repair and calibration 57

14. 2 Front film 57

14. 3 Disposal 57

14. 4 Service 57

14. 5 Battery 57

14. 6 Firmware update 57

15. Procedure in the event of faults 59

16. Technical data 61

16. 1 General 61

16. 2 Environmental conditions 61

16. 3 Transport and storage 61

16. 4 Supply voltage 62

16. 5 Protection class 62

16. 6 Digital inputs and outputs 63

16. 7 Temperature measurement input 64

16. 8 Voltage measurement inputs 65

16. 9 Current measurement inputs 65

16. 10 Interfaces 66

16. 11 Measurement uncertainty 67

17. Parameter list 69

18. Measured value indications 73

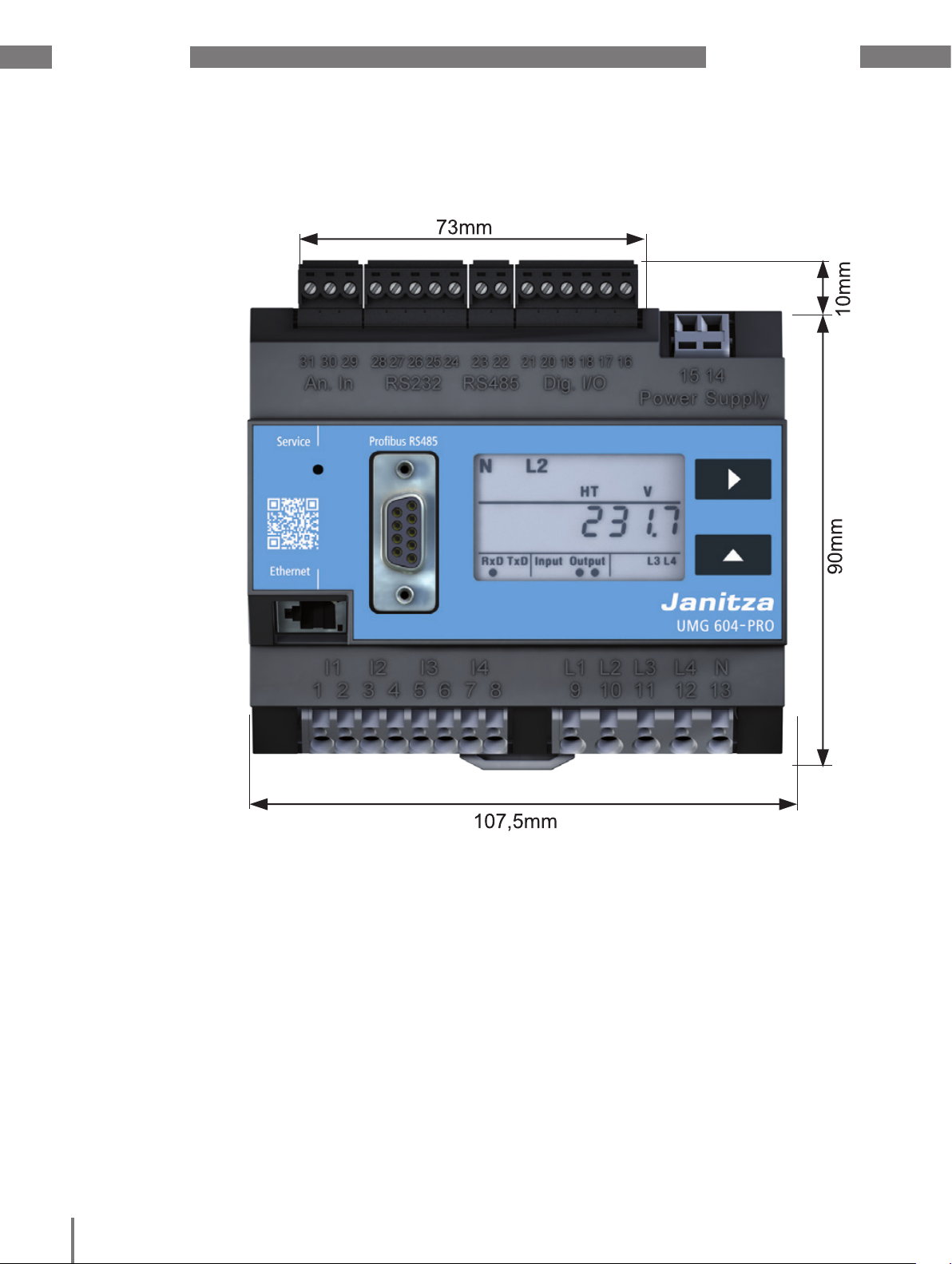

19. Dimension diagrams 75

III

www.janitza.de

19. 1 Front view 75

19. 2 Side view 76

20. Connection example 77

21. Short introduction (setting primary current) 79

UMG 604-PRO

IV

UMG 604-PRO

www.janitza.de

1. General

1. 1 Disclaimer

Observing the information products for
the devices is the prerequisite for safe
operation and in order to obtain the specified
performance and product features. Janitza
electronics GmbH accepts no liability for
injuries to personnel, property damage
or financial losses arising due to a failure
to comply with the information products.
Ensure that your information products are
accessible and legible.

1. 2 Copyright notice

© 2017 - Janitza electronics GmbH - Lahnau.
All rights reserved.
Duplication, editing, dissemination and other
utilisation, also in part, is prohibited.
All trademarks and the resulting rights are the
property of their respective owners.

1. 3 Technical changes

• Please ensure that your device complies
with the installation manual.

• Please read and understand the
documents enclosed with the product first.

• Keep the documents enclosed with the
product available throughout the entire
service life of the product and pass them
on to subsequent users if applicable.

• Inform yourself of any new device versions
and the associated updates to the
documentation enclosed with the product
at www.janitza.de.

1. 5 Comments on the manual

We welcome your comments. If anything
in this manual seems unclear, please let us
know by sending us an e-mail to:

[e-mail]

1. 6 Meaning of symbols

This manual uses the following pictograms:

Ground wire connection.

Inductive.

The current lags behind the voltage.

Capacitive.

The voltage lags behind the current.

1. 4 Declaration of conformity

For information on the laws, standards and
directives that Janitza electronics GmbH has
applied for the device, see the declaration of
conformity on our website
(www.janitza.de).

1

www.janitza.de

UMG 604-PRO

2

UMG 604-PRO

www.janitza.de

2. Safety

Please read this user manual and all other
publications that must be consulted to work
with this product. This applies particularly
to installation, operation and maintenance.

Observe all safety instructions and warnings.
Failure to comply with the instructions can
result in personal injuries and/or damage
to the product.

Any unauthorised changes or use of this
device, which go beyond the mechanical,
electrical or otherwise stated operating
limitations, can result in bodily injury and/or
damage to the product.

Any such unauthorised change constitutes
"misuse" and/or "negligence" according
to the warranty for the product and thus
excludes the warranty for covering possible
damage resulting from this.

The user manual:

• must be read before using the device.

• must be kept throughout the entire service
life of the product and be readily available
for reference.

2. 1 Safety information

Symbols used:

This symbol is used as an addition

c

C

Safety information is highlighted by a warning
triangle and is indicated as follows depending
on the degree of danger:

m

DANGER!

m

WARNING!

m

CAUTION!

to the safety instructions and
warns of an electrical hazard.

This symbol with the word note
describes:

• Procedures that do not pose
any risk of injures.

• Important information,
procedures or handling steps.

Indicates an imminent danger
that causes severe or fatal
injuries.

Indicates a potentially
hazardous situation that can
cause severe injuries or death.

Indicates a potentially
hazardous situation that can
cause minor injuries or damage
to property.

Follow additional legal and safety regulations
required for the respective application when
using the device.

3

www.janitza.de

UMG 604-PRO

2. 2 Safety measures

When operating electrical devices, certain
parts of these devices are invariably
subjected to hazardous voltage. Therefore,
severe bodily injuries or damage to property
can occur if they are not handled properly:

c

WARNING!

Severe bodily injuries or death can occur
due to dangerous voltages.

Therefore, note the following:

• Before connecting connections,
earth the device at the ground wire
connection if present.

• Hazardous voltages may be present
in all switching parts that are
connected to the power supply.

• Hazardous voltages may also be
present in the device even after
disconnecting the supply voltage.

• Provide single core conductors with
sleeves.

• Only connect screw-type terminals
with a matching number of pins and
of the same type.

• De-energise the system before
starting work.

Risk of injury due to electric

voltage!

2. 3 Qualified staff

This device must only be operated and
repaired by specialised personnel.

Specialised personnel are people who are
qualified to recognise risks and prevent
potential dangers that can be caused by
the operation or maintenance of the device
based on their respective training and
experience.

If the device is not operated

m

WARNING!

according to the documentation,
protection is no longer ensured
and hazards can be posed by the
device.

4

UMG 604-PRO

www.janitza.de

3. Proper use

3. 1 Inspection on receipt

The prerequisites of faultless, safe operation
of this device are proper transport and proper
storage, set-up and installation, as well as
careful operation and maintenance.

Packing and unpacking must be carried out
with customary care without the use of force
and only using suitable tools. The devices
should be visually checked for flawless
mechanical condition.

Please check the delivered items for
completeness before you start installing the
device.

If it can be assumed that risk-free operation
is no longer possible, the device must be
immediately put out of operation and secured
against being put back into operation again.
It can be assumed that risk-free operation is
no longer possible if the device, for example:

• has visible damage,

• no longer works despite the mains power
supply being intact

• has been exposed to prolonged adverse
conditions (e.g. storage outside the
permissible climate limits without
being adapted to the room climate,
condensation, etc.) or rough handling
during transportation (e.g. falling from
a height, even if there is no visible external
damage, etc.)

C

NOTE!

The user manual also describes
options that are not supplied as
standard.

5

www.janitza.de

3. 2 Scope of delivery

Number Part no. Designation

1 52.16.xxx

1 33.03.338 Installation manual

1 33.03.352 “GridVis software” quick guide

1 10.01.807 Screw-type terminal, pluggable, 2-pin

1 10.01.808 Screw-type terminal, pluggable, 3-pin

1 10.01.809 Screw-type terminal, pluggable, 5-pin

1 10.01.810 Screw-type terminal, pluggable, 6

1 89.10.051 Slotted screwdriver (0.40 x 2 mm), ESD

1)

UMG 604-PRO

UMG 604-PRO

1 08.01.505 2m patch cable, twisted, grey (UMG PC/switch connection)

1 52.00.008 RS485 termination resistor, 120 ohms

1)

For the item number, see the delivery note

3. 3 Available accessories

Part no. Designation

21.01.058 CR2032 lithium battery, 3 V (approval according to UL 1642)

08.02.427 RS232, connection cable (UMG604-PRO - PC), 2 m, 5-pin

C

NOTE!

All screw-type terminals included in
the scope of delivery are attached to
the device.

C

NOTE!

All supplied options and versions
are described on the delivery note.

6

UMG 604-PRO

www.janitza.de

4. Product description

The device is intended for:

• measuring and calculating electrical
variables such as voltage, current, power,
energy, harmonics, in building installations,
on distribution units, circuit breakers and
busbar trunking systems.

• measuring measured voltages and currents
that derive from the same network.

• measurements in low voltage networks
where rated voltages of up to 300 V phase
to earth and surge voltages of overvoltage
category III can occur.

• installation in fixed switching cabinets
or small installation distributors. It can
therefore be installed in any position.

• measurements in medium and high­voltage networks with current and voltage
transformers.

• current measurement via external ../1 A
or ../5 A current transformers.

The measurement results can be displayed,
read out and further processed via the
device's interfaces.

4. 3 Usage concept

You can program and call up the measured
values via many routes using the device:

• Directly on the device via 2 buttons and
the display.

• Using the GridVis® programming
software.

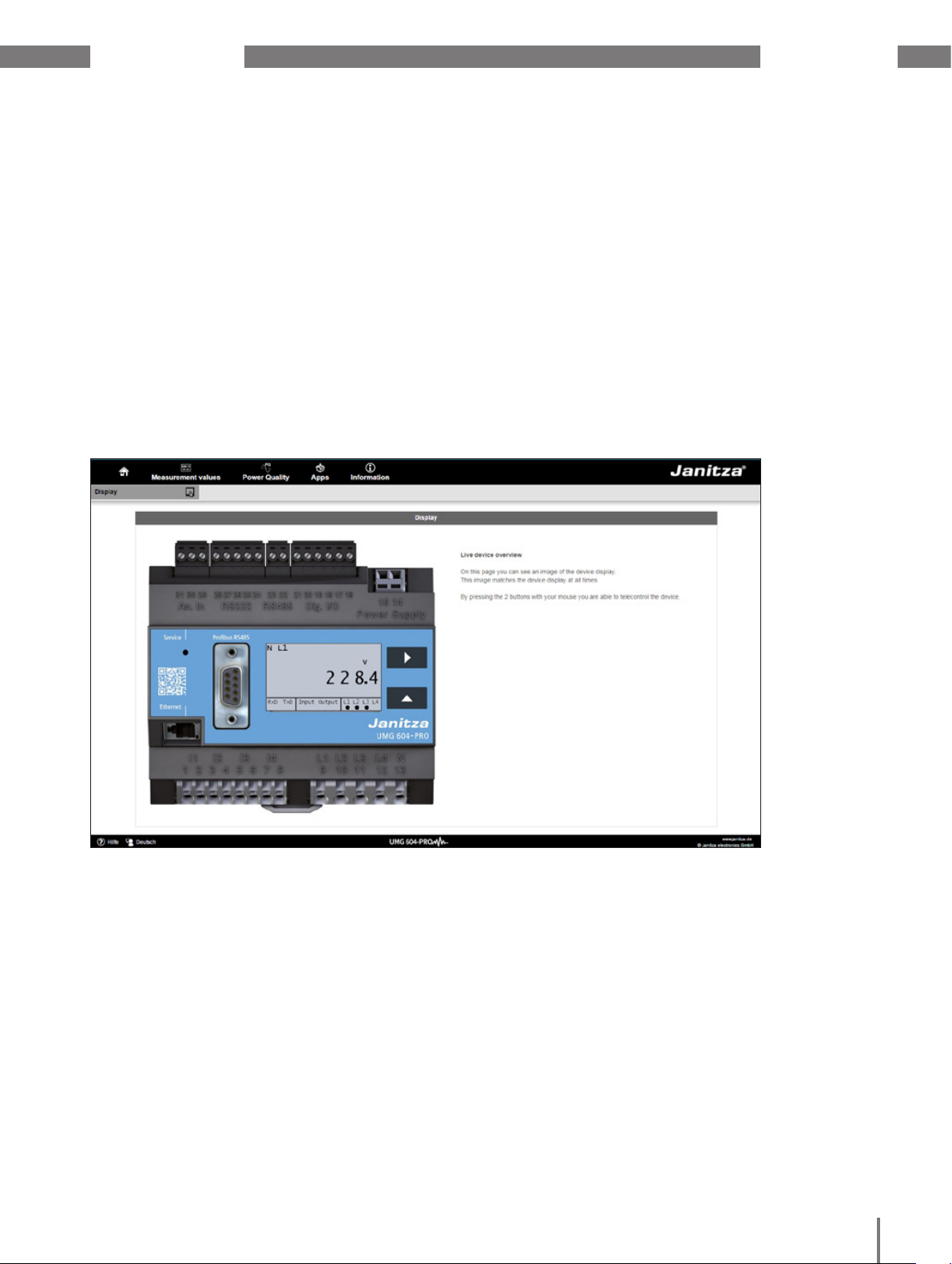

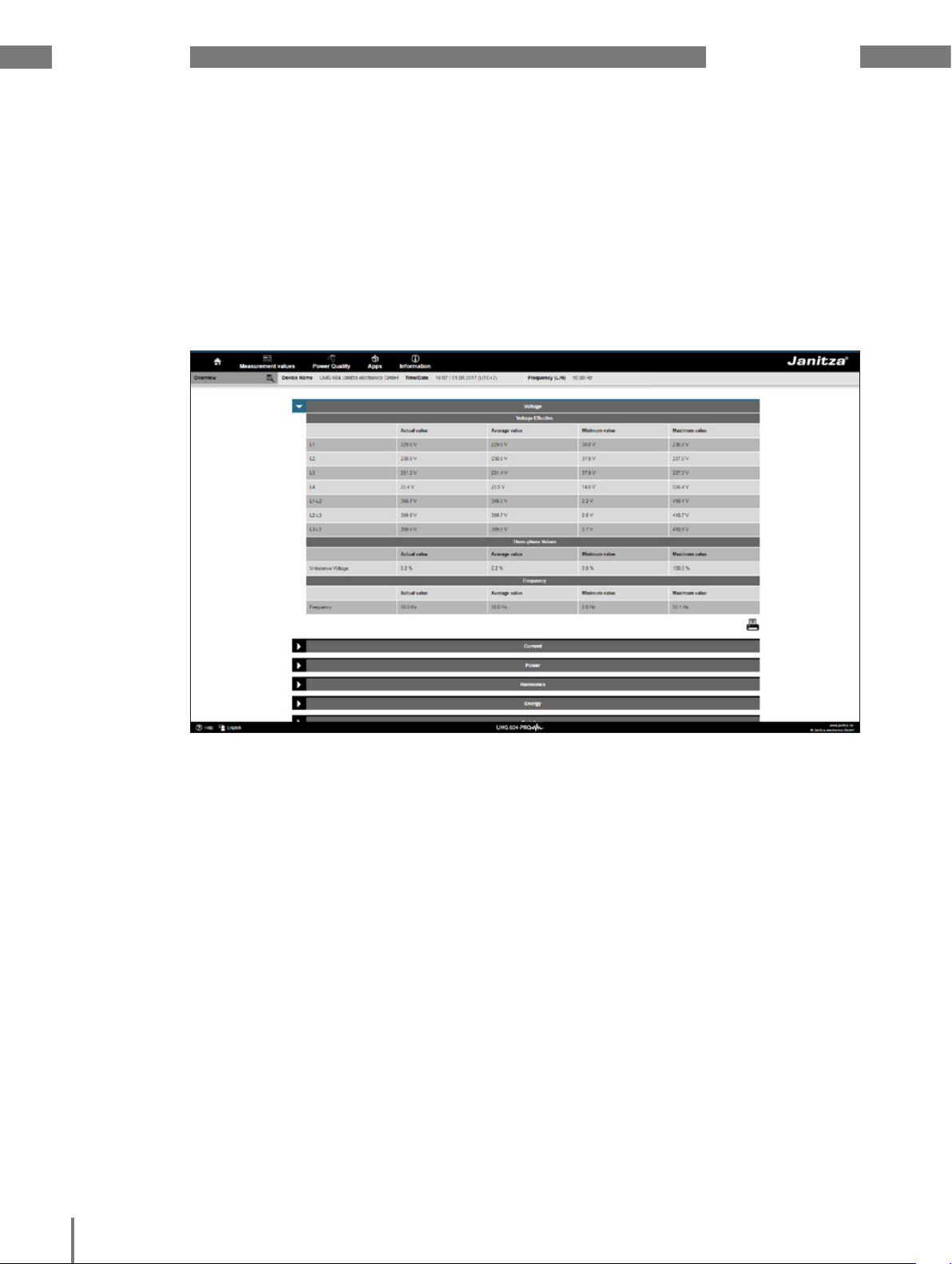

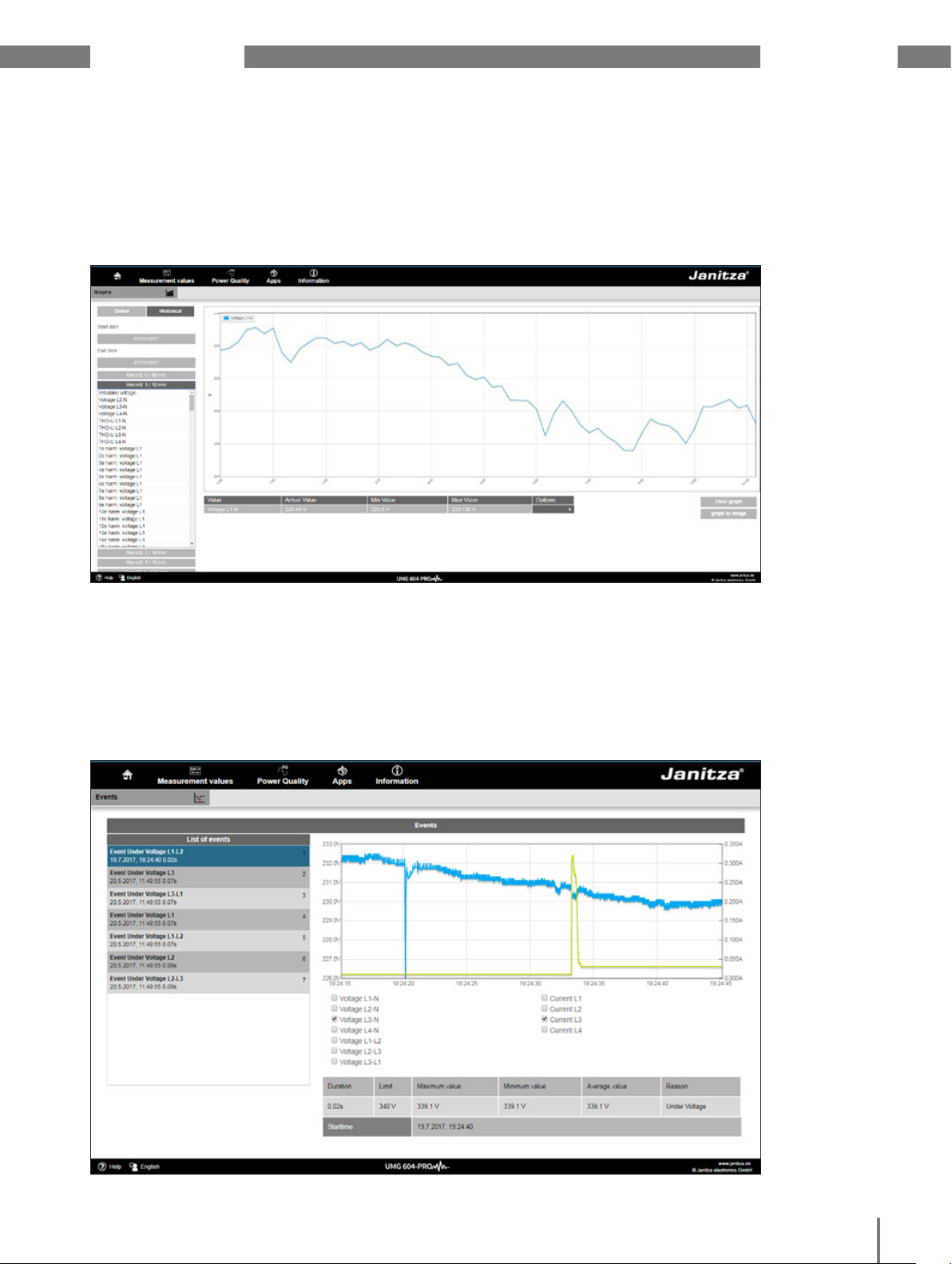

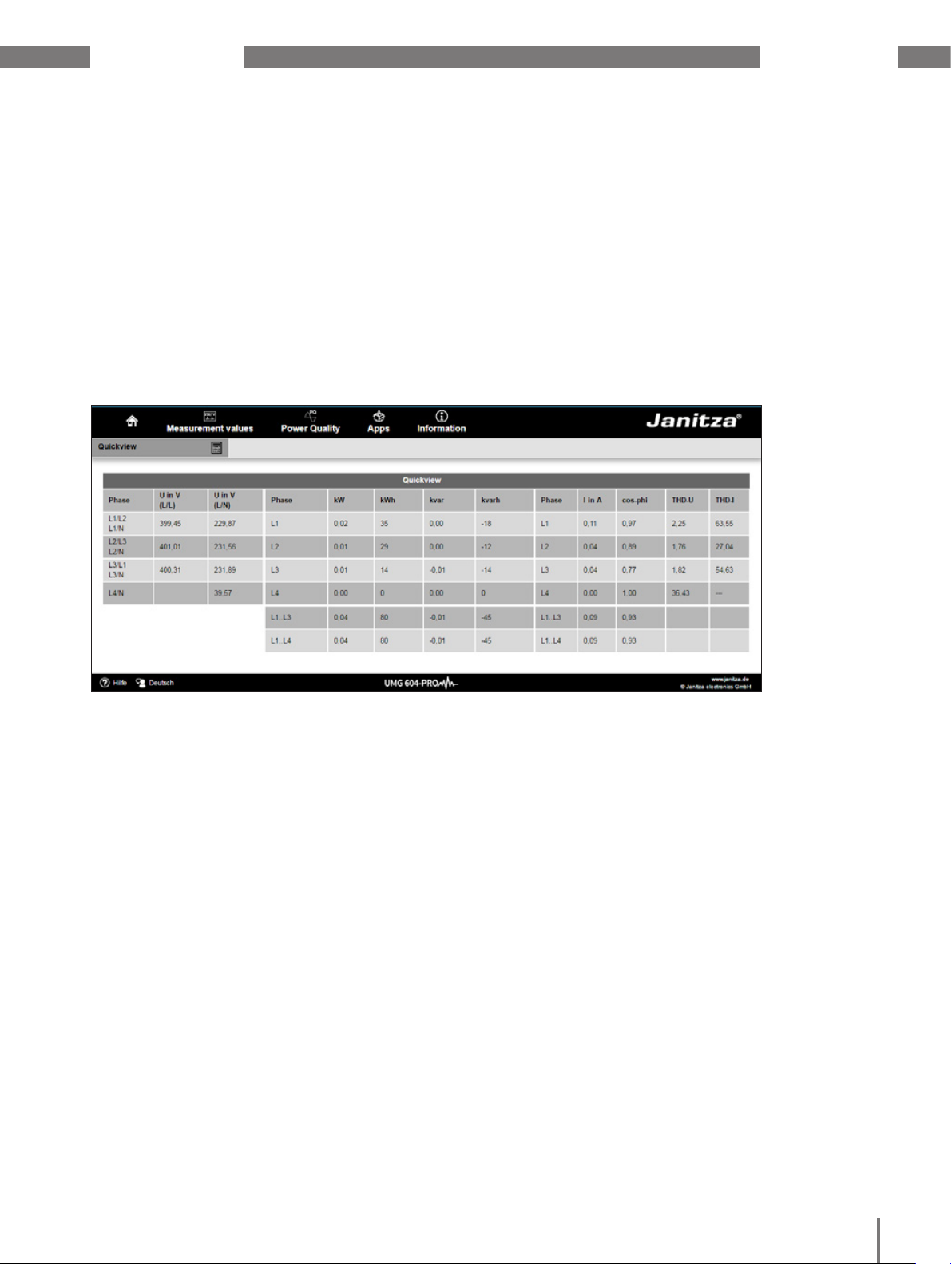

• Using the device homepage.

• Using the Modbus protocol. You can
modify and call up the data using the
Modbus address list. The list can be called
up from www.janitza.de.

This operation manual only describes how
to operate the device using the 2 buttons.
The GridVis® programming software has its
own "online help" system.

C

NOTE!

Use the parameter list from “17.
Parameter list” for configuration
on the device and use the Modbus
address list on www.janitza.de for
configuration via a serial interface

The device meets the test requirements for
use in industrial areas.

4. 1 Measuring process

The device measures continuously and
calculates all effective values over a 200 ms
interval.

4. 2 Network failure detection

Network failure detection is carried out via the
voltage measurement inputs. The selection
of voltage measurement inputs can be
configured using the GridVis® software.

The device bridges the following network
failures on the auxiliary voltage input:

• Supply voltage: 230 V AC

• Bridging time: max. 80 ms

4. 4 GridVis® network analysis software

You can use the GridVis® network analysis
software that is available at www.janitza.de to
program the device and read out data. To do
this, a PC must be connected to the device
via a serial interface (RS485/Ethernet).

You can use the GridVis® network analysis
software to:

• program the device.

• configure and read out recordings.

• save the data to a database.

• display measured values graphically.

• program customer-specific applications.

7

www.janitza.de

4. 5 Features

General

• Installation on a 35 mm DIN rail

• LCD display, backlight (optional)

• Operation via 2 buttons

• 4 voltage and 4 current measurement inputs

• 1 temperature measurement input

• 2 digital outputs and 2 digital inputs

• RS485 interface (Modbus RTU, Modbus master)

• RS232 interface

• Profibus DP / V0 (optional)

• Ethernet (web server, e-mail)

• Suitable for installation in installation distributors

• Suitable for measurements in networks with frequency converters

• Working temperature range -10 °C to +55 °C

UMG 604-PRO

Measurement

• Measurement in IT, TN and TT networks

• Continuous sampling of the voltage and current measurement inputs

• Logging and storing transients > 50 µs

• Capture more than 800 measured values

• Fourier analysis 1st to 40th Harmonics for U, I, P (consumption/delivery), Q (ind./
capacitive)

• Temperature measurement

• Working measurement, measurement uncertainty:

- Class 0.5 for ../5 A converter

- Class 1 for ../1 A converter

• Programming separate applications in Jasic

C

NOTE!

Measurements in medium and
high-voltage networks are always
performed via current and voltage
transformers. Special safety
requirements must be adhered to for
these, which will not be described
in detail here.

8

UMG 604-PRO

www.janitza.de

4. 6 Product overview

1
2

3

4

5

7
8

9

10

11

6

Fig. Front view of UMG604-PRO

1 RS232 interface
2 Temperature measurement input
3 Hidden service button
4 Profibus interface (optional)
5 Ethernet interface
6 Current measurement inputs I1 to I4
7 RS485 interface
8 Digital inputs / outputs
9 Supply voltage
10 Button 1
11 Button 2
12 Voltage measurement inputs L1 to L4

12

9

www.janitza.de

4. 7 Installation location

The device can be installed in switching
cabinets or in small installation distributors
in accordance with DIN 43880
.

It is assembled on a 35 mm mounting rail
in accordance with DIN EN 60715. It can be
installed in any position.

UMG 604-PRO

Fig. Front view of UMG 604-PRO on mounting rail

10

UMG 604-PRO

L1

E

L1
L2

L3
E

N

R

L1

L2
L3
EE

L1

L2
L3
EE

L1

L1

L2
L3
EE

L1

L2
L3
EE

L1

L1

L2
L3
EE

L1

L1
L2

L3
EE

N

E

L1
L2

L3
E

N

R

L1

L2
L3
EE

L1

EE

L

N
EE

L1

L2
L3
EE

L1

L2

N

EE

E

L1
L2

L3
E

N

R

L1

L2
L3
EE

EE

L1

L2
L3
EE

L1

L2

N

EE

L1

L2
L3
EE

L1

L2
L3
EE

L1

EE

www.janitza.de

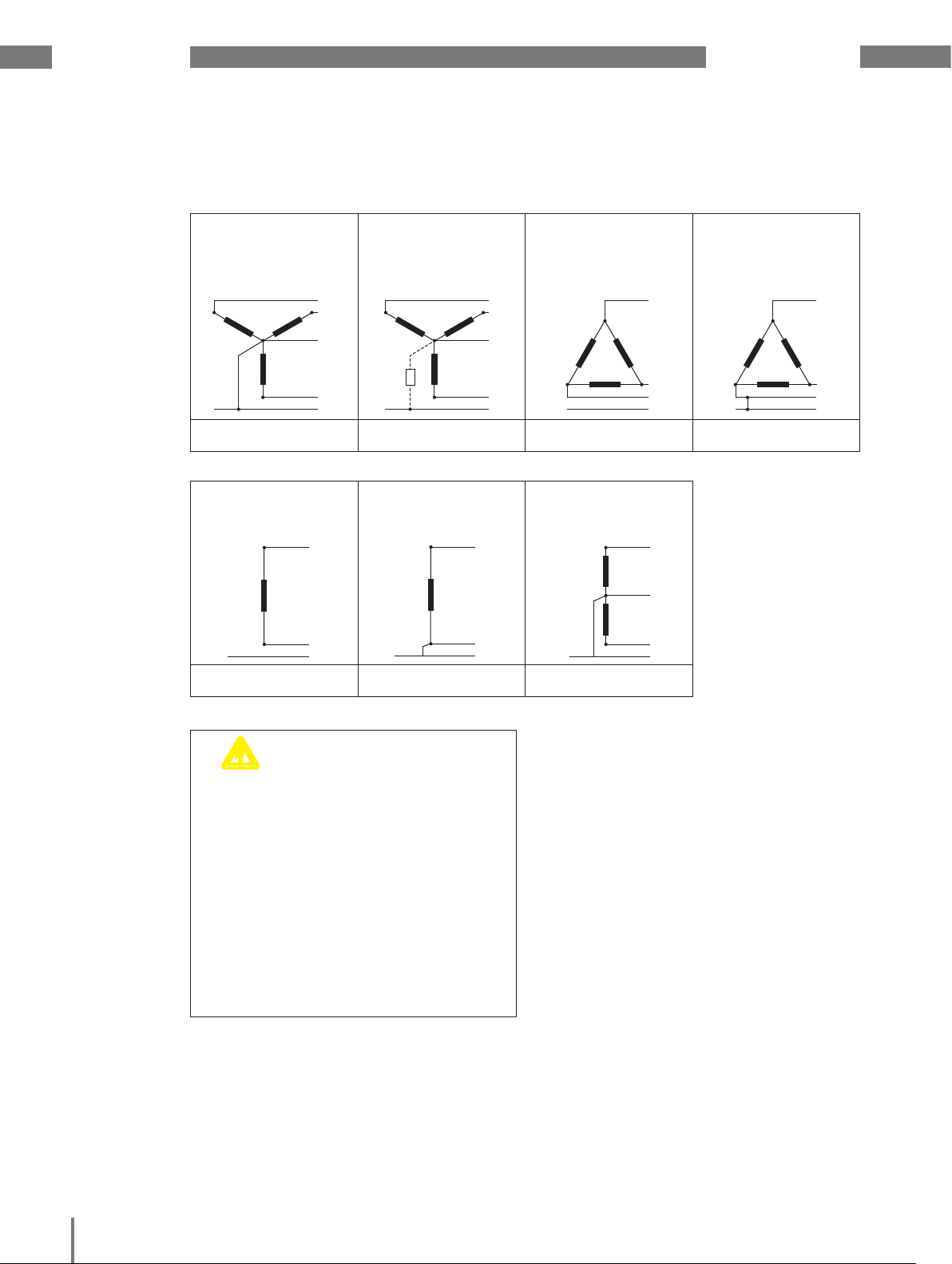

5. Network systems

Suitable network systems and maximum rated voltages (DIN EN 61010-1/A1):

Three-phase four-

conductor systems

with earthed neutral

conductor

L2

N

L3
EE

U

/ U

L-N

L-L

277 VLN / 480 VLL

Dual-phase

two-conductor

systems

not earthed

L2

U

L-L

480 VLL

Three-phase four-

conductor systems

with non-earthed neutral

conductor (IT networks)

L2

N

R

L3

E

U

/ U

L-N

E

L-L

277 VLN / 480 VLL

Single-phase two-

conductor systems

with earthed neutral

conductor

U

L

N

L-N

480 VLN

Three-phase three­conductor systems

not earthed

L2
L3
EE

U

L-L

480 VLL

Separated single-phase

three-conductor system

with earthed neutral

conductor

N

L2

U

/ U

L-N

L-L

277 VLN / 480 VLL

Three-phase three­conductor systems

with earthed phase

L2
L3
EE

U

L-L

480 VLL

The device can be used in:

• 2-, 3- and 4-conductor
networks (TN, TT and IT
networks)

• domestic and industrial
settings.

c

WARNING!

Risk of injury due
to electric voltage!

If the device is subjected to measurement
voltage surges higher than the permissible
overvoltage category, safety-relevant
insulations in the device can be damaged,
which means that the product’s safety can
no longer be guaranteed.

Only use the device in environments in
which the permissible measurement

11

voltage surge is not exceeded.

www.janitza.de

UMG 604-PRO

5. 1 Three-phase 4-conductor systems

The device can be used in three-phase
4-conductor systems (TN, TT networks)
(50 Hz, 60 Hz) with an earthed neutral
conductor. The bodies of the electrical
system are earthed.
The voltage between phase and neutral
conductor may be a maximum of 300 V AC.

The device is only suitable for environments
in which the permissible measurement
voltage surge and overvoltage category are
not exceeded.

Earthing of
the system

230/400 V 50/60 Hz

L1

L2

L3

N

PE

L1 L3L2 N

L4

4M

4M

Voltage measurement

UMG604-PRO

4M

4M

L1

240V
50/60Hz

N

AC/DC

4M

DC

Auxiliary supply

5. 2 Three-phase 3-conductor systems

The device can be used in non-earthed three­phase 3-conductor systems (IT network).

The voltage between phase and phase may
be a maximum of 480 V AC (50 Hz, 60 Hz).
The IT network is not earthed at the neutral
point of the voltage generator. The bodies of
the electrical system are earthed. Earthing via
a high ohm impedance is permitted.

IT networks are only permitted in certain
systems with their own transformers or
generators.

L1

400 V 50/60 Hz

L2

L3

Impedance

L3L2

L1

L4

4M

4M

Earthing of
the system

Fig. Schematic diagram, UMG 604-PRO in an IT

network without N.

4M

Voltage measurement

UMG604-PRO

N

AC/DC

4M

4M

Auxiliary supply

DC

Fig. Schematic diagram, UMG 604-PRO in a TN network

L1

L2

L3

N

Impedance

Earthing of
the system

Fig. Schematic diagram, UMG 604-PRO in an IT network

with N

230/400 V 50/60 Hz

L1

L4

4M

4M

Voltage measurement

UMG604-PRO

L3L2 N

4M

4M

Auxiliary supply

4M

AC/DC

DC

12

UMG 604-PRO

5. 3 Rated voltages

The following illustrations show lists of
networks and the corresponding rated
network voltages in which the device can be
used.

U

/ U

L-N

L-L

66 V / 115 V

120 V / 208 V

127 V / 220 V

220 V / 380 V

230 V / 400 V

240 V / 415 V

260 V / 440 V

277 V /480 V

U

L-L

66V

115V

120V

127V

200V

230V

240V

260V

277V

347V

380V

400V

415V

440V

480V

www.janitza.de

Fig. Table of suitable

rated voltages in a three-phase 4-conductor network

Fig. Table of suitable

rated voltages in a three-phase 3-conductor network

13

www.janitza.de

UMG 604-PRO

14

UMG 604-PRO

www.janitza.de

6. Installation

6. 1 Disconnectors

During building installation, provide a suitable
disconnector in order to disconnect the
device from the current and voltage.

• Install the disconnector close to the device
so that it is easily accessible to the user.

• Label the switch as a disconnection
device.

6. 2 Supply voltage

The device requires supply voltage
to operate.

Before connecting the supply voltage, ensure
that the voltage and frequency correspond to
the details on the rating plate!

The connection lines for the supply voltage
must be protected using a UL-listed fuse or
a circuit breaker.

c

CAUTION!

Failure to observe the connection conditions
can damage or destroy your device.

Therefore, note the following:

• Adhere to the specifications for voltage
and frequency on the rating plate.

• Connect the supply voltage via a fuse
in accordance with the technical data.

• Do not connect the supply voltage to
the voltage transformers.

Damage to property due

to not observing the

connection conditions

Supply voltage

Uh

Fuse

c

WARNING!

Severe bodily injuries or death can occur
due to

• touching bare or stripped wires that are
live,

• device inputs that are dangerous to
touch.

Therefore, note the following:

• De-energise your system before
starting the work!

• The inputs for the supply voltage are
hazardous if touched!

Risk of injury due to electric

voltage!

Isolation device

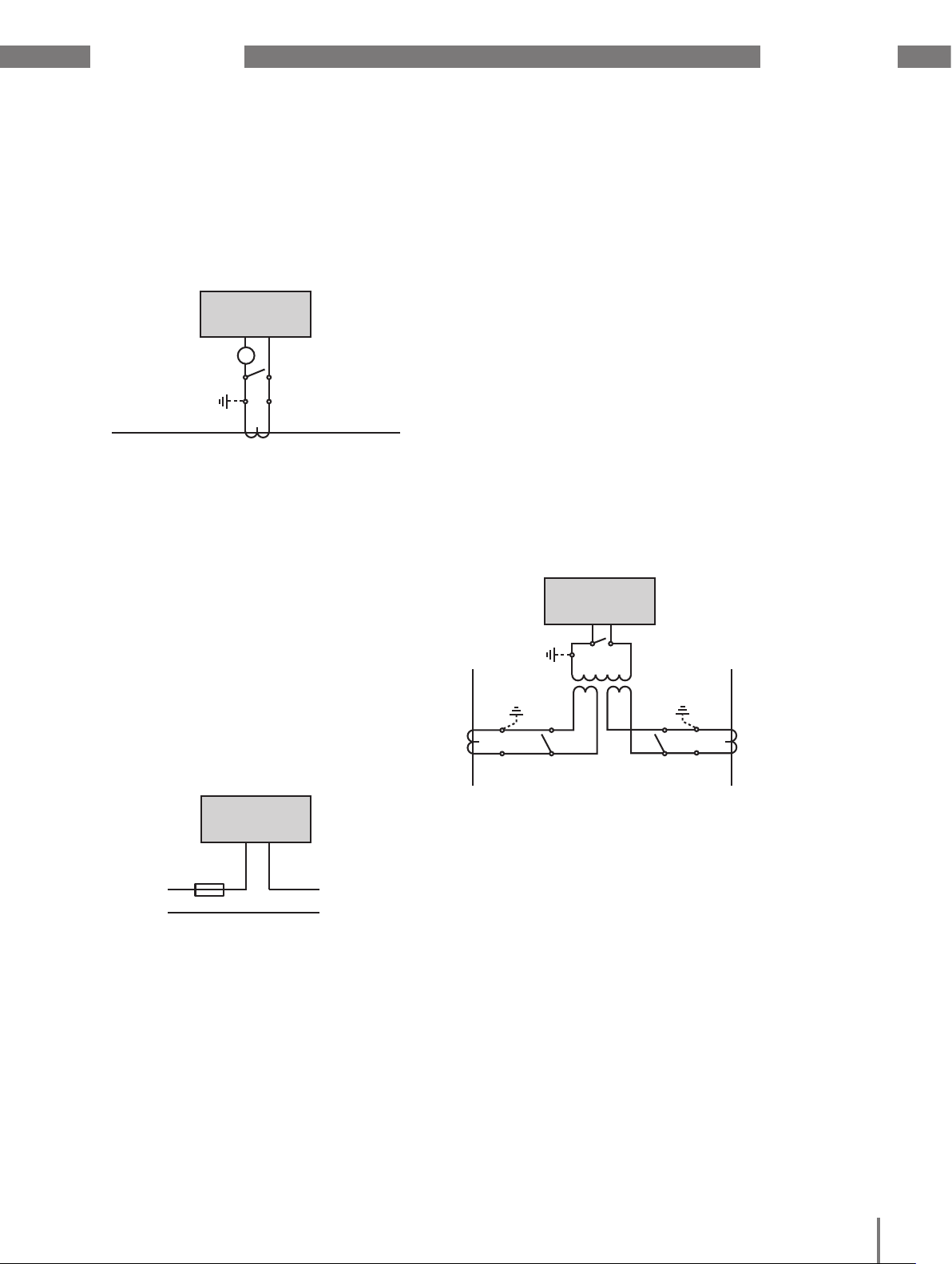

Fig.23.1 Example connection for the supply voltage Uh.

NOTE!

C

Provide single core conductors with
sleeves.

NOTE!

C

Devices that can be operated with DC
voltage are protected against polarity
reversal.

15

www.janitza.de

6. 3 Measured voltage

The device is designed to measure AC
voltage in 300 V networks, in which
overvoltages of category III can occur.

The device can only determine measured values
if measured voltage of >10 Veff is present on at
least one voltage measurement input.

L

Fig. Voltage measurement input with connected phase L

and neutral conductor N

N

UMG 604-PRO

Disconnectors

N

L3

L2

L1

Fig.23.1 Connection example: Voltage measurement via

short circuit-proof measurement wires

Note the following when selecting the
measurement wires:

• Use measurement wires that are suitable
for 300 V to earth and 520 V conductor to
conductor.

• Fuse the normal measurement wires using
an overcurrent protection device.

• Route normal short circuit-proof
measurement wires via a disconnector.

• Connect the voltages higher than 300 V to
earth using voltage transformers.

c

CAUTION!

If the device is connected incorrectly,
incorrect measured values may be returned.

Therefore, note the following:

• Measured voltages and currents must
derive from the same network.

• The device is not suitable for
measuring DC voltage.

c

WARNING!

Severe bodily injuries or death can occur
due to a failure to observe the connection
conditions for the voltage measurement
inputs.

Therefore, note the following:

• Do not use the device for voltage
measurement in SELV circuits.

• Connect voltages that exceed the
permissible network rated voltages via
a voltage transformer.

• The voltage measurement inputs on
the device are dangerous if touched!

• Install a disconnector as described
in “6. 1 Disconnectors”.

Malfunction due to

incorrect connection

Risk of injury due to electric

voltage!

16

UMG 604-PRO

www.janitza.de

6. 4 Current measurement

The device:

• is intended for connecting current
transformers with secondary currents of
../1 A and ../5 A.

• does not measure DC.

• has current measurement inputs that can
be continuously loaded with 6 A or loaded
with 100 A for 1 second.

S1

L1

L2

L3

N

Fig.

connection example.

S2

S1

S2

S1

S2

S1

S2

Current measurement via current transformers

Consumer

c

WARNING!

On current transformers that are operated open
on the secondary side,
high voltage peaks that are dangerous to touch
can occur, which can cause severe bodily injuries
or death.

Therefore, note the following:

• Avoid operating the current transformers
open.

• Short circuit all unloaded current
transformers.

• Connect the earthing connections provided
on the current transformer to the earth.

• You must short circuit the secondary
connections on the current transformer
before interrupting the power supply.

• If a test switch, which automatically short­circuits the secondary wires of the current
transformer is available, it is sufficient to
set this to the "Test" position as long as the
short-circuiting device has been checked
beforehand.

• Ensure that the attached screw-type
terminal is affixed to the device sufficiently
using the two screws.

• Safe open-circuit current transformers are
also dangerous to touch when they are
operated open.

Risk of injury due to elec-

tric voltage on current

transformers!

17

NOTE!

C

It is not necessary to configure
a connection schematic for
measurement inputs L4 and I4.

c

WARNING!
Current measurement inputs are
dangerous to touch.

Risk of injury due

to electric voltage!

www.janitza.de

UMG 604-PRO

6. 4. 1 Ammeter

If you wish to measure the current not only
with the UMG but rather with an ammeter
too, connect the ammeter to the UMG in
series.

UMG

I

S2

1

S

A

Einspeisung
Supply

(k)S

1 S2(l)

2(L)(K)P1

P

Verbraucher

Consumer

Fig. Circuit diagram with additional ammeter switched in

series

6. 4. 3 Direct measurement

Rated currents of up to 5 A can be measured
directly on the device. When doing so, note
that each current measurement input can be
continuously loaded with 6 A or loaded with
max. 100 A for 1 second.

The device does not have integrated
protection for current measurement.
Therefore, provide a 6 A line protection fuse
or automatic circuit breaker as protection
against overcurrent when installing.

6. 4. 2 Total current measurement

For a summation measurement via
two current transformers, first set their
total transformation ratio on the device.

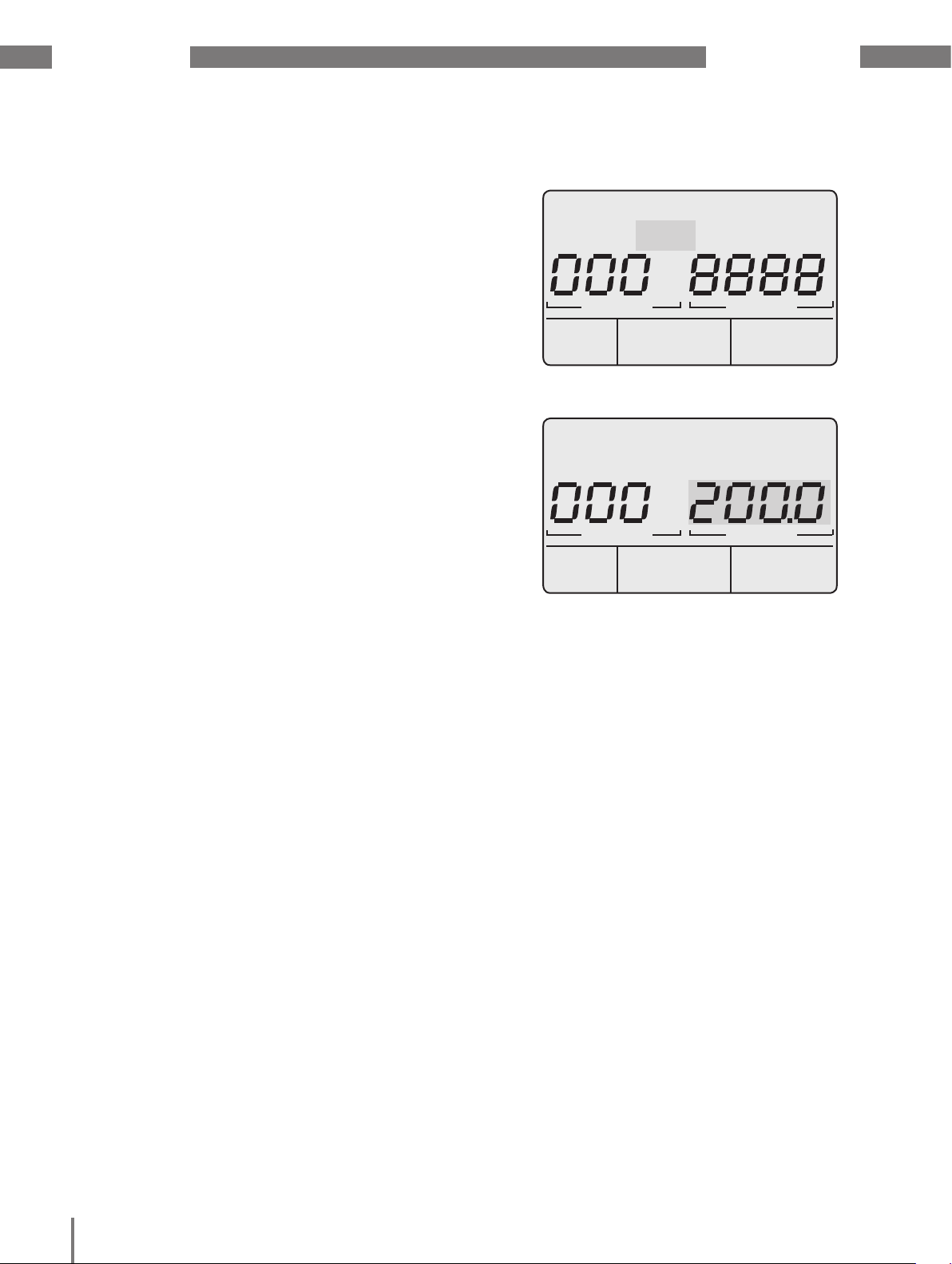

For information on setting the current
transformer ratios, see “11. 1 Current
transformer ratio”.

Example:

The current is measured via two current
transformers. Both current transformers
have a transformation ratio of 1000 / 5 A.
The summation measurement is performed
using a 5+5 / 5 A total current transformer.

The device must then be set up as follows:

Primary current: 1000 A + 1000 A = 2000 A
Secondary current: 5 A

UMG

I

S

S2

1

Einspeisung 1
Supply 1

1P1

1S1

(K)

(L)

1S

1P2

P1

1S1 1S2 2S1 2S2

(k)
(l)

2

P2

Einspeisung 2

Supply 2

2S1
(k)

(l)

2S2

2P

(K)
(L)

2P2

1

UMG

I

S2

1

S

Einspeisung

Supply

Verbraucher
Consumer

Fig. Example of direct current measurement.

Verbraucher A
Consumer A

Verbraucher B

Consumer B

Fig. Example for current measurement via a total current

transformer

18

UMG 604-PRO

www.janitza.de

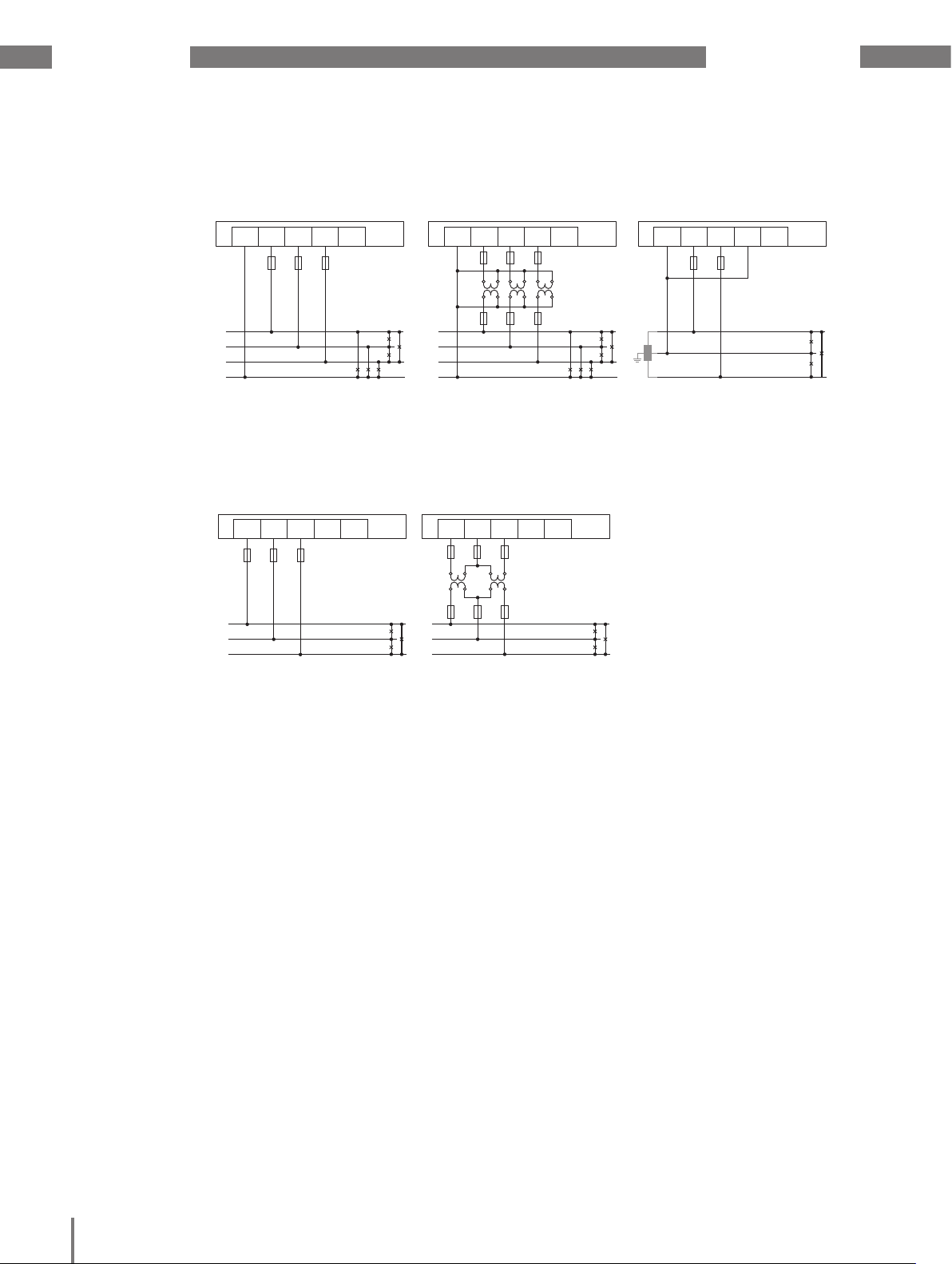

6. 5 Connection variants

6. 5. 1 Voltage measurement

N

L1 L2 L3

L1

L2

L3
N

L4

N

L1 L2 L3

L1

L2

L3
N

L4

N

L1 L2 L3

L1

L2

L4

Fig. Connection examples for voltage measurement in “Three-phase 4-conductor networks” and “Single-phase

3-conductor networks”.

N

L1 L2 L3

L1

L2

L3

L4

N

L1 L2 L3

L1

L2

L3

L4

Fig. Connection examples for voltage measurement in “Three-phase 3-conductor networks”.

19

www.janitza.de

6. 5. 2 Current measurement

UMG 604-PRO

I1

I2

S1 S2

S1 S2I3S1 S2I4S1 S2

3p 4w

L1

L2

L3

N

Fig. Current measurement, connection example for

connection variant 0.

I1

I2

S1 S2

S1 S2I3S1 S2I4S1 S2

L1

L2

L3

2p 2i0

Fig. Current measurement, connection example for

connection variant 1.

I1

I2

S1 S2

S1 S2I3S1 S2I4S1 S2

3p 2i

L1

L2

L3

N

Fig. Current measurement, connection example for

connection variant 0.

I1

I2

S1 S2

S1 S2I3S1 S2I4S1 S2

L1

L2

1p 2i

Fig. Current measurement in the single-phase

3-conductor system. Connection variant 0.

20

UMG 604-PRO

www.janitza.de

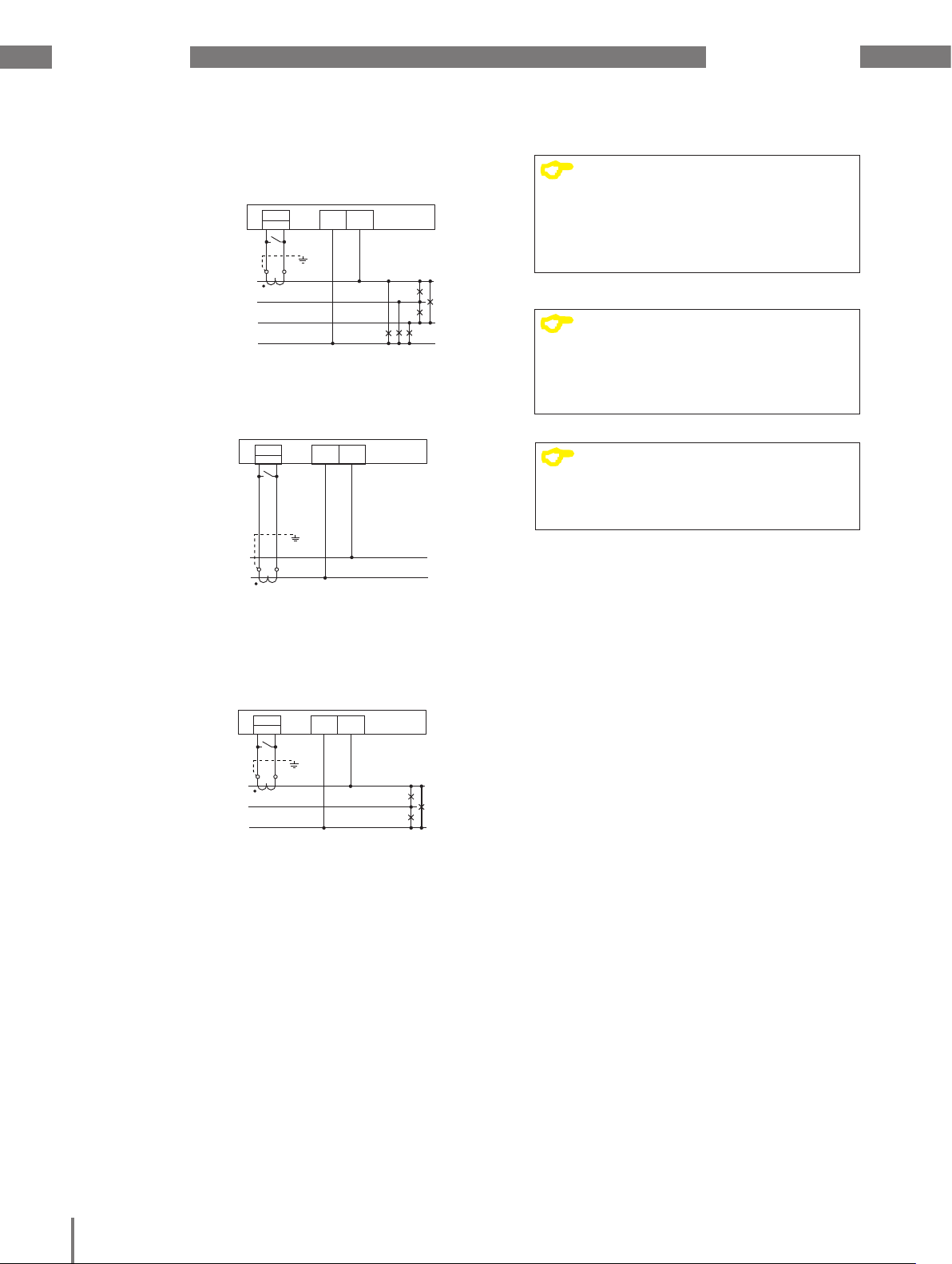

6. 5. 3 Supporting measurement, input V4

I4

S1 S2

L1

L2

L3

N

Fig. Measurement in a three-phase 4-conductor network

with symmetric loading.

I4

S1 S2

PE

N

Fig. Measurement of the voltage between N and PE.

Measurement of the current in the neutral conductor.

L4N

L4N

4w 1m

2w 1n

NOTE!

C

If the baseline measurement (inputs
V1-V3) is connected to a three-phase
3-conductor network, the supporting
measurement (input V4) can no longer
be used as a measurement input.

NOTE!

C

For measurement with the supporting
measurement (V4), a voltage must be
connected to the baseline measurement
for frequency determination.

NOTE!

C

Measured voltages and measured
currents must derive from the same
network.

I4

S1 S2

L1

L2

L3

Fig. Measurement in a three-phase 3-conductor network

with symmetric loading.

L4N

3w 1m

21

www.janitza.de

UMG 604-PRO

Analog Input

UMG 604-PRO

6. 6 Temperature measurement

The device has a temperature measurement
input that is designed for a maximum total
burden of 4 kOhm. The total burden refers to
sensors and the line.

Fig.42.1 Example, temperature measurement with

a KTY83.

KTY83

c

CAUTION!

If the line is longer than 30 m, there is
an increased probability of transmission
errors and damage to the device due
to atmospheric discharge.

Use a shielded cable to connect to the
temperature sensor.

c

CAUTION!

Insufficient insulation of the operating
equipment at the temperature measurement
input to the mains supply circuits can cause
the temperature measurement input and
interfaces RS232 and RS485 to convey
hazardous voltage.

Ensure that there is reinforced or double
insulation to the mains supply circuits!

Transmission errors and
damage to property due

to electrical faults

Risk of injury due to electric

voltage!

Fig. Connecting temperature sensor to the measurement

input

c

WARNING!

RS232, RS485 and the temperature
measurement input are not galvanically
separated from each other.

Therefore, be aware that hazardous
voltages on the inputs that are not
galvanically separated may have effects
on the other connections.

Risk of injury due
to electric voltage!

22

UMG 604-PRO

www.janitza.de

7. Interfaces

The device has the following interfaces:

• RS232

• RS485

• Ethernet

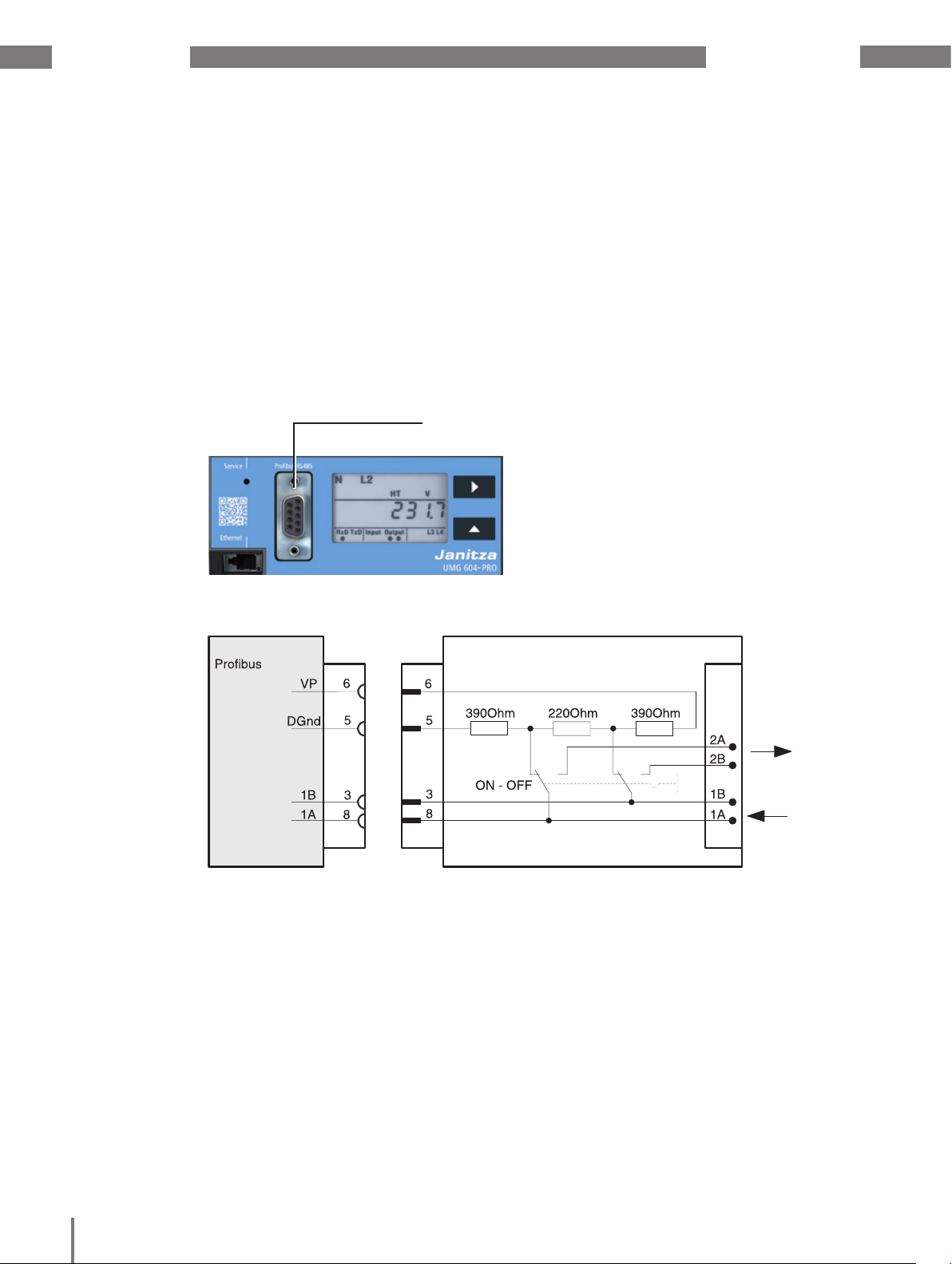

• Profibus (optional)

All interfaces can be used simultaneously.

7. 1 Shielding

A twisted, shielded cable should be used
for connections via the RS232 and RS485
interfaces.

Earth the shields of all cables that lead to the
cabinet and at the cabinet entry.

Connect the screens over a generous area
and in a manner that will conduct well,
to a low-noise earth.

Gather the cables mechanically above the
earthing clamp in order to avoid damage due
to cable movements.

c

WARNING!

RS232, RS485 and the temperature
measurement input are not galvanically
separated from each other. The Profibus
and Ethernet are functionally insulated from
each other and the remaining interfaces.

Therefore, be aware that hazardous
voltages on the inputs that are not
galvanically separated may have effects
on the other connections.

Risk of injury due
to electric voltage!

Use suitable cable glands to feed the cables
into the cabinet, for example, armoured
conduit couplings.

Cable

Strain relief

Screen braid of the cable

Earthing clamp

Noiseless ground

Fig. Shielding procedure at cabinet entry.

23

www.janitza.de

UMG 604-PRO

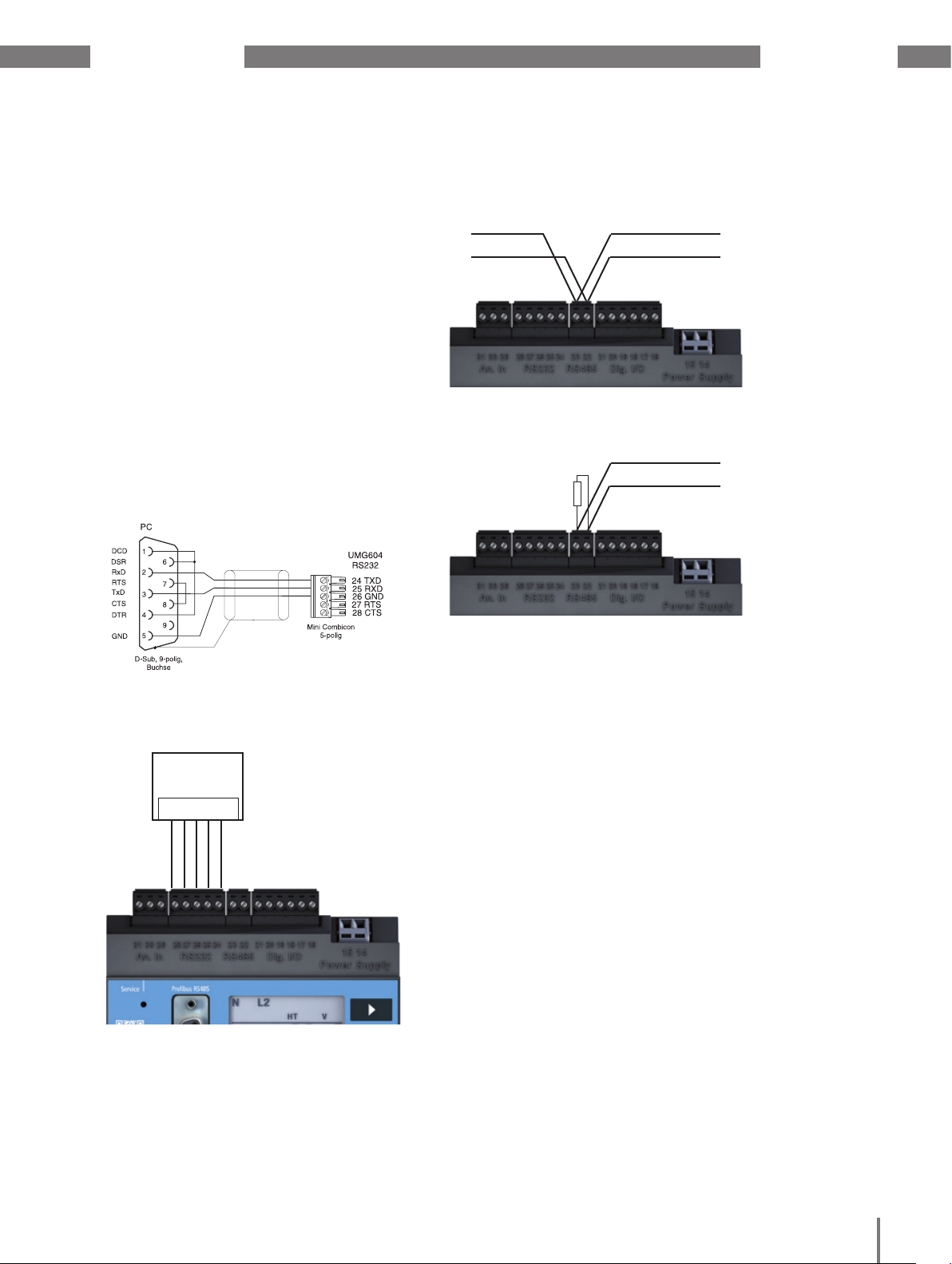

7. 2 RS232

You can use an RS232 connection cable to
connect the device to a PC.

The achievable distance between two
devices with RS232 interfaces depends on
the cable used and the baud rate.

The maximum cable length that can be
connected is 30 m!

As a guideline, if the transmission rate is
9600 Baud, a distance of 15 m to 30 m
should not be exceeded.

The permissible ohmic load must be greater
than 3 kOhm and the capacitive load caused
by the transmission line must be lower than
2500 pF.

7. 3 RS485

The RS485 interface is designed as a 2-pin
plug contact in the UMG 604.

A

B

A

Fig. RS485 interface, 2 pin plug contact

120Ω

A

RS485 bus

B

RS485 bus

B

A

B

A

B

Fig. Plug arrangement for the PC connection cables

(item no. 08 02 427).

PC

Com1

Fig. Example, connecting a UMG604-PRO to a PC

via the RS232 interface.

Fig. RS485 interface, 2-pin plug contact with

termination resistor (item no. 52.00.008).

24

UMG 604-PRO

7. 3. 2 Cable type

CAT cables are not suitable for bus wiring.
Instead, we recommend the following cable
type:

www.janitza.de

7. 3. 1 Termination resistors

The cable is terminated with resistors (120 Ohm
1/4 W) at the beginning and at the end of a segment.

• Unitronic Li2YCY(TP) 2x2x0.22 (from Lapp
Kabel)

The maximum cable length is 1200 m at a
baud rate of 38.4 k.

m

WARNING!

Temperatures of up to 80 °C can occur on
the connections if there are high measured
currents.

Therefore, use lines that are designed for
an operating temperature of at least 80 °C

Risk of injury due to electric

voltage!

The UMG604-PRO does not contain any termination
resistors.

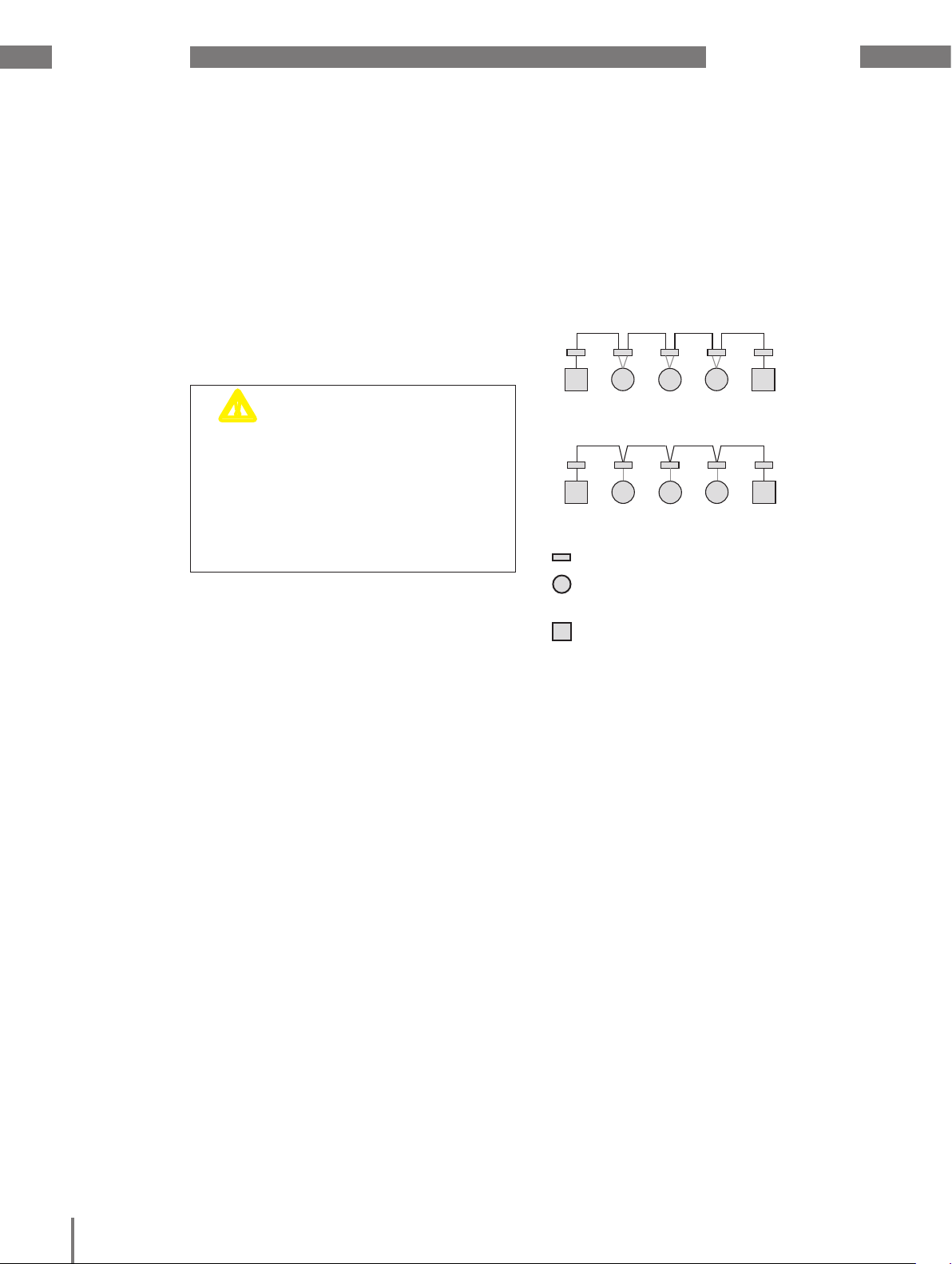

Correct

Incorrect

Terminal strip in the cabinet.

Device with RS485 interface.
(without termination resistor)

Device with RS485 interface.
(with termination resistor on the device)

25

www.janitza.de

7. 4 Bus structure

• All devices are connected in a bus
structure (line).

• Up to 32 participants can be connected
together in a single segment.

• The cable is terminated with resistors at
the beginning and at the end of a segment.

• If there are more than 32 participants,
repeaters (amplifiers) must be used to
connect the individual segments.

• Devices for which the bus connection is
switched on must be under current.

• It is recommended that the master be
placed at the end of a segment.

UMG 604-PRO

• If the master is replaced with a bus
connection, the bus must be switched off.

• Replacing a slave with a bus connection
that is either switched off or de-energised
can destabilise the bus.

• Devices that are not connected to the bus
can be replaced without destabilising the
bus.

Master

Speisung notwendig / power supply necessary

T

Busabschluß eingeschaltet / bus terminator on

T

Slave

Slave Slave Repeater

T

Slave Slave Slave Slave

Fig. Bus structure illustration

SlaveSlaveSlave

T

T

26

UMG 604-PRO

www.janitza.de

7. 5 Profibus

The UMG 604-PRO is optionally equipped
with a Profibus connection that is designed
as a 9-pin DSUB receptacle.

For the connection, we recommend a
"SUBCON-Plus-ProfiB/AX/SC" 9-pin Profibus
connector from Phoenix.

You can order this from us using Janitza item
number 13.10.539.

Profibus
connection

Fig.36.1 UMG 604-PRO with Profibus interface.

7. 5. 1 Connection of the bus wiring

The inbound bus wiring is connected to
terminals 1A and 1B.

The bus wiring for the next device in line is
connected to terminals 2A and 2B.

If there are no subsequent devices in the line,
the bus wiring must be terminated with a
resistor (switch to ON). With the switch set to
ON, terminals 2A and 2B are switched off for
further continuing bus wiring.

UMG 604-PRO

D-Sub,

9-pin,

Receptacle

Fig. 36.1 Profibus connector with termination resistors.

Profibus connector

D-Sub,

9-pin,

Receptacle

(external)

Termination resistors

Other

Profibus

participants

Screw-type terminals

27

www.janitza.de

UMG 604-PRO

28

UMG 604-PRO

www.janitza.de

8. Digital inputs and outputs

8. 1 Digital inputs

The device has 2 digital inputs to which you
can connect one signal generator each.

An input signal is detected on a digital input if
a voltage of at least 10 V and maximum 28 V
DC is applied.

The flowing current is at least 1 mA
and a maximum of 6 mA.

Pay attention to the supply voltage's polarity!

24V

DC

-

+

c

CAUTION!

If the line is longer than 30 m, there is
an increased probability of transmission
errors and damage to the device due to
atmospheric discharge.

Use a shielded cable for connection to
the digital inputs.

c

CAUTION!

Ensure that the supply voltage:

• is DC voltage.

• has the right polarity.

• is not above the maximum permissible
voltage.

Transmission errors and

damage to property due to

electrical faults

Damage to property due

to connection errors

Fig. Connection example of digital inputs.

UMG 604-PRO

Digital inputs 1-2

Digital

S1

S2

+

24V

=

-

Fig. Example for the connection of external switch

contacts S1 and S2 to digital inputs 1 and 2.

Input 1

19

Digital

Input 2

20

21

3.9V

3.9V

4.4k

4.4k

29

www.janitza.de

8. 2 S0 pulse input

You can also connect S0 pulse transducers
per DIN EN62053-31 to each UMG 604-PRO
with inputs for 24 V.

To do this, you require an external auxiliary
voltage of 20 to 28V DC and an external 1.5
kOhm resistor each.

UMG 604-PRO

Digital inputs 1-2

Digital

Input 1

S0 pulse

transducer

+

1.5k

24V

=

-

19

Digital

Input 2

20

21

3.9V

3.9V

4k

4k

24V

DC

-

+

S0 pulse transducer

1.5k

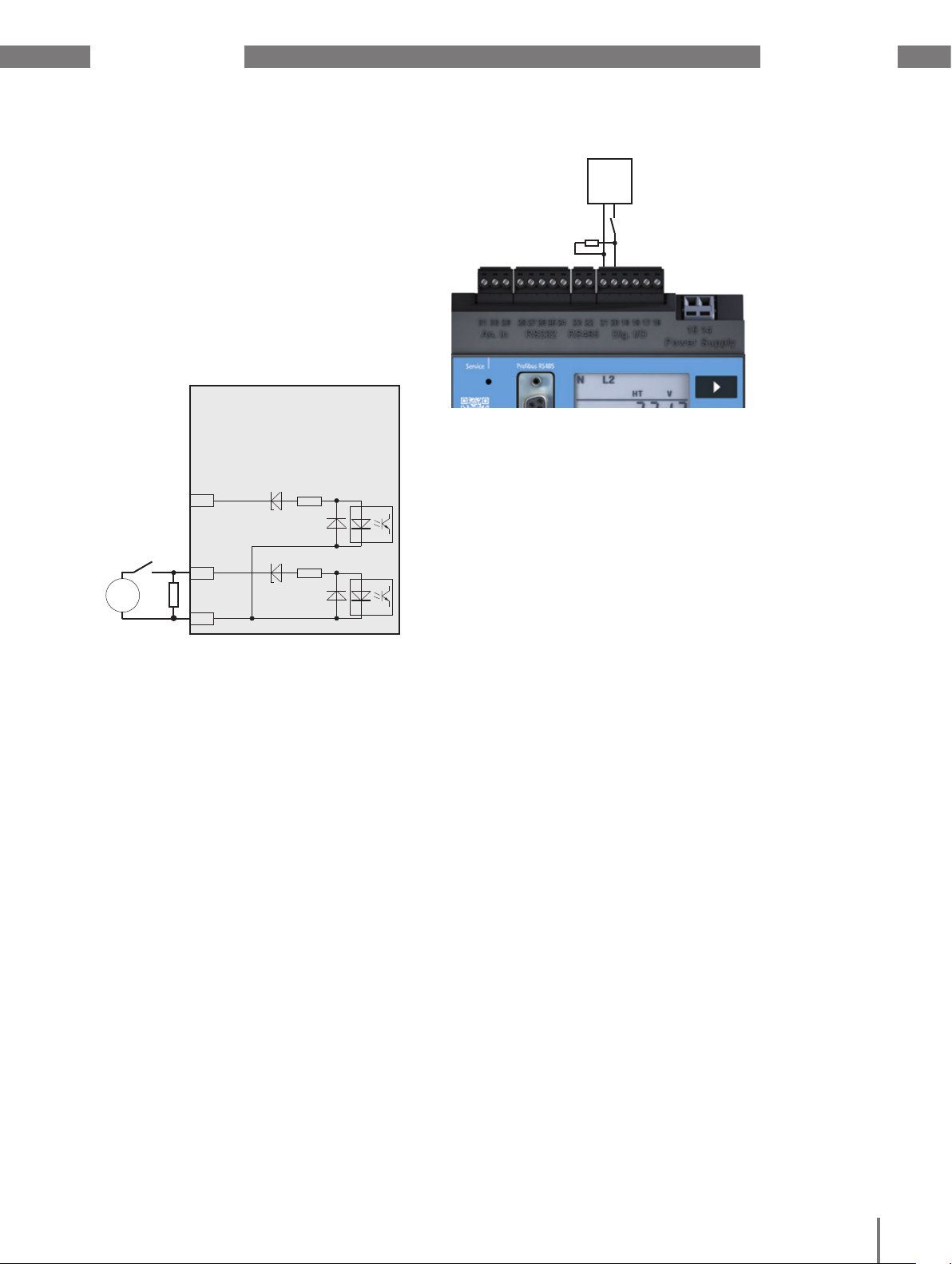

Fig. UMG 604-PRO with inputs for 24V. Example with S0

pulse transducer.

UMG 604-PRO

Fig. UMG 604-PRO with inputs for 24V and an S0 pulse

transducer on digital input 2.

30

UMG 604-PRO

www.janitza.de

8. 3 Digital outputs

The device has 2 transistor switching outputs
that are galvanically separated from the
analysis electronics using opto couplers.

The digital outputs:

• can switch DC or AC loads.

• can switch loads depending on the supply
voltage's polarity.

24V

DC

-

+

c

CAUTION!

If the line is longer than 30 m, there is
an increased probability of transmission
errors and damage to the device due to
atmospheric discharge.

Use a shielded cable for connection to
the digital outputs.

m

CAUTION!

When using the digital outputs as pulse
outputs, measurement errors may arise due
to the residual ripple.

Therefore, use a mains adapter for the
supply voltage for the digital inputs and
outputs, which has a residual ripple of
less than 5% of the supply voltage.

Transmission errors and

damage to property due to

electrical faults

Measurement errors when

using as a pulse output

Fig. Connection example of digital outputs.

UMG 604-PRO

Digital outputs

16

Digital

Output 1

Digital

Output 2

Fig. Connection of an AC voltage relay to the digital

outputs.

17

18

24V

~

AC

~

K1

K2

c

CAUTION!

The digital outputs are not short-circuit
proof! Connection errors can therefore
cause damage to the connections.

Ensure that the wiring is correct when
connecting the outputs.

UMG 604-PRO

Digital outputs

Fig. Connection of a DC voltage relay to the digital

outputs.

Damage to property due

to connection errors

24V

DC

+

16

Digital

Output 1

Digital

Output 2

17

18

K1

K2

-

31

www.janitza.de

UMG 604-PRO

32

UMG 604-PRO

www.janitza.de

9. Commissioning

Before commissioning, clear any content
that may be present on the power meters,
min./max. values or recordings due to the
production process.

9. 1 Connecting the supply voltage

After connecting the supply voltage, the
text “Start up” is shown on the display.
Approximately two to six seconds later, the
device switches to the first measured value
indication.

If no display appears, check whether the
power supply voltage is within the rated
voltage range.

Supply voltage

(see rating plate)

9. 3 Connecting the measured voltage

The device is suitable for measuring voltages
of up to 300VAC to earth and 520 V AC
phase to phase.
The device is not suitable for measuring DC
voltage. Voltages over 300 V AC to earth
must be connected via voltage transformers.

After connecting the measured voltages, the
measured values displayed by the device for
the L-N and L-L voltages must correspond to
those on the voltage measurement input.

If a voltage transformer factor is
programmed, it must be taken into
consideration for the comparison.
At least one phase (L) and the neutral
conductor (N) must be connected to the
voltage measurement input for measurement.

A measured voltage of greater than 10
Veff must be present on at least one of the
voltage measurement inputs so that the
device can determine the mains frequency.

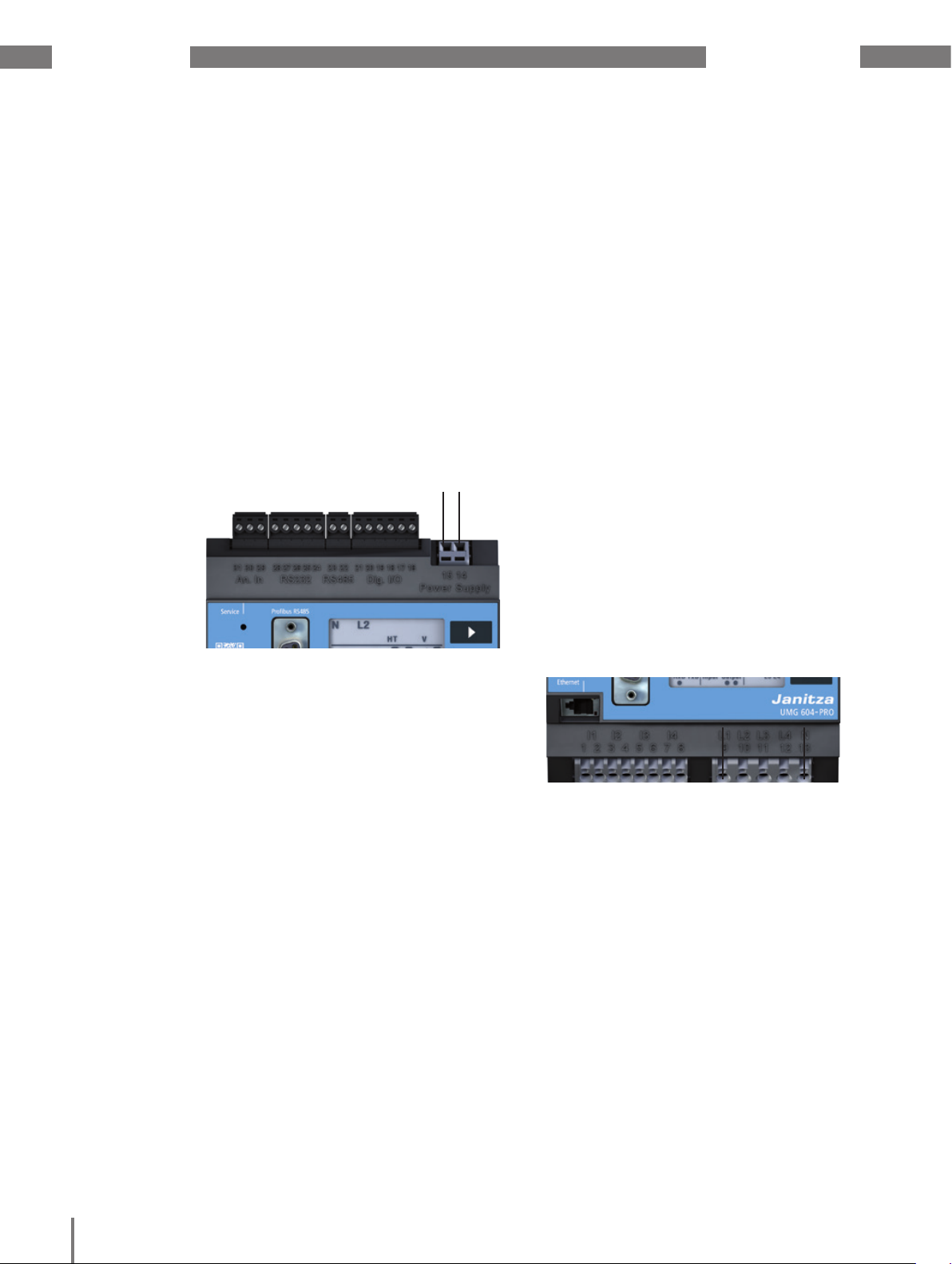

Fig.23.1 Example connection for the supply voltage Uh.

9. 2 Frequency measurement

In order to measure the frequency, at least one
voltage measurement path (L-N) must have
a measured voltage of greater than 10 V.
Only detected frequencies in the range of
45 Hz to 65 Hz are used for measurement on
the current and voltage measurement inputs.

L N

9. 4 Phase sequence

Check the direction of the rotating field
voltage in the measured value indication
of the device. A “right-hand” rotation field
usually exists.

33

www.janitza.de

UMG 604-PRO

9. 5 Applying the measured current

The device:

• is intended for connecting current
transformers with secondary currents of
../1 A and ../5 A.

• does not measure DC.

• has current measurement inputs that are
continuously loaded with 6 A or loaded
with 100 A for 1 second.

Proceed as follows to connect measured
current to the device:

1. Connect the currents to be measured to
voltage measurement inputs I1 to I4.

2. Short circuit all current transformer outputs
except for one.

3. Compare the currents displayed by the
device with the applied current.

• Bearing in mind the current transformer
conversion ratio, the current displayed by
the device must correspond to the current
input.

• The device must display approx. zero
amperes in the short circuited current
measurement inputs.

9. 6 Checking the power measurement

Short-circuit all current transformer outputs
except for one and check the displayed
power outputs.

The device may only display one power
output in the phase with a non-short-circuited
current transformer input. If this is not the
case, check the connection of the measured
voltage and the measuring-circuit current.

If the power figure is correct but the power
sign is negative, connections S1(k) and S2(l)
on the current transformer may be mixed up
or they are supplying active energy back to
the network.

The current transformer ratio is factory-set
to 5/5A and must be adapted to the current
transformer used if necessary.

34

UMG 604-PRO

www.janitza.de

10. Operation

In order to make it easier to install and
commission the device without a PC, it has
a display, as well as buttons 1, 2 and Service.

Important parameters such as the current
transformer and the device address are listed
in the parameter list in section “17. Parameter
list” and can be programmed directly on the
device.

Two modes are differentiated between when
operating

• Display mode

• Programming mode

10. 1 Button functions

Press the button for a short time:

• scroll forwards

• digit/value +1

Press the button for a long time:

• scroll backwards

• digit/value -1

10. 2 Display mode

After the power returns, the device is in
display mode.

In display mode, you can use buttons 1
and 2 to scroll through the measured value
indications
.

• Use button 1 to select the phase for the
measured values.

• Use button 2 to scroll between the
measured values for current, voltage,
power, etc.

The factory default setting for the measured
value indications is shown in section “18.
Measured value indications”.

N L1

V

Press and hold both buttons simultaneously
for around 1 second:

• Switch between display mode and
programming mode.

The device is operated using buttons 1 and

2.

The service button is only for use by trained
service employees.

Fig. Front view of UMG 604 -PRO control element

RxD TxD

Fig. Display example for "Display mode". Measured value

indication U

RxD TxD

Fig. Display example for rotation field and frequency.

C

Input

= 230.0 V.

L1-N

Input Output

NOTE!

You can reconfigure the functions
of the buttons and the selection of
the values to be displayed using
the GridVis® software as a Jasic
program. (see www.janitza.de)

Output

L1 L2 L3 L4

Hz

L1 L2 L3 L4

35

www.janitza.de

UMG 604-PRO

10. 3 Programming mode

You view and change the most important
settings required to operate the device in
programming mode.

The addresses for the most important
settings are provided in section “17.
Parameter list”.

You can make further settings in the GridVis®
software supplied.

Pressing buttons 1 and 2 simultaneously for
approx. one second takes you to programming
mode after the password prompt.

If a display password has not been
configured, you access the programming
menu directly.

Programming mode is indicated on screen
by the text "PRG". The digit in the address
flashes. If the device is in programming
mode and no button is pressed around
60 seconds or if buttons 1 and 2 are pressed
simultaneously for around one second, the
device returns to display mode.

10. 4 Display password

To make it harder to accidentally modify the
programming data on the device, you can
program a 4-character display password.
No display password is requested in the
factory default setting.

10. 5 Homepage password

You can password-protect access to the device’s
homepage. No homepage password is factory-set.

The device differentiates between 3 password
modes for the homepage password:

• 0 = The homepage password is not
requested.

• 2 = Changes to the configuration and
the measured values display require the
password to be entered once.

• 128 = Each change to the configuration
requires the password to be entered again

NOTE!

C

If you no longer remember your
password, you can only change
it using the GridVis® software.
(see www.janitza.de)

PRG

Address Content

Fig. Display example for "Programming mode", address

000 with a content of 5,000.

PRG

Content

Fig. Request window for the display password

Addr. Contents

500 Display password

0 = The password is
not requested.

501 Homepage, pass-

word mode

502 Homepage password

Fig. Excerpt from the parameter list.

36

UMG 604-PRO

www.janitza.de

11. Configuration

This section describes how to perform
configuration using the 2 buttons on the
device.

11. 1 Current transformer ratio

You can assign each of the 4 current
transformer inputs its own current
transformer ratio.

• A current transformer ratio of 5 A / 5 A is
factory-set for all 4 current transformer
inputs.

• You can program current transformers
with the same current transformer ratios
in addresses 000 and 001.

• You can program current transformers
with different current transformer ratios in
addresses 010 to 041.

• Changing the current transformer values
in addresses 000 or 001 overwrites the
contents of addresses 010 to 041 with the
current transformer values from addresses
000 and 001.

• Changing the current transformer values in
addresses 010 to 041 deletes the current
transformer values in addresses 000 and 001.

Address Current transformer

values

000 L1 L2 L3 L4 (primary)
001 L1 L2 L3 L4 (secondary)

11. 2 Current connection variants

The device recognises two connection
variants for current measurement.

Connection variant 0

• Measurement via 3 current transformers in
three phase 4-conductor networks.

• Measurement via 2 current transformers
in networks with the same loading.

• Measurement in single-phase 3-conductor
systems.

Connection variant 1

• Measurement via 2 current transformers
(Aron circuit ) in three-phase 3-conductor
networks.

Address Connection variant

110 0 = three current

transformers.
(factory default setting)

1 = two current
transformers (Aron circuit)

NOTE!

C

It is not necessary to configure
a connection schematic for
measurement input 4.

37

010 L1 (primary)
011 L1 (secondary)
020 L2 (primary)
021 L2 (secondary)
030 L3 (primary)
031 L3 (secondary)
040 L4 (primary)
041 L4 (secondary)

www.janitza.de

UMG 604-PRO

11. 3 Voltage transformer ratio

You can assign each of the 4 voltage
transformer inputs its own voltage
transformer ratio.

• A voltage transformer ratio of 400 V / 400
V is factory-set for all 4 voltage transformer
input.

• You can program voltage transformers
with the same voltage transformer ratios in
addresses 002 and 003.

• You can program voltage transformers
with different voltage transformer ratios
in addresses 012 to 043.

• Changing the voltage transformer values
in addresses 002 or 003 overwrites the
contents of addresses 012 to 043 with the
voltage transformer values from addresses
002 and 003.

Address Voltage transformer values

002 L1 L2 L3 L4 (primary)
003 L1 L2 L3 L4 (secondary)

11. 4 Voltage connection variants

The device recognises two connection
variants for voltage measurement.

Connection variant 0

• Direct voltage measurement in 3-phase
4-conductor networks.

• Measurement via 3 voltage transformers in
3-phase 4-conductor networks.

• Measurement in single-phase 3-conductor
systems.

Connection variant 1

• Direct voltage measurement in three-phase
3-conductor networks.

• Measurement via 2 voltage transformers
(Aron circuit ) in three-phase 3-conductor
networks.

Address Connection variant

111 0 = three phase 4-con-

ductor networks (factory
default setting)

1 = three-phase 3-con­ductor networks

012 L1 (primary)
013 L1 (secondary)
022 L2 (primary)
023 L2 (secondary)
032 L3 (primary)
033 L3 (secondary)
042 L4 (primary)
043 L4 (secondary)

NOTE!

C

It is not necessary to configure
a connection schematic for
measurement inputs L4 and I4.

38

UMG 604-PRO

www.janitza.de

11. 5 RS232 configuration

The following data must be programmed to
operate the RS232 interface:

• baud rate,

• operating mode.

For information on the factory default setting
and the setting ranges, see the parameter list
in section “17. Parameter list”.

Address Settings

201 Baud rate, RS232

0 = 9600Bit/s
1 = 19200Bit/s
2 = 38400Bit/s
3 = 57600Bit/s
4 =115200Bit/s

204 RS232. mode

0 = Modbus RTU/slave
3 = Debug
6 = SLIP
(for internal use only)

11. 6 RS485 configuration

The following data must be programmed to
operate the RS485 interface:

• device address,

• baud rate,

• operating mode,

For information on the factory default setting
and the setting ranges, see the parameter list
in section “17. Parameter list”.

Address Settings

200 Device address (1 to 255)

applies to Modbus and Profibus
1 = factory default setting

202 Baud rate, RS485

0 = 9600Bit/s
1 = 19200Bit/s
2 = 38400Bit/s
3 = 57600Bit/s
4 =115200Bit/s
5 = 921600Bit/s

203 RS485, mode

0 = Modbus RTU/slave
1 = Modbus RTU/master
2 = Gateway transparent

39

www.janitza.de

UMG 604-PRO

11. 7 Ethernet configuration
Static IP address

In simple networks with no DHCP server, the
network address must be set right on the device
itself.

BootP

BootP enables the device to be integrated into
an existing network fully automatically. However,
BootP is an older protocol and does not provide
the scope of functions provided by DHCP.

DHCP mode

DHCP makes it possible integrate a UMG
604-PRO into an existing network fully
automatically without the need for any additional
configuration. When started, the device
automatically obtains the IP address, the subnet
mask and the gateway from the DHCP server.
The device is factory-set to the DHCP client.

m

CAUTION!

Damage to property due to

incorrect network settings

Address Settings

205 DHCP mode

0 = static IP
1 = BootP

2 = DHCP client
300 IP address, xxx --- --- --­301 IP address, --- xxx --- --­302 IP address, --- --- xxx --­303 IP address, --- --- --- xxx
304 IP mask, xxx --- --- --­305 IP mask, --- xxx --- --­306 IP mask, --- --- xxx ---
307 IP mask, --- --- --- xxx
310 IP gateway, xxx --- --- --­311 IP gateway, --- xxx --- --­312 IP gateway, --- --- xxx ---
313 IP gateway, --- --- --- xxx

Incorrect network settings can cause faults
in the IT network.

Obtain information from your network
administrator about the correct settings
for your device.

PC UMG604

Patch cable

Fig. Connection example, the UMG 604-PRO and PC

require a static IP address.

Switch

Patch cable

DHCP

server

Patch cable

Fig. Connection example, the UMG 604-PRO and PC are

automatically assigned an IP address by a DHCP server.

PC UMG604

Patch

cable

Switch

Patch cable

40

UMG 604-PRO

www.janitza.de

11. 8 Profibus configuration

11. 8. 1 Profiles

The device can manage 16 Profibus profiles,
each with a maximum of 128 data bytes.

The first data byte in the output box
of the PLC always contains the profile
number of the
Profibus profile requested by the UMG.

In order to request a Profibus profile, write
the profile number in the first byte in the
PLC output box.

All system variables and global variables

1)

can be scaled individually and converted into
one of the following formats:

• 8, 16, 32 bit integer with and without sign.

• 32 or 64 bit float format.

• Big or little endian2).

1) Global variables are variables that the user
defines in Jasic and are available to each interface in the UMG604
2 ) Big endian = high byte before low byte.
Little endian = low byte before high byte.

11. 8. 2 Device master file

The device master file, abbreviated as the GSD
file, describes the Profibus characteristics
of the UMG. The GSD file is required by the
configuration program of the PLC.

The device master file for your device
is called “0B41.GSD” and is
available on the Janitza homepage.

PLC

PLC output box

1. Byte = profile number
As of the 2nd byte,
variables for the
UMG 604-PRO follow.

PLC input box

1. Byte = return signal
from the profile number
As of the 2nd byte, the
variables requested by the
UMG 604-PRO follow.

UMG 604-PRO

Address Settings

200 Device address (1 to 255)

applies to Modbus and Profibus
1 = factory default setting

Fig. Excerpt from the parameter list.

Fig. Block diagram for data exchange between PLC and

UMG 604-PRO.

41

www.janitza.de

11. 8. 3 Pre-set profiles

Profibus profile number 0

1 1 Voltage L1-N Float 1

2 5 Voltage L2-N Float 1

3 9 Voltage L3-N Float 1

4 13 Voltage L4-N Float 1

5 17 Voltage L2-L1 Float 1

6 21 Voltage L3-L2 Float 1

7 25 Voltage L1-L3 Float 1

8 29 Current L1 Float 1

9 33 Current L2 Float 1

10 37 Current L3 Float 1

11 41 Current L4 Float 1

12 45 Active power L1 Float 1

13 49 Active power L2 Float 1

14 53 Active power L3 Float 1

15 57 Active power L4 Float 1

16 61 Cosphi (math.) L1 Float 1

17 65 Cosphi (math.) L2 Float 1

18 69 Cosphi (math.) L3 Float 1

19 73 Cosphi (math.) L4 Float 1

20 77 Frequency Float 1

21 81 Total active power L1-L4 Float 1

22 85 Total reactive power L1-L4 Float 1

23 89 Total apparent power L1-L4 Float 1

24 93 Total cosphi (math.) L1-L4 Float 1

25 97 Total effective current L1-L4 Float 1

26 101 Total active energy L1-L4 Float 1

27 105 Ind. Total reactive energy L1-L4 Float 1

28 109 THD voltage L1 Float 1

29 113 THD voltage L2 Float 1

30 117 THD voltage L3 Float 1

UMG 604-PRO

42

UMG 604-PRO

www.janitza.de

Profibus profile number 1

1 1 Voltage L1-N Float 1

2 5 Voltage L2-N Float 1

3 9 Voltage L3-N Float 1

4 13 Voltage L2-L1 Float 1

5 17 Voltage L3-L2 Float 1

6 21 Voltage L1-L3 Float 1

7 25 Current L1 Float 1

8 29 Current L2 Float 1

9 33 Current L3 Float 1

10 37 Active power L1 Float 1

11 41 Active power L2 Float 1

12 45 Active power L3 Float 1

13 49 Cosphi (math.) L1 Float 1

14 53 Cosphi (math.) L2 Float 1

15 57 Cosphi (math.) L3 Float 1

16 61 Frequency Float 1

17 65 Total active power L1-L3 Float 1

18 69 Total reactive power L1-L3 Float 1

19 73 Total apparent power L1-L3 Float 1

20 77 Total cosphi (math.) L1-L3 Float 1

21 81 Total effective current L1-L3 Float 1

22 85 Total active energy L1-L3 Float 1

23 89 Ind. Total reactive energy L1-L3 Float 1

24 93 THD voltage L1 Float 1

25 97 THD voltage L2 Float 1

26 101 THD voltage L3 Float 1

27 105 THD current L1 Float 1

28 109 THD current L2 Float 1

29 113 THD current L3 Float 1

43

www.janitza.de

Profibus profile number 2

1 1 Total active energy L1-L3 Float 1

2 5 Rel. Total active energy L1-L3 Float 1

3 9 Deliv. Total active energy L1-L3 Float 1

4 13 Total reactive energy L1-L3 Float 1

5 17 Ind. Total reactive energy L1-L3 Float 1

6 21 Total cap. reactive energy L1-L3 Float 1

7 25 Total apparent energy L1-L3 Float 1

8 29 Active energy L1 Float 1

9 33 Active energy L2 Float 1

10 37 Active energy L3 Float 1

11 41 Inductive reactive energy L1 Float 1

12 45 Inductive reactive energy L2 Float 1

13 49 Inductive reactive energy L3 Float 1

UMG 604-PRO

Profibus profile number 3

1 1 Active power L1 Float 1

2 5 Active power L2 Float 1

3 9 Active power L3 Float 1

4 13 Total active power L1-L3 Float 1

5 17 Current L1 Float 1

6 21 Current L2 Float 1

7 25 Current L3 Float 1

8 29 Total current L1-L3 Float 1

9 33 Total active energy L1-L3 Float 1

10 37 CosPhi (math.) L1 Float 1

11 41 CosPhi (math.) L2 Float 1

12 45 CosPhi (math.) L3 Float 1

13 49 Total CosPhi (math.) L1-L3 Float 1

14 53 Reactive power L1 Float 1

15 53 Reactive power L2 Float 1

16 53 Reactive power L3 Float 1

17 53 Total reactive power L1-L3 Float 1

18 53 Apparent power L1 Float 1

19 53 Apparent power L2 Float 1

20 53 Apparent power L3 Float 1

21 53 Total apparent power L1-L3 Float 1

44

UMG 604-PRO

www.janitza.de

11. 9 Recording configuration

2 recordings are pre-configured in the
device’s factory default setting.

Recordings are adjusted and expanded using
the
GridVis® software.

Recording 1

The following measured values are recorded
with the time base of 15 minutes:

• Voltage effective L1

• Voltage effective L2

• Voltage effective L3

• Voltage effective L4

• Voltage effective L1-L2

• Voltage effective L2-L3

• Voltage effective L3-L1

• Current effective L1

• Current effective L2

• Current effective L3

• Current effective L4

• Active power L1

• Active power L2

• Active power L3

• Active power L4

• Total active power L1-L3

• Total active power L1-L4

• Reactive power fundamental oscillation L1

• Reactive power fundamental oscillation L2

• Reactive power fundamental oscillation L3

• Reactive power fundamental oscillation L4

• Total reactive power fundamental
oscillation L1-L3

• Total reactive power fundamental
oscillation L1-L4

Recording 2

The following measured values are recorded
with the time base of 1 hour:

• Active energy drawn L1

• Active energy drawn L2

• Active energy drawn L3

• Active energy drawn L4

• Total active energy drawn L1-L3

• Total active energy drawn L1-L4

• Inductive reactive energy L1

• Inductive reactive energy L2

• Inductive reactive energy L3

• Inductive reactive energy L4

• Total inductive reactive energy L1-L3

• Total inductive reactive energy L1-L4

45

(The mean value, minimum value, and
maximum value are also recorded for each
measured value.)

www.janitza.de

UMG 604-PRO

46

UMG 604-PRO

www.janitza.de

12. System information

12. 1 Measurement range exceeded

If the measurement range is exceeded, it is
displayed as long as this persists and cannot
be acknowledged. The measurement range
is exceeded if at least one of the four voltage
or current measurement inputs is outside its
specified metering range.

If the measurement range is exceeded, this is
shown on the display with “EEEE”.

Symbols L1, L2, L3 and L4 are used to show
the input on which the measurement range
was exceeded. The "V" and "A" symbols
indicate whether the measurement range
has been exceeded in the current or voltage
circuit.

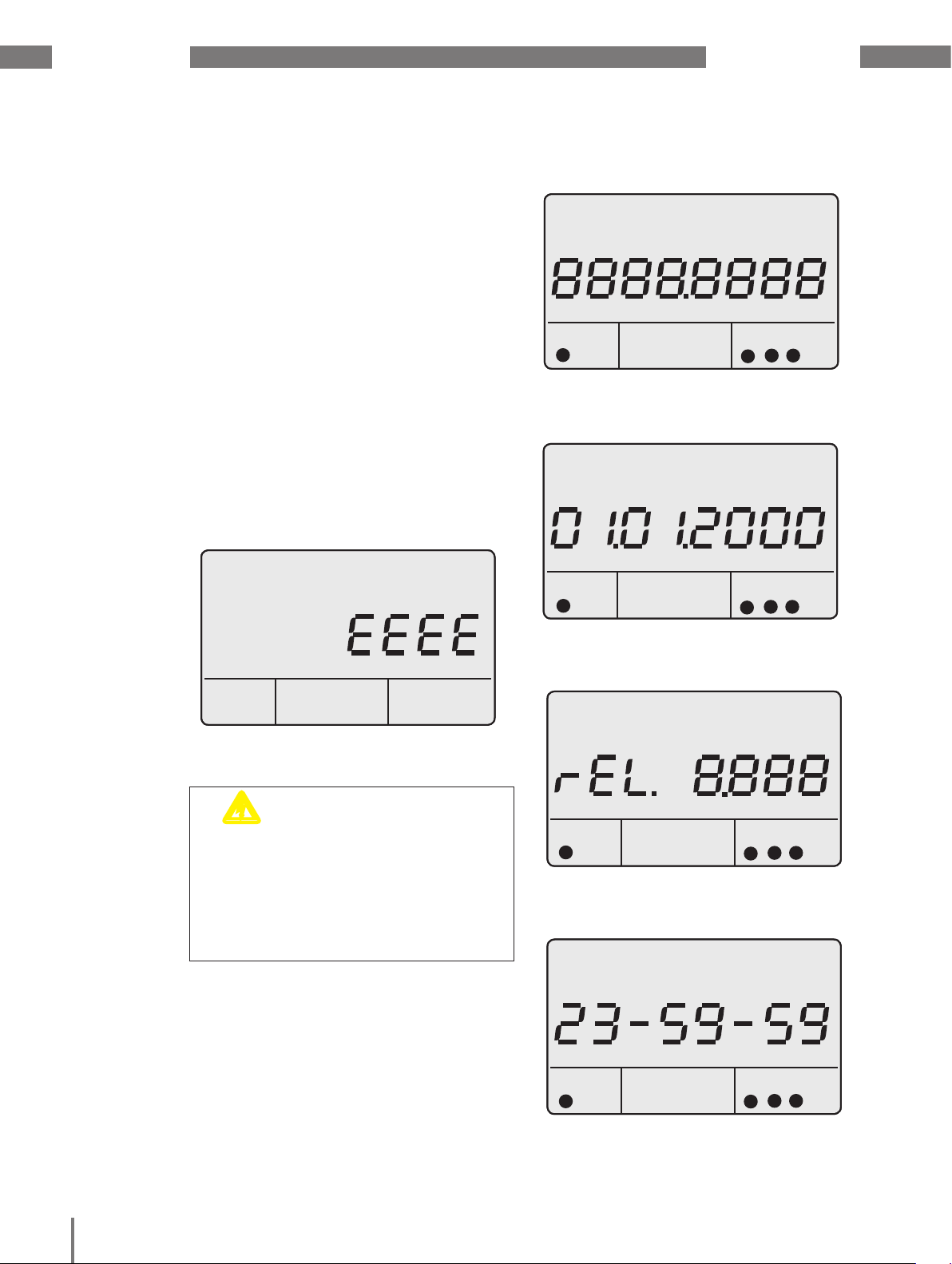

L1 L2 L3 L4

VA

Serial number

RxD TxD

Fig. Measured value indication with serial number.

Date

RxD TxD

Fig. Measured value indication with date.

Input Output

Input Output

L1 L2 L3 L4

L1 L2 L3 L4

RxD TxD

Fig. Measured value indication with measurement range

exceeded.

c

CAUTION!

Failure to observe the connection conditions
can damage or destroy your device.

Adhere to the specifications for voltage
and frequency on the rating plate.

Input Output

Damage to property due

to not observing the

connection conditions

L1 L2 L3 L4

Firmware release

RxD TxD

Fig. Measured value indication for the firmware release.

Time

RxD TxD

Fig. Measured value indication with time.

Input Output

Input Output

L1 L2 L3 L4

L1 L2 L3 L4

47

www.janitza.de

UMG 604-PRO

48

UMG 604-PRO

www.janitza.de

13. Device homepage

Your measurement device has an integrated
web server, which has a separate homepage.
You can use this device home page to access
your measurement device from any end device
via a standard web browser. You can access
the homepage for your device by entering
the device’s PI address in a web browser
on your end device. Section “11. 7 Ethernet
configuration” explains how to connect the
device to the internet.

You can do the following here without first
installing any software:

• call historical and current measured
values.

• call the power quality status in an easy to
understand illustration.

• control your device remotely.

• access installed apps.

49

Fig. Device homepage overview

www.janitza.de

13. 1 Measured values

You can use the Measured values menu item to call simple and detailed views of the measured
values, and to display individual measured values. The following menu items are available:

• Short overview

• Detailed measured values

• Diagrams

• Events

• Transients

13. 1. 1 Short overview

The Short overview provides you with the most important measured values for each phase,
such as the current voltage values, power values and current strength.

UMG 604-PRO

Fig. Short overview of measured values

50

UMG 604-PRO

www.janitza.de

13. 1. 2 Detailed measured values

In the overview, you can call extensive information on the following points:

• Voltage

• Current

• Power

• Harmonic oscillations

• Energy

• Peripheral devices (digital inputs/outputs, temperature measurements)

Fig. Detailed overview of measured values

51

www.janitza.de

13. 1. 3 Diagrams

You can use the “Diagrams” item to access the measured values monitor. The measured val­ues monitor is a configurable display of current and historical measured values with automatic
scaling. In order to display a graphic of the measured values, drag the required values from
the list on the left edge of the screen into the field in the middle of the screen.

UMG 604-PRO

Fig. Device homepage event records

13. 1. 4 Events

You can use events item to display a graphical illustration of the recorded events such as
overcurrent or undervoltage by clicking the relevant event in the list.

Fig. Event records

52

UMG 604-PRO

www.janitza.de

13. 1. 5 Transients

The “Transients” area provides a graphic illustration of transients within a date list. Transient
voltages:

• are fast impulse transient effects in electrical networks.

• are unpredictable from a time perspective and have a limited duration.

• are caused by lightning strikes, switching operations or by tripped fuses.

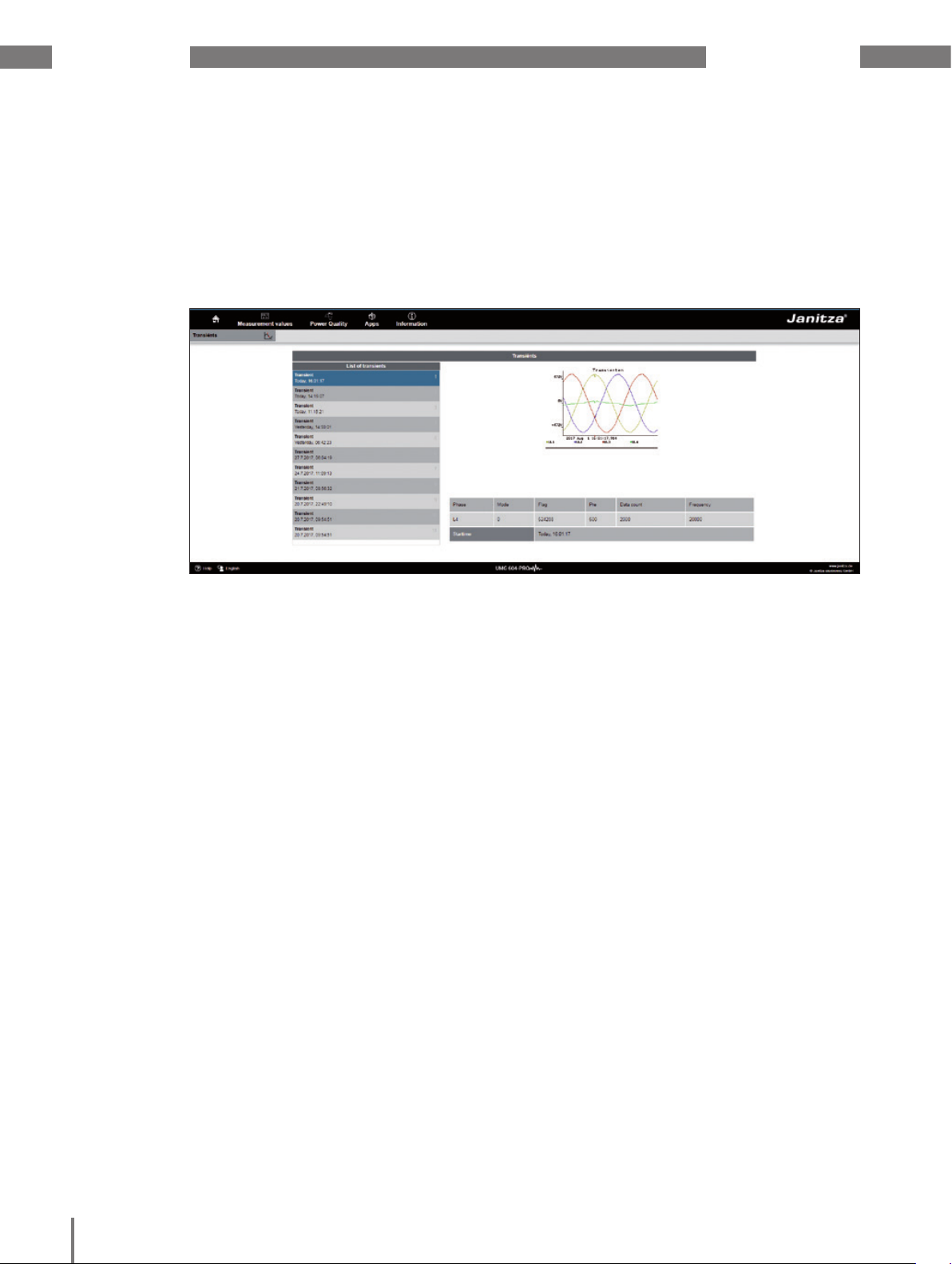

Fig. Transients

53

www.janitza.de

13. 2 Power quality

The “Power quality” section (PQ) provides you with the option of calling the PQ status in
a clear way according to common standards. Here, you have access to permanent power
quality monitoring in accordance with:

• IEC 61000-2-4 in customer supply networks.

The display is based on the traffic light principle, which makes it easy to detect events that do not
meet the relevant quality requirements without in-depth knowledge.

UMG 604-PRO

Fig. IEC 61000-2-4 parameters with traffic-light principle

54

UMG 604-PRO

www.janitza.de

13. 3 Apps

You have the option of extending the functions on your device retrospectively by installing
additional apps.

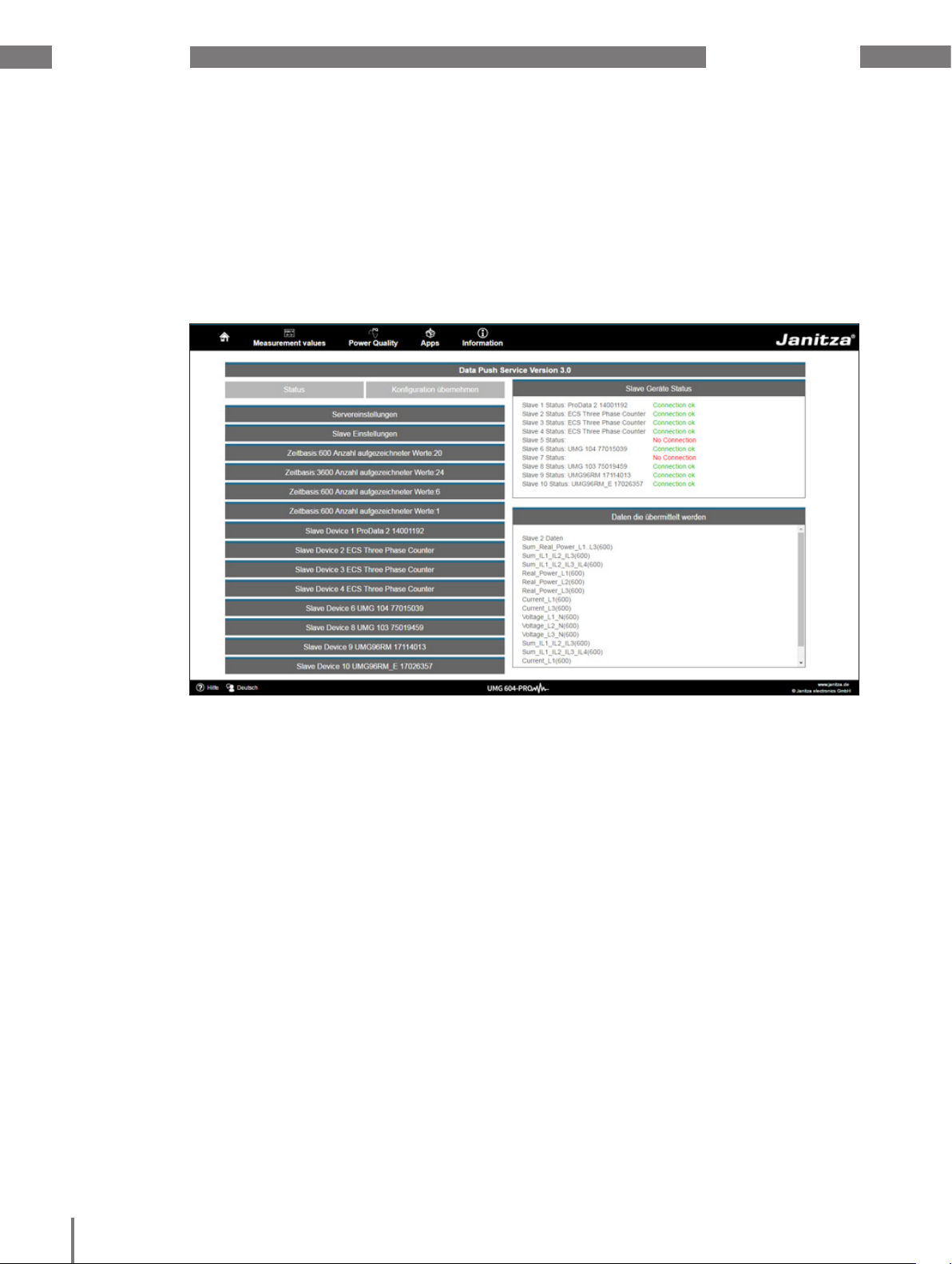

13. 3. 1 Push Service

The push service is an example of an installable app. The push service sends measured
values directly from the device to a cloud or portal solution chosen by you, such as the
Janitza Energy Portal

Fig. Push Service

55

www.janitza.de

13. 4 Information

13. 4. 1 Device information

You can use the Device information menu item to obtain all information and settings that you
can change on the device.

13. 4. 2 Downloads

You can use the Downloads item to access the download area on the Janitza homepage.
You can download catalogues, operation manuals and additional documentation from here.

13. 4. 3 Display

The Display item provides you with the display of your device, which corresponds to the real
display.

You can control the device remotely here by clicking the control buttons using the mouse.

UMG 604-PRO

Fig. Operating the UMG 604-PRO via the device homepage

56

UMG 604-PRO

www.janitza.de

14. Service and maintenance

The device underwent various safety checks
before delivery and is marked with a seal.
If a device is open, the safety checks must
be repeated. Warranty claims will only be
accepted if the device is unopened.

14. 1 Repair and calibration

Repair work and calibration can be carried
out by the manufacturer only.

14. 2 Front film

The front film can be cleaned with a soft cloth
and standard household cleaning agent. Do
not use acids and products containing acid
for cleaning.

14. 3 Disposal

Observe the national regulations! If
necessary, dispose of individual parts
according to their properties and existing
country-specific regulations, e.g. as:

• Electronic waste

• Plastics

• Metals
or commission a certified disposal company
with scrapping.

14. 4 Service

Should questions arise, which are not
described in this manual, please contact the
manufacturer directly.
We will need the following information from
you to answer any questions:

14. 5 Battery

The internal clock is fed from the supply
voltage.

If the supply voltage fails then the clock is
powered by the battery.
The clock provides date and time
information, for the records, min. and max.
values and events, for example.

The life expectancy of the battery is at least
5 years with a storage temperature of +45°C.
The typical life expectancy of the battery is 8
to 10 years.

The device must be opened to change the
battery.

C

14. 6 Firmware update

In order to carry out a firmware update,
connect the device to a computer via
Ethernet and access it using the GridVis®
software.

Open the firmware update wizard by clicking
“Update device” in the “Extras” menu.

NOTE!

If the device has been opened,
a new safety inspection must be
carried out to ensure safe operation.
Warranty claims will only be
accepted if the device is unopened.

57

• device name (see rating plate),

• serial number (see rating plate),

• software release (see measured value

indication),

• measured voltage and supply voltage,

• precise description of the error.

Select the relevant update file and carry out
the update.

C

NOTE!

Firmware may not be updated via
the RS485 interface.

www.janitza.de

UMG 604-PRO

58

UMG 604-PRO

15. Procedure in the event of faults

Possible fault Cause Remedy

No display External fuse for the power

supply voltage has tripped.
Device defective. Send the device to the

No current display Measured voltage is not

connected.
Measurement current is not

connected.

Displayed current is too
high or too low

Voltage displayed is too
high or too low.

Voltage displayed is too
low.

“EEEE” and “V” on the
display

“EEE” and “A” on the
display

Current measurement in the
wrong phase.

Current transformer factor is
incorrectly programmed.

Measurement in the wrong
phase.

Voltage transformer incorrectly
programmed.

Measurement range exceeded. Use voltage transformers.
The peak voltage value at the

measurement input has been
exceeded by the harmonics.

The voltage measurement
range has been exceeded.

The current measurement range
has been exceeded.

Replace fuses.

manufacturer for repair.
Connect the measured voltage.

Connect measuring-circuit
current.

Check connection and correct if
necessary.

Read out and program the CT
ratio on the current transformer.

Check connection and, if
necessary, correct.

Read out and program the
voltage transformer ratio at the
voltage transformer.

Attention! Ensure the
measurement inputs are not
overloaded.

Check the measured voltage
and install a suitable voltage
transformer if necessary.

Check the measured current
and install a suitable current
transformer if necessary.

www.janitza.de

Table Procedure in the event of faults, part 1

59

www.janitza.de

Possible fault Cause Remedy

“Error CF” on the
display

Active power,
consumption/supply
reversed.

Active power too high
or too low.

No connection to the
device.

Device still does not
work despite the above
measures.

The calibration data could not
be read.

At least one current transformer
connection is mixed up/
reversed.

A current circuit is assigned to
the wrong voltage circuit.

The programmed CT ratio is
incorrect.

The current circuit is assigned
to the wrong voltage circuit.

The programmed voltage
transformer ratio is incorrect.

RS485:

- Incorrect device address.

- Wrong protocol.

- Termination missing.

Ethernet:

- Incorrect IP address

- The hidden button (Service)
was pressed.

Device defective. Send the device to the

Send the device to the
manufacturer for inspection and
testing along with an accurate
fault description.

Check connection and correct
if necessary.

Check connection and correct
if necessary.

Read out and program the CT
ratio on the current transformer

Check connection and correct
if necessary.

Read out and program the
voltage transformer ratio at the
voltage transformer.

Set the device address.
Select the protocol.
Terminate the bus with a
termination resistor (120 ohm).

Set the IP address on the device.
Describe address 204 with 0 and
set the IP address or activate
DHCP.

manufacturer for inspection,
along with an accurate fault
description
.

UMG 604-PRO

Table Procedure in the event of faults, part 2

60

UMG 604-PRO

www.janitza.de

16. Technical data

16. 1 General

Net weight 350 g
Device dimensions Approx. l=107.5 mm, w=90 mm, h=82 mm

(per DIN 43871:1992)
Housing flammability rating UL 94V-0
Installation position any
Fastening/assembly 35 mm DIN rail

(per IEC/EN60999-1, DIN EN 50022)
Battery Type Lithium CR2032, 3 V

(approval i.a.w. UL 1642)
Service life of the backlight (optional) 40000 h (50% of the initial brightness)

16. 2 Environmental conditions

The device is intended for weatherproof, fixed installation and meets the operational
conditions in accordance with DIN IEC 60721-3-3.

Working temperature range -10 °C to +55 °C
Relative humidity 5 to 95% RH, (at +25 °C) without condensation
Pollution degree 2
Operating altitude 0 to 2000 m above sea level
Installation position any
Ventilation Forced ventilation is not required.

16. 3 Transport and storage

The following information applies to devices which are transported or stored in the original
packaging.

Free fall 1 m
Temperature -20 °C to +70 °C

61

www.janitza.de

16. 4 Supply voltage

The supply voltage must be connected through a UL/IEC approved fuse (6A char. B) to the
device.

230 V option:

UMG 604-PRO

• Nominal range

• Operating range

• Power consumption

• Overvoltage category

90 V option (without UL approval):

• Nominal range

• Operating range

• Power consumption

• Overvoltage category

24V option:

• Nominal range

• Operating range

• Power consumption

• Overvoltage category

Terminal connection capacity (supply voltage)

Connectable conductors. Only one conductor can be connected per terminal!
Single core, multi-core, fine-stranded 0.08 - 2.5 mm2, AWG 28 - 12
Terminal pins, core end sheath 1.5 mm2, AWG 16

95 V to 240 V (50/60 Hz) / DC 135 V to 340 V
+-10% of nominal range
max. 3.2 W / 9 VA
300 V CATII

50 V to 110 V (50/60 Hz) / DC 50 V to 155 V
+-10% of nominal range
max. 3.2 W / 9 VA
300 V CATII

20 V to 50 V (50/60Hz) / DC 20 V to 70 V
+-10% of nominal range
max. 5 W / 8 VA
150 V CATII

16. 5 Protection class

Protection class II in accordance with IEC 60536 (VDE 0106, part 1), i.e. a ground wire
connection is not required!

Protection against ingress of solid foreign
bodies and water

IP20 in accordance with EN60529
September 2014, IEC60529:2013

62

UMG 604-PRO

www.janitza.de

16. 6 Digital inputs and outputs

Digital inputs

Maximum counter frequency
(Pulse input S0)

Switching input
Input signal present 18 V to 28 V DC (typical 4 mA)
Input signal not present 0 to 5 V DC, current less than 0.5 mA
Response time (Jasic program) 200 ms
Cable length up to 30 m unshielded, from 30 m shielded

Digital outputs

2 digital outputs; semiconductor relays, not short-circuit proof
Switching voltage max. 60 V DC, 30 V AC
Switching current max. 50 mAeff AC/DC
Response time (Jasic program) 200 ms
Output of voltage dips 20 ms
Output of voltage exceedance events 20 ms
Switching frequency max. 20 Hz
Cable length up to 30 m unshielded, from 30 m shielded

20 Hz

Terminal connection capacity

Connectable conductors.
Single core, multi-core, fine-stranded 0.08 - 1.5 mm

2

Terminal pins, core end sheath 1 mm2 Only one conductor can be connected

per terminal!

Potential separation and electrical safety for the digital inputs and outputs

• The digital inputs and outputs are double-insulated from the current and voltage
measurement inputs, as well as the supply voltage.

• There is only a functional insulation from the Ethernet, Profibus, RS485 and RS232
interfaces, the temperature measurement input, and from one another.

• The external auxiliary voltage to be connected must be compliant with SELV or PELV.

63

www.janitza.de

16. 7 Temperature measurement input

Temperature measurement input

3-wire measurement
Update time Approx. 200 ms
Connectable sensors PT100, PT1000, KTY83, KTY84
Total burden (sensor + cable) max. 4 kOhm
Cable length up to 30 m unshielded, from 30 m shielded

Sensor type Temperature range Resistor range Measurement

uncertainty

KTY83 -55 °C to +175 °C 500 Ohm to 2.6 kOhm ± 1.5% rng
KTY84 -40 °C to +300 °C 350 Ohm to 2.6 kOhm ± 1.5% rng
PT100 -99 °C to +500 °C 60 Ohm to 180 Ohm ± 1.5% rng
PT1000 -99 °C to +500 °C 600 Ohm to 1.8 kOhm ± 1.5% rng

1)

rng = metering range

1)

1)

1)

1)

UMG 604-PRO

Terminal connection capacity (temperature measurement input)

Single core, multi-core, fine-stranded 0.08 - 1.5 mm
Terminal pins, core end sheath 1 mm

2

Only one conductor can be connected

2

per terminal!

Potential separation and electrical safety for the temperature measurement input

• The temperature measurement input is double-insulated from the current and voltage
measurement inputs, as well as the supply voltage.

• There is no insulation from the RS232 and RS485 interfaces.

• There is only a functional insulation from the Ethernet and Profibus interfaces, and the
digital inputs / outputs.

• The external temperature sensor must be double insulated from the system parts that
carry voltages that are dangerous to touch (per IEC61010-1:2010).

64

UMG 604-PRO

www.janitza.de

16. 8 Voltage measurement inputs

Three-phase 4-conductor systems (L-N/L-L) max. 277 V / 480 V
Three-phase 3-conductor systems (L-L) max. 480 V
Resolution 0.01 V
Metering range L-N 01) to 600 Vrms
Metering range L-L 01) to 1000 Vrms
Crest factor 2 (related to 480 Vrms)
Overvoltage category 300 V CAT III
Measurement surge voltage 4 kV
Protection of voltage measurement 1 - 10 A
Impedance 4 MOhm / phase
Power consumption approx. 0.1 VA
Sampling rate 20 kHz / phase
Transients > 50 µs
Frequency of the fundamental oscillation 45 Hz to 65 Hz

- Resolution 0.001 Hz

1)

The UMG device can only determine measured values if at least one voltage measurement input

has an L-N voltage of greater than 10 Veff or an L-L voltage of greater than 18 Veff.

16. 9 Current measurement inputs

Rated current 5 A
Rated current 6 A
Protection when measuring directly (with-

6 A, char. B (approved i.a.w. UL/IEC)

out a current transformer)
Resolution on the display 10 mA
Metering range 0.005 to 7 Amps
Crest factor 2 (related to 6 Amps)
Overvoltage category 300 V CAT III
Measurement surge voltage 4 kV
Power consumption approx. 0.2 VA (Ri = 5 mOhm)
Overload for 1 sec. 100 A (sinusoidal)
Sampling rate 20 kHz

Measurement precision phase angle

0,15°

Terminal connection capacity (current measurement and voltage measurement)

Connectable conductors. Only one conductor can be connected per terminal!
Single core, multi-core, fine-stranded 0.08 - 4 mm2, AWG 28 - 12
Terminal pins, core end sheath 2.5 mm2, AWG 14

65

www.janitza.de

16. 10 Interfaces

RS232 interface

Connection 5-pin screw-type terminals
Protocol Modbus RTU/slave
Transmission rate 9.6 kbps, 19.2 kbps, 38.4 kbps, 57.6 kbps,

115.2 kbps

RS485 interface

Connection 2-pin screw-type terminals
Protocol Modbus RTU/slave, Modbus RTU/master
Transmission rate 9.6 kbps, 19.2 kbps, 38.4 kbps, 57.6 kbps,

115.2 kbps, 921.6 kbps

Profibus interface (optional)

Connection SUB D 9-pin
Protocol Profibus DP/V0 per EN 50170
Transmission rate 9.6 kBaud to 12 MBaud

UMG 604-PRO

Ethernet interface

Connection RJ45
Function Modbus gateway, embedded web server

(HTTP)

Protocols TCP/IP, EMAIL (SMTP), DHCP client (BootP),

Modbus/TCP(port 502), ICMP (ping), NTP,
TFTP, Modbus RTU over Ethernet (port

8000), FTP SNMP.

Potential separation and electrical safety for the interfaces

• The RS485, RS232, Profibus and Ethernet interfaces are double-insulated from the
current and voltage measurement inputs, as well as the supply voltage.

• The RS232 and RS485 interfaces are not insulated from each other and from the
temperature measurement input.

• The Profibus and Ethernet interfaces have a functional insulation form each other and
from RS232, RS485, the temperature measurement input and digital inputs and outputs.

• The interfaces for the devices connected here must have a double or reinforced
insulation to mains voltages (in accordance with IEC 61010-1: 2010).

66

UMG 604-PRO

www.janitza.de

16. 11 Measurement uncertainty

Measurement uncertainty on the device applies when using the following metering ranges.
The measured value must be within the specified limits. The measurement uncertainty is not
specified outside of these limits.

Measured value Measurement uncertainties

Voltage ± 0.2% per DIN EN 61557-12:2008
Current L ± 0.25% in accordance with DIN EN 61557-12:2008
Current N ± 1% per DIN EN 61557-12:2008
Power ± 0.4% per DIN EN 61557-12:2008
Harmonics U, I Class 1, DIN EN 61000-4-7
Active energy
Current transformer ../5 A Class 0.5S (DIN EN62053-22:2003, IEC62053:22:2003)
Current transformer ../1 A Class 1 (DIN EN62053-21:2003, IEC62053:21:2003)
Reactive energy
Current transformer ../5 A Class 2 (DIN EN62053-23:2003, IEC62053:23:2003)
Current transformer ../1 A Class 2 (DIN EN62053-23:2003, IEC62053:23:2003)
Frequency ± 0.01 Hz
Internal clock ±1 minute/month (18 °C to 28 °C)

The specification applies under the following conditions:

• annual re-calibration,

• a warm-up time of 10 minutes,

• an ambient temperature of 18 to 28 °C.

If the device is operated outside the range of 18 to 28 °C, an additional measurement error of
±0.01% of the measured value per °C deviation must be considered.

67

www.janitza.de

UMG 604-PRO

68

UMG 604-PRO

www.janitza.de

17. Parameter list

Address Designation Setting range Unit Default

000 Current transformer, primary, L1 to L4 0 to 1000000 A 5
001 Current transformer, secondary, L1

to L4
002 Voltage transformer, primary, L1 to L4 0 to 1000000 V 400
003 Voltage transformer, secondary, L1

to L4

010 Current transformer, primary, L1 0 to 1000000 A 5
011
012 Voltage transformer, primary, L1 0 to 1000000 V 400

013

020 Current transformer, primary, L2 0 to 1000000 A 5
021
022 Voltage transformer, primary, L2 0 to 1000000 V 400
023

Current transformer, secondary, L1

Voltage transformer, secondary, L1

Current transformer, secondary, L2

Voltage transformer, secondary, L2

1 to 5 A 5

1 to 400 V 400

1 to 5 A 5

1 to 400 V 400

1 to 5 A 5

1 to 400 V 400

030 Current transformer, primary, L3 0 to 1000000 A 5
031
032 Voltage transformer, primary, L3 0 to 1000000 V 400
033

040 Current transformer, primary, L4 0 to 1000000 A 5
041
042 Current transformer, primary, L4 0 to 1000000 V 400
043 Voltage transformer, secondary, L4 1 to 400 V 400

Table Parameter list for measurement settings

Current transformer, secondary, L3

Voltage transformer, secondary, L3

Current transformer, secondary, L4

1 to 5 A 5

1 to 400 V 400

1 to 5 A 5

69

www.janitza.de

Address Designation Setting range Unit Default

100 Collect TFTP configuration file

automatically
0 = deactivated
x = file number

101 TFTP error handling

0 = in the event of an error, the
configuration menu is shown on
the display.
1 = TFTP error handling in the
device is deactivated

110 Current transformer switch

(L1 to L3)
0 = three current transformers
1 = two current transformers
(Aron circuit)

111 Voltage measurement network

configuration
0 = three-phase 4-conductor
system (TT, TN network)
1 = three-phase 3-conductor
system (IT network)

112 Deletes all active energy counters,

apparent energy counters and S0
counters (1 = delete)

113 Deletes all reactive energy

counters (1 = delete)

114 Resets all min. and max. values

(1 = reset)

0 to 9999 - 0

0 to 1 - 0

0 to 1 - 0

0 to 1 - 0

0 to 1 - 0

0 to 1 - 0

0 to 1 - 0

UMG 604-PRO

Table Parameter list for measurement settings

70

UMG 604-PRO

www.janitza.de

Address Designation Setting range Unit Default

200 Device address, Modbus/Profi-

bus
201 Baud rate, RS232

0 = 9600Bit/s

1 = 19200Bit/s

2 = 38400Bit/s

3 = 57600Bit/s

4 =115200Bit/s
202 Baud rate, RS485

0 = 9600Bit/s

1 = 19200Bit/s

2 = 38400Bit/s

3 = 57600Bit/s

4 =115200Bit/s

5 = 921600Bit/s
203 RS485, mode

0 = Modbus RTU/slave

1 = Modbus RTU/master

2 = Gateway transparent
204 RS232, mode 0 to 6 0

0 = Modbus RTU/slave

3 = Debug

6 = SLIP

(for internal use only)

1 to 255 - 1

0 to 4 - 4

0 to 5 - 4

0 to 6 - 0

0 to 6 - 0

Table Parameter list for bus settings

Address Designation Setting range Unit Default

205 DHCP mode

0,1,2 - 2
0 = static IP
1 = BootP
2 = DHCP client

300 IP address, xxx --- --- --- 0 to 255 - 000
301 IP address, --- xxx --- --- 0 to 255 - 000
302 IP address, --- --- xxx --- 0 to 255 - 000
303 IP address, --- --- --- xxx 0 to 255 - 000
304 IP mask, xxx --- --- --- 0 to 255 - 000
305 IP mask, --- xxx --- --- 0 to 255 - 000
306 IP mask, --- --- xxx --- 0 to 255 - 000

307 IP mask, --- --- --- xxx 0 to 255 - 000

310 IP gateway, xxx --- --- --- 0 to 255 - 000

311 IP gateway, --- xxx --- --- 0 to 255 - 000

312 IP gateway, --- --- xxx --- 0 to 255 - 000

313 IP gateway, --- --- --- xxx 0 to 255 - 000

Table Parameter list for Ethernet settings

71

www.janitza.de

Address Designation Setting range Unit Default

400 Day 1 to 31 - xx
401 Month 1 to 12 - xx
402 Year 1 to 9999 - xxxx
403 Hour 0 to 23 - xx
404 Minute 0 to 59 - xx
405 Second 0 to 59 - xx
406 Copy date and time

1 = copy set data

500 Device password 0 to 9999 - xxxx

501 Homepage, password mode 0, 2, 128, 130 - 0

502 Homepage, password 0 to 9999 - xxxx

510 Enabling “EMAX” option, licence

part 1

511 Enabling “EMAX” option, licence

part 2

520 Enabling “BACnet” option,

licence part 1

521 Enabling “BACnet” option,

licence part 2
600 LCD, contrast 0 to 99 - 50
601 LCD, backlight, max. brightness 0 to 16 - 10
602 LCD, backlight, min. brightness 0 to 8 - 3
603 LCD, backlight, time until

switching from maximum to

minimum brightness.

0, 1 - 0

0 to 9999 - xxxx

0 to 9999 - xxxx

0 to 9999 - xxxx

0 to 9999 - xxxx

0 to 9999 s 60

UMG 604-PRO

Table Parameter list for other settings

72

UMG 604-PRO

www.janitza.de

18. Measured value indications

You can use buttons 1 and 2 on the display to display the following measured values in the
factory default setting. The measured value designations used are abbreviated and have the
following meanings:

• Active power = active power, consumption

• Reactive power= reactive power, inductive

• Active energy = active energy, consumption with backstop

Voltage

L1-N

Voltage

L1-L2

Current

L1

Active powerL1Active powerL2Active powerL3Active power

Reactive power

L1

Active energy

L1

cos(phi)

L1

Frequency

rotation field

Voltage

L2-N

Voltage

L2-L3

Current

L2

Reactive power

L2

Active energy

L2

cos(phi)

L2

Temperature

measurement

input

Voltage

L3-N

Voltage

L3-L1

Current

L3

Reactive power

L3

Active energy

L3

cos(phi)

L3

Date Time

Voltage

L4-N

Current

L4

L4

Reactive power

L4

Active energy

L4

cos(phi)

L4

Active power

L1 to L3

Reactive power

L1 to L3

Active energy

L1 to L3

cos(phi)
L1 to L3

Serial

number

Active power

L1 to L4

Reactive power

L1 to L4

Active energy

L1 to L4

Firmware

release

73

www.janitza.de

UMG 604-PRO

74

UMG 604-PRO

www.janitza.de

19. Dimension diagrams

19. 1 Front view

75

Fig. Front view of UMG 604-PRO with installation dimensions

www.janitza.de

19. 2 Side view

UMG 604-PRO

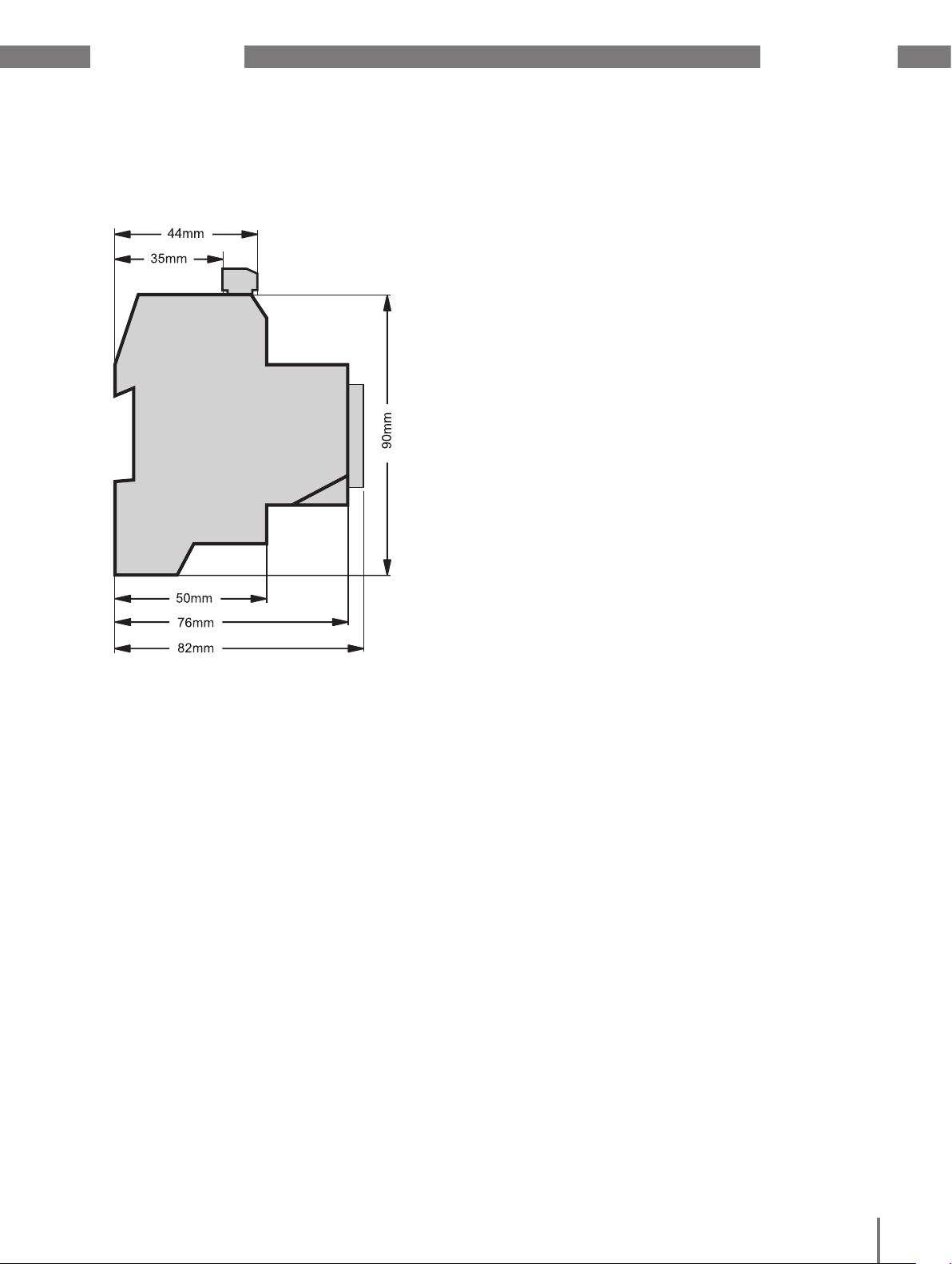

Fig. Schematic side view of UMG 604-PRO with installation dimensions

76

UMG 604-PRO

Verbraucher

Consumer

www.janitza.de

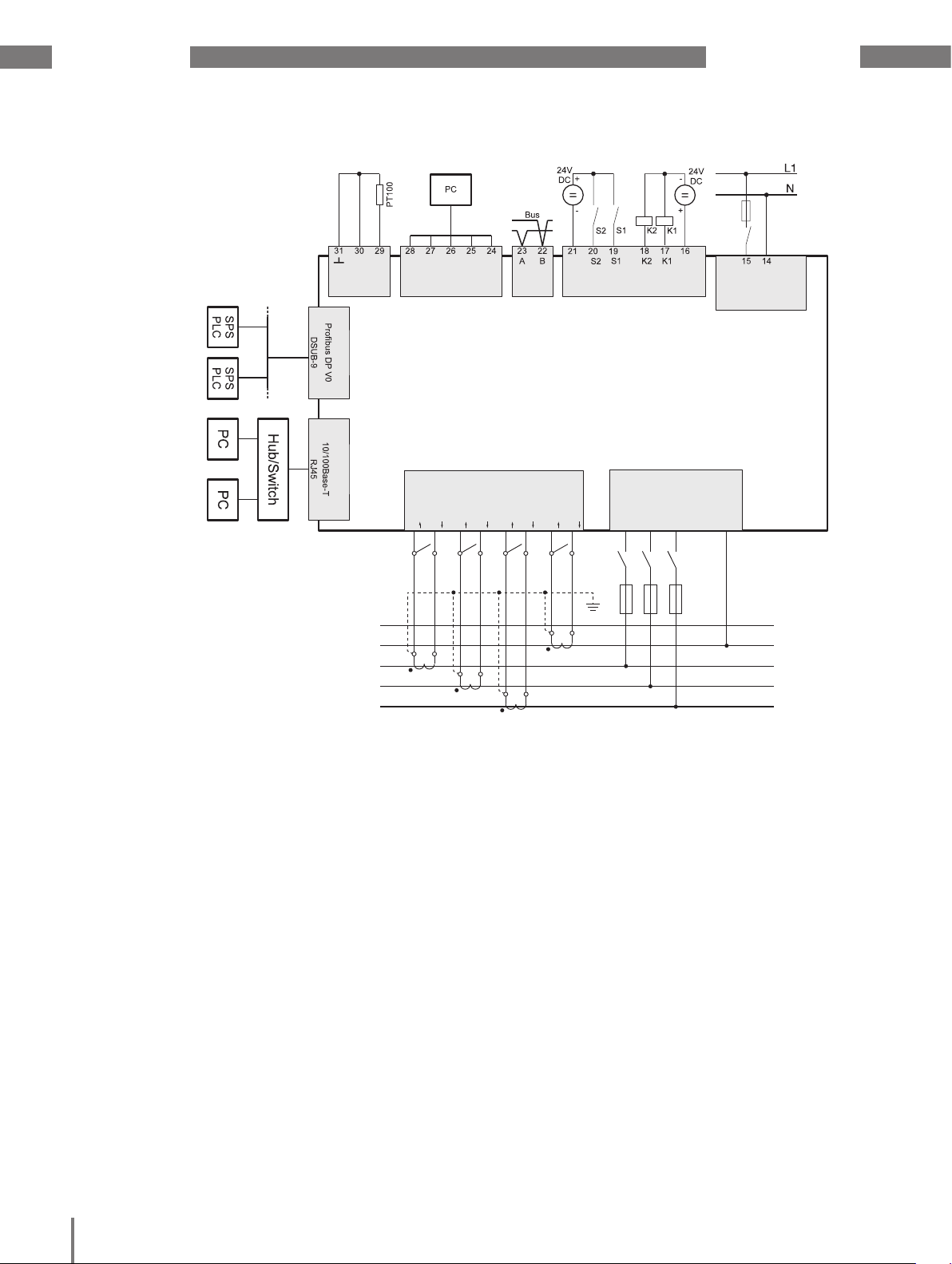

20. Connection example

Option Option

RS485 Ethernet

1

I

1 2 3 4 5 6 7 8

PE

N

S1

L1

L2

L3

Fig. Connection example for UMG 604-PRO

Strommessung

Current measurement

I2 I3 I4

S2

S2

S1

S1 S2

Dig. I/ORS485RS232An. In

Versorgungs-

spannung

Auxiliary Supply

Power Analyser

UMG 604-PRO

Spannungsmessung

Voltage measurement

1 L2 L3 L4

L

9 10 11 12

S2

S1

N

13

77

www.janitza.de

UMG 604-PRO

78

UMG 604-PRO

21. Short introduction (setting primary current)

You have three identical current transformers
with a current transformer ratio of 200 A / 5 A.
You want to program the primary current of 200 A.
To do this, you must enter the value 200 for
the primary current in address 000.
The secondary current is factory-set to 5 A in
address 001.

1. Switch to programming mode by pressing
buttons 1 and 2 simultaneously for
approximately one second.

• The symbol for programming mode PRG
appears.

• The contents of address 000 are displayed.

Address Content

Fig. UMG 604-PRO display in programming mode

www.janitza.de

PRG

2. Enter the primary current by using button
1 to select the number to be changed and
button 2 to change the selected number.

3. Exit programming mode by pressing
buttons 1 and 2 simultaneously again for
approximately one second.

• The current transformer setting is saved.

• The device returns to display mode.

PRG

Address Content

Fig. UMG 604-PRO display in programming mode

79

www.janitza.de

UMG 604-PRO

80
