Janitza UMG 604 User guide

Power Analyser

UMG 604

Product No. 33.03.070

Janitza electronics GmbH
Vor dem Polstück 1
D-35633 Lahnau
Support Tel. [phone]
Fax [phone]
e-mail: [e-mail]

Doc No. 1.033.075.0

Internet: http://www.janitza.com

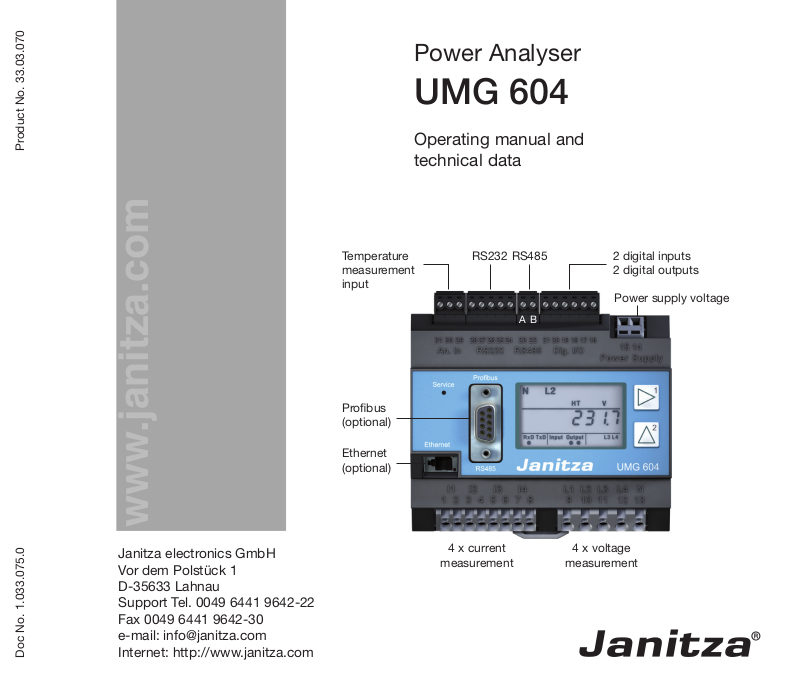

Temperature
measurement
input

Profibus
(optional)

Ethernet
(optional)

www.janitza.com

Operating manual and
technical data

RS232 RS485 2 digital inputs

A B

4 x current

measurement

measurement

2 digital outputs

Power supply voltage

4 x voltage

UMG 604

Contents

General Information 4

Protected trademarks 4
Meaning of the symbols used 5

Inspection on receipt 6

Scope of supply 7
Available accessories 7
Notes on Use 8

Product Description 10

Intended use 10
UMG604 features 11
Methods of measurement 12
Operating concept 12
GridVis programming software 13
Three-phase 4-wire systems 14
Three-phase 3-wire systems 16

Use 18

Key functions 18
Concealed key (service) 18
Display mode 19
Programming mode 20

Display password 21
Homepage password 21

Installation 22

Installed position 22
Power supply voltage 23
Current measurement 24
Ammeter 26
Direct measurement 28
Voltage measurement 30
Interfaces 32
RS485 33
RS485 profibus DP V0 slave 36
Digital inputs and outputs 38
Temperature measurement input 42

Putting into Service 43

Applying the power supply voltage 43
Frequency measurement 43
Applying the measuring-circuit voltage 44
Phase sequence 45
Applying the measuring-circuit current 45
Checking the energy measurement 46

Configuration 48

Current transformer ratio 48
Current measurement connection options 49
Voltage transformer ratio 50
Voltage measurement connection options 51
Interfaces 52
RS232 52
RS485 52
Ethernet (optional) 53

2

UMG 604

Profibus (optional) 54
Recordings 55

System information 56

Overrange 56
Serial number 57
Date 57
Firmware release 57
Time 57

Service and maintenance 58

Repair and calibration 58
Front film 58
Battery 58
Firmware update 58
Service 58
Trouble shooting 59

Technical specifications 62

General information 62
Ambient conditions during operation 62
Transport and storage 62
Power supply voltage 63
Protection class 64
Inputs and outputs 65
Temperature measurement input 66
Interfaces 67
Measurement uncertainty 68
Measuring inputs 69

Voltage measurement 69
Parameter list 71

Appendix 76

Measured value displays 76
Declaration of conformity 77
Dimensioned drawings 78
UMG604 connection example 79

Quick Reference Instructions 80

3

UMG 604

General Information

Protected trademarks

All trademarks and their resulting rights belong
to the respective holders of these rights.

4

Meaning of the symbols used

The following pictograms are used in this
manual:

UMG 604

c

m

C

Dangerous voltage!

Danger or risk of severe injury.
Disconnect the system and device
from the power supply before starting
the work.

Important!

Please note and follow the
documentation. This symbol is
intended to warn you of possi­ble hazards that can occur during
installation, starting up and use.

Note.

PE (protective earth) terminal.

5

UMG 604

Inspection on receipt

Fault free and safe use of this device requires
appropriate transport, proper storage, erection
and assembly as well as careful operation and
maintenance. If it can be assumed that safe
operation is no longer possible, the device
must be immediately taken out of service and
secured against being accidentally started
up.
The device must be unpacked and packed
with the usual care, without the use of force
and only using suitable tools. The devices
must be visually inspected for perfect
mechanical condition. Please also note and
follow the installation instructions enclosed
with the device.
It can be assumed that safe operation is no
longer possible if the device, e.g.

• has visible damage,

• no longer works, despite intact mains power
supply,

• has been exposed to unfavourable conditions
(e.g. storage outside the permissible climatic
limits without adjustment to the ambient
climate, condensation, or similar) for a lengthy
period or was exposed to unfavourable effects
or loads during transport (e.g. fall from a large
height even if there is no visible external
damage, or similar).

Please check the scope of supply for
completeness before you start installing the
device.

C

C

C

All screw-type terminals belonging to
the scope of supply are plugged into
the device.

The installation and start-up instruc­tions also describe options which do
not belong to the scope of supply.

All supplied options and design
versions are described on the delivery
note.

6

Scope of supply

Number Product No. Name

UMG 604

1 52 16 xxx1) UMG604 XX
1 33 03 070 Operating manual and technical data
1 33.03.304 Quick guide (supplement to the operating instructions)
1 51 00 116 CD with the following content:

- “GridVis” programming software,

- Functional descriptions, GridVis, UMG604 ..

- GSD file “0B41.GSD” for profibus DP V0
1 10 01 807 Screw-type terminal, plug-in, 2 pin.
1 10 01 808 Screw-type terminal, plug-in, 3 pin.
1 10 01 809 Screw-type terminal, plug-in, 5 pin.
1 10 01 810 Screw-type terminal, plug-in, 6 pin.
1 89 10 051 Slot-head screwdriver (0.40x2 mm), ESD
1 08 01 505 Patch cable, 2m, twisted, grey. (UMG604 - PC/switch connection)
1 52 00 008 RS485 external terminating resistor, 120 ohm

1)

Refer to delivery note for product number.

2)

Design version.

2)

Available accessories

Product No. Name

21 01 058 Battery, Lithium CR2032, 3V (according to UL 1642)
08 02 427 RS232, Connection cable (UMG 604 – PC), 2m, 5 poles

7

UMG 604

Notes on Use

Please read these operating instructions and
all other publications which have to be used
to work with this product (in particular for
installation, operation or maintenance).

Note and follow all safety instructions as well
as any warnings. If you do not follow the
instructions, personal injuries and/or damage
to the product could be the result.

Any unauthorised change or use of this device
which extends beyond the given mechanical,
electrical or other operating limits can cause
personal injuries and/or damage to the
product.

Any such unauthorised change is “misuse”
and/or “negligence” under the product's
warranty and therefore excludes the warranty
for cover of possible resulting injuries or
damage.

This device may be solely operated and
maintained by skilled persons.

Skilled persons are people who, on the basis
of their relevant training and experience, are
capable of identifying risks and avoiding
possible hazards which operation or
maintenance of the device can cause.

When using the device, any additional legal and
safety regulations required for the respective
use must be observed.

8

UMG 604

c

m

m

Important!
If the device is not operated according
to the instruction manual, protection
is no longer ensured and the device
can cause hazards.

Conductors made of individual wires
must be fitted with wire end ferrules.

Only pluggable screw terminals with
the same number of poles (pins) and
of the same type may be plugged
together.

9

UMG 604

Product Description

Intended use

The UMG604 is intended to be used for the
measurement and calculation of electrical
variables such as voltage, current, energy,
work, harmonic components, etc. in building
installations, at distribution boards, circuit­breakers and busbar trunking systems.
Measuring-circuit voltages and currents must
originate from the same system.

The UMG604 is permanently installed in
control cabinets or small distribution boards.
It can be installed in any position.

The measurement results can be displayed,
stored and read out via serial interfaces and
further processed.

The voltage measurement inputs are designed
for measurements in low-voltage systems in
which rated voltages up to 300 V conductor
to earth and surge voltages of overvoltage
category III can occur.
The current measurement inputs of the
UMG604 are connected via external ../1A or
../5A current transformers.

Measurement in medium and high-voltage
systems takes place with current and voltage
transformers. Special safety requirements
must be complied, which are not dealt with in
any greater detail here.

The UMG604 fulfils the test requirements for
use in industrial areas.

Mains failure detection
The mains failure detection takes place via the
voltage measurement inputs. The selection of
voltage measurement inputs can be configured
using the GridVis software.

Mains failure stored energy time
The UMG604 bridges the following mains
failures at the auxiliary voltage input:

Mains voltage Stored energy time
230V AC max 80ms

10

UMG 604

UMG604 features

- Measurement in IT, TN and TT systems,

- 4 voltage measurement inputs

- 4 current measurement inputs,

- Continuous scanning of the voltage and current measurement inputs,

- Energy measurement, measurement uncertainty class 0.5 for ../5A current transformers,

- Energy measurement, measurement uncertainty class 1 for ../1A current transformers,

- Registers more than 800 measured values (readings),

- Fourier analysis 1st to 40th harmonic component for U, I, P (consumption/supply) and Q
(inductive/capacitive),

- Registering and storage of transients (>50 µs),

- 2 digital inputs,

- 2 digital outputs,

- Temperature measurement input,

- LC display, backlight (optional),

- 2 keys,

- Profibus DPV0 (optional),

- RS485 (modbus RTU, modbus master),

- RS232,

- Ethernet (web server, EMAIL) (optional),

- Programming own applications in Jasic,

- Operating temperature range -10°C .. +55°C,

- Mounting on top hat rails 35 mm,

- Suitable for installation in distribution boards,

- Suitable for measurements in networks with frequency inverters.

11

UMG 604

Methods of measurement

The UMG604 measures continuously and
calculates all effective values over a 200 ms
interval.

Operating concept

You can program the UMG604 and call up
measured values in several ways.

• Directly at the device using 2 keys and the
display. You can change the values in the
parameter list (see Appendix) and call up
the measured values from the measured
value displays.

• Via the GridVis programming software.

• In devices with an ethernet interface, via
the homepage of the UMG604.

• Via the RS485 with the modbus protocol.
You can change and call up data with the
help of the modbus address list (is filed on
the enclosed data carrier).

Operation of the UMG604 via the integrated
display and the two keys only is described in
these operating instructions.
The GridVis programming software and the
homepage have their own “online help”.

m

Use the parameter list in the
appendix to these instructions for
programming at the UMG604 and
the modbus address list on the
data carrier included in the scope of
supply for programming via a serial
interface.

12

GridVis programming software

The UMG604 can be programmed and read
out using the GridVis® programming software
included in the scope of supply. This requires
a PC to be connected to the UMG604 via a
serial interface/ethernet.

UMG 604

PC

Fig. 13.1 Connection of a UMG604 to a PC via
an RS232 cable.

RS232

UMG

604

GridVis features

• Programming the UMG604

• Configuring recordings

• Reading out recordings.

• Storing data in a database

• Graphic display of measured values

• Programming customer-specific applica­tions.

Interface

converter

RS232

PC

RS485

Fig. 13.2 Connection of a UMG604 to a PC via
an interface converter.

PC

Fig.13.3 Connection of a UMG604 (with the
ethernet option) to a PC via the ethernet.

Ethernet

UMG

604

UMG

604

13

UMG 604

Three-phase 4-wire systems

The UMG604 can be used in three-phase
4 conductor systems (TN, TT system) (50 Hz,
60 Hz) with earthed PEN conductor. The
bodies of the electrical system are earthed.
The conductor to neutral conductor voltage
may not exceed 300 V AC.

The UMG604 is only suitable for environments
in which the impulse voltage withstand
level of 4 kV (overvoltage category III) is not
exceeded.

U

/ U

L-N

L-L

66 V / 115 V
120 V / 208 V
127 V / 220 V
220 V / 380 V
230 V / 400 V
240 V / 415 V
260 V / 440 V
277 V / 480 V

Maximum rated voltage

of the grid

Fig. 14.1 Table of rated voltages of the grid
suitable for the voltage inputs.

14

L1

L2

230/400V 50/60Hz

L3

N

PE

L1

Earthing the

system

L4

4M

4M

Voltage measurement

UMG604

L3L2 N

4M

4M

Auxiliary power

4M

AC/DC

DC

Fig.15.1 Block diagram, UMG604 in TN
system.

UMG 604

15

UMG 604

Three-phase 3-wire systems

The UMG604 can be used in unearthed
three-phase 3 wire systems (IT system). The
conductor to conductor voltage may not
exceed 480V AC (50 Hz, 60 Hz).
The UMG604 is only suitable for environments
in which the impulse voltage withstand
level of 4 kV (overvoltage category III) is not
exceeded.

In the IT system the neutral point (star point)
of the voltage generator is not earthed. The
bodies of the electrical system are earthed.
Earthing via high-resistance impedance is
allowed.
IT systems are only allowed in certain systems
with their own transformer or generator.

U

L-L

66 V
115 V
120 V
127 V
200 V
230 V
240 V
260 V
277 V
347 V
280 V
400 V
415 V
440 V
480 V

Maximum rated voltage

of the grid

Fig. 16.1 Table of rated voltages of the grid
suitable for the voltage inputs.

16

UMG 604

L1

400V 50/60Hz

L2

L3

Impedance

L3L2

Earthing the

system

L4

4M

L1

4M

4M

4M

N

AC/DC

4M

DC

Voltage measurement

UMG604

Auxiliary power

Fig.17.1 Block diagram, UMG604 in IT system
without N.

L1

L2

230/400V 50/60Hz

L3

N

Impedance

Earthing the

system

L4

4M

L1

4M

4M

L3L2 N

4M

4M

AC/DC

DC

Voltage measurement

UMG604

Auxiliary power

Fig.17.2 Block diagram, UMG604 in IT system
with N.

17

UMG 604

Use

The UMG604 has a display, keys 1 and 2 and
the Service key to make it easier to install and
start up the UMG604 without a PC.
Important parameters such as current
transformers and device address are included
in the parameter list (see Appendix) and can
be directly programmed at the device.
A differentiation is made between operation
with the

• display mode and

• Programming mode.

Display
Key 1
Key 2
Concealed key

Key functions

Press the key “briefly”:

• page forwards

• Digit/value +1

Press the key for “long time”:

• page backwards

• Digit/value -1

Simultaneously press both keys for around
1 second and keep them pressed:

• Switch between display mode and
programming mode.

18

Keys 1 and 2

1

The UMG604 is operated

2

using keys 1 and 2.

Concealed key (service)

The Service key is intended for use by
instructed service employees only.

Display mode

After the power supply is resumed the device
is in Display mode.
In Display mode you can use Keys 1 and 2 to
page between the measured value displays.

Use Key 1 to select the phase for the

1

measured values.

UMG 604

N L1

V

Press Key 2 to page between the

2

measured values for current, voltage,
power output, etc.

The factory default setting for the measured
value displays is shown in the “measured
value displays” in the Appendix.

C

Important!
The user can use the GridVis/Jasic to
reconfigure the function of the keys
and selection of the values to be
displayed.

RxD TxD

Fig.19.1 “Display Mode” display example.
Displayed measured value: U

Input Output

L1 L2 L3 L4

= 230.0 V.

L1-N

Hz

RxD TxD

Fig.19.2 Display example for rotating field and
frequency.

Input Output

L1 L2 L3 L4

19

UMG 604

Programming mode

The most important settings required for
operation of the UMG604 can be displayed
and changed in programming mode.
The parameter list in the Appendix contains
the addresses for the most important settings.
You can make further settings using the GridVis
software included in the scope of supply.

If you simultaneously press Keys 1 and 2 for
around 1 second, programming mode opens
via a password query. If a display password has
not been programmed, the first programming
menu opens directly.
Programming mode is denoted in the display
by the text “PRG”. The digits of the address
flash.

If you are in programming mode and have not
pressed a key for approximately 60 seconds or
simultaneously press Keys 1 and 2 for around
1 second, the device returns to display mode.

PRG

Address Content

Fig. 20.1 “Programming Mode” display example,
address 000 with content 5,000.

20

Display password

You can program a 4-digit display password
to make it difficult to accidentally change the
programming data directly at the device. A
display password is not set in the factory.

Homepage password

You can protect access to the UMG604's
homepage via a password. A homepage
password is not set in the factory.

Password mode

The UMG604 differentiates between
3 password modes for the homepage
password:
0 =

The homepage password is not
queried.

2 =

Changes to the configuration and the
display of measured values require the
password to be entered once.

128 =

Each change to the configuration
requires renewed input of the
password.

Forgot password?

After a safe connection between the UMG604
and GridVis please clear the password via
software.

UMG 604

PRG

Content

Fig. 21.1 Query window for the display
password.

Addr. Content

500 Display password
0 =the password is not queried.
501 Homepage, password mode
502 Homepage password

Fig.21.2 Section of the parameter list for
password programming.

21

UMG 604

Installation

Installed position

The UMG604 can be installed in control
cabinets or in small distribution boards
according to DIN 43880. It is mounted on a
35 mm mounting v according to DIN EN 60715.
It can be installed in any position.

Fig. 22.1 UMG604 on mounting rail according
to DIN EN 60715.

22

UMG 604

Power supply voltage

A power supply voltage is required for
operation of the UMG604. The type and
amount of power supply voltage required is
noted on the rating plate.

Before applying the power supply voltage,
ensure that the voltage and frequency match
the information given on the rating plate!

The connection cables for the power supply
voltage must be fused with a UL listed fuse
(6A type C).

m

- A disconnector or circuit-breaker
must be provided for the power
supply voltage in the building
installation.

- The disconnector must be installed
near the device and must be easy
for the user to reach.

- The switch must be labelled as
a disconnecting device for this
device.

- Voltages which are above the
allowable voltage range can destroy
the device.

Power supply

voltage Uh

Fuse

Disconnecting device

Fig. 23.1 Connection example for the power
supply voltage Uh.

m

c

Devices driven with direct currrent are
protected against polarity reversal.

Important!

The inputs for the supply voltage are
dangerous to touch!

23

UMG 604

Current measurement

The UMG604 is designed for the connection of
current transformers with secondary currents
of ../1A and ../5A. Only alternating currents,
not direct currents, can be measured.
Each current measurement input can be
permanently loaded with 6A or for 1 second
with 100 A.

S1

L1

L2

L3

N

Fig. 24.1 Connection example, current
measurement via current transformers.

S2

S1

S2

S1

S2

S1

S2

Loads

c

m

c

24

Attention!
The current inputs are live.

Important!
The UMG604 is not suitable for the
measurement of direct voltages.

Earthing current transformers
If a connection is provided for earthing
the secondary winding, this must be
connected with earth.

C

For the inputs L4 and I4 are no con­nection schemes required.

UMG 604

I1

I2

S1 S2

S1 S2I3S1 S2I4S1 S2

3p 4w

L1

L2

L3

N

Fig. 25.1 Current measurement, connection
example for connection option 0, see page 50.

I1

I2

S1 S2

S1 S2I3S1 S2I4S1 S2

L1

L2

L3

2p 2i0

Fig. 25.3 Current measurement, connection
example for connection option 1, see page 50.

I1

I2

S1 S2

S1 S2I3S1 S2I4S1 S2

3p 2i

L1

L2

L3

N

Fig. 25.2 Current measurement, connection
example for connection option 0, see page

50.

I1

I2

S1 S2

S1 S2I3S1 S2I4S1 S2

L1

L2

1p 2i

Fig. 25.4 Current measurement, connection
example for connection option 0, see page 50.

25

UMG 604

Ammeter

If you not only want to measure the current
with the UMG604 but with an ammeter also,
the ammeter must be connected in series to
the UMG604.

UMG

I

S2

1

S

A

c

Short-circuit current transformer con­nections!

The secondary connections of the
current transformer must be short­circuited to them first before the
current supply leads to the UMG604
are disconnected!
If a testing switch is available, which
automatically short circuits the current
transformer's secondary leads, it is
sufficient to place this in the “test”
position, provided the short-circuiters
have been tested first.

Einspeisung
Supply

(k)S

1 S2(l)

2(L)(K)P1

P

Verbraucher

Consumer

Fig. 26.1 Example, current measurement via
additional ammeter.

26

c

Open current transformer!

High hazardous live voltage peaks can
occur at current transformers which
are operated open on the secondary
side!
The winding insulation in “safe open
current transformers” is dimensioned
so that the current transformers can
be operated open. But these current
transformers are also hazardous live
if they are operated open.

Summation current measurement

If the current is measured via two current
transformers, the total transformation ratio of
the current transformers must be programmed
in the UMG604.

UMG

I

S

S2

1

Einspeisung 1
Supply 1

P1

P2

Einspeisung 2

Supply 2

UMG 604

Example
The current is measured via two current
transformers. Both current transformers
have a transformation ratio of 1000/5A. The
summation measurement is performed with a
5+5/5A summation current transformer.
The UMG604 must then be set as follows:

Primary current: 1000A + 1000A = 2000A
Secondary current: 5A

1P1

1S1

(K)

(L)

1S

1P2

Verbraucher A
Consumer A

(k)
(l)

2

1S1 1S2 2S1 2S2

2S1
(k)

(l)

2S2

Verbraucher B

Consumer B

Fig. 27.1 Example, current measurement via
summation current transformers.

2P

(K)
(L)

2P2

1

27

UMG 604

Direct measurement

Nominal currents up to 5 A can also be measured
directly with the UMG604. In this case it must
be noted that each current measurement input
may be loaded continuously with 6 A or for
1 second with max 100 A.
As the UMG604 does not have any integrated
protection for the current measurement, this
protection (e.g. 6A fuse type C) must be
provided for during installation.

UMG

I

S2

1

S

Einspeisung

Supply

Verbraucher
Consumer

Fig. 28.1 Example, direct current measure­ment.

28

UMG 604

29

UMG 604

Voltage measurement

The UMG604 is designed for the measurement
of alternating voltages in 300 V systems in
which category III overvoltages can occur.
The UMG604 can only determine measured
values if a measurement-current voltage
greater than 10 Veff is applied to at least one
voltage measurement input.

The following must be noted when selecting
the instrument leads for the voltage
measurement:

• The instrument leads required for the
voltage measurement must be suitable
for voltages up to 300 VAC to earth and
520 VAC conductor to conductor.

• Normal instrument leads must be fused by
an overcurrent protective device and routed
via disconnectors.

• Short-circuit proof instrument leads must be
routed via disconnectors only.

Overcurrent protective devices and
disconnectors must be positioned near the
device and must be easy for the user to
reach.

C

For the inputs L4 and I4 are no con­nection schemes required.

Disconnector

10A

(UL listed)

N

L3

L2

L1

Fig. 30.1 Connection example: Voltage measure­ment via short-circuit proof instrument leads.

c

m

Important!
The voltage measurement inputs are
hazardous live!

Important!
The UMG604 can only determine
measured values if a measurement­current voltage greater than 10 Veff
is applied to at least one voltage
measurement input.

30

UMG 604

N

L1 L2 L3

L1

L2

L3
N

L4

N

L1 L2 L3

L1

L2

L3
N

L4

N

L1 L2 L3

L1

L2

L4

Fig. 31.1 Connection examples for voltage measurement in “three-phase 4-conductor systems”.
(Connection option 0, see page 51)

N

L1 L2 L3

L1

L2

L3

L4

N

L1 L2 L3

L1

L2

L3

L4

Fig. 31.2 Connection examples for voltage measurement in “three-phase 3-conductor systems”.
(Connection option 1, see page 51)

Important!
Voltages above 300 VAC to earth
must be connected via voltage
transformers.

m

Measuring-circuit voltages and
currents must originate from the same
system.

c

31

UMG 604

Interfaces

RS232

You can use a RS232 connection cable to
connect the UMG604 to a PC.
The achievable distance between two devices
with RS232 interface depends on the cable
used and the baud rate. The maximum
connectable cable length is 30 m.
As a guideline value, for a transmission rate
of 9600 baud the distance should not exceed
15 m to 30 m.

Shielding

A twisted-conductor and shielded cable must
be provided for connections via the RS232
interface. The shielding at both ends of the
cable must be connected to a large area of the
housing or cabinet parts in order to achieve an
adequate shielding effect.

The permissible ohmic load must be larger
than 3 kohm and the capacitive load caused
by the transmission cable must be smaller
than 2500 pF.

Mini Combicon,

5 pin

D-sub, 9 pin, socket

Fig. 33.1 Connector pin assignment for the PC
connection cable (Part number: 08 02 427).

32

PC

Com1

Fig. 33.2 Example, connecting a UMG604 to a
PC via the RS232 interface.

UMG 604

RS485

The RS485 interface is designed as a 2-pole
plug.

A

B

Fig. RS485 interface, 2-pole plug contact.

120Ω

A

RS485 Bus

BA

RS485 Bus

B

A

B

A

B

Terminating resistors

The cable at the start and end of a segment
is terminated with terminating resistors (120
ohm, 1/4 W).

The UMG604 does not contain any terminating
resistors.

Correct

Incorrect

Terminal strip in the control cabinet.

Device with RS485 interface.
(Without terminating resistor)

Fig. RS485 interface, 2-pole plug contact with
terminating resistor (Part no. 52.00.008).

Device with RS485 interface.
(With terminating resistor at the device)

33

UMG 604

Shields

A twisted, shielded cable is foreseen for con­nections using the RS485 interface.

• Ground the shields of all cables leading to
the cabinet at the cabinet entry point.

• Connect the shield extensively and with
good conductivity with a low external volt­age ground.

• Intercept the cable mechanically above
the ground clip in order to avoid damages
caused by cable movements.

• Use suitable cable insert guides, such
as PG glands, to guide the cable into the
switch cabinet.

Cable type

The cables used must be suitable for an envi­ronmental temperature of at least 80°C.
Recommended cable types:
Unitronic Li2YCY(TP) 2x2x0.22 (Lapp cable)
Unitronic BUS L2/FIP 1x2x0.64 (Lapp cable)

Maximum cable length

1200m at a Baud rate of 38.4k.

Cable

Strain relief

Cable shielding braid

Grounding clip

Low external voltage ground

Fig. Shielding arrangement at cabinet entry
point.

m

Important!
Profibus, RS232, RS485 and
temperature measurement input are
not metallically separated from each
other.

34

C

All interfaces can be used simultane­ously.

Bus-Struktur

• All devices are connected in a bus struc­ture (line).

• In a segment, up to 32 participants are
switched together

• The cable is terminated with resistors at the
start and end of a segment.

• For more than 32 participants, repeaters
(line amplifiers) are used to connect the in­dividual segments.

• Devices with terminated resistor have to be
supplied.

• We recommend to install the master UMG
at the end of the segment.

UMG 604

• In case that the master UMG with terminat­ed bus resistor will be removed, the bus is
not under operation.

• In case that slave UMG with terminated bus
resistor will be removed or is not switched
on, the bus can be unstable.

• UMGs which have no termination can be
replaced without any interruption of the
bus.

Master

T

Slave Slave Slave Repeater

T

Slave Slave Slave Slave

SlaveSlaveSlave

Power supply necessary

Bus terminator on

T

Fig. schema bus structure

T

T

35

UMG 604

RS485 profibus DP V0 slave

The profibus connection in the UMG604 is a
9 pin DSUB socket.
We recommend use of a 9 pin profibus
connector for the connection, e.g. as made by
Phoenix, type “SUBCON-Plus-ProfiB/AX/SC”
with product number 2744380. (Janitza art.
no.: 13.120.539)

Profibus connection

Fig. 36.1 UMG604 with profibus interface.

36

Connecting the bus cables

The incoming bus cable is connected to
terminals 1A and 1B. The bus cable for the next
device in the line is connected to terminals 2A
and 2B. If there is not another device in the
line the bus cable must be terminated with
resistors (switch set to ON).
In the ON switch setting terminals 2A and 2B
are switched off for the continuing bus cable.

Profibus connector (external)

UMG 604

Terminating resistors

D-sub,

9 pin,

socket

D-sub,

9 pin,

connec-

tor

Fig. 37.1 Profibus connector with terminating resistors.

Other
profibus
stations

Screw-type terminals

37

UMG 604

Digital inputs and outputs

Digital outputs

The UMG604 has 2 transistor switching
outputs. These outputs are metallically
separated from the analysis electronics via
optocouplers.

• The digital outputs can switch direct or
alternating current load.

• The digital outputs can switch loads in­dependant on the polarity of the feeding
voltage.

• The digital outputs are not short-circuit­proof.

• Cables, which are longer but 30m must
be shielded.

24V

-

Fig. 38.1 Connection example.

DC

+

m

38

Attention!
The digital outputs are not short­circuit-proof.

UMG 604

UMG604

Digital outputs

16

Digital

Output 1

Digital

Output 2

Fig. 39.1 Connection of alternating voltage
relays to the digital outputs.

17

18

24V

~

AC

~

K2 K1

UMG604

Digital outputs

16

Digital

Output 1

Digital

Output 2

Fig. 39.2 Connection of direct current relays
to the digital outputs.

17

18

24V

+

DC

-

K2 K1

39

UMG 604

Digital inputs

The UMG604 has 2 digital inputs to each of
which you can connect one transducer.

An input signal is detected at a digital input if a
voltage of at least 10 V and maximum 28 V is
applied. In this case a current of at least 1 mA
and maximum 6 mA flows. Cables longer than
30 m must be laid with shielding.
Please mind the polarity of the feeding volt­age.

24V

DC

-

+

Fig. 40.1 Connection example.

40

UMG604

Digital inputs 1-2

Digital

S1

S2

+

24V

=

-

Fig. 40.2 Example for the connection of
external switching contacts S1 and S2 to the
digital inputs 1 and 2.

m

Input 1

19

Digital

Input 2

20

21

Attention!
The polarity of the feeding voltage
must be respected for the digital
inputs.

3,9V

3,9V

4,4k

4,4k

UMG 604

S0 pulse input

At each UMG604 with inputs for 24 V you can
also connect S0 pulse generators according
to DIN EN 62053-31.
You require only one external auxiliary voltage
of 20..28 V DC and one external 1.5 kohm
resistor each.

24V

DC

-

+

S0 pulse generator

1,5k

UMG604

Digital inputs 1-2

Digital

Input 1

19

S0 pulse

generator

+

24V

=

-

1,5k

Digital

Input 2

20

21

Fig. 40.2 UMG604 with inputs for 24 V. Example
for connection of an S0 pulse generator at
digital input 2.

3,9V

3,9V

4k

4k

Fig. 41.1 UMG604 with inputs for 24 V. Example
with S0 pulse generator.

41

UMG 604

Temperature measurement input

Temperature sensors with a resistance range
of 400 ohm to 4 kohm can be connected to
the temperature measurement input.
The total burden (sensor + cable) of 4 kohm
may not be exceeded.

KTY83

Fig. 42.1 Example, temperature measurement
with a KTY83.

42

m
m

Use a shielded cable to connect the
temperature sensor.

Important!
Profibus, RS232, RS485 and
temperature measurement input
are not metallically separated from
each other.

Putting into Service

Applying the power supply voltage

The power supply voltage level for the UMG604
is given on the rating plate. Supply voltages
which do not correspond to those given on
the rating plate can result in malfunctions and
destruction of the device.

After applying the power supply voltage the
text “Start up” appears in the display. Around
2 - 6 seconds later the UMG604 switches to
the first measured value display.
If no display appears, check whether the
power supply voltage is within the rated
voltage range.

UMG 604

Frequency measurement

For the frequency measurement, the measured
voltage must be greater than 10 V in at least
one voltage measuring path (L-N).
Only detected frequencies within the range
45 Hz to 65 Hz are used for measurement at
the current and voltage measurement inputs.

Power supply voltage

(see rating plate)

43

UMG 604

Applying the measuring-circuit voltage

The UMG604 is suitable for the measurement
of voltages of up to 300 V AC to earth and
520 V AC conductor to conductor.
The UMG604 is not suitable for the
measurement of direct voltages. Voltages
above 300 VAC to earth must be connected
via voltage transformers.

After connecting the measurement-current
voltages, the measured values displayed by
the UMG604 for the L-N and L-L voltages
must correspond to those at the voltage
measurement input.
If a voltage transformer factor is programmed,
this must be taken into account in the
comparison.

Minimum voltage

A measuring-circuit voltage greater than
10 Veff must be applied to at least one of the
voltage measurement inputs. If an adequately
high measuring-circuit voltage is not applied
the UMG604 cannot determine the system
frequency and can therefore also not take a
measurement.

L

At least one phase (L) and the neutral conduc­tor (N) must be connected to the voltage mea­surement input for the measurement.

N

44

UMG 604

Phase sequence

Check the direction of the voltage rotating
field in the measured value display of the
UMG604.
A “right” rotating field usually exists.

Applying the measuring-circuit current

The UMG604 is designed for the connection
of ../1A and ../5A current transformers.
Only alternating currents, not direct currents,
can be measured via the current measurement
inputs.

Short-circuit all current transformer outputs
except one. Compare the currents displayed
by the UMG604 with the applied current.
Taking into account the current transformer
transformation ratio, the current displayed by
the UMG604 must correspond to the input
current.
The UMG604 must display approximately
zero Amperes in the short-circuited current
measurement inputs.

The current transformer ratio is set to 5/5A in
the factory and if necessary must be adapted
to the current transformer used.

45

UMG 604

Checking the energy measurement

Short-circuit all current transformer outputs
except for one and check the displayed power
outputs.

The UMG604 may only display one power
output in the phase with a non short-circuited
current transformer input. If this is not the case,
check the connection of the measuring-circuit
voltage and the measuring-circuit current.

If the power output amount is correct but the
sign of the power output is negative, S1(k)
and S2(l) could be inverted at the current
transformer or they supply active energy back
into the network.

46

UMG 604

47

UMG 604

Configuration

Current transformer ratio

You can assign each of the 4 current
transformer inputs its own current transformer
ratio. A current transformer ratio of 5 A/5 A
is programmed in the factory for all 4 current
transformer inputs.

You can program current transformers with the
same current transformer ratios in addresses
000 and 001. Program current transformers
with different current transformer ratios in
addresses 010 to 041.

A change in current transformer values in
address 000 or 001 overwrites the contents
of addresses 010 to 041 with the current
transformer values from addresses 000 and

001.

A change in current transformer values in
one of the addresses 010 to 041 deletes the
current transformer values in addresses 000
and 001.

Address Current transformer values

000 L1 L2 L3 L4 (primary)
001 L1 L2 L3 L4 (secondary)

010 L1 (primary)
011 L1 (secondary)
020 L2 (primary)
021 L2 (secondary)
030 L3 (primary)
031 L3 (secondary)
040 L4 (primary)
041 L4 (secondary)

Fig. 48.1 Section of the parameter list for the
current transformer values.

48

Current measurement connection options

The UMG604 recognises two connection
options for the current measurement.

UMG 604

Address Connection option

110 0 = Three current transformers.

(Default factory setting)

Connection option 0

• Measurement via 3 current transformers
in three-phase-4-conductor systems.

• Measurement via 2 current transformers
in systems with the same load.

• Measurement in one-phase-3-conductor
systems.

Connection option 1

• Measurement via 2 current transformers
(Aron circuit) in three-phase 3-conductor
systems.

C

For the inputs L4 and I4 are no con­nection schemes required.

1 = Two current transformers

(Aron circuit)

Fig. 49.1 Section of the parameter list for the
current transformer connection options.

49

UMG 604

Voltage transformer ratio

You can assign each of the 4 voltage
transformer inputs its own voltage transformer
ratio.
A voltage transformer ratio of 400 V/400 V
direct measurement is programmed in the
factory for all 4 voltage transformer inputs.

You can program voltage transformers with the
same voltage transformer ratios in addresses
002 and 003. Program voltage transformers
with different voltage transformer ratios in
addresses 012 to 043.

A change in voltage transformer values in
address 002 or 003 overwrites the contents
of addresses 012 to 043 with the voltage
transformer values from addresses 002 and

003.

Address Voltage transformer values

002 L1 L2 L3 L4 (primary)
003 L1 L2 L3 L4 (secondary)

012 L1 (primary)
013 L1 (secondary)
022 L2 (primary)
023 L2 (secondary)
032 L3 (primary)
033 L3 (secondary)
042 L4 (primary)
043 L4 (secondary)

Fig. 50.1 Section of the parameter list for the
voltage transformer values.

50

Voltage measurement connection options

The UMG604 recognises two connection
options for the voltage measurement.

Connection option 0

• Direct measurement of the voltage in
3-phase 4-conductor systems.

• Measurement via 3 voltage transformers
in 3-phase 4-conductor systems.

• Measurement in one-phase-3-conductor
systems.

Connection option 1

• Direct measurement of the voltage in
three-phase 3-conductor systems.

• Measurement via 2 voltage transformers
(Aron circuit) in three-phase 3-conductor
systems.

UMG 604

Address Connection option

111 0 = Three-phase 4-conductor

systems (default factory
setting)

1 = three-phase 3-conductor

systems

Fig. 51.1 Section of the parameter list for the
voltage transformer connection options.

C

For the inputs L4 and I4 are no con­nection schemes required.

51

UMG 604

Interfaces

The UMG604 has 4 serial interfaces:

- RS485

- RS232

- Ethernet (optional)

- Profibus (optional)
All interfaces can be used simultaneously.

RS232

The following data must be programmed for
use of the RS232 interface:

- Baud rate,

- Operating mode.
Refer to the parameter list in the Appendix
for the default factory setting and the setting
ranges.

RS485

The following data must be programmed for
use of the RS485 interface:

- Device address,

- Baud rate,

- Operating mode.
Refer to the parameter list in the Appendix
for the default factory setting and the setting
ranges.

Addr. Content

200 Device address (1 .. 255)
valid for Modbus and Profibus
1 = default factory setting

52

Ethernet (optional)

Fixed IP address

In simple networks without DHCP servers the
network address must be set directly at the
device.

BootP

BootP allows fully automatic integration of a
UMG604 in an existing network. BootP is an
older protocol and does not have the functional
scope of DHCP.

DHCP mode

DHCP enables fully automatic integration of a
UMG604 in an existing network without any
further configuration. On starting the UMG604
automatically imports the IP address, the net
mask and the gateway from the DHCP server.
The UMG604 is set in the factory to “DHCP”.

Zeroconf

Zeroconf allows fully automatic integration (al­location of IP address) of a UMG604 in an ex­isting network without DHCP servers.

UMG 604

PC UMG604

Patch cables

Switch

Patch cables

Fig. Connection example, the UMG604 and
PC require a fixed IP address.

DHCP
Server

Patch cables

PC UMG604

Patch

cables

Switch

Patch cables

Fig. Connection example, the UMG604 and
PC are automatically assigned an IP address
by a DHCP server.

m

The UMG604 may only be connected
to the ethernet following consultation
with the network administrator!

53

UMG 604

Profibus (optional)

Profibus profiles

The UMG604 can manage 16 profibus pro­files. Each profibus profile contains 128 data
bytes maximum.

The first data byte of the output area of the
PLC (programmable logic controller) always
contains the profile number of the profibus
profile required by the UMG604.

To request a profibus profile, write the profile
number in the first byte of the output area of
the PLC.

All system variables and global variables1) can
be individually scaled and converted into one
of the following formats:

- 8, 16, 32 bit integer with and without sign.

- 32 or 64 bit float format.

- Big or little Endian2).

Device master file GSD

The device master file for the UMG604 is
called “0B41.GSD” and is included on the CD
which belongs to the scope of supply.

PLC

Output area of the pro­grammable controller

1. Byte = profile number
The variables for the
UMG604 follow from the
2nd byte.

Input area of the pro­grammable controller

1. Byte = profile number
feedback
The requested variables
for the UMG604 follow
from the 2nd byte.

Fig. 54.1 Block diagram for data exchange
between PLC and UMG604.

UMG604

1)

Global variables are variables which are de­fined by the user in Jasic and are available to
each interface in the UMG604.

2)

Big-Endian = High byte before low byte

Little-Endian = Low byte before high byte.

54

Addr. Content

200 Device address (1 .. 255)
valid for Modbus and Profibus
1 = default factory setting

Recordings

2 recordings are preconfigured in the default
factory setting of the UMG604. Recordings
are adjusted and extended via the software
GridVis.

UMG 604

• Reactive power fundamental Sum L1-L4

(The mean value, minimum value and
maximum value are also recorded for each
measured value.)

Recording 1

The following measured values are recorded
with the time base of 15 minutes:

• Voltage effective L1

• Voltage effective L2

• Voltage effective L3

• Voltage effective L4

• Voltage effective L2-L1

• Voltage effective L3-L2

• Voltage effective L1-L3

• Current effective L1

• Current effective L2

• Current effective L3

• Current effective L4

• Active Power L1

• Active Power L2

• Active Power L3

• Active Power L4

• Active Power Sum L1-L3

• Active Power Sum L1-L4

• Reactive power fundamental L1

• Reactive power fundamental L2

• Reactive power fundamental L3

• Reactive power fundamental L4

• Reactive power fundamental Sum L1-L3

Recording 2

The following measured values are recorded
with the time base of 1 hour:

• Consumed Active Energy L1

• Consumed Active Energy L2

• Consumed Active Energy L3

• Consumed Active Energy L4

• Consumed Active Energy Sum L1-L3

• Consumed Active Energy Sum L1-L4

• Inductive Reactive Energy L1

• Inductive Reactive Energy L2

• Inductive Reactive Energy L3

• Inductive Reactive Energy L4

• Inductive Reactive Energy Sum L1-L3

• Inductive Reactive Energy Sum L1-L4

55

UMG 604

System information

Overrange

Overranges are displayed as long as they exist
and cannot be acknowledged. An overrange
exists if at least one of the four voltage or
current measurement inputs lies outside their
specified measuring range.

If an overrange exists it is shown in the display
with “EEEE“.
The symbols L1, L2, L3 and L4 are used to
indicate at which input the overrange has
occurred. The “V” and “A” symbols indicate
whether the overrange occurred in the current
or in the voltage path.

Important!

m

Voltages and currents that lie outside
the permissible measuring range can
destroy the device.

L1 L2 L3 L4

VA

RxD TxD

Fig. Measured value display with overrange.

Input Output

L1 L2 L3 L4

56

Serial number Firmware release

UMG 604

RxD TxD

Fig. Measured value display with serial number.

RxD TxD

Fig. Measured value display with date.

Input Output

Input Output

L1 L2 L3 L4

L1 L2 L3 L4

RxD TxD

Fig. Measured value display for the firmware
release.

Input Output

L1 L2 L3 L4

TimeDate

RxD TxD

Fig. Measured value display with time.

Input Output

L1 L2 L3 L4

57

UMG 604

Service and maintenance

The device is subjected to various safety
checks before delivery and marked with a
seal. If a device is opened, the safety checks
must be repeated. A warranty will be provided
for unopened devices only.

Repair and calibration

Repair work and calibration can be carried out
by the manufacturer only.

Front film

The front film can be cleaned with a soft cloth
and standard household cleaning agent. Do
not use acids and products containing acid
for cleaning.

Battery

The internal clock is provided with power
from the power supply voltage. If the power
supply voltage fails the clock is supplied by
the battery. The clock supplies date and time
information, e.g. for recordings, minimum and
maximum values and events.
The life expectancy of the battery is at least
5 years, at a storage temperature of +45°C.
The typical life expectancy of the battery is 8
to 10 years.
The device must be opened to change the
battery. If the device has been opened a
renewed safety check is necessary for safe

operation. A warranty will be provided for
unopened devices only.

Disposal

The UMG604 can be reused or recycled as
electronic scrap in accordance with the legal
provisions. The permanently installed lithium
battery must be disposed of separately.

Firmware update

If a firmware update has to be performed for
your UMG604 you can do this with the GridVis
software included in the scope of supply.

Service

Should questions arise, which are not
described in this manual, please contact the
manufacturer directly.
We will need the following information from
you to answer any questions:

- Device name (see rating plate),

- Serial name (see rating plate),

- Software release (see measured value
display),

- Measuring-circuit voltage and power supply
voltage,

- Precise description of the error.

58

Trouble shooting

UMG 604

Possible error

No display.

No current display.

Displayed current
is too large or too
small.

“EEEE” and “A”
in the display.

Cause

External fusing for the power
supply voltage has tripped.

Device is defective.

Measurement voltage is not
connected.
Measurement current is not
connected.

Current measurement in the
wrong phase.
Current transformer factor is
incorrectly programmed.

The current measuring range
has been exceeded.

Remedy

Replace fuse.

Send device to the manufacturer
for repair.

Connect the measuring-circuit
voltage.
Connect measuring-circuit current.

Check connection and correct if
necessary.
Read out and program the current
transformer transformation ratio at
the current transformer.

Check the measuring-circuit current
and if necessary install a suitable
current transformer.

59

UMG 604

Possible error

Displayed voltage
is too small or too
large.

Displayed voltage is
too small.

“EEEE” and “V”
in the display.

„Error CF„ in the dis­play

Active power con­sumption / supply is
reversed.

Cause

Measurement in the wrong phase.

Voltage transformer incorrectly
programmed.

Overrange.
The peak voltage value at the mea­surement input has been exceeded
by harmonic components.

The voltage measuring range has
been exceeded.

The calibration data could not be
read out.

At least one current transformer
connection is mixed up/reversed.

A current path is assigned to the
wrong voltage path.

Remedy

Check connection and correct if
necessary.
Read out and program the voltage
transformer transformation ratio
at the voltage transformer.

Install voltage transformers.

Important! Ensure the
measurement inputs are not
overloaded.

Check the measuring-circuit
voltage and if necessary install
a suitable voltage transformer.

Send device to the manufacturer
for checking with a precise
description of the error.

Check connection and correct if
necessary.

Check connection and correct if
necessary.

60

UMG 604

Possible error

Active power too
small or too large.

No connection with
the device.

Despite the meas­ures above the device
does not work.

Cause

The programmed current
transformer transformation
ratio is incorrect.
The current path is assigned
to the wrong voltage path.
The programmed voltage
transformer transformation
ratio is incorrect.

RS485:

- Device address is incorrect.

- Wrong protocol.

- Termination missing.

Ethernet:

- IP address incorrect

- The concealed key
(service) was used.

Device is defective.

Remedy

Read out and program the current
transformer transformation ratio at the
current transformer.
Check connection and correct if
necessary.
Read out and program the voltage
transformer transformation ratio at the
voltage transformer.

Adjust the device address.
Select protocol.
Close bus with terminating resistor
(120 ohm).

Adjust IP address at the device.
Overwriting the address 204 with 0 and
set IP address or select DHCP/Zeroconf
(address 205).

Send device to the manufacturer for
checking with a precise description of
the error.

61

UMG 604

Technical specifications

General information

Net weight : 350g
Device dimensions : approx l=107.5 mm, b=90 mm, h=82 mm
(according to DIN 43871:1992)
Housing flammability class : UL94V-0
Installed position : any
Fixing/mounting : 35 mm top hat rail
(according to IEC/EN 60999-1, DIN EN 50022)
Battery : Type Lithium CR2032, 3V
(according to UL 1642)
Backlight lifetime : 40000h (50% of initial brightness)

Ambient conditions during operation

The UMG604 is intended for weather-protected, stationary use. The UMG604 fulfils the use
conditions according to DIN IEC 60721-3-3.
Operating temperature range : -10°C. +55°C
Relative humidity : 5 to 95 %, (at +25 °C) without condensation
Degree of pollution : 2
Operating altitude : 0 .. 2000 m above sea level
Installed position : any
Ventilation : Forced ventilation is not required.

Transport and storage

The following information applies to devices which are transported or stored in the original
packaging.
Free fall : 1m
Temperature : -20°C to +70°

62

UMG 604

Power supply voltage

The power supply voltage must be connected to the UMG604 via a UL listed fuse.
Line circuit breaker : 6A, type C (approved to UL / IEC)
Cylindrical fuses :
Cylindrical fuses : 0.75A, tripping characteristics F (fast acting)
Installation overvoltage category : II
Option 230V
Nominal range : 95V .. 240V (45-65 Hz) or DC 135V .. 340V
Operating range : +-10% of nominal range
Power consumption : max 3.2W, max 9VA
Option 90V
Nominal range : 50V .. 110V (45-65 Hz) or DC 50V .. 155V
Operating range : +-10% of nominal range
Power consumption : max 3.2W, max 9VA
Option 24V
Nominal range : 20V .. 55V (45-65 Hz) or DC 20V .. 77V
Operating range : +-10% of nominal range
Power consumption : max 4W, max 9VA

Connectable conductors
Only one conductor may be connected per terminal connection!
Solid core, multi-core, flexible core : 0.08 - 2,5 mm
Pin-end connector, wire end ferrules : 1.5 mm2,

0.6A, tripping characteristics M (medium time lag)

2, AWG 28 - 12

AWG 16

63

UMG 604

Protection class

Class II according to IEC 60536 (VDE 0106, Part 1), i.e. a PE terminal is not required!

Protection against ingress of solid foreign
bodies and water : IP20 according to EN 60529 September 2000,
IEC 60529:1989

64

UMG 604

Inputs and outputs

2 digital inputs
Pulse input (S0)
Maximum counting frequency : 20 Hz
Switching input
Response time (Jasic program) : 200 ms
Input signal applied : 18V. 28 V DC (typically 4 mA)
Input signal not applied : 0 .. 5 V DC, current less than 0.5 mA

2 digital outputs, semi-conductor relay, not short-circuit proof.
Switching voltage : max 60 V DC, 30 V AC
Switching current : max 50 mAeff AC/DC
Response time (Jasic program) : 200 ms
Output of voltage dips : 20 ms
Output of voltage overranges : 20 ms
Pulse output (operating pulses) : max 20 Hz

Cable length : up to 30 m unshielded
: greater than 30m shielded
Connectable conductors
Solid core, multi-core, flexible core : 0.08 - 1.5 mm
Pin-end connector, wire end ferrules : 1 mm2, only one conductor may connected per

terminal connection!

2

65

UMG 604

Temperature measurement input

Update time : approx 200 ms
Connectable sensors : PT100, PT1000, KTY83, KTY84
Total burden (sensor + cable) : max 4 kohm

Sensor type Temperature range Resistance range Measurement
uncertainty

KTY83 -55 ° .. +175 °C 500 ohm .. 2.6 kohm ± 1.5% rng
KTY84 -40 ° .. +300 °C 350 ohm .. 2.6 kohm ± 1.5% rng
PT100 -99 ° .. +500 °C 60 ohm .. 180 ohm ± 1.5% rng
PT1000 -99 ° .. +500 °C 600 ohm .. 1,8 kohm ± 1.5% rng

rng

= measuring range

Cable length : up to 30 m unshielded
: greater than 30 m shielded
Connectable conductors
Solid core, multi-core, flexible core : 0.08 - 1.5 mm
Pin-end connector, wire end ferrules : 1 mm2, only one conductor may be connected

per terminal connection!

2

66

UMG 604

Interfaces

RS232 : 5 pin screw-type terminals.
Protocol : Modbus RTU/slave
Transfer rate 9600 bps, 19.2 kbps, 38.4 kbps, 57.6 kbps ,

115.2 kbps

RS485 : 2 pin screw-type terminals.
Protocol, modbus RTU : Modbus RTU/slave, modbus RTU/master
Transfer rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 57.6 kbps,

115.2 kbps, 921.6 kbps

RS485 (optional) : Connector, SUB D 9 pin
Protocol, profibus (optional) : Profibus DP/V0 according to EN 50170
Transfer rate : 9.6 kbaud up to 12 Mbaud

Ethernet 10/100Base-TX (optional)
Connection : RJ-45
Functions :
Protocols : TCP/IP, EMAIL (SMTP), DHCP-Client (BootP),
Modbus/TCP(Port 502), ICMP (Ping), NTP, TFTP,
Modbus RTU over Ethernet (Port 8000), FTP.

Modbus gateway, embedded web server (HTTP)

67

UMG 604

Measurement uncertainty

The measurement uncertainty of the UMG604 applies to use of the following measuring ranges.
The measured value must lie within the given limits. Outside these limits the measurement
uncertainty is unspecified.

Measured value Measurement uncertainties

Voltage ± 0.2% DIN EN 61557-12:2008
Current L ± 0.2% DIN EN 61557-12:2008
Current N ± 0.6% DIN EN 61557-12:2008
Power ± 0.4% DIN EN 61557-12:2008
Harmonic components U, I Class 1 DIN EN 61000-4-7
Active energy
Current transformer ../5A Class 0.5S (DIN EN 62053-22:2003, IEC 62053:22:2003)
Current transformer ../1A Class 1 (DIN EN 62053-21:2003, IEC 62053:21:2003)
Reactive energy
Current transformer ../5A Class 2 (DIN EN 62053-23:2003, IEC 62053:23:2003)
Current transformer ../1A Class 2 (DIN EN 62053-23:2003, IEC 62053:23:2003)
Frequency ± 0.01Hz
Internal clock ±1 minute/month (18°C ... 28 °C)

The specifications apply under the following conditions:

- Annual recalibration,

- a warming up time of 10 minutes,

- an ambient temperature of 18 .. 28°C.
If the device is operated outside the range from 18 .. 28°C an additional measurement error equal
to ±0.01% of the measured value must be taken into account per °C difference.

68

UMG 604

Measuring inputs

Voltage measurement

Three-phase 4-wire systems (L-N/L-L) : max. 277 V/480 V
Three-phase 3-wire systems (L-L) : max. 480 V
Resolution : 0,01 V
Measurement range L-N : 01) .. 600Vrms
Measurement range L-L : 01) .. 1000Vrms
Crest-faktor : 2 (referring to 480 Vrms)
Measurement category : 300V CAT III
Specified impulse withstand voltage : 4 kV
Impedance : 4 MOhm/phase
Power input : approx 0.1 VA
Scanning frequency : 20 kHz/phase
Transients : >50 µs
Fundamental oscillation : 45 Hz .. 65 Hz

1)

The UMG604 can only detect measurement values if a voltage L-N larger than 10Veff or a volt-

age L-L larger than 18Veff is applied to at least one voltage measurement input.

Connectable conductors (current measurement and voltage measurement)
Only one conductor may connected per terminal connection.
Solid core, multi-core, flexible core : 0.08 - 4 mm
Pin-end connector, wire end ferrules : 2.5 mm2, AWG 14

2, AWG 28 - 12

69

UMG 604

Current measurement

Nominal current : 5 A
Rated current : 6 A
Resolution : 1mA
Measurement range : 0.001 .. 8.5Arms
Crest-faktor : 2 (referring to 6 Arms)
Measurement category : 300 V CAT III
Specified impulse withstand voltage : 4 kV
Power input : approx 0.2 VA (Ri=5 mohm)
Overload for 1 sec : 100 A (sinusoidal)
Scanning frequency : 20 kHz

70

UMG 604

Parameter list

Default
Add Name Setting range Units setting

000 Current transformer, primary, L1..L4 0 .. 1000000 A 5
001 Current transformer, secondary, L1..L4 1 .. 5 A 5
002 Voltage transformer, primary, L1..L4 0 .. 1000000 V 400
003 Voltage transformer, secondary, L1..L4 1 .. 480 V 400

010 Current transformer, primary, L1 0 .. 1000000 A 5
011 Current transformer, secondary, L1 1 .. 5 A 5
012 Voltage transformer, primary, L1 0 .. 1000000 V 400
013 Voltage transformer, secondary, L1 1 .. 480 V 400
020 Current transformer, primary, L2 0 .. 1000000 A 5
021 Current transformer, secondary, L2 1 .. 5 A 5
022 Voltage transformer, primary, L2 0 .. 1000000 V 400
023 Voltage transformer, secondary, L2 1 .. 480 V 400
030 Current transformer, primary, L3 0 .. 1000000 A 5
031 Current transformer, secondary, L3 1 .. 5 A 5
032 Voltage transformer, primary, L3 0 .. 1000000 V 400
033 Voltage transformer, secondary, L3 1 .. 480 V 400
040 Current transformer, primary, L4 0 .. 1000000 A 5
041 Current transformer, secondary, L4 1 .. 5 A 5
042 Voltage transformer, primary, L4 0 .. 1000000 V 400
043 Voltage transformer, secondary, L4 1 .. 480 V 400

71

UMG 604

Default
Add Name Setting range Units setting

100 Automatically get TFTP configuration file 0 .. 9999 - 0
0 = switched off
x = file number
101 TFTP error handling 0 .. 1 - 0
0 = In the event of an error the
Configuration menu appears

in the UMG604.
1 = In the event of an error the
does NOT switch to the

Configuration menu of the UMG604.
110 Current transformer circuit (L1 .. L3) 0 .. 1 - 0
0 = three current transformers
1 = two current transformers (Aron circuit)
111 Voltage measurement system configuration 0 .. 1 - 0
0 = three-phase 4-conductor system
1 = three-phase 3-conductor system

112 Deletes all real and apparent energy meters 0 .. 1 - 0
and S0-counters (1 = delete)
113 Deletes all reactive energy meters (1 = delete) 0 .. 1 - 0
114 Resets all minimum and maximum values 0 .. 1 - 0
(1 = reset)

72

UMG 604

Default
Add Name Setting range Units setting

200 Device address, modbus/profibus 1 .. 255 1
201 Baud rate, RS232 0 .. 4 4
0 = 9600 bit/s
1 = 19200 bit/s
2 = 38400 bit/s
3 = 57600 bit/s
4 = 115200 bit/s

202 Baud rate, RS485 0 .. 5 4
0 = 9600 bit/s
1 = 19200 bit/s
2 = 38400 bit/s
3 = 57600 bit/s
4 = 115200 bit/s
5 = 921600 bit/s

203 RS485, mode 0 .. 6 0
0 = modbus RTU/slave
1 = modbus RTU/master
2 = gateway transparent
5 = BACnet MS/TP (optional)

204 RS232, mode 0 .. 6 0
0 = modbus RTU/slave
3 = Debug
6 = SLIP
(only for internal use)

73

UMG 604

Default
Add Name Setting range Units setting

205 DHCP mode 0, 1, 2, 3 2
0 = fixed IP
1 = BootP
2 = DHCP-Client
3 = Zeroconf

300 IP address, xxx --- --- --- 0 .. 255 000
301 IP address, --- xxx --- --- 0 .. 255 000
302 IP address, --- --- xxx --- 0 .. 255 000
303 IP address, --- --- --- xxx 0 .. 255 000

304 IP mask, xxx --- --- --- 0 .. 255 000
305 IP mask, --- xxx --- --- 0 .. 255 000
306 IP mask, --- --- xxx --- 0 .. 255 000
307 IP mask, --- --- --- xxx 0 .. 255 000

310 IP gateway, xxx --- --- --- 0 .. 255 000
311 IP gateway, --- xxx --- --- 0 .. 255 000
312 IP gateway, --- --- xxx --- 0 .. 255 000
313 IP gateway, --- --- --- xxx 0 .. 255 000

74

UMG 604

Default
Add Name Setting range Units setting

400 Day 1 .. 31 xx
401 Month 1 .. 12 xx
402 Year 1 .. 9999 xxxx
403 Hour 0 .. 23 xx
404 Minute 0 .. 59 xx
405 Second 0 .. 59 xx
406 Accept date and time 0, 1 0
1 = accept set data

500 Device password 0 .. 9999 xxxx
501 Homepage, password mode 0, 2, 128, 130 0
502 Homepage, password 0 .. 9999 xxxx

510 Activate “EMAX” option, licence part 1 0 .. 9999 xxxx
511 Activate “EMAX” option, licence part 2 0 .. 9999 xxxx

520 Activate “BACnet” option, licence part 1 0 .. 9999 xxxx
521 Activate “BACnet” option, licence part 2 0 .. 9999 xxxx

600 LCD, Contrast 0 .. 99 - 50
601 LCD, Backlight, max. brightness 0 .. 16 - 10
602 LCD, Backlight, min. brightness 0 .. 8 - 3
603 LCD, Backlight, 0 .. 9999 s 60

75

UMG 604

Measured value displays

You can have the following measured values shown on the display, with the default factory setting,
using keys 1 and 2. The measured value names used are abbreviated and have the following mean­ing: Active power demand = active power demand, imported supply
Reactive power = reactive power, inductive
Active power demand = active power demand, imported supply with return block

Voltage

L1-N

Voltage

L1-L2

Current

L1

Active Power

demand L1

Reactive

Power L1

Active Energy

demand L1

cos(phi)

L1

Frequency

Rotating field

76

Voltage

L2-N

Voltage

L2-L3

Current

L2

Active Power

demand L2

Reactive

Power L2

Active Energy

demand L2

cos(phi)

L2

Temperature

input

Voltage

L3-N

Voltage

L3-L1

Current

L3

Active Power

demand L3

Reactive

Power L3

Active Energy

demand L3

cos(phi)

L3

Date Time

Voltage

L4-N

Current

L4

Active Power

demand L4

Reactive

Power L4

Active Energy

demand L4

cos(phi)

L4

Active Power

demand L1..L3

Reactive

Power L1..L3

Active Energy

demand L1..L3

cos(phi)

L1..L3

Serial

number

Active Power

demand L1..L4

Reactive

Power L1..L4

Active Energy

demand L1..L4

Firmware

Release

UMG 604

Declaration of conformity

The UMG604 fulfils the safety requirements of:
Directive 2004/108/EC in conjunction with DIN EN 61326-1 (2006-10) as well as Directive
2006/95/EC in conjunction with EN 61010-1 (2002-08)

Safety requirements

Safety requirements for electrical instrumentation, control and laboratory equipment
: EN 61010-1 08:2002, IEC 61010-1:2001

Protection class : II (device without protective conductor)

EMC requirements

Emitted interference, residential area : DIN EN61326-1:2006, Class B, IEC61326-2-1:2005
Interference immunity, industrial area : DIN EN 61326-1:2006, Table 2, IEC 61326-2-1:2005
Housing : Electrostatic discharge, IEC 61000-4-2 (4 kV/8 kV)
: Electromagnetic fields, IEC 61000-4-3:2002 (10 V/m)
: Electromagnetic fields, IEC 61000-4-8:2000 (100A/m)
Power supply voltage : Voltage dips, IEC 61000-4-11 (0.5 periods)
: Bursts, IEC 61000-4-4 (2 kV)
: Surge voltages, IEC 61000-4-5 (1 kV L to N)
: Conducted HF signals, IEC 61000-4-6 (3 V)
Measurement inputs : Surge voltages, IEC 61000-4-5 (2 kV)
: Conducted HF signals, IEC 61000-4-6 (3 V)
: Bursts, IEC 61000-4-4 (2 kV)
RS485, RS232, ethernet, digital inputs and outputs, temperature measurement input
: Conducted HF signals, IEC 61000-4-6 (3 V)
: Bursts, IEC 61000-4-4 (1 kV)
RS485, ethernet, digital inputs and outputs, temperature measurement input
: Surge voltages, IEC 61000-4-5 (2 kV)
Electrical measuring transducer for converting alternating current variables into analog or digital
signals. : DIN EN 60688 April 2002,
: IEC 60688:1992 +A1:1997+ A2:2001

77

UMG 604

Dimensioned drawings

Front view Side view

78

UMG604 connection example

UMG 604

RS485 Ethernet

Option Option

Strommessung

Current measurement

1

I2 I3 I4

I

1 2 3 4 5 6 7 8

PE

N

S2

S1

L1

S2

L2

L3

S1

S1 S2

Dig. I/ORS485RS232An. In

Spannungsmessung

Voltage measurement

1 L2 L3 L4

L

9 10 11 12

10A

(UL listed)

S2

S1

Versorgungs-

spannung

Auxiliary Supply

N

13

Consumer

Verbraucher

79

UMG 604

Quick Reference Instructions

Adjusting the primary current

You have three current transformers of the same type with a current transformer ratio of 200 A/5 A.
You would like to program the primary current with 200 A.
To do this you must enter the value 200 for the primary current in the address 000.
The secondary current is preset to 5 A in address 001 in the factory.

Switch to Program mode

Simultaneously press keys 1 and 2 for around
one second.
The PRG symbol for programming mode
appears.
The content of address 000 is displayed.

Change address

As address 000 is already displayed the
address does not have to be changed.

Enter the primary current.

Use Key 1 to select the digit to be changed.
Use Key 2 to change the selected digit.

Exit program mode

Simultaneously press both keys for around
1 second.
The current transformer setting is saved and
the device returns to display mode.

Address Content

Address Content

PRG

PRG

80
