Installation and Operation Data

Installation and Operation Manual

Jandy Diatomaceous Earth Pool Fil ters

DEV Series Fil ters

WARNING

FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed

and qualiﬁ ed in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exists. In the event no such state or local requirement exists, the installer or maintainer must be a professional with sufﬁ cient experience in pool equipment installation and maintenance so that all of the instructions in this manual can be followed exactly. Before installing this product, read and follow all warning notices and instructions that accompany this product. Failure to follow warning notices and instructions may result in property damage, personal injury, or death. Improper installation and/or operation can create dangerous high pres sure which can cause product failure or also cause the filter lid to be blown off, possibly causing death, serious injury or prop er ty damage. Improper installation and/or operation will void the warranty.

H0295200 Rev B

Page 2

TABLE OF CONTENTS

Section 1. Safety Information ........................... 3

1.1 Important Safety Warning ........... 3

1.2 General Safety Instructions ......... 3

Section 2. General Information ......................... 4

2.1 Introduction ................................. 4

2.2 Description .................................. 4

2.3 General Requirements ................. 4

2.4 DE Requirements ........................ 4

2.5 Speciﬁ cations and Dimensions .... 4

Section 3. Installation Instructions .................... 5

3.1 Filter Location ............................. 5

3.2 Anchor Bracket Installation ........ 5

3.3 Filter Preparation ......................... 5

3.4 Filter Plumbing ............................ 6

3.5 Clamp Installation, DEV Series .. 7

Section 4. Start-Up and Operation .................... 8

4.1 Preparing Diatomaceous Earth .... 8

4.2 Coating the Filter Grids ............... 9

4.3 New Pool and Seasonal Start-up . 9

4.4 Valve Operation ........................... 9

Section 6. Maintenance ..................................... 11

6.1 General Maintenance ................... 11

6.2 Backwashing ............................... 11

6.3 Pressure Gauge ............................ 11

6.4 Cleaning the Filter Grids

with Water ................................... 11

6.5 Cleaning Filter Grids

with Muriatic Acid ...................... 12

Section 7. Winterizing ....................................... 12

Section 8. Troubleshooting ............................... 12

Section 9. Parts List and Exploded View .......... 14

9.1 Jandy DEV Filter Parts List ........ 14

9.2 Exploded View of Jandy

DEV Filter ................................... 14

Section 10. Head Loss Curves .......................... 15

10.1 Jandy DEV Filter Design

Head Loss Curves ........................ 15

Section 5. Filter Disassembly and Assembly .... 10

5.1 Filter Tank Disassemby/Assembly 10

5.2 Filter Grid Disassembly/Assembly 10

EQUIPMENT INFORMATION RECORD

DATE OF INSTALLATION

INITIAL PRESSURE GAUGE READING (WITH CLEAN FILTER)

PUMP MODEL

FILTER MODEL

NOTES:

HORSEPOWER

SERIAL NUMBER

Page 3Diatomaceous Earth Pool Filters - DEV Series Filter

Section 1. Safety Information

1.1 Important Safety Warning

WARNING

• Do not connect system to an unregulated city water system or other external source of pressurized water producing pressures greater than 35 PSI.

• Pressurized air in system can cause product failure or also cause the ﬁ lter lid to be blown off which can result in death, serious personal injury, or property damage. Be sure all air is out of system before operating or testing the equipment.

WARNING

MAXIMUM OPERATING PRESSURE OF THE FILTER IS 50 PSI. NEVER SUBJECT THE FILTER TO ANY OPERATING PRESSURE EXCEEDING 50 PSI.

This filter operates under high pressure. When any part of the circulating system, i.e., filter, pump, valve(s), clamp, etc. is serviced, air can enter the system and become pressurized when the system is restarted. Pressurized air can cause product failure or also cause the filter lid to be blown off which can result in death, serious personal injury or property damage. To avoid this po ten tial haz ard, fol low all of the in struc tions in this man u al.

WARNING

To minimize risk of severe injury or death the filter and/or pump should not be subjected to the piping system pressurization test.

Local codes may require the pool piping system to be subjected to a pressure test. These requirements are generally not intended to apply to the pool equipment such as filters or pumps.

Jandy

If however this WARNING cannot be followed and pressure testing of the piping system must include the filter and/or pump BE SURE TO COMPLY WITH THE FOLLOWING SAFETY INSTRUCTIONS:

• Check all clamps, bolts, lids, lock rings and system accessories to ensure they are properly

• RELEASE ALL AIR in the system before testing.

• Water pressure for test must NOT EXCEED 35 PSI.

• Water temperature for test must NOT EXCEED 100°F (38°C).

• Limit test to 24 hours. After test, visually check system to be sure it is ready for operation.

Notice: These parameters apply to Jandy equipment only. For non-Jandy equipment, consult equipment manufacturer.

pool equipment is pressure tested at the factory.

installed and secured before testing.

1.2 General Safety Instructions

ATTENTION INSTALLER:

This manual contains important information about the installation, operation and safe use of this product. This information should be given to the owner/operator of this equip ment.

1. Use equipment only in a pool or spa installation.

2. Before repositioning valve(s) and before beginning the assembly, disassembly, or adjustment of the clamp, or any other service of the circulating system; (A) turn the pump off and shut off any automatic controls to ensure the system is not inadvertently started during servicing; (B) open the air release valve; (C) wait until all pressure is relieved (air will have stopped ﬂ owing from the air release valve).

3. Whenever installing the ﬁ lter clamp follow Section 3.5 of this manual, "Clamp Installation, DEV Series".

4. Once service on the circulation system is complete, follow Section 4 of this manual, "Start-up and Operation".

5. Maintain circulation system properly. Replace worn or damaged parts immediately.

6. Be sure that the ﬁ lter is properly mounted and positioned according to these installation instructions.

7. Do not pressure test above 35 PSI. Pressure testing must be done by a trained pool professional.

SAVE THESE INSTRUCTIONS.

Page 4

Section 2. General Information

2.1 Introduction

This manual contains information for the proper installation and operation of the Jandy DEV Series Diatomaceous Earth (DE) Filters. Procedures in this manual must be followed exactly. For technical assistance, contact our Technical Support Department at 1.800.822.7933.

2.2 Description

Dirty water ﬂ ows into a two or three port diverter valve, then into the ﬁ lter through the lower bulkhead on the bottom of the tank and is directed through the DE grids. The debris is collected on the surface of the grids as the water ﬂ ows through them. The clean water is directed into the manifold, then through the outlet tube, and ﬁ nally, out of the ﬁ lter through the upper bulkhead on the bottom half of the tank. The ﬁ ltered water then goes through the two or three port diverter valve and is returned through the piping system to the pool.

As debris collects in the ﬁ lter, the pressure will rise and water ﬂ ow to the pool will diminish. The ﬁ lter will eventually become so plugged with debris that it will be necessary to perform the backwash procedure. It is important to know when to backwash the ﬁ lter. See Sec- tion 6 for further discussion of backwashing the ﬁ lter.

NOTE A ﬁ lter removes dirt and other suspended particles

but does not sanitize the pool. Pool water must be sanitized and chemically balanced for clear water. The ﬁ ltration system should be designed to meet local health codes. At a minimum, the system should turnover the total volume of water in your pool two to four times in a 24-hour period.

2.3 General Requirements

1. For best overall performance, place the system as close to the pool as possible.

WARNING

The maximum working pressure for this ﬁ lter is 50 psi. Never subject the ﬁ lter to working pressure exceeding 50 psi. Working pressures above 50 psi can cause product failure or also cause the ﬁ lter lid to be blown off, which can result in death, serious personal injury, or property dam age

6. When performing hydrostatic pressure tests or when testing for external leaks of the completed ﬁ ltration and plumbing system, ensure that the maximum pressure the ﬁ ltration system is subjected to does not exceed the maximum

working pressure of any of the components within the system.

2.4 DE Requirements

See your local pool distributor or dealer for DE type recommendations. See Table 2 on page 10 for the

amount of DE to be used.

2.5 Speciﬁ cations and Dimensions

See Table 1 and Figure 1.

Table 1. DE Filter Speciﬁ cations

DEV48 DEV60

Filter Area (ft2)4860

Design Flow Rate (gpm/ft

Max Flow Rate Residential (gpm) 120 150

Max Flow Rate Commercial (gpm) 96 120

Six Hour Capacity (gal) 34,560 43,200

Normal Start Up Pressure (psi) 6-15 6-15

Max. Working Pressure (psi) 50 50

Dimension "A" 41 in. 47 in.

) 2.00 2.00

28 in.

2. The ﬁ lter should be located on a level concrete slab so that the orientation of the valve outlets and the pressure gauge are convenient and accessible for the installation and operation of the unit.

3. Protect the ﬁ lter from the weather.

4. If ﬁ tting a chlorinator and/or any other device into the ﬁ ltration plumbing circuit, great care must be exercised to ensure that the appliance is installed in accordance with the Manufacturer’s Instructions and any standards that may exist.

5. We recommend the use of barrel unions to connect each component of the water conditioning system to ease in future servicing. Barrel unions are provided with all Jandy ﬁ lters.

"A"

OUTLET

18 ½ in.

INLET

10 ½ in.

Figure 1. Dimensions, Jandy DEV Series Filter

with Jandy NeverLube® Backwash Valve

Port on CV Model Only

Page 5Diatomaceous Earth Pool Filters - DEV Series Filter

Section 3. Installation Instructions

WARNING

Use equipment only in a pool or spa installation. Do not connect system to an unregulated city water system or other external source of pressurized water producing pressures greater than 35 psi.

3.1 Filter Location

1. Select a well-drained area, one that does not ﬂ ood when it rains. Damp, non-ventilated areas should be avoided.

2. Provide solid mounting for the ﬁ lter and pump system. Install system on a concrete slab or solid concrete blocks to avoid risk of settlement. Do not use sand to level the ﬁ lter as the sand will wash away. Filters, once loaded with media, can weigh up to 800 lbs.

3. Install electrical controls at least ﬁ ve (5) feet from the ﬁ lter. This will allow enough room to stand away from the ﬁ lter during start-up.

4. Allow sufﬁ cient clearance around the ﬁ lter to permit a visual inspection of the clamp ring. See Figure 2.

5. Allow sufﬁ cient space above the ﬁ lter to remove the ﬁ lter lid and ﬁ lter element for cleaning and servicing.

6. Position the ﬁ lter to safely direct water drainage. Align the air release valve to safely direct pressurized purged air or water.

WARNING

Water discharged from an improperly positioned ﬁ lter or valve can create an electrical hazard which can cause death, serious injury or property damage.

CAUTION

Maintain your pressure gauge in good work ing order. The pressure gauge is the primary indicator of how the ﬁ lter is operating.

7. If the ﬁ lter needs to be located above the water level of the pool, it can be raised 2.5 ft. without affecting the pump efﬁ ciency. A check valve is

recommended on the suction line to the pump.

8. If the ﬁ lter is to be installed below the water level of the pool, isolation valves should be installed on both the suction and return lines to prevent back ﬂ ow of pool water during any routine servicing that may be required.

3.2 Anchor Bracket Installation

In Florida, building codes require that all appliances be securely fastened to the equipment pad in order to withstand high wind pressures created by hurricanes. Zodiac Pool Systems, Inc. provides an anchor bracket kit for this purpose. Please see the Parts List in Section 9 of this manual for the correct part number.

NOTE Anchor screws and washers are not included

with the ﬁ lter or the anchor bracket kit. Zodiac recommends that a ¼" x 2¼" long stainless steel Tapcon® type concrete screw be used to mount the anchor bracket to the equipment pad. The Tapcon type concrete screw meets Florida buliding code requirements.

After placing the ﬁ lter on the equipment pad, as outlined in Section 3.1, drill a 5/32" hole in the concrete at each of the four (4) brackets on the ﬁ lter. (The correct size drill bit is usually provided with the concrete screws when purchased.)

Install the Tapcon screws and washers through each of the four (4) anchor brackets to secure the ﬁ lter to the equipment pad. See Figure 3. Do not over-torque the

screws.

3.3 Filter Preparation

1. Check carton for damage due to rough handling in shipment. If carton or any ﬁ lter components are damaged, notify carrier immediately.

2. Carefully remove the accessory package.

3. With the carton in an upright position, remove the ﬁ lter tank from the carton.

6" MINIMUM CLEARANCE

FILTER

6" MINIMUM CLEARANCE

Figure 2. Filter Location

CAUTION

DO NOT move the ﬁ lter tank without the shipping screw in place or the ﬁ lter grids may be damaged while installing the ﬁ lter tank.

4. A visual inspection of all parts should be made now. See the parts list on page 15.

Page 6

#12x1” Pan Head Screw (Qty 8)

Anchor Bracket (Qty 4)

Filter Tank Anchor Bracket Installation Anchor Bracket to Platform Installation

Tank Bottom

Mounting Bracket

1/4” x 2-1/4” Tapcon Screw and Washer

Drill 5/32” Hole

Figure 3. Anchor Filter to Equipment Pad

3.4 Filter Plumbing

WARNING

To avoid an electrical shock hazard, which can result in serious injury or death, ensure that all electrical power to the system is turned off before approaching, inspecting or troubleshooting any leaking valves or plumbing that may have caused other electrical devices in the surrounding area to get wet.

1. This ﬁ lter operates under pressure. When clamped properly and operated without air in the water system, this ﬁ lter will operate in a safe manner.

#12x1” Pan Head Screws

Filter Base

Mounting Tab

3-1/2” Thick (Min.) Concrete Pad

2. If doubt exists as to the pressure which the system will be subjected to, install an ASME® approved automatic Pressure Relief Valve or Pressure Regulator in the circulation system set to the lowest working pressure of any of the components in the system.

3. Place the ﬁ lter on the concrete pad, lined up with the inlet/outlet pipes (see Figure 4). Remove the

shipping screw.

4. To mount the pressure gauge/air release assembly to the top of the ﬁ lter tank (located in the accessory bag):

Jandy Heater

Waterfall

Pool Return

Figure 4. Basic Pool/Spa Combination Plumbing

Spa Make Up

Jandy Check Valve

From Outlet Port

To Inlet Port

Jandy Pump

Jandy Filter

From Pool

Drain

Spa Return

Spa Suction

From Pool Skimmer

Page 7Diatomaceous Earth Pool Filters - DEV Series Filter

Housing

O-Ring

Tank Adapter

Tank Adapter to Housing Coupler

O-Ring

Figure 5. Pressure Gauge/Air Release Assembly

a. Place the smaller, thicker o-ring onto the

threads of the tank adapter (see Fig. 5). Slide the tank adapter through the coupling nut and into the ﬁ lter tank. Use the ﬂ ats on the tank adapter to tighten. Do not overtighten.

b. Place the larger, thinner o-ring onto the

gauge housing. Thread the housing into the coupler on the tank adapter.

c. Orient the gauge/air release assembly in the

desired position. Raise and thread the locknut onto the bottom of the gauge/air release assembly. Hand tighten the nut only. Using a wrench to tighten the nut may damage the nut, gauge or air release assembly.

5. To reduce pressure losses, 2" (minimum) piping is recommended for plumbing the system.

6. For best efﬁ ciency use the fewest possible number of ﬁ ttings. This will prevent a restriction in the water ﬂ ow.

7. Make all plumbing connections in accordance with local plumbing and building codes. Filter connections are provided with an o-ring seal. To avoid damage to the o-rings, use only a silicone base lubricant on the o-rings. Do not use pipe joint

compound, glue or solvent on inlet/outlet union coupling nuts.

8. Keep piping tight and free of leaks. Pump suction line leaks may cause air to be entrapped in ﬁ lter tank or loss of prime at the pump. Pump discharge line leaks may show up as dampness or jets of water.

9. Support the inlet/outlet pipes independently to prevent any undue strains on the ﬁ lter's two (2) or three (3) port diverter valve.

10. Connect the pipes using the unions supplied with the ﬁ lter. Do not use teﬂ on tape or pipe dope on any unions. Assemble the unions dry and hand tighten.

CAUTION

Be sure that all provisions for wastewater disposal meet local, state or national codes. During any backwashing or draining process, 100 gallons or more of pool water will be discharged. Do not discharge water where it will cause ﬂ ooding or damage.

3.5 Clamp Installation, DEV Series

1. Be certain that the o-ring seat is clean and that the o-ring is in position in the lower tank half. Press the ﬁ lter lid onto the lower half, sandwiching the o-ring between the two (2) halves.

2. Holding the ends of the ﬁ lter clamp apart, position the hinged segment of the ﬁ lter clamp over both upper and lower tank ﬂ anges. Bring the ends of the ﬁ lter clamp together.

3. Place the "T" nut and threaded rod assembly into the clamp. Be sure the "T" nut is seated in the clamp in the proper orientation. See Figure 6.

4. Use a 9/16" socket on the tightening nut until the clamp ring halves touch each other, or are within 1/16" (See Fig. 7) but do not overtighten as the clamp can break. If unable to tighten as indicated, do not operate the ﬁ lter and call a service technician immediately.

WARNING

Follow these instructions carefully. Improper clamp installation can cause product failure or also cause the ﬁ lter lid to be blown off, which can result in death, serious injury, or property damage.

WARNING

NEVER start pump while standing

within ﬁ ve (5) feet of the ﬁ lter. Starting the pump while there is pressurized air in the system can cause product failure or also cause the ﬁ lter lid to be blown off, which can cause death, se ri ous personal injury or property damage.

Page 8

Clamp Ring

“T” Nut and Threaded Rod

Tightening Nut w/ Shoulder

WARNING

Changing the two (2) or three (3) port diverter valve handle while there is pressurized air in the system can cause product failure or also cause the ﬁ lter lid to be blown off, which can cause death, se ri ous personal injury or property damage.

Caution

Dust released during normal handling of diatomaceous earth can cause eye and respiratory irritation. Prolonged breathing of excess concentrations of dust may cause lung damage.

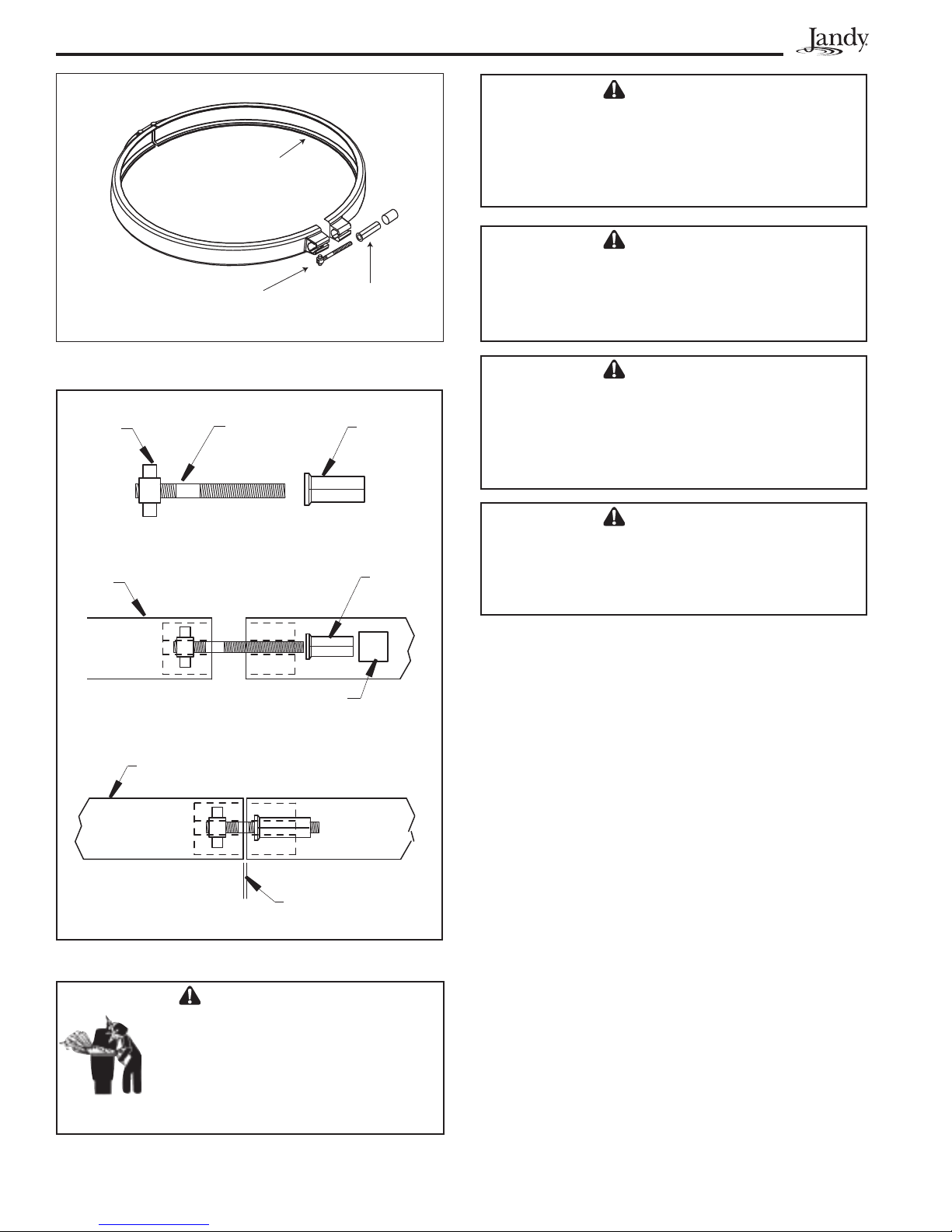

Figure 6. Filter Clamp Ring

"T" Nut

Clamp Ring

Clamp Ring, Closed Position

Thread ed Rod

Use a 9/16" Socket

Tightening Nut w/ Shoulder

Caution

Never operate the ﬁ lter in excess of three (3)

minutes without use of diatomaceous earth (DE). DE is the substance that ﬁ lters the water, the ﬁ lter cloth merely supports the DE. Operating without DE will damage ﬁ lter grids and short en ﬁ ltering cycles.

Caution

DO NOT operate the ﬁ lter at water temperatures

above 105° F (40.6° C). Water temperatures above the manufacturer's recommendations will shorten the life span of the ﬁ lter and void the warranty.

5. After the ﬁ rst week of operation, check the clamp and retighten if necessary.

6. Check the ﬁ lter clamp at least once a month.

Section 4. Start-Up and Operation

4.1 Preparing Diatomaceous Earth

GAP NOT TO EXCEED

1/16"

Figure 7. Filter Clamp Ring Assembly

WARNING

NEVER operate the ﬁ lter system at more

than 50 psi of pressure. Operating ﬁ lter system in excess of 50 psi can cause product failure or also cause the ﬁ lter lid to be blown off, which can cause death, serious personal injury or property damage.

Your ﬁ lter requires diatomaceous earth (DE) for proper ﬁ ltration and operation. The ﬁ lter grids must be precoated with DE in order to protect their surfaces and provide the most efﬁ cient ﬁ ltering action. Refer to Table 2 for the proper quantity of DE to use with your ﬁ lter.

1. Using a one (1) pound coffee can, ﬁ ll the can with diatomaceous earth (DE). Do not pack or compress the DE into the can.

2. Mix the required amount of DE with sufﬁ cient water in a separate bucket to make a thin, milky mixture (slurry).

NOTE Excess DE will clog the system. Use amount

speciﬁ ed in this manual.

3. Use the following instructions to coat the ﬁ lter grids.

Page 9Diatomaceous Earth Pool Filters - DEV Series Filter

B a

c k w

a s h

Table 2. DE Slurry Mixture

Model

No.

DEV48 5.0 2.0 10

DEV60 6.0 2.7 12

DE Quantity No. of 1 lb.

(lbs.) (kg.)

Coffee Cans

4.2 Coating the Filter Grids

1. Prepare the recommended amount of DE as outlined in Section 4.1.

2. Start the ﬁ lter system as outlined in Section 4.3.

3. With the pump running and the pool skimmer valve open, slowly pour the mixture directly into the pool's skimmer basket. The slurry will be drawn into the ﬁ lter.

4. After coating grids, rotate the bezel of the pressure gauge so that the arrow next to the word "CLEAN" is aligned with the needle of the gauge. This marks the original starting pressure of the system.

5. Clean the ﬁ lter when the pressure of the system increases so that needle of the gauge aligns with the arrow next to the word "DIRTY" on the bezel of the gauge. This indicates an increased pressure of between 10 and 12 psi above original starting pressure.

4.3 New Pool and Seasonal Start-up

1. Set the ﬁ lter valve (two (2) or three (3) port diverter or backwash) to the "FILTER" position.

7. Watch the pressure gauge to be sure that the pressure does not exceed 50 psi in the ﬁ lter for normal operation. If the pressure approaches these limits, turn off the pump and backwash the ﬁ lter (see Section 6.2). If the pressure remains high after backwashing and reapplying the DE slurry, refer to the troubleshooting guide on page 14 to identify possible causes and solutions.

8. After the pressure gauge has stabilized, turn the bezel ring so that the arrow next to the word "CLEAN" aligns with the needle of the gauge. As the ﬁ lter cleans the water, the grids will clog over time, and the pressure will increase. When the needle of the pressure gauge aligns with the arrow next to the word "DIRTY" on the bezel ring, it is time to backwash the ﬁ lter (see Section 6.2).

4.4 Valve Operation

1. The ﬂ ow of water through a DE ﬁ lter is controlled by an optional backwash valve or two (2) or three (3) port diverter valve.

2. The handle on top of the backwash valve or diverter valve can be moved to different positions. The function of each position is described below. See Figure 8.

NOTE Depending on the model of backwash valve or

diverter valve installed with your ﬁ lter, it may have all or only some of the positions described in Table 3.

2. Open the pump hair/lint pot lid and ﬁ ll the pump basket with water to prime the system. Replace the lid. (You may have to do this several times on new and seasonal start-ups.)

3. Completely open the air release valve on the gauge/air release assembly by turning the knob on the back of the assembly fully counterclockwise (do not remove the knob).

4. Be sure to open any ﬁ lter isolation valves that were installed in the system and make sure that the ﬁ lter drain plug is in place.

Figure 8. Diverter Valve Handle Positions

5. Stand clear of the ﬁ lter and start the pump to circulate water through the system. When a steady

6. If this is a new ﬁ lter, or the ﬁ lter has just been

stream of water starts to come out of the air release valve, close the valve.

backwashed, add the DE slurry as described in section 4.2.

Page 10

WARNING

NEVER attempt to assemble,

dis as sem ble or adjust the ﬁ lter when there is pressurized air in the system. Starting the pump while there is any pressurized air in the system can cause product failure or also cause the ﬁ lter lid to be blown off, which can cause death, serious personal injury or property dam age.

Table 3. Valve Positions for Diverter Valve

Position Function

FILTER Normal filtration and vacuuming.

BACKWASH Cleaning filter by reversing the flow.

RINSE Used after backwash to flush dirt

from the valve.

WASTE Bypasses filter; used for vacuuming

waste or lowering water level.

RECIRCULATE Bypasses filter for circulating water

to the pool.

CLOSED Shuts off all flow to the filter and

pool.

8. While the DE ﬁ lter grid assembly is out of the ﬁ lter tank, rinse the inside of the tank with water.

Replace drain plug.

9. Gently rinse the grids with water. After cleaning the ﬁ lter grids, place the grid assembly back into the ﬁ lter tank bottom (see Sections 6.4 and 6.5 for further grid cleaning instructions).

10. Replace the tank o-ring and tank lid.

11. Reinstall the tank clamp ring. See Section 3.5 for tank clamp ring installation.

12. If applicable, open the valves closed in step 4.

5.2 Filter Grid Disassembly/Assembly

1. Remove the complete grid assembly by following the instructions in Section 5.1, steps 2-6.

2. Remove the manifold by ﬁ rst unscrewing the tie rod knob in the center of the manifold. Then lift the manifold assembly off of the grids and the outlet tube.

3. Remove the top spacer from the grids.

4. The individual ﬁ lter grids can now be removed from the grid support. Use care to avoid damaging the grids.

Section 5. Filter Disassembly and

Assembly

5.1 Filter Tank Disassemby/Assembly

1. Backwash ﬁ lter according to the instructions in Section 6.2.

NOTE Omit this step when ﬁ rst starting a new ﬁ lter.

2. Turn off the pump. Switch off the circuit breaker to the pump motor.

3. IMPORTANT: Completely open air release valve

on top of the ﬁ lter tank to release all pressure from inside the tank and system.

4. If the equipment is installed below water level, close the ﬁ lter isolation valves on the system to prevent ﬂ ooding.

5. Close the ﬁ lter isolation valves on the system to prevent ﬂ ooding. Remove the drain plug located at the bottom of the ﬁ lter tank and allow the tank to drain.

6. Remove the tank clamp ring from the ﬁ lter and remove the tank lid. Inspect the tank o-ring for cracks or tears and replace if necessary

7. Pull the DE ﬁ lter grid assembly out of the ﬁ lter tank bottom. Use the handles molded into the

manifold to aid lifting.

5. See Figure 8 for the arrangement of ﬁ lter grids in the ﬁ lter grid assembly.

6. To reassemble the ﬁ lter grid assembly, arrange the ﬁ lter grids into position on the bottom plate (see Fig. 9). Use the plastic top spacer to hold

the grids in place.

OUTLET PIPE WITH O-RING

DEL FILTER GRID, SHORT SPAN

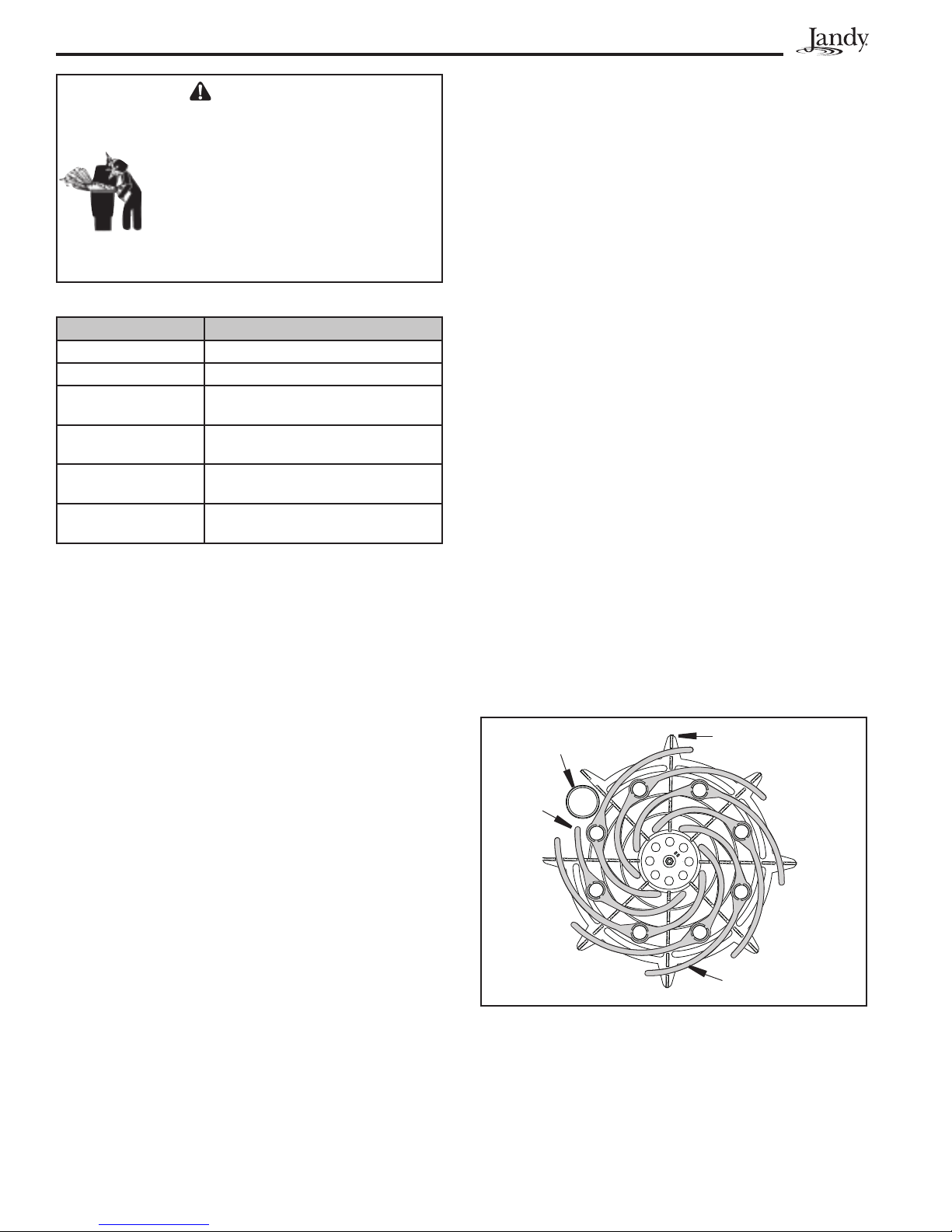

Figure 9. Filter Grid Ar range ment

JANDY

BOTTOM PLATE

PNS0109500

DEL FILTER GRID (7 REQUIRED)

7. Inspect the o-ring at the top of the outlet tube for cracks or excessive wear. Replace if necessary.

8. Assemble the manifold to the top of the assembly. Make sure that the grids and outlet tube ﬁ t securely into the manifold and that the retaining rod extends

up through the hole in the center of the manifold.

Page 11Diatomaceous Earth Pool Filters - DEV Series Filter

9. Place the tie rod knob on the tie rod and tighten. Tighten until the ﬁ lter grid assembly is snug. Do not overtighten.

10. Reassemble the tank o-ring and tank lid.

11. Reinstall the tank clamp ring. See Section 3.5 for clamp installation.

Section 6. Maintenance

6.1 General Maintenance

1. Wash outside of ﬁ lter with a mild detergent and water. Rinse off with a hose. Do not use solvents

to clean the ﬁ lter. Solvents will damage the plastic components of the ﬁ lter.

2. Inspect the DE ﬁ lter grids at least twice a year. Remove any foreign material that has not been backwashed out of the system.

3. Check pressure during operation at least once a week.

4. Remove any debris from the pumps and pool skimmer baskets.

5. Check pump and ﬁ lter for any leaks. If any leaks develop, turn off the pump and call a pool service technician.

6. Product safety signs or labels should be periodically inspected and cleaned by the product user as necessary to maintain good legibility for safe viewing distance.

7. Product safety signs or labels should be replaced by the product user when a person with normal vision, including corrected vision, is no longer able to read the safety signs or label message panel text at a safe viewing distance from the hazard. In cases where the product has an extensive expected life or is exposed to extreme conditions, the product user should contact either the product manufacturer or some other source to determine means for obtaining replacement signs or labels.

6.2 Backwashing

1. With the ﬁ lter pump off, set the backwash valve or diverter valve handle to the "BACKWASH" position.

Caution

Maintain your pressure gauge in good working order. The pressure gauge is the primary indicator of how the ﬁ lter is operating.

2. Open the air release valve.

3. Stand clear of the ﬁ lter and start the pump to circulate the water backwards through the ﬁ lter to the waste line.

4. When a steady stream of water is expelled through the air release valve, close the valve.

5. Run the pump until the backwash discharge water is clear (repeat steps 1 thru 5 if required).

6. Switch the ﬁ lter pump off.

7. Follow the procedure for coating the ﬁ lter grids as described in Section 4.2.

6.3 Pressure Gauge

1. During operation of the ﬁ ltration system, check the pressure gauge/air release assembly for air or water leaks at least once a week.

2. Keep the pressure gauge in good working order. If you suspect a problem with the gauge, Zodiac recommends that you call a service technician to do any work on the ﬁ lter/pump system.

6.4 Cleaning the Filter Grids with Water

1. Turn off the pump and switch off the circuit breaker to the pump motor. Open the air release valve on top of the ﬁ lter tank. Close the ﬁ lter isolation valves. Remove the drain plug.

2. Once all pressure has been relieved, remove the clamp ring and the ﬁ lter lid. Inspect the o-ring for cracks or tears and replace if necessary.

Caution

Be sure that all provisions for wastewater disposal meet local, state or national codes. One hundred gallons (100 gals.) or more of pool water will be discharged during ﬁ lter backwashing. Do not discharge water where it will cause ﬂ ooding or damage.

8. Installation of new replacement safety signs or labels should be in accordance with the sign or label manufacturer's recommended procedure.

3. Remove the ﬁ lter grid assembly from the ﬁ lter. Follow the instructions in Section 5.1.

4. Using a garden hose, thoroughly ﬂ ush all contaminates from the ﬁ lter grid surfaces.

Page 12

WARNING

Working with muriatic acid can be dangerous. When cleaning ﬁ lter grids, always wear rubber gloves and eye protection. Add acid to water, do not add water to acid. Splashing or spilling acid can cause severe

personal injury

5. See Section 5.2 for reassembly of the ﬁ lter tank and ﬁ lter grids.

and/or property damage.

6.5 Cleaning Filter Grids with Muriatic Acid

1. Check with your local pool store or service company to see if they offer ﬁ lter grid de-scaling services.

2. Stiffening of the ﬁ lter grid fabric is caused by mineral deposit buildup. It is usually due to deposits of either magnesium, calcium, alkalines or carbonates. Removal of these deposits may be accomplished by soaking the ﬁ lter grids in a plastic tub or pail with six (6) parts water to one (1) part hydrochloric acid (muriatic acid).

Section 8. Troubleshooting

1. For a list of common problems and solutions, see the Troubleshooting Guide on the following page.

2. Zodiac recommends that you call a service technician to do any work on the ﬁ lter/pump system. For technical assistance, contact our Technical Support Department at 1.800.822.7933

3. Wear rubber gloves and eye protection when mixing the solution, and handling or rinsing the ﬁ lter grids.

4. Soak for at least four (4) hours.

5. Rinse the ﬁ lter grids thoroughly with water.

6. See Sections 5.1 and 5.2 for reassembly of the ﬁ lter tank and ﬁ lter grids.

Section 7. Winterizing

1. Turn off the pump and circuit breakers.

2. Open the air release valve and move the diverter valve handle to a position between two (2) ports. This will allow air to ﬂ ow to all ports.

3. Remove the drain plug at the base of the ﬁ lter to ensure that the tank is empty. Store the drain plug and seal it in a safe place. Do not reinstall until next season at start-up.

4. Drain system piping of all water.

5. Cover the system with a tarpaulin or plastic sheet to protect it from the weather.

Table 4. Troubleshooting Guide

Fault Symptom Possible Problems Solutions

Water is not clear. Insufficient disinfectant level.

Incorrect pool chemistry.

Heavy bathing and/or dirt loads.

Insufficient running times.

Filter is dirty.

Hole in filter element.

Low water flow. Filter system strainer baskets dirty.

Air leaks on suction side of pump.

Restrictions or blockage in either suction or return lines.

Filter grids need to be cleaned or replaced.

Pool water level too low.

Pump not primed.

Pump impeller vanes blocked.

Pump operating under speed (low voltage).

Short filter cycles. Presence of algae clogging filter.

Incorrect water chemistry.

Strainer baskets not being used and/or broken. (Allow debris into pump.)

Pump output exceeds design flow rate of filter.

Ineffective cleaning.

High pressure on start-up. Small eyeball fitting in Pool/Spa.

Partially closed valve on return line.

Too large of pump.

Filter grids dirty.

Dirt returns to pool. Hole in filter grid fabric.

Worn o-ring seal inside filter.

Cracked manifold.

Check and adjust disinfectant level.

Test and adjust water chemistry.

Adjust filter time and/or water chemistry.

Increase pump run time.

Backwash filter per instructions.

Replace filter grids.

Check and clean skimmer and pump baskets.

Check all connections between pool intake and pump.

Check all lines for debris or partially closed valves.

Clean or replace filter grids per instructions.

Fill pool so level is above pump inlet line.

Fill pump with water at basket and replace lid.

Technician required.

Technician or electrician required.

Check disinfectant content.

Check pH, total alkalinity and TDS.

Replace baskets.

Check pump performance.

Clean or replace filter grids per in struc tions.

Replace with larger diameter fitting.

Check and fully open all valves on return line.

Check pump and filter selection.

Clean filter grids per instructions.

Replace filter grid per instructions.

Replace o-ring.

Replace the manifold assembly.

Page 13Diatomaceous Earth Pool Filters - DEV Series Filter

Page 14

Section 9. Parts List and Exploded View

9.1 Jandy DEV Filter Parts List

Key

No. Description

1 Handle Assembly w/ Hardware (set of 2) R0357100

2 Handle Hardware (set of 4) R0359900

3 Gauge/Air Release Assembly R0357200

4 Pressure Gauge R0359600

5 Tank Adapter w/O-ring R0552000

6 Tank Lid DEV60 R0357300

Tank Lid DEV48 R0554700

7 Top Spacer for DE Grids R0359700

8 Spacer, DEV48/60, Large Filter R0405100

9 Breather Tube Assembly R0358700

10 Manifold Assembly R0359000

11 Tie Rod w/Knob & Lock Nuts, DEV 60 R0359300

Tie Rod w/Knob & Lock Nuts, DEV 48 R0554800

12 Tank Clamp Ring w/ Rod Assembly R0357400

13 Threaded Rod and Retainer R0357500

14 Tank O-ring R0357800

15 Outlet Tube/Elbow Assembly w/O-rings,

DEV60

Outlet Tube/Elbow Assembly w/O-rings, DEV48

16 Inlet Elbow w/O-ring R0358400

17 DE Grid Support R0359500

18 DE Grid, Full Size, DEV60 (7 required) R0359100

DE Grid, Full Size, DEV48 (7 required) R0555000

19 DE Grid, Short Span, DEV60 (1 only) R0359200

DE Grid, Short Span, DEV48 (1 only) R0554900

20 Tie Rod Knob R0359400

21 Ring, Retaining R0405200

22* O-ring Replacement Kit R0358000

23 Bottom Assy, Universal Unions R0466500

24 Bulkhead Assembly with O-ring R0465600

25 Anchor Bracket Kit (Set of 4) R0465500

26 Universal Half Unions (set of 4) and Drain

Plug Cap (not shown)

27* Complete set of Jandy DEV60 filter grids

(7 full-size, 1 short span)

28* Complete set of Jandy DEV48 filter grids

(7 full-size, 1 short span)

Universal Half Union (Set of 1)

Drain Cap Assembly

31 Grid Assembly, DEV48, Complete R0501300

Grid Assembly, DEV60, Complete R0501400

Part

No.

R0358100

R0555100

R0461800

R0442600

R0442700

R0522900

R0523000

9.2 Exploded View of Jandy DEV Filter

14,23

26,29

23,21

16,23

* Parts not shown on key view

Section 10. Head Loss Curves

10.1 Jandy® DEV Filter Design Head Loss Curves

Page 15Diatomaceous Earth Pool Filters - DEV Series Filter

DEV48

DEV60

Design

Head Loss

(ft head)

0 30 60 90 120 150

Flow Rate (gpm)

Design

Pressure

Drop

(psi)

H0295200 Rev B

6000 Condor Drive • Moorpark CA USA 93021 • 800-822-7933 • Fax: 877-327-1403

ZODIAC POOL SYSTEMS, INC.

Jandy DEV Series, DEV48, DEV60 Installation And Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
