Janam XM65 series Specifications

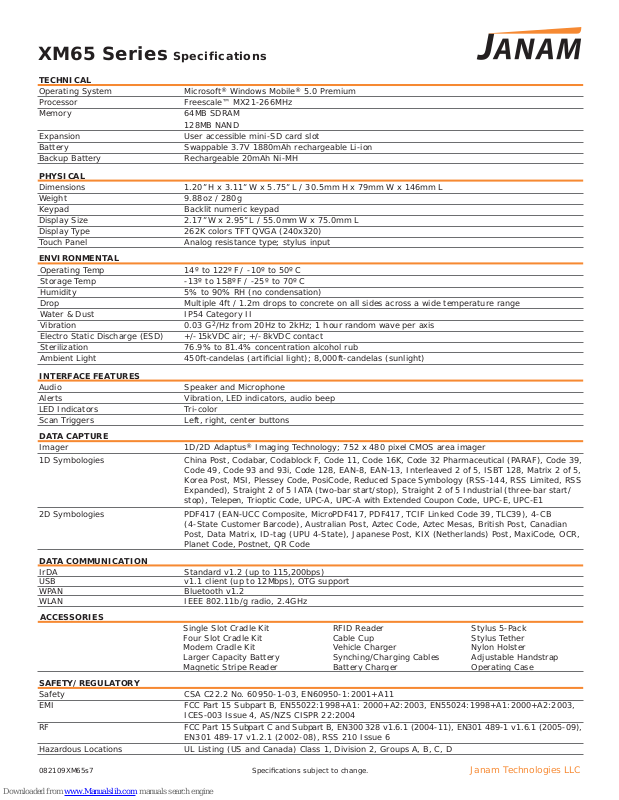

XM65 Series Specifications

TECHNICAL

Operating System Microsoft® Windows Mobile® 5.0 Premium
Processor Freescale™ MX21-266MHz
Memory 64MB SDRAM
128MB NAND
Expansion User accessible mini-SD card slot
Battery Swappable 3.7V 1880mAh rechargeable Li-ion
Backup Battery Rechargeable 20mAh Ni-MH

PHYSICAL
Dimensions 1.20” H x 3.11” W x 5.75” L / 30.5mm H x 79mm W x 146mm L
Weight 9.88oz / 280g
Keypad Backlit numeric keypad
Display Size 2.17” W x 2.95” L / 55.0mm W x 75.0mm L
Display Type 262K colors TFT QVGA (240x320)
Touch Panel Analog resistance type; stylus input

ENVIRONMENTAL

Operating Temp 14º to 122º F / -10º to 50º C
Storage Temp -13º to 158º F / -25º to 70º C
Humidity 5% to 90% RH (no condensation)
Drop Multiple 4ft / 1.2m drops to concrete on all sides across a wide temperature range
Water & Dust IP54 Category II
Vibration 0.03 G
Electro Static Discharge (ESD) +/- 15kVDC air; +/- 8kVDC contact
Sterilization 76.9% to 81.4% concentration alcohol rub
Ambient Light 450ft-candelas (artifi cial light); 8,000ft-candelas (sunlight)

INTERFACE FEATURES

Audio Speaker and Microphone
Alerts Vibration, LED indicators, audio beep
LED Indicators Tri-color
Scan Triggers Left, right, center buttons

DATA CAPTURE

Imager 1D/2D Adaptus® Imaging Technology; 752 x 480 pixel CMOS area imager
1D Symbologies China Post, Codabar, Codablock F, Code 11, Code 16K, Code 32 Pharmaceutical (PARAF), Code 39,

2D Symbologies PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39), 4-CB

DATA COMMUNICATION

IrDA Standard v1.2 (up to 115,200bps)
USB v1.1 client (up to 12Mbps), OTG support
WPAN Bluetooth v1.2
WLAN IEEE 802.11b/g radio, 2.4GHz

ACCESSORIES

Single Slot Cradle Kit RFID Reader Stylus 5-Pack
Four Slot Cradle Kit Cable Cup Stylus Tether
Modem Cradle Kit Vehicle Charger Nylon Holster
Larger Capacity Battery Synching/Charging Cables Adjustable Handstrap

SAFETY/REGULATORY

Safety CSA C22.2 No. 60950-1-03, EN60950-1:2001+A11
EMI FCC Part 15 Subpart B, EN55022:1998+A1: 2000+A2:2003, EN55024:1998+A1:2000+A2:2003,

RF FCC Part 15 Subpart C and Subpart B, EN300 328 v1.6.1 (2004-11), EN301 489-1 v1.6.1 (2005-09),

Hazardous Locations UL Listing (US and Canada) Class 1, Division 2, Groups A, B, C, D

2

/Hz from 20Hz to 2kHz; 1 hour random wave per axis

Code 49, Code 93 and 93i, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, ISBT 128, Matrix 2 of 5,
Korea Post, MSI, Plessey Code, PosiCode, Reduced Space Symbology (RSS-144, RSS Limited, RSS
Expanded), Straight 2 of 5 IATA (two-bar start/stop), Straight 2 of 5 Industrial (three-bar start/
stop), Telepen, T rioptic Code, UPC-A, UPC-A with Extended Coupon Code, UPC-E, UPC-E1

(4-State Customer Barcode), Australian Post, Aztec Code, Aztec Mesas, British Post, Canadian
Post, Data Matrix, ID-tag (UPU 4-State), Japanese Post, KIX (Netherlands) Post, MaxiCode, OCR,
Planet Code, Postnet, QR Code

Magnetic Stripe Reader Battery Charger Operating Case

ICES-003 Issue 4, AS/NZS CISPR 22:2004

EN301 489-17 v1.2.1 (2002-08), RSS 210 Issue 6

082109XM65s7 Specifi cations subject to change.

Janam Technologies LLC
