James Martin 620V60DWW3OCAR, 620V60DWW3AF, 620V60DWW3CSP, 620V60DWW3CAR, 620V60DWW3EJP Diagram
...
60 D
Item Number
:
620-V60D-BNM
620-V60D-CWH
620-V60D-WWW
Portland 60'' Double Vanity
Diagrams with Dimensions
page 01 of 03
59 13/16''
19 5/16'' 19 5/16''19 5/16''
26''
NOTE ONE: Countertops are not shown in these diagrams
NOTE TWO: This vanity does not have a Backsplash.
Please consult our website for Countertop Diagrams: www.jamesmartinvanities.com
26''
. (Cabinet Only)
26''
27 1/2''
5 1/2''
60 D
Item Number
:
620-V60D-BNM
620-V60D-CWH
620-V60D-WWW
Portland 60'' Double Vanity
Diagrams with Dimensions
page 02 of 03
23 1/2''
23 1/2''
16 1/2''
17 1/8''
16 5/16''
15 1/8''
60''
15 13/16''
16 5/16''
15 1/8''
16 5/16''
5 1/8''
17 1/8''
6 1/8'' 11 11/16''
60''
NOTE ONE: Countertops are not shown in these diagrams
NOTE TWO: Internal Shelves (Shown) are designed to align with sinks in James Martin's Optional Countertops.
Customers' own countertops and sinks may align differently, and modication may be required.
Please consult our website for Countertop Diagrams: www.jamesmartinvanities.com
. (Cabinet Only)
60 D
Item Number
:
620-V60D-BNM
620-V60D-CWH
620-V60D-WWW
Portland 60'' Double Vanity
Diagrams with Dimensions
page 03 of 03
23 1/2'' 23 1/2''
22 1/2''
33''
22 1/2''
6 11/16''
6 11/16''
27 1/2''
NOTE ONE: Countertops are not shown in these diagrams
NOTE TWO: This vanity does not have a Backsplash.
Please consult our website for Countertop Diagrams: www.jamesmartinvanities.com
5 1/2''
. (Cabinet Only)
1524 mm
Item Number
:
620-V60D-BNM
620-V60D-CWH
620-V60D-WWW
491 491 491
Portland 1524mm Double Vanity
Diagrams with Dimensions
page 01 of 03
1520
660
NOTE ONE: Countertops are not shown in these diagrams
NOTE TWO: This vanity does not have a Backsplash.
Please consult our website for Countertop Diagrams: www.jamesmartinvanities.com
660
. (Cabinet Only)
660
699140
1524 mm
Item Number
:
620-V60D-BNM
620-V60D-CWH
620-V60D-WWW
Portland 1524mm Double Vanity
Diagrams with Dimensions
page 02 of 03
597
597
420
435
414
384 384
414
130
401
297
435
155
414
1524
NOTE ONE: Countertops are not shown in these diagrams
NOTE TWO: Internal Shelves (Shown) are designed to align with sinks in James Martin's Optional Countertops.
Customers' own countertops and sinks may align differently, and modication may be required.
Please consult our website for Countertop Diagrams: www.jamesmartinvanities.com
. (Cabinet Only)
1524 mm
Item Number
:
620-V60D-BNM
620-V60D-CWH
620-V60D-WWW

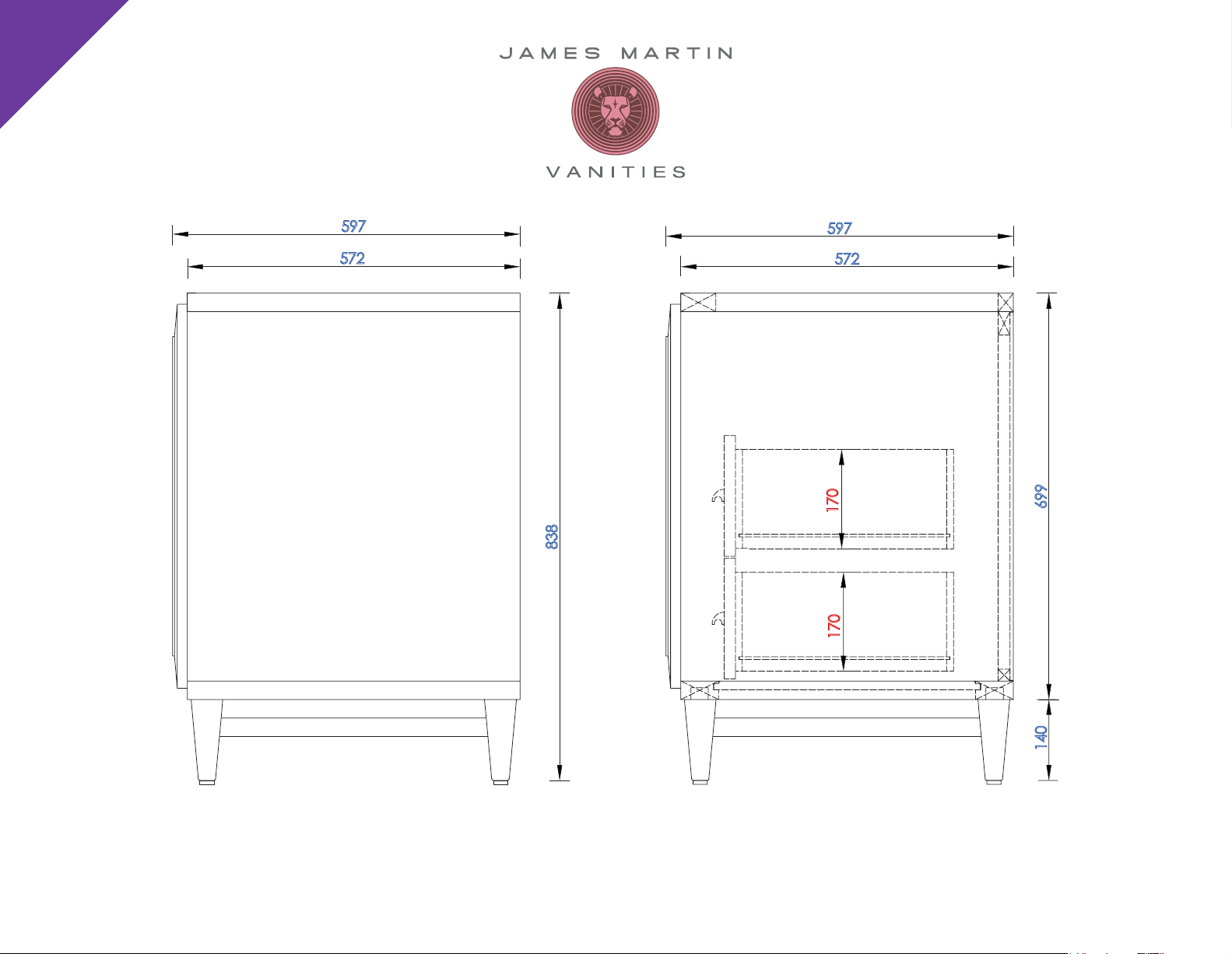

Portland 1524mm Double Vanity
Diagrams with Dimensions
page 03 of 03
597
572
838
597
572
170
699
170
NOTE ONE: Countertops are not shown in these diagrams
NOTE TWO: This vanity does not have a Backsplash.
Please consult our website for Countertop Diagrams: www.jamesmartinvanities.com
140
. (Cabinet Only)
