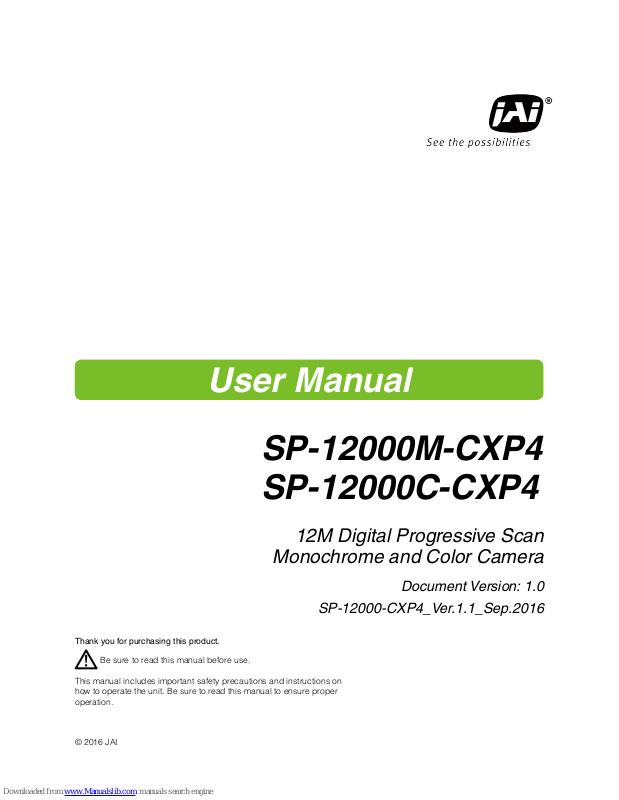

JAI SP-12000M-CXP4, SP-12000C-CXP4 User Manual

Thank you for purchasing this product.

Be sure to read this manual before use.

This manual includes important safety precautions and instructions on how to operate the unit. Be sure to read this manual to ensure proper operation.

User Manual

SP-12000M-CXP4 SP-12000C-CXP4

12M Digital Progressive Scan

Monochrome and Color Camera

Document Version: 1.0

SP-12000-CXP4_Ver.1.1_Sep.2016

Contents

Notice ............................................................................3

Warranty .......................................................................3

Certifications ................................................................. 3

Warning ........................................................................3

Usage Precautions .......................................................6

Features ........................................................................7

Parts Identification ........................................................8

Preparation........................................................... 13

Preparation Process ...................................................13

Step 1: Installing the Software (first time only) ............13

Enabling the CXP frame grabber board .............14

Step 2: Connecting Devices ........................................ 14

Step 3: Verifying the Camera’s Connection Status .....16

Step 4: Configuring Initial Settings for the Camera .....16

Connecting to the Camera to Control Tool .............16

Configuring the optimal link configuration ..........16

Configuring the Output Format ...............................17

Configuring Exposure and External Trigger

Settings ...................................................................18

Control via External Triggers .......................................19

When Controlling the Exposure Time Using

Specified Exposure Times ......................................19

When Controlling the Exposure Time Using the

Pulse Width of the Trigger Input Signal ..................19

Control Without External Triggers ...............................20

When Controlling the Exposure

Time Using Specified Exposure Times ...................20

When not Controlling the Exposure Time ...............21

Step 5: Adjusting the Image Quality............................21

Adjusting the Gain ..................................................21

Manual adjustment .............................................21

Adjusting the White Balance (SP-12000C-CXP4

only) ........................................................................22

Manual white balance adjustment ......................22

Automatic white balance adjustment .................22

Adjusting the Black Level .......................................22

Step 6: Configuring Various Other Settings ................22

Step 7: Saving the Settings .........................................23

To save user settings ..........................................23

To load user settings ...........................................24

Basic Function Matrix .................................................24

Main Functions .................................................... 25

GPIO (Digital Input/Output Settings) ...........................25

Valid Input/Output Combinations ............................25

Acquisition Control (Image Acquisition Controls) ........26

Changing the Frame Rate ......................................26

Maximum Frame Rate .............................................26

Necessary parameters .......................................26

Calculation of frame rate ....................................26

Exposure Mode ...........................................................27

Trigger Control ............................................................28

Shortest Repetition Period for Triggers ...................28

Gain Control ................................................................36

LUT (Lookup Table) ....................................................37

To use the LUT function ......................................37

LUT values ..........................................................37

Gamma Function ........................................................38

To use the gamma function ................................38

ROI (Regional Scanning Function) .............................39

ROI Settings ............................................................39

Video Send Mode .......................................................40

Video Send Mode ...................................................40

To switch the video send mode ..........................40

Multi ROI function ...............................................40

Sequence Trigger function .................................41

ALC (Automatic Level Control) Function ..................... 44

To use the ALC function ......................................44

Automatic gain level control ...............................44

Detailed Settings for Gain Auto (Automatic Gain

Level Control) .........................................................44

PIV Function ...............................................................45

HDR (High Dynamic Range) Mode

(SP-12000M-CXP4 only) ............................................46

Video Process Bypass Mode ......................................48

Available bit-depth options .................................48

Differences in camera operation ............................48

When Video Process Bypass mode is

disabled .........................................................48

When Video Process Bypass mode is

enabled ..........................................................48

Settings List ......................................................... 49

Feature Properties ......................................................49

Settings .......................................................................54

Miscellaneous ...................................................... 56

Troubleshooting ..........................................................56

Specifications ..............................................................57

Frame Rate Reference ...............................................59

Spectral Response .....................................................59

Dimensions .................................................................60

User’s Record .............................................................61

Index ..................................................................... 62

— 2 —

SP-12000M-CXP4 / SP-12000C-CXP4

— 3 —

Notice

The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein. JAI Ltd., Japan reserves the right to make changes without notice.

Company and product names mentioned in this manual are trademarks or registered trademarks of their respective owners.

Warranty

For information about the warranty, please contact your factory representative.

Certifications

CE compliance

As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC (Electromagnetic compatibility), JAI Ltd., Japan declares that SP-12000M-CXP4 and SP-12000C-CXP4 comply with the following provisions applying to its standards. EN 61000-6-3 (Generic emission standard part 1) EN 61000-6-2 (Generic immunity standard part 1)

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications to this unit not expressly approved by the party responsible for FCC compliance could void the user



s authority to operate the equipment.

SP-12000M-CXP4 / SP-12000C-CXP4

— 4 —

GO-5000M-PGE

Supplement

The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “. The table shows contained Hazardous Substances in this camera.

mark shows that the environment-friendly use period of contained Hazardous

Substances is 15 years.

嶷勣廣吭並㍻

嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕

功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇云恢瞳ゞ嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕〃泌和



桟隠聞喘豚㍉

窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。

方忖仝15々葎豚㍉15定。

部件名称

有毒有害物质或元素

铅

(Pb)

汞

(Hg)

镉

(Cd)

六价铬

(Cr (VI))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

连接插头 × ○ ○ ○ ○ ○

电路板 × ○ ○ ○ ○ ○

镜头口 × ○ ○ ○ ○ ○

螺丝固定座 × ○ ○ ○ ○ ○

机体外壳 × ○ ○ ○ ○ ○

光学滤镜 × ○ × ○ ○ ○

SP-12000M-CXP4 / SP-12000C-CXP4

— 5 —

GO-5000C-PGE

Supplement

mark shows that the environment-friendly use period of contained Hazardous

Substances is 15 years.

嶷勣廣吭並㍻

嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕

功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇云恢瞳ゞ嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕〃泌和



桟隠聞喘豚㍉

方忖仝15々葎豚㍉15定。

部件名称

有毒有害物质或元素

铅

(Pb)

汞

(Hg)

镉

(Cd)

六价铬

(Cr (VI))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

连接插头 × ○ ○ ○ ○ ○

电路板 × ○ ○ ○ ○ ○

镜头口 × ○ ○ ○ ○ ○

螺丝固定座 × ○ ○ ○ ○ ○

机体外壳 × ○ ○ ○ ○ ○

······ ······ ······ ······ ······ ······ ······

SP-12000M-CXP4 / SP-12000C-CXP4

— 6 —

Notes on cable configurations

The presence of lighting equipment and television receivers nearby may result in video and audio noise. In such cases, change the cable configurations or placement.

Notes on attaching the lens

Avoiding dust particles

When attaching the lens to the camera, stray dust and other particles may adhere to the sensor surface and rear surface of the lens. Be careful of the following when attaching the lens.

•Work in a clean environment.

•Do not remove the caps from the camera and lens until immediately before you attach the lens.

•To prevent dust from adhering to surfaces, point the camera and lens downward and do not allow the

lens surface to come into contact with your hands or other objects.

•Always use a blower brush to remove any dust that adheres. Never use your hands or cloth, blow with your mouth, or use other methods to remove dust.

Phenomena specific to CMOS image sensors

The following phenomena are known to occur on cameras equipped with CMOS image sensors. These do not indicate malfunctions.

•

Aliasing

When shooting straight lines, stripes, and similar patterns, vertical aliasing (zigzag distortion) may appear on the monitor.

•

Blemishes

Due to the sensor element (pixel) array inside the CMOS image sensor, blemishes may occur when strong light enters. However, this does not affect actual operation.

•

Fixed pattern noise

When shooting dark objects in high-temperature conditions, fixed pattern noise may occur throughout the entire video monitor screen.

•

Defective pixels

Defective pixels (white and black pixels) of the CMOS image sensor are minimized at the factory according to shipping standards. However, as this phenomenon can be affected by the ambient temperature, camera settings (e.g., high sensitivity and long exposure), and other factors, be sure to operate within the camera’s specified operating environment.

Notes on exportation

When exporting this product, please follow the export regulations of your country or region.

Usage Precautions

SP-12000M-CXP4 / SP-12000C-CXP4

— 7 —

SP-12000M-CXP4 / SP-12000C-CXP4

Features

The SP-12000M-CXP4/SP-12000C-CXP4 is an industrial progressive scan camera equipped with an APS-C format global shutter CMOS image sensor with 12.58 effective megapixels (4096 × 3072). The unit is equipped with a CoaXPress Ver. 1.0 interface.

 The SP-12000M-CXP4 produces monochrome output while the SP-12000C-CXP4 produces Bayer output.

Coaxial cable interface supporting CoaXPress Ver. 1.0

•High-speed transfer at up to 25 Gbps of uncompressed data, the ideal format for image processing.

•Maximum cable lengths for the recommended cables are as follows.

3.125G 6.25G

Belden 1694A 100 m 40 m

Belden 1855A 55 m 25 m

Note

The frame grabber board that you use must support CoaXPress. Power can also be supplied via the 12-pin connector using an optional +12 to +24V DC power supply. PoCXP is also supported.

Output formats

You can choose from 8-bit and 10-bit output for both monochrome and Bayer in normal mode. 12-bit output is possible in Video Process Bypass mode (see page 48).

High frame rate

The SP-12000M-CXP4 and SP-12000C-CXP4 are both capable of frame rates of up to 189 fps (8-bit format) for full 12-megapixel output. Even faster frame rates can be achieved when a smaller ROI (region of interest) is specified.

Automatic level control (ALC) function

Combine the automatic gain control and automatic exposure control functions to allow handling of changes in various brightnesses.

Variety of pre-process functions

•LUT (lookup table)

For programmable control over gamma and contrast.

•Gamma correction

The gamma can be set to one of nine settings from 0.45 to 1.0.

•Bayer white balance (SP-12000C-CXP4 only)

White balance can be automatically adjusted continuously. It can also be adjusted manually using R, G, and B gain.

Connection example:

External trigger

AC adapter

Camera

Computer

CoaXPress frame grabber board

— 8 —

SP-12000M-CXP4 / SP-12000C-CXP4

Parts Identification

SP-12000-CXP4

③

⑤

⑥

⑦

①

⑧

④

SP-12000-CXP4-XT (option)

③

⑤

⑥

⑦

①

⑧

②

④

— 9 —

SP-12000M-CXP4 / SP-12000C-CXP4

Lens mount (F-mount)

Mount an F-mount lens, microscope adapter, etc. here.

Ventilation holes (SP-12000-CXP4-XT (option) only)

CXP (CoaXPress) connectors 1 to 4 (DIN)

Connect the coaxial cables for digital video output here. (Equivalent to Amphenol Connex ACX1785-ND. PoCXP is also supported.)

LINK LEDs 1 to 4

Indicates the CXP connection status.

LED status and camera status

LED Light Status

POWER/TRIG LED Lit green Power is on.

Off Power is off.

LINK LEDs 1 to 4 Lit amber System starting up.

Blinking amber (rapid) Detecting link (when PoCXP not in use).

 Blinks for 1 second even when detected

immediately.

Blinking amber (slow) Waiting for connection between device and host to

be established or for event (trigger, exposure pulse, etc.) to occur.

Alternating between

green and amber (rapid)

Detecting link (when using PoCXP).

 Blinks for 1 s even when detected immediately.

/ Alternating between

green and amber (slow)

Sending connection test packet.

/ / Blinking red,

green, amber (slow)

Compliance test mode enabled (equipment only).

Lit green Connection between device and host is established,

but there is no data being transmitted.

An error occurred during data transmission (CRC error, single bit error, etc. detected).

 Lights for at least 200 ms before errors are

displayed when multiple errors occur simultaneously.

Blinking green Connection between device and host is established,

and data is being transmitted.

Red pulse (slow) No connection.

 Does not apply to devices using PoCXP.

Lit red PoCXP overcurrent (host side only).

/ Alternating between

red and green (slow)

PoCXP has been established, but a connection error between the device and host has occurred.

/ Alternating between

red and amber (slow)

A connection error between the device and host has occurred while PoCXP is not in use.

Off Power is off.

— 10 —

SP-12000M-CXP4 / SP-12000C-CXP4

DC IN / TRIG connector (12-pin round)

Connect the cable for a power supply (optional) or for DC IN / trigger IN here.

Camera side: Equivalent to Hirose Electronic HR-10A-10R-12PB(72) Cable side: Equivalent to Hirose Electronic HR10A-10P-12S(73)

Pin No. Attribute Name Note

1 GND GND

2 Power IN DC (+12V) IN DC 12 V to 24 V ±10%

3 GND GND

4 NC

5 IN Opto IN- Line 5

6 IN Opto IN+

7 OUT Opto OUT- Line 2

8 OUT Opto OUT+

9 OUT TTL OUT Line 1

10 IN TTL IN Line 4

11 Power IN DC (+12V) IN

12 GND GND

Recommended internal circuits for Opto IN

TLP2366

1SS400

180CS

TC7WG14FK

3 5

BF545C

User power

+3.3V to +24V

User side

Camera side

Opto IN+

Opto IN-

— 11 —

SP-12000M-CXP4 / SP-12000C-CXP4

Recommended internal circuits for Opto OUT

2SC6033

220BS

1SS400

180BS TC7WG14FK

100KBS

TLP109 (TPR,E)

OUT

Opto OUT-

270

User power

+5V to +24V

OUT

Opto OUT+

User side Camera side

Characteristics of the recommended circuits for Opto OUT

OUTPUT LINE RESPONSE TIME

Output Line Voltage

Camera Output Signal

TDR

TDF

90%

10%

Output LEVEL = User Vcc- (0.8 to 1.1)

When 270 Ω terminals are used

User power (Vcc)

3.3 V 5 V 12 V 24 V

Time Delay Rise TDR (μs) 0.54 0.54 0.62 0.68

Rise Time RT (μs) 1.2 1.2 2.0 3.0

Time Delay Fall TDF (μs) 1.5 1.5 2.4 2.1

Fall Time FT (μs) 3.6 3.4 4.5 6.8

POWER/TRIG LED

Indicates the power and trigger input status.

— 12 —

SP-12000M-CXP4 / SP-12000C-CXP4

AUX connector (10-pin)

Camera side: Equivalent to Hirose Electronic 3260-10S3(55) Cable side: Equivalent to Hirose Electronic 350-10P-C(50)

Pin No. Attribute Name Note

1 OUT TTL OUT2 Line 8

2 OUT TTL OUT3 Line 9

3 IN TTL_IN2 Line 10

4 NC

5 GND GND

6 IN LVDS_IN1+ Line 11

7 IN LVDS_IN1-

8 NC

9 GND GND

10 GND GND

Camera locking screw holes (M3, 5 mm depth)

Use these holes when attaching an MP-42 tripod adapter plate (optional) or mounting the camera directly to a wall or other structural system.

— 13 —

SP-12000M-CXP4 / SP-12000C-CXP4

Preparation

Preparation Process

Step 1 Installing the Software (first time only)

Install the software for configuring and controlling the camera (JAI SDK) on the computer.



Step 2 Connecting Devices

Connect the lens, CXP cable, AC adapter, computer, and other devices.



Step 3 Verifying the Camera’s Connection Status

Verify whether the camera is ready for use via the LEDs at the rear of the camera.



Step 4 Configuring Initial Settings for the Camera

• Configure the output format.

• Configure settings related to the exposure and external trigger.



Step 5 Adjusting the Image Quality

• Adjust the gain and white balance.

• Adjust the exposure (shutter).



Step 6 Configuring Various Other Settings

Configure various other settings as necessary.



Step 7 Saving the Settings

Save the current setting configurations in user memory.

Step 1: Installing the Software (first time only)

When using the camera for the first time, install the software for configuring and controlling the camera (JAI SDK) on the computer.

 When you install JAI SDK, JAI Camera Control Tool will also be installed.

Download the “JAI - Getting Started Guide” and JAI SDK from the JAI website.

URL: http://www.jai.com/en/support/download-jai-software

Refer to the “JAI - Getting Started Guide,” and install JAI SDK on the computer.

The computer will restart when installation is complete.

Note

When the JAI SDK is installed, a camera driver for the GigE interface is also part of the default installation. This GigE Vision Filter Driver is added to every NIC/port on the host computer. As the driver is also added to the NIC/ port for Internet connection, it may, on some systems, affect Internet access speed. If you think your Internet speed is affected, configure the following settings to disable the filter driver on that port.

Open [Control Panel]  [Network and Internet]  [Connect to a network], and right-click the port used for

Internet connection to open the properties dialog box.

— 14 —

SP-12000M-CXP4 / SP-12000C-CXP4

Clear the [JAI GigE Vision Filter Driver] checkbox, and save.

■ Enabling the CXP frame grabber board

Start JAI Control Tool.

Click the settings icon at the top right of the window.

The [Settings] window appears.

Click the + icon for your CXP frame grabber board under [64-bit Factory Transport Layers]

 [Available 64-bit Transport Layers] to display its settings.

Set [Enabled] to [True].

Step 2: Connecting Devices

Connect the lens, CXP cable, AC adapter, and other devices. Attach the lens in a clean environment to prevent dust from adhering to the unit.

Camera body

Direct connection

(or MP-42 tripod adapter plate)

DC IN / trigger IN

connection cable

Lens

CXP cables

CXP frame

grabber board

Computer

to external trigger

AC adapter

(power supply)

— 15 —

SP-12000M-CXP4 / SP-12000C-CXP4

Lens

F-mount lenses can be used.

Caution

The maximum performance of the camera may not be realized depending on the lens.

Note

The following formula can be used to estimate the focal length. focal length = WD / (1 + W/w) WD: Working distance (distance between lens and object) W: Width of object w: Width of sensor (18.16 mm on this camera)

Direct connection (or MP-42 tripod adapter plate)

When mounting the camera directly to a wall or other structural system, use screws that match the camera locking screw holes on the camera. (M3, 5 mm) Use the supplied screws to attach the tripod adapter plate.

Caution

For heavy lenses, be sure to support the lens itself. Do not use configurations in which its weight is supported by the camera.

CXP cables

Connect the CXP cables to the CXP connectors on the camera and the frame grabber board.

•The number of cables you can connect varies depending on the number of connectors on your frame grabber board (1, 2, or 4).

•Be sure to connect each cable to matching connector numbers on the camera and the frame grabber board.

•Refer to the specifications of the cable for details on its bend radius.

CXP frame grabber board

Refer to the instruction manual of the CXP frame grabber board, and configure settings on the computer as necessary.

Computer

Use a computer that meets the following requirements.

Operating system (OS):

Microsoft Windows 7/8 32-bit/64-bit edition

CPU: Intel Core i5 or higher Memory:

Windows 7/8 32-bit edition: DDR3, 4 GB or higher Windows 7/8 64-bit edition: DDR3, 8 GB or higher

Graphics card: PCI-Express 3.0 or higher

DC IN / trigger IN connection cable

AC adapter (power supply)

Connect the AC adapter and the round connector of the connection cable to the DC IN / trigger IN connector on the camera.

— 16 —

SP-12000M-CXP4 / SP-12000C-CXP4

Step 3: Verifying the Camera’s Connection Status

When power is supplied to the camera while the necessary equipment is connected, the power / trigger LED and LINE LEDs at the rear of the camera light amber, and initialization of the camera starts. When initialization is complete, the power / trigger LED lights green. The CXP status indicators (LINK 1 to 4) light or blink according to the connection status.

Verify whether power is being supplied to the camera and whether connection has been established by checking the rear LEDs.

Lit green

 For details on how to read the LEDs, see “LED status and camera status” (page 9) in the “Parts

Identification” section.

Note

Initialization of the camera is not complete until connection with the host is established. If the power / trigger LED does not switch to green within minutes of supplying power, check the CXP cable and other connections. After initialization is completed once, the power / trigger LED will remain green, even if the host is disconnected.

Step 4: Configuring Initial Settings for the Camera

Start Control Tool, connect the camera to the CXP frame grabber board, and configure initial settings for the output format, exposure, external trigger, etc.

Connecting to the Camera to Control Tool

Start JAI Control Tool.

Cameras connected to the CXP frame grabber board are detected and displayed in a window. If they do not appear, right-click inside the window and select [Search for Cameras].

Select the camera you want to configure.

Check that the settings of the selected camera are displayed.

■ Configuring the optimal link configuration

Select the [Feature Properties] tab, and set [Device Control]  [Link Config] to [CXP6_X4] (when using a 4-cable connection).

Note

• When using a 1-cable or 2-cable connection, select [CXP6_X1] or [CXP6_X2] respectively.

• The [Link Config] setting cannot be stored and will reset to [CXP3_X4] each time the camera is disconnected.

Be sure to manually switch to the optimal setting each time the camera is reconnected.

— 17 —

SP-12000M-CXP4 / SP-12000C-CXP4

Configuring the Output Format

Configure the size, position, and pixel format of the images to be acquired. The factory default settings are as follows. Change the settings as necessary.

Factory default values

Item Default value

Image Format Control Width 4096 (pixels)

Height 3072 (pixels)

Offset X (horizontal position) 0 (pixels)

Offset Y (vertical position) 0 (pixels)

Pixel Format SP-12000M-CXP4: 8 Bit Monochrome

SP-12000C-CXP4: 8 Bit Bayer GB

 You can specify the image acquisition area. For details, see “ROI (Regional Scanning Function)” (page 39).

Select the [Feature Properties] tab, and select the item you want to configure under [Image

Format Control].

when a configurable item is selected.

Note

Settings can only be changed when image acquisition on the camera is stopped. If an item is grayed out and

does not appear even when you select it, click (Stop Acquisition) to stop image acquisition.

Click and change the setting value.

Example: When changing [Width]

— 18 —

SP-12000M-CXP4 / SP-12000C-CXP4

Example: When changing [Pixel Format]

Note

Direct entry of numerical and text values is possible for some setting items.

Configuring Exposure and External Trigger Settings

Configure settings related to exposure control methods and trigger control. The factory default settings are as follows. Change settings as necessary, according to the intended purpose or application.

Factory default values

Item Default value

Trigger Selector (trigger operation) Frame Start

Trigger Mode Off

Trigger Source (trigger signal source) Line 4 - TTL In 1

Trigger Activation (trigger polarity) Rising Edge (rising edge of input signal)

Trigger Overlap Read Out

Trigger Option Off

Exposure Mode Timed (control via exposure time)

Exposure Time 10486 (μs)

Exposure Auto* Off

* This item is only enabled when [Exposure Mode] is set to [Timed].

Caution

When [Exposure Mode] is set to [Off], [Trigger Mode] cannot be set to [On]. Other settings may also be restricted depending on the exposure mode, so be sure to set the exposure mode before configuring the trigger settings.

Configure the settings by expanding [Acquisition Control] and configuring the following items.

Caution

Settings can only be configured when image acquisition on the camera is stopped. If an item is grayed out and the setting cannot be changed, stop image acquisition beforehand.

— 19 —

SP-12000M-CXP4 / SP-12000C-CXP4

Control via External Triggers

When Controlling the Exposure Time Using Specified Exposure Times

Configure the settings as follows.

Item Setting value / selectable range

Trigger Selector (trigger operation) Frame Start

Trigger Mode On

Trigger Source (trigger signal source) Any

Trigger Activation (trigger polarity) Rising Edge (rising edge of input signal), Falling Edge (falling

edge of input signal)

Trigger Overlap Read Out

Trigger Option Off

Exposure Mode Timed (control via exposure time)

Exposure Time 15 or 20 to 7999892 (μs) (1 μs/step)*

Exposure Auto Off, Continuous

* 1 The maximum value for [Exposure Time] varies depending on the value configured for the [Acquisition Frame

Rate Raw] setting. Max. value for [Exposure Time] = [Acquisition Frame Rate Raw] value

Set [Exposure Mode] to [Timed].

([Timed] is the default setting.)

Specify the exposure time in [Exposure Time].

The setting value for the exposure time can only be changed when [Exposure Auto] is set to [Off]. If [Exposure Auto] is set to [Continuous], temporarily set it to [Off] before changing the exposure time.

Set [Trigger Selector] to [Frame Start].

([Frame Start] is the default setting.)

Set [Trigger Mode] to [On].

If necessary, change the [Trigger Source], [Trigger Activation], and [Exposure Auto]

settings.

When Controlling the Exposure Time Using the Pulse Width of the Trigger Input Signal

Configure the settings as follows.

Item Setting value / selectable range

Trigger Selector (trigger operation) Frame Start

Trigger Mode On

Trigger Source (trigger signal source) Any

Trigger Activation (trigger polarity) Level High (high-level duration), Level Low (low-level

duration)

Trigger Overlap Read Out

Exposure Mode Trigger Width (control via trigger width)

— 20 —

SP-12000M-CXP4 / SP-12000C-CXP4

Set [Exposure Mode] to [Trigger Width] .

When you select [Trigger Width], [Trigger Mode] will automatically be set to [On].

Set [Trigger Selector] to [Frame Start].

([Frame Start] is the default setting.)

If necessary, change the [Trigger Source] and [Trigger Activation] settings.

Other controls

In addition to exposure time, the following can also be controlled by external triggers. Select these control operations in [Trigger Selector].

[Trigger Selector] setting Description

Acquisition Start Start image acquisition.

Acquisition End Stop image acquisition.

Control Without External Triggers

When Controlling the Exposure Time Using Specified Exposure Times

Configure the settings as follows.

Item Setting value / selectable range

Trigger Selector (trigger operation) Frame Start

Trigger Mode Off

Exposure Mode Timed (control via exposure time)

Exposure Time 15 (8-bit) or 20 (10-bit) to 7999892 (μs) (1 μs/step)*

Exposure Auto Off, Continuous

*1 The maximum value for [Exposure Time] varies depending on the value configured for the [Acquisition Frame

Rate Raw] setting. Max. value for [Exposure Time] = [Acquisition Frame Rate Raw] value

Set [Exposure Mode] to [Timed].

([Timed] is the default setting.)

Specify the exposure time in [Exposure Time].

Set [Trigger Mode] to [Off].

If necessary, change the [Exposure Auto] setting.

— 21 —

SP-12000M-CXP4 / SP-12000C-CXP4

When not Controlling the Exposure Time

Configure the settings as follows.

Item Setting value / selectable range

Exposure Mode Off

Step 5: Adjusting the Image Quality

Adjust the image quality using the gain and white balance (SP-12000C-CXP4 only) functions.

To adjust the image quality

The display level must be changed from [Beginner] to [Guru].

Adjusting the Gain

The digital gain is used for the master gain.

 For details on gain control, see “Gain Control” (page 36) in the “Main Functions” section.

■ Manual adjustment

Expand [Analog Control], and set [Gain Auto] to [Off].

([Off] is the default setting.)

Configure the digital gain.

Expand [Analog Control], and select the gain you want to configure in [Gain Selector].

•For the SP-12000M-CXP4, only [Digital All] (master gain) can be configured.

•For the SP-12000C-CXP4, [Digital All] (master gain), [Digital Red] (digital R gain), and [Digital

Blue] (digital B gain) can be configured individually.

Configure the gain value in [Gain].

•[Digital All] (master gain) can be set to a value from x1 to x16 (0 dB to +24 dB). The resolution is set in x0.01 steps (0.05 dB to 0.08 dB depending on the setting value).

•For the SP-12000C-CXP4, the [Digital Red] (digital R gain) and [Digital Blue] (digital B gain) can be set to a value from x0.45 to x5.62 (–7 dB to +15 dB) the [Digital All] (master gain) value. The resolution is set in x0.01 steps.

— 22 —

SP-12000M-CXP4 / SP-12000C-CXP4

Adjusting the White Balance (SP-12000C-CXP4 only)

Adjust the white balance using R and B gain. The white balance can also be adjusted automatically.

■ Manual white balance adjustment

Expand [Analog Control], and set [Balance White Auto] to [Off].

([Off] is the default setting.)

Select the gain to configure in [Gain Selector], and set the gain value in [Gain].

■ Automatic white balance adjustment

Place a white sheet of paper or similar object under the same lighting conditions as the

intended subject, and zoom in to capture the white.

White objects near the subject, such as a white cloth or wall, can also be used.

Be sure to prevent the high-intensity spot lights from entering the screen.

Select the [Balance White Auto] tab, and click [Continuous] or [Once] depending on your

intended application.

The white balance is automatically adjusted.

Adjusting the Black Level

Expand [Analog Control], and select the black level you want to configure in [Black Level

Selector].

For the SP-12000M-CXP4, only [Digital All] (master black) can be configured.

For the SP-12000C-CXP4, [Digital All] (master black), [Digital Red] (digital R), and [Digital Blue] (digital B) can be configured individually.

Specify the adjustment value in [Black Level].

Step 6: Configuring Various Other Settings

See “Settings List” (page 49) and configure settings as necessary.

— 23 —

SP-12000M-CXP4 / SP-12000C-CXP4

Step 7: Saving the Settings

Setting values configured in Control Tool are maintained in the camera’s temporary memory until the camera is turned off. By saving current setting values to user memory, you can load and recall them whenever necessary. You can save up to three sets of user settings on the camera.

User memory Temporary memory

Current

setting values

Control Tool

Save

User Set1

User Set2

User Set3

Note

The setting values are not saved to the computer (Control Tool). The setting values will be stored in the camera’s temporary memory until the camera is turned off.

■ To save user settings

Stop image acquisition.

Expand [User Set Control], and select the save destination ([User Set1] to [User Set3]) in

[User Set Selector].

Note

The factory default setting values are maintained in [Default] and cannot be overwritten.

Caution

Settings can only be saved when image acquisition on the camera is stopped.

— 24 —

SP-12000M-CXP4 / SP-12000C-CXP4

Select [User Set Save], and click [Execute ‘User Set Save’ Command].

The current setting values are saved as user settings.

■ To load user settings

Stop image acquisition.

User settings can only be loaded when image capture on the camera is stopped.

Select the settings to load (User Set1 to User Set3) in [User Set Selector].

Select [User Set Load], and click [Execute ‘User Set Load’ Command].

The selected user settings are loaded.

Basic Function Matrix

The combinations of settings for the basic functions that can be used together are as follows.

Exposure Mode

Trigger Mode

Trigger Option

Binning Vertical*

Binning Horizontal*

Exposure Time

ROI

AWB*

Gain Auto

Exposure Auto

Video Send

Mode

HDR*

Multi ROI

Sequence ROI

Off Off Off ×1 (Off) ×1 (Off) ×

  



× ×

×2 ×2 ×



× ×

Timed Off Off ×1 (Off) ×1 (Off)

 

  



×2 ×2

 

  



Timed

(EPS)

On Off ×1 (Off) ×1 (Off)

       

×2 ×2

 

    

Trigger

Width

On Off ×1 (Off) ×1 (Off) ×

  



× ×

×2 ×2 ×



× ×

Timed

(PIV)

On PIV ×1 (Off) ×1 (Off)

   



× ×

×2 ×2 × × × × × × × ×

*1 Operates only on the SP-12000M-CXP4 *2 Operates only on the SP-12000C-CXP4

— 25 —

SP-12000M-CXP4 / SP-12000C-CXP4

Main Functions

GPIO (Digital Input/Output Settings)

The camera is equipped with GPIO (general-purpose input/output) functions for generating and using combinations of triggers and other necessary signals within the camera and of signals output from the camera to the system such as those used for lighting equipment control.

Valid Input/Output Combinations

The following signals can be used as sources for each output destination (Trigger Selector, Line Selector, Pulse Generator Selector). You can also connect two different sources to NAND paths in the GPIO and reuse the signal generated there as a source for a different selector.

The combinations of source signals and output destinations are indicated in the following.

Selector

(Cross point

switch output)

Source signal (Cross point switch input)

Output destination

Trigger Selector Line Selector

Pulse

Generator

Selector

Acquisition Start

Acquisition End

Frame Start

Line 1

Line 2

Line 8

Line 9

NAND 0

NAND 1

Pulse Generator 0

Pulse Generator 1

Pulse Generator 2

Pulse Generator 3

Signals to use as output

LOW

            

HIGH

            

Line 4 (TTL Input)

            

Line 5 (Opto Input)

            

Line7 (Trigger packet )

            

Line 10 (TTL Input2)

            

Line 11 (LVDS Input)

            

User Output 0

            

User Output 1

            

User Output 2

            

User Output 3

            

Software

  

× × × × × × × × × ×

Pulse Generator 0

        

  

Pulse Generator 1

         

 

Pulse Generator 2

          



Pulse Generator 3

           

NAND 0 Out

      

    

NAND 1 Out

       

   

Exposure Active

         

Acquisition Active

         

Acquisition Trigger Wait

         

Frame Trigger Wait

         

Frame Active

         

FVAL

         

LVAL

× × × ×

     

Trigger Source Line Source

Pulse

Generator

Clear Source

Use

: Under the factory default settings (page 18), the external input signal from the 12-pin

connector (OPT 1 In) is connected as the source signal for the Frame Start trigger signal.

— 26 —

SP-12000M-CXP4 / SP-12000C-CXP4

Acquisition Control (Image Acquisition Controls)

Perform operations and configure settings related to image acquisition in [Acquisition Control].

The following acquisition modes are available on the camera.

Acquisition Mode Description

Single Frame Acquire a single frame when the [Acquisition Start] command is executed.

Multi Frame Acquire the number of frames specified in [Acquisition Frame Count] when the

[Acquisition Start] command is executed. When the PIV function is enabled, the number of frames can be set to an even value.

Continuous Acquire images continuously until the [Acquisition Stop] command is executed.

Changing the Frame Rate

When [Trigger Mode] is disabled, you can change the frame rate in [Acquisition Frame Rate].

Note

• The shortest frame period varies depending on the ROI, pixel format, and binning mode selected. The longest frame period is 0.125 Hz (8 sec.).

• When [Trigger Mode] is enabled, the [Acquisition Frame Rate] setting is disabled.

Maximum Frame Rate

The maximum frame rate is as follows depending on the sensor’s scanning range and the CXP bandwidth.

■ Necessary parameters

Parameter Description Configurable ranges

H_Binning Horizontal binning 1 or 2

V_Binning Vertical binning 1 or 2

Width Width See "Configurable ranges" (page 27 ).

Height Height

Digital Bit Pixel format 8-, 10-, or 12-bit

LinkSpeed CoaXPress speed 3 or 6 G

Packet_ Size

CoaXPress packet size 16 to 4096

Lane CoaXPress lane count 1, 2, or 4

Sensor_Reso & Sensor_Clock

Digital Bit Sensor_Reso Sensor_Clock ParameterX ParameterY

8 10 400000000 128 12

10 12 600000000 244 7

12 12 600000000 244 7

CXP Clock

LinkSpeed CXP_clock_Hz CXP_clock_MHz

3 78125000 78.125

6 156250000 156.25

■ Calculation of frame rate

Sensor_Width = Width* H_Binning Sensor_Height = Height* V_Binning CXP_clocks = ((Sensor_Width / 16) × (Digital_bit / 8) + 9) × (4 / Lane)

— 27 —

SP-12000M-CXP4 / SP-12000C-CXP4

A = MAX (ROUNDUP ((2 × CXP_clocks) × (1 / CXP_clock_Hz) × (Sensor_Clock / Sensor_Reso) - 1),

ParameterX) Line_Time = (A + 1) × (1 / Sensor_Clock) × Sensor_Reso FOT = Line_Time × (ParameterY + 2) Readout_Time = Line_Time × Sensor_Height / 2 Camera_FR = 1 / (FOT + Readout_Time) B = ((2 × Height) + (Width × (Digital_bit / 8) × Height / 4)) / (Packet_Size / 4) C = (26 + (((Packet_Size / 4) + 13) × B)) / Lane FR_for_CXP_Packet = 1 / (C / ((CXP_clock_MHz) × (1 - 0.026) × 1000000)) + FOT Frame_Rate = MIN (FR_for_CXP_Packet, Camera_FR)

* MAX (a, b): Larger of a and b

MIN (a, b): Smaller of a and b ROUNDUP(a): Round up decimal values of a

Configurable ranges

Width*

Height*

Monochrome Color Monochrome Color

Binning Off 1 128 to 4096 16 to 3072

Binning On 2 128 to 2048 — 16 to 1536 —

*1 Refer to the “Height” values in the “Configurable ranges” table above.

• Be careful of the maximum value during [Binning Horizontal].

• Only Monochrome is available during Binning On.

*2 Refer to the “Width” values in the “Configurable ranges” table above.

• Be careful of the maximum value during [Binning Vertical].

• Only Monochrome is available during Binning On.

Caution

•Although the maximum frame rate value is determined by the CXP bandwidth range, when ROI is

configured, the frame rate cannot exceed the sensor output's allowable frame rate value.

Exposure Mode

The following exposure modes are available on the camera.

Exposure Mode Description

Off Exposure control is not performed (free-running operation).

Timed Mode in which control is performed using exposure time. Acquire images using an

exposure time configured beforehand on an external trigger.

Trigger Width Mode in which control of the exposure time is performed using the pulse width of the

trigger input signal. The exposure time will be the same as the pulse width of the trigger input signal. This allows long exposure.

 The settings for exposure control and triggers are related to each other. Be sure to configure the settings

described in “Configuring Exposure and External Trigger Settings” (page 18).

In addition, exposure operations that support PIV (particle image velocimetry) can be specified in [Trigger Option]. This function is enabled when [Exposure Mode] is set to [Timed].

— 28 —

SP-12000M-CXP4 / SP-12000C-CXP4

Trigger Option Description

Off When an edge signal is input at the frame start trigger, a single exposure operation is

performed.

PIV Operate using functions commonly referred to as PIV.

When an edge signal is input at the frame start trigger, the exposure operation is performed continuously in the Shutter Off state according to the exposure time configured with [Exposure Time]. When [PIV] is specified, [Exposure Time] can be set from the fastest speed value to 10 ms.

Trigger Control

The camera allows the following controls to be performed via external trigger signals. The trigger settings can be configured separately for each of the following modes and function simultaneously with each other.

Trigger Selector Description

Frame Start Start exposure in response to the external trigger signal input. Select this to perform

exposure control using external triggers.

Acquisition Start Start image acquisition in response to the external trigger signal input.

Acquisition End Stop image acquisition in response to the external trigger signal input.

 The settings for exposure control and triggers are related to each other. Be sure to configure the settings

described in “Configuring Exposure and External Trigger Settings” (page 18).

Shortest Repetition Period for Triggers

Depending on the exposure mode and image scanning range, the shortest repetition periods for triggers are as follows.

1. Timed - Trigger Mode

Example: When [Frame Start Trigger] is [On] and [Exposure Mode] is [Timed]

Selector Value

Trigger Option Off

Trigger Source Line4-TTL in 1

Opt In Filter Selector Off

Overlap Read Out

Pixel Format 8-bit

Exposure Time 15 μs

Scanning range Shortest period trigger (ms)

Full 5.275

ROI 2/3 3.355

ROI 1/2 2.528

ROI 1/4 1.289

ROI 1/8 0.670

— 29 —

SP-12000M-CXP4 / SP-12000C-CXP4

Trigger

CMOS exposure

Exposure active

FVAL

Exposure duration

t1 t2 t3

10 μs (minimum) 2.4 μ to 2.4 μ + 1L 14L to 15L

Trigger overlap: Off

EEN

FVAL

Sensor

Exposure

Trigger

Valid data Period

(= Height x Line Period)

Next trigger start prohibited period

Next trigger input allowed period

Trigger overlap: Readout

EEN

FVAL

Sensor

Exposure

Trigger

Exposure Time

Next trigger start prohibited period

Next trigger input allowed period

Valid data Period

(= Height x Line Period)

Exposure Time

Next trigger start allowed period

Next trigger end prohibited period

— 30 —

SP-12000M-CXP4 / SP-12000C-CXP4

Example: When the max. frame rate is used

Link Config

Dig Bit

Sensor Dig Bit

Frame Rate

(frequency (fps))

Period from trigger

start to exposure start

[A1] (usec)

Period from trigger

start to exposure start

[A2] (usec)

Period from FVAL end

to FVAL start [B]

(usec)

Period from FVAL end

to next trigger start

[C] (usec)

6G-4 8 10 189 2.4 2.4 to 5.8 53.2 -4.2

6G-4 10 12 132 2.4 2.4 to 7.5 47.3 -1.9

6G-2 8 10 94 2.4 2.4 to 6.9 100.8 -0.8

6G-2 10 12 76 2.4 2.4 to 7.5 80.8 1.4

6G-1 8 10 47 2.4 2.4 to 5.9 195.6 7.0

6G-1 10 12 38 2.4 2.4 to 19.5 156.5 9.9

3G-4 8 10 94 2.4 2.4 to 9.1 101.1 -4.4

3G-4 10 12 76 2.4 2.4 to 11 81.0 16.3

3G-2 8 10 47 2.4 2.4 to 15.8 196.0 3.2

3G-2 10 12 38 2.4 2.4 to 19.5 156.8 19.3

3G-1 8 10 23 2.4 2.4 to 29.4 385.9 18.7

3G-1 10 12 19 2.4 2.4 to 15.8 306.4 24.1

Formulas for each Link Config

Link Config

Dig Bit

Sensor Dig Bit

Frame Rate [Hz]

Period from trigger

start to exposure

start [A1]

Period from trigger

start to exposure

start [A2]

Period from

exposure end to

FVAL start [B]

Period from FVAL

end to next trigger

start [C]

6G-4 8 10 (14 + Height / 2) × H* 2.4 2.4 + (0 to 1H*) 14H (8 bit)

9H (10 bit)

0.0

6G-4 10 12

6G-2 8 10

6G-2 10 12

6G-1 8 10

6G-1 10 12

3G-4 8 10

3G-4 10 12

3G-2 8 10

3G-2 10 12

3G-1 8 10

3G-1 10 12

* H (Line Time) is the horizontal synchronization period and will differ depending on the camera's settings. Refer to

the maximum frame rate formula on page 27 for the formula used to calculate Line Time.

2. Trigger Width - Trigger Mode

Example: When [Frame Start Trigger] is [On] and [Exposure Mode] is [Trigger Width]

Selector Value

Trigger Source Line4-TTL in 1

Opt In Filter Selector Off

Overlap Read Out

Pixel Format 8-bit

Exposure Time 15 μs

— 31 —

SP-12000M-CXP4 / SP-12000C-CXP4

Scanning range Shortest period trigger

Full 5.275 ms

ROI 2/3 3.351 ms

ROI 1/2 2.534 ms

ROI 1/4 1.296 ms

ROI 1/8 0.885 ms

* SP-12000M-CXP4 only

Trigger

CMOS exposure

Exposure active

FVAL

Exposure duration

t1 t2 t3 t4

10 μs (8-bit), 15 μs (10-bit) (minimum)

4.0 μ to 4.0 μ + 1L 0.6 μ to 0.6 μ + 1L 14L to 15L

Trigger overlap: Off

Sensor

Exposure

EEN

FVAL

Trigger

Valid data Period (= Height x Line Period)

Next trigger start prohibited period

Next trigger input allowed period

Trigger overlap: Readout

Sensor

Exposure

EEN

FVAL

Trigger

Next trigger start prohibited period

Next trigger input allowed period

Valid data Period

(= Height x Line Period)

Next trigger start allowed period

Next trigger end prohibited period

— 32 —

SP-12000M-CXP4 / SP-12000C-CXP4

Example: When the max. frame rate is used

Link Config

Dig Bit

Sensor Dig Bit

Frame Rate

(frequency (fps))

Period from trigger start to

exposure start [A1] (usec)

Period from trigger start to

exposure start [A2] (usec)

Period from FVAL end to

next trigger start [B] (usec)

Period from FVAL end to

next trigger start [C] (usec)

6G-4 8 10 189 2.40 2.4 to 6 53.2 -4.2

6G-4 10 12 132 2.40 2.4 to 7.4 47.3 -5.4

6G-2 8 10 94 2.40 2.4 to 8.8 100.8 -0.8

6G-2 10 12 76 2.40 2.4 to 11.1 80.7 -4.9

6G-1 8 10 47 2.40 2.4 to 8.8 195.6 6.7

6G-1 10 12 38 2.40 2.4 to 10.2 157.8 -5.4

3G-4 8 10 94 2.40 2.4 to 9.4 101.1 4.4

3G-4 10 12 76 2.40 2.4 to 11.1 81.0 -9.3

3G-2 8 10 47 2.40 2.4 to 8.8 195.9 3.2

3G-2 10 12 38 2.40 2.4 to 10.2 155.2 -9.1

3G-1 8 10 23 2.40 2.4 to 29.8 385.9 1.6

3G-1 10 12 19 2.40 2.4 to 15.8 306.8 -1.9

Formulas for each Link Config

Link Config

Dig Bit

Sensor Dig Bit

Frame Rate

(frequency (fps))

Period from trigger start to

exposure start [A1] (usec)

Period from trigger start to

exposure start [A2] (usec)

Period from exposure end

to FVAL start [B] (usec)

Period from FVAL end to

next trigger start [C] (usec)

Period from trigger end to

exposure end [D1] (usec)

Period from trigger end to

exposure end [D2] (usec)

Trigger start prohibited

period [E] (usec)

Period from FVAL end to

next trigger start [F] (usec)

6G-4 8 10

(14 + Height / 2) × H*

4.0 4.0 + (0 to 1H*)

14H (8 bit) 9H (10 bit)

0.0 0.60 0.60 + (0 to 1H)

50.0 15.0

6G-4 10 12

6G-2 8 10

6G-2 10 12

6G-1 8 10

6G-1 10 12

3G-4 8 10

3G-4 10 12

3G-2 8 10

3G-2 10 12

3G-1 8 10

3G-1 10 12

* H (Line Time) is the horizontal synchronization period and will differ depending on the camera's settings. Refer to

the maximum frame rate formula on page 27 for the formula used to calculate Line Time.

— 33 —

SP-12000M-CXP4 / SP-12000C-CXP4

3. PIV-Trigger Mode

Example: When [Frame Start Trigger] is [On] and [Exposure Mode] is [Timed]

Selector Value

Trigger Option PIV

Trigger Source Line4-TTL in 1

Opt In Filter Selector Off

Overlap Off

Pixel Format 8-bit

Exposure Time 15 μs

Scanning range Shortest period trigger

Full 10.555 ms

ROI 2/3 (Height 2048 × Width 2720) 4.964 ms

ROI 1/2 (Height 1536 × Width 2048) 3.380 ms

ROI 1/4 (Height 768 × Width 1024) 1.728 ms

ROI 1/8 (Height 384 × Width 512) 0.903 ms

Binning 2 x 1, 2 x 2, 1 x 2* Full 10.555

* SP-12000M-CXP4 only

Trigger overlap: Off

EEN

FVAL

Sensor

Exposure

Trigger

Next trigger start prohibited period

Next trigger input allowed period

Valid data Period

( = Height x Line Period)

Valid data Period ( = Height x Line Period)

— 34 —

SP-12000M-CXP4 / SP-12000C-CXP4

Link Config

Dig Bit

Sensor Dig Bit

Frame Rate[Hz]

Period from trigger start to

exposure start [A] (usec)

Period from 1st exposure

end to 1st FVAL start [B]

(usec)

Period from 2nd exposure

end to 2nd FVAL start [C]

(usec)

Period from FVAL end to

next trigger start [D] (usec)

Period from 1st exposure

end to 2nd exposure start [E]

(usec)

6G-4 8 10 (14 + Height / 2) × H* 4.0 14H* (8 bit)

9H* (10 bit)

15H* (8 bit)

10H* (10 bit)

11.0 14H* –3.0 (8 bit) 9H* –3.0 (10 bit)

6G-4 10 12

6G-2 8 10

6G-2 10 12

6G-1 8 10

6G-1 10 12

3G-4 8 10

3G-4 10 12

3G-2 8 10

3G-2 10 12

3G-1 8 10

3G-1 10 12

* H (Line Time) is the horizontal synchronization period and will differ depending on the camera's settings. Refer to

the maximum frame rate formula on page 27 for the formula used to calculate Line Time.

Example: When the max. frame rate is used

Link Config

Dig Bit

Sensor Dig Bit

Frame Rate[Hz]

Period from trigger start

to exposure start [A]

(usec)

Period from 1st exposure

end to 1st FVAL start [B]

(usec)

Period from 2nd

exposure end to 2nd

FVAL start [C] (usec)

Period from FVAL end to

next trigger start [D]

(usec)

Period from 1st exposure

end to 2nd exposure start

[E] (usec)

6G-4 8 10 189.753 4.0 51.9 52.7 5.8 42.2

6G-4 10 12 132.083 4.0 48.9 50.8 6.7 45.8

6G-2 8 10 94.8767 4.0 99.4 103.7 5.8 96.8

6G-2 10 12 76.6871 4.0 80.7 86.2 6.8 77.6

6G-1 8 10 47.4947 4.0 194.4 205.5 5.6 191.8

6G-1 10 12 38.3892 4.0 156.5 170.4 6.7 153.4

3G-4 8 10 94.8767 4.0 99.7 104.0 10.0 96.8

3G-4 10 12 76.6871 4.0 80.9 86.5 10.8 77.6

3G-2 8 10 47.4947 4.0 194.6 205.7 9.9 191.8

3G-2 10 12 38.3892 4.0 156.7 170.7 10.8 153.4

3G-1 8 10 23.7626 4.0 390.6 409.2 7.6 387.7

3G-1 10 12 19.206 4.0 308.3 339.0 1.1 305.0

 For details on the PIV function, see “PIV Function” (page 45).

— 35 —

SP-12000M-CXP4 / SP-12000C-CXP4

Timing chart (Trigger Off, Exposure Mode Off)

Continuous, Shutter Off

EEN

Sensor Exposure

FVAL

ActualExposureTime

(= Frame Period – B)

Frame Period

(= 1/ Acquisition Frame rate)

Valid data Period

(= Height x Line Period)

Timing chart (Trigger Off, Exposure Mode Timed)

Continuous, Shutter Mode

EEN

Sensor Exposure

FVAL

ExposureTime

Frame Period

(= 1/ Acquisition Frame rate)

Valid data Period

(= Height x Line Period)

Timing chart (Trigger Off, Exposure Mode Off/Timed)

Continuous, Shutter Off / Shutter Mode

Example: When the max. frame rate is used

Link Config Dig Bit Sensor Dig Bit

Frame Rate

(frequency (fps))

FVAL Blanking

FVAL ↓ - EEN ↓

Shutter Off

Exposure stop

period

6G-4 8 10 189 0.0514 0.50 59.20

6G-4 10 12 132 0.0508 3.26 59.31

6G-2 8 10 94 0.1051 5.60 115.69

6G-2 10 12 76 0.0926 11.92 100.63

6G-1 8 10 47 0.2069 17.04 228.54

6G-1 10 12 38 0.1733 16.81 198.88

3G-4 8 10 94 0.1024 2.01 115.68

3G-4 10 12 76 0.0890 7.94 100.67

3G-2 8 10 47 0.2036 13.44 228.60

3G-2 10 12 38 0.1696 12.82 198.90

3G-1 8 10 23 0.4162 36.31 454.81

3G-1 10 12 19 0.3334 25.04 395.37

— 36 —

SP-12000M-CXP4 / SP-12000C-CXP4

Formulas for each Link Config

Link Config Dig Bit Sensor Dig Bit Frame Rate [Hz]

Period from FVAL end

to exposure end [A]

Period of exposure

stop [B]

6G-4 8 10 (14 + Height / 2) × H 0 to 1H 16H to 17H (8-bit)

11H to 12H (10-bit)

6G-4 10 12

6G-2 8 10

6G-2 10 12

6G-1 8 10

6G-1 10 12

3G-4 8 10

3G-4 10 12

3G-2 8 10

3G-2 10 12

3G-1 8 10

3G-1 10 12

* H (Line Time) is the horizontal synchronization period and will differ depending on the camera's settings. Refer to

the maximum frame rate formula on page 27 for the formula used to calculate Line Time.

Gain Control

Digital gain is used for gain control on the camera. R and B can be configured individually for the SP-12000C-CXP4. The digital gain is used for the master gain.

 For details on how to configure the settings, see “Adjusting the Gain” (page 21).

The relationship between the gain setting value, gain amplification, and dB value is as follows. For example, a gain amplification of x5.62 will be 15 dB.

Monochrome

x16

1600

100

24dB

0dB

Gain

setting

value

Gain

amplification

Gain adjustment range (monochrome)

— 37 —

SP-12000M-CXP4 / SP-12000C-CXP4

Bayer color

X89.12

X16

X7.15

X5.62

X0.45

1600

37876 (X5.62)

0 (X1)

–4533 (X0.45)

R&B

Red

Blue

39dB

-7dB

0dB

24dB

15dB

0dB

–7dB

15dB

0dB

–7dB

15dB

37876 (X5.62)

0 (X1)

–4533 (X0.45)

Gain

setting

value

Master Master

Gain

amplification

Gain setting

value (scaling)

Gain adjustment range (Bayer color)

LUT (Lookup Table)

The LUT function is used to generate a non-linear mapping between signal values captured on the sensor and those that are output from the camera. You can specify the output curve using 256 setting points (indexes).

■ To use the LUT function

Configure the settings as follows.

Item Setting value / selectable range Description

JAI LUT Mode LUT Use LUT.

LUT Selector* R, G, B Select the LUT channel to control.

LUT Index SP-12000M-CXP4: 0 to 255

SP-12000C-CXP4: 0 to 255

Select the LUT index to configure. Indexes represent the possible pixel values captured on the sensor, from the lowest value (Index 0) to the highest (Index

255). For example, Index 0 represents a full black pixel and Index 255 represents a full white pixel.

LUT Value 0 to 4095 Set the LUT output value for the selected index.

* SP-12000C-CXP4 only

Note

R, G, and B are configured separately on the SP-12000C-CXP4.

■ LUT values

LUT values range from 0 at the lowest to 4095 at the highest. Linear interpolation is used to calculate LUT values between the index points.

— 38 —

SP-12000M-CXP4 / SP-12000C-CXP4

Color

Linear interpolation using data to the left and right is used to determine values between points.

4095

Index0

Index1

LUT Value [1]

LUT Value [0]

Index255

Gamma Function

The gamma function corrects the output signals from the camera beforehand (reverse correction), taking into consideration the light-emitting properties of the monitor display. As the light-emitting properties of the monitor are not linear, the entire image may be darker or the gradation in the dark areas may be less noticeable when camera outputs are displayed without processing. The gamma function can be used to correct the camera signals with an opposite-direction curve and produce a display that is close to linear.

Example of the light-emitting properties of the monitor display

■ To use the gamma function

Configure the settings as follows.

Item Setting value / selectable range Description

Gamma 0.45, 0.5, 0.55, 0.6, 0.65, 0.75,

0.8, 0.9, 1.0 (9 steps)

Select the gamma correction value.

JAI LUT Mode Gamma Use gamma.

Note

You can use the LUT function to configure a curve with more detailed points. For details, see “LUT (Lookup Table)” (page 37).

— 39 —

SP-12000M-CXP4 / SP-12000C-CXP4

ROI (Regional Scanning Function)

The ROI (region of interest) function allows you to output images by specifying the areas to scan.

ROI Settings

Specify the area to scan by specifying width, height, and horizontal/vertical offset values under [Image Format Control].

 For details on how to configure the settings, see “Configuring the Output Format” (page 17).

You can increase the frame rate by specifying a lower height, as the number of lines scanned decreases. The minimum area is as follows.

Width (pixels) Height (pixels)

SP-12000M-CXP4 Binning Off: 128

Binning 2 On: 256

 The minimum value for Monochrome varies

depending on the [Binning] setting.

SP-12000C-CXP4 128 16

Example 1: Without binning

[Binning Horizontal]

: 1

[Binning Vertical] *: 1

OffsetX

OffsetY

Height

Width

3072 Height Max

4096 Width Max

Scanning range

Example 2: With binning

[Binning Horizontal]

: 2

[Binning Vertical] *: 2

OffsetX

OffsetY

Height

Width

1536 Height Max

2048 Width Max

Scanning range

* SP-12000M-CXP4 only

 For details on the frame rates for common ROI sizes, see “Frame Rate Reference” (page 59).

— 40 —

SP-12000M-CXP4 / SP-12000C-CXP4

Video Send Mode

Switch the video send mode to configure and operate Multi ROI, Sequence Trigger, and other JAI Custom Control functions.

Video Send Mode

■ To switch the video send mode

Select the video send mode in [Video Send Mode Selector].

[Video Send Mode Selector] option Description

Normal Mode Normal camera operation.

Multi Mode (Multi ROI) Multi ROI mode that allows you to configure ROI settings for up to

5 images.

Trigger Sequence Mode Sequence Trigger mode that executes presets in a predefined order based

on [Sequence Roi Frame Count] and [Sequence Roi Next Index]. Starts at Index #1.

Command Sequence Mode Sequence Trigger mode that executes the preset listed in [Command

Sequence Index] each time a trigger is received. Can jump to new preset by sending a new index value to [Command Sequence Index].

■ Multi ROI function

When the multi ROI function is enabled, you can split a frame to 32 areas, and scan specific areas. However, as the up to 32 ROI areas are output as one frame, the [Width] setting will be common. To enable the multi ROI function, set [Video Sending Mode Selector] to [Multi Mode].

ROI area configuration overview when Multi ROI Index Max = 4

Video output for Multi ROI configuration example

Specify the areas by specifying width, height, and horizontal/vertical offset values for each index under [JAI Custom Control MultiROI].

Note

The width must be common among all ROI indexes.

— 41 —

SP-12000M-CXP4 / SP-12000C-CXP4

■ Sequence Trigger function

The Sequence Trigger function lets you define up to 128 preset combinations of exposure time, gain, ROI, and other settings which can be stepped through each time a trigger is received. This is particularly useful for quickly capturing multiple exposures of objects under inspection to adjust for areas or components with significantly different levels of reflectance. The order of execution and the repetition of particular presets are based on user-defined parameters stored in the sequence, as well as the sequence mode selected in the [Video Send Mode Selector].

Two operation modes (Trigger Sequence and Command Sequence) are available for the Sequence Trigger function.

Trigger Sequence mode

With this mode, the Sequence Trigger “pattern” is predetermined by the user. The user defines up to 128 different “indexes.” Each index represents a combination of the following parameters:

•ROI (width, height, offset X, and offset Y)

•Exposure Time

•Gain Level (R/B Gain can also be configured on the color model)

•Black Level

•Binning Mode (monochrome only)

•LUT Enable (whether or not to enable the use of LUT for this index)

•Frame Count (the number of times to repeat this index before moving to the next)

•Next Index to execute in the predetermined pattern

In addition to these individual index parameters, two other parameters are applied to the entire sequence:

[Sequence LUT Mode] defines whether Gamma or LUT is to be applied to the sequence. If Gamma is selected, the Gamma setting defined in the camera’s Analog Control section will be applied to all exposures in the sequence. If LUT is selected, the LUT characteristics defined in Analog Control will be applied to any index where [Sequence LUT enable] has been set to ON.

[Reset Sequence Index] causes the index selector to be reset to Index 1. Thus, the sequence pattern will start over at the next trigger.

In Trigger Sequence mode, patterns always begin with Index1. Subsequent triggers follow the userdefined values in [Sequence Index Frame Count] and [Sequence ROI Next Index]. Assigning a Next Index value of “1” to an index creates a loop back to the start of the sequence pattern. As there is no defined “end” to a sequence, the parameter called [Sequence Repetition] has no effect.

Trigger Sequence example

User-defined Indexes (up to 128)

Index1 Index2

Index4 Index3

ROI Exposure Gain LUT Binning Frame Count = 2 Next Index = 3

ROI Exposure Gain LUT Binning Frame Count = 1 Next Index = 1

ROI Exposure Gain LUT Binning Frame Count = 1 Next Index = 4

ROI Exposure Gain LUT Binning Frame Count = 2 Next Index = 2

Triggers / Image Frames

— 42 —

SP-12000M-CXP4 / SP-12000C-CXP4

Index structure for Trigger Sequence

Index1

ROI1

Exposure

Gain1

(M/Red/Blue)

Black

Level1

Binning1

(H/V)

LUT

Enable1

Frame

Count1

Index1

Index2

ROI2

Exposure

Gain2

(M/Red/Blue)

Black

Level2

Binning2

(H/V)

LUT

Enable2

Frame

Count2

Index2

Index128 ROI128

Exposure

128

Gain128

(M/Red/Blue)

Black

Level128

Binning128

(H/V)

LUT

Enable128

Frame

Count128

Index128

Index

Selector

(MUX)

Index Table

・

Index Next Index

Current

Index

Command

・

Reset Sequence Index

Reset Sequence

Common Settings

・

Sequence LUT mode

Command Sequence mode

This mode allows the user to vary the “pattern” of the sequence in response to external factors. Changes in the sequence can be initiated manually or in a programmatic fashion as the result of data from sensors/controllers or from the analysis of previous images.

In this mode, the user can define up to 128 different “indexes” each incorporating a combination of:

•ROI (width, height, offset X, and offset Y)

•Exposure Time

•Gain Level (R/B Gain can also be configured on the color model)

•Black Level

•Binning Mode (monochrome only)

•LUT Enable (whether or not to enable the use of LUT for this index)

The user must also enter a value from 1 to 128 in [Command Sequence Index]. This indicates which index to execute each time a trigger is received. The same index will continue to be executed for all subsequent triggers as long as the value of [Command Sequence Index] remains unchanged.

Changing the value of [Command Sequence Index] to one of the other predefined indexes causes that index to be executed in response to subsequent triggers. This mode of operation enables users to develop applications that continually send new values to [Command Sequence Index] in response to external factors such as changing light conditions, different types or sizes of objects being inspected, or other factors. This allows applications to change ROI, exposure, gain, etc., without being restricted to a predefined pattern.

As with Trigger Sequence, [Sequence LUT Mode] defines whether Gamma or LUT is to be applied to the sequence. If Gamma is selected, the Gamma setting defined in the camera’s Analog Control section will be applied to all exposures in the sequence. If LUT is selected, the LUT characteristics defined in Analog Control will be applied to any index where [Sequence LUT enable] has been set to ON.

[Sequence Index Frame Count], [Sequence ROI Next Index], and [Reset Sequence Index] are not used in Command Sequence mode and entered values are ignored.

— 43 —

SP-12000M-CXP4 / SP-12000C-CXP4

Command Sequence Example

User-defined Indexes (up to 128)

Index1 Index2

Index3

ROI Exposure Gain LUT Binning

Command Sequence Index

Camera Triggers

Image Frames

Set to

Index1

Set to

Index3

Set to

Index1

Set to

Index2

Set to

Index1

Set to

Index2

Index1

Settings

Index3

Settings

Index1

Settings

Index2

Settings

Index1

Settings

Index2

Settings

Settings Used

Index structure for Command Sequence

Index1

ROI1

Exposure1

Gain1

Black

Level1

Binning1

LUT

Enable1

Index2

ROI2

Exposure2

Gain2

Black

Level2

Binning2

LUT

Enable2

Index128

ROI128

Exposure

128

Gain128

Black

Level128

Binning128

LUT

Enable128

Index

Selector

(MUX)

Current

(M/Red/Blue)

(H/V)

(M/Red/Blue)

(H/V)

Common Settings

Command Sequence Index (1 to 128)

Common Settings

Sequence LUT mode

Index

(M/Red/Blue) (H/V)

— 44 —

SP-12000M-CXP4 / SP-12000C-CXP4

ALC (Automatic Level Control) Function

The ALC (automatic level control) function combines the automatic gain control and automatic exposure control functions, and is capable of handling changes in various brightnesses. The function operates as follows in response to changes in brightness.

Change from bright to dark: ASC  AGC Change from dark to bright: AGC  ASC

Change in brightness

Fixed at max. ASC value Fixed at min. ASC value

Fixed at min. gain value

AGC Max

AGC operation

Max. to min. (user specified)

Operation during change from dark to bright

Operation during change from bright to dark

ASC operation

Max. to min. (user specified)

ASC (auto shutter) operation

AGC operation

Dark Bright

■ To use the ALC function

Set [Gain Auto] or [Exposure Auto] or both to [Continuous] mode. Configure the minimum value, maximum value, etc. for AGC and ASC under [JAI Custom Control]. The target video levels for AGC and ASC are configured in [ALC Reference]. For example, when [ALC Reference] is set to 100%, video levels will be maintained at 100% for AGC and ASC.

■ Automatic gain level control

Set [Gain] to [Continuous].

Detailed Settings for Gain Auto (Automatic Gain Level Control)

When [Gain Auto] is set to [Continuous], you can configure the conditions for automatic adjustment in detail.

Item Description

ALC Reference Specify the target level for automatic gain control. (This setting is

also used for automatic exposure control.)

ALC Area Enable All Select whether to specify all areas as auto gain metering areas

or whether to specify the areas individually.

[0]: Specify areas as auto gain metering areas (16 areas)

individually.

[1]: Specify all areas as auto gain metering areas.

ALC Area Selector Individually select any of 16 areas for automatic gain metering.

(This setting is also used for automatic exposure control.)

ALC Area Enable Select [True] to enable the metering area selected in [ALC Area

Selector], or select [False] to disable it.

AGC Max. Specify the maximum value for the automatic gain control range.

AGC Min. Specify the minimum value for the automatic gain control range.

AGC/ASC Control Speed Specify the reaction speed for automatic gain control. (This

setting is also used for automatic exposure control.)

— 45 —

SP-12000M-CXP4 / SP-12000C-CXP4

Auto gain metering areas (16 areas)

Low

Right

Low

Mid-right

Low

Mid-left

Low

Left

Mid-Low

Mid-left

Mid-High

Mid-left

High

Mid-left

Mid-Low

Left

Mid-High

Left

High

Left

High

Mid-right

Mid-High

Mid-right

Mid-Low Mid-right

High Right

Mid-High

Right

Mid-Low

Right

PIV Function

The PIV function allows you to perform exposure and scanning twice in succession in response to a single trigger. This is useful in situations that require quick successive image scans. The durations for the first and second exposures are different. The first exposure time can be configured freely by the user. After a minimum interval, the second exposure time lasts for one frame. To capture two images of the same brightness, use a strobe light in a dark room, for example.

Exposure

Trigger

Strobe light

Video Out

1st

exposure

2nd exposure

Strobe light

1st video out 2nd video out

— 46 —

SP-12000M-CXP4 / SP-12000C-CXP4

HDR (High Dynamic Range) Mode (SP-12000M-CXP4 only)

HDR (high dynamic range) mode is a function that uses the exposure time configured with [Exposure Time] as a base, and allows you to determine input level positions for knee points. You can change the number of knee points from 1 to 2. Adjust the [Knee Point 1], [Knee Point 2], [Knee Slope 2], and [Knee Slope 3] settings to configure the settings.

Overview of knee point configurations during HDR mode

Exposure duration Scan duration

[Knee Point 2] setting range

[Knee Point 1] setting range

[Exposure Time]  [Knee Slope 2] or lower

Item Setting value / selectable range Description

HDR Mode On / Off When [Exposure Mode] is set to [Timed] and [HDR

Mode] is set to [On], HDR mode is enabled.

Exposure Time 15 μs (8-bit),

20 μs (10-bit) to 7999999

[Unit: us] Specify the exposure duration for HDR mode.

The knee points during HDR mode are determined by the [Exposure Time] value.

Knee Slope 2 2 to 16

(step=1)

Use this to determine the position of knee point 1 based on the [Exposure Time] value. The knee slope 2 value is a value by which the [Exposure Time] will be divided.

— 47 —

SP-12000M-CXP4 / SP-12000C-CXP4

Item Setting value / selectable range Description

Knee Slope 3 2 to 16

(step=1)

Use this to determine the position of knee point 2 based on the [Exposure Time] value. The knee slope 3 value is a value by which the [Exposure Time] will be divided.

Knee Point 1 10 to 120

(step =1)

[Unit: %] Adjust the output level for knee point 1.

The [Knee Point 1] setting value must always be less than or equal to that of [HDR Knee Point 2]. You can determine the knee point 1 value using the following formula: [Exposure Time] - ([Exposure Time] ÷ [Knee Slope 2]).

Knee Point 2 10 to 120

(step =1)

[Unit: %] Adjust the output level for knee point 2.

You can determine the knee point 2 value using the following formula: [Exposure Time] - ([Exposure Time] ÷ [Knee Slope 3]).

The relationship between the number of knee points and knee slope 2 and 3 is as follows.

(1) Settings for two knee points and three knee

slopes [Knee Slope 2] ≤ [Knee Slope 3]

(2) Settings for one knee point and two knee slopes

[Knee Slope 2] > [Knee Slope 3] and [Knee Point1] > [Knee Point 2]

(3) Settings for no knee points and one knee slope

[HDR Mode] = [Off]

Read Slope Number Command

— Use this command to read the number of knee

points generated via the [Knee Point 1], [Knee Point 2], [Knee Slope 2], and [Knee Point 3] settings from the camera.

— 48 —

SP-12000M-CXP4 / SP-12000C-CXP4

Video Process Bypass Mode

The Video Process Bypass mode is a function that bypasses internal image processing on the camera. On the SP-12000, DSNU correction and shading, gain, blemish, and black level adjustment are normally performed on the sensor output signal. However, when the Video Process Bypass mode is used, images can be imported to the system without image processing* being performed internally on the camera. The Video Process Bypass mode is ideally used in cases where image processing is performed by the system. In addition, images are output from the camera in 12-bit format only when the Video Process Bypass function is used.

* Excluding DSNU correction and black level adjustment.

■ Available bit-depth options

CXP output

Sensor output

8-bit 10-bit 12-bit

10-bit

  

12-bit

  

When bypass is enabled, the sensor output and camera output data can be set to the same bit width. Operating using 12-bit outputs must be performed in bypass mode.

CXP output

Sensor output

Video Process

Bypass Off

Video Process

Bypass On

DSNU Correction

 

Black Adjust Set

 

Pixel Gain

 

Shading Correction

 

Blemish Compensation

 

Binning

 

LUT/Gamma

 

Black SETUP

 

Test Pattern

 

Camera output 8/10 bit 8/10/12 bit

Differences in camera operation

■ When Video Process Bypass mode is disabled

All video processes are enabled.

Sensor

Block

DSNU

Correction

Block

Black

Adjust

Block

Shading

Correction

Block

Blemish

Compensate

Block

Binning

Block

LUT/Gamma

Block

Black Setup Block

Pixel Gain

Block

■ When Video Process Bypass mode is enabled

All video processes except DSNU Correction Block, Black Adjust Block, Blemish Compensate Block and Black Setup Block are disabled.

Sensor

Block

DSNU

Correction

Block

Black

Adjust

Block

Blemish

Compensate

Block

Black Setup Block

— 49 —

SP-12000M-CXP4 / SP-12000C-CXP4

Settings List

Feature Properties

Regarding the bold and underlined “selector” settings in this list, the various related settings will be stored separately for each selector option.

: Settings that can only be configured when image acquisition on the camera is stopped.

Item Setting range Default value Description

a) Device Control

— Displays/configure information related to

the device.

Standard —

0xC0A79AE5(3,232,209,637)

Displays the magic number which indicates that the CoaXPress standard is implemented.

Revision — 0x00010000(65,536) Displays revisions to the CoaXPress

standard.

XmlManifestSize — 1 Displays the number of XML manifests

that can be used. XmlManifestSelector 0 0 Select the XML to use. XmlMajorVersion — 1 Displays the XML version. XmlMinorVersion — 0 Displays the XML version. XmlSubMinorVersion — — Displays the XML version. XmlSchemaVersion — 0×00010100(65792) Displays the XmlSchema version. XmlUrlAddress — 0×00007000(28672) Displays the XML URL string starting

address. IidcPointer — 0 Displays the IIDC register area starting

address. As this is not supported, 0 is

displayed. DeviceVendorName — JAI Ltd, Japan Displays the manufacturer name. DeviceModelName — SP-12000M-CXP4 or

SP-12000C-CXP4

Displays the model name.

DeviceManufactureInfo — See the possibilities Displays the device information. DeviceVersion — — Displays the hardware version. DeviceFirmwareVersion — — Displays the firmware version. DeviceFpgaVersion — — Displays the FPGA version. DeviceFirmware2Version — — Displays the CPU2 firmware version. (not

used) DeviceFpga2Version — — Displays the FPGA2 firmware version.

(not used) DeviceID — — Displays the device ID. DeviceUserId Any — Set the user ID for the camera. LinkReset 1 — Reset the link. DeviceLinkId 0 Displays the device link ID. MasterHostLinkId — 1 Displays the host link ID. ControlPacketDataSize 2 2 Configure the maximum control data

packet size that the host can scan from

the device and that can be written to the

device (4-byte increments). StreamPacketDataSize 16 to 4096 3072 Set the packet size for the stream. LinkConfig CXP6_X4(0x00040048)

CXP6_X2(0x00020048) CXP6_X1(0x00010048) CXP3_X4(0x00040038) CXP3_X2(0x00020038) CXP3_X1(0x00010038)

CXP3_X4(0x00040038) Configure the LinkConfig settings.

LinkConfigDefault "CXP3_X4

0x00040038(262200)"

"CXP3_X4 0x00040038(262200)"

Displays the LinkConfig value for

operation in the device's default mode. TestMode 0,1 0 When 0x00000001 entered, enable/

disable transmission of test packets from

the device to the host. When enabled,

the packet of the current 1024 test word

is transmitted. TestErrorCountSelector — 0 Set the TestErrorCount register that will

be required. TestErrorCount — 0 Displays the error count for the current

link in regards to the device-side link ID

stored on the TestErrorCountSelector

MainBoard, InterfaceBoard

SensorBoard Select the area of the camera's interior

for which to display the temperature

sensor's reading.

— 50 —

SP-12000M-CXP4 / SP-12000C-CXP4

Item Setting range Default value Description

DeviceTemperature — — Displays the internal temperature (°C) of

the camera.

DeviceReset — — Reset the device.

b) Image Format Control

Configure image format settings. SensorWidth — 4096 Displays the maximum image width. SensorHeight — 3072 Displays the maximum image height. SensorDigitizationTaps 10bit

12bit

10bit Displays the digital tones output from the

sensor. WidthMax 4096 4096 Displays the maximum image width. HeightMax 3072 3072 Displays the maximum image height. Width 128 to 4096 4096 Set the image width. Height 16 to 3072 3072 Set the image height. OffsetX 0 to 3968 0 Set the horizontal position. OffsetY 0 to 3056 0 Set the vertical position. BinningHorizontal 1, 2 1 Set the number of pixels in the horizontal

direction for which to perform binning. BinningVertical 1, 2 1 Set the number of pixels in the vertical

direction for which to perform binning. PixelFormat SP-12000M-CXP4:

8 Bit Monochrome, 10 Bit Monochrome, 12 Bit Monochrome (Video Process Bypass mode only) SP-12000C-CXP4: 8 Bit BayerGB, 10 Bit BayerGB, 12 Bit BayerGB (Video Process Bypass mode only)

SP-12000M-CXP4: 8 Bit Monochrome SP-12000C-CXP4: 8 Bit BayerGB

Set the pixel format.

TestPattern Off,

Grey Horizontal Ramp, Grey Vertical Ramp, Grey Horizontal RampMoving, HorizontalColorBar (color only), VerticalColorBar (color only), MovingColorBar (color only)

Off Select the test image.

TapGeometry 0: Tap_1X_1Y 0: Tap_1X_1Y Displays the TapGeometry settings.

c) Acquisition Control

Configure image acquisition settings. AcquisitionMode Continuous Select the image acquisition mode. AcquisitionStart — — Start image acquisition. AcquisitionStop — — Stop image acquisition. AcquisitionFrameCount 1 to 65535 153 In [Multi Frame] mode, set the number of

frames to acquire. Acquisition Frame Rate*

* Frame period depends on

ROI, pixel format, and binning mode selected."

0.125 to 189.7* 94.8767 In [Multi Frame] mode, set the number of frames to acquire.

* The fastest value depends on the

setting of the Link Config. AcquisitionStatusSelector AcquisitionStatus TriggerSelector Acquisition Start,

Acquisition End, Frame Start

Frame Start Select the trigger operation.

TriggerMode Off, On Off Select the trigger mode. TriggerSoftware — — Execute a software trigger TriggerSource Low, High, Software, P

ulse Generator 0, User Output 0, User Output 1, Line 4, Line 5, Line 10, Line11, NAND0 Out, NAND1 Out

Line 4 Select the trigger signal source.

TriggerActivation Rising Edge,

Falling Edge, Level High, Level Low

Rising Edge Select the polarity of the trigger signal

(i.e., location of signal at which trigger is

applied). TriggerOverlap Off, On Off Select the trigger overlap operation. ExposureMode Off, Timed,

Trigger Width

Timed Select the exposure mode.

— 51 —

SP-12000M-CXP4 / SP-12000C-CXP4

Item Setting range Default value Description

ExposureTime 15@8bit

20@10bit to 7999999

10486 Set the exposure time. The maximum

value varies depending on the [Acquisition Frame Rate Raw] value.

ExposureTimeRaw 15@8bit

20@10bit to 7999999

10486 Set the raw exposure time.

ExposureAuto Off, Continuous Off Set whether to enable auto exposure.

d) Analog Control

Configure analog control settings.

GainSelector SP-12000M-CXP4:

Digital All SP-12000C-CXP4: Digital All, Digital Red, Digital Blue

Digital All (master gain) Select the gain to configure.

Gain DigitalAll: 1 to 16

DigitalRed,Blue: 0.4467 to 56235

Master gain: 1 R, B: 1

Set the gain value.

GainRaw DigitalAll: 100 to 1600

DigitalRed: –4533 to 37876

Digital All: 100 Digital Red & Blue: 0

Set the raw gain value.

BlackLevelSelector SP-12000M-CXP4:

RawDigital All SP-12000C-CXP4: RawDigital All, RawDigital Red, RawDigital Blue

RawDigital All (master black)

Select the black level to configure.

BlackLevel RawDigitalAll -133 to

255 l,RawDigitalRed, RawDigitalBlue -133 to 255

0 Set the black level value.

GainAuto Off, Once, Continuous Off Enable/disable gain auto control. BalanceWhiteAuto Off, On Off Enable/disable auto white balance. LutMode Off, Gamma, LUT Off Select the JAI LUT mode. Gamma 1.0 to 0.45 0.45 Set the gamma value.

e) Digital IO Control

Configure settings for digital input/output.

LineSelector Line1 - TTL Out 1,

Line2 - Opt Out 1, Line4 - TTL In 1, Line5 - Opt In 1, Line7 - CXP In, Line8 - TTL Out 2, Line9 - TTL Out 3, Line10 - TTL In 2, Line11 - LVDS In, NAND Gate 0 In 1, NAND Gate 0 In 2, NAND Gate 1 In 1, NAND Gate 1 In 2

Line1 - TTL Out 1 Select the input/output to configure.

LineMode — Output Displays the input/output status (whether

it is input or output).

LineInverter True, False False Enable/disable polarity inversion for the

selected input signal or output signal.

LineStatus — — Displays the status of the input signal or

output signal (True: High, False: Low).

LineSource Low, High,

Acquisition Trigger Wait, Frame Trigger Wait, Frame Active, Exposure Active, FVAL, User Output 0 to 3, Line 4 - TTL In 1, Line 5 - Opt In 1, Line10 - TTL In 2, Line11 - LVDS In, Pulse Generator 0 to 3, Nand 0 Out, Nand 1 Out

Low Select the line source signal for the item

selected in [Line Selector].

LineFormat — TTL Out Displays the current I/F type. UserOutputSelector User Output 0,

User Output 1, User Output 2, User Output 3

User Output 0 Set the user output signal.

UserOutputValue True, False False

f) Pulse Generators

Configure pulse generator settings.

— 52 —

SP-12000M-CXP4 / SP-12000C-CXP4

Item Setting range Default value Description

PreScaler 1 to 4096 1 Set the division value for the prescaler

(12-bit) using the pixel clock as the base clock.

PulseGeneratorSelector Pulse Generator 0,

Pulse Generator 1, Pulse Generator 2, Pulse Generator 3

Pulse Generator 0 Select the pulse generator.

PulseGeneratorLength 1 to 1048575 1 Set the count-up value (clock value) for

the pulse generator.

PulseGeneratorStartPoint 0 to 1048574 0 Set the active output start count value for

the pulse generator.

PulseGeneratorEndPoint 1 to 1048574 1 Set the active output stop count value for

the pulse generator.

PulseGeneratorRepeatCount 0 to 255 0 Set the repeat count for the pulse

generator.

PulseGeneratorClearActivation

Off, High Level, Low Level, Rising Edge, Falling Edge

Off Set the clear signal condition for the

count clear input of the pulse generator.

PulseGeneratorClearSource Low, High,

Acquisition Trigger Wait, Frame Trigger Wait, Frame Active, Exposure Active, FVAL, User Output 0, User Output 1, Line4 - TTL In 1, Line5 - Opt In 1, Line7 - CXP In, Line10 - TTL In 2, Line11 - LVDS In, Nand 0 Out, Nand 1 Out

Low Select the count clear input signal

source.

PulseGeneratorInverter True, False False Select whether to invert the polarity of the

count clear input signal.

PulseGeneratorClearSyncMode

Async Mode, Sync Mode

Async Mode Select the sync mode for the count clear

input signal.

g) LUTControl

Configure LUT settings. LutSelector R, G, B R Select the LUT channel to control. LutIndex 0 to 255 0 Set the LUT index table number. LutValue 0 to 4095 0 Set the LUT value.

h) UserSetControl

UserSetSelector Default, User Set1 to 3 Default (factory default

values)

Select the user settings.

UserSetLoad — — Load user settings. UserSetSave — — Save the current setting values as user

settings.

i) JAICustomControl

Configure JAI ALC settings. These

settings are also used for AGC (auto gain

control). TriggerOption Off,PIV Off When [ExposureMode] is set to [Timed],

select from normal trigger operation or

PIV operation. ALCReference 10 to 100 50 Set the target level for ALC. (unit: %) ALCAreaSelector Low Right to High Left Low Right Select an ALC metering area. ALCAreaEnable True, False False "Enable/disable the metering area where

selected metering area." ALCAreaEnableAll 0 to 1 1 Set whether to enable ALC for all areas. AutoShutterControlExposureMin

100 to 7999998 100 Set the minimum value for the ASC

range. AutoShutterControlExposureMax

101 to 7999999 7999999 Set the maximum value for the ASC

range. AutoGainControlGainRawMin 100 to 1599 100 Set the minimum value for the AGC

range. AutoGainControlGainRawMax

101 to 1600 1600 Set the maximum value for the AGC

range. ALCControlSpeed Min(1) to Max(8) 4 "Set the reaction speed for AGC/ASC.

These settings are also used for auto

exposure control." AWBAreaSelector Low Right to High Left Low Right Select the AWB (auto white balance)

measurement area. AWBAreaEnable True, False False Enable/disable the selected

measurement area.

— 53 —

SP-12000M-CXP4 / SP-12000C-CXP4

Item Setting range Default value Description

AWBAreaEnableAll 0 to 1 1 Enable/disable the all measurement area. BlemishReductionEnable True, False True Set whether to enable white blemish

correction. BlemishReductionCalibration — — Set whether to enable white blemish

correction. BlemishDetectThreshold 0 to 100 0 Set the white blemish detection

threshold. BlemishDataIndex 0 to 1000 0 Select the index table for the white

blemish detection position. BlemishDataPositionX –1 to 4095 –1 Set the horizontal position. BlemishDataPositionY –1to 3071 –1 Set the vertical position. BlemishDataNum 0 to 1000 — Displays the number of blemish

correction points executed. ShadingMode SP-12000M-CXP4

Flat Shading (fixed) SP-12000C-CXP4 Flat Shading, Color Shading

Flat Shading Select the shading correction mode.

ShadingCorrectionMode Off, User 1, User 2,

User 3

Off Select whether to use shading correction.

When using the function, select the user

area to which to save the shading

correction value. ShadingCalibration 0 — Execute shading correction. After

execution, the shading correction value is

automatically saved to the selected user

area. DsnuCorrect Off, On Off Enable/disable DSNU correction. DsnuDetect 0 — Re-adjust the correction data for DSNU

correction. VideoSendModeSelector Normal Mode,

Trigger Sequence Mode, Command Sequence Mode, Multi Mode

Normal Mode Select the video send mode.

SequenceRoiIndex Index 1to 128 Index 1 Select the sequence ROI index table. SequenceRoiFrameCount 1 to 255 1 Set the frame count. SequenceRoiNextIndex Index 1 to 128, Off Index 1 Select the next index.

When [Off] is selected, sequence

operation will stop with this index. SequenceRoiWidth 128 to 4096/16 steps 4096 Set the width. SequenceRoiHeight 16 to 3072/2 steps 3072 Set the heigh. SequenceRoiOffsetX 0 to 3968/16 steps 0 Set the horizontal position. SequenceRoiOffsetY 0 to 3056/2 steps 0 Set the vertical position. SequenceRoiGain 100 to 1600 100 Set the gain value. SequenceRoiGainR 0.4467 to 56235 0 SequenceRoiGainB 0.4467 to 56235 0 SequenceRoiExposureTime 15@8bit

20@10bit to 7999999

10486 Set the exposure time.

SequenceRoiBlackLevel –133 to 255 0 Set the black level. SequenceRoiLutEnable Off, On Off Set whether to enable the LUT. SequenceRoiHBinning (SP-12000M-CXP4 only)

1 to 2 1 Set the number of pixels in the horizontal

direction for which to perform binning. SequenceRoiVBinning (SP-12000M-CXP4 only)

1 to 2 1 Set the number of pixels in the vertical

direction for which to perform binning. SequenceRoiRepetition 1 to 255 1 Set the repeat count for the sequence. NextSequenceIndex Index 1 to 128 Index 1 Set the sequence index command. MultiRoiIndex Index 0 to 31 Index 1 Set the Multi ROI index table. MultiRoiWidth 128 to 4096/16 steps 4096 Set the width. When binning is enabled

on the SP-12000M-CXP4, the maximum

value will change. MultiRoiHeight 16 to 3072/2 steps 3072 Set the height. When binning is enabled

on the SP-12000M-CXP4, the maximum

value will change. MultiRoiOffsetX 0 to 3968/16 steps 0 Set the horizontal position. When binning

is enabled on the GO-5000M-USB, the

maximum value will change. MultiRoiOffsetY 0 to 3056/2 steps 0 Set the vertical position. When binning is

enabled on the SP-12000M-CXP4, the

maximum value will change. MultiRoiIndexMax Index 0 to 31 Index 1 Set the Multi ROI index count. Video Process Bypass Off, On Off Set whether to bypass the areas on

which DigitalGain is applied within the

FPGA. HDRModeSelector 0, 1 0 Enable/disable HDR.

— 54 —

SP-12000M-CXP4 / SP-12000C-CXP4

Item Setting range Default value Description

HDRKneeSlope2 2 to 16 2 Set the second HDR slope. HDRKneeSlope3 2 to 16 2 Set the third HDR slope. HDRKneePoint1 10 to 120 100 Set the level at which to switch the first

and second HDR slopes. HDRKneePoint2 10 to 120 100 Set the level at which to switch the

second and third HDR slopes. BinningGainEnable 0, 1 0 Set whether to add pixels or average

pixels during Binning. OptInFilterSelector 0 to 6 0 Set the digital filter time for the Opto

input. StreamOption 0, 1 0 Set whether to optimize the stream

packet interval according to the frame

rate or use the fastest interval.

j)CounterAndTimer Control

Configure counter settings. (This camera

only supports counter functions.) Counter0 to 3 Counter 0 to 3 — Select the counter. Counter0 to 3 EventSource Off,

Frame Trigger, Frame Start, Exposure Start, Exposure Transfer End

Off Select the counter event signal for which

to read the count value.

Counter0 to 3 EventActivation

Rising Edge, Falling Edge

— Specify the timing at which to count.

Counter0 to 3 Reset — — Reset the counter. Counter0 to 3 Refresh — — Update the count value. Counter0 to 3 Value — 0 Displays the count value. Counter0 to 3 Status — Counter Active Displays the counter status.

Settings

 For details on the setting items, refer to the JAI Control Tool User’s Guide

Item Setting range Default value

32-bit Factory Transport Layers

Available 32-bit Transport Layers — Transport Layers Active_Silicon_FireBird — TLActiveSilicon Transport name Active_Silicon_FireBird Full path to cti file — TLActiveSilicon.cti Enabled True, False False Display name — TLActiveSilicon AvalData — AvalData Transport name AvalData Full path to cti file — avaldata.tf.GenTL.cti Enabled True, False False Display name — AvalData BitFlow_CXP_Framegrabber — BitFlow_CXP Transport name BitFlow_CXP_Framegrabber Full path to cti file — BFGTL.cti Enabled True, False False Display name — BitFlow_CXP

64-bit Factory Transport Layers

Active_Silicon_FireBird — TLActiveSilicon Transport name Active_Silicon_FireBird Full path to cti file - C:\program Files\Active Silicon\

FireBird CXP\GenTL\win64\

TLActiveSilicon.cti Enabled True, False False Display name - TLActiveSilicon AvalData — AvalData Transport name AvalData Full path to cti file — avaldata.tf.GenTL.cti Enabled True, False False Display name — AvalData BitFlow_CXP_Framegrabber — BitFlow_CXP Transport name BitFlow_CXP_Framegrabber Full path to cti file — BFGTL.cti Enabled True, False False Display name — BitFlow_CXP

Asynchronous Image Recording

Recording Count — 025 Recording Skip Count — 000

— 55 —

SP-12000M-CXP4 / SP-12000C-CXP4

Item Setting range Default value

Recording mode List, CyclicBuffer List Optimize the AVI-file creation for Mono8 True, False True Prompt user for AVI Encoder True, False True

CXP Transport Layer

Sync Remote And Local Devices True, False True

File Save

File Format Tiff, Jpeg, Bmp, Jai, RAW Tiff Encoder parameter — 075

Look-and-feel

Visibility Level Beginner, Expert, Guru Beginner HEX display True, False False Display ToolTips True, False True Floating-Point Display Notation Automatic, Fixed, Scientific Automatic Floating-Point Display Precision — 005 Display the Remote device layer at the top of the tree (transport at the bottom)

True, False True

Refresh Property Grid After Editing True, False False Override TrackBar Floating-point display precision settings

True, False False

Make the control tool appear on top of images True, False False Timestamp display format Ticks, MSec, PTP Ticks

Plugins

Search path for plugin DLLs — .\plugins Enable the plug-in button on the menu tab True, False False

Support

Open settings file after save True, False True Support EMail Address — camerasupport@jai.com Logging Properties Enable logging True, False False Use custom properties file True, False False Custom logging properties file path Output log file path Enable GenApi logging True, False False Enable GenTL logging True, False False Enable CIProtocol logging True, False False Enable USB logging True, False False Log Level FATAL, ALERT, CRIT, ERROR,

WARN, NOTICE, INFO, DEBUG, NOTEST

INFO

Format string — LOG %d %x: %c :%m%n Append To Log file True, False FALSE

Video Display

Stretch Live Video True, False True Restore Live Video Window True, False True Skip image display when busy True, False True Enable Color Interpolation True, False True Color Interpolation BayerStandard,

BayerStandardMultiprocessor, BayerExtended, BayerExtendedMultiprocessor, BayerSimple, BayerSimpleMultiprocessor, BayerFast, BayerFastMultiprocessor

BayerStandard

Show Zoom Navigation window True, False True Show Cursor Information window True, False False Enable Mouse Zoom True, False True Enable Mouse Cursor Display True, False False

— 56 —

SP-12000M-CXP4 / SP-12000C-CXP4

Miscellaneous

Troubleshooting

Check the following before requesting help. If the problem persists, contact your local JAI distributor.

■ Power supply and connections

Problem Cause and solution

The POWER / TRIG LED remains lit amber and does not turn green, even after power is supplied to the camera.

Camera initialization may not be complete due to lack of a CXP connection. Check the CXP cable conection.

■ Image display

Problem Cause and solution

Gradation in dark areas is not noticeable. Use the gamma function to correct the display.

As the light-emitting properties of the monitor are not linear, the entire image may be darker or the gradation in the dark areas may be less noticeable when camera outputs are displayed without processing. Using the gamma function performs correction to produce a display that is close to linear. For details, see “Gamma Function” (page 38).

■ Settings and operations

Problem Cause and solution

Settings cannot be saved to user memory. You cannot save to user memory while images are being

acquired by the camera. Stop image acquisition before performing the save operation.

I want to restore the factory default settings. Load [Default] under [User Set Selector] in the [Feature

Properties] tab to restore the factory default settings.

— 57 —

SP-12000M-CXP4 / SP-12000C-CXP4

Specifications

Item SP-12000M-CXP4 SP-12000C-CXP4

Scanning system Progressive scan, 1 tap

Synchronization Internal

Interface CoaXPress Ver. 1.0

Image sensor APS-C monochrome CMOS APS-C Bayer color CMOS

Aspect ratio 4:3

Image size (effective image) 22.5 (H) × 16.9 (V), 28.16 mm diagonal

Pixel size 5.5 (H) × 5.5 (V) μm

Effective image pixel output 4096 (H) × 3072 (V) 4096 (H) × 3072 (V)

Acquisition Frame Rate (max)

❖ The minimum

value is 0.125 fps for all.

8-bit H1, V1 189 fps 189 fps

Binning H1, V2 189 fps N/A

H2, V1 189 fps N/A

H2, V2 189 fps N/A

10-bit H1, V1 132 fps 132 fps

Binning H1, V2 132 fps N/A

H2, V1 132 fps N/A

H2, V2 132 fps N/A

EMVA 1288 parameters Absolute sensitivity Maximum SN ratio

At 10-bit output

35.54p (λ = 525 nm)

40.45 dB

At 10-bit output

49.24p (λ = 525 nm)

36.63 dB

SN ratio (traditional method) 53 dB (typical)

(0 dB gain, Black)

50 dB (typical)

(0 dB gain, Green Black)

Digital image output format

Full pixel 4096 (H) × 3072 (V)

Bayer 4096 (H) × 3072 (V)

ROI Width 128 to 4096, 16 pixels/step 128 to 4096, 16 pixels/step

Offset X 0 to 3968, 16 pixels/step 0 to 3968, 16 pixels/step

Height 16 to 3072, 2 lines/step 16 to 3072, 2 lines/step

Offset Y 0 to 3056, 2 lines/step 0 to 3056, 2 lines/step

Binning H 1 4096 (H) 4096 (H)

2 2048 (H) —

V 1 3072 (V) 3072 (V)

2 1536 (V) —

Pixel Format Mono8, Mono10 BayerGB8, BayerGB10

Acquisition modes Continuous, Single Frame, Multi Frame (1 to 65535)

Trigger selector Acquisition Acquisition Start, Acquisition Stop

Exposure Frame Start

Exposure modes Off, Timed (EPS), Trigger Width (PWC)

Trigger options OFF, PIV

Trigger overlap Read Out, Off

Trigger input signals Line 4 (TTL Input1), Line 5 (Opto Input), Line7 (CXP In),

Line 10 (TTL Input2), Line 11 (LVDS Input),

Software, PG (0-3), NAND Out (0-1)

Option filter 7 steps (Off, 10 μs (Typ), 100 μs, 500 μs, 1ms, 5ms, 10ms)

Exposure modes Timed 15 or 20 μs (min) to 8 s (max), variable unit: 1 μs

❖ Performance verified for up to 1 second.

Trigger Width 15 μs (8 bit) or 20 μs (10 bit) (min) to ∞ (max)

❖ Performance verified for up to 1 second.

Auto exposure (Exposure Auto) Off, Continuous

Auto exposure response speed (AGC/ASC Control Speed)

1 to 8

Video Send Mode Selector Normal ROI, Multi ROI (1 to 32), Trigger Sequence,

Command Sequence

Digital I/O Line Selector (12P/AUX): GPIO IN / GPIO OUT

Black level adjustment

Reference level 33.5LSB (during 10-bit output) (average value of 100 × 100)

Video level adjustment range 0 to 100 (during 10-bit output)

Adjustment range ±64LSB against reference level (during 10-bit output)

Resolution adjustment 1 STEP = 0.25LSB

— 58 —

SP-12000M-CXP4 / SP-12000C-CXP4

Item SP-12000M-CXP4 SP-12000C-CXP4

Gain adjustment Manual adjustment range 0 dB to +24 dB

1 step = x0.01 (0.005 dB to

0.08 dB)

(varies by setting value)

0 dB to +24 dB

1 step = x0.01 (0.005 dB to

0.08 dB)

(varies by setting value)

Auto gain Off, Continuous Off, Continuous

WB gain — R / B: –7 dB to +15 dB, 1 step =

0.01 dB

WB area — 16 (4 × 4) Area

WB range — 3000 K to 9000 K

White balance — Off, Continuous, Once

Blemish correction Detection Detect white blemishes using threshold values

(black blemish correction performed only at factory)

Correction Interpolation using adjacent pixels (continuous blemishes not

corrected)

Correctable pixels 1000 pixels

ALC Can be adjusted automatically together with AGC and auto exposure

Gamma 0.45, 0.5, 0.55, 0.6, 0.65, 0.75, 0.8, 0.9, 1.0 (9 steps)

Dark compression Linear

LUT

OFF: γ = 1.0, ON = 256 points can be set

HDR modes Slope: x2 to x16,

Knee point (range: 10 to 120)

—

Power supply 12-pin

connector

Input range DC +12 V to +24 V ±10% (via input terminal)

Current 1000 mA ±20 mA (at 12 V input, full pixel) (Typical)

(Option: XT model with fan: 1040 mA)

Power consumption 12.0 W (at 12 V input, full pixel) (Typical)

(Option: XT model with fan: 12.48 W)

PoCXP Input range DC 24 V ±2 V

Current 500 mA (at 24 V input, full pixel) (Typical)

(Option: XT model with fan: 520 mA)

Power consumption 12.0 W (at 24 V input, full pixel) (Typical)

(Option: XT model with fan: 12.48 W)

Lens mount F-mount

Flange back 46.5, tolerance: 0 mm to –0.05 m

Optical filter Protective glass: Not provided IR cut filter (half value of 670 nm)

Verified performance temperature / humidity –5°C to +30°C / 20% to 80% (non-condensing)

(Option: XT model with fan: –5°C to +40°C)

Operating temperature / humidity –5°C to +40°C / 20% to 80%

(Option: XT model with fan: –5°C to +45°C)

Storage temperature / humidity –25°C to +60°C / 20% to 80% (non-condensing)

Regulations CE (EN61000-6-2 and EN61000-6-3), FCC part 15 class B, RoHS,

WEEE

Dimensions (housing) 62 × 62 × 127.5 mm (WHD) (excluding mount protrutions)

Weight 510 g

Approximately 5 minutes of warm-up are required to achieve these specifications.

Package contents

Camera body (1) Sensor protection cap (1) Dear Customer (sheet) (1)

Optional accessories (not supplied)

MP-42 tripod mount AC adapter

Design and specifications are subject to change without notice.

— 59 —

SP-12000M-CXP4 / SP-12000C-CXP4

Frame Rate Reference

(Theoretical value: decimal values are dropped)

Pixel count Resolution

Sensor scanning

resolution

ROI/Binning

Pixel size

(μm)

Image size Frame rate

12 MP 4096 × 3072 4096×3072 Full pixel 5.5 × 5.5 APS size (2")

(28.16 mm diagonal)

189 fps (@8-bit)

132 fps (@10-bit)

3 MP 2048 × 1536 2048×1536 ROI 5.5 × 5.5 1/1.1"

(14.08 mm diagonal)

396 fps (@8-bit)

262 fps (@10-bit)

2 MP 1920 × 1080 1920×1080 ROI 5.5 × 5.5 1/1.3"

(12.12 mm diagonal)

559 fps (@8-bit)

371 fps (@10-bit)

1.4 MP 1392 × 1052 1392×1052 ROI 5.5 × 5.5 1/1.7" (9.59 mm diagonal)

574 fps (@8-bit)

381 fps (@10-bit)

1.3 MP 1280 × 1024 1280×1024 ROI 5.5 × 5.5 1/1.8" (9.02 mm diagonal)

589 fps (@8-bit)

391 fps (@10-bit)

0.5 MP 800 × 600 800×600 ROI 5.5 × 5.5 1/2.9" (5.50 mm diagonal)

987 fps (@8-bit)

660 fps (@10-bit)

0.5 MP 800 × 600

(Mono only)

1600×1200

(Mono only)

ROI + 2×2

Binning

11.0 × 11.0 1/1.4" (11.00 mm diagonal)

505 fps (@8-bit)

335 fps (@10-bit)

0.3 MP 640 × 480 640×480 ROI 5.5 × 5.5 1/3.6" (4.40 mm diagonal)

1220 fps (@8-bit) 819 fps (@10-bit)

0.3 MP 640 × 480

(Mono only)

1280×960

(Mono only)

ROI + 2×2

Binning

11.0 × 11.0 1/1.8" (8.80 mm diagonal)

627 fps (@8-bit)

417 fps (@10-bit)

Spectral Response

SP-12000M-CXP4

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

400 500 600 700 800 900 1000 1100

Relativi Response

wave length (nm)

SP-12000M Spectral Sensitivity

MONO

— 60 —

SP-12000M-CXP4 / SP-12000C-CXP4

SP-12000C-CXP4

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

400 500 600 700 800 900 1000 1100

Relative Response

wave length (nm)

SP-12000C Spectral Sensitivity

Rch

Gch

Bch

Dimensions

— 61 —

SP-12000M-CXP4 / SP-12000C-CXP4

User’s Record

Camera type: SP-12000M-CXP4 / SP-12000C-CXP4

Revision: ……………..

Serial No. ……………..

Firmware version. ……………..

For camera revision history, please contact your local JAI distributor.

Trademarks

• Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.

• Intel and Intel Core are trademarks of Intel Corporation in the United States and other countries.

Other system and product names described in this document are trademarks or registered trademarks of their respective owners. The ™ and ® symbols are not used in this document.

— 62 —

SP-12000M-CXP4 / SP-12000C-CXP4

6-pin round

AC adapter

Acquisition Control

acquisition modes

Adjusting the Black Level

Adjusting the Gain

Adjusting the White Balance

ALC

Automatic Level Control Function

black level

Camera locking screw holes

Configuring Exposure

Connecting Devices

DC IN

DC IN / trigger IN connector

Digital Input/Output Settings

Dimensions

exposure

Exposure Mode

External Trigger Settings

factory default settings

Feature Properties

Frame Rate

Frame Rate Reference

Gain Auto

Gain Control

Gain Level

Gamma Function

GPIO

HDR Mode

High Dynamic Range

Initial Settings for the Camera

Installing the Software

JAI Camera Control Tool

JAI SDK

LED

Lens

Lens mount

LINK LED

Lookup Table

LUT

Multi ROI

Optional accessories (not supplied)

Output format

Parts Identification

PIV Function

Power/trigger LED

Regional Scanning Function

RJ-45 connector

ROI

Saving the Settings

Sequence Trigger

Settings

Settings List

software

Specifications

Spectral Response

Trigger Control

trigger IN

Trigger Selector

Troubleshooting

user memory

Verifying the Camera’s Network

Connection Status

Video Process Bypass Mode

white balance

Index

Revision History

Revision Date Changes

1.0 May 2016 First edition

1.1 Sept. 2016 Revised frame rate frequency calculation formulas and frame rate values (p. 28, 32 to 34, 38, 66)

JAI SP-12000M-CXP4, SP-12000C-CXP4 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
