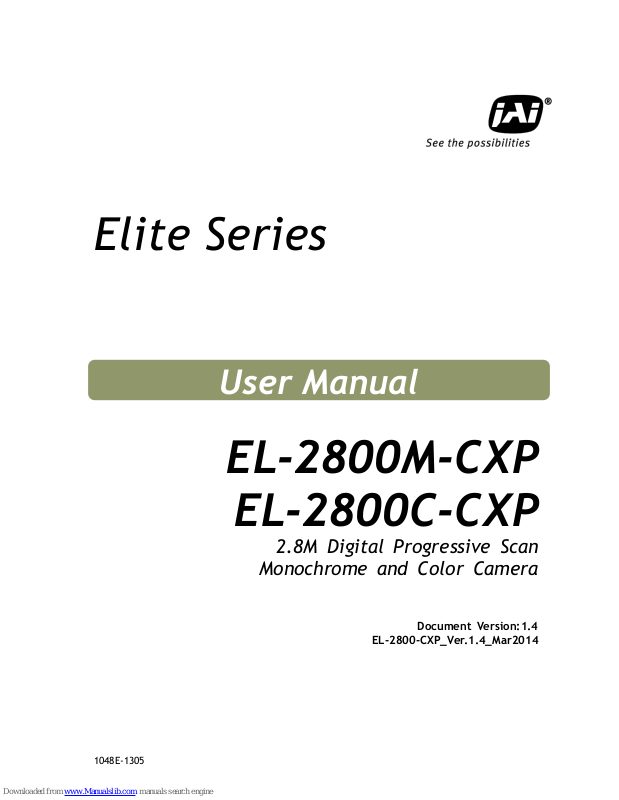

1048E-1305

Elite Series

EL-2800M-CXP

EL-2800C-CXP

2.8M Digital Progressive Scan

Monochrome and Color Camera

Document Version:1.4

EL-2800-CXP_Ver.1.4_Mar2014

User Manual

EL-2800M-CXP / EL-2800C-CXP

- 2 -

Notice

The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan

and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein. JAI Ltd., Japan reserves the right to make changes without notice.

Company and product names mentioned in this manual are trademarks or registered trademarks of their respective owners.

Warranty

For information about the warranty, please contact your factory representative.

Certifications

CE compliance

As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC (Electromagnetic compatibility), JAI Ltd., Japan declares that EL-2800M-CXP and EL-2800C-CXP comply with the following provisions applying to its standards. EN 61000-6-3 (Generic emission standard part 1) EN 61000-6-2 (Generic immunity standard part 1)

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications to this unit not expressly approved by the party responsible for FCC compliance could void the user’s authority to operate the equipment.

EL-2800M-CXP

Supplement

The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “. The table shows contained Hazardous Substances in this camera.

mark shows that the environment-friendly use period of contained Hazardous

Substances is 15 years.

嶷勣廣吭並㍻

嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕

功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇云恢瞳ゞ嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕〃泌和



桟隠聞喘豚㍉

窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。

方忖仝15々葎豚㍉15定。

EL-2800C-CXP

Supplement

mark shows that the environment-friendly use period of contained Hazardous

Substances is 15 years.

嶷勣廣吭並㍻

嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕

功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇云恢瞳ゞ嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕〃泌和



桟隠聞喘豚㍉

方忖仝15々葎豚㍉15定。

EL-2800M-CXP / EL-2800C-CXP

- 3 -

- Contents -

Introduction ....................................................................................- 6 -

1. General ....................................................................................- 7 -

2. Camera composition ...................................................................- 7 -

3. Main features ............................................................................- 8 -

4. Locations and functions ...............................................................- 9 -

4.1 Locations and functions ............................................................................ - 9 -

4.2 Rear panel .......................................................................................... - 10 -

5. Input and output ......................................................................... - 11 -

5.1 CoaXPress interface standard .................................................................... - 11 -

5.2 Connectors and pin assignment ................................................................. - 12 -

5.2.1 Digital Video Output (75Ω 1.0/2.3 DIN Receptacle) .................................. - 12 -

5.2.2 12-Pin connector.............................................................................. - 12 -

5.2.2.1 Pin assignment ........................................................................... - 12 -

5.2.3 AUX Standard Hirose 10-Pin connector for Lens ......................................... - 12 -

5.2.4 AUX Type 2 HIROSE 10-Pin connector (Factory option) .............................. - 13 -

5.2.5 AUX Type 3 HIROSE 10-Pin connector (Factory option) .............................. - 13 -

5.3 Output ............................................................................................... - 14 -

5.3.1 Digital output ................................................................................. - 14 -

5.3.1.1 Output level .............................................................................. - 14 -

5.4 Digital IN/OUT interface ......................................................................... - 14 -

5.4.1 Line Selector .................................................................................. - 14 -

5.4.2 Line source .................................................................................... - 15 -

5.4.3 Line Mode ...................................................................................... - 15 -

5.4.4 Line Inverter .................................................................................. - 15 -

5.4.5 Line Status ..................................................................................... - 15 -

5.4.6 Line Format ................................................................................... - 15 -

5.4.7 GPIO ............................................................................................ - 15 -

5.4.7.1 GPIO block diagram ..................................................................... - 16 -

5.4.7.2 IN and OUT matrix table .............................................................. - 17 -

5.5 Pulse Generator .................................................................................... - 18 -

5.5.1 Clock Pre-scaler .............................................................................. - 18 -

5.5.2 Pulse Generator Selector .................................................................... - 18 -

5.5.3 Pulse Generator Length ..................................................................... - 19 -

5.5.4 Pulse Generator Start Point ................................................................. - 19 -

5.5.5 Pulse Generator End Point .................................................................. - 19 -

5.5.6 Pulse Generator Repeat Count ............................................................. - 19 -

5.5.7 Pulse Generator Clear Activation .......................................................... - 19 -

5.5.8 Pulse Generator Clear Sync Mode .......................................................... - 19 -

5.5.9 Pulse Generator Clear Source .............................................................. - 21 -

5.5.10 Pulse Generator Inverter .................................................................. - 22 -

5.5.11 Pulse Generator Setting table ............................................................ - 22 -

6. Sensor layout, output format and timing ........................................ - 23 -

6.1 Sensor layout ....................................................................................... - 23 -

6.1.1 Monochrome sensor .......................................................................... - 23 -

6.1.2 Bayer color sensor .......................................................................... - 23 -

6.2. Sensor readout (Sensor Tap Geometry) ....................................................... - 24 -

6.2.1 4 taps readout (1X2–2YE) .................................................................... - 24 -

6.2.2 2 Taps readout (2XE–1Y) ..................................................................... - 24 -

6.2.3 1 tap readout (1X–1Y) ........................................................................ - 24 -

6.3. Camera output format and sensor readout system ......................................... - 25 -

EL-2800M-CXP / EL-2800C-CXP

- 4 -

6.3.1 1X-1Y ........................................................................................... - 25 -

6.3.2 1X–2YE ......................................................................................... - 25 -

6.4 The relations between tap Geometry and Frame rate ...................................... - 26 -

6.5 Output timing ...................................................................................... - 26 -

6.5.1 Horizontal timing ............................................................................. - 26 -

6.5.1.1 Output format 1X–2YE (Pixel clock: 108 MHz) ................................... - 26 -

6.5.1.2 Output format 1X–2YE (Pixel clock: 108 MHz) ................................... - 27 -

6.5.2.1 Output format 1X–1Y (Camera Output Pixel clock: 108 MHz) ................. - 27 -

6.5.2.2 Output format 1X–1Y (Camera Output Pixel clock: 108 MHz) ................. - 27 -

6.5.2 Vertical timing ................................................................................ - 28 -

6.5.2.1 Output format 1X–2YE Vertical binning OFF .................................. - 28 -

6.5.2.2 Output format 1X–2YE Vertical binning ON ................................. - 28 -

6.5.2.3 Output format 1X–1Y Vertical Binning OFF ................................... - 28 -

6.5.2.4 Output format 1X–1Y Vertical Binning ON .................................... - 28 -

7. Operating modes ...................................................................... - 29 -

7.1. Acquisition control (change the frame rate) ................................................. - 29 -

7.1.1 Acqusition mode .............................................................................. - 29 -

7.1.1.1 Single Frame ............................................................................. - 29 -

7.1.1.2 MultiFrame ............................................................................... - 33 -

7.1.1.3 Continuous mode ........................................................................ - 37 -

7.1.2 Acquisition frame count ..................................................................... - 39 -

7.1.3 Acquisition frame rate ...................................................................... - 40 -

7.1.4 Calculation of frame rate ................................................................... - 40 -

7.1.4.1 V Binning Off ............................................................................. - 40 -

7.1.4.2 V Binning On ............................................................................. - 40 -

7.2. Exposure setting .................................................................................. - 41 -

7.2.1 Exposure Mode ................................................................................ - 41 -

7.2.2 Exposure Time ................................................................................ - 41 -

7.2.3 Exposure Auto ................................................................................. - 42 -

7.3. Trigger Mode ...................................................................................... - 42 -

7.3.1 Trigger Source ................................................................................ - 42 -

7.3.2 Trigger activation ............................................................................ - 42 -

7.3.3 Trigger Overlap ............................................................................... - 42 -

7.3.4 Trigger Delay .................................................................................. - 43 -

7.4. Normal continuous operation (Timed Exposure Mode/Trigger Mode OFF)............... - 43 -

7.5. Timed mode (EPS) ................................................................................ - 43 -

7.5.1 If the overlap setting is “OFF” ............................................................. - 44 -

7.5.2 If the overlap setting is “Readout” ........................................................ - 44 -

7.6. Trigger width mode .............................................................................. - 45 -

7.6.1 If the overlap setting is “OFF” ............................................................. - 45 -

7.6.2 If the overlap setting is “Readout” ........................................................ - 46 -

7.7. RCT mode .......................................................................................... - 47 -

7.8. PIV (Particle Image Velocimetry) .............................................................. - 48 -

7.9. Sequential Timed Exposure Mode .............................................................. - 49 -

7.9.1 Video send mode ............................................................................. - 49 -

7.9.2 Sequence ROI setting parameters ......................................................... - 50 -

7.10. Operation and function matrix ............................................................... - 52 -

8. Other functions ....................................................................... - 53 -

8.1 Black level control ................................................................................ - 53 -

8.1.1 Black Level Selector ......................................................................... - 53 -

8.1.2 Black Level .................................................................................... - 53 -

8.1.3 Black Level Auto .............................................................................. - 53 -

8.2 Gain control ........................................................................................ - 54 -

EL-2800M-CXP / EL-2800C-CXP

- 5 -

8.2.1 Gain Selector .................................................................................. - 54 -

8.2.2 Gain ............................................................................................. - 55 -

8.2.3 Gain Raw ....................................................................................... - 55 -

8.2.4 Gain Auto ...................................................................................... - 56 -

8.2.5 Balance White Auto .......................................................................... - 56 -

8.3. LUT .................................................................................................. - 56 -

8.3.1 LUT Enable .................................................................................... - 56 -

8.3.2 LUT Index ...................................................................................... - 57 -

8.3.3 LUT value ...................................................................................... - 57 -

8.4. Gamma ............................................................................................. - 57 -

8.5. Shading Correction ............................................................................... - 57 -

8.6. Blemish compensation ........................................................................... - 59 -

8.7. Bayer color interpolation (Only for EL-2800C) ............................................... - 59 -

8.8 Lens .................................................................................................. - 60 -

8.8.1 About P-Iris .................................................................................... - 60 -

8.8.2 Setting for P-iris lens being used .......................................................... - 60 -

8.8.2.1 P-Iris lens select ......................................................................... - 61 -

8.8.2.2 Step max. ................................................................................. - 61 -

8.8.2.3 Position ................................................................................... - 61 -

8.8.2.4 Current F value .......................................................................... - 61 -

8.8.2.5 P-Iris Auto min. / P-Iris Auto max. ................................................... - 61 -

8.8.2.6 Auto Iris Lens Control Signal Output ................................................. - 61 -

8.8.3 Motorized lenses ............................................................................ - 61 -

8.8.3.1 Iris ......................................................................................... - 61 -

8.8.3.2 Zoom ...................................................................................... - 62 -

8.8.3.3 Focus+ ..................................................................................... - 62 -

8.8.4 Exclusive video output signal for iris control .............................................. - 62 -

8.8 ALC ................................................................................................... - 63 -

9. Camera setting ......................................................................... - 64 -

10. External appearance and dimensions ......................................... - 65 -

11. Specifications ........................................................................ - 66 -

11.1 Spectral response ................................................................................ - 66 -

11.2 Specifications table .............................................................................. - 67 -

Appendix ...................................................................................... - 70 -

1. Precautions ............................................................................................ - 70 -

2. Typical Sensor Characteristics ...................................................................... - 70 -

3. Caution when mounting a lens on the camera ................................................... - 70 -

4. Caution when mounting the camera .............................................................. - 70 -

5. Exportation ............................................................................................ - 71 -

6. References ............................................................................................. - 71 -

Manual change history ..................................................................... - 72 -

User's Record ................................................................................ - 73 -

EL-2800M-CXP / EL-2800C-CXP

- 6 -

Introduction

Interface

The EL-2800M-CXP and EL-2800C-CXP employ CoaXPress as an interface system. In order to connect the camera to a PC, it requires the use of a Frame Graber board and the appropriate coaxial cable(s). The maximum video transfer rate per coaxial cable is 6.25 Gbps (CXP-6). The maximum rate per cable supported by the EL-2800 is 3.125 Gbps (CXP-3) but for RGB output, 6.25 Gbps is supported. In addition to video information, power and control signals can be transferred to the camera over this interface. For detailed specifications, please refer to “JIIA-NTF-001-2010” published by Japan Industrial Imaging Association, http://www.jiia.org.

Frame grabber boards used with EL-2800 series

As the EL-2800M-CXP and EL-2800C-CXP employ CoaXPress as an interface system, a CoaXPress-compliant frame grabber board is required. Each camera has a single CoaXPress interface connector.

Cables used with EL-2800 series

For the CoaXPress interface, coaxial cables are used. In the EL-2800M-CXP and EL-2800C-CXP, they use 75Ω 1.0/2.3 DIN receptacles (Amphenol ACX1785-ND or equivalent). The coaxial cable used to connect the camera must have a 75Ω 1.0/2.3 DIN-type plug at the camera side. An ordinary BNC cable cannot be used.

EL-2800M-CXP / EL-2800C-CXP

- 7 -

1. General

The EL-2800M-CXP and EL-2800C-CXP are new cameras in JAI’s Elite Series. They provide high picture quality, such as high sensitivity and low noise, suitable for machine vision applications. The EL-2800M-CXP is a monochrome progressive scan CCD camera and the EL-2800C-CXP is the equivalent Bayer mosaic progressive scan CCD camera. Both are equipped with a 2/3 inch CCD sensor offering 2.83 million pixels resolution and a 4:3 aspect ratio. They provide 54.7 frames per second for continuous scanning with 1920 x 1440 full pixel resolution for both monochrome and raw Bayer output.

8-bit, 10-bit, or 12-bit output can be selected for both monochrome and Bayer outputs. The EL-2800C-CXP is also capable of performing in-camera color interpolation to produce 24-bit (8-bit per color) RGB output at 54.7 in Quad Tap Sensor Geometry. The new cameras feature a CoaXPress interface which uses coax cable with the capability of supplying power through the cable. The EL-2800M-CXP and EL-2800C-CXP use a single coaxial cable interface. A full pixel readout, partial scan readout, or binning mode (monochrome only) can be selected depending on the application.

EL-2800M-CXP and EL-2800C-CXP have various comprehensive functions needed for automated optical inspection applications, such as solid state device inspection or material surface inspection. They incorporate video processing functions such as a look-up table, shading compensation, and blemish compensation in addition to fundamental functions such as trigger, exposure setting and video level control.

As a common Elite Series feature, a new connector for lens control is employed. EL-2800M-CXP and EL-2800C-CXP support P-iris and motor-driven lenses as standard lens control capabilities. Factory options are available to configure this connector to support DC iris systems as well as provide a video iris output signal, or to provide additional TTL IN and OUT lines.

The latest version of this manual can be downloaded from: www.jai.com The latest version of the Camera Control Tool for the EL-2800M-CXP and EL-2800C-CXP can be downloaded from: www.jai.com For camera revision history, please contact your local JAI distributor.

2. Camera composition

The standard camera composition is as follows.

Camera body 1 Sensor protection cap 1 Dear Customer (sheet) 1

The following optional accessories are available.

Tripod base

MP-42

Power supply unit

PD-12 series

EL-2800M-CXP / EL-2800C-CXP

- 8 -

3. Main features

 New Elite Series, 2/3 ” progressive scan camera  Intelligent body design for easy and flexible installation  Utilizes new CoaXPress interface using a single coaxial cable  Aspect ratio 4:3, 1920(H) x 1440(V), 2.8 million effective pixels  4.54 μm square pixels  S/N 61dB for monochrome and 58.5dB for color  8-bit, 10-bit, or 12-bit output for monochrome and Bayer or 8-bit per color output for RGB

color

 54.7 frames/second with full resolution in continuous operation for 1X -2YE output format

(monochrome or Bayer) as well as for RGB output in Quad Sensor Tap Geometry and 6.25Gbps Link Configuration, 15.8 frames/second for 1X – 1Y output format including RGB output in-camera interpolation

 Various readout modes, including horizontal and vertical binning (EL-2800M-CXP only) and

ROI (Region Of Interest) for faster frame rates

 0dB to +30dB gain control for EL-2800M-CXP and 0dB to +27dB for EL-2800C-CXP  10 μs (1/100,000) to 8 seconds exposure control in 1 μs step  Auto exposure control  Timed and trigger width exposure control,  RCT, PIV and sequential trigger modes for specific applications  ALC control with combined function of AGC, auto exposure, and auto iris  Various pre-processing circuits are provided

Programmable LUT Gamma correction from 0.45 to 1.0 Shading compensation Bayer white balance with manual or one-push auto (EL-2800C-CXP only) Bayer color interpolation (EL-2800C-CXP only) Blemish compensation

 Test pattern signal generator is built in  Auto iris lens video output with H-sync  New Hirose 10P connector for lens interface including P-Iris lens control  C-mount for lens mount

EL-2800M-CXP / EL-2800C-CXP

- 9 -

4. Locations and functions

4.1 Locations and functions

 Lens mount C-mount (Note *1)  10-pin connector Connector for lens control  LED Indication for power and trigger input  12-pin connector DC input and trigger input  LINK 1 LINK Status indication for CXP  CXP 1 CoaXPress connector

 Mounting holes Holes for mounting tripod base or direct installation. Depth 5 mm (Note*2)

*1) Note1: Rear protrusion on C-mount lens must be less than 10.0 mm. *2) Note3: The part number for the tripod adapter plate (with 1/4"-20 thread) is MP-42 (option).

Fig. 1 Locations

EL-2800M-CXP / EL-2800C-CXP

- 10 -

4.2 Rear panel

The rear panel mounted LED provides the following information:

 Amber: Power connected – initiating

This light goes OFF after initiating.

 Steady green: Camera is operating in Continuous mode  Flashing green: The camera is receiving external triggering

Note: The interval of flashing does not correspond with external

trigger duration.

Fig. 2 Rear panel

LINK1

 Flashing green: Searching LINK (in case of using PoCXP)

 Flashing amber: Searching LINK (in case of PoCXP not being used)

EL-2800M-CXP / EL-2800C-CXP

- 11 -

5. Input and output

5.1 CoaXPress interface standard

The EL-2800M-CXP and EL-2800C-CXP use CoaXPress as their interface. CoaXPress is a PLUG-AND-PLAY interface and connects the camera and the frame grabber board by coaxial cable(s). Its maximum transfer rate is 6.25 Gbps per one coaxial cable. Additionally, CoaXPress interface supports power supplied through the coaxial cable as well as communication signals. In the CoaXPress interface, multiple coaxial cables can be used in order to achieve a faster transfer rate or a reduced transfer rate can be used to extend the cable length. In the EL-2800M-CXP and EL-2800C-CXP, a single coaxial cable system is used.

Fig.3 CoaXPress interface

The distance between camera and frame grabber board depends on the bit rate of the video and the cable used. Among the unique features of CoaXPress is its ability to supply DC power and provide trigger timing accuracy. The maximum power supply per one cable is 13W with DC+24V voltage. The accuracy of the trigger is ±2 ns at 3.125 Gbps. The CoaXPress compliance labeling is assigned to the following five cable types and the maximum bit rate and transmission length is indicated in the table below.

Table – 1 CoXPress Compliance Labeling

Compliance Labeling

Maximum Operational Bit Rate per coax (Gbps) and transmission length

CXP-1

1.250 (up to 212 m)

CXP-2

2.500 (up to 185 m)

CXP-3

3.125 (up to 169 m)

CXP-5

5.000 (up to 102 m)

CXP-6

6.250 (up to 68 m)

In the EL-2800M-CXP and EL-2800C-CXP, the maximum bit rate is 3.125 Gbps for Monochrome and Bayer color and 6.25 Gbps for RGB color per one cable.

For the details of the specifications, please refer to “JIIA-NTF-001-2010” published by Japan Industrial Imaging Association, http://www.jiia.org.

Frame Grabber BoardCamera

Master Link

Extension Link

Data/Trigger/GPIO/Control Trigger/GPIO/Control Power

EL-2800M-CXP / EL-2800C-CXP

- 12 -

5.2 Connectors and pin assignment

5.2.1 Digital Video Output (75Ω 1.0/2.3 DIN Receptacle)

Type: CoaXPress Connector (ACX1785-ND Amphenol Connector or equivalent)

CXP#1

PoCXP compliant

Maximum Bit Rate per one coax: 6.25 Gbps

5.2.2 12-Pin connector

Type: HR10A-10R-12PB-01 male or equivalent Use the part number HR10A-10P-12S for the cable side

5.2.2.1 Pin assignment

Table – 2 12P Pin assignment

*1) Factory default setting is an Exposure Active signal with negative polarity. *2) Factory default setting is a trigger input

5.2.3 AUX Standard Hirose 10-Pin connector for Lens

Type : HIROSE 10-Pin Connector 3260-10S3(55)

Fig.5 Hirose 10-pin connector

Pin no.

Signal

Remarks

GND

DC input

+12V to +24V

GND

Opt IN -

Line 5

Opt IN +

Opt OUT -

Line 2

Opt OUT +

TTL out 1

Line 1 (Note*1)

TTL In 1

Line 4 (Note*2)

DC input

+12V to +24V

GND

Fig.4 12-pin connector

EL-2800M-CXP / EL-2800C-CXP

- 13 -

Table – 3 Hirose 10P Pin Assignment

I/O

Name

Note 1 O

DRIVE IRIS+

Motorized Lens

2 O DRIVE FOCUS+

Motorized Lens

3 O DRIVE ZOOM+

Motorized Lens

4 O COMMON

Motorized Lens

5 GND

6 O P-IRIS OUT A+

P-Iris Lens

7 O P-IRIS OUT A-

P-Iris Lens

8 O P-IRIS OUT B+

P-Iris Lens

9 O P-IRIS OUT B-

P-Iris Lens

10 O GND

5.2.4 AUX Type 2 HIROSE 10-Pin connector (Factory option)

HIROSE 10-Pin Connector 3260-10S3(55)

Note: This is a factory option.

Table – 4 Hirose 10P Pin assignment (Option)

I/O

Name

Note

1 O Video Signal

Video Iris Lens

2 O Power DC+12V

Video Iris Lens

3 NC 4 NC

5 GND

6 O

DC IRIS DAMP-

DC Iris

7 O DC IRIS DAMP+

DC Iris

8 O DC IRIS DRIVE+

DC Iris

9 O DC IRIS DRIVE-

DC Iris

10 GND

5.2.5 AUX Type 3 HIROSE 10-Pin connector (Factory option)

HIROSE 10-Pin Connector 3260-10S3(55)

Note: This is a factory option.

Table – 5 Hirose 10P Pin Assignment (Option)

I/O

Name

Note 1 O

TTL OUT2

Line8

2 O TTL OUT3

Line9 3 I

TTL_IN2

Line10

4 NC

5 GND

6 I LVDS_IN1+

Line11

7 I LVDS_IN1-

8 NC 9 GND

10 GND

EL-2800M-CXP / EL-2800C-CXP

- 14 -

5.3 Output

5.3.1 Digital output

5.3.1.1 Output level

Table – 6 Output level

CCD out

Analog Out

(Equivalent)

Digital Out

8-bit

10-bit

12-bit

Black

Setup 3.6%,

25mV

8LSB

32LSB

128LSB

Monochrome

574mV

100%

700mV

222LSB

890LSB

3560LSB

Color

386mV

Monochrome

662mV

115%

800mV

255LSB

1023LSB

4095LSB

Color

445mV

Digital Out [LSB]

70025

Anal og Ou t [m V]

890

1023

Blac k Leve l

Whit e Cli p Le vel

800

100% Level

Fig.6 Bit allocation

5.4 Digital IN/OUT interface

In the EL-2800-CXP, the software control tool can assign the necessary signals to the digital I/O ports.

5.4.1 Line Selector

In the Line Selector, the following input and output signals can be assigned.

Table – 7 Line selector

Note: Line 8, 9, 10 and 11 are available if AUX Type 3 is used for AUX connector.

Line Selector item

Description

Line 1 TTL 1 Out

TTL 1 output from 12P connector #9 pin located on the rear panel

Line 2 OPT Out

OPT output from 12P connector #7/8 pins located on the rear panel

Line 8 TTL 2 Out

TTL 2 output from “AUX” HIROSE 10-Pin connector #1 pin

Line 9 TTL 3 Out

TTL 3 output from “AUX” HIROSE 10-Pin connector #2 pin

NAND 0 In 1

NAND first gate, No. 1 input on GPIO

NAND 0 in 2

NAND first gate, No. 2 input on GPIO

NAND 1 In 1

NAND second gate, No. 1 input on GPIO

NAND 1 in 2

NAND second gate, No. 2 input on GPIO

EL-2800M-CXP / EL-2800C-CXP

- 15 -

5.4.2 Line source

Line source signal is selected against the dedicated line selected in the line selector. Table – 8 Line source

5.4.3 Line Mode

Indicates the status of the interface, input or output.

5.4.4 Line Inverter

Sets the polarity of the selected input or output.

5.4.5 Line Status

Indicates the status of the selected signal, input or output (True=High or False=Low)

5.4.6 Line Format

Display the input or output interface format of the line item selected in Line Selector.

(No Connect, TTL, LVDS, Opt Coupled)

5.4.7 GPIO

This is a general interface for input and output and controls input and output for trigger signals or valid signals and pulse generator. By using this interface, you can control an external light source, make a delayed function to input a trigger signal or make a precise exposure control with PWC trigger.

Line Source item

Description

Low

Connect Low Level signal to line item selected in Line Selector, Default setting

High

Connect High Level signal to line item selected in Line Selector

Frame Trigger Wait

Connect Frame Trigger Wait signal to line item selected in Line Selector

Frame Active

Connect Frame Active signal to line item selected in Line Selector

Acquisition Trigger Wait

Connect Acquisition Trigger Wait signal to line item selected in Line Selector

Acquisition Active

Connect Acquisition Active signal to line item selected in Line Selector

Exposure Active

Connect Exposure Active signal to line item selected in Line Selector

FVAL

Connect FVAL signal to line item selected in Line Selector

LVAL

Connect LVAL signal to line item selected in Line Selector

PulseGenerator0 Out

Connect Pulse Generator 0 signal to line item selected in Line Selector

PulseGenerator1 Out

Connect Pulse Generator 1 signal to line item selected in Line Selector

PulseGenerator2 Out

Connect Pulse Generator 2 signal to line item selected in Line Selector

PulseGenerator3 Out

Connect Pulse Generator 3 signal to line item selected in Line Selector

Line 4 TTL 1 In

Connect TTL 1 In signal to line 4 in Line Selector

Line 5 Opt In

Connect Opt In signal to line 4 in Line Selector

Line 7 Trigger packet In

Connect CXP trigger packet IN signal to line 7 in Line Selector

NAND 0 Out

Connect NAND 0 signal to line item selected in Line Selector

NAND 1 Out

Connect NAND 1 signal to line item selected in Line Selector

Line 10 TTL 2 In

Connect TTL 2 In signal to Line 10

Line 11 LVDS 1 In

Connect LVDS 1 In signal to Line 11

Note] As for LVAL, some line items cannot be connected. Refer to “5.4.6.2 GPIO matrix table”

EL-2800M-CXP / EL-2800C-CXP

- 16 -

5.4.7.1 GPIO block diagram

Basic block diagram is as follows.

Soft Trigger LVAL IN

FVAL IN Exposure Active

Frame Trigger Wait

Frame Active

GPIO 5 (Opt IN )

GPIO 7 (Trigegr Packet)

GPIO 11 (LVDS IN)

Pixel Clock

Cross Point

Switch

12 bit Counter

INV

INV N

NAND

INV

Non INV

Pulse Generator

20 bit counter x 4

CLR

Sel Bit (5,0) Sel Bit (7)

Sel Bit (7)

Pulse Generator 0 Pulse Generator 1

Pulse Generator 2 Pulse Generator 3

GPIO 1 (TTL OUT 1)

GPIO 8 (TL OUT 2) GPIO 9 (TTL OUT 3)

Sel Bit (7)

Gate 1 Gate 2

GPIO 10 (TTL IN2)

GPIO 4 (TTL IN 1)

GPIO 2 (Opt OUT)

Acquisition Trigger Wait

Acquisition Active

Note: For EL-2800-CXP, Camera Output Pixel Clock is 108 MHz.

Fig. 7 GPIO diagram

EL-2800M-CXP / EL-2800C-CXP

- 17 -

5.4.7.2 IN and OUT matrix table

The following table shows the input and output matrix.

Table - 9 GPIO IN and OUT matrix

Selector (Cross point switch output)

Source signal

(Cross point switch input)

LOW

              

HIGH

              

Line 4 - 12P TTL In

              

Line 5 - 12P Opt IN

              

Line 7 - Trigger packet

              

NAND 1 Out 1

              

NAND 2 Out 1

              

Pulse Generator 0

              

Pulse Generator 1

              

Pulse Generator 2

              

Pulse Generator 3

              

Software Trigger

              

FVAL

              

LVAL

              

Exposure Active

              

Acquisition Trigger Wait

              

Acquisition Active

              

Frame Trigger Wait

              

Frame Active

              

Line 10 - TTL 2 In

              

Line 11 - LVDS 1 In

              

Extension GPIO Connection

NAND 2 In 2 Pulse Generator 0

Pulse Generator 1

Pulse Generator 2

Pulse Generator 3

Pulse Generator

Clear Source

Line Source

Line 9 - TTL 3 Out

NAND 1 In 1

NAND 1 In 2

NAND 2 In 1

Trigger

Selector

Line Selector

Pulse Generator

Selector

Acquisition Start

Acquisition Stop

Frame Start

Line 1 - 12P TTL Out 1

Line 8 - TTL 2 Out Line 2 - 12P Opt OUT

EL-2800M-CXP / EL-2800C-CXP

- 18 -

5.5 Pulse Generator

The EL-2800-CXP has a frequency divider using the pixel clock as the basic clock and four pulse generators. In each Pulse Generator, various Clear settings are connected to GPIO. The following shows Pulse Generator default settings.

Table - 10 Pulse Generator default settings

5.5.1 Clock Pre-scaler

Clock pre-scaler (Divide Value) can set the dividing value of the frequency divider (12-bit

length) and the pixel clock is used for this. Four built-in pulse generators work by the same clock. In the EL-2800M/C-PMCL, the pixel clock is 108 MHz.

5.5.2 Pulse Generator Selector

This is where you select one of the 4 pulse generators in order to set or modify its parameters.

Table - 11 Pulse Generator setting

Display Name

Value

Clock Pre-scaler

Pulse Generator Selector

Pulse Generator

Length

Start Point

End Point

Repeat Count

Clear Source

Clear Inverter

Clear Activation

Clear Sync Mode

Pulse Generator 0

1 0 1 0 Off

True

Off

Async Mode

Pulse Generator 1

1 0 1 0 Off

True

Off

Async Mode

Pulse Generator 2

1 0 1 0 Off

True

Off

Async Mode

Pulse Generator 3

1 0 1 0 Off

True

Off

Async Mode

Note:] When Pulse Generator Repeat Count is set to “0”, the camera is operating in Free Running mode.

However, based on the above default settings (Length=1, Start Point=0 and End Point=1), Pulse Generator stops at High output. Therefore, if Start Point=0 and End Point=1 are configured, Length should be “2” as the minimum active width.

Trigger Selector item

Description

Pulse Generator 0

If Pulse Generator 0 is selected, Length、Start Point、End Point、Repeat Count、Clear Source、 Clear Inverter, Clear Activation and Clear Sync Mode of pulse generator 0 are displayed under the selector.

Pulse Generator 1

If Pulse Generator 1 is selected, Length、Start Point、End Point、Repeat Count、Clear Source、 Clear Inverter, Clear Activation and Clear Sync Mode of pulse generator 1 are displayed under the selector.

Pulse Generator 2

If Pulse Generator 2 is selected, Length、Start Point、End Point、Repeat Count、Clear Source、 Clear Inverter, Clear Activation and Clear Sync Mode of pulse generator 2 are displayed under the selector.

Pulse Generator 3

If Pulse Generator 3 is selected, Length、Start Point、End Point、Repeat Count、Clear Source、 Clear Inverter, Clear Activation and Clear Sync Mode of pulse generator 3 are displayed under the selector.

EL-2800M-CXP / EL-2800C-CXP

- 19 -

Fig.8 Pulse Generator Pulse construction

5.5.3 Pulse Generator Length

Set the counter up value (number of clocks, refer to Table 12) for the selected pulse generator. If Repeat Count value is “0”, and if Pulse Generator Clear signal is not input, the pulse

generator generates the pulse repeatedly until reaching this counter up value.

5.5.4 Pulse Generator Start Point

Set the active output start count value for the selected pulse generator. However, please note that a maximum 1 clock jitter for the clock which is divided in the clock pre-scaler can occur.

5.5.5 Pulse Generator End Point

Set the active output ending count value for the selected pulse generator.

5.5.6 Pulse Generator Repeat Count

Set the repeating number of the pulse for the selected pulse generator. After Trigger Clear signal is input, the pulse generator starts the count set in Repeat Count. Accordingly, an active pulse which has a start point and end point can be output repeatedly.

However, if Repeat Count is set to“0”, it works as Free Running counter.

5.5.7 Pulse Generator Clear Activation

Set the clear conditions of clear count pulse for the selected pulse generator.

5.5.8 Pulse Generator Clear Sync Mode

Set the count clear method for the selected pulse generator.

In Async Mode, if the clear signal is input during the length setting value, the counter will stop counting according to the clear signal input. In Sync Mode, if the clear signal is input during the length setting value, the counter will continue to count until the end of the length setting value and then clear the count.

Both modes clear the repeat count when the counter is cleared.

Pulse generator length

Pulse generator Start point

Pulse generator End point

Pulse generator repeat count = N (Pulse generator length x N)

Pulse generator Clear source IN

(Clear activation = Rising edge Clear SYNC mode = Async)

Pulse generator Output

Pulse generator length

000

EL-2800M-CXP / EL-2800C-CXP

- 20 -

Fig.9 Counter clear in Async mode

Fig.10 Counter clear in Sync mode

Clear

↓

Pulse

Generator Output

Pulse

Generator Clear Source In

(Example1) Clear Activation = Rising Edge, Clear Sync Mode = Async Mode,

Clear Inverter = False

(Example2) Clear Activation = Rising Edge, Clear Sync Mode = Sync Mode,

Clear Inverter = False

Pulse

Generator Output

Pulse

Generator Clear Source In

Pulse

Generator

Length

Clear

↓

Note: Repeat Count is also reset.

EL-2800M-CXP / EL-2800C-CXP

- 21 -

5.5.9 Pulse Generator Clear Source

The following sources can be selected as the pulse generator clear signal.

Table - 12 Pulse generator clear source

Pulse Generator Clear Source item

Description

Low

Connect Low level signal to Clear Source for the selected pulse generator.

Default setting

High

Connect High level signal to Clear Source for the selected pulse generator.

Frame Trigger Wait

Connect Frame Trigger Wait signal to Clear Source for the selected pulse generator.

Frame Active

Connect Frame Active signal to Clear Source for the selected pulse generator.

Exposure Active

Connect Exposure Active signal to Clear Source for the selected pulse generator.

Acquisition Trigger Wait

Connect Acquisition Trigger Wait signal to Clear Source for the selected pulse generator.

Acquisition Active

Connect Acquisition Active signal to Clear Source for the selected pulse generator.

FVAL

Connect FVAL signal to Clear Source for the selected pulse generator.

LVAL

Connect LVAL signal to Clear Source for the selected pulse generator.

PulseGenerator0 Out

Connect Pulse Generator 0 output to Clear Source for the selected pulse generator.

PulseGenerator1 Out

Connect Pulse Generator 1 output to Clear Source for the selected pulse generator.

PulseGenerator2 Out

Connect Pulse Generator 2 output to Clear Source for the selected pulse generator.

PulseGenerator3 Out

Connect Pulse Generator 3 output to Clear Source for the selected pulse generator.

TTL 1 In

Connect TTL 1 IN signal to Clear Source for the selected pulse generator.

Opt In

Connect Opt IN signal to Clear Source for the selected pulse generator.

Trigger packet

Connect Trigger packet signal to Clear Source for the selected pulse generator.

Nand0 Out

Connect NAND 0 output signal to Clear Source for the selected pulse generator.

Nand1 Out

Connect NAND 1 output signal to Clear Source for the selected pulse generator.

Line 10 TTL 2 In

Connect TTL 2 IN signal to LINE 10.

Line 11 LVDS 1 In

Connect LVDS 11 1 IN signal to Line 11

Note: The pulse generator output cannot be used as the clear input to the same pulse generator. Refer

to “5.4.6.2 GPIO matrix table”.

EL-2800M-CXP / EL-2800C-CXP

- 22 -

5.5.10 Pulse Generator Inverter

Clear Source Signal can have polarity inverted.

5.5.11 Pulse Generator Setting table

Table - 13 Pulse Generator setting parameters

Display Name

Value

Clock Pre-scaler

1 to 4096

Pulse Generator Clock (MHz)

[Pixel Clock:108MHz]÷[Clock Pre-scaler]

Pulse Generator Selector

- Pulse Generator 0

- Pulse Generator 1

- Pulse Generator 2

- Pulse Generator 3

- Pulse Generator Length

1 to 1048575

- Pulse Generator Length (ms)

（[Clock Source]÷[Clock Pre-scaler]）-1 x [Pulse Generator Length]

- Pulse Generator Frequency (Hz)

［ Pulse Generator Length (ms)］-1

- Pulse Generator Start Point

0 to 1048574

- Pulse Generator Start Point (ms)

（[Clock Source]÷[Clock Pre-scaler]）-1 x [Pulse Generator Start Point]

- Pulse Generator End Point

1 to 1048575

- Pulse Generator End Point (ms)

（[Clock Source]÷[Clock Pre-scaler]）-1 x [Pulse Generator End Point]

- Pulse Generator pulse-width (ms)

[ Pulse Generator End Point (ms)]－[ Pulse Generator Start Point (ms)]

- Pulse Generator Repeat Count

0 to 255

- Pulse Generator Clear Activation Clear Mode for the Pulse Generators

- Off

- High Level

- Low level

- Rising Edge

- Falling Edge

- Pulse Generator Clear Sync Mode

- Async mode

- Sync mode

- Pulse Generator Clear Source

- Low

- High

- Frame Trigger Wait

- Frame Active

- Exposure Active

- Acquisition Trigger Wait

- Acquisition Active

- FVAL

- LVAL

- PulseGenerator0

- PulseGenerator1

- PulseGenerator2

- PulseGenerator3

- TTL_In1

- Opt In

- Trigger packet

- Nand0 Out

- Nand1 Out

- Line 10 - TTL 2 In

- Line 11 - LVDS 1 In

- Pulse Generator Inverter (Polarity) Pulse Generator Clear Inverter

- False

- True

Note:

1. If Pulse Generator Repeat Count is set to “0”, the pulse generator works in Free Running mode.

EL-2800M-CXP / EL-2800C-CXP

- 23 -

6. Sensor layout, output format and timing

6.1 Sensor layout

CCD sensors used in the EL-2800M and EL-2800C have the following tap and pixel layout.

6.1.1 Monochrome sensor

Fig.11 Monochrome sensor layout

6.1.2 Bayer color sensor

Fig.12 Bayer color sensor layout

Tap 3 Tap 4

Tap 2Tap 1

1920 Pixels

1440 Pixels

Tap 3 Tap 4

Tap 2Tap 1

1920 Pixels

1440 Pixels

EL-2800M-CXP / EL-2800C-CXP

- 24 -

6.2. Sensor readout (Sensor Tap Geometry)

The following drawings show how the image is read out from the sensor.

This is different from how the image is read out from the camera.

6.2.1 4 taps readout (1X2–2YE)

Fig.13 Sensor readout 4-tap

6.2.2 2 Taps readout (2XE–1Y)

Fig.14 Sensor readout 2-Tap

6.2.3 1 tap readout (1X–1Y)

Fig.15 Sensor readout 1-tap

EL-2800M-CXP / EL-2800C-CXP

- 25 -

6.3. Camera output format and sensor readout system

The following table shows the camera output format based on GenIcam S.F.N.C version 1.5.1.

Table – 14 Camera output format

Sensor readout output (Sensor Tap geometry)

Camera output format (Tap Geometry)

Reference figure 1 tap readout (1X–1Y)

1X–1Y

6.2.1

2 taps readout (2XE–1Y)

1X–1Y

6.2.1

4 taps readout (1X2–2YE)

1X–2YE

6.2.2

6.3.1 1X-1Y

1X–1Y is defined in GenICam SFNC Ver. 1.5.1 for 1-tap camera output format as the following.

1920 Pixel 860 Pixel x 2Tap

1440 Pixel 720 Pixel x 2 Tap

X5120

X5120 Y3840

X4 Y1

Y1440

X3 Y1

Y1440

X2 Y1

Y1440

X5 Y1

Y1440

X6 Y1

Y1440

X7 Y1

Y1440

X8 Y1

Y1440

X1913

X1913 Y1440

X1914

X1914 Y1440

19115

X1915 Y1440

X1916

X1916 Y1440

X1917

X1917 Y1440

X1918

X1918 Y1440

X1919

X1919 Y1440

X1920

X1920 Y1439

X1920 Y1440

X1 Y1

X1 Y2

Y1439

X1 1440

Tap 1

Step Y = 1

Step X = 1

Fig.16 1X–1Y Camera output format

6.3.2 1X–2YE

1X2–2YE is 2-tap camera output format based on GenICam SFNC Ver. 1.5.1.

1920 Pixel

1440 Pixel 720 Pixel x 2 Tap

X5120

X5120 Y3840

X4 Y1

Y1440

X3 Y1

Y1440

X2 Y1

Y1440

X5 Y1

Y1440

X6 Y1

Y1440

X7 Y1

Y1440

X8 Y1

Y1440

X1913

X1913 Y1440

X1914

X1914 Y1440

19115

X1915 Y1440

X1916

X1916 Y1440

X1917

X1917 Y1440

X1918

X1918 Y1440

X1919

X1919 Y1440

X1920

X1920 Y1220

X1920 Y1221

X1920 Y1439

X1920 Y1440

X1 Y1

X1 Y2

Y1220

Y1221

Y1439

1440

Tap 1

Step Y = 1

Step X = 1

Step Y = 1

Tap 2

Fig.17 1X–2YE camera output format

EL-2800M-CXP / EL-2800C-CXP

- 26 -

6.4 The relationship between tap geometry and frame rate

In the EL-2800-CXP, the frame rate is related to Pixel Format, Sensor Tap Geometry (sensor readout system), Tap Geometry (camera output format), Bit Rate and Link Configuration. The following table 15 shows these relationships.

Table – 15 Tap geometry and frame rate relationship map

Pixel Format

Sensor Tap Geometry

Tap Geometry (Camera Out)

Frame Rate (fps)

Bit Rate (Bit)

Data rate (Mbps)

Link Configuration

3.125Gbps

6.25Gbps

Mono

Bayer

1X2–2YE

(Quad)

1X–2YE

54.7 8

1207.7

1509.6

1811.5

2XE–1Y

(Double)

1X–1Y

27.4 8

606.0

757.6

909.1

1X–1Y

(Single)

15.8 8

349.5

436.8

524.2

RGB

1X–2YE

54.7

3623.0

2XE–1Y

1X–1Y

27.4

1818.1

1X–1Y

15.8

1048.4

Note: 1) Mono, Bayer or RGB is selected in the pixel format. The setting parameters for Mono or

Bayer are the same.

2) The camera output format to be used is selected in Tap Geometry.

3) If 1X–2YE is selected in Tap Geometry, Sensor Tap Geometry is automatically set to 1X2– 2YE. If IX–1Y is selected, the customer should choose 2XE–1Y or 1X–1Y in Sensor Tap Geometry according the application.

4) Link configuration should be selected 6.25 Gbps if 1X-2YE is selected in RGB pixel format. In other cases, the customer can choose either 3.125 Gbps or 6.25 Gbps according to the application.

6.5 Output timing

6.5.1 Horizontal timing

6.5.1.1 Output format 1X–2YE (Pixel clock: 108 MHz)

Vertical binning OFF

OB OB OB

204

40 1010 401920824Clk = Exposure Start Line

2884Clk = Exposure Start Line

632Clk = Other line

2654Clk = Other Line

LVAL

DVAL

Video (Tap 1,Tap 2 /Tap3,Tap4)

Exposure Active (Exposure Start Line)

Fig.18 1X–2YE Horizontal Timing (Vertical timing OFF)

EL-2800M-CXP / EL-2800C-CXP

- 27 -

6.5.1.2 Output format 1X–2YE (Pixel clock: 108 MHz)

Vertical binning ON

OB OB OB

204

40 1010 4019201330Clk = Exposure Start Line

3350Clk = Exposure Start Line

1144Clk = Other line

3164Clk = Other Line

LVAL

DVAL

Video (Tap 1, Tap2 /Tap3, Tap4))

Exposure Active (Exposure Start Line)

Fig. 19 1X-2YE Horizontal timing (Vertical binning ON)

6.5.2.1 Output format 1X–1Y (Camera Output Pixel clock: 108 MHz)

Vertical binning OFF

OB OB OB

102

40 1010 401920370Clk = Exposure Start Line

2390Clk = Exposure Start Line

276Clk = Other line

2296Clk = Other Line

LVAL

DVAL

Video (Tap 1,Tap 2 /Tap3,Tap4)

Exposure Active (Exposure Start Line)

Fig.20 1X-1Y Horizontal Timing (Vertical timing OFF)

6.5.2.2 Output format 1X–1Y (Camera Output Pixel clock: 108 MHz)

Vertical binning ON

OB OB OB

102

40 1010 401920625Clk = Exposure Start Line

2645Clk = Exposure Start Line

532Clk = Other line

2552Clk = Other Line

LVAL

DVAL

Video (Tap 1, Tap2, Tap3, Tap4))

Exposure Active (Exposure Start Line)

Fig. 21 1X-1Y Horizontal timing (Vertical binning ON)

EL-2800M-CXP / EL-2800C-CXP

- 28 -

6.5.2 Vertical timing

6.5.2.1 Output format 1X–2YE Vertical binning OFF

6L(Min)

720L

1,2,3, 11,12,13 728,729,730

1460,1459 1449,1448,1447 733,732,731

18L

8L 10L

FVAL

DVAL

Video Tap1

Video Tap2

Fig.22 1X-2YE Vertical Timing (Vertical timing OFF)

6.5.2.2 Output format 1X–2YE Vertical binning ON

6L(Min)

360L

1+2,3+4, 11+12,13+14 727+728,729+730

1460+1459 1449+1448,1447+1446 734+733,732+731

4L 5L

FVAL

DVAL

Video Tap1

Video Tap2

Fig. 23 1X–2YE Vertical timing (Vertical binning ON)

6.5.2.3 Output format 1X–1Y Vertical Binning OFF

9L(Min)

1440L

1,2,3, 11,12,13 1448,1449,1450

18L

8L 10L

FVAL

DVAL

Video Tap1 OB

8L10L

1460

18L

Fig.24 1X–1Y Vertical timing (Vertical binning OFF)

6.5.2.4 Output format 1X–1Y Vertical Binning ON

9L(Min)

720L

1+2,3+4, 11+12,13+14 1447+1448,1449+1450

4L 5L

FVAL

DVAL

Video Tap1 OB

4L5L

+1460

Fig.25 1X–1Y Vertical timing (Vertical binning ON)

EL-2800M-CXP / EL-2800C-CXP

- 29 -

7. Operating modes

The following controls are related to capturing the image.

7.1. Acquisition control (change the frame rate)

7.1.1 Acqusition mode

In the EL-2800M-CXP and EL-2800C-CXP, the following three acquisition modes are available.

Single frame : One frame can be output by AcqusitionStart command Multi frames : The number of frames which is specified in Acquistion Frame Count, are output by AcquisitionStart command Continuous : Images are continuously output by AcquisitionStart command until AcqusitionStop command is input.

7.1.1.1 Single Frame

In single frame mode, executing the AcquisitionStart command causes one frame to be captured. After one frame is captured, this operation is automatically stopped. In order to restart the capture, it is necessary to input the AcquisitionStart command again. BlockID is not reset until AcquisitionStop is input and is incremented when the AcquisitionStart command is called. In the case of PIV operation, single frame mode is not available.

◆ Normal single frame operation

1) AcquisitionStart command is input

2) AcquisitionActive becomes “TRUE” (accepts capture)

3) 1 frame is output

4) AcquisitionActive becomes “FALSE” (stop capturing)

◆ Forcing acquisition to stop

While AcquisitionActive is “TRUE”, if AcquisitionStop or AcquisitionAbort is initiated, AcquisitionActive becomes “FALSE” (stop capturing).

However, if AcqusitionStop command is initiated during image output period, AcqusitionActive becomes “FALSE” (stop capturing) after image output is completed.

EL-2800M-CXP / EL-2800C-CXP

- 30 -

The following diagrams show the Single Frame Timing relationships.

Conditions: Acquisition mode: Single Trigger selector: Acquisition Start Trigger mode: OFF

Fig.26 Single frame timing (Acquisition Start OFF)

Note: Signal in ( ) shows the internal operation inside the camera.

FVAL(Sensor Read out)

Acquisition Trigger Wait

Frame Trigger Wait

Acquisition Active

Exposure Active

Frame Active

(Sensor Exposure)

(Stream Active)

Acquisition Status Output Signals

Acquisition Trigger Wait =

Frame Trigger Wait = L

Acquisition Active

Frame Active

Exposure Active

FALSE

TRUE

FALSE

TRUE

FALSE

TRUE

FALSE

Acquisition Start

command

EL-2800M-CXP / EL-2800C-CXP

- 31 -

Conditions: Acquisition mode: Single Trigger selector: Acquisition Start Trigger mode: ON

Fig. 27 Single Frame Timing (Acquisition Start ON)

FVAL(Sensor Read

Acquisition Trigger

Frame Trigger Wait

Acquisition

Active

Exposure Active

Frame Active

(Sensor

(Stream Active)

Acquisition

Status

Output Signals

Frame Trigger Wait =

Acquisition

Active

Frame Active

Exposure Active

FALSE

Acquisition Start

command

Trigger

Acquisition Trigger

Wait

EL-2800M-CXP / EL-2800C-CXP

- 32 -

Conditions: Acquisition mode: Single Trigger selector: Frame Start Trigger mode: ON

Fig. 28 Single Frame Timing (Frame Start ON)

FVAL(Sensor Read

out)

Acquisition Trigger

Wait

Frame Trigger Wait

Acquisition

Active

Exposure Active

Frame Active

Sensor

Exposure

Stream Active

Acquisition Status

Output Signals

Acquisition Trigger

Wait

= L

Acquisition

Active

Frame Active

Exposure Active

FALSE

TRUE

FALSE

TRUE

FALSE

TRUE

FALSE

Acquisition Start

command

Trigger

Frame Trigger Wait

TRUE

FALSE

EL-2800M-CXP / EL-2800C-CXP

- 33 -

7.1.1.2 MultiFrame

In this mode, the AcquisitionStart command captures the number of frames which are specified by AcquisitionFrameCount.

◆ Normal multi-frame operation

1) AcquisitionStart command is input

2) AcquisitionTriggerWait becomes effective

3) AcquisitionActive becomes “TRUE”(accepts capture)

4) Output N frames as specified by AcquisitionFrameCount

5) AcquisitionActive becomes “FALSE”. Then the output stops. (See the following diagram)

◆ Forcing acquisition to stop

While AcquisitionActive is “TRUE”, if AcquisitionStop or AcquisitionAbort is initiated, AcquisitionActive becomes “FALSE” (stop capturing). Once the operation is set to “FALSE”, the internal FrameCount is reset.

However, if AcqusitionStop command is initiated during image output period, AcqusitionActive becomes “FALSE” (stop capturing) after image output is completed. Once, AcqusitionActive becomes “FALSE”, the internal count is reset.

 Acqusition Frame Count (16-bit): Can be set in the range of 1 to 65535

In PIV mode, Acquisition Frame Count (16-bit) can be set in the range of 2 to 65535. The setting for PIV mode is 2 steps.

EL-2800M-CXP / EL-2800C-CXP

- 34 -

The following diagrams show the Multi Frame Timing relationships.

Conditions: Acquisition mode: Multi Trigger selector: Acquisition Start Acquisition Frame Count: 2 Trigger mode: OFF

Fig.29 Multi Frame Timing (Acquisition Start OFF)

FVAL(Sensor Read

Acquisition Trigger

Frame Trigger Wait

Acquisition

Exposure

Frame

(Sensor

(Stream

Acquisition

Output Signals

Acquisition Trigger

Frame Trigger Wait =

Acquisition

Frame

Exposure

FALS

TRUE

FALSE

FALS

TRUE

FALS

TRUE

FALS

FALSE

Acquisition Start

command

FALSE

TRUE

FALSE

EL-2800M-CXP / EL-2800C-CXP

- 35 -

Conditions: Acquisition mode: Multi Trigger selector: Acquisition Start Acquisition Frame Count: 2 Trigger mode: ON

Fig.30 Multi Frame Timing (Acquisition Start ON)

FVAL(Sensor Read

out)

Acquisition Trigger

Wait

Frame Trigger

Wait

Acquisition

Active

Exposure

Active

Frame

Active

(Sensor

Exposure)

(Stream

Active)

Acquisition Status

Output Signals

Frame Trigger

Wait = L

Acquisition

Active

Frame

Active

Exposure

Active

FALSE

TRUE

FALSE

TRUE

FAL

FALSE

Acquisition Start

command

Trigger

Acquisition

Trigger Wait

TRUE

FALSE

TRUE

FALSE

TRUE

FALSE

EL-2800M-CXP / EL-2800C-CXP

- 36 -

Conditions: Acquisition mode: Multi Trigger selector: Frame Start Acquisition Frame Count: 2 Trigger mode: ON

Fig.31 Multi Frame Timing (Frame Start ON)

FVAL(Sensor

Read out)

Acquisition Trigger

Wait

Frame Trigger

Wait

Acquisition

Active

Exposure

Active

Frame

Active

(Sensor

Exposure)

(Stream

Active)

Acquisition Status

Output Signals

Acuisition Trigger

Wait

= L

Acquisition

Active

Frame

Active

Exposure

Active

FALSE

TRUE

FALSE

TRUE

FAL

FALSE

Acquisition

Start command

Trigger

Frame Trigger

Wait

TRUE

FALSE

TRUE

FALSE

TRUE

FALSE

EL-2800M-CXP / EL-2800C-CXP

- 37 -

7.1.1.3 Continuous mode

In this mode, when the AcquisitionStart command is set, the image is continuously output at the current frame rate. This is the default setting for the EL-2800M-CXP and EL-2800C-CXP.

1) AcquisitionStart command is input

2) AcquisitionTriggerWait becomes effective

3) AcquisitionActive becomes “TRUE”

4) Images begin outputting continuously

5) AcquisitionStop command is sent

6) AcquisitionActive becomes “FALSE”. At this moment, the output stops.

However, if AcqusitionStop command is initiated during image output period, AcqusitionActive becomes “FALSE” (stop capturing) after image output is completed.

The following diagrams show the Continuous Timing relationships.

Conditions: Acquisition mode: Continuous Trigger selector: Acquisition Start Trigger mode: OFF

Fig.32 Continuous Timing (Acquisition Start OFF)

FVAL(Sensor

Acquisition

Frame Trigger

Acquisition

Active

Exposure

Frame

(Sensor

Exposure)

(Stream

Acquisition

Status

Output

Acquisition

Trigger Wait

= L

Frame Trigger

Acquisition

Active

Frame

Exposure

FALS

TRUE

FAL

FALSE

Acquisition

Start command

Acquisition Stop

command

EL-2800M-CXP / EL-2800C-CXP

- 38 -

Conditions: Acquisition mode: Continuous Trigger selector: Acquisition Start Trigger mode: ON

Fig. 33 Continuous Timing (Acquisition Start ON)

FVAL(Sensor Read

Acquisition Trigger

Frame Trigger

Acquisition

Exposure

Frame

(Sensor

(Stream

Acquisition

Output

Frame Trigger

Wait

= L

Acquisition

Frame

Exposure

FALSE

TRUE

FALSE

TRUE

FAL

FALSE

Acquisition Start

command

Trigger

Acquisition

Trigger Wait

TRUE

FALSE

TRUE

FALSE

TRUE

FALSE

Acquisition Stop

command

EL-2800M-CXP / EL-2800C-CXP

- 39 -

Conditions: Acquisition mode: Continuous Trigger selector: Frame Start Trigger mode: ON

Fig.34 Continuous Timing (Frame Start ON)

7.1.2 Acquisition frame count

If Acquisition mode is set at Multi, the capturing frame number can be set. The setting range is 1 frame to 65535 frames but in PIV mode, it is 2 frames to 65535 frames with

2 frames step.

FVAL(Sensor

Read out)

Acquisition Trigger

Wait

Frame Trigger

Acquisition

Exposure

Active

Frame

(Sensor

(Stream

Active)

Acquisition

Output

Acuisition Trigger

Wait

= L

Acquisition

Frame

Exposure

FALSE

TRUE

FALSE

TRUE

FAL

FALSE

Acquisition

Start command

Trigger

Frame Trigger

TRUE

FALSE

TRUE

FALSE

TRUE

FALSE

Acquisition Stop

command

TRUE

FALSE

TRUE

EL-2800M-CXP / EL-2800C-CXP

- 40 -

7.1.3 Acquisition frame rate

With Trigger OFF, which is self-running operation, it is possible to set a longer acquisition period than the time required to read out all pixels in the area set by the ROI command. The setting is done in the acquisition control. In this case, the setting period is the number of lines in 1 frame.

The setting range is:

Shortest

Longest

Time required to read out all

pixels in the area set by AOI

command

8 seconds

Note:

1. If the trigger is set to ON, this function is not available.

2. The value for setting is microseconds.

3. If the setting value is less than the minimum period, this setting is ignored and camera operates at the minimum period.

Self-running (Trigger OFF) works under the following conditions. Exposure Mode : OFF Exposure Mode : Timed and Frame Start OFF Exposure Mode : Trigger Width and Frame Start OFF.

7.1.4 Calculation of frame rate

In the following formula, the result of underline should be rounded up.

7.1.4.1 V Binning Off

1X-2YE(fps) = 1/〔［ Height/2 + {((720-(Height/2)-1)/4} + 25 ］x 24.574us 〕

1X-1Y(fps) = 1/【〔 Height + {(OffsetY-1)/4} + [{1440-(OffestY + Height)}/9] + 46 〕

x 24.574us】

1X-1Y(fps) = 1/【〔 Height + {(OffsetY-1)/7} + [{1440-(OffestY + Height)}/15] + 46 〕

x 42.519us】

7.1.4.2 V Binning On

1X-2YE(fps) = 1/〔［ (Height/4) + {((360-(Height/4)-1)/2} + 16 ］x 29.296us 〕

1X-1Y(fps) = 1/【〔 (Height/2)+ {(OffsetY-1)/2} + [{720-(OffsetY + (Height/2))}/4.5] +

28 〕x 29.296us】

1X-1Y(fps) = 1/【〔 (Height/2)+ {(OffsetY-1)/4} + [{720-(OffsetY + (Height/2))}/8] +

33 〕x 47.259us】

EL-2800M-CXP / EL-2800C-CXP

- 41 -

7.2. Exposure setting

7.2.1 Exposure Mode

Exposure Mode sets which exposure mode is to be used. If the trigger is used, Frame Start must also be used. When Exposure Mode is set to Timed or Trigger Width, the combination of Exposure Mode and Frame Start can set various operations.

The following table shows the operation depending on the combination.

Table - 15 Operation matrix

Exposure Mode Trigger Control

Trigger OFF

Trigger ON

Frame Start

Behavior

OFF

OFF or ON

Self running No exposure control

Timed (EPS) Timed(RCT) Timed (PIV)

OFF

Self running Exposure control available

ON - Operate in EPS, RCT

or PIV

Trigger Width

OFF

Self running No exposure control

ON - Exposure control by trigger width

Frame Start trigger: Sets whether the start of the frame is controlled externally or not.

Trigger Mode ON: If Acquisition Active is active and Exposure Mode is set to Timed or

Trigger Width, the exposure will be started by using the signal set in Frame Trigger as the trigger.

Trigger Mode OFF: If Acquisition Active is active, the camera operates in self-running mode.

Exposure Mode can be selected from the following. OFF : No shutter control Timed : The exposure will be done in the preset period. The setting can be done

in μsec units. Frame Start OFF : Self-running mode and exposure control is available. Frame Start ON : EPS operation mode

In this status, if JAI_RCT or JAI_PIV is selected in Trigger option, the camera will operate in RCT or PIV mode.

Trigger Width : The exposure will be controlled by the width of the trigger pulse. Frame Start OFF : Not active. No exposure control Frame Start ON : PWC operation mode

7.2.2 Exposure Time

This command is effective only when Exposure Mode is set to Timed. It is for setting exposure time. The setting step for exposure time is 1 μsec per step.

Minimum: 10 μsec Maximum: 8 seconds

EL-2800M-CXP / EL-2800C-CXP

- 42 -

7.2.3 Exposure Auto

This is a function to control the exposure automatically. It is effective only for Timed. ALC Reference controls the brightness. There are three modes: OFF, Once, and Continuous.

OFF: No exposure control Once: Exposure adjusts when the function is set, then remains at that setting Continuous: Exposure continues to be adjusted automatically

In this mode, the following settings are available.

ALC Speed: Rate of adjustment can be set Exposure Auto Max: The maximum value for the exposure range can be set Exposure Auto Min: The minimum value for the exposure range can be set ALC Reference: The reference level of the exposure control can be set ALC Channel area: The measurement area of the exposure control can be set

7.3. Trigger Mode

7.3.1 Trigger Source

The following signals can be used as the trigger source signal.

OFF Line 5 (Input to Opt IN1 and output from Digital IO Line 7 (Input to TTL IN1 and output from Digital IO) User Out 0

7.3.2 Trigger activation

This command can select how to activate the trigger.

Rising edge : At the rising edge of the pulse, the trigger is activated. Falling edge : At the falling edge of the pulse, the trigger is activated.

Level High : During the high level of trigger, the accumulation is activated

Level Low : During the low level of trigger, the accumulation is activated

If Exposure Mode is set to Trigger Width, Level High or Level Low must be used.

Table - 16 Trigger activation

RisingEdge

FallingEdge

LevelHigh

LevelLow

Timed

○ ○ ×

TriggerWidth

× × ○

○

Trigger Option PIV

○ ○ ×

Trigger Option RCT

○ ○ ×

7.3.3 Trigger Overlap

This function defines whether or not a trigger pulse can be accepted while data is being read out.

OFF： The trigger pulse is not accepted during CCD readout.

Read Out： The trigger pulse can be accepted during CCD readout

EL-2800M-CXP / EL-2800C-CXP

- 43 -

7.3.4 Trigger Delay

This function delays trigger signal against trigger input signal. The step is 1µs and the range for setting is 16bit, from 0 to 65,535µs.

7.4. Normal continuous operation (Timed Exposure Mode/Trigger Mode OFF)

This is used for applications which do not require triggering. In this mode, the video signal for the auto-iris lens is available. For the video timing, refer to chapter 6.3. The frame rate of full pixels readout is 54.7 fps for 1X2–2YE output format.

Primary settings to use this mode

Trigger control Trigger Mode: OFF

Table - 17 Minimum interval of the image(1X–2YE, 8-bit)

1X- 2YE output

FULL

2/3 AOI

1/2 AOI

1/4 AOI

1/8 AOI

1/2V Binning (Note1)

Minimum frame line

744

564

474

339

272

375

Note 1) Only for EL-2800M-CXP Note 2) Readout mode in trigger overlap is not available.

7.5. Timed mode (EPS)

This mode allows a single image frame to be captured with a preset exposure time by using the external trigger. Additional settings determine if the trigger pulse can be accepted during the exposure period. The frame rate of full pixels readout is 54.7 fps for 1X2–2YE output format.

Primary settings to use this mode

Exposure mode: Timed Trigger mode: ON Frame Start : ON

Table - 18 Minimum interval of the trigger pulse(1X–2YE, 8-bit)

1X–2YE output

FULL

2/3 AOI

1/2 AOI

1/4 AOI

1/8 AOI

1/2V

Binning (Note1)

Minimum frame line

745

565

475

340

273

376

Note 1) EL-2800M only Note 2) This table shows in case of Trigger option being set to Readout. If Trigger option is set to OFF, this period is longer than the figures in this table.

EL-2800M-CXP / EL-2800C-CXP

- 44 -

7.5.1 If the overlap setting is “OFF”

Trigger

CCD Exposure

FVAL

Exposure Active

Exposure Period

Fig.35 Overlap OFF

7.5.2 If the overlap setting is “Readout”

Trigger

CCD Exposure

FVAL

Exposure Active

Exposure Period

Fig.36 Readout

8.1us (Typical)

2L (Min)

4.5 ～ 5.5L

2L (min)

EL-2800M-CXP / EL-2800C-CXP

- 45 -

7.6. Trigger width mode

In this mode, the exposure time is equal to the trigger pulse width. Accordingly, longer exposure times are supported. Additional settings determine if the trigger pulse can be accepted during the exposure period. The frame rate of full pixels readout is 54.7 fps for 1X2–2YE output format.

Primary settings to use this mode

Exposure mode: Trigger width Trigger mode: ON Frame Start : ON

Table – 19 Minimum interval of the trigger pulse (1X–2YE, 8-bit)

1X–2YE output

FULL

2/3 AOI

1/2 AOI

1/4 AOI

1/8 AOI

1/2V

Binning (Note1)

Minimum frame line

745

565

475

340

273

376

Note 1) EL-2800M only Note 2) This table shows in case of Trigger option being set to Readout. If Trigger option is set to OFF, this period is longer than the figures in this table.

7.6.1 If the overlap setting is “OFF”

Trigger

CCD Exposure

FVAL

Exposure Active

Exposure Period

Fig.37 Overlap = OFF

1L (Min)

8.1 us (Typical)

4.5L ～5.5L

8 µs

EL-2800M-CXP / EL-2800C-CXP

- 46 -

7.6.2 If the overlap setting is “Readout”

Trigger

CCD Exposure

FVAL

Exposure Active

Exposure Period

Fig.38 Readout

1L(Min)

1L + 8 µs

EL-2800M-CXP / EL-2800C-CXP

- 47 -

7.7. RCT mode

Until the trigger is input, the camera operates continuously and the video signal for the auto-iris lens is output. At this moment, the video signal, FVAL and LVAL are output but DVAL is not output. When the trigger is input, the fast dump is activated to read out the electronic charge very quickly, after which the accumulation and the readout are performed. When the accumulated signal against the trigger is read out, FVAL, LVAL and DVAL are output too.

Primary settings to use this mode

Exposure mode: Timed(RCT) Trigger mode: ON Frame Start : ON Trigger option : RCT

In this mode, the setting of Trigger Overlap is invalid.

Table – 20 Minimum interval of the trigger pulse (1X–2YE, 8-bit, Exposure time = 10 us)

1X–2YE output

FULL

2/3 AOI

1/2 AOI

1/4 AOI

1/8 AOI

1/2V

Binning (Note1)

Minimum frame line

Timed Exposure Mode/Trigger Mode OFF + Exposure Time + 195

Note 1) Only for EL-2800M-CXP Note 2) Readout mode in trigger overlap is not available.

Trigger

CCD Exposure

Exposure Active

FVAL

DVAL

Fig.39 RCT mode timing

Output format

1X-2YE

194L

4.5L ～5.5L

1X–1Y

384L

4.5L ～5.5L

EL-2800M-CXP / EL-2800C-CXP

- 48 -

7.8. PIV (Particle Image Velocimetry)

The Particle Image Velocimetry mode can be used in applications where 2 images need to be taken with a very short time interval. It can only be used with strobe flash as illumination. The first accumulation time is 10 sec to 2 sec. Then, the second exposure will be taken. The accumulation is LVAL asynchronous. The first strobe is activated during the first exposure duration and the second strobe is pulsed while the first frame is being read out. In this way, two strobe flashes generate two video outputs.

Primary Settings

Exposure mode: Timed(PIV) Trigger mode: ON Frame Start : ON Trigger option : PIV

In this mode, the setting of Trigger Overlap is invalid.

Table – 21 Minimum interval of the trigger pulse (1X–2YE, 8-bit)

1X – 2YE output

FULL

2/3 AOI

1/2 AOI

1/4 AOI

1/8 AOI

1/2V Binning (Note1)

Minimum frame line

(Timed Trigger Mode/Trigger Mode OFF x 2) +

Exposure Time + 1

Note 1) Only for EL-2800M-CXP Note 2) Readout mode in trigger overlap is not available.

Frame Start Trigger IN

Exposure Timing

Exposure Active

FVAL

DVAL

td te1

ift

te2 tframe 1

tframe1

tframe2

tframe 2

FVAL non active

Fig.40 PIV mode

Time name

Description

Time

Exposure beginning delay

8.1us

te1

First exposure time period

10 μs ～ 2 s

te2

Second exposure time

1 frame

itf

Inter framing time

3.4 us

FVAL non active

4LVAL

tframe1

First Frame read out

1 frame

tframe2

Second Frame read out

1 frame

EL-2800M-CXP / EL-2800C-CXP

- 49 -

7.9. Sequential Timed Exposure Mode

7.9.1 Video send mode

The sequential trigger mode has the following modes and it is selected in the video send mode.

Video send mode:

How to select the index

Trigger Sequence:

Select the index by the frame start trigger signal. (The setting index can be determined by the next index setting.)

Command Sequence:

Select the index number to assign directly by the command sequence index command.

Fig. 41 Behavior of Sequence trigger

Table - 22 Minimum trigger interval (1X–2YE, 8-bit, Exposure time = 10 µs)

1X – 2YEoutput

FULL

2/3 ROI

1/2 ROI

1/4 ROI

1/8 ROI

1/2V Binning

Minimum frame line

Timed Exposure Mode/Trigger Mode OFF + Exposure Time + 1

Note 1. Overlap mode=Readout is not available Note 2. The minimum interval calculation assumes that the exposure times for all

sequences are equal. If there are differences, it is necessary to add the

differences to the calculation. If the exposure times are different, it is recommended to organize the exposure times from the shortest exposure to the longest one.

Note 3. The sequence must start with Index 0. After Index 0 is executed, the

Sequence proceeds to the next setting index.

Index 0 Index 1 Index 2 Index 3 Index 4

Frame Start

Trigger In

Sequence

behavior

Frame count

Next Index =

Index 1

Frame count

Next Index =

Index 2

Frame count

Next Index =

Index 3

Frame count

Next Index =

Index 4

Frame count

Next Index =

Index 5

EL-2800M-CXP / EL-2800C-CXP

- 50 -

Table – 23 Sequence Index table (Default)

7.9.2 Sequence ROI setting parameters

Setting parameters for Sequence ROI is as follows.

(1) Sequence ROI Index Selector

In Sequence ROI Index Selector, Index 0 to 9 can be selected. Sequence ROI – Width, Height, Offset X, Offset Y, Gain Selector - Gain/Red/Blue, Exposure Time, Black Level, Binning Horizontal, Binning Vertical, LUT Enable, Frame Count, Next Index for the selected index are displayed.

(2) Sequence ROI Width

Width is fixed at 1920. No setting is necessary for this parameter.

(3) Sequence ROI Height

Set the height of sequence ROI. The setting range is 8 to 1440 lines. Rules for setting area and step number are the same as the normal ROI mode set by [Video Send Mode] = “Normal”.

(4) Sequence ROI Offset X

This parameter is fixed at 0.

(5) Sequence ROI Offset Y

Set Offset Y of sequence ROI. Sequence ROI Binning Vertical = 1 (Off):

Setting range is 0 to (1432 - [Sequence ROI Height])

Sequence ROI Binning Vertical = 2 (On):

Setting range is 0 to (712 - [Sequence ROI Height]) The limitations of step number and other factors are the same as the normal ROI mode set by [Video Send Mode] = “Normal”. In 1X2-2YE and 1X-2YE, as only Height is set at the center of upper and lower taps, OFFSET Y setting is not enabled.

(6) Sequence ROI Gain Selector

In Sequence ROI Gain Selector, the gain settings for each index are available.

EL-2800C-PMCL: Gain(ALL), Red and Blue can be set.

EL-2800M-PMCL: Only Gain is displayed and can be set.

(7) Sequence ROI Black Level

Black Level setting is available for each index.

Sequence ROI Index

Sequence ROI

Width

Height Offset

Gain Selector

Exposure Time

Black Level

Binning

LUT Enable

Frame Count

Next Index

Gain (ALL)

Red

Blue

Horizontal

Vertical

- Index 0
