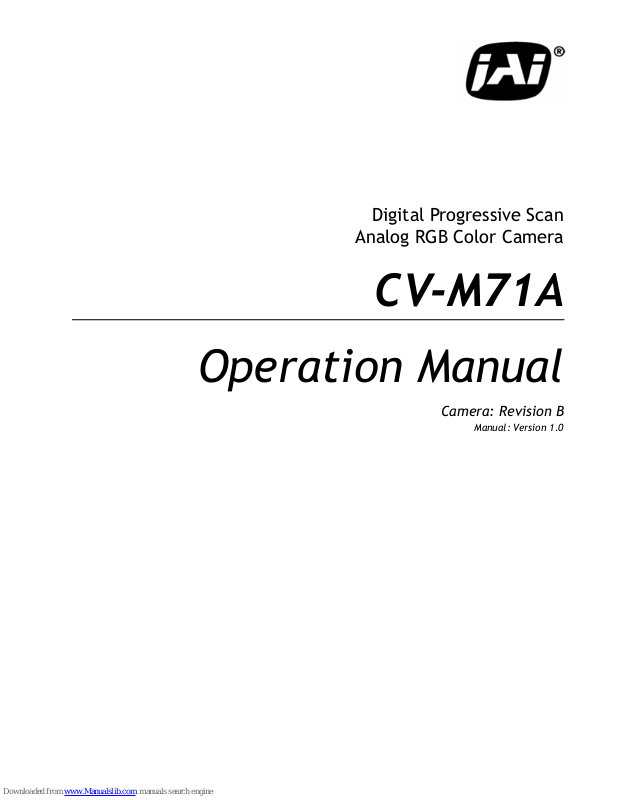

Digital Progressive Scan

Analog RGB Color Camera

CV-M71A

Operation Manual

Camera: Revision B

Manual: Version 1.0

Page 2

CV-M71A

Table of Contents

1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2 Standard Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

3 Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

4 Locations and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

4.1 Mounting Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

5 Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

5.1 12-pin Multi-connector (DC-IN/Trigger-IN/HD and VD IN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

5.2 9-pin D-sub connector ( Analog RGB video ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

5.3 6-pin Hirose Connector ( RS232C / Trigger IN ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

5.4 Input and Output Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

5.4.1 Iris video output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

6 Functions and Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6.1 Basic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

6.1.1 Sensor Gate Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6.1.2 CV-M71A Test pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6.2 Sensor Layout and timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6.2.1 CCD Sensor Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6.2.2 Horizontal timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

6.2.3 Vertical timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

6.2.4 Partial Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

6.3 Input/Output of Timing Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6.3.1 Input of External HD/VD signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6.3.2 Input of external trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.3.3 Output of XEEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.3.4 Output of HD/VD signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.4 Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6.4.1 HD synchronous accumulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6.4.2 HD asynchronous accumulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6.4.3 Continuous operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.4.4 Edge Pre-select Trigger Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6.4.5 Pulse Width Control Trigger Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6.5 Other Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

6.6 Mode and function matrix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7 Configuring the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

7.1 Switch setting by internal SW301, SW302 and SW303. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

7.2 RS-232C control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

7.3 CV-M71A command list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

8 Camera Control Tool for CV-M71A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

8.1 Control Tool Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

8.2 Camera Control Tool Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8.3 Using the Camera Control Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

9 External Appearance and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

10 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

10.1 Spectral sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

11 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

11.1 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

11.2 Typical Sensor Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

11.3 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

12 Users Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

-ii-

Page 3

CV-M71A

1 General

The CV-M71A is an analog output RGB color camera, based on a progressive scan primary mosaic Bayer CCD sensor. It provides 60 full frames/second through a 9-pin D-sub connector. There is also a Camera Link version of this camera, called the CV-M71CL.

The CV-M71A color progressive scan camera is designed for a wide range of automated imaging applications, such as factory automation, and traffic solutions. The 1/2-inch CCD sensor with square pixels offers a superb image quality. The high-speed shutter function and asynchronous random trigger mode allows the camera to capture high quality images of fast moving objects.

The latest version of this manual can be downloaded from: www.jai.com. The latest version of the Camera Control Tool for CV-M71A can be downloaded from: www.jai.com. For camera revision history, please contact your local JAI distributor.

2 Standard Composition

The standard camera composition consists of the camera main body and C-mount protection cap.

The camera is available in the following version: CV-M71A 1/2-inch progressive scan Analog RGB color camera.

3Main Features

• Compact 1/2-inch digital progressive scan analog RGB color camera

• RGB primary color mosaic CCD (Bayer) with internal RGB interpolation

•

782 (h) x 582 (v) effective 8.3 µm square pixels

• 60 fps with full resolution of 767 (h) x 576 (v)

• Analog RGB video output through D-sub 9 pin connector

• 8 bit internal processing and RGB interpolation

• High speed shutter from 1/60 to 1/300,000 second

• 1/2, 1/4 and 1/8-inch partial scanning are available for higher frame rate

• Edge pre-select, pulse width and sensor gate modes

• Programmable exposure, auto shutter and smearless readout

•

HD synchronous or asynchronous accumulation

• Fixed, manual or one push white balance

• Auto iris lens video output, auto shutter and AGC allow a wider light range

• Color bar generator is built in for set up.

• Setup by Windows NT/2000/XP software by means of the RS 232C connection

-1-

Page 4

4 Locations and Functions

4.1 Mounting Locations

CV-M71A

1. Lens mount of C-mount type.

2. Interline-transfer CCD sensor.

3. 9-pin D-sub connector for RGB video output

4. 12-pin connector for DC +12V power, RS232C and external sync signals

5. 6-pin connector for RS232C, trigger in and WEN output

6. White Balance button

7. LED for power and trigger indication

Orange, steady Initializing after power ON Green, steady Operating, Continuous mode Green, flashing Operating and receiving external trigger

8. Mounting holes 8 x M3, depth 5mm.

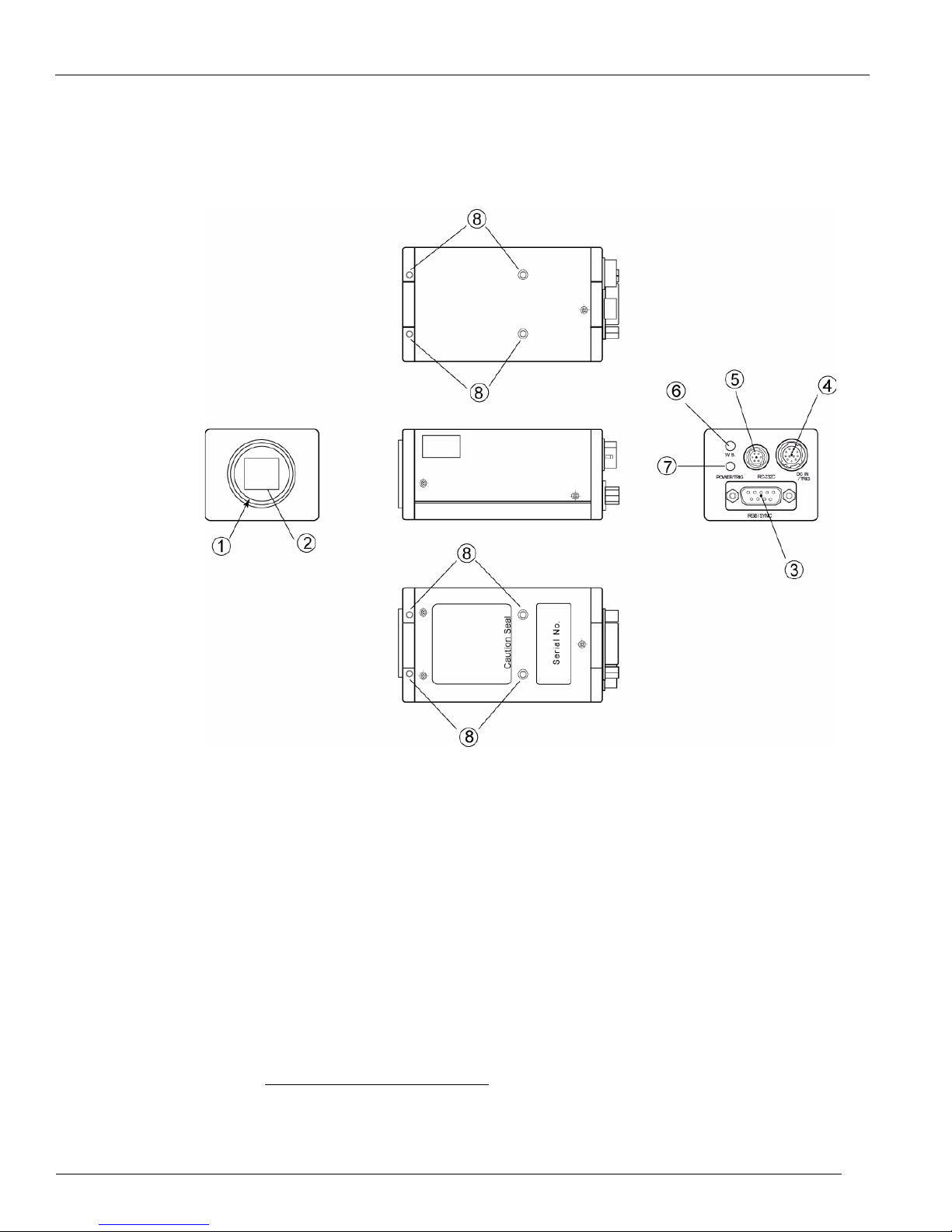

FIGURE 1.Locations

1. Note: Rear protrusion on C-mount lens must be less than 9.0mm.

-2-

Page 5

CV-M71A

5Pin Assignment

5.1 12-pin Multi-connector (DC-IN/Trigger-IN/HD and VD IN)

Pin No.

1GND

+12 V DC input

Type: HR10A-10R-12PB-01 (Hirose) male. Seen from camera back.

FIGURE 2.12-pin Hirose connector and location table

6HD input

7VD input

8GND

9 XEEN out

10 WEN out

11 Trigger In

12 GND

Iris Video

5.2 9-pin D-sub connector ( Analog RGB video )

Signal Remarks

GND

Video signal for the auto iris lens drive

GND

Pin no.

1VD IN / OUT

2GND

3R out

4 G out /Sync on G out Default: G out

5B out

6HD IN/OUT

7 SYNC out/WEN out Default: SYNC out

8GND

9NC

See Section 7.1 on page 25 for more information

Signal Remarks

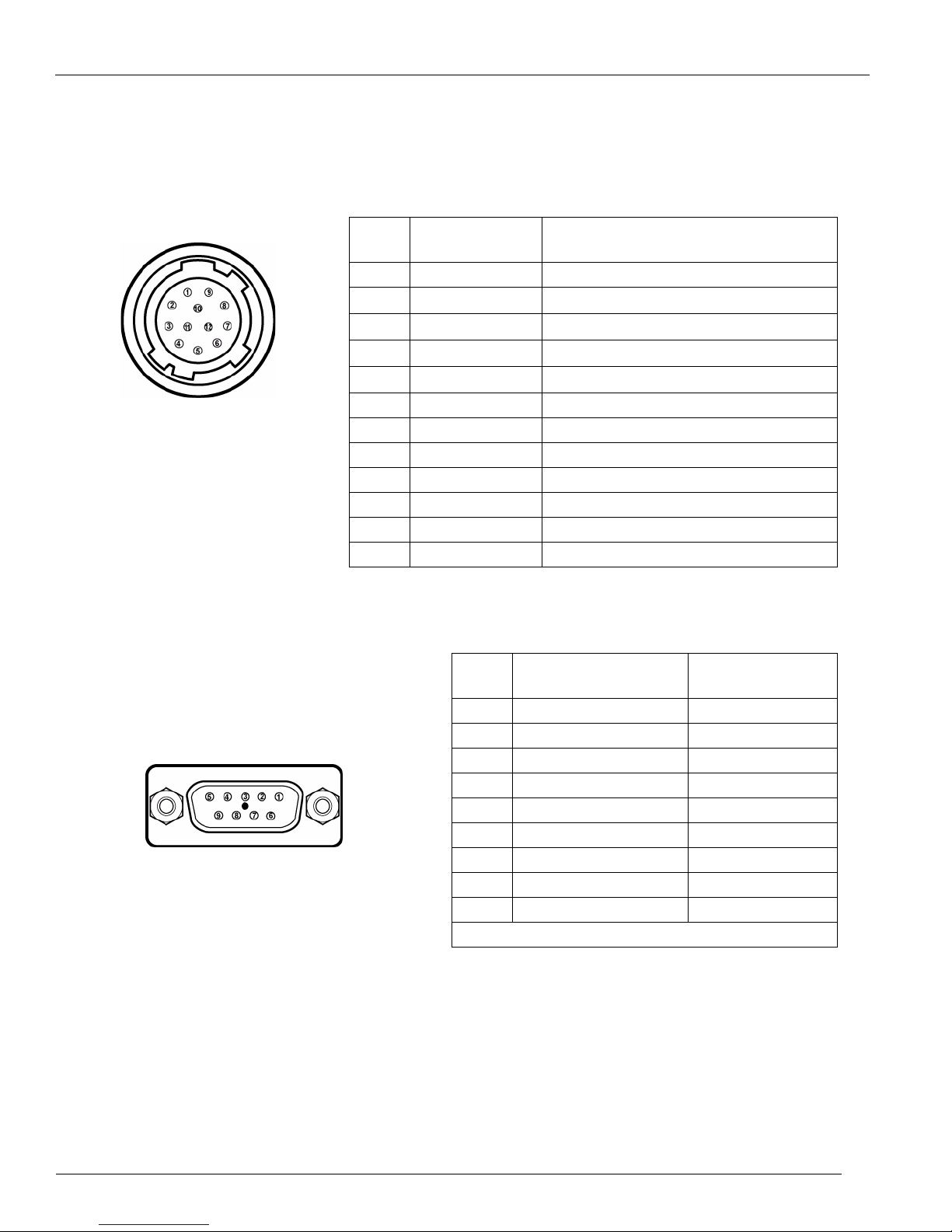

FIGURE 3.9-pin Dsub connector and pin out table

-3-

Page 6

CV-M71A

5.3 6-pin Hirose Connector ( RS232C / Trigger IN )

Pin no.

1TXD output

2RXD input

3GND

4NC / GND

5Trigger input

6WEN output

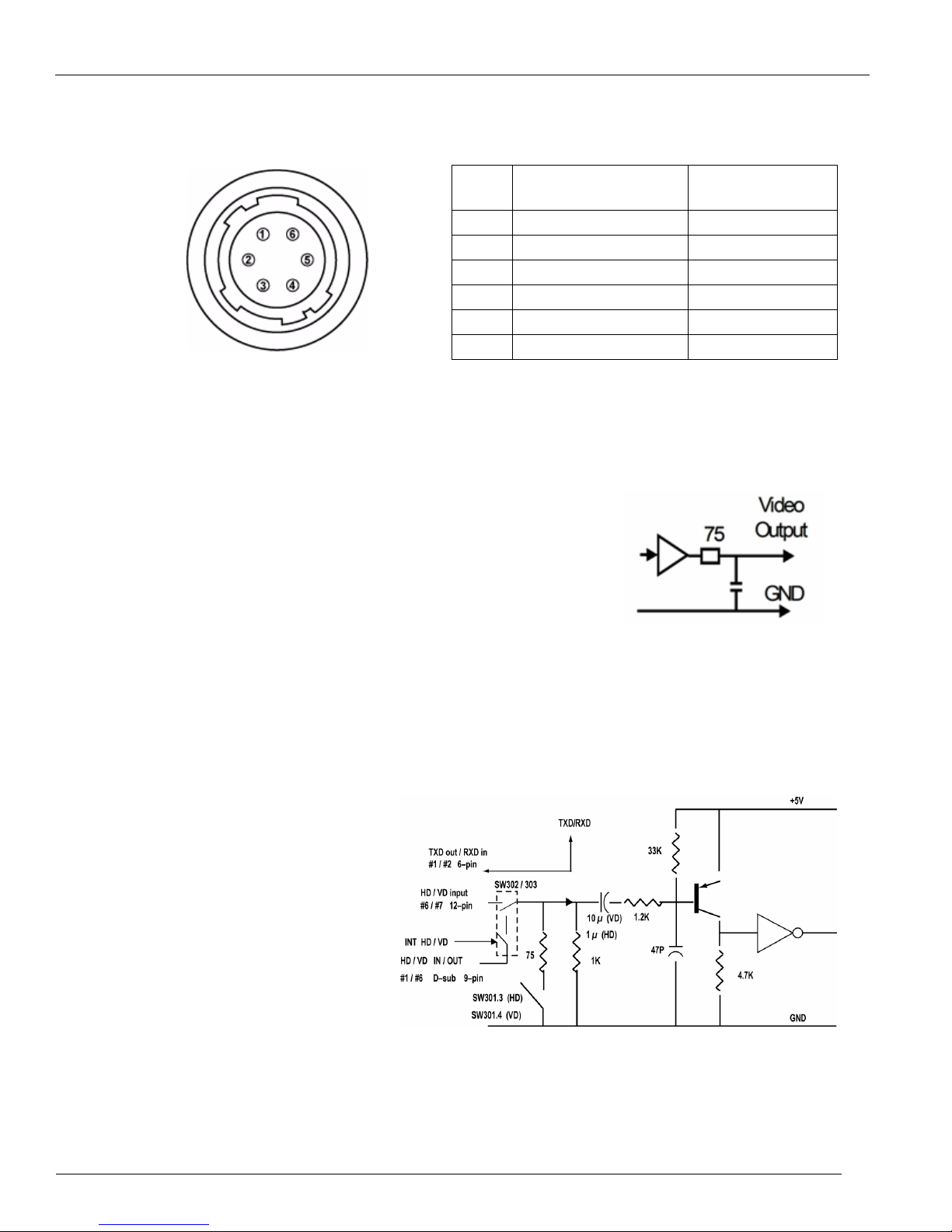

FIGURE 4. 6-Pin Hirose connector and pin-outs

Signal Remarks

5.4 Input and Output Circuits

In the following schematic diagrams show the input and output circuits for video and timing signals.

5.4.1 Iris video output

This signal can be used for lens iris control in Continuous mode.

The signal is taken from the CCD sensor output before the gain circuit. The video output is without sync. The signal is 0.7 Vpp from 75Ω without termination. Do not use auto shutter (CCD iris) when auto iris lens is used.

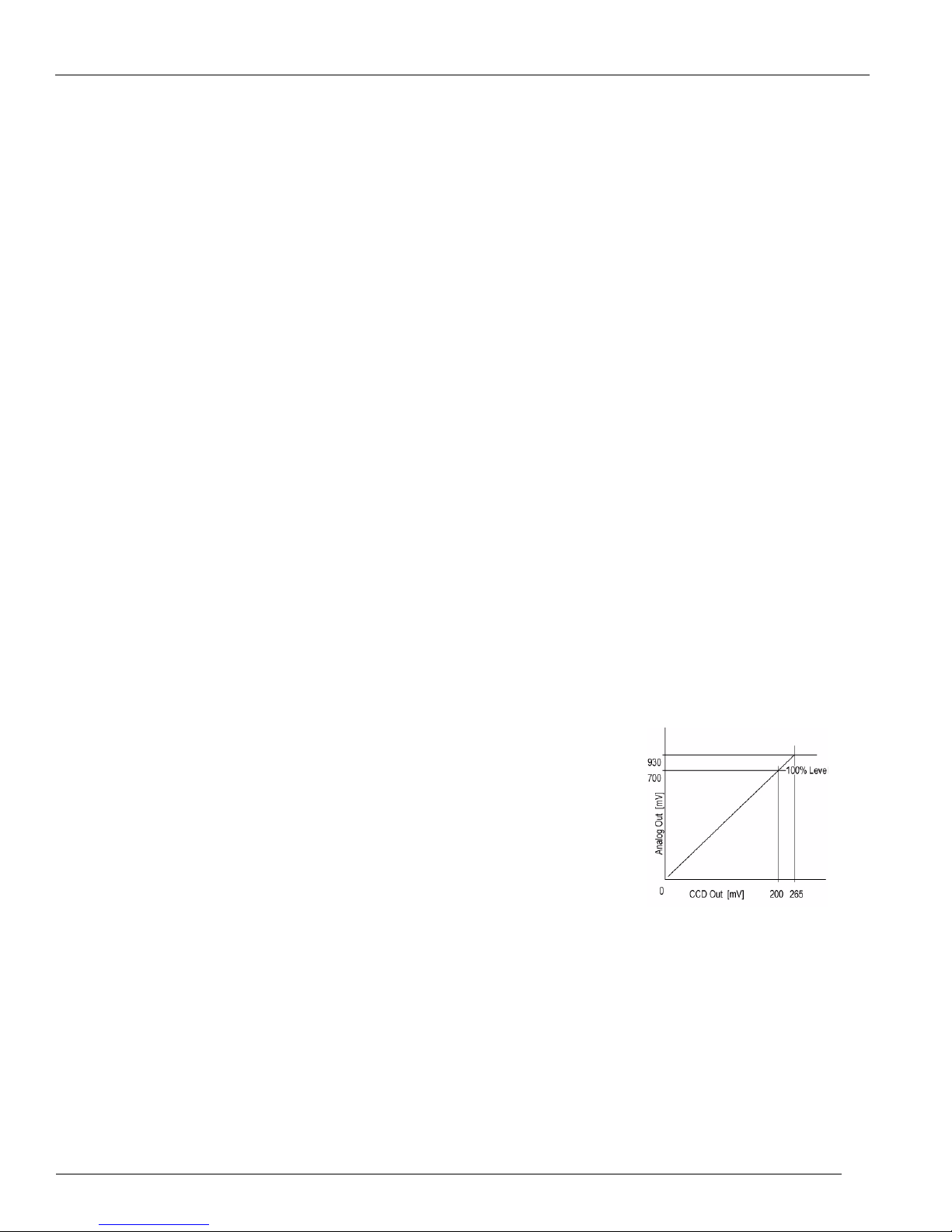

FIGURE 5.Video output.

5.4.1 (a) HD and VD input/RXD TXD

Pin #6 and #7 on the 12-pin connector; and pin #6 and #1 on the 9-pin D-sub connector are used for HD/VD input. Pin #1 and #2 on the 6-pin connector are used for the RS232C interface, TXD OUT and RXD IN.

• SW301.3: ON for HD 75Ω termina-

tion.

• OFF for TTL.

• SW301.4: ON for VD 75Ω termina-

tion.

• OFF for TTL.

• SW302.1: Hirose 12-pin and D-sub

9-pin

• Select for HD IN

• SW303.1: Hirose 12-pin and D-sub

9-pin

• Select for HD IN

FIGURE 6.HD/VD input, RS-232C

-4-

Page 7

5.4.1 (b) Trigger input

• The trigger input is available from either pin #11 on the 12 pin connector or pin #5 on the 6 pin con-

nector.

• These inputs are internally connected, do not

use simultaneously.

• The input is AC coupled. To allow a long pulse

duration, the input circuit is a flip-flop. When it is toggled the negative or positive differentiated spikes are caused by the falling or rising trigger edges.

• The trigger polarity can be changed by TP=1.

• Trigger input level is 4 V ±2 V. It can be termi-

nated by SW301.1: ON for 75Ω. OFF for TTL.

5.4.1 (c) XEEN output

CV-M71A

FIGURE 7.Trigger input.

• XEEN is located on pin #9 of the 12-pin

connector. This signal is active during the accumulation (exposure) period of the camera.

• The output circuit is 75 Ω complementary

emitter followers. It will deliver a full 5 volt signal.

• Output level > 4 V from 75 Ω. (No termina-

tion).

FIGURE 8.XEEN output

6 Functions and Operations

6.1 Basic functions

The CV-M71A camera is a progressive scan camera with a primary color mosaic CCD (Bayer). An internal DSP performs the color-interpolation, outputting separate analog R, G and B signals through the 9-pin D-sub connector.

An analog iris video signal can be used for lens iris control.

There are four modes; continuous, edge pre-select (EPS), pulse width control (PWC) and sensor gate control. The accumulation can be HD synchronous or HD asynchronous. For trigger modes using fast shutter times, smearless read out is possible.

-5-

Page 8

CV-M71A

6.1.1 Sensor Gate Control

This function is for applications where a strobe flash is the only illumination, and where the exact time to fire the strobe is unknown. This allows the strobe to fire in a time window that can include up to several frames. The resulting video readout can also be delayed by this function. This makes the synchronization of the frame grabber more flexible.

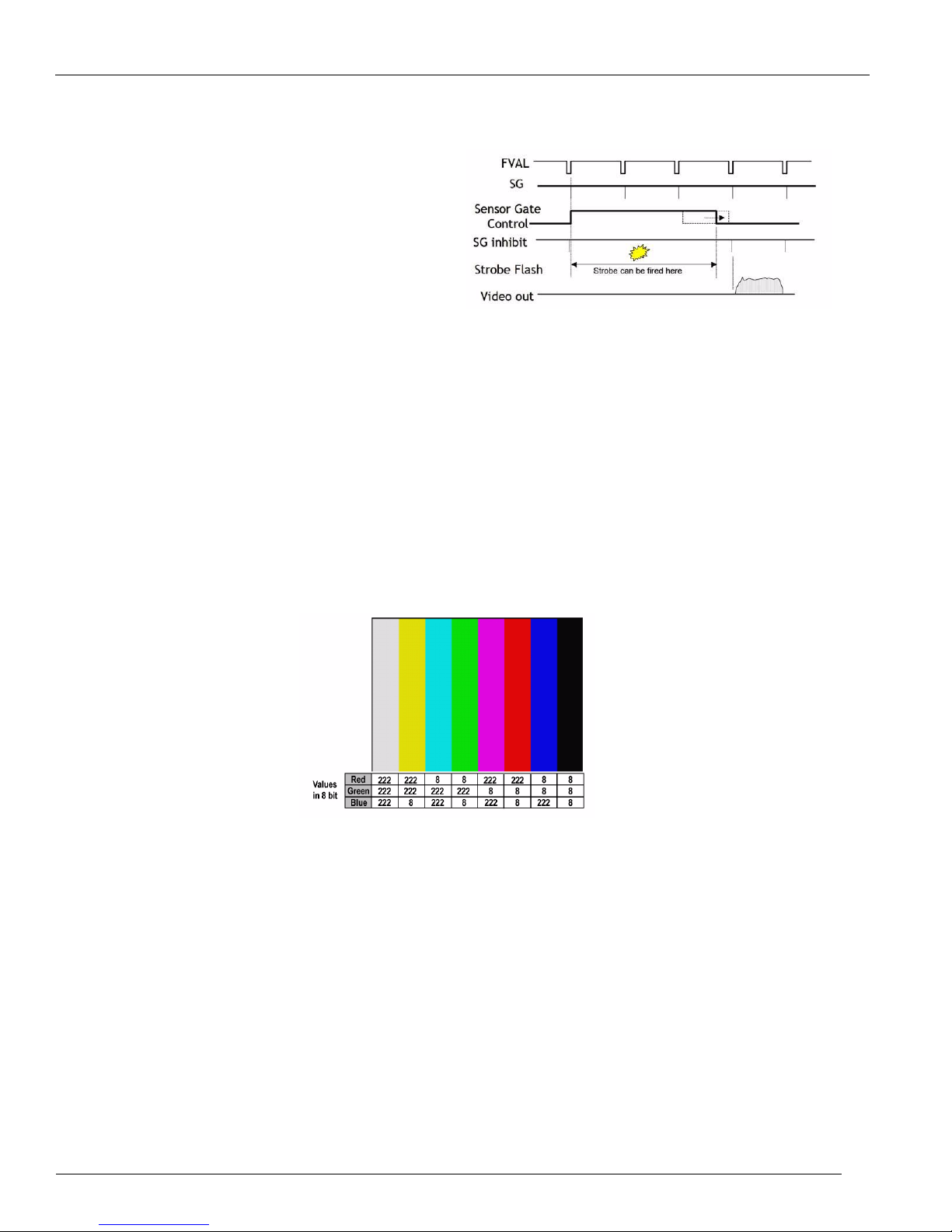

FIGURE 9.Sensor Gate Control

The Sensor Gate Control signal inhibits the internal SG signal so accumulation can continue. The SG signal is an internal signal, which is low when the accumulated charge on the photo diode array is transferred to the vertical ccd registers for readout. When the Sensor Gate Control input is high, the internal SG pulse is inhibited, and the signal accumulation on the photo diode array can take place. After the strobe flash is fired, the Sensor Gate Control signal can be low. The resulting video is then read out after the first VD (or SG), following the falling edge of Sensor Gate Control signal.

6.1.2 CV-M71A Test pattern

The CV-M71A camera has a build in color bar generator. When it is activated, the output image is a test pattern as shown in the figure. The RGB values shown are for an 8-bit output.

The test pattern displays when the output select command is OS=3.

FIGURE 10. CV-M71A Test Pattern

-6-

Page 9

CV-M71A

6.2 Sensor Layout and timing

6.2.1 CCD Sensor Layout

The CCD sensor layout below shows the pixels and lines used in the timing and video full frame readout.

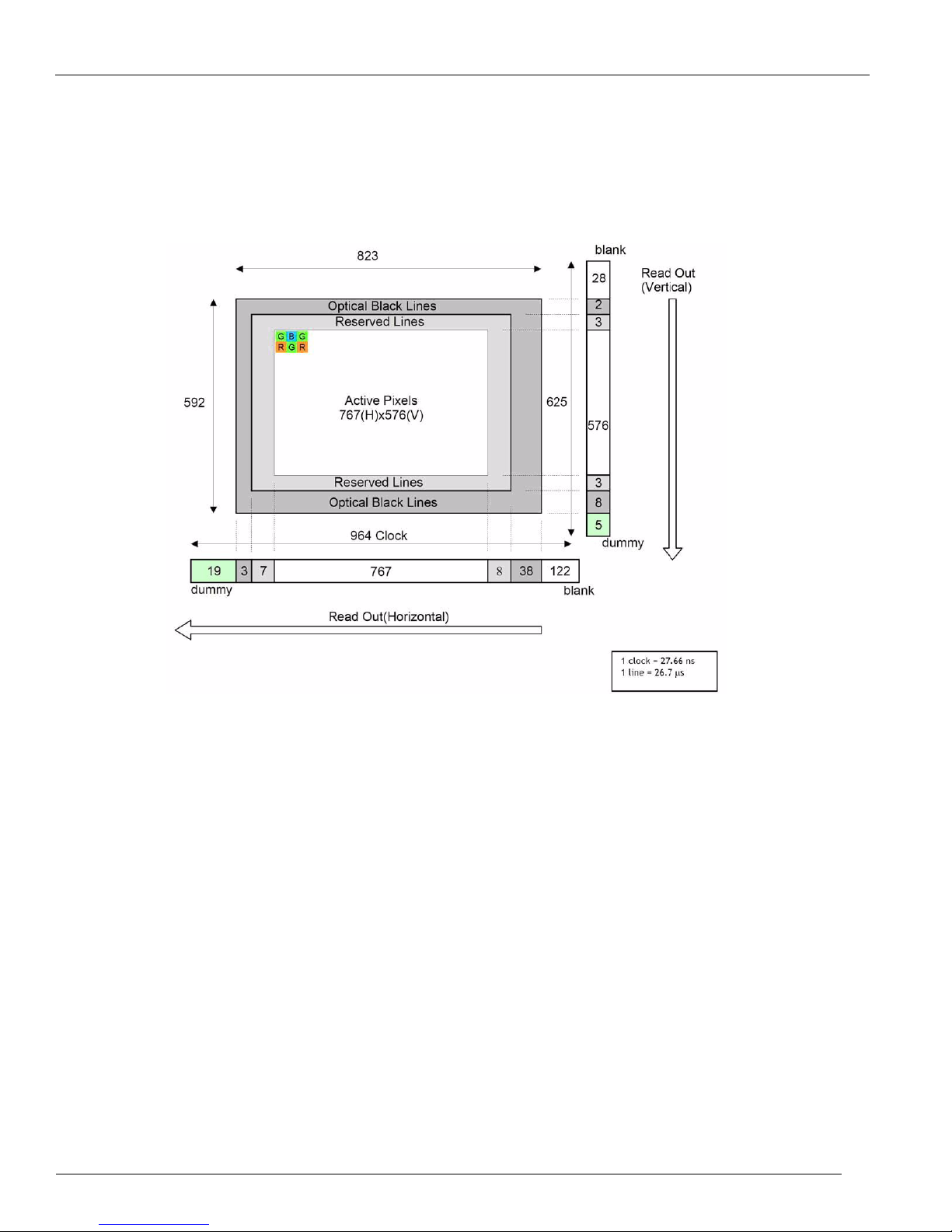

FIGURE 11.CCD sensor layout

-7-

Page 10

6.2.2 Horizontal timing

The HD period is shown for continuous mode.

•

• The timing signal definition

• EEN: Exposure enable (EEN) is defined HIGH for the exposure period.

• XEEN: Inverted polarity of EEN

CV-M71A

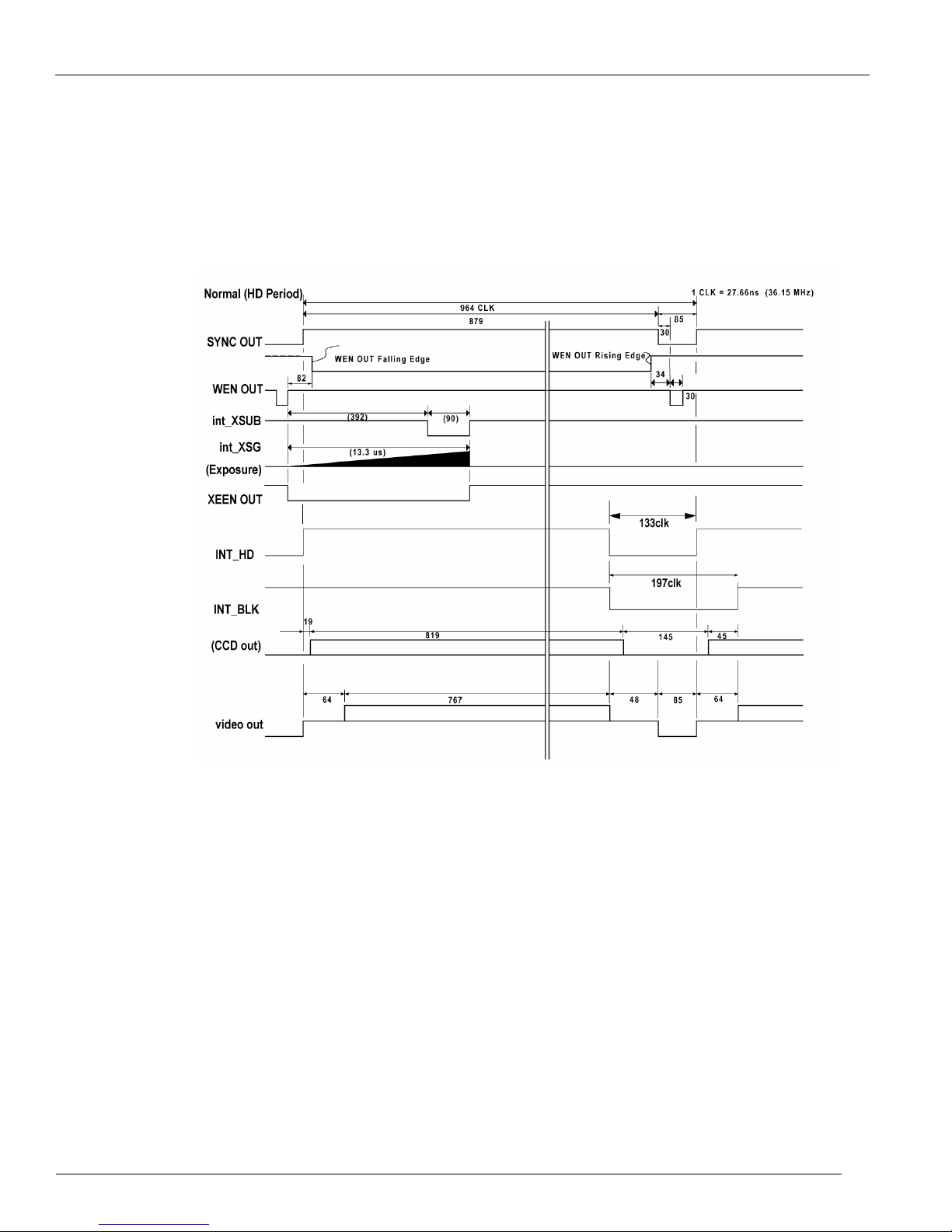

FIGURE 12.Horizontal timing

-8-

Page 11

6.2.3 Vertical timing

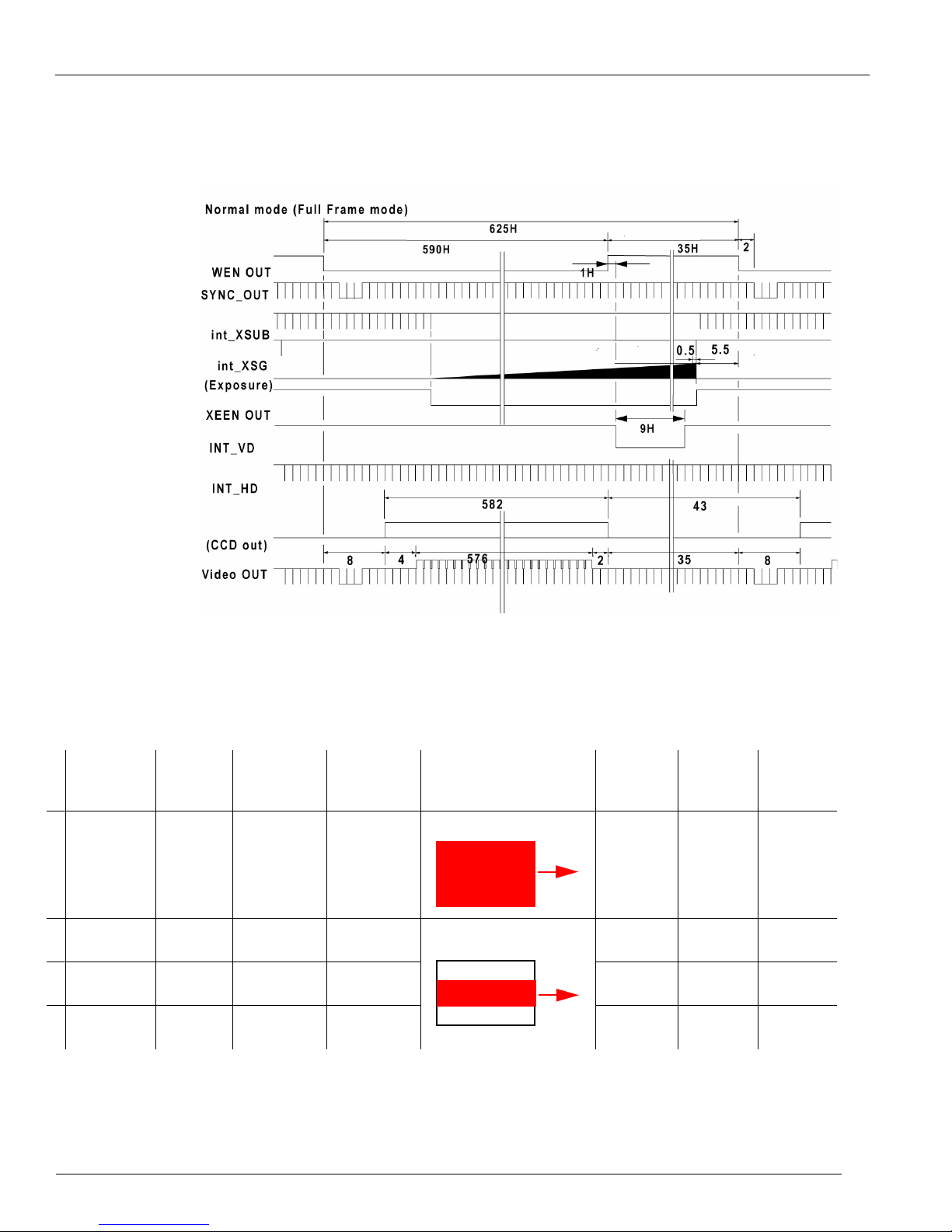

The VD period for continuous mode full scan is shown:

CV-M71A

FIGURE 13.Vertical Timing

6.2.4 Partial Scanning

CV-M71A has a partial scanning function. Utilizing the CCD high-speed read-out function, CV-M71A is able to provide faster frame rates than with a full scan through 1/2, 1/4 and 1/8 scanning of vertical height.

Option

Full

screen

1/2

Screen

1/4

screen

1/4

screen

Start

Position

(Line)

1 576 576

148 434 287 23 23 2

218 360 143 33 33 2

253 323 71 38 38 2

End

Position

(Line)

Line No.

(Lines)

TABLE 1.Partial Scanning details

Output Image

Full Frame

Partial Scan

Front of

Frame A

Back of

Frame B

Back of

Frame C

-9-

Page 12

CV-M71A

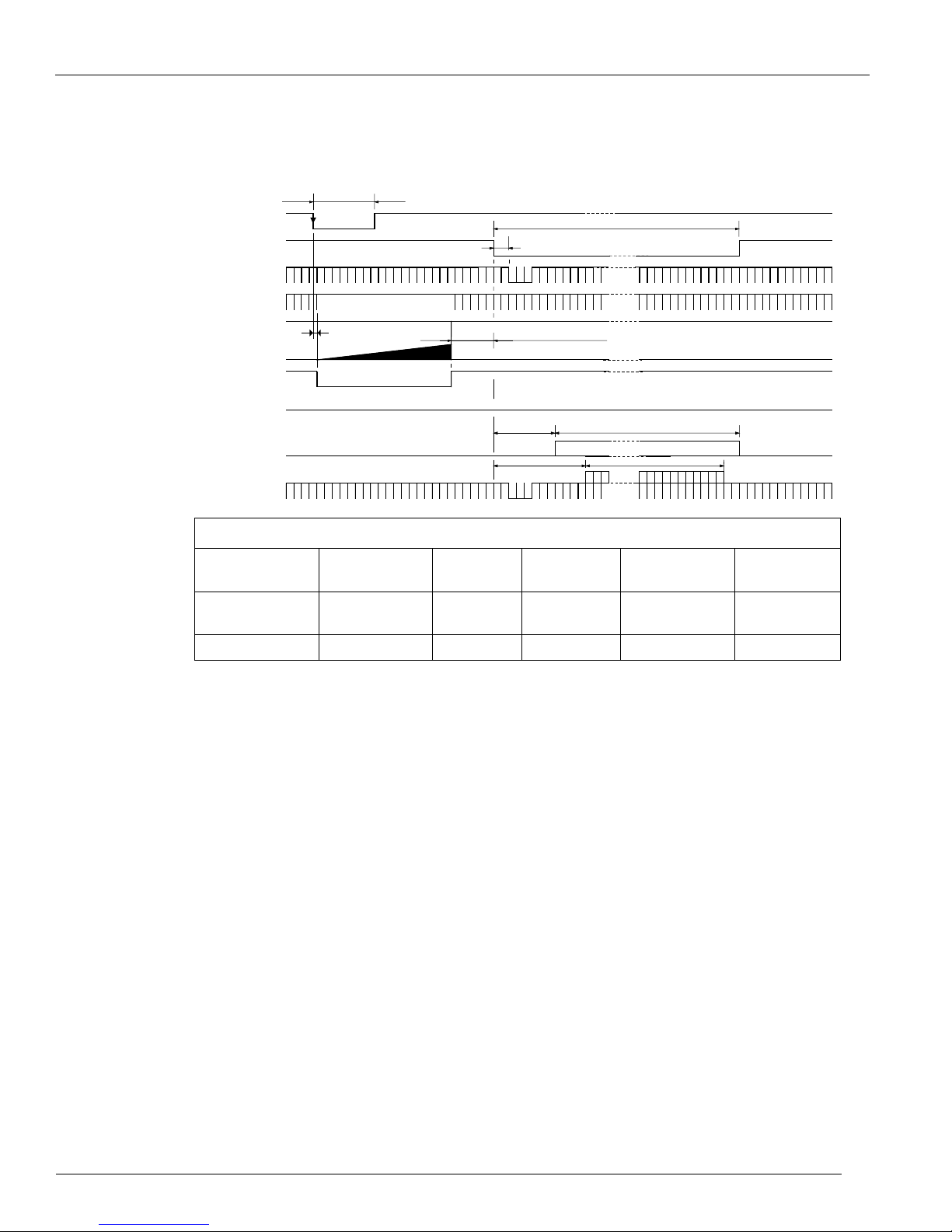

FIGURE 14.Timing chart for 1/2 partial scanning

6.3 Input/Output of Timing Signals

For switch settings, refer to chapter “7.1. Switch setting by internal switch.”

6.3.1 Input of External HD/VD signals

External synchronization is only possible in continuous mode. For trigger modes only external HD can be input.

HD and VD input pins on D-sub 9-pin connector are shared with HD/VD output (HD/VD inputs are factory default). HD/VD inputs are also available by means of the Hirose 12-pin connector. SW302.1 selects by means of the D-sub 9-pin or Hirose 12-pin for HD input. SW303.1 selects by means of the D-sub 9-pin or Hirose 12-pin for VD input. The video output is synchronized with external HD/VD signals if applied. If no external HD is connected, the camera will switch to the internal X-tal controlled HD sync. If no external VD is connected, the camera will continue with its internal VD.

The tracking range for H is 37.50 KHz ±1%

The external HD/VD signal should be 4.0 Vp-p ±2.0 V from a 75 Ω source. Factory setting is TTL. For 75 Ω termination is SW301.3 for HD input and SW301.4 for VD; input should be ON.

Figure 15. through figure 18. shows timing details for external sync operations.

-10-

Page 13

To use this function:

Set function: SW302.1 for HD input ON: D-sub 9-pin, OFF: Hirose 12-pin

Important notes on using this mode:

• External sync system should follow the camera scanning system

• The ext. HD/VD phase relations should follow the synchronization shown in Figure 15.

CV-M71A

SW303.1 for VD input ON: D-sub 9-pin, OFF: Hirose 12-pin

SW302.2 ON: HD output, OFF: HD input

SW303.2 ON: VD output, OFF: VD input

External Synchronization ( VD Timing)

 +'9' 6\QFKURQL]DWLRQ  1RUPDO6<1&3HU LRG

([W  9'

([W  +'

:(1 287

6<1& 287

9LGHR RXW

LQWB9'

LQWB+'



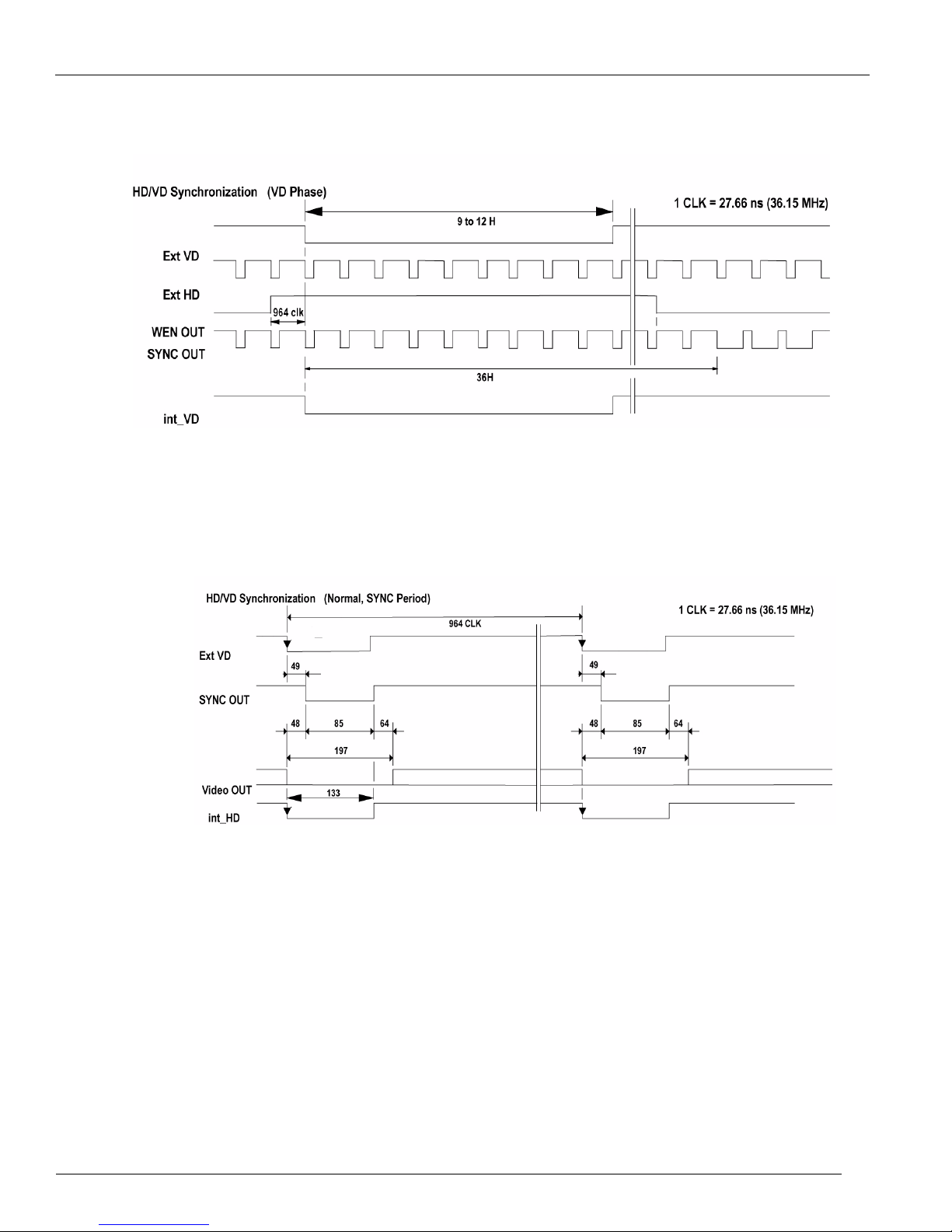

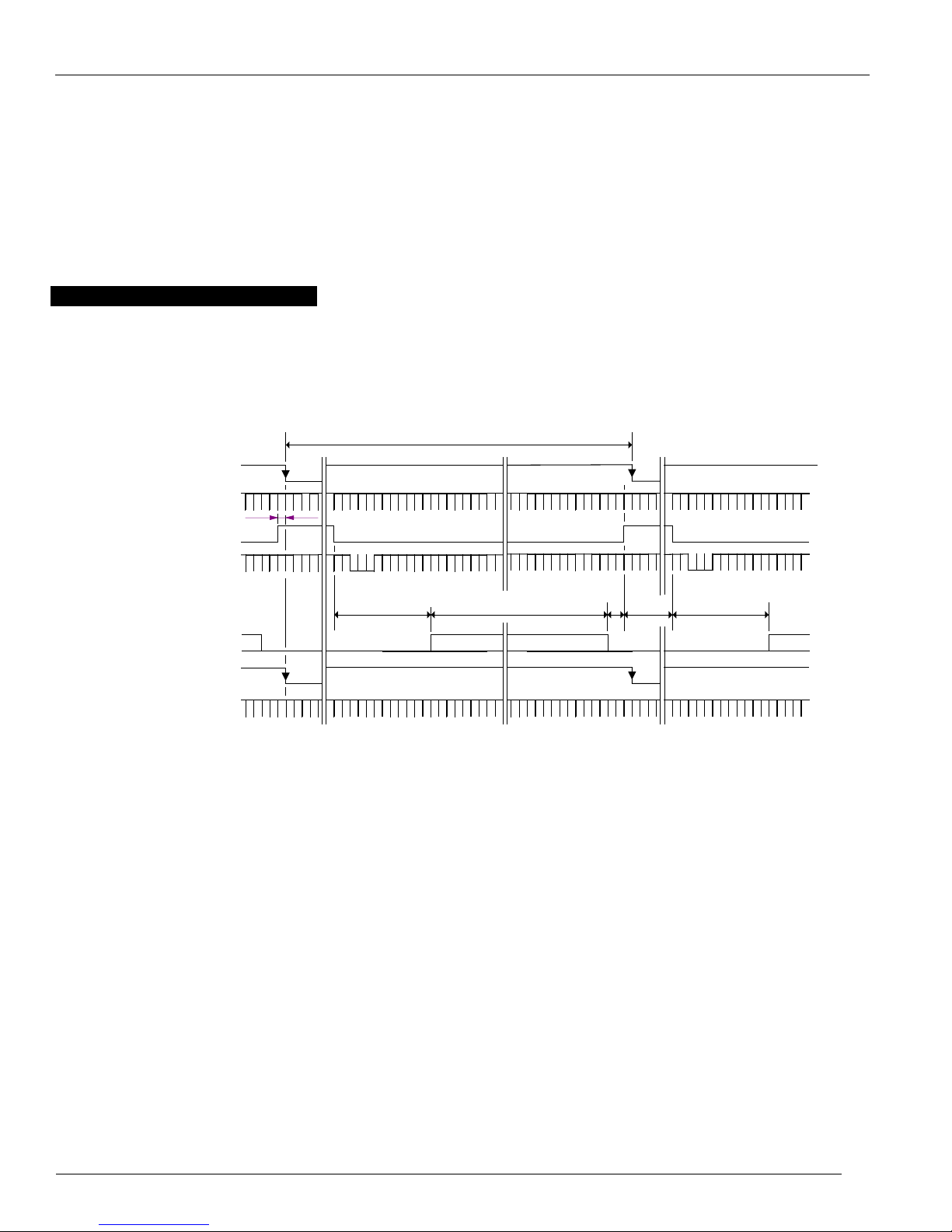

FIGURE 15.VD timing for external synchronization

/

(I I HFW L YH / L QHV











-11-

Page 14

CV-M71A

6.3.1 (a) External Synchronization ( VD timing Details )

FIGURE 16.VD

Note: The internal VD is reset by the falling edge of Ext. VD but there is no field identification. The pulse

width of Ext. VD requires 9H to 12 H.

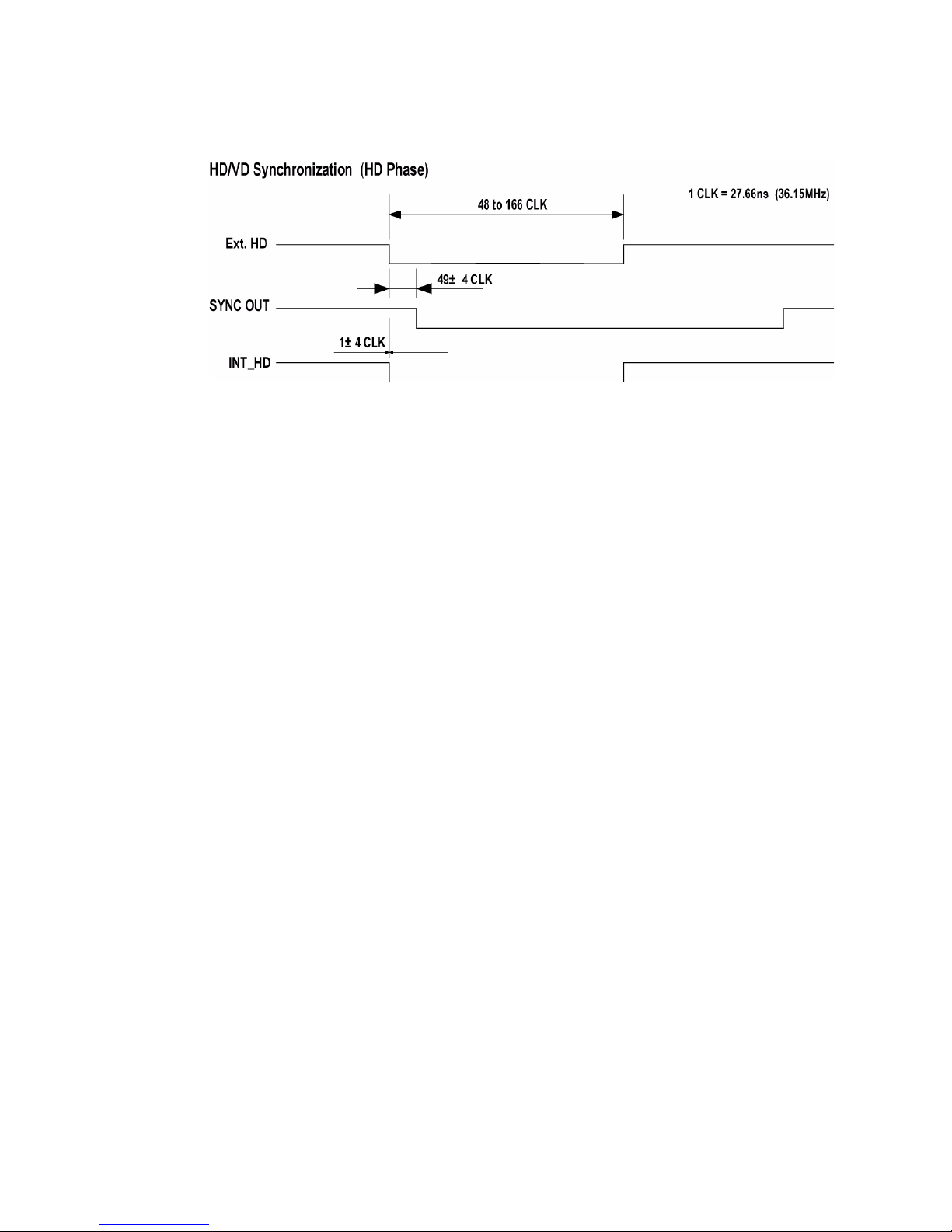

6.3.1 (b) External Synchronization ( HD timing )

FIGURE 17.HD timing for external synchronization

timing Details

-12-

Page 15

CV-M71A

6.3.1 (c) External Synchronization ( HD timing details )

FIGURE 18.HD timing details

Note: The pulse width of Ext. HD requires between 48clk to 166clk. HD can not be reset directly.

6.3.2 Input of external trigger

The external trigger signal can be by means of pin 5 on the 6-pin connector (TI=0) or pin 11 on the 12-pin connector. (TI=1). Here it should be 4.0 Vp-p ±2.0 V from a 75 Ω source.

The factory setting is TTL. For 75 Ω termination SW301.1 should be ON.

6.3.3 Output of XEEN

The XEEN signal is 4.0 Vp-p from a 75 Ω source.

6.3.4 Output of HD/VD signals

HD input and VD input of D-sub 9-pin can be changed to HD and VD outputs by selecting internal switches, SW302 and SW303. The output level is 4 V p-p.

6.4 Operation Modes

This camera can operate in four primary modes.

1. TR=0 Continuous Mode. Pre-selected exposure.

2. TR=1 Edge Pre-select Mode. Pre-selected exposure.

3. TR=2 Pulse Width Control Mode. Pulse width controlled exposure.

4. TR=3 Sensor Gate Control Strobe illuminated exposure with delayed read out

The triggered shutter in EPS and PWC mode can be HD synchronous or HD asynchronous accumulation. Refer to Section 6.4.1 on page 14 and Section 6.4.2 on page 16.

-13-

Page 16

CV-M71A

To avoid <1H time jitter in HD synchronous mode, it is recommended the trigger be synchronized to the HD as shown in Figure 19. If trigger transitions are inside the limits shaded blue, the accumulation jitter is minimal.

FIGURE 19.Trigger to ext. HD phase relation

In the following chapters the different operation modes and functions are covered.

6.4.1 HD synchronous accumulation

With LS=0, the accumulation will start synchronously with HD. The trigger pulse should be longer than 2 H, and the accumulation will then start at the first HD after the trigger leading edge. The exposure start delay is shown in the table below the timing drawings.

In EPS mode the exposure stops 0.5H after the selected shutter time, (in number of HD).

In PWC mode the exposure stops 4.3μs after the trigger trailing edge. It results in up to 1 H jitter.

In trigger modes with HD synchronous accumulation, a new exposure can be started while the previous frame is read out. The new exposure should not finish before the frame is read out. FVAL shall be low for >2 LVAL. The maximum frame rate in trigger modes can then be close to the frame rate in continuous mode.

Important notes on using this mode:

• In HD synchronous trigger modes, exposure jitter up to 1 H can be the result, if the trigger trailing

edge is not synchronized to HD.

• The minimum trigger interval in EPS should be longer than (1 V + 2 H), and 1V + 4H) in PWC.

-14-

Page 17

6.4.1 (a) EPS (Edge Pre select Mode)

1/25,000 1/75,000 1/100,000 1/150,000 1/300,000

4-30μsec. 30-57μsec. 34-60μsec. 37-64μsec. 40-67μsec.

CV-M71A

t1. Exposure start delay

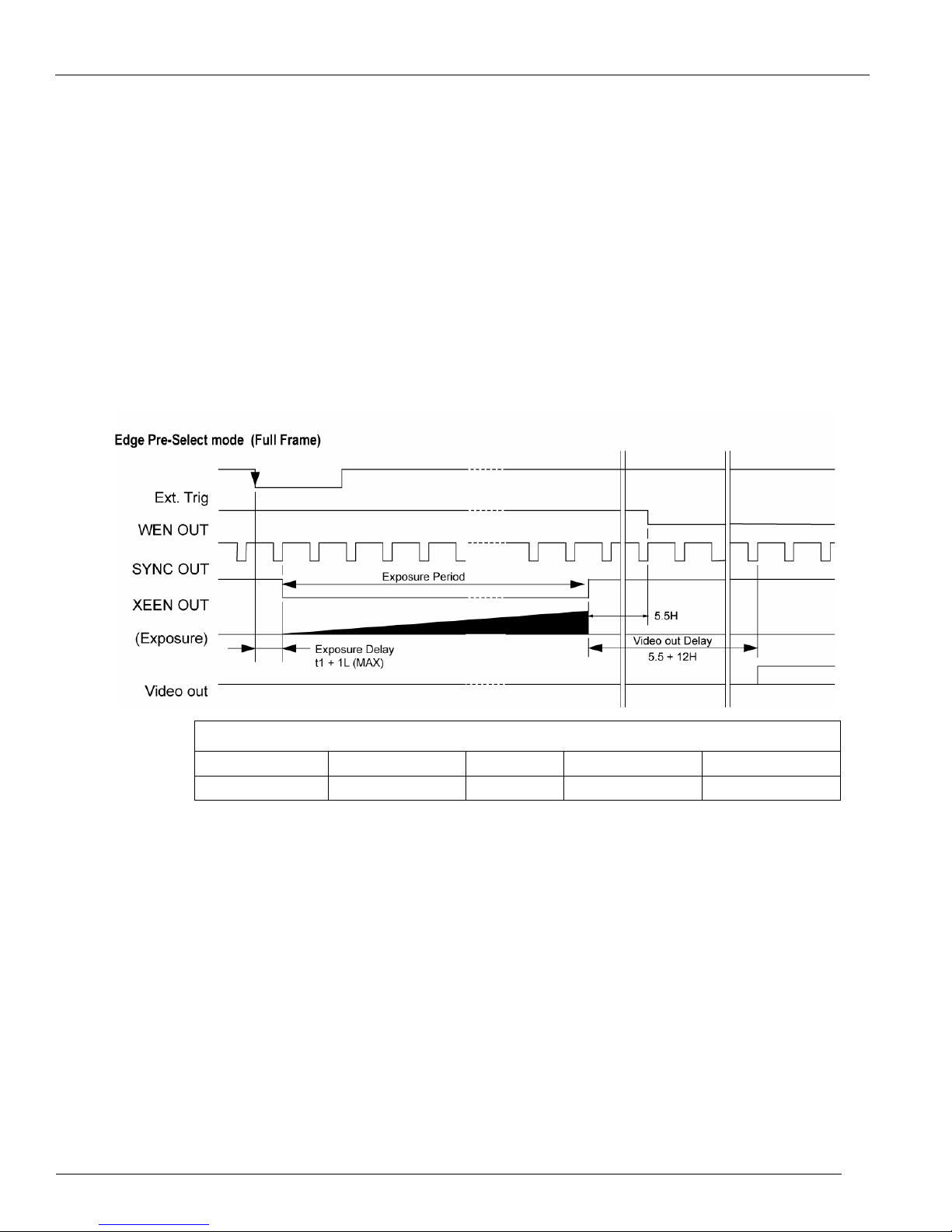

FIGURE 20.HD synchronous accumulation in EPS mode. Full frame.

6.4.1 (b) PWC ( Pulse Width Control mode)

t1. Exposure start delay

4-30 µsec.

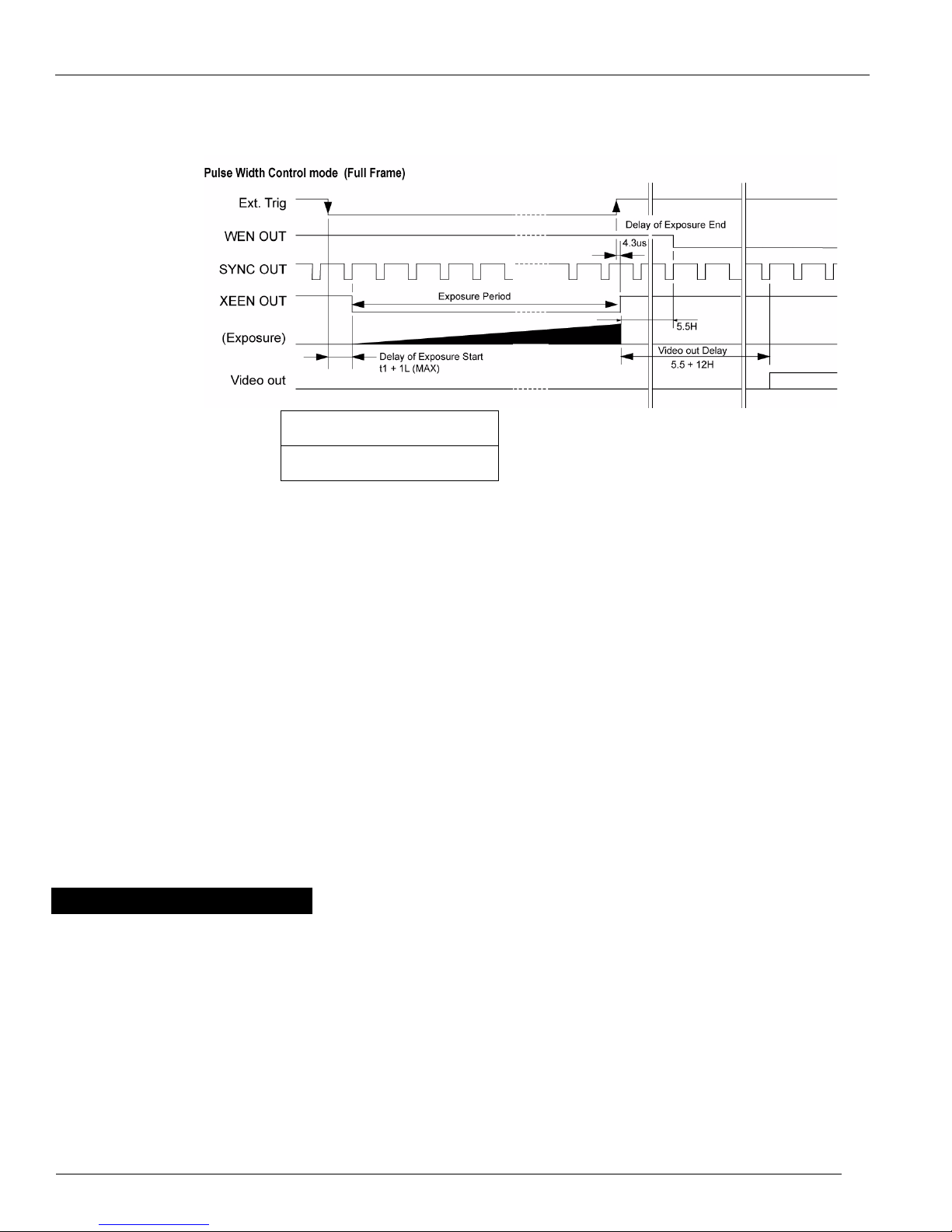

FIGURE 21.HD synchronous accumulation in PWC mode. Full frame.

-15-

Page 18

CV-M71A

6.4.2 HD asynchronous accumulation

With LS=1, the accumulation starts after the trigger leading edge.

•

• The exposure start delay is fixed. See the table included in Figure 22 for the fixed delay.

• In EPS mode the exposure stops 0.5 H after the selected shutter time, (in number of HD).

• In PWC mode the exposure stops 0.5 H after the trigger trailing edge.

• A new trigger must not be applied before the previous frame is read out (VD is low).

• The minimum trigger interval should be longer than (exposure time + 1 V + 3 H).

Note: In HD asynchronous trigger modes, there is a fixed delay but no exposure jitter.

EPS ( Edge Pre Select Mode)

t1. Exposure start delay

< or =1/25,000 1/75,000 1/100,000 1/150,000 1/300,000

4-30μsec. 30-57μsec. 34-60μsec. 37-64μsec. 40-67μsec.

FIGURE 22.HD asynchronous accumulation in EPS mode. Full frame.

-16-

Page 19

PWC (Pulse Width Control Mode)

t1. Exposure start delay

4 µsec.

FIGURE 23.HD asynchronous accumulation in PWC mode. Full frame.

CV-M71A

6.4.3 Continuous operation

This mode is used for continuously running applications not requiring an asynchronous external trigger. For timing details, refer to fig. 14. through fig. 17.

To u se t h i s m o d e :

Set function: Trigger mode to Continuous TR=0

Shutter mode normal, programmable or auto SM=0 through 2

Shutter speed SH=0 through14

Programmable exp. PE= through 628

Other functions and settings

Input

Important notes on using this mode:

Ext. HD in pin 6 on 12-pin or pin 6 of D-sub 9-pin (If used).

Ext. VD in pin 7 on 12-pin or pin 1 of D-sub 9-pin (If used).

• External sync system should follow the camera scanning system.

• The ext. HD/VD phase relations should follow the synchronization shown in Figure 15 on page 11.

• For timing details, refer to Figure 12 on page 8 and Figure 13 on page 9

6.4.4 Edge Pre-select Trigger Mode

An external trigger pulse initiates the capture. The exposure time (accumulation time) is the fixed shutter speed set by SH or PE. The accumulation can be HD synchronous or HD asynchronous. The exposure start delay is shown in the table below the timing drawing. The resulting video signal will start to be read out after the

-17-

Page 20

CV-M71A

selected shutter time. To avoid up to 1LVAL time jitter in HD synchronous accumulation, it is recommended to synchronize the trigger to HD (see Figure 19 on page 14). Use HD synchronous accumulation (LS=0) for the highest trigger rate. A new exposure can be started while the previous is read out. The shutter time should end >2 LVAL after FVAL goes low. For timing details, refer to Figure 12 on page 8, Figure 13 on page 9 and Figure 24 on page 19.

To u s e t h i s m o d e :

Set function: Trigger mode to Edge pre-select TR=1

Shutter mode normal, programmable or auto SM=0, SM=1

Shutter speed SH=0 through14

Programmable exp. PE= through 628

Accumulation HD synch. or asynch. LS=0, LS=1

Other functions and settings

Input Ext. trigger 6-pin Hirose or 12-pin Hirose

Ext. HD in D-sub p-pin or 12-pin connector SW302.1 (If used)

Important notes on using this mode:

• External sync system should follow the camera scanning system.

• To a v o i d < 1 LVAL jitter if LS=0, ext. HD/Trigger phase relations as shown in Figure 19 on page 14.

• Trigger pulse with >1 LVAL to < 1 Frame

• If LS=0, the minimum trigger interval >(1 VD + 2 H).

• If LS=1, the minimum trigger interval >(exposure time + 1 VD + 3 H).

• EPS together with Smearless can only work in HD sync. accumulation.(LS=0)

-18-

Page 21

CV-M71A

Edge Pre-Select mode (int_VD Period, Asynchronous mode)

1L(Min) ~ 1Frame (Max)

Ext. Trig.

WEN OUT

SYNC OUT

int_XSUB

int_XSG

(Exposure)

XEEN OUT

int_VD

(CCD out)

Video out

t1 (See Note!)

5.5 to 6.5L (CCD out delay)

590

582

576

t1. Exposure start delay

Exposure Time

Sync. accum. 4-30μsec.

< or =1/

25,000

1/75,000 1/100,000 1/150,000 1/300,000

30-

57μsec.

34-60μsec. 37-64μsec 40-67μsec.

Async. accum 4 μsec. 4 μsec. 7 μsec. 11 μsec 14 μsec.

FIGURE 24.Edge pre-select. HD async. accumulation.

6.4.5 Pulse Width Control Trigger Mode

In this mode the accumulation time is equal to the trigger pulse width. Here it is possible to have long time exposure. The maximum recommended time is <120 frames. The accumulation can be HD synchronous or HD asynchronous. The exposure start delay is shown below the timing drawing. To avoid up to 1LVAL time jitter in HD synchronous accumulation, it is recommended to synchronize the trigger to HD. (See fig. 18.). Use LVAL synchronous accumulation (LS=0) for highest trigger rate. Here a new exposure can be started while the previous is read out. The trigger pulse should end >2 LVAL after FVAL goes low.

The resulting video signal will start to be read out after the trigger rising edge. For timing details, refer to fig. 12. through fig. 13. and fig. 24.

To use this mode:

Set function: Trigger mode to Pulse width control TR=2

Shutter mode to normal or programmable SM=0, SM=1

Accumulation HD synch. or asynch. LS=0, LS=1

-19-

Page 22

Input Ext. trigger 6-pin Hirose or 12-pin Hirose

Important notes on using this mode

• External sync system should follow the camera scanning system.

•

To a v o i d < 1 LVAL jitter if LS=0, ext. HD/Trigger phase relations as shown in Figure 19 on page 14.

• Trigger pulse width: >2 LVAL to <120 frames in HD sync. accumulation.

• Trigger pulse width: >2 LVAL to <3 frames in HD a-sync. accumulation.

• If LS=0, the minimum trigger interval >(1 VD + 4 H).

• If LS=1, the minimum trigger interval >(exposure time + 1 VD + 3 H).

• PWC together with Smearless can only work in HD sync. accumulation (LS=0).

CV-M71A

Other functions and settings

Ext. HD in D-sub p-pin or 12-pin connector SW302.1 (If used)

T1: Exposure start delay

Sync. Accum 4-30 μs

Async. Accum 4 μs

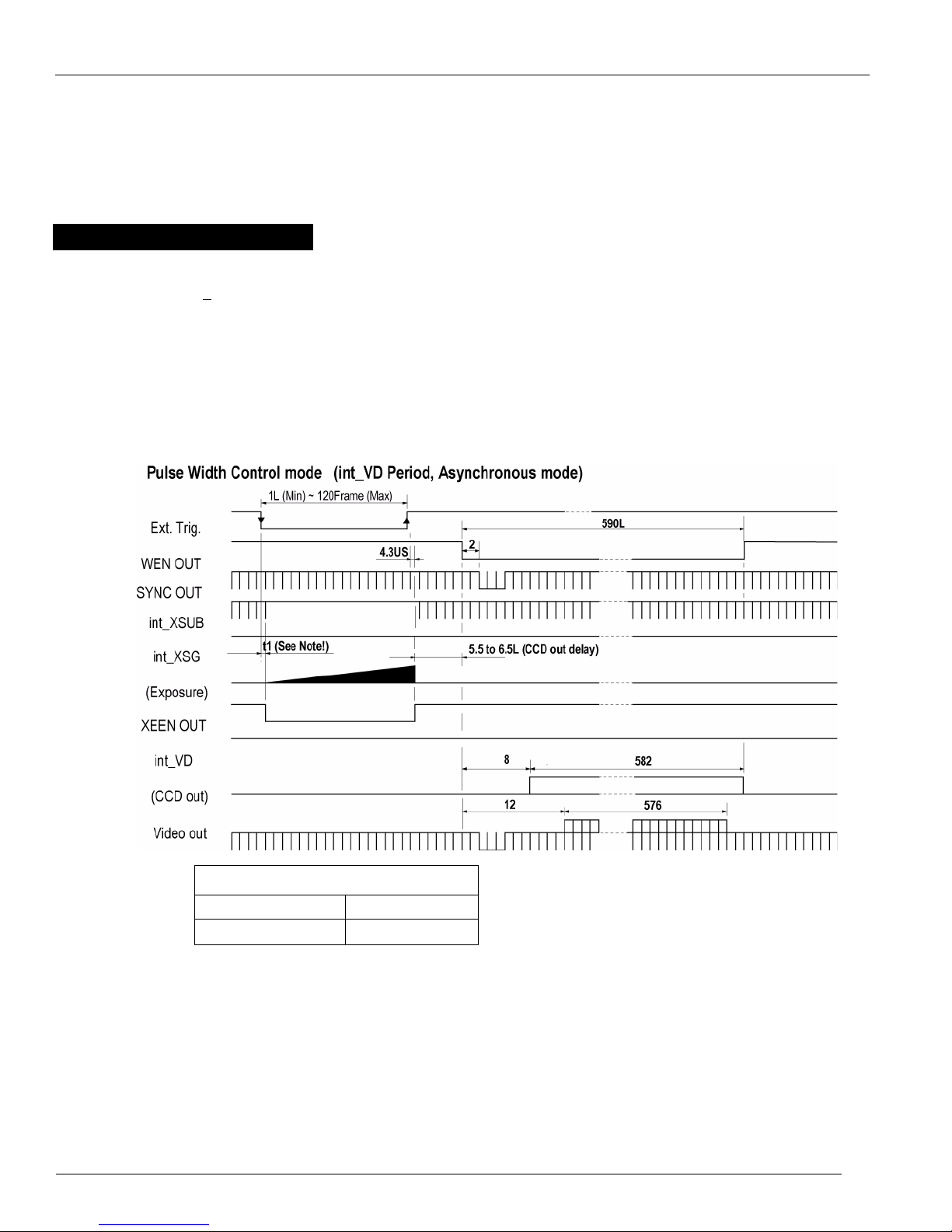

FIGURE 25.Pulse width control. HD async. accumulation

6.4.5 (a) Sensor Gate Control

This mode is for applications with strobe flash illuminations or long time accumulations up to several frames. In this mode the camera runs continuously. The external Sensor Gate control signal will disable the internal XSG pulse so the accumulation continues during the next frame. The resulting video is read out after the first VD (or SG), following the trailing edge of the Sensor Gate Control signal.

-20-

Page 23

CV-M71A

To inhibit the internal XSG pulse and continue the accumulation, the external sensor gate control signal should be low during line 28, where the internal XSG is placed. Refer to Figure 27 on page 21. The sensor gate control signal can be synchronized by the VD signal. For video out timing details, refer to Figure 12 on page 8, Figure 13 on page 9, Figure 25 on page 20 and Figure 27 on page 21.

To u s e t h i s m o d e :

Set function: Trigger mode to Sensor gate control TR=3

Other functions and settings

Input

Ext. SG control to trigger input 6-pin Hirose or

12-pin Hirose

Important notes on using this mode:

• External sync system should follow the camera scanning system.

• The ext. HD/VD phase relations should follow the synchronization shown in Figure 17 on page 12.

• After power up the camera, apply more than 1 SG pulse before operation.

Sensor Gate Control

Sensor Gate Control Pulse

WEN OUT

SYNC OUT

int_XSUB

int_XSG

(Exposure)

XEEN OUT

Video out

Always High

Always Low

FIGURE 26.Vertical timing for Sensor Gate Control

Sensor Gate Control (Gate Position)

Sensor Gate Control Pulse

SG Disable

No Data

30 Line

29 Line

WEN OUT

SYNC OUT

int_XSG

FIGURE 27.Sensor Gate position in line number 30

SG Disable

-21-

Page 24

CV-M71A

6.5 Other Functions.

Smearless readout. SL=1.

This function reduces the unwanted smear signal from a highlighted scene when a short exposure time is used. It works in EPS and PWC modes, but a dummy readout is performed before the active accumulation is started. It will remove the smear above the highlighted parts in the image, but there is still smear left below highlighted areas.

The trigger leading edge will start the dummy readout. It takes 86 lines before the exposure starts. The exposure stops and the resulting video signal is read out. Smearless readout will only work with HD synchronous accumulation.

Shutter mode. SM=0, SM=1 and SM=2. SH=0 through SH=14 and PE=0 through PE=628.

• Shutter mode is available in Continuous mode and EPS mode.

• With SM=0 this function selects the shutter from the 15 fixed steps (SH).

• With SM=1 from programmable in 628 steps (PE).

• SM=2 is auto shutter. The auto shutter range is from OFF to 1/25,000. The reference setting for auto

shutter is accomplished using the command AG=, which is common with the AGC. Together with the AGC function it keeps the video output constant over a wide range of illumination. Auto shutter will work in continuous mode. (TR=0).

• Do not use auto iris lens with the auto shutter function. This may make the camera unstable.

Trigger polarity. TP=0, TP=1.

The default trigger polarity is active low (falling edge) (TP=0). It can be inverted to active high (TP=1).

Gamma. GS=0, GS=1

For CV-M71A, gamma is selectable between 0.45 (GS=1) and 1.0 (GS=0). Factory default is 1.0.

Gain settings. AS=0, AS=1.

The video gain can be selected between manual gain (AS=0), or AGC (AS=1). Manual gain is set by the master gain level command GA=. The reference level for the AGC is set by the AGC reference level AG=1 through AG=255. In AGC mode the video level is kept constant by the automatic gain control circuit within a 12 dB range. Together with the auto shutter function it keeps the video output constant over a wide range of illumination. For continuous mode only.

Master gain level. GA=-50 through +150.

This gain setting works on all three colors. GA=0 is 0dB gain, which is the normal working point. The range is from -3 dB to +12 dB.

Red gain level: GAR=-1024 through +2047.

Blue gain level: GAB=-1024 through +2047.

Red and blue gain level is used for manual white balance of the RGB output signal. Range -6dB to +6dB.

-22-

Page 25

CV-M71A

Master black level. BL=0 through BL=255.

Black level (or set-up level) sets the video level for black on all three colors.

Factory setting is 32 LSB for 10-bit or 8 LSB for 8-bit.

Red black level. BLR=-128 through +127.

Blue black level. BLB=-128 through +127.

These settings are used for fine adjustment of the black level for red and blue.

White Balance. WB=0 through WB=3.

Here the white balance mode is selected. There are three fixed values, 3200K, 4600K and 5600K. The manual range is from 2800K to 7000K. One-push 2800K to 6500K. Manual/one-push WB=0 makes it possible to use red and blue gain level to manually adjust the white balance. The one-push white balance function AW=0 and the button on the camera rear is active here.

One-push auto white balance. AW=0.

When this command is received, an automatic white balance is performed. Range 2800K to 6500K. The result can be seen when the command inquire result of WB is sent. AWRS?

Inquire result of WB. AWRS?

After a one-push white balance is done, the result can be called with this command. Returned error code 0 is busy; 1 is success; 2 is green is too bright; 3 is green is too dark; 4 is a time-out error.

Output select. OS=0 , OS=3

With OS=0, the video output is the analog RGB signal. With OS=3 the test pattern is output (Refer to “CV-M71A Test pattern” on page 6).

Iris video output.

The iris video output on the 4-pin of the 12-pin Hirose is 700 mv for 100% video out. The iris video signal is taken before the gain circuit. It is without sync.

The iris video signal can be used for auto iris lens drive in continuous mode.

Do not use the auto shutter (CCD iris) function together with an auto iris lens. It may result in an unstable regulation.

FIGURE 28.

One Push White Balance button.

A button located on the camera back is used for manual one push white balance.

Iris video output.

-23-

Page 26

CV-M71A

6.6 Mode and function matrix.

The following table shows which functions work in the different modes for CV-M71A.

Function

Mode TR 0 1 2 VD HD Out

Cont 0 aa a --aaa

EPS 1 aa - a

PWC 2 - - - a

SG 3 - - - - - - - -

a= ok, - = no function. *1 With smearless, only HD sync. accumulation can be used. *2 Long time exposure >3 frames is not possible with HD a-sync accumulation.

Shutter

SM=

TABLE 2.Mode and function matrix.

Smearless SLAccumulation

LS=

*1 *2

Ext

sync

- a -

Iris

Video

Remarks

-24-

Page 27

CV-M71A

7Configuring the Camera

7.1 Switch setting by internal SW301, SW302 and SW303.

•

SW301 is used for 75 ohm termination for trigger and HD/VD input.

• SW302 is used for communication port select , D-sub 9-pin or Hirose 12-pin , as for HD input.

• SW303 used for communication port select , D-sub 9-pin or Hirose 12-pin , as for VD input. The

switches are found inside the camera (seen from the back).

To access SW301, SW302 and SW303: Remove camera cover.

No Function

ON OFF

Setting

1 Trigger input Termination 75Ω TTL 2 3 Ext. HD input Termination 75Ω TTL 4 Ext. VD input Termination 75Ω TTL

TABLE 3.SW 301

No Function

ON OFF

Setting

1 HD IN/OUT select on D-sub 9-pin NC HD in

HD input

HIROSE 12pin or Dsub9Pin

TABLE 4.SW 302

No Function

VD IN/OUT select on D-sub 9-pin

VD input

HIROSE 12pin or Dsub9Pin

TABLE 5.SW303

D-sub 9 - pin Hirose 12-pin

Setting

ON OFF

NC VD in

D-sub 9-pin Hirose 12-pin

-25-

Page 28

CV-M71A

FIGURE 29.Switch 301, 302, and 303 position

7.2 RS-232C control

All configuration of the CV-M71 A camera is done by means of the RS-232C port on the 6-pin Hirose connector. The camera can be set up from a PC running terminal emulator software, or using JAI’s camera control software. Below is the description of the ASCII based short command protocol.

Baud Rate Data Length

Start Bit Stop Bit Parity Xon/Xoff Control

9600 bps 8 bit 1 bit 1 bit None None

RS-232C cable

CAMERA

TXD RXD GND

FIGURE 30. Communication setting.

Protocol

Transmit setting to camera:

NN=[Parameter]<CR><LF> (NN is any kind of command. Capital or lower case letters)

The camera answers:

COMPLETE<CR><LF>

To have all communication visible on the emulator screen, start with: EB=1<CR><LF> The camera answers:

COMPLETE<CR><LF>

1 CD 4 DTR 6 DSR 2 RXD 3 TXD 5 GND

7 RTS 8 CTS 9 CI

9 pin D-con PC COM PORT

-26-

Page 29

CV-M71A

Transmit request command to camera:

NN?<CR><LF> (NN is any kind of command.)

The camera answers:

NN=[Parameter]<CR><LF>

Transmit the following to have the camera actual setting:

ST?<CR><LF>

The camera answers:

A complete list of the current settings

Transmit the following to have a command list:

HP?<CR><LF>

The camera answers:

A list with all commands and possible settings

Invalid parameters send to camera: (99 is an invalid parameter)

SH=99<CR><LF>

The camera answers:

02 Bad Parameters!<CR><LF>

To see firmware number.

VN?<CR><LF>

To see camera ID. It shows the manufacturing lot number.

ID?<CR><LF>

7.3 CV-M71A command list

Command Name Format Parameter Remarks

A - General settings and useful commands

EB Echo Back

ST Camera Status Request ST?<CR><LF> Actual setting

HP Online Help Request HP?<CR><LF> Command List

ID Camera ID Request ID?<CR><LF> max 10 characters

MD Model Name Request MD?<CR><LF> max 10 characters

UD User ID

Firmware Program Version

Request

EB=[Param.] <CR><LF>

VN?<CR><LF>

UD=[Param.] <CR><LF>

UD?<CR><LF>

0=Echo off

1=Echo on

Off at power up

3 digits, for example

100 = Version 1.00

User can save and load

free text. (16 charac-

ters or less)

B - Shutter

TABLE 6.CV-M71A Command List

-27-

Page 30

Command Name Format Parameter Remarks

SM Shutter mode

SH Preset shutter

PE Programmable exposure

C - Trigger Mode

TR Trigger Mode

SL Smearless

LS HD Sync/Async. Accu.

SM=[Param.] <CR><LF>

SM?<CR><LF>

SH=[Param.] <CR><LF>

SH?<CR><LF>

PE=[Param.] <CR><LF>

PE?<CR><LF>

TR=[Param.] <CR><LF>

TR?<CR><LF>

SL=[Param.] <CR><LF>

SL?<CR><LF>

LS=[Param.] <CR><LF>

LS?

CV-M71A

0= Preset Shutter

1= Programmable exposure

2= Auto shutter

0=1/60(off), 1=1/100 2=1/120, 3=1/250 4=1/500, 5=1/1000 6=1/2000, 7=1/4000 8=1/8000, 9=1/15000 10=1/25000, 11=1/75000 12=2/100000, 13=1/150000 14-1/300000

0 to 628 (Actual exposure time when V =0 and SC=0. 1L is

26.7us.) 0=1/8L... 3.3us (1/300000s) 1=2/8L... 6.6us (1/150000s) 2=3/8L... 9.9 us (1/100000s) 3=48L... 13.3us (1/75000s) 4=1.5L... 66.7us : 627=624.5L... 16.7ms 628=625L :16.7ms (Shutter off)

0=Continuous

1=Edge pre-select

2-Pulse width control

3=Sensor Gate Control

0=Off

1=On

0=Sync

1=Async

Available when TR=0

and TR=1.

Available when SM=0

Available when SM=1

Available when TR=1

or 2.

TABLE 6.CV-M71A Command List

-28-

Page 31

Command Name Format Parameter Remarks

TP Trigger Polarity

D - Scanning format and video output

OS Output Select

E - Gain and analog signals setting

AS AGC Select

GA Master Gain Level

GAR Red Gain Level

GAB Blue Gain Level

WB White Balance

AWRS

AGC/Auto Shutter Refer-

ence

One-pushAuto White Bal-

ance

Inquire the status after-

one-push AWB

CV-M71A

TP=[Param.] <CR><LF>

TP?

OS=[Param.] <CR><LF>

OS?<CR><LF>

AS=[Param.] <CR><LF>

AS?<CR><LF>

AG=[Param.] <CR><LF>

AG?<CR><LF>

GA=[Param.] <CR><LF>

GA?<CR><LF>

GAR=[Param.] <CR><LF>

GAR?<CR><LF>

GAB=[Param.] <CR><LF>

GAB?<CR><LF>

WB=[Param.] <CR><LF>

WB?<CR><LF>

AW=[Para m . ] <CR><LF>

AWRS? < C R> <LF>

0=Active-Low

1=Active-High

0=Normal Image

1=Test Pattern

0=Off (Manual Gain Controlled)

1=ON

1 - 255

-50 to +150

(0 is 0dB.)

-1024 to +2047

0=Manual/One push AWB

1=3200K 2=4600K 3=5600K

0=Initiates one-push AWB

One of the following values will be replied from the camera 0=AWB has not been finished yet. 1-Succeeded. 2=Error1. Green image was too bright. 3=Error2. Green image was too dark. 4=Error3. Timeout=error occurred.

Available when AS=1

or SM=2

TABLE 6.CV-M71A Command List

-29-

Page 32

CV-M71A

Command Name Format Parameter Remarks

BL=[Param.]

BL Master Black Level

BLR Red Black Level

BLB Blue Black Level

GS Gamma Select

SW Sync/WEN Select

SY Sync on G

F - Saving and loading data in EEPROM

*If positive logic is used (TP=1), the first trigger pulse after power up will be ignored. TTL only.

Note: Do not try to use commands not on this list.

Load Settings (from Cam-

era EEPROM)

Save Settings (to Camera

EEPROM)

EEPROM Current Area No.

Request

BL?<CR><LF>

BLR=[Param.] <CR><LF>

BLR?<CR><LF>

BLB=[Param.] <CR><LF>

BLB?<CR><LF>

GS=[Param.] <CR><LF>

GS?<CR><LF>

SW=[Param.] <CR><LF>

SW?<CR><LF>

SY=[Param.] <CR><LF>

SY?<CR><LF>

LD=[Param.] <CR><LF>

SA=[Param.] <CR><LF>

EA=<CR><LF>

0 to 255

-128 to 127

0=1

1=0.45

0=Sync, 1=WEN

0=Off, 1=On

0=Factory data 1=User 1 area 2=User 2 area 3=User 3 area

1=User 1 area 2=User 2 area 3=User 3 area

Note the parameter 0 is not allowed in this case.

Default is GS=0

Latest used DATA AREA

will become the

default at the next

power up.

The camera returns

the latest used DATA

AREA

TABLE 6.CV-M71A Command List

-30-

Page 33

CV-M71A

8 Camera Control Tool for CV-M71A

The Camera Control Tool for Windows NT/2000/XP can be downloaded from www.jai.com. The control tool contains a camera control program and tools for making your own program.

For the integrator and experienced user, the Camera Control Tool is much more than a program with a Windows interface. It also provides an easy and efficient ActiveX interface built for MS Windows NT, 2000 and XP. The OCX interface has the ability to connect to the camera using the serial interface of the PC by reading and writing properties for the camera. This integration requires simple programming skills with Visual Basic, Visual C++ or similar languages in a Microsoft Windows environment.

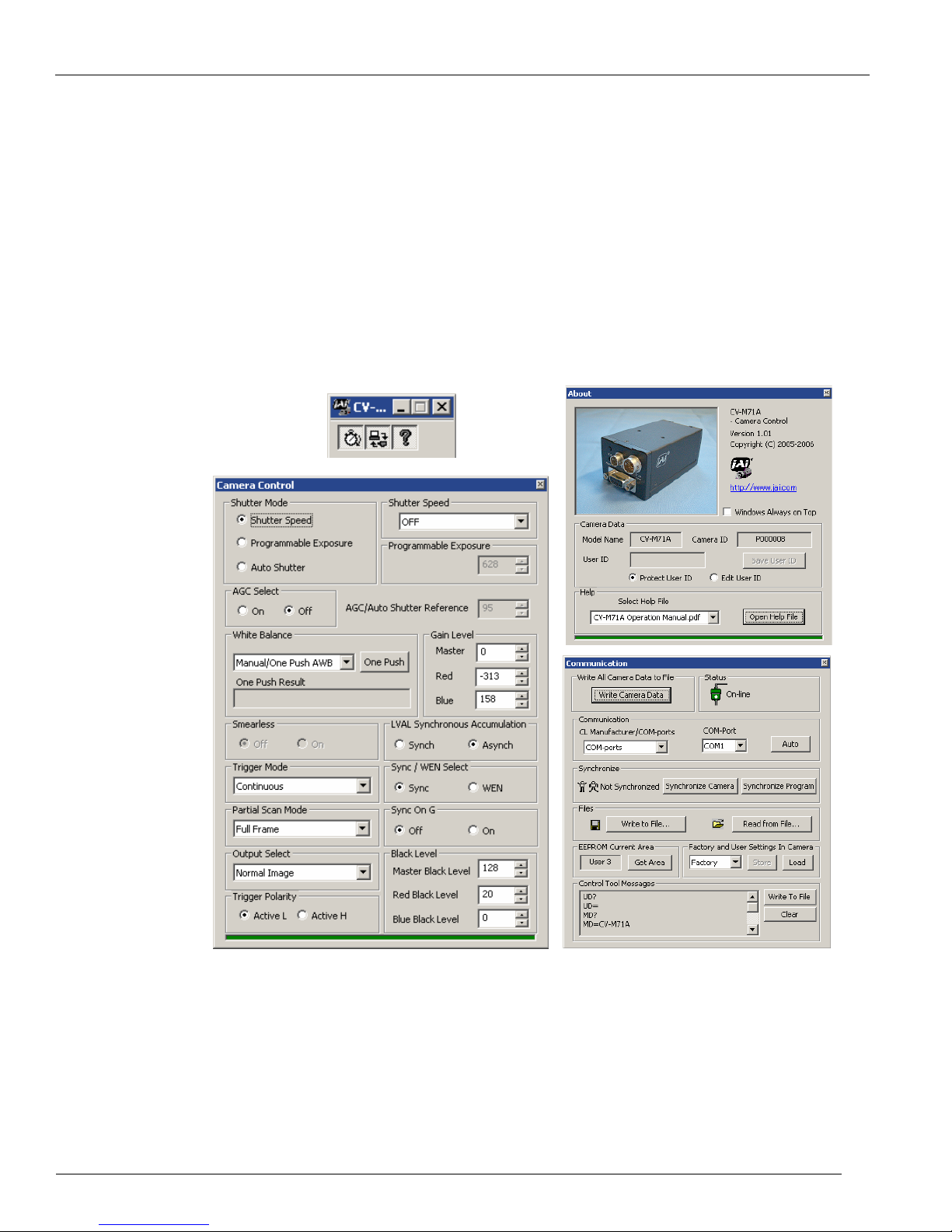

8.1 Control Tool Windows

-31-

Page 34

CV-M71A

8.2 Camera Control Tool Interface

The Camera Control Tool Software is based on a main Tool Bar and a number of associated Tool Windows. Each button in the Tool Bar opens a separate Tool Window when selected. The layout of the program can be adjusted by arranging the windows the way it is preferred. The program will store this information and recreate this layout when the program is restarted. All Camera Control Tools have a Communication Window and an About Window. The other window(s) contains camera control commands.

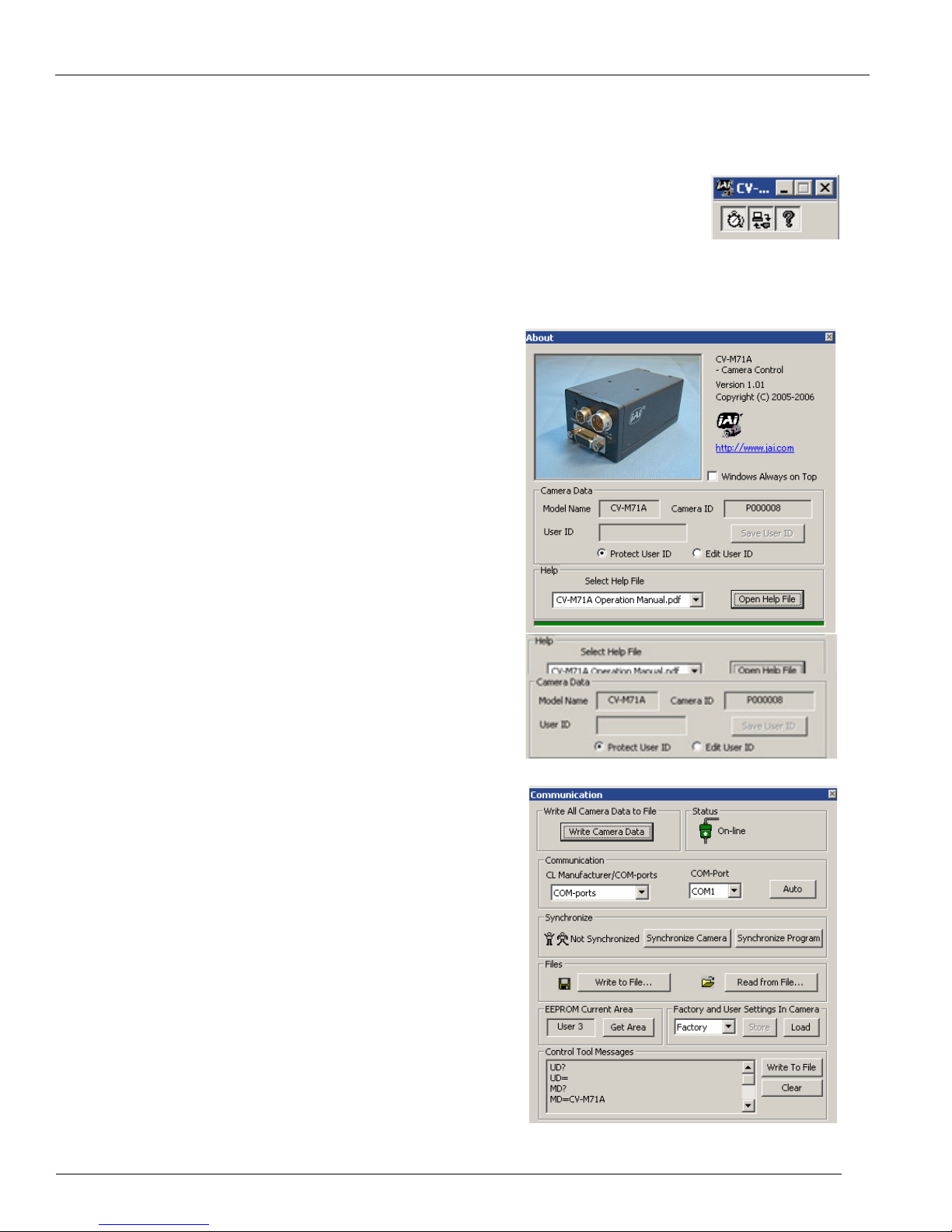

The About Window

The about window contains a picture of the camera and information about the program version, Internet connection to JAI A/S and access to the help documents. The List box that contains the help documents will list all files, which have the extension .pdf and that are found in the program (default) folder C:\Program Files\JAI A-S\’Control Tool Name’ It is possible to download updated operation manuals from the JAI website: http://www.jai.com/camera/manuals.asp/sprog=uk

For newer camera models the About window also shows Model Name, Camera ID and User ID. It is possible to edit and save free text in User ID.

At the bottom of the windows (except the Communication Window) is a colored bar. The bar is green when the Camera Control Tool is connected to a camera and the camera is turned on. The bar is red when the Camera Control Tool is not connected to a camera or when the camera is turned off.

The Communication Window

The Communication Window is used to connect the Camera Control Tool with the JAI camera. Depending on the camera there are two possible ways to communicate with a JAI camera.

RS-232: Select the communication port, where the serial cable is connected from the list box in the ‘Communication Port’ field, or click the ‘Auto’ button to search for a camera on communication port 1 to 16. The camera control program automatically sends a camera request on every communication port. The user is prompted to use a communication port if a camera answers the request.

-32-

Page 35

CV-M71A

RS-232 communication:

1. Select ‘COM-ports’ from the ‘CL Manufacturer/COM-ports’ list box.

2. Select the communication port where the serial cable is connected to the camera

from the ‘Serial Port’ list box or click the ‘Auto’ button to search for a camera on communication port 1 to 16.

The Serial Port list box and the Auto search button are only active when COM-ports is selected.

Auto search

Click the auto button to search for a camera on communication port 1 to 16. The camera control program automatically sends camera request on every communication port. The user is prompted to use a communication port if a camera answers the request.

This button is only used for RS-232 communication.

Off/On-line mode

The Camera Control Tool Application can run Off-line (without a camera attached) and all functions are fully functional in offline mode. Off-line mode is indicated in The Communication Window, where a status field with graphic and text indicates the on/off-line status. Changing the selected communication port (from the communication window) changes the on-line/ off-line status. If a camera is found on the selected communication port the application runs on-line otherwise off-line.

Changing the settings in the application will automatically update the camera settings when the application is online. If the application looses connection with the camera it will automatically go to off-line mode. The changed status is indicated in the communication window.

Synchronize program and camera

The Camera Control software has the ability to synchronize either the camera or the program. Click ‘Synchronize camera’ to write all settings from the program to the camera or click the ‘Synchronize program’ to load all settings from the camera to the program.

Files

When clicking the ‘Write to File’ or ‘Read from File’ button, the user is prompted for a file using a standard file dialog. New files are created if they do not already exist.

Files for camera settings have the extension cam. Information about the communication port is not stored in the files. All settings are automatically sent to the camera when a file has been loaded (if the camera is online).

Factory and User Settings

Use the Store button to store the current camera settings into the user settings area in EEPROM. Current camera settings are not saved when the camera is turned off. To save current camera settings you have to save them on the available user areas.

-33-

Page 36

CV-M71A

Use the Load button to restore previously saved camera settings from either the Factory or the User EEPROM area.

Write All Camera Data to File.

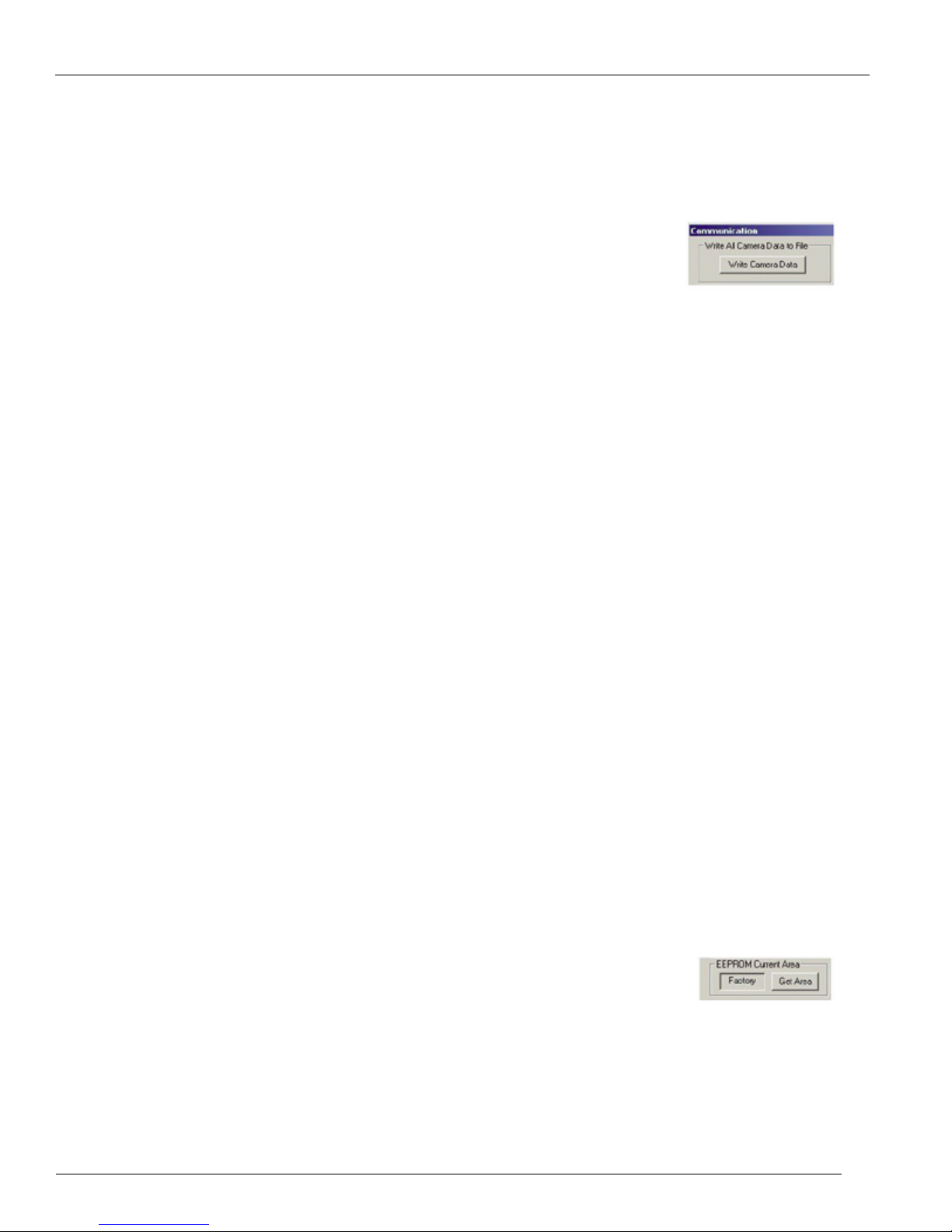

Click the ‘Write Camera Data’ button to save all camera settings into a text file. The information that can be saved is:

Model Name, Camera ID, User ID, Firmware Version, Current Settings, Factory Settings and the available User Areas. The file is formatted as shown:

CameraData.txt

Model Name Camera ID User ID Firmware Version

Shutter Mode Shutter Speed Shutter Speed Shutter Speed Shutter Speed Shutter Speed

Shutter Speed OFF OFF OFF OFF OFF

AGC Level9595 959595

Trigger Mode Continuous Continuous Continuous Continuous Continuous

Smearless Off Off Off Off Off

LVAL Accumulation Async Async Async Async Async

Black Level Blue -23 -23 -23 -23 -23

Trigger Polarity Active Low Active Low Active Low Active Low Active Low

Partial Scan Mode Full Frame Full Frame Full Frame Full Frame Full Frame

Output Select Normal Image Normal Image Normal Image Normal Image Normal Image

AGC Select Off Off Off Off Off

White Balance Manual/One Push AWB Manual/One Push AWB Manual/One Push AWB Manual/One Push AWB Manual/One Push AWB

Master Gain Level 0 0 0 0 0

Progr. Exp. 628 628 628 628 628

Gain Level Red -313 -313 -313 -313 -313

Gain Level Blue 158 158 158 158 158

Master Black Level 128 128 128 128 128

Black Level Red2020 202020

Sync On G Off Off Off Off Off

Sync/WEN Select Sync Sync Sync Sync Sync

CV-M71A P000008

110

Current Settings

Factory Settings

User Area 1 User Area 2 User Area 3

FIGURE 31.Sample camera data field

EEPROM Current Area

Click the ‘Get Area’ button to read the power up settings area number.

8.3 Using the Camera Control Tool

Here is some practical information about the Camera Control Tool:

1. The Camera Control Tool bar is always on top of other windows.

2. When you minimize the Camera Control Tool bar, all open windows will close.

-34-

Page 37

CV-M71A

3. It is possible to work with the Camera Control Tool whether the camera is online or offline.

4. The newer JAI cameras always start up with the last used user area (but for some old models it will start up with the last saved user area.)

5. The Camera Control Tool saves the last used settings (not the user area), which do not have to be the same as for the last saved user area.

6. The setup file ‘CameraName.ini’ stores all information about camera settings. When the program is started the last settings for the program are loaded from the file ‘CameraName.ini’.

7. When you turn on the camera and the Camera Control Tool, it is possible that the Camera Control Tool does not show the actual camera settings (see 4. and 5.).

aTo obtain the camera settings click Synchronize Program.

bTo send the settings saved in the Camera Control Tool (last used settings) to the cam-

era click Synchronize Camera.

cTo see which area the camera has started up in click Get.

-35-

Page 38

9 External Appearance and Dimensions

CV-M71A

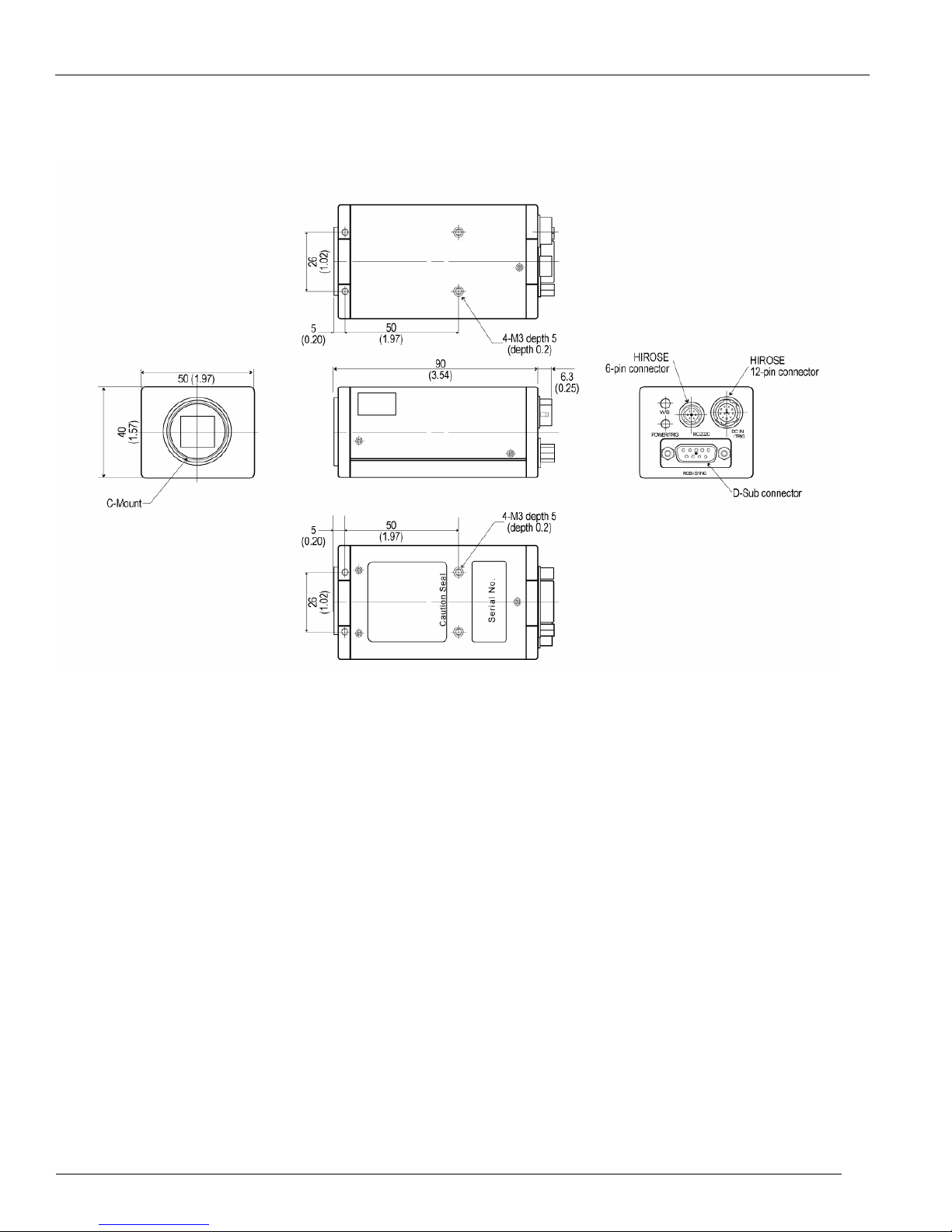

FIGURE 32.External dimensions

-36-

Page 39

CV-M71A

10 Specifications

10.1 Spectral sensitivity

CV-M71A has a built in IR-stop and optical low-pass filter block in front of the CCD sensor.

FIGURE 33.Spectral sensitivity for CV-M71 CL

10.2. Specification table

Specifications CV-M71 A

Scanning system Progressive scan

Frame rate Full Frame : 60 frames/sec. Progressive (625 lines/frame)

Partial Scanning : 250 fps (max.) (150 lines/frame)

Pixel clock 36.15 MHz

Line frequency 37.5 kHz

(964 pixels clock/line)

CCD sensor 1/2”. Color ICX-415AQ

Sensing area 6.4 (h) x 4.8 (v) mm

Cell size 8.3 (h) x 8.3(v) µm

Effective pixels 782 (h) x 582 (v)

Pixels in video ou t p u t . 767 (h) x 576 (v) 60 fp s . H = 3 7 . 5 kHz

Sensitivity on sensor

9.1 Lux (Min. gain, 100% video, gamma=1 )

S/N ratio 54 dB on Green, gamma 1, gain 0dB

1.2 Lux (Max. gain, 50% video ,gamma=1 )

TABLE 7.CV-M71A Specifications

-37-

Page 40

CV-M71A

Video output.

Analog ( D-sub 9 pin ), R,G,B 0.7V p-p each, (75 ohm)

Sync ON/OFF on Green channel

Iris video output. Analog 0.7 V p-p High Impedance

Gain

Gain range

Manual and automatic (Only continuous mode for auto)

-3 to +12 dB. (–3 to +9 dB in auto gain)

Gamma 0.45/1.0 ( Default = 1)

Synchronization Int. X-tal. / Ext. HD/VD

Ext HD/VD in. 4 V ±2 V. TTL or 75 Ω terminated

Tracking range for external HD 37.50 KHz ±1%

Trigger input. 4 V ±2 V. TTL or 75 Ω terminated

Via Hirose 12P or Hirose 6P

XEEN/WEN output 4 V p-p V from 75 Ω source

Trigger modes Edge Pre-Select, Pulse Width Control, and Sensor Gate control

Accumulation HD synchronous or a-synchronous

Preset Shutter speed EPS 15 fixed steps 1/60 to 1/300,000 second

Programmable exposure EPS Full frame: 1/60 to 1/300,000 second

Partial Scanning: 1/2(1/121),1/4(1/249)1/8(1/503) to 1/300,000s

Programmable exposure PWC 1/15,000 to 2 sec

Pulse width control HD sync accumulation: 2 lines to 120 frames.

HD a-sync accumulation: 2 lines to 3 frames.

Auto shutter range Full frame: 1/60 to 1/25,000

Readout modes Full, Partial Scanning ( 1/2,1/4 ,1/8), Smear less

W hi te ba l an c e R a ng e M a nu a l, on e -p u sh , 3 2 00 K , 4 60 0 K an d 5 60 0K

One-Push 2800K to 6500K. Manual 2800K to 7000K

Control interface RS 232C (9600bps)

Functions controlled by RS 232C Shutter, Trigger, Read out, Polarity, Black level, Gain,

Operating temperature

-5

C to +45OC

Humidity 20 to 80% non-condensing

Storage temp/humidity

-25

C to +60OC/20% to 80% non-condensing

TABLE 7.CV-M71A Specifications

-38-

Page 41

CV-M71A

Vibration 10G (20Hz to 200Hz, XYZ)

Shock 70G

EMC CE (EN61000-6-1 and EN61000-6-3) , CC part 15 class B

Power 12V DC ± 10%. <0.35A

Lens mount C-mount (Flange back 17.526 mm -0.05mm)

Image center ±0.1mm from C-mount center

Dimensions 40 x 50 x 90 mm (H x W x D)

Weight 240 g

Note: Above specifications are subject to change without notice

TABLE 7.CV-M71A Specifications

-39-

Page 42

CV-M71A

11 Appendix

11.1 Precautions

•

Personnel not trained in dealing with similar electronic devices should not service this camera.

• The camera contains components sensitive to electrostatic discharge. The handling of these devices

should follow the requirements of electrostatic sensitive components.

• Do not attempt to disassemble this camera.

• Do not expose this camera to rain or moisture.

• Do not face this camera towards the sun, extreme bright light or light reflecting objects.

• When this camera is not in use, put the supplied lens cap on the lens mount.

• Handle this camera with the maximum care.

• Operate this camera only from the type of power source indicated on the camera.

• Power off the camera during any modification such as changes of jumper and switch setting.

11.2 Typical Sensor Characteristics

The following effects may be observed on the video monitor screen. They do not indicate any fault of the camera, but do associate with typical sensor characteristics.

V. Ali a sin g

When the CCD camera captures stripes, straight lines or similar sharp patterns, a jagged image may appear on the monitor.

Blemishes

• Some pixel defects can occur, but this does not have a practical effect on the camera’s operation.

• No CCD spots are visible when cameras are shipped.

• In general, photo diodes comprising a CCD sensor can be damaged by cosmic rays and as a result,

spots may appear on the CCD sensor.

• Please use care not to expose the camera to cosmic rays during storage and transportation.

• We recommend sea shipment instead of air transport due to the strong influence of cosmic rays on

the camera.

• Pixel defects may be exaggerated depending on ambient temperature and/or camera settings such

as gain up or long term exposure, and accordingly, the camera should be used within the specifications.

Patterned Noise

When the sensor captures a dark object at high temperature or is used for long time integration, fixed pattern noise may appear on the video monitor screen.

-40-

Page 43

CV-M71A

Caution when installing the lens on the camera

When the lens is installed to the camera, floating dust may be attached to the surface of the lens or CCD of the camera. The Lens cap and the camera cap should be kept on until installation. The work should be done in a clean environment. When installing, the surface of the camera should be downward so that dust does not get into and stick to the lens. Be careful not to touch the surface of the lens.

Exportation

When exporting this product, follow the export regulations of your country.

11.3 References

1. This CV-M71A manual is available for download at www.jai.com

2. The data sheet for the CV-M71A is available for download at www.jai.com

3. Camera control software is available for download at www.jai.com

4. Specifications for the CCD sensor Sony ICX-415AQ can be found at www.jai.com

-41-

Page 44

12 Users Record

CV-M71A

Camera Type CV-M71 A Revision: Revision B

Serial No. Firmware Version

For camera revision history, please contact your local JAI distributor.

User Mode Settings:

User Modifications:

DECLARATION OF CONFORMITY

AS DEFINED BY THE COUNCIL DIRECTIVE

89/336/EEC

EMC (ELECTROMAGNETIC COMPATIBILITY)

WE HEREWITH DECLARE THAT THIS PRODUCT

COMPLIES WITH THE FOLLOWING PROVISIONS APPLYING TO IT.

EN-50081-1 EN-50082-2

Company and product names mentioned in this manual are trademarks or registered trademarks of their respective owners. JAI A-S cannot be held responsible for any technical or typographical errors and reserves the right to make changes to products and documentation without prior notification.

JAI A-S, Denmark

Phone +45 44578888 Fax +45 4491 8880 www.jai.com

JAI Corporation, Japan

Phone +81 45 440 0154 Fax +81 45 440 0166 www.jai.com

JAI UK Ltd., England

Phone +44 1895 821 481 Fax +44 1895 824 433 www.jai.com

JAI PULNiX Inc., USA

Phone +1 408 383 0300 Fax +1 408 383 0301 www.jaipulnix.com

-42-
